Test case introduction

  • Flow in channel with sudden widening
  • Test case geometry:

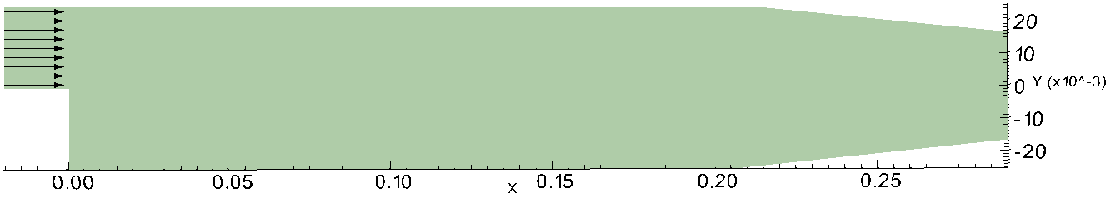

openfoam tutorial backward facing step pitzDaily sketch

Figure: Backward-Facing-Step geometry

  • Physical properties:
    • Inlet velocity: U = 10 m/s
    • Inlet width: h = 2.54 cm
    • Turbulent air flow, $ \nu = 1\cdot10^{-5} \Rightarrow Re \approx 25 400 $
    • Incompressible fluid flow
    • Isothermal
    • Steady state
