Viewing the mesh

  • Run command paraFoam to view the mesh (runs ParaView with special options)
    # cd $FOAM_RUN /pitzDaily
    # paraFoam
openfoam tutorial backward facing step pitzDaily mesh

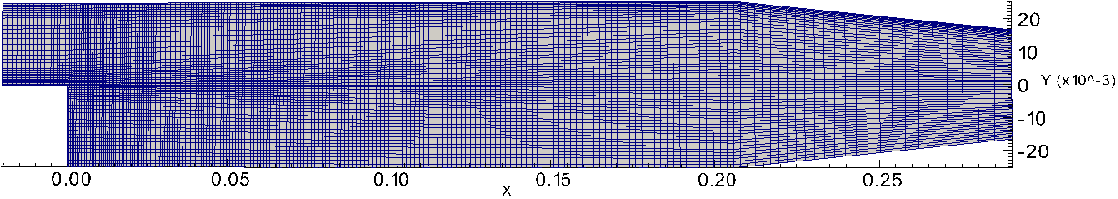

Figure: Backward-Facing-Step tutorial, computational mesh
