Francis Turbine - Physical Properties

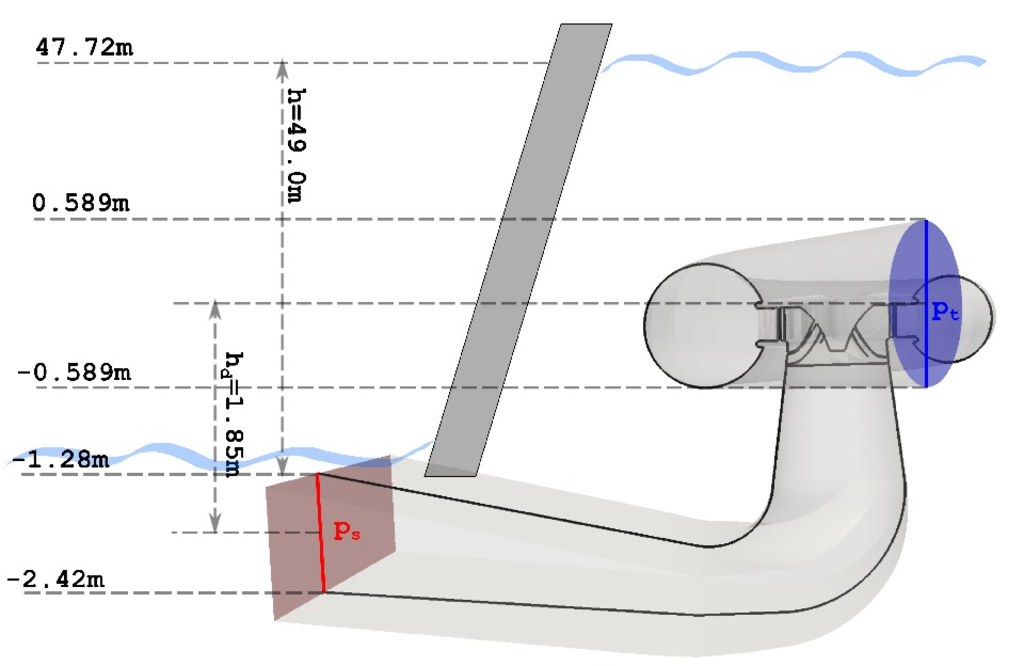

Figure: Parameters of the tutorial case geometry. Real water levels and dimensions are indicated.
- Steady-state, incompressible, isothermal fluid flow
- Newtonian fluid:
- Medium: Water
- Viscosity (at
C):
- Wheel speed:
- Inlet: Total pressure (
) - Outlet: Static pressure (
) - Turbulent flow,
turbulence model - MRF (Multiple Reference Frame) method for rotation of rotating parts
