Multi-region approach
In general, this methodology allows working with any number of regions. This computational model consists of three parts (regions). We consider following regions:
- stator is static part of the model, fluid is flowing over stator blade
- rotor is rotational part of the model, fluid is flowing over rotor blade
- solid is solid part of the model, rotor blade, no flow, only temperature equation is solved, can be switched off to run just fluid flow simulation with adiabatic walls
[stator]

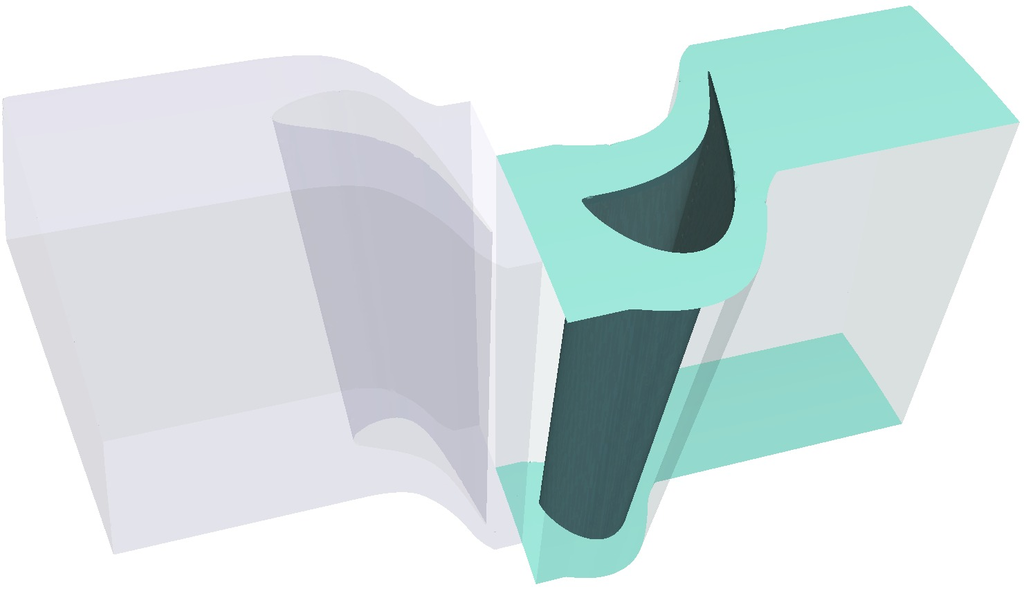

[rotor]

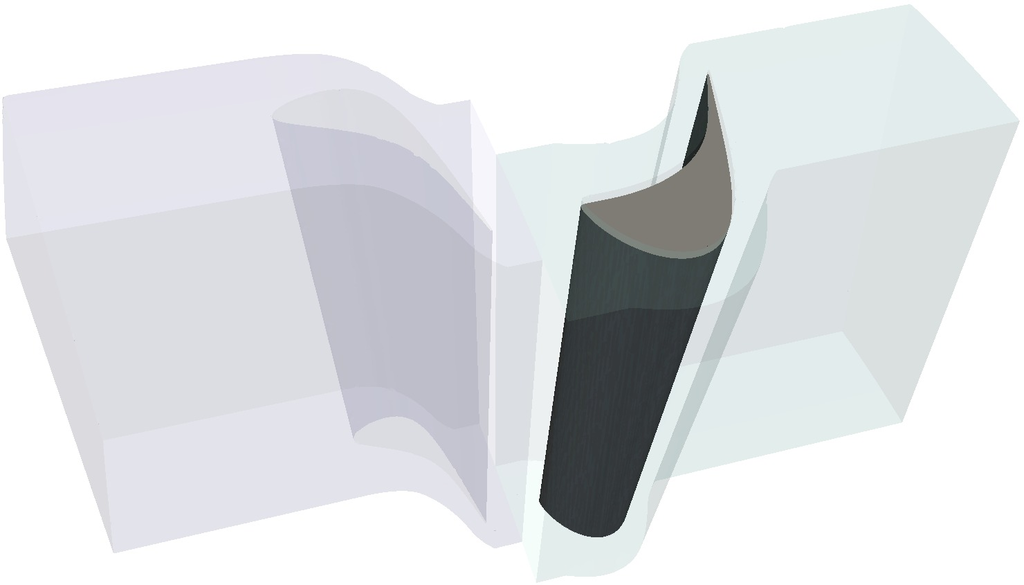

[solid]
Figure: Three regions of axial turbine computational model.
During simulation, each region is computed individually and communicates with other regions through special boundary conditions.
