Centrifugal Pump CFD & FEA Simulation

This study shows a complex CFD and FEA analysis of centrifugal pump using simulation environment TCAE

TCAE Main Page - Download This Tutorial - CFD Simulation Report - FEA Simulation Report


TCAE tutorial Centrifugal Pump benchmark interface


Centrifugal Pump Simulation Benchmark Introdution


This study presents a complex step-by-step analysis of a centrifugal pump from its preprocessing to an advanced CFD & FEA simulation, including FSI and modal analysis and advanced turbomachinery postprocessing. The simulation software used for this analysis is TCAE - a comprehensive simulation environment based on open-source. The main goal of this study is to show in detail how to make a comprehensive CFD & FEA + FSI analysis of the centrifugal pump characteristics: efficiency, head, torque, power, pressure, cavitation properties, losses, material stress of the impeller, material displacement of the impeller, modal analysis of the impeller, and many more. Some useful terminology of pumps is described in this article.

TCAE tutorial Centrifugal Pump all components

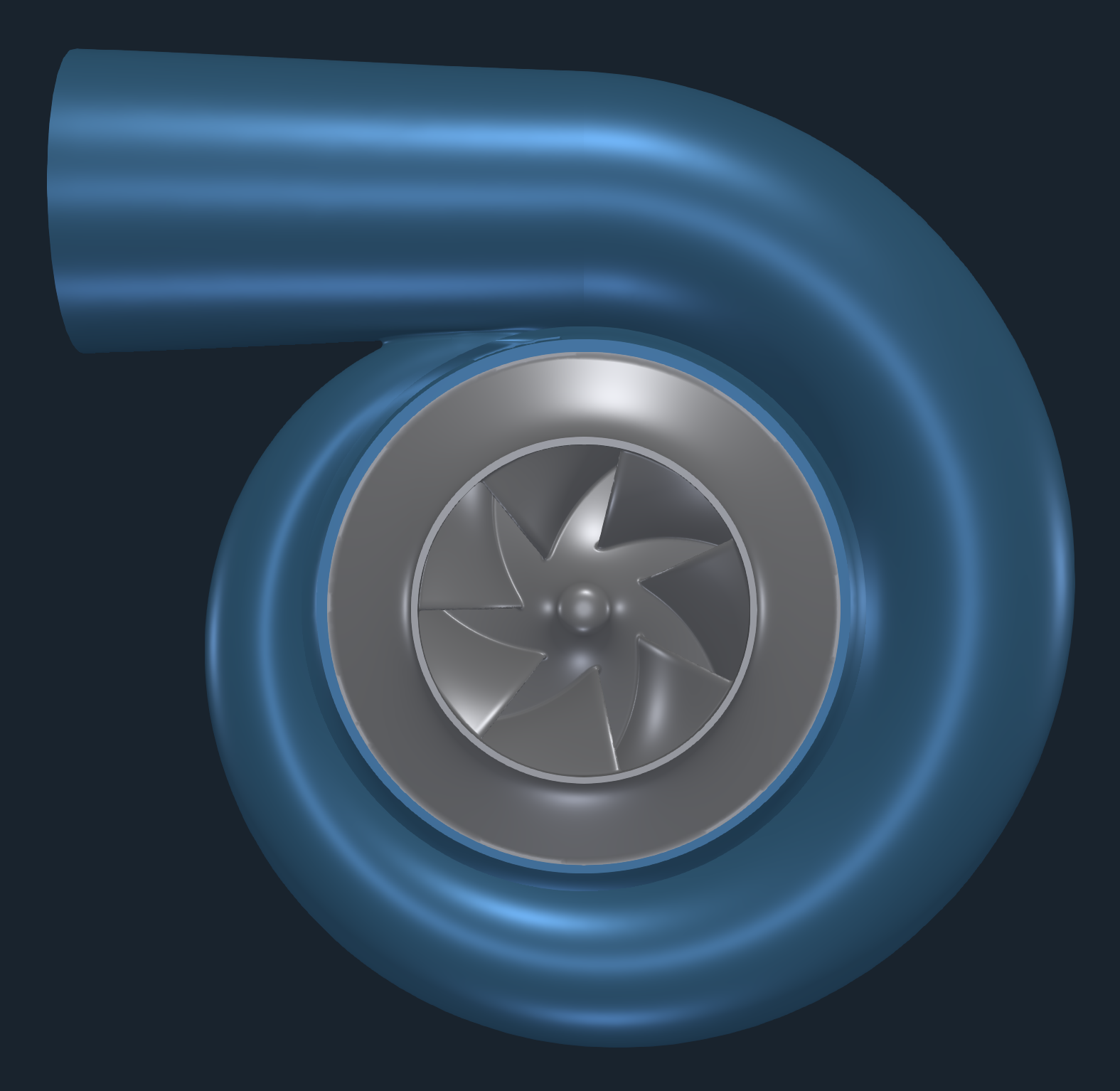

Centrifugal Pump Design

A typical input for a detailed simulation analysis is a watertight (wet) surface model in form of STL surface. For CFD simulation, it is needed to have a closed watertight model (sometimes called waterproof, or model negative, or wet surface) of the fan inner parts where the air flows. For FEA simulation, it is needed to have a closed surface model of solid of the impeller in form of a single one STL surface.

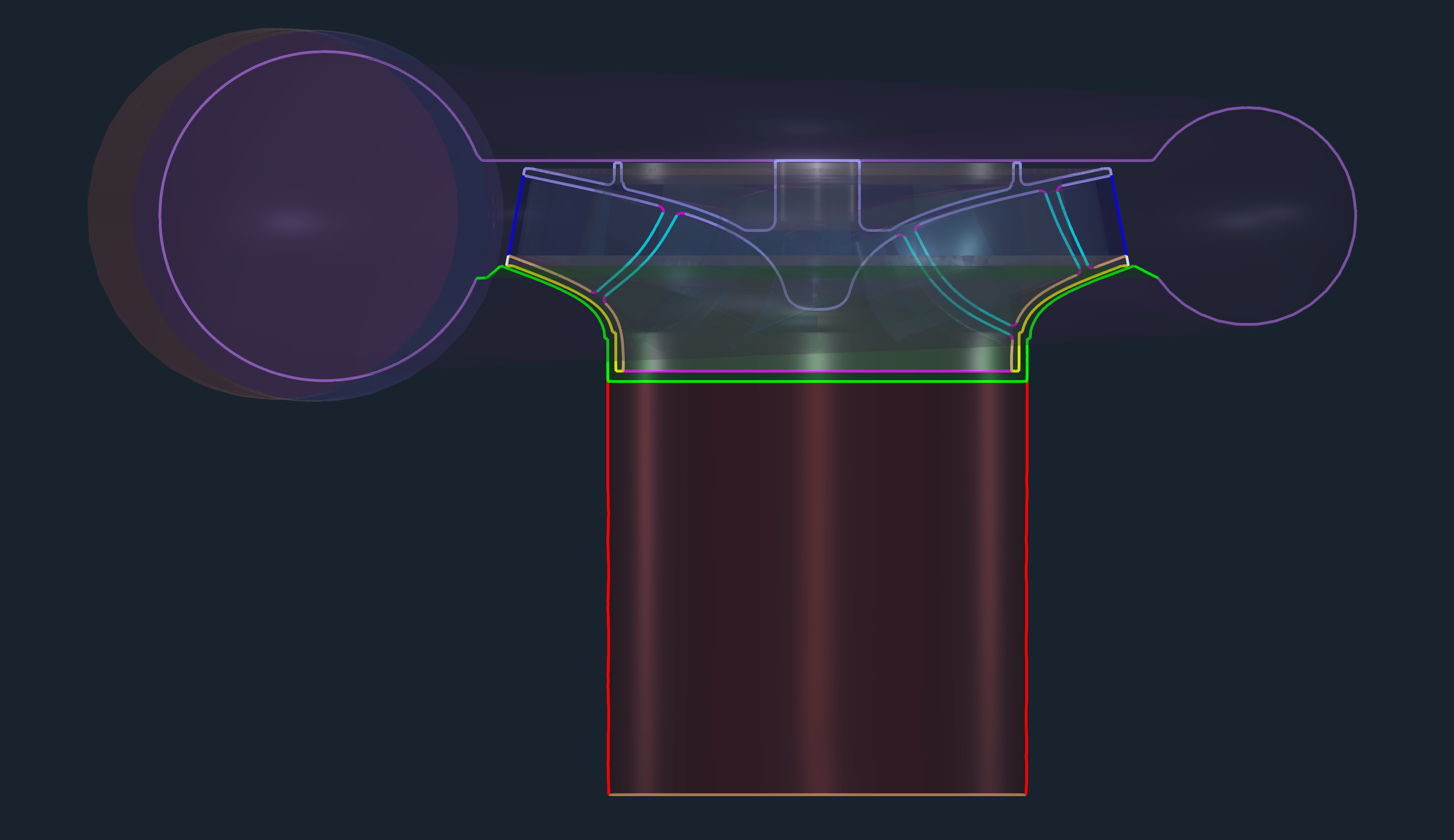

Centrifugal Pump with leakage - meridional view

In general, there are multiple ways how the centrifugal pump model can be created. The CAD model of the centrifugal pump can be generally created in any CAD software manually or in an automated way via parametric model. Or, engineers can use a special dedicated software for turbomachinery design like for example CFturbo, Concepts NREC, or TURBOdesign Suite and create the CAD model and export STL surface. Alternatively, the surface model of a centrifugal pump can be created in an open-source software like for example Salome, FreeCAD, or Open Cascade. In any case, a centrifugal pump can be described with the help of a set of parameters that describe all the important shapes and measures of the pump. A very typical view in the design stage of any turbomachinery is meridional view.



Centrifugal Pump Benchmark - CFD Preprocessing

A typical input for a detailed simulation analysis is a watertight (wet) surface model in form of an STL surface. For CFD simulation, it is necessary to get a closed watertight model (sometimes called waterproof model, or model negative, or wet surface) of the CAD model inner parts where the fluid flows. For FEA simulation, it is necessary to get a closed surface model of the solid of the impeller (impeller) in form of a single one closed STL surface. The CAD model of the centrifugal pump is typically received in the STEP or IGES CAD file format. Original CAD files are usually too complex for comprehensive CFD and FEA simulations, so certain preprocessing (cleaning) CAD work is generally required. While the original CAD model for this project was simplified and cleaned using Salome open-source software, any other standard CAD system can be used instead.

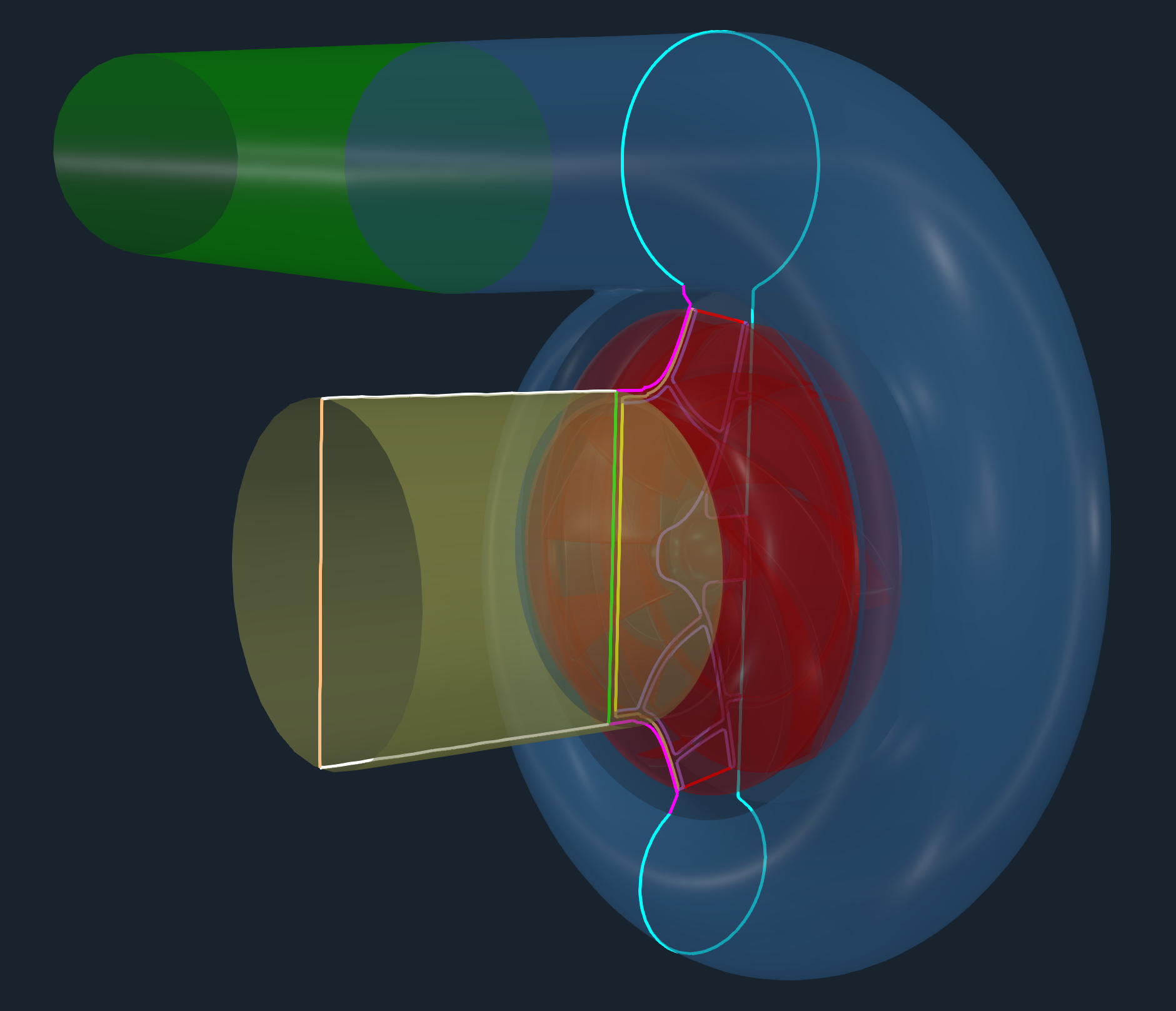

TCAE Centrifugal Pump Cut general view

The principle is always the same: the surface model has to be created; all the tiny, irrelevant, and problematic model parts must be removed, and all the holes must be sealed up (watertight surface model is required). This centrifugal pump CAD model is reasonably simple. The final surface model in the STL format is created as input for the meshing phase. This preprocessing phase of the workflow is extremely important because it determines the simulation potential and limits the CFD results. In this centrifugal pump project, the CAD model was split into four logical parts: Inlet tube, Impeller, Volute, and Draft tube. Each pump part (model component) is watertight and includes its own inlet interface, outlet interface, and corresponding walls (wall, blade, hub, shroud, fillets, stator blades, vane blades, ...). For each individual model component is created its own volume mesh first, and after that, for the simulation process, the individual meshes are merged into single one mesh by the TCAE processor.

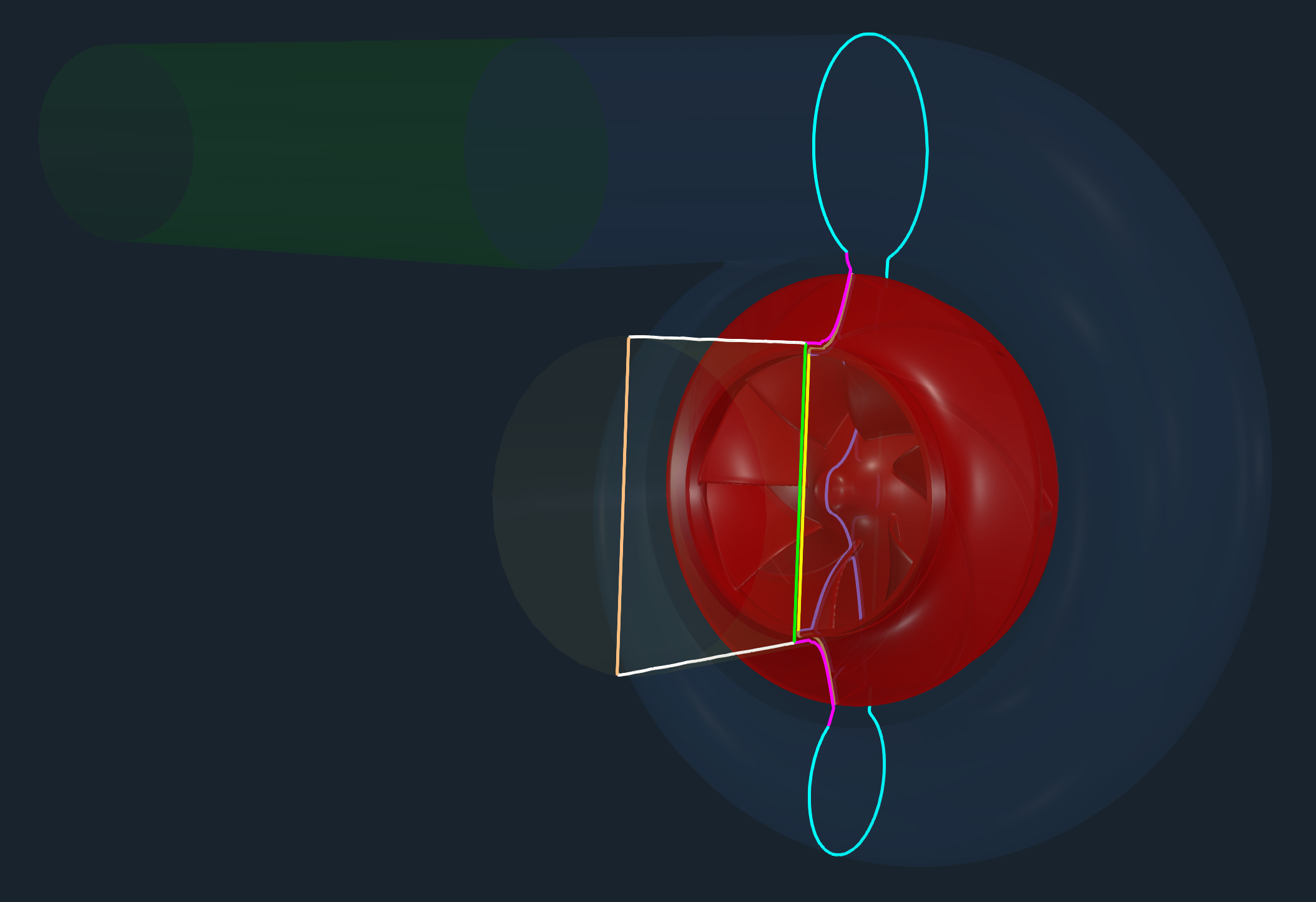

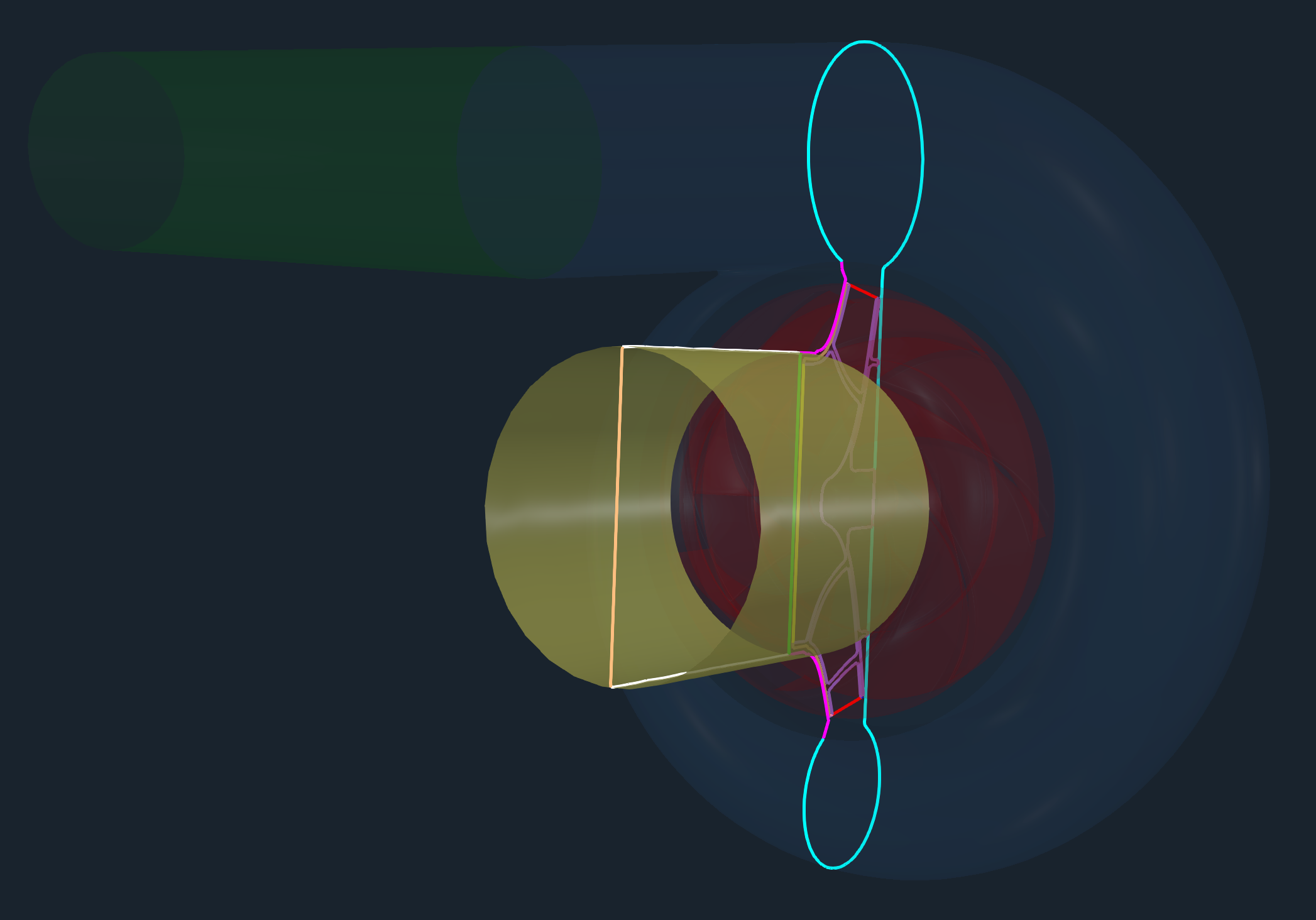

TCAE Centrifugal Pump Inlet tube CFD Preprocessing         TCAE Centrifugal Pump Impeller component tube Preprocessing


All the tiny, irrelevant, and problematic model parts must be removed, and all the holes must be sealed up. This centrifugal pump CAD model is reasonably simple. The surface model in the STL format is created as input for the meshing phase. This preprocessing phase of the workflow is extremely important because it determines the simulation potential and limits the CFD results.

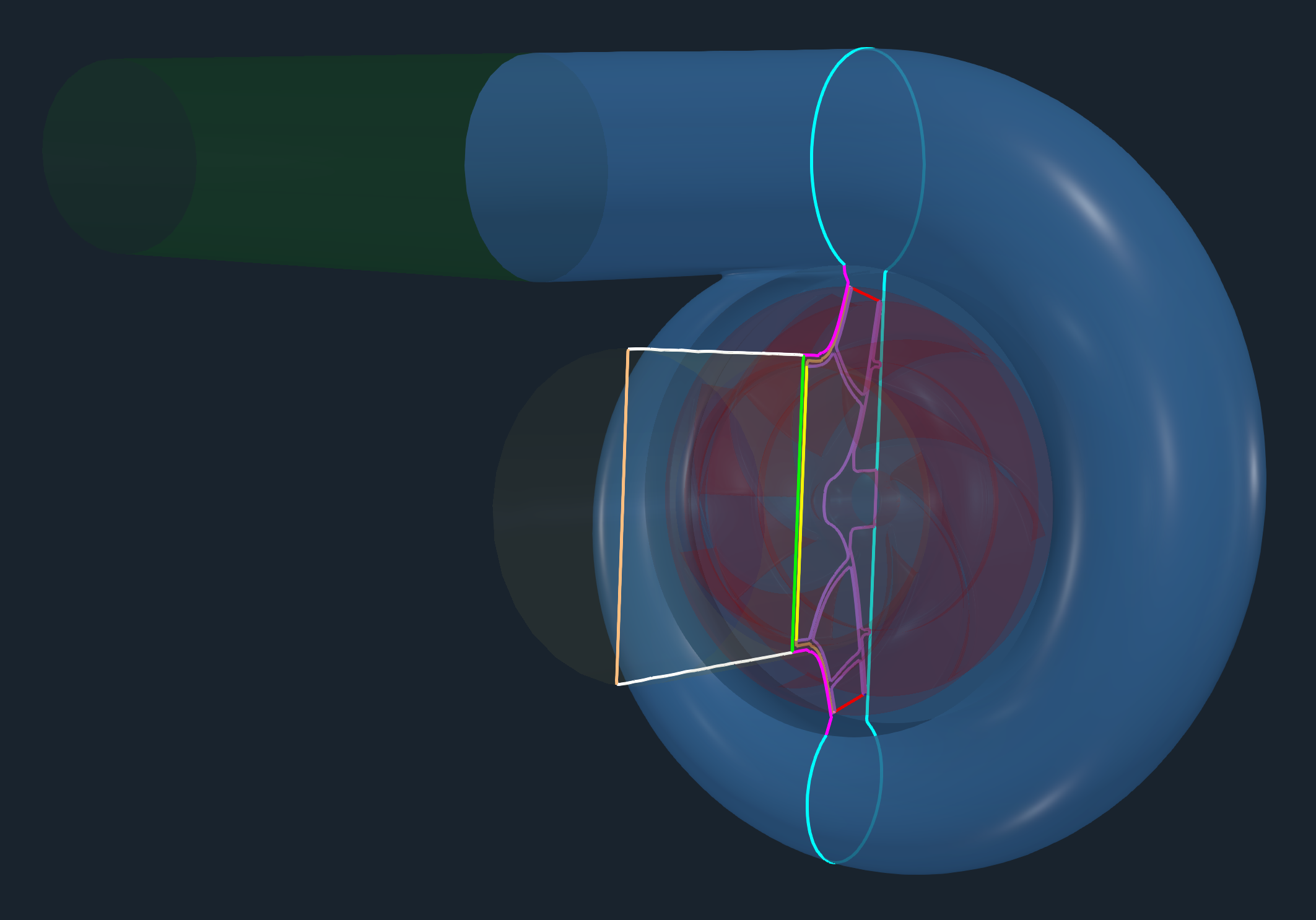

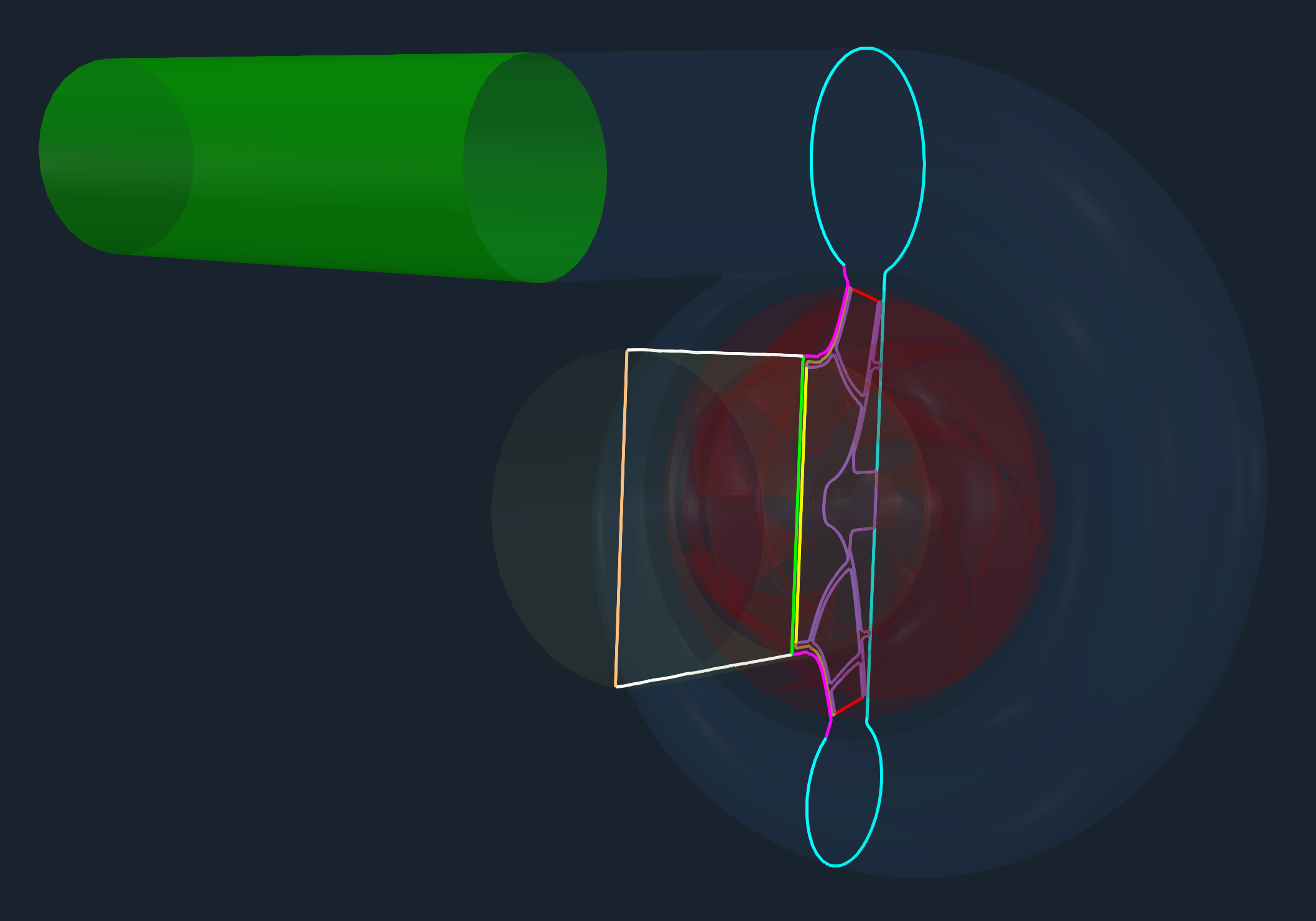

TCAE Centrifugal Pump Volute part Preprocessing         Centrifugal Pump Outlet component Preprocessing


The surface model data in .stl file format together with physical inputs are loaded in TCFD. Other option would be loading an external mesh in OpenFOAM mesh format, or loading an MSH mesh format (Fluent mesh format), or CGNS mesh format. This CFD methodology employs a multi component approach, which means the model is split into a certain number of components. In TCFD each region can have its own mesh and individual meshes comunicate via interfaces.



Centrifugal Pump - FEA Preprocessing

For the FEA analysis, the principle is very similar to CFD preprocessing. It is best to create a simple, single one, closed STL surface of the centrifugal pump impeller, for instance impeller-solid.stl.

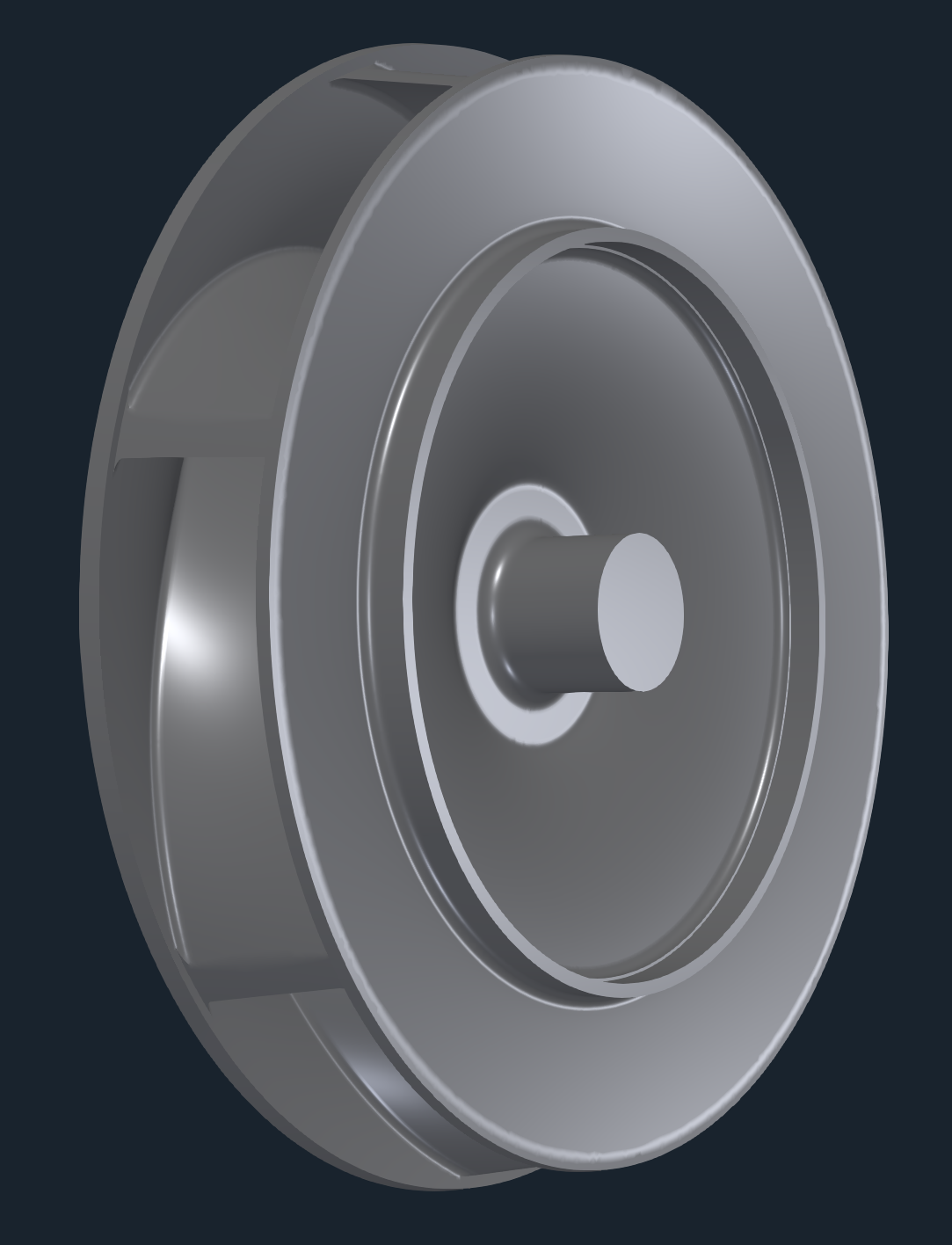

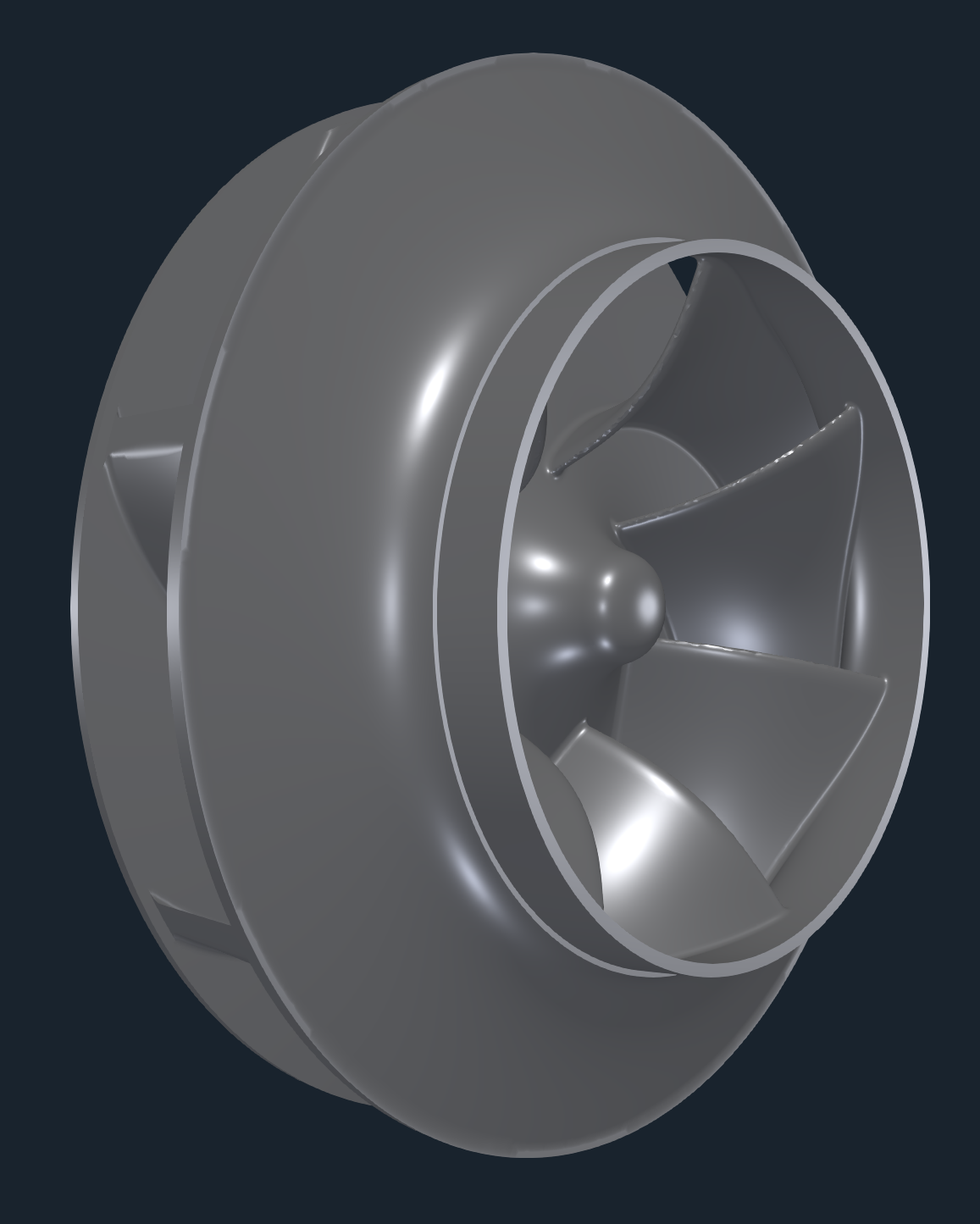

TCAE TCAD Runner Impeller solid STL front TCAE TCAD Runner Impeller solid STL back


Now the model is ready for meshing with TMESH using NetGen open-source application.

IMPORTANT NOTICE

The preprocessing phase is an extremely important part of the workflow. It sets all the simulation potential and limits. It should never be underestimated. Mistakes or poor quality engineering in the preprocessing phase can be hardly compensated later in the simulation phase and postprocessing phase!!!





Centrifugal Pump - CFD Meshing

In this particular study, the centrifugal pump model is split into four components. The Inlet pipe, the Impeller, the Volute, and the Outlet tube. Each component has its own mesh. All the meshes can be created automatically for each component within snappyHexMesh or loaded as external mesh. A combination of snappyHexMesh components and extrernal mesh components is allowed. Any number of model components is allowed. The computational mesh was created in an automated workflow using the snappyHexMesh application. For each model part, a cartesian block mesh was used as an initial background mesh, that is further refined. Basic mesh cell size is a cube, typically of a few milimeter edge. The mesh is gradually refined to the wall. The mesh refinement levels can be easily changed, to obtain the coarser or finer mesh, to better handle the mesh size. Inflation layers can be easily handled. The final mesh used consistes mostly of hexahedrons (approx 85%), the rest are polyhedras. The snappyHexMesh is not a compulsory meshing tool for TCAE at all. In case of need, any other external mesh can be loaded in TCAE directly in MSH, CGNS, or OpenFOAM format.

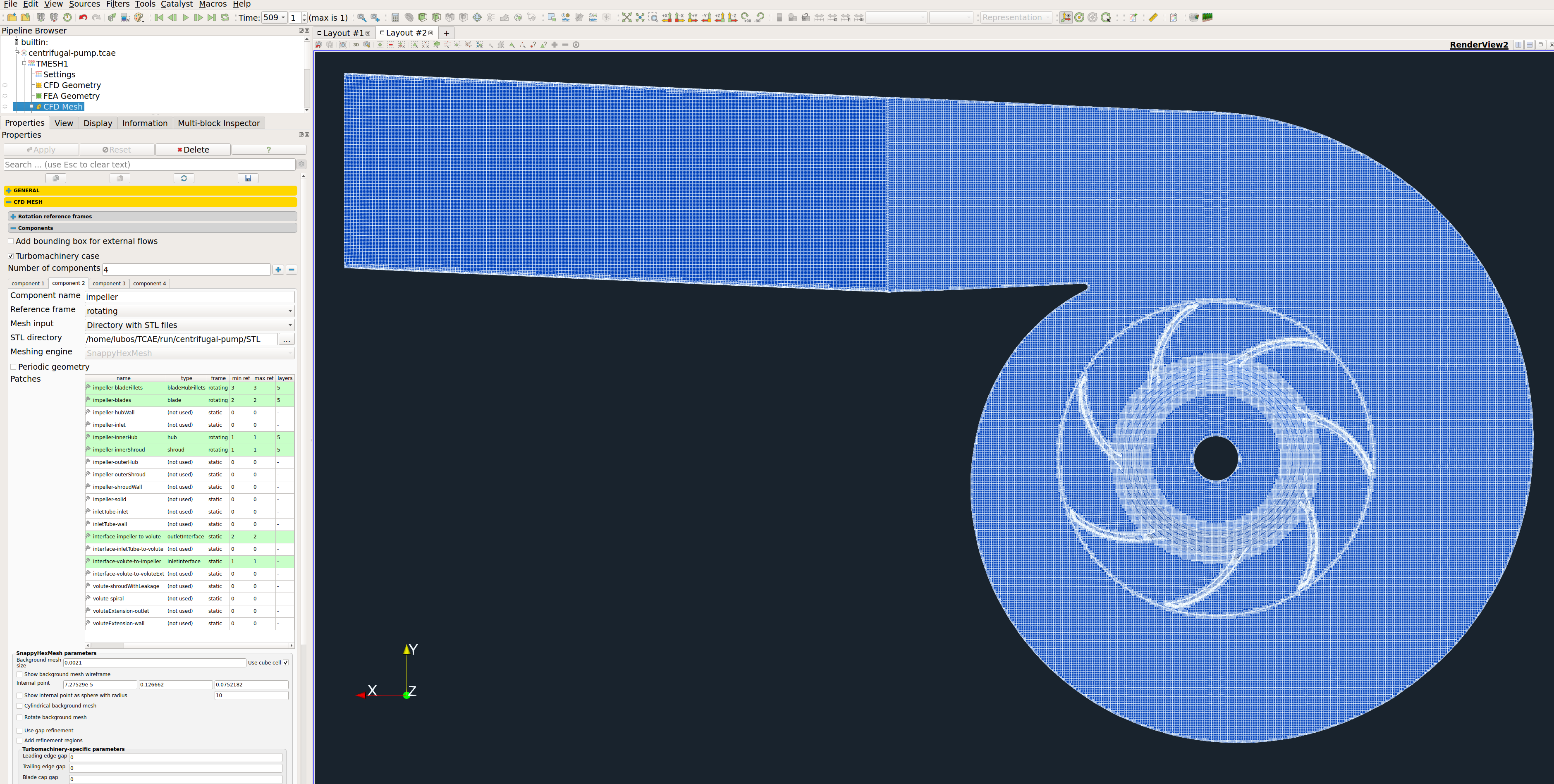

TCAE TMESH CFD Mesh GUI Graphical Interface Pump


For each model component, a cartesian block mesh is created (box around the model), as an initial background mesh, that is further refined along with the simulated object. Basic mesh cell size is a cube defined with the keyword "background mesh size". The mesh is gradually refined to the model wall. The mesh refinement levels can be easily changed, to obtain the coarser or finer mesh, to better handle the mesh size. Inflation layers can be easily handled if needed. For more details, see the TCAE documentation.

TCFD Centrifugal Pump Mesh View



Centrifugal Pump - FEA Meshing

The computational mesh for FEA is created in an automated software module TMESH, using the NetGen open-source application. All the mesh settings can be done in the TCAE GUI.

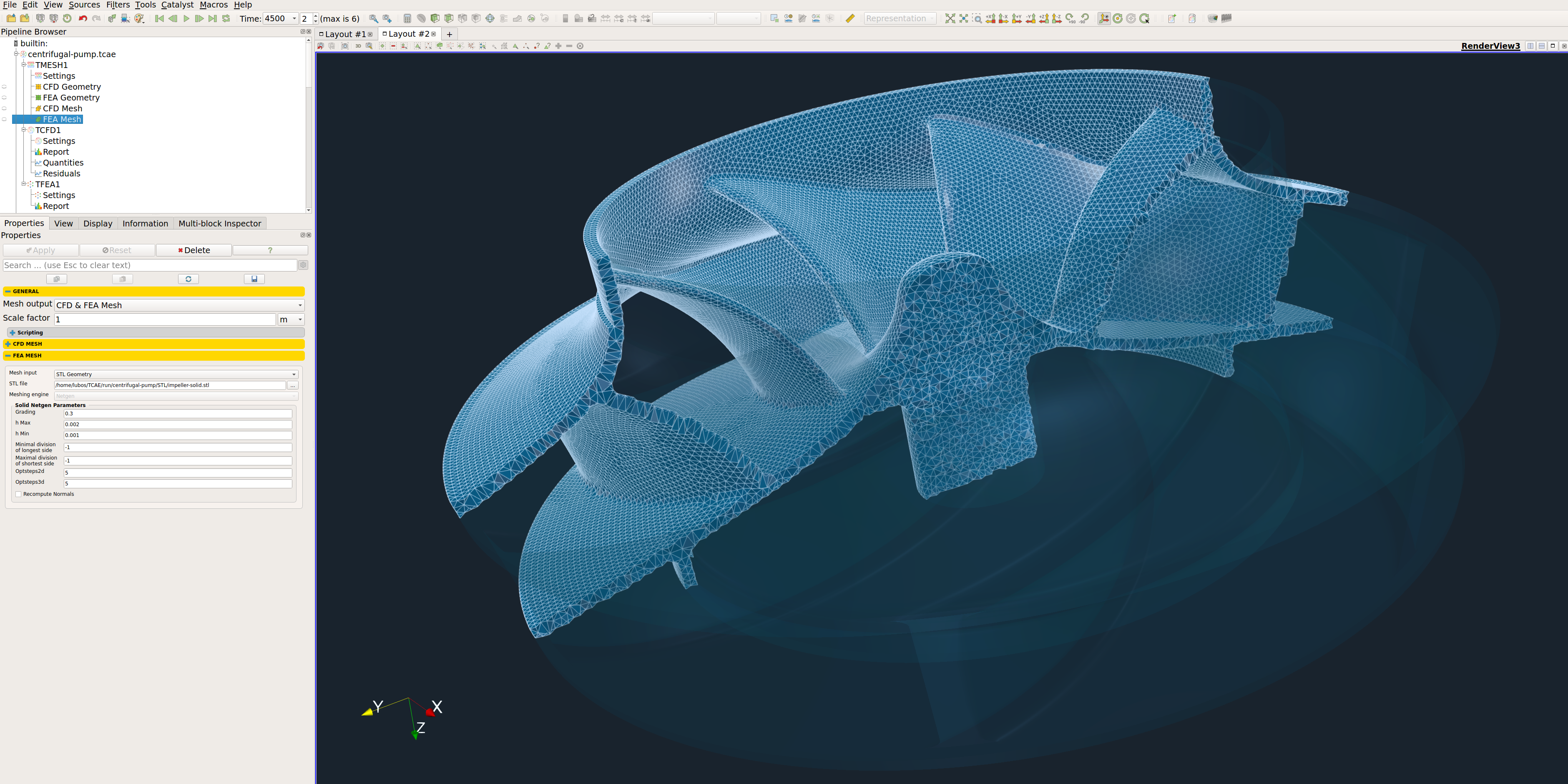

TCAE TMESH Pump FEA Mesh GUI Graphical Interface

The closed STL model is meshed with just a little effort because there are just a few parameters to set. The most important parameters for FEA meshing are "h Max" and "h Min" which mean the maximal and minimal mesh edge in meters. The mesh is created with an automated algorithm. For more details, see the TCAE documentation.

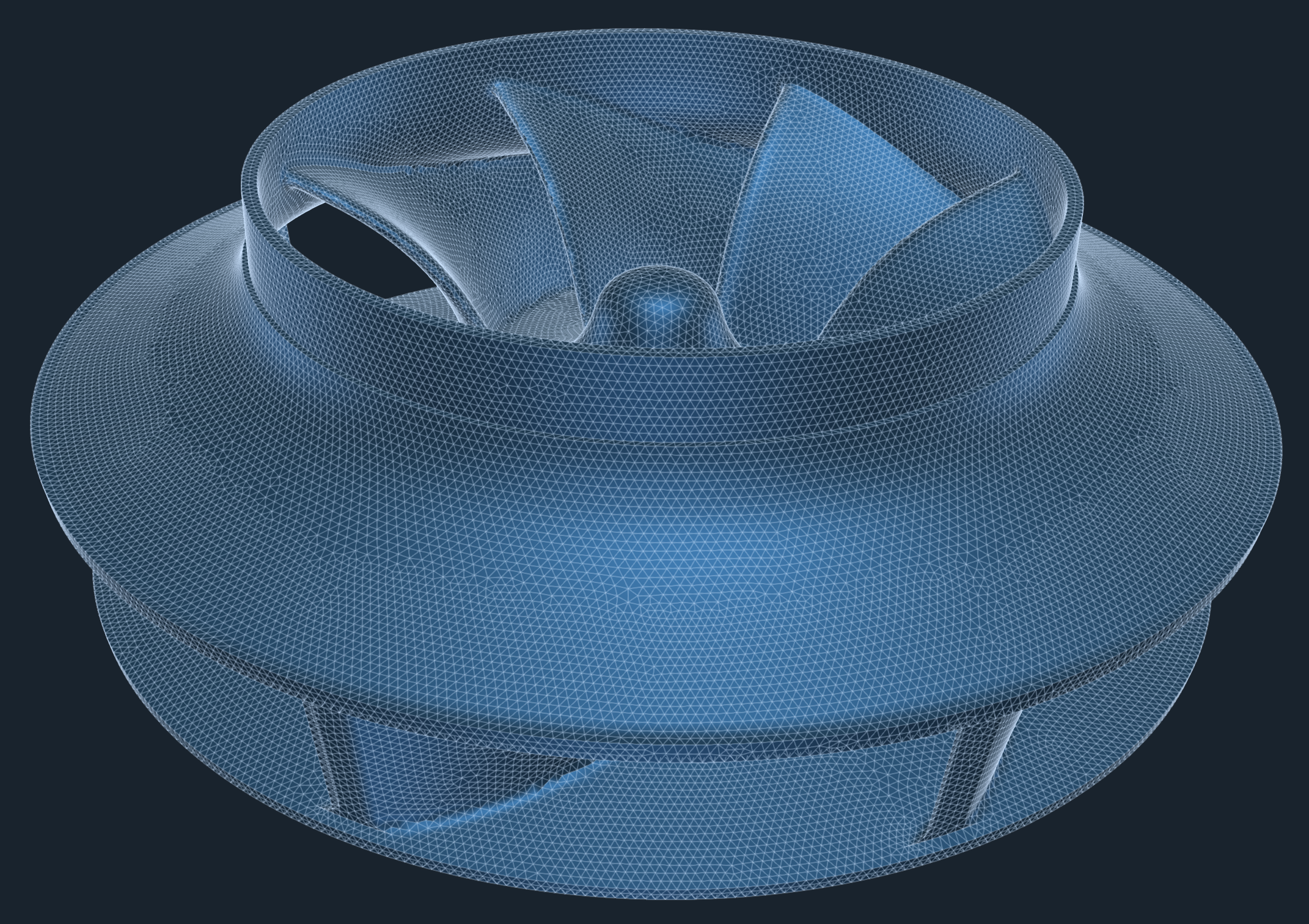

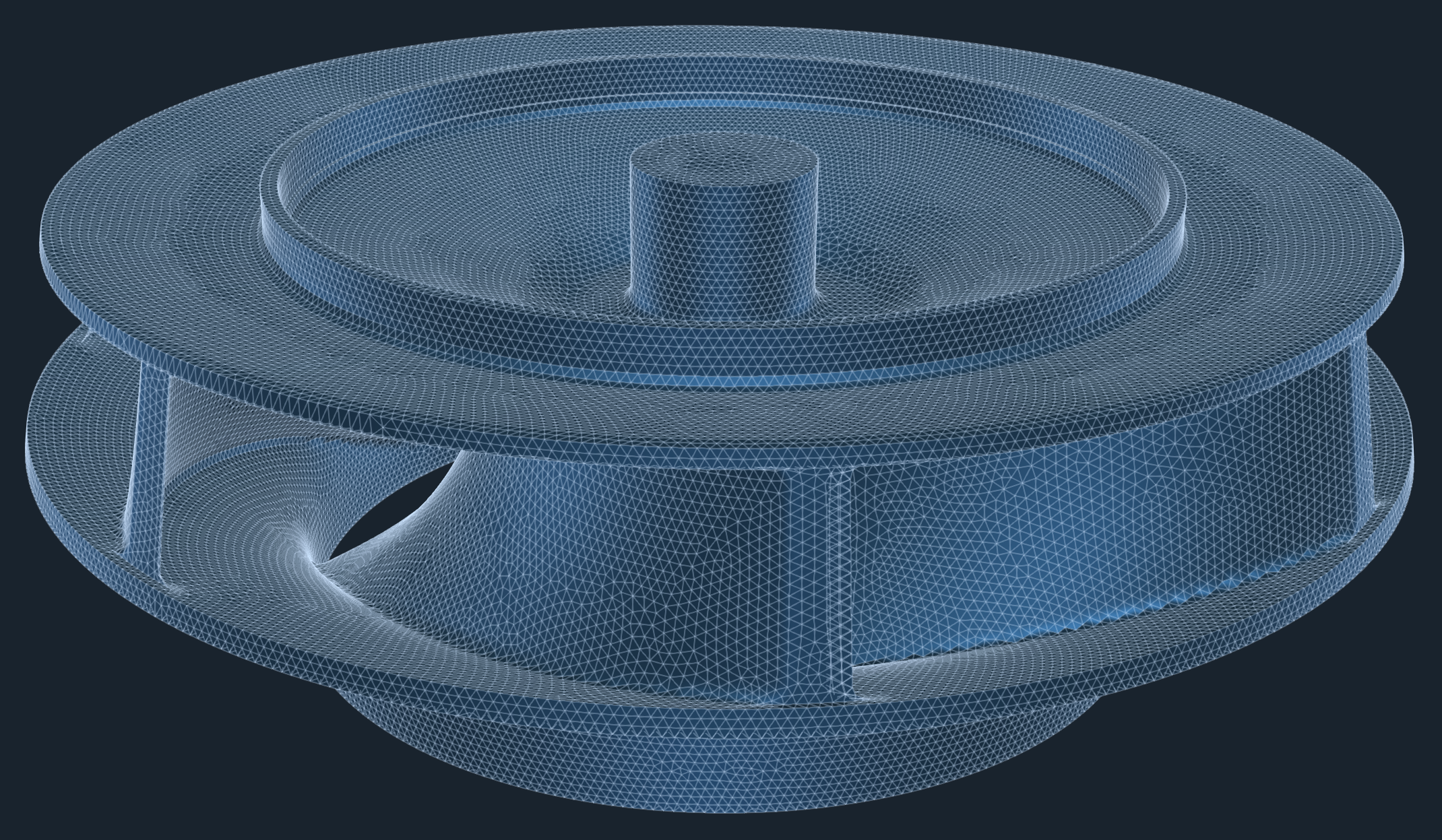

Centrifugal pump FEA Mesh View Centrifugal pump FEA Mesh View




Centrifugal Pump - CFD Simulation Setup

The CFD simulation is managed with TCAE software module TCFD. Complete CFD simulation setup and run is done in the TCFD GUI in ParaView. TCFD uses OpenFOAM open-source application.

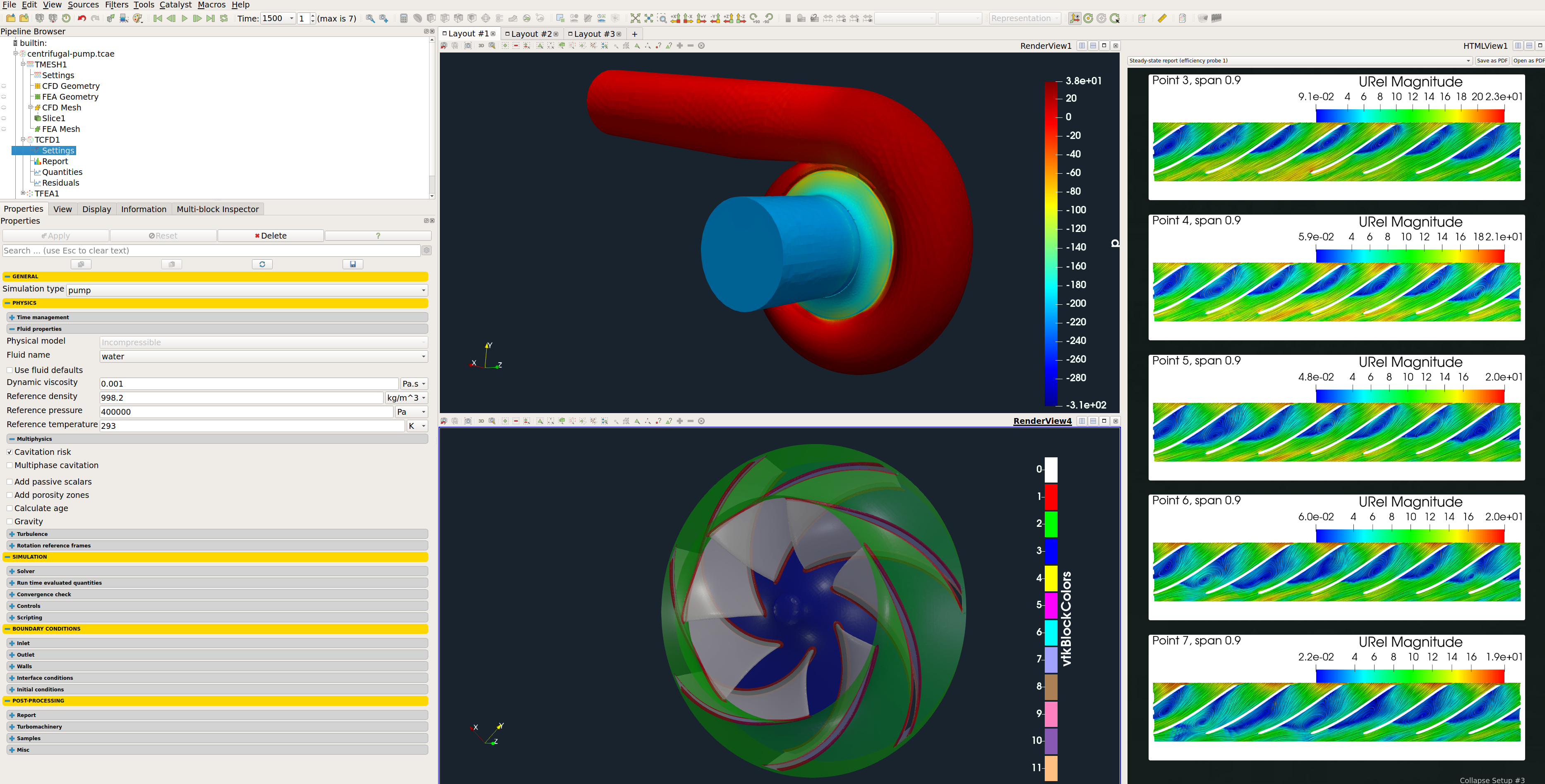

TCAE centrifugal pump CFD setup GUI


  • Simulation type: Pump
  • Time management: steady-state
  • Physical model: Incompressible
  • Number of components: 4 [-]
  • Wall roughness: none
  • Physical model: Incompressible
  • Speed: 1770 [RPM]
  • Outlet: Static pressure 0 [m2/s2]
  • Turbulence: RANS
  • Turbulence model: k-omega SST
  • Wall treatment: Wall functions
  • Turbulence intensity: 5%
  • Speedlines: 1 [-]
  • Simulation points: 7 [-]
  • Fluid: Water
  • Reference pressure: 1 [atm]
  • Dynamic viscosity: 1.0 × 10E-3 [Pa⋅s]
  • Water density: 996 [kg/m3]
  • CFD CPU Time: 2.5 core.hours/point
  • BladeToBlade: on

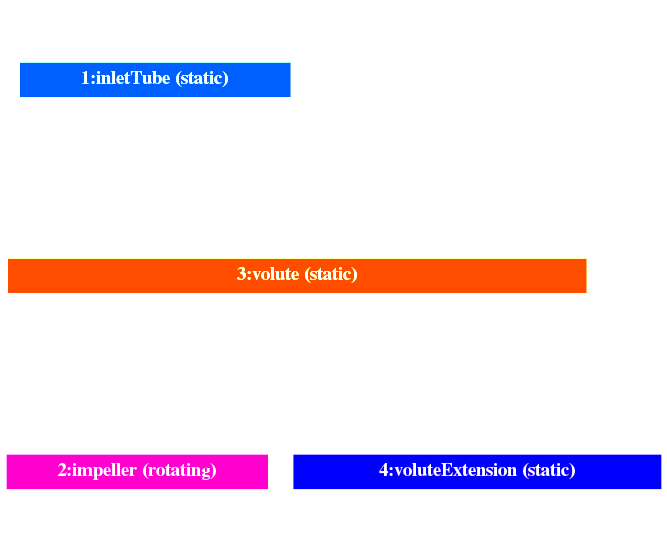

Any project simulated in TCFD has its component graph. The component graph shows the way the components are organized - the model topology. It shows for instance what is the inlet, the outlet and the way the components are connected via interfaces. A simple scheme of the component graph is shown below. The fluid flow enters the facility in the component Spiral via interface spiral_inflow_inlet and leaves the facility from the component drafttube via interface drafttube_outflow_outlet. This is a typical example of a very simple linear order of the flow, through a combination of three components.

TCAE Centrifugal Pump turorial component graph




Centrifugal Pump - FEA Simulation Setup

The FEA simulation is managed with TCAE software module TFEA. Complete FEA simulation setup and run are done in the TFEA GUI in ParaView. TFEA uses Calculix open-source application.

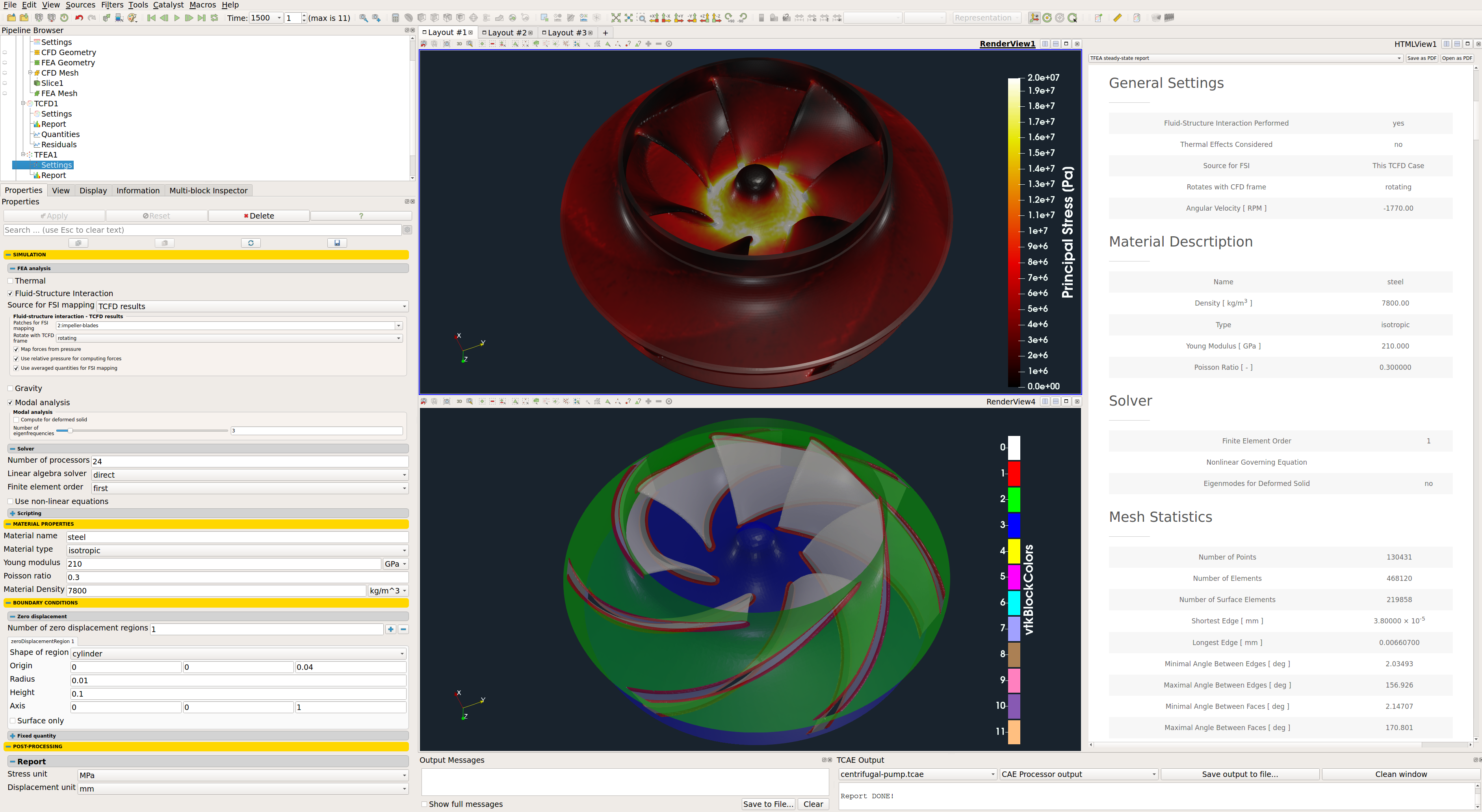

TCAE Franis Turbine FEA setup GUI


  • Impeller material: steel
  • Material density: 7800 kg/m3
  • Material structure: isotropic
  • Young modulus: 2.1E11 Pa
  • Poisson ratio: 0.3
  • Fixed radius: 100 [mm]
  • Finite element order: second
  • FEA CPU Time: 0.02 core.hours/point




Centrifugal Pump - TCAE Simulation run


The TCAE simulation run is completely automated. The whole workflow can be run by a single click in the GUI, or the whole process can be run in the batch mode on a background. Modules used are TCAD, TMESH, TCFD, and TFEA. TCFD includes a built-in post-processing module that automatically evaluates all the required quantities, such as efficiency, torque, forces, force coefficients, flow rates, pressure, velocity, and much more. All these quantities are evaluated throughout the simulation run, and all the important data is summarized in an HTML report, which can be updated anytime during the simulation, for every run. All the simulation data are also saved in tabulated .csv files for further evaluation. TCFD is capable of writing the results down at any time during the simulation. The convergence of basic quantities and integral quantities are monitored still during the simulation run. The geometry was created just one-time in the beginning using TCAD in the preprocessing phase. First, the TMESH is executed to create the volume meshes for CFD & FEA. Then the CFD simulation is executed and evaluated. After that, in the FSI step, the pressure field is integrated to create the force field which is prescribed as a load for the FEA simulation. Finally, the FEA simulation is executed and evaluated.

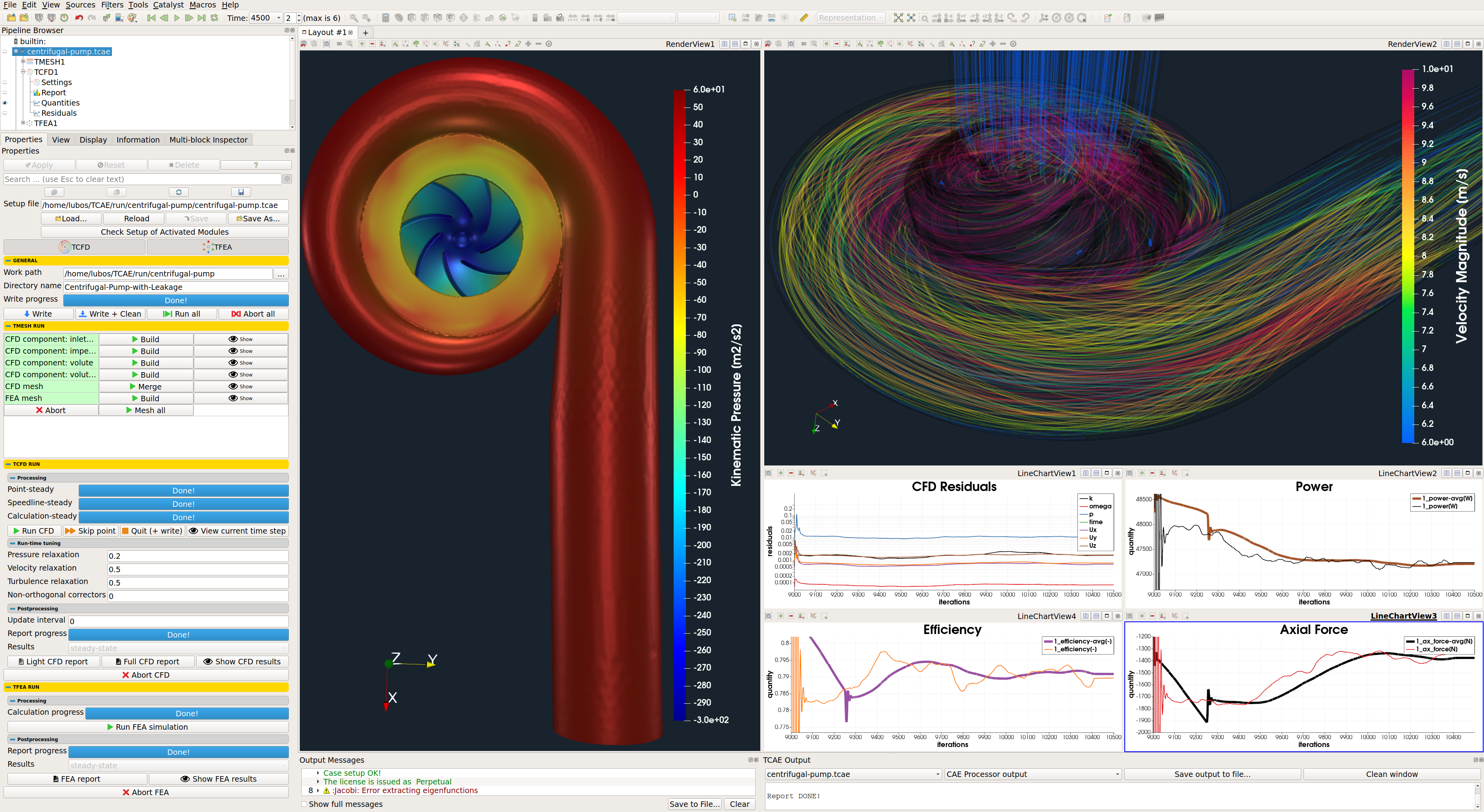

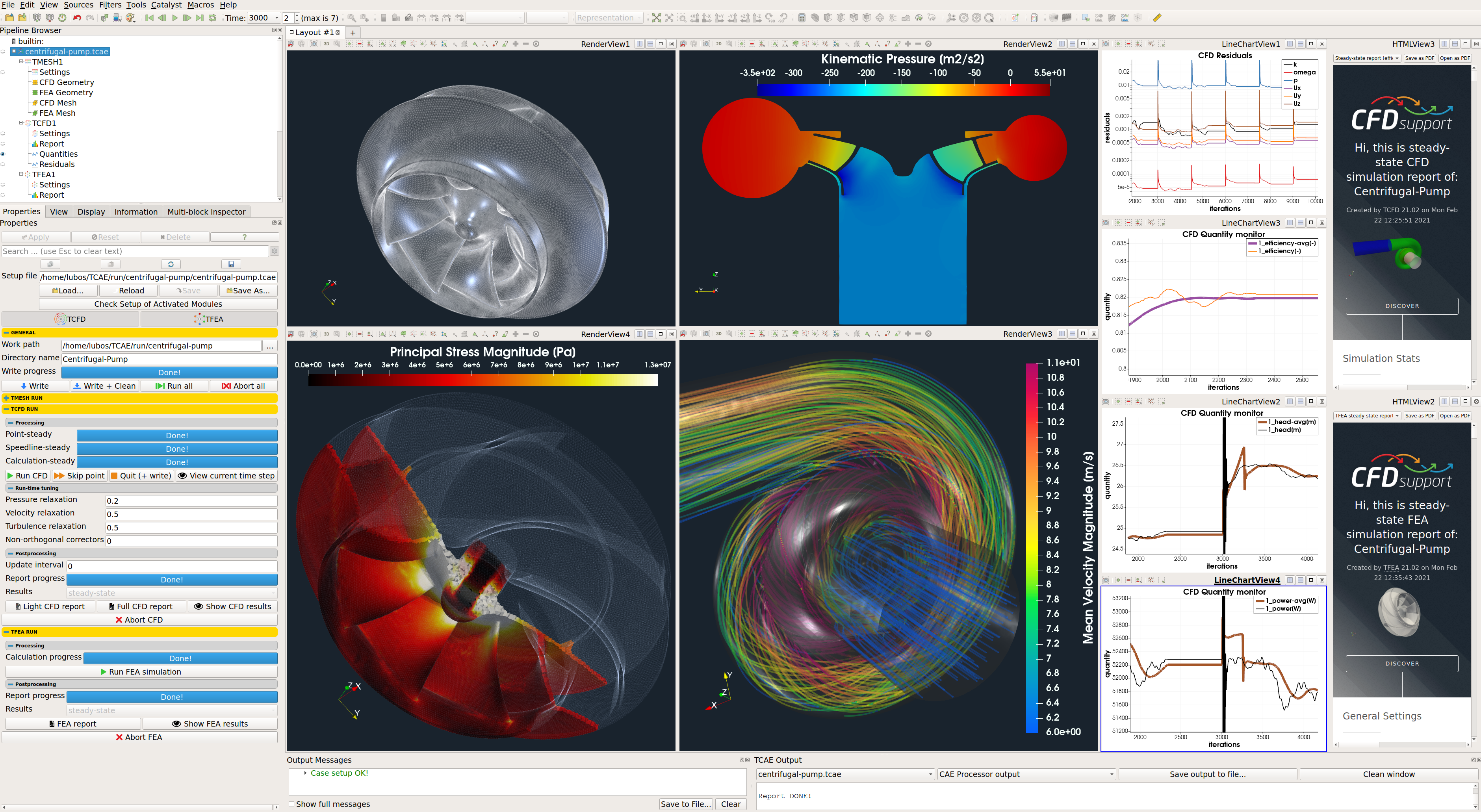

TCAE interface GUI




Centrifugal Pump - Postprocessing - Integral Results

All the integral results (efficiency, torque, head, ...) are automatically evaluated and saved in the .CSV files and are available for further postprocessing if needed. The simulation results are evaluated automatically. Every simulation run in TCAE has its own unique simulation report. The integral results both for CFD and FEA are written down in the following HTML or PDF reports:

CFD Simulation Report


FEA Simulation Report

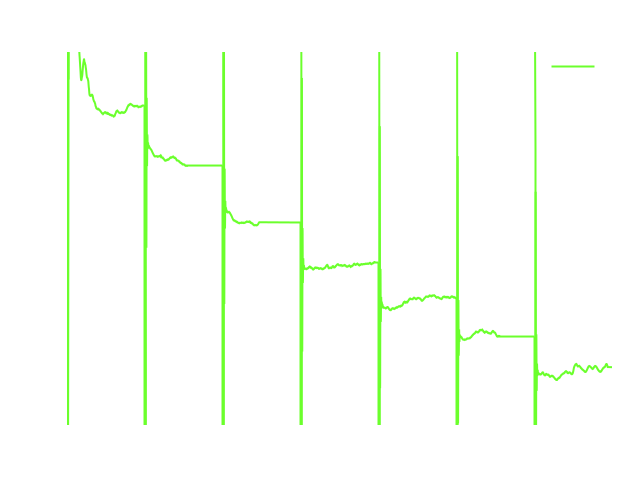

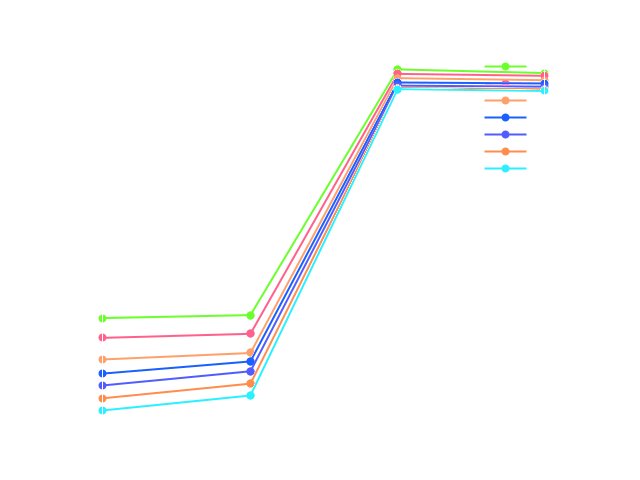

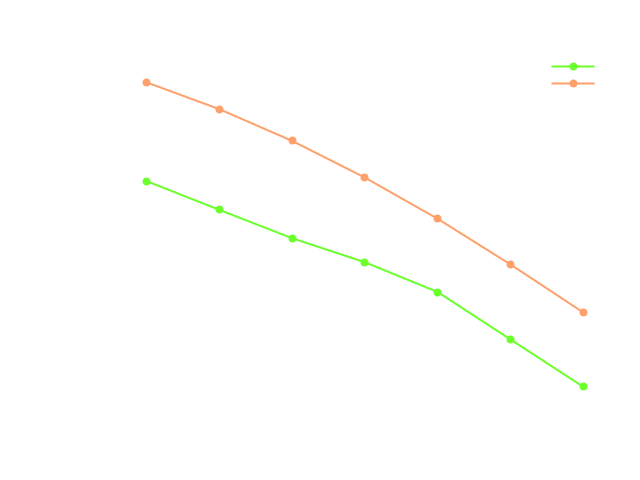

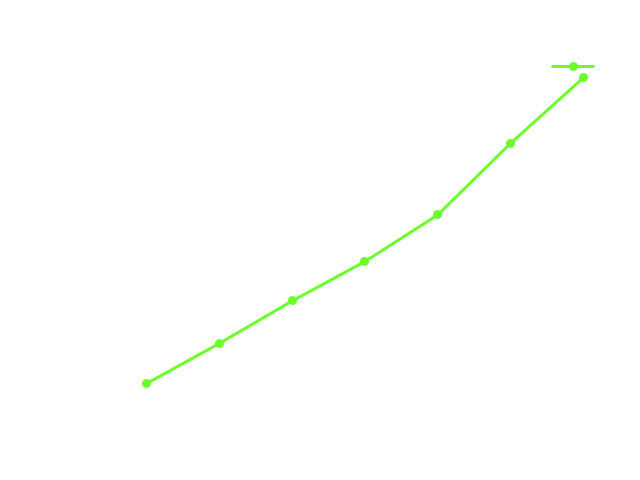

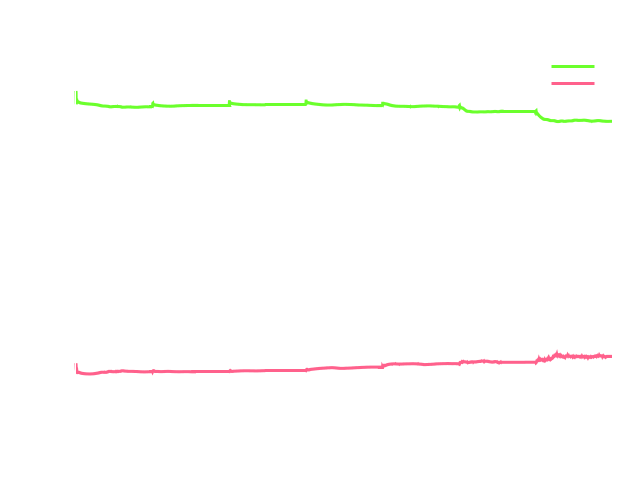

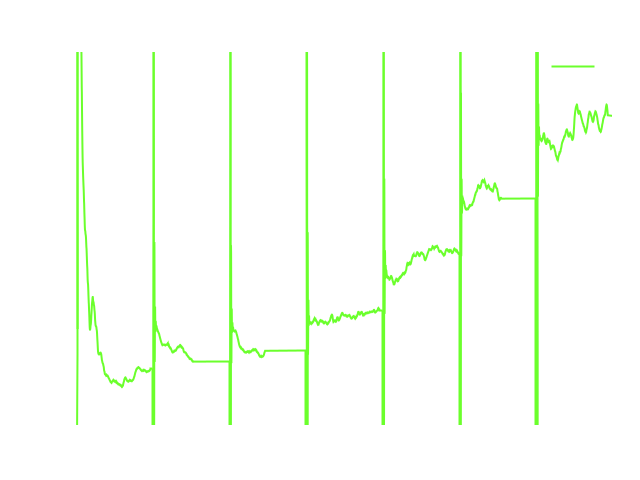

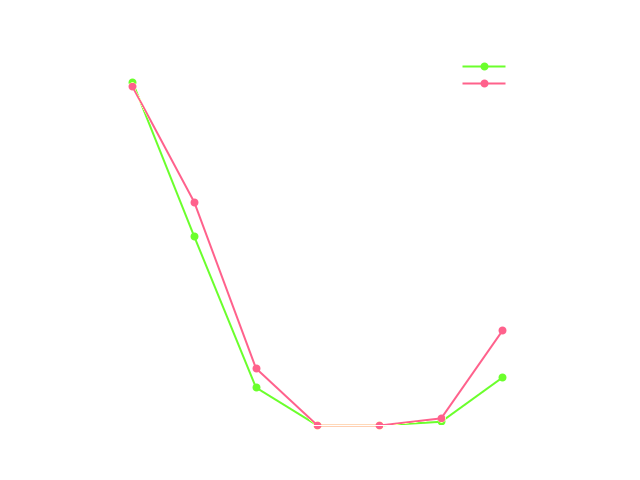

The simulation reports have countless options and gether togother many useful information and simulation statistics inclufing for example the following plots (and many more):

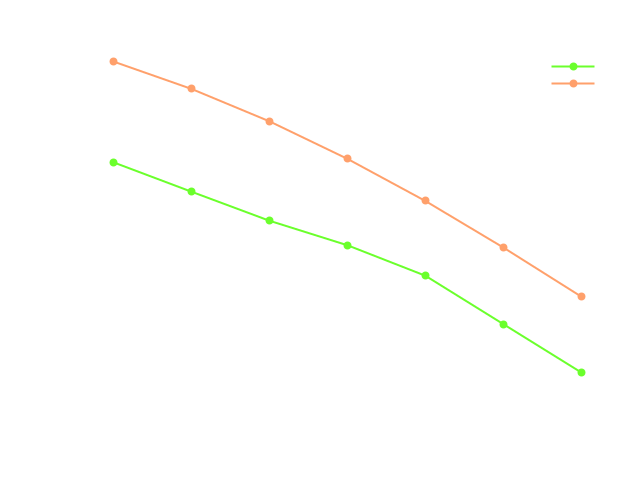

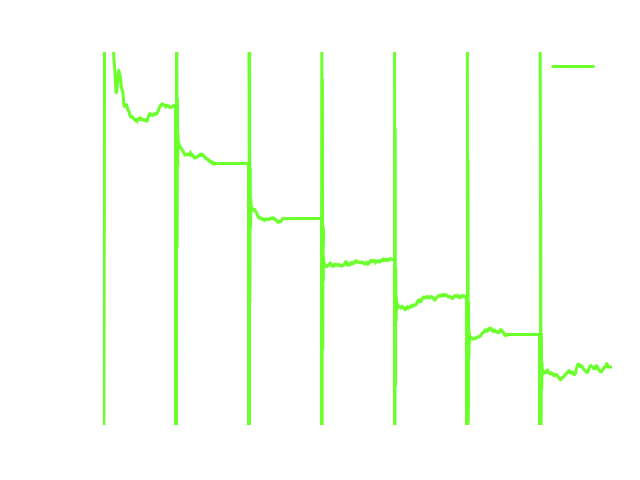

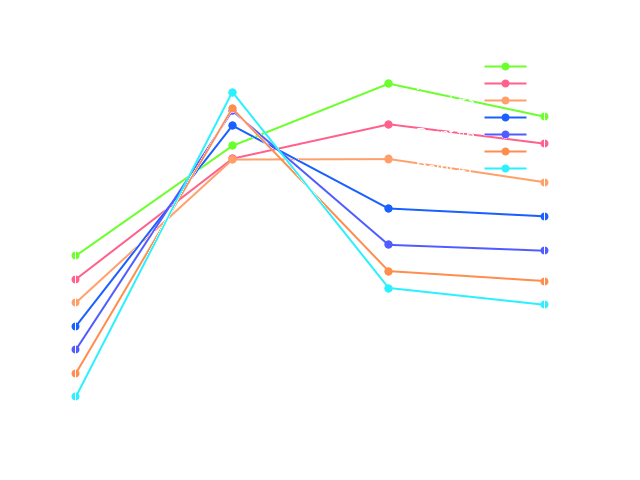

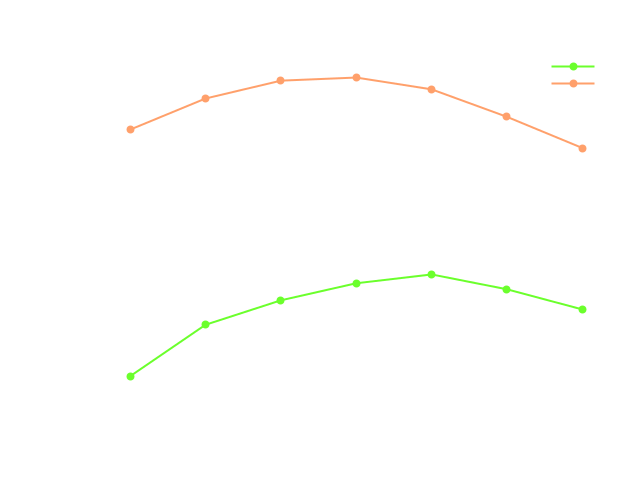

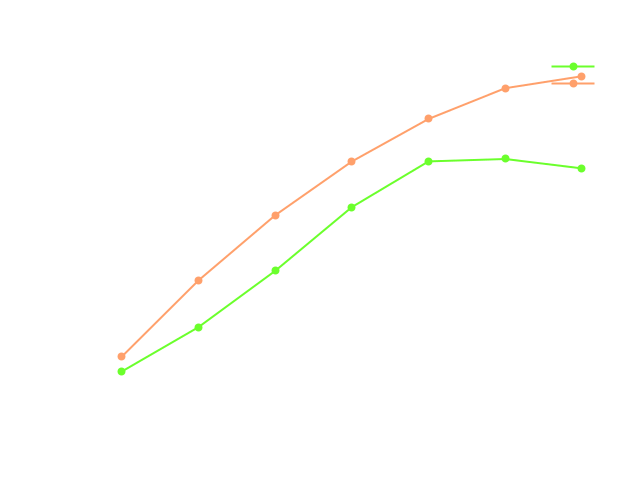

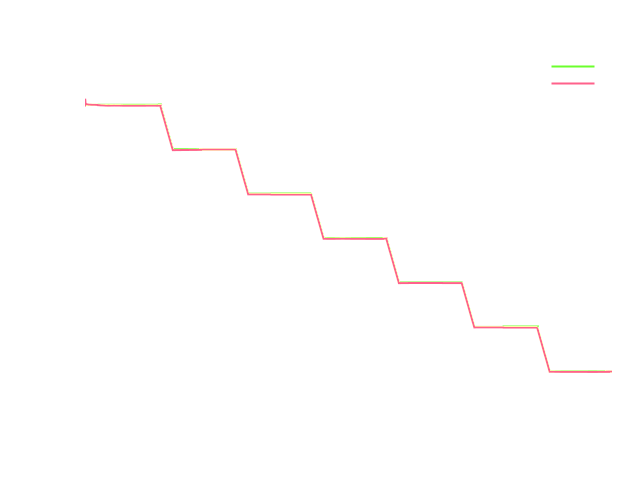

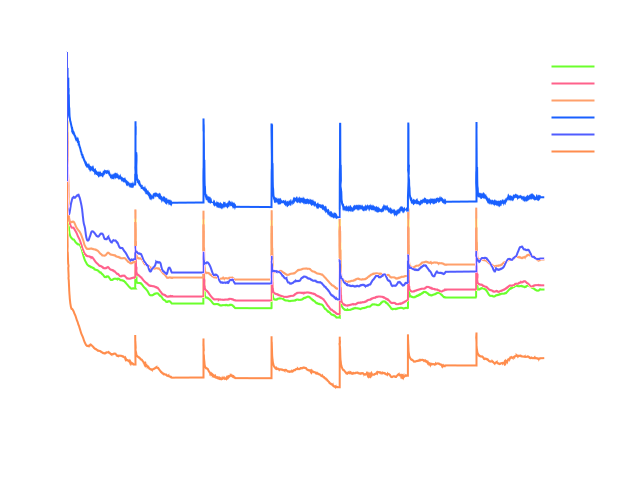

TCAE Centrifugal Pump Head plot report     TCAE Centrifugal Pump Velocity plot report     TCAE Centrifugal Pump Residuals plot report     TCAE Centrifugal Pump Torque in time plot report     TCAE Centrifugal Pump Efficiency plot report     TCAE Centrifugal Pump Forces plot report     TCAE Centrifugal Pump Pressure plot report     TCAE Centrifugal Pump Velocity plot report     TCAE Centrifugal Pump Residuals plot report     TCAE Centrifugal Pump Torque in time plot report     TCAE Centrifugal Pump Pressure plot report     TCAE Centrifugal Pump Pressure plot report     TCAE Centrifugal Pump Velocity plot report     TCAE Centrifugal Pump Torque plot report






Centrifugal Pump - Postprocessing - Volume Fields

The volume fields are post-processed in the TCAE graphical interface (GUI) which is based on the open-source visualization tool ParaView. ParaView provides a wide range of tools and advanced methods for CFD & FEA postprocessing and results evaluation. There are available countless useful filters and sources, for example: Calculator, Contour, Clip, Slice, Threshold, Glyph (Vectors), Streamtraces (Streamlines), and many others.

The following images show a couple of examples of the way how the visual postprocessing in the graphical interface looks like.

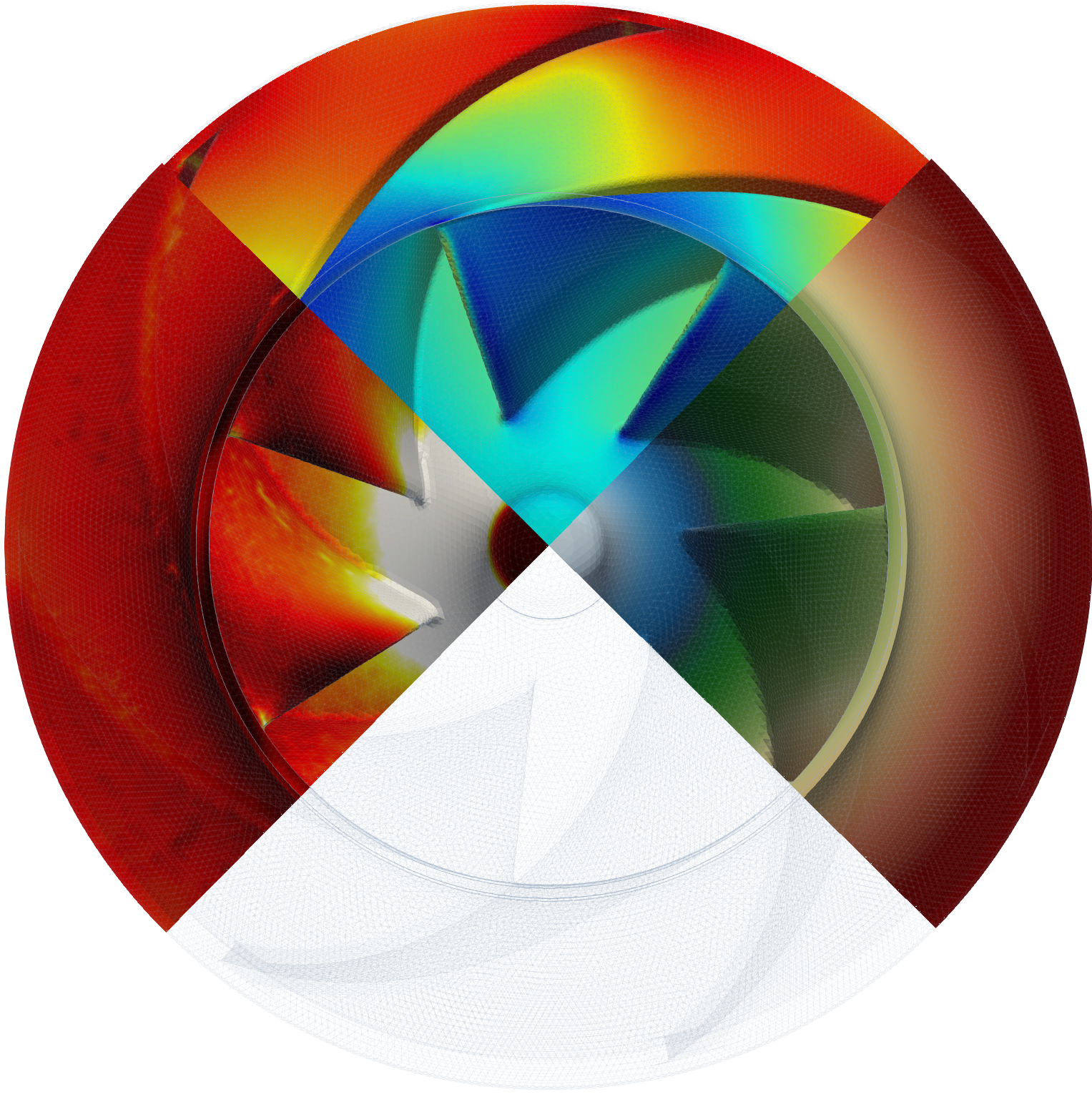

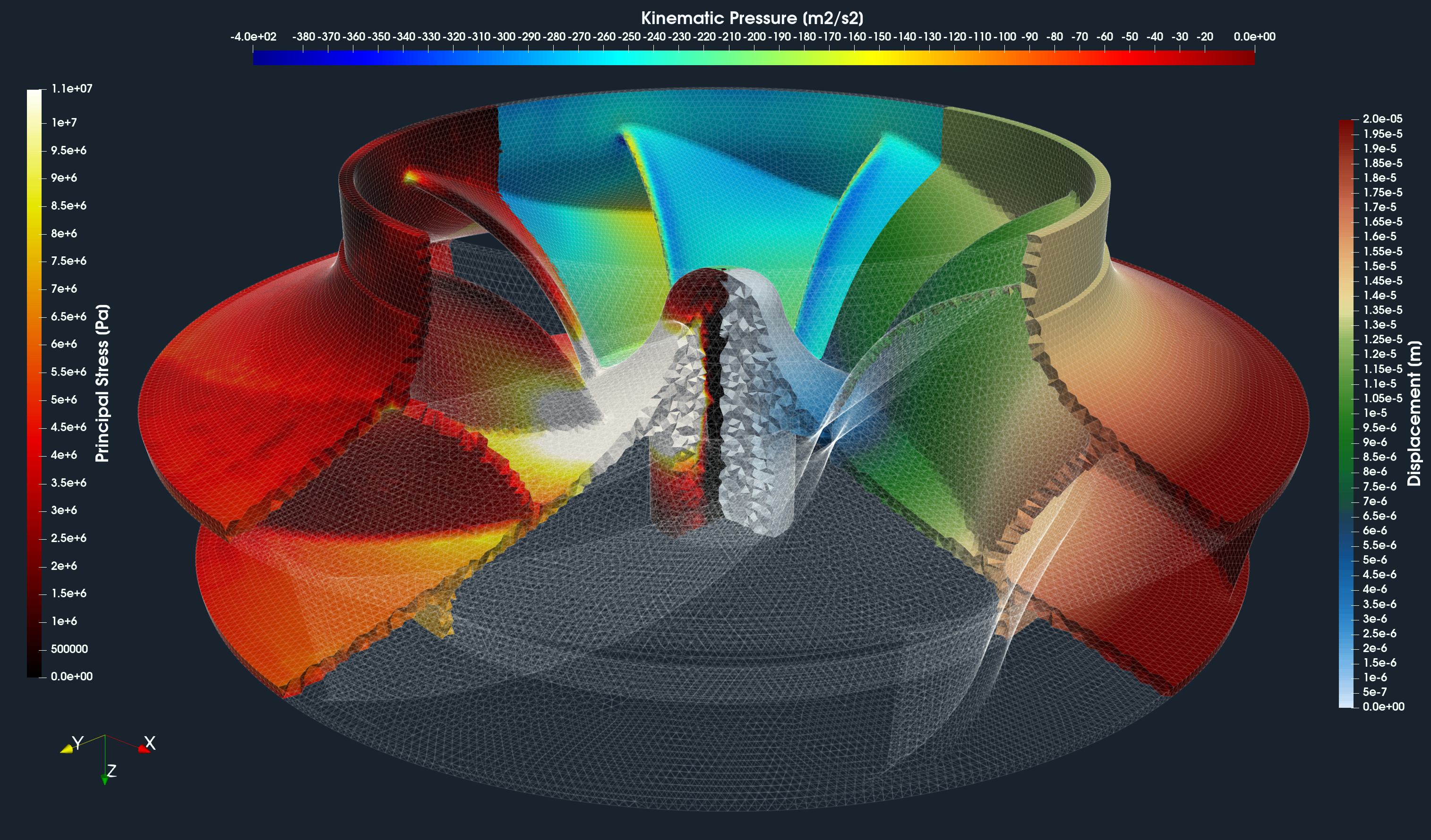

TCAE Tutorial Centrifugal Pump Cake Cut




CFD Centrifugal Pump Top View

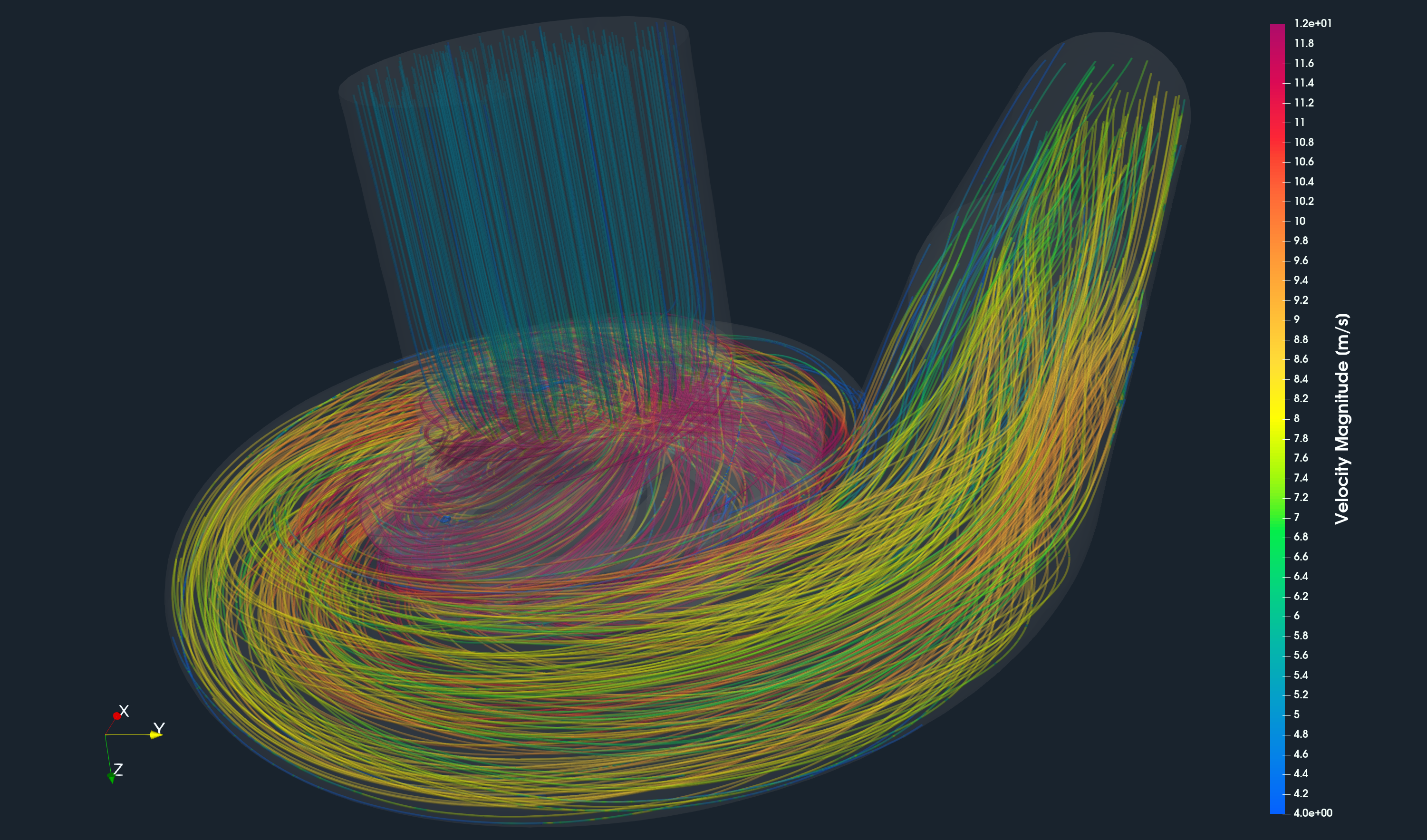

TCAE tutorial Centrifugal Pump streamlines

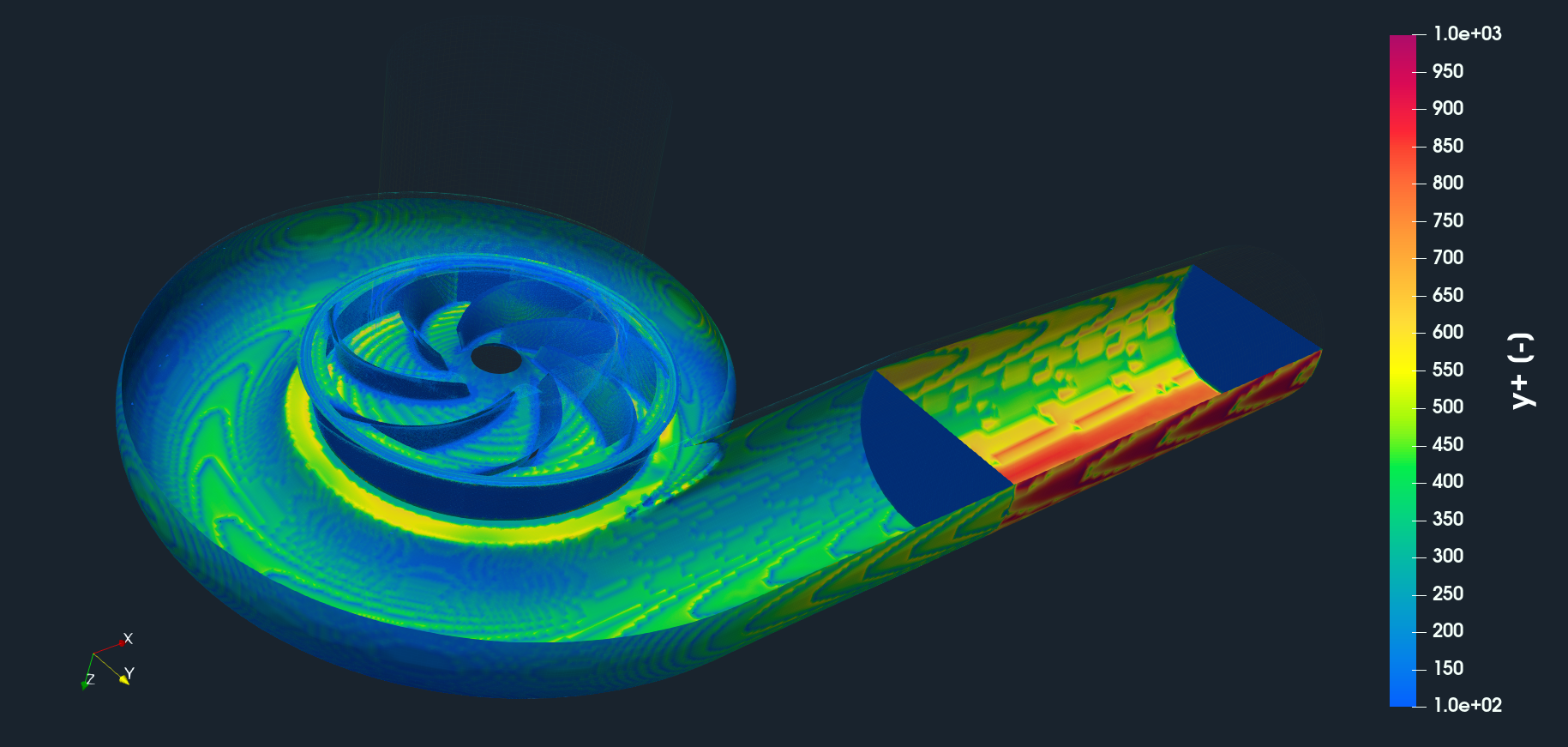

TCAE tutorial Centrifugal Pump y+

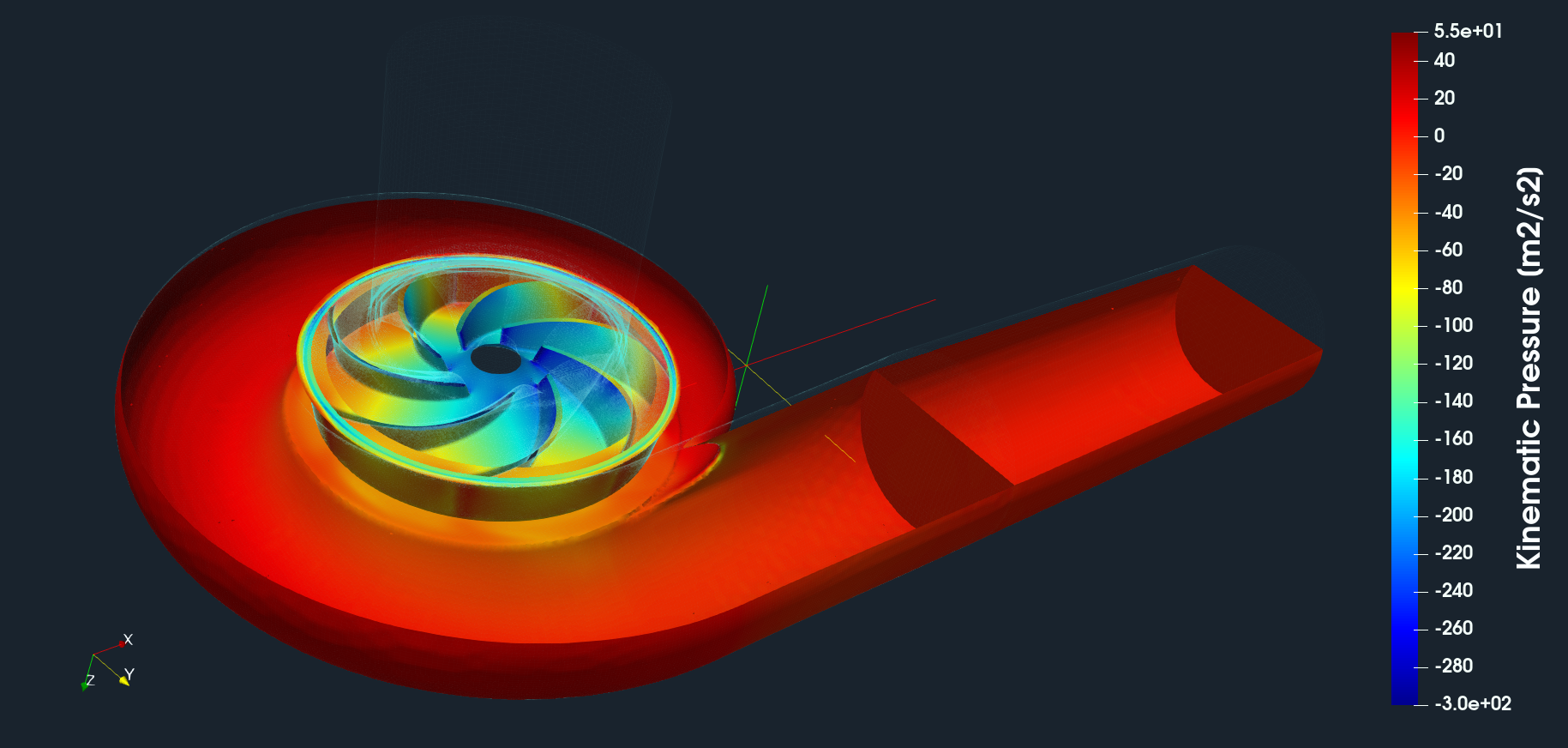

TCAE tutorial Centrifugal Pump static pressure

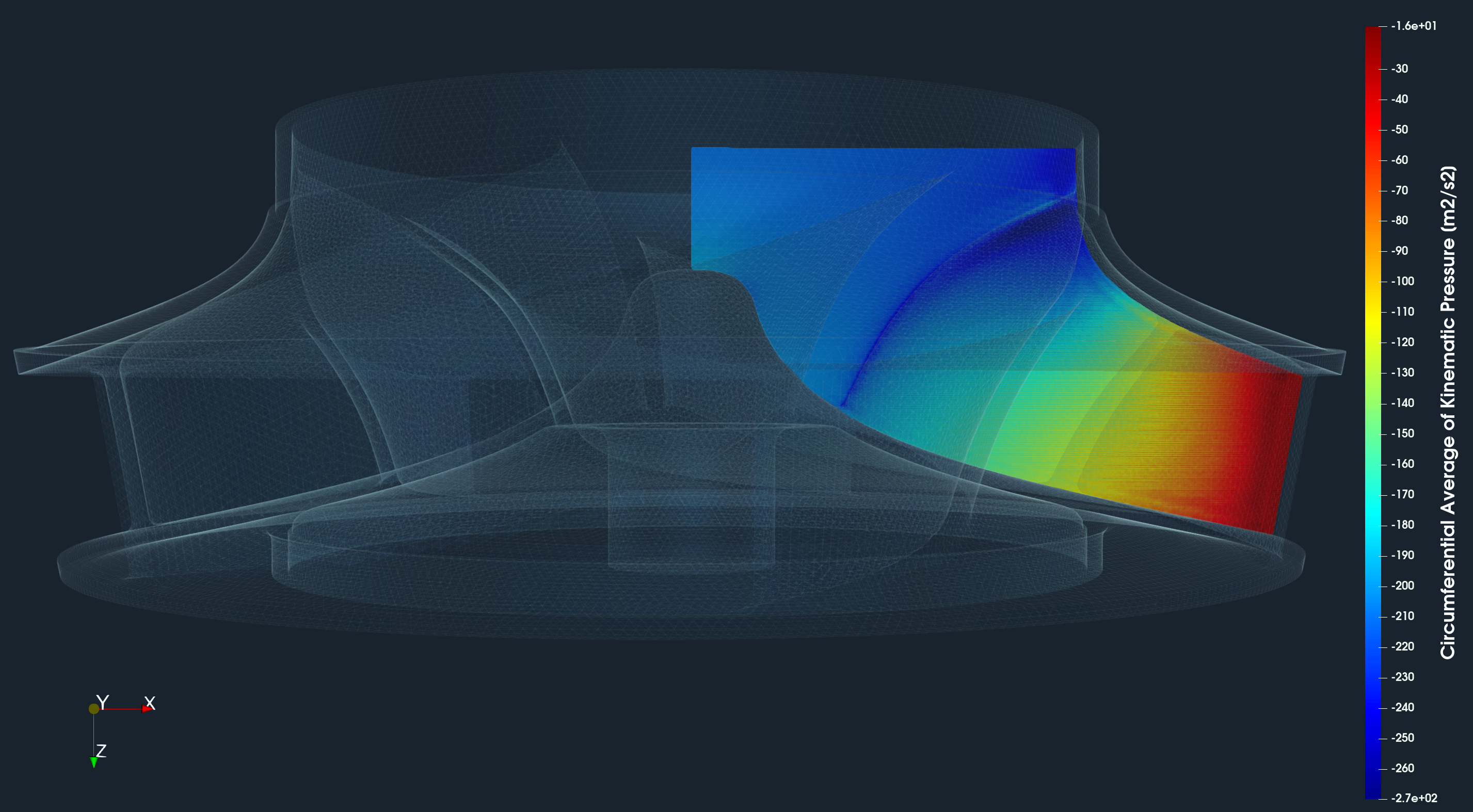

Centrifugal Pump - Meridional Average View

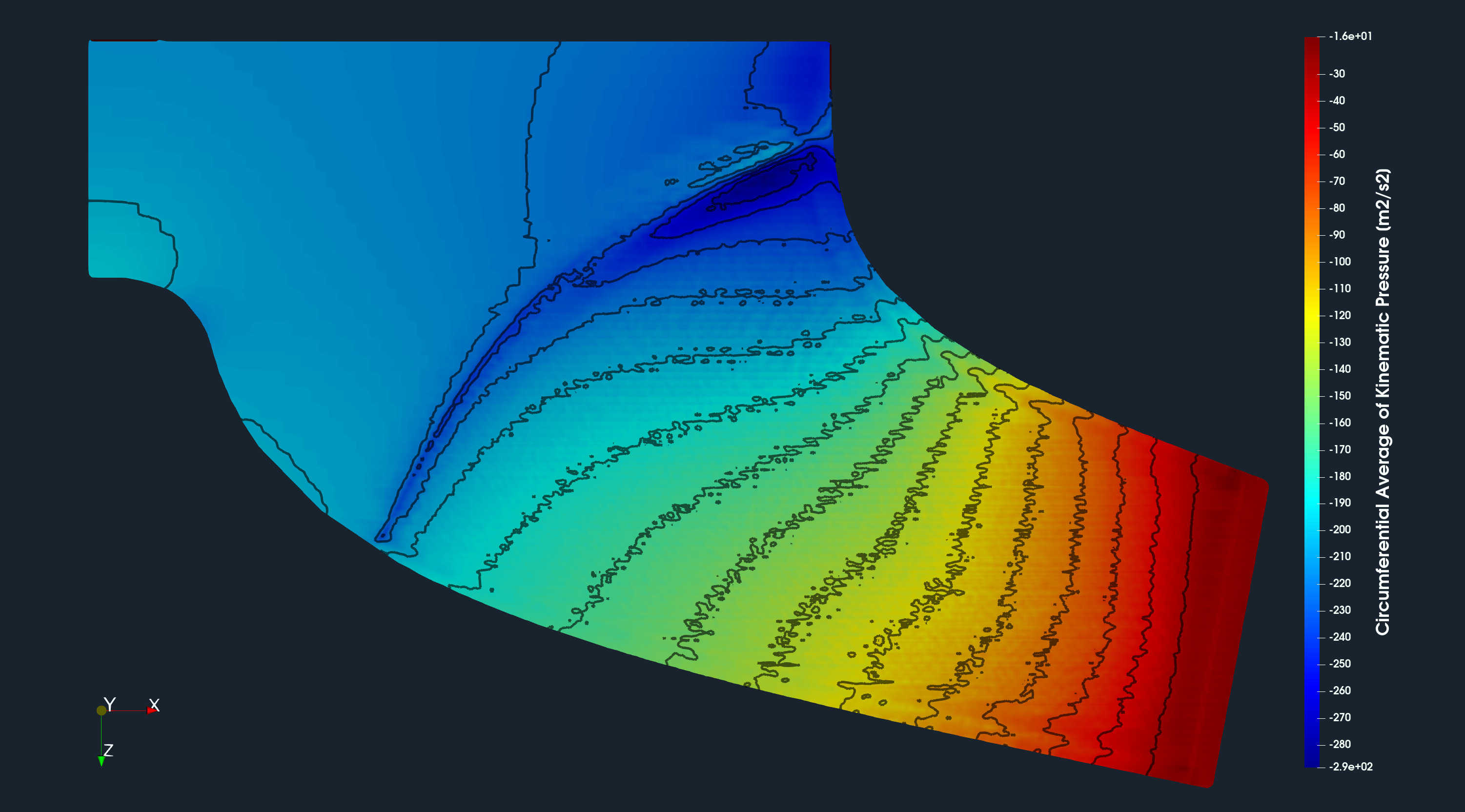

CFD Centrifugal Pump Meridional Average


For turbomachinery engineers, it is typically important to see the results, for example, total pressure or velocity, circumferentially averaged and projected on the meridian plane. This method is called the Meridional Average. This meridional average projection avoids the holes (blades) and shows how the total pressure (energy) or velocity are distributed along the meridian (a 2D interpretation of flow through the facility). Another important hydro turbine simulation results evaluation is a visualization of a Meridional Average of simulated quantities. This visualization gives the user valuable information about how, for example, the total pressure is spent in the flow passage of the turbine. A special TCAE filter Meridional Average, created for ParaView, is applied and creates a geometrical slice (a plane), containing the rotation axis and the circumferential averages of all the field data projected onto this slice. The Meridional Average method ignores, for example, blades or other obstacles, and as a result, the resulting averaging plane has a shape of a compact flow passage. The Meridional Average view images are natural part of the automated TCFD report.

CFD Pump Meridional Average full scale



Centrifugal Pump - Blade to Blade View

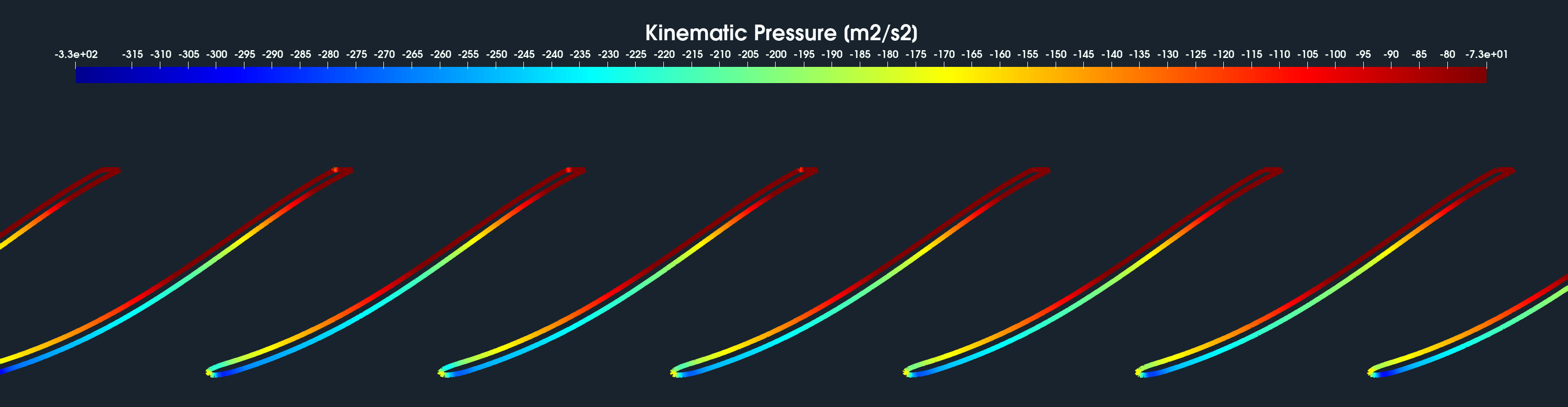

Another important hydro turbine simulation results evaluation is a blade-to-blade view. The blade-to-blade view offers a unique perspective for an inspection of the flow field properties between the blades, at a fixed relative distance between the hub and shroud boundary surfaces (spans). In TCAE, the blade-to-blade view (spans) can be generated in two steps: First, the cylindrical mesh of the rotating zone needs to be transformed (unwrapped) into a normalized rectangular block (1x1x2Pi). Second, the unwrapped block is to be cut at the preferred normal distance (0-1), between hub and shroud. A typically desired field view is, for example, streamtraces of the flow field or relative velocity at the impeller. The user can observe how smoothly the fluid flows and how effectively the fluid attacks the leading edges of the blades. The following images show the streamtraces projected onto blade-to-blade planes in the form of LIC (Line Integral Convolution), colored by the flow field relative velocity. There can be displayed any plane (span) at relative height between hub and shroud. Blade to blade view is a special transformation method that transforms the rotational object (and the CFD results) into the dimensionless hexahedron of the edges of 2phi x 1 x 1. Especially, leading and trailing edges (flow angles) are of the main interest here. The blade-to-blade view images are a natural part of the automated TCFD report.

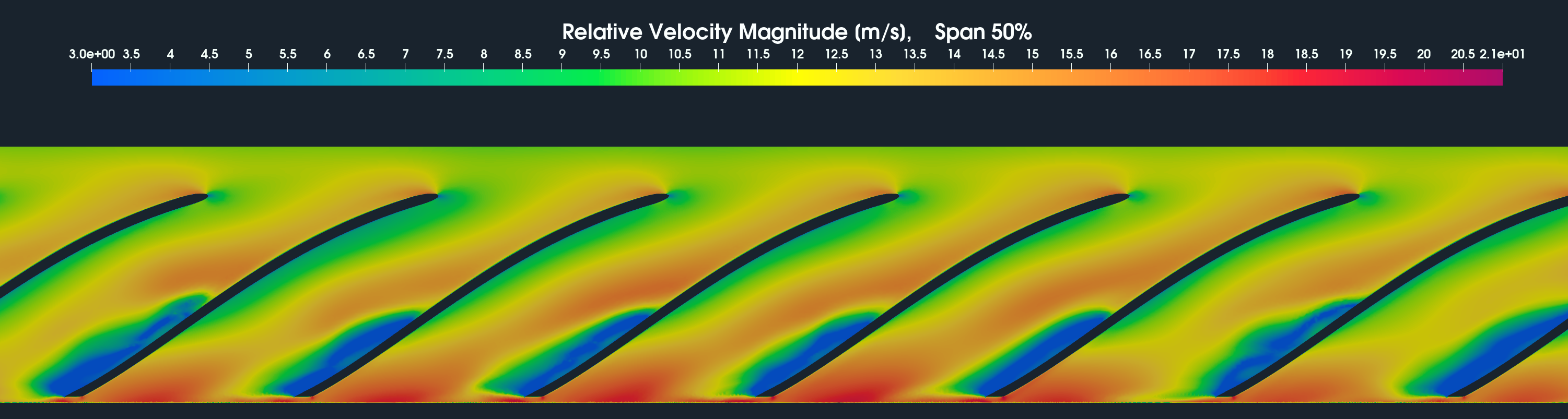

CFD Centrifugal Pump Turbine Blade to Blade Span 50% point 4

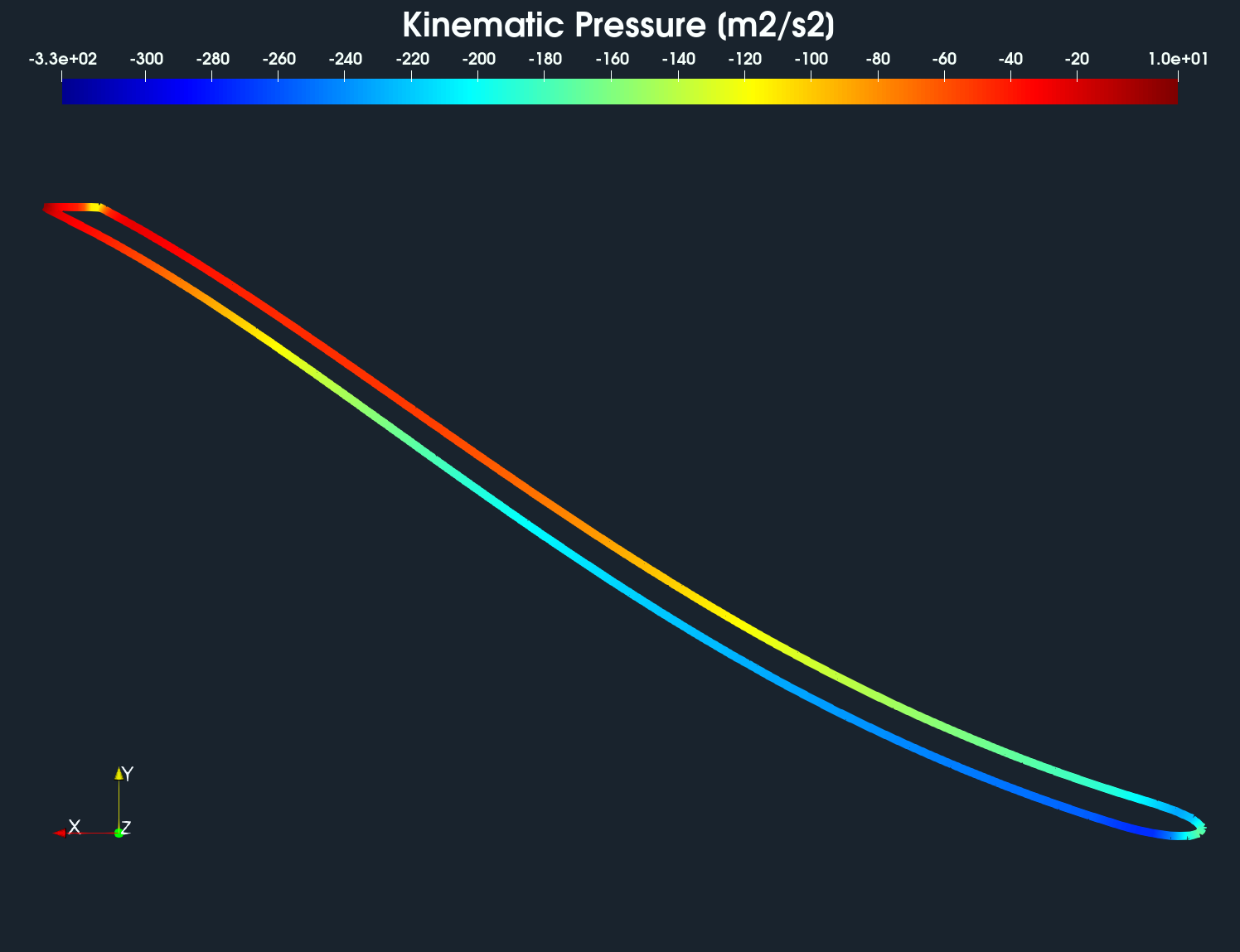

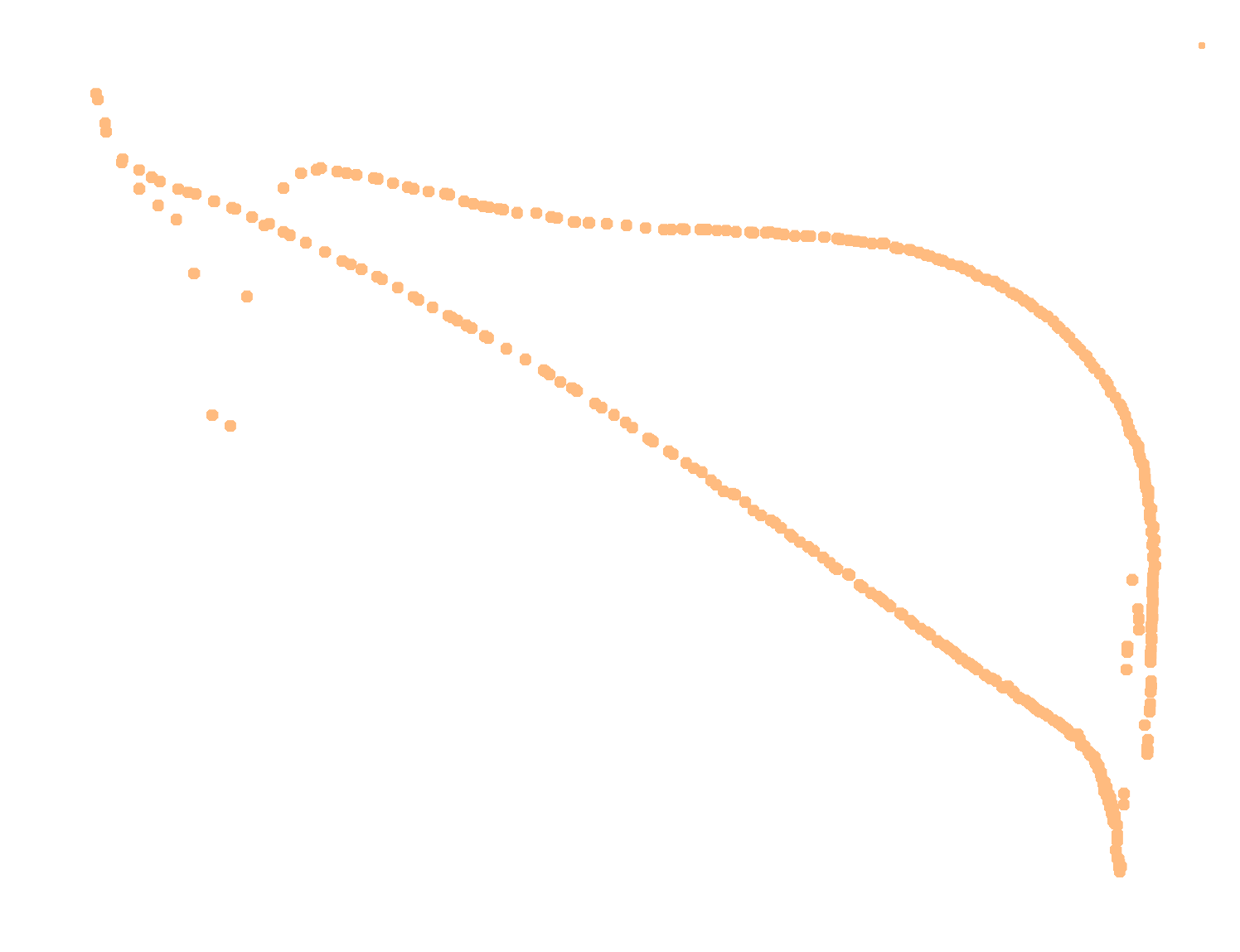

Centrifugal Pump - Pressure along the Blade

Similar to the blade-to-blade view, in the TCAE GUI, the impeller, a rotationally symmetric object, can be unwrapped (transformed) onto the hexahedron object to be able to slice it to see the computed quantities of the same radial coordinate along the blade. With such an unwrapped model it is also easy to plot the quantities around the blade at any distance between hub and shroud (spans).


turbomachinery CFD centrifugal pump mixing plane velocity

CFD Pump Turbo Blade Post blade to blade view span 50% point 4 CFD Pump Turbo Blade Post pressure along blade span 50% point 4




Centrifugal Pump - Vorticity Animation

TCAE offers extensive possibilities for flowfield visualization. For example, a very typical flow visualization for turbomachinery problems is the visualization of the vorticity. Mathematically, the vorticity is the curl product of the flow velocity that can be viewed as a measure of loses (energy is wasted on spinning and doesn't produce effective work). See the following animation.





Centrifugal Pump - Deformation (displacement) Animation

TCAE offers extensive possibilities for flowfield visualization. The following animation shows how the impeller gets deformed under the inertial and flow forces. The deformation effect is intensified 3000 times to give a better clue of the deformation. See the following animation.






Conclusion


• It has been shown how to make a comprehensive CFD & FEA analysis including FSI and modal analysis of the centrifugal pump in a smooth and automated workflow.

• TCAE showed to be a very well suited tool for CFD, FEA, and FSI engineering simulations.

• More information about TCAE can be found on CFD SUPPORT website: https://www.cfdsupport.com/tcae.html

• Questions will be happily answered via email info@cfdsupport.com.




References

[1] TCAE Manual
[2] TCAE Training
[3] Wikipedia https://en.wikipedia.org/wiki/Centrifugal_pump
[4] https://www.mechstudies.com/what-is-pump-basics-parts-types
