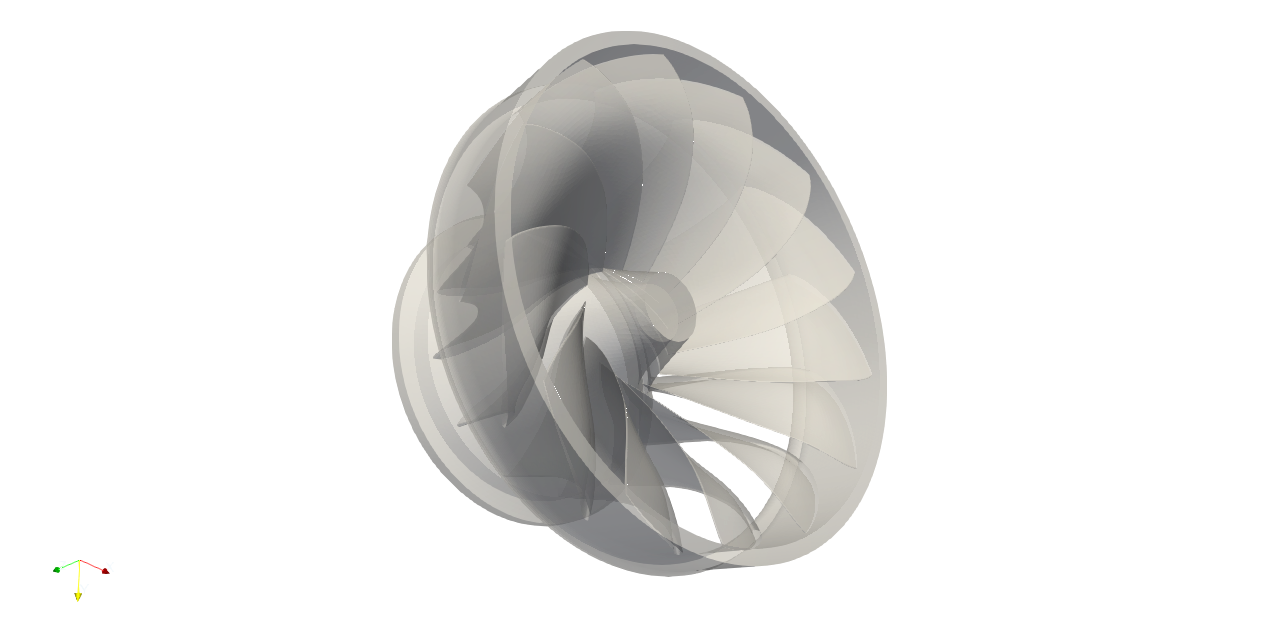

Francis-Hydro-Turbine CFD Simulation Resuls

Run time information

Wall time [ hh:mm:ss ]

00:00:25

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.739489	3010	0.263972	0.0114760	-0.248185
MinDispAbs [ mm ]	0	18	-0.0719565	-0.0959504	-0.137262
MaxDispX [ mm ]	0.600830	51188	-0.180580	0.213096	-0.224500
MinDispX [ mm ]	-0.632140	100016	0.134982	-0.235789	-0.235087
MaxDispY [ mm ]	0.645908	4796	-0.215486	-0.154900	-0.228044
MinDispY [ mm ]	-0.646097	28020	0.246418	0.115029	-0.239204
MaxDispX [ mm ]	0.315116	20063	0.393952	-0.146969	-0.381024
MinDispZ [ mm ]	-0.350334	1281	0.227195	0.0903818	-0.285922
MaxMises [ MPa ]	208.182	24708	0.153254	0.0202805	-0.0904205
MinMises [ MPa ]	0.0118752	21231	-0.00250859	0.0662949	-0.266000
MaxPrincipleStress [ MPa ]	236.874	56104	0.0694058	0.137628	-0.0908400
MinPrincipleStress [ MPa ]	-178.279	20078	0.118986	0.0236254	-0.139215

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	1.45368 × 10⁶	1205.68	0
2	2.24434 × 10⁶	1498.11	0
3	2.28824 × 10⁶	1512.69	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.00110253	0.117586	-1.16681	0.0855409	0.0182865	6.98223
2	-7.03593	5.63387	0.0655880	2.58800	5.43607	-0.0578261
3	5.64390	7.10472	0.00255211	5.44946	-2.59746	-0.0865564

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	1.21558 × 10^-6	0.0138265	1.36144	0.00731724	3.34396 × 10^-4	48.7516
2	49.5043	31.7405	0.00430179	6.69776	29.5509	0.00334386
3	31.8537	50.4770	6.51327 × 10^-6	29.6966	6.74678	0.00749201
Total	81.3579	82.2314	1.36574	36.4017	36.2980	48.7624

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
408.334	408.334	408.334	50.3833	50.4154	59.5983

Run time information

Wall time [ hh:mm:ss ]

00:00:24

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.543329	3010	0.263972	0.0114760	-0.248185
MinDispAbs [ mm ]	0	18	-0.0719565	-0.0959504	-0.137262
MaxDispX [ mm ]	0.430656	47908	-0.106123	0.247286	-0.254154
MinDispX [ mm ]	-0.451083	100016	0.134982	-0.235789	-0.235087
MaxDispY [ mm ]	0.468281	30801	-0.194572	-0.165376	-0.233288
MinDispY [ mm ]	-0.460740	28020	0.246418	0.115029	-0.239204
MaxDispX [ mm ]	0.223560	20063	0.393952	-0.146969	-0.381024
MinDispZ [ mm ]	-0.267680	1281	0.227195	0.0903818	-0.285922
MaxMises [ MPa ]	153.541	24708	0.153254	0.0202805	-0.0904205
MinMises [ MPa ]	0.0152619	21231	-0.00250859	0.0662949	-0.266000
MaxPrincipleStress [ MPa ]	172.752	56104	0.0694058	0.137628	-0.0908400
MinPrincipleStress [ MPa ]	-131.555	20078	0.118986	0.0236254	-0.139215

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	1.45128 × 10⁶	1204.69	0
2	2.26967 × 10⁶	1506.54	0
3	2.27666 × 10⁶	1508.86	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.0530480	0.170095	-1.17664	0.129294	-0.00568998	6.98159
2	-6.98412	5.68845	0.0489187	2.68482	5.40744	-0.0567188
3	5.69421	6.89319	0.0105510	5.40308	-2.67176	-0.144324

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.00281409	0.0289322	1.38448	0.0167171	3.23758 × 10^-5	48.7425
2	48.7779	32.3584	0.00239303	7.20824	29.2404	0.00321702
3	32.4240	47.5161	1.11324 × 10^-4	29.1933	7.13828	0.0208295
Total	81.2047	79.9035	1.38698	36.4183	36.3787	48.7666

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
408.334	408.334	408.334	50.3833	50.4154	59.5983

Run time information

Wall time [ hh:mm:ss ]

00:00:24

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.467393	20885	0.244406	0.0888201	-0.301221
MinDispAbs [ mm ]	0	18	-0.0719565	-0.0959504	-0.137262
MaxDispX [ mm ]	0.355096	52421	-0.111694	0.369717	-0.158364
MinDispX [ mm ]	-0.385505	100016	0.134982	-0.235789	-0.235087
MaxDispY [ mm ]	0.404517	30801	-0.194572	-0.165376	-0.233288
MinDispY [ mm ]	-0.381010	28021	0.243248	0.129071	-0.255495
MaxDispX [ mm ]	0.178125	20063	0.393952	-0.146969	-0.381024
MinDispZ [ mm ]	-0.232402	1281	0.227195	0.0903818	-0.285922
MaxMises [ MPa ]	2325.97	1991	-0.422607	0.232135	-0.164879
MinMises [ MPa ]	0.0164631	21231	-0.00250859	0.0662949	-0.266000
MaxPrincipleStress [ MPa ]	2151.10	1991	-0.422607	0.232135	-0.164879
MinPrincipleStress [ MPa ]	-1032.23	41998	-0.445464	0.213657	-0.173681

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	1.45106 × 10⁶	1204.60	0
2	2.24580 × 10⁶	1498.60	0
3	2.27547 × 10⁶	1508.47	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.0441419	0.197959	-1.18039	0.142121	0.00611888	6.98067
2	-4.91826	7.52410	0.00235934	4.16929	4.35671	-0.124846
3	7.52898	4.89346	-0.0163119	4.35727	-4.16350	-0.123379

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.00194851	0.0391879	1.39333	0.0201984	3.74407 × 10^-5	48.7297
2	24.1893	56.6121	5.56647 × 10^-6	17.3830	18.9809	0.0155866
3	56.6855	23.9459	2.66078 × 10^-4	18.9858	17.3347	0.0152224
Total	80.8768	80.5972	1.39360	36.3889	36.3157	48.7605

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
408.334	408.334	408.334	50.3833	50.4154	59.5983

Run time information

Wall time [ hh:mm:ss ]

00:00:25

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.391428	20885	0.244406	0.0888201	-0.301221
MinDispAbs [ mm ]	0	18	-0.0719565	-0.0959504	-0.137262
MaxDispX [ mm ]	0.304121	47908	-0.106123	0.247286	-0.254154
MinDispX [ mm ]	-0.321441	100016	0.134982	-0.235789	-0.235087
MaxDispY [ mm ]	0.331243	30801	-0.194572	-0.165376	-0.233288
MinDispY [ mm ]	-0.326643	28020	0.246418	0.115029	-0.239204
MaxDispX [ mm ]	0.158667	20063	0.393952	-0.146969	-0.381024
MinDispZ [ mm ]	-0.195556	1281	0.227195	0.0903818	-0.285922
MaxMises [ MPa ]	111.714	24708	0.153254	0.0202805	-0.0904205
MinMises [ MPa ]	0.0177182	21231	-0.00250859	0.0662949	-0.266000
MaxPrincipleStress [ MPa ]	126.783	50329	-0.189476	0.448402	-0.378528
MinPrincipleStress [ MPa ]	-91.7322	20078	0.118986	0.0236254	-0.139215

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	1.45101 × 10⁶	1204.58	0
2	2.24519 × 10⁶	1498.40	0
3	2.27513 × 10⁶	1508.35	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.0450483	0.200166	-1.18168	0.144202	0.00611769	6.98054
2	-4.76269	7.62002	-0.00167516	4.25777	4.27060	-0.129194
3	7.62735	4.73502	-0.0170340	4.27061	-4.25175	-0.122620

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.00202935	0.0400664	1.39636	0.0207943	3.74261 × 10^-5	48.7280
2	22.6832	58.0648	2.80617 × 10^-6	18.1286	18.2380	0.0166911
3	58.1765	22.4204	2.90158 × 10^-4	18.2381	18.0774	0.0150356
Total	80.8617	80.5252	1.39665	36.3875	36.3154	48.7597

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
408.334	408.334	408.334	50.3833	50.4154	59.5983

Run time information

Wall time [ hh:mm:ss ]

00:00:25

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.323098	20885	0.244406	0.0888201	-0.301221
MinDispAbs [ mm ]	0	18	-0.0719565	-0.0959504	-0.137262
MaxDispX [ mm ]	0.246339	47908	-0.106123	0.247286	-0.254154
MinDispX [ mm ]	-0.258902	100016	0.134982	-0.235789	-0.235087
MaxDispY [ mm ]	0.268622	30801	-0.194572	-0.165376	-0.233288
MinDispY [ mm ]	-0.264810	27996	0.229966	0.123989	-0.246167
MaxDispX [ mm ]	0.126690	20063	0.393952	-0.146969	-0.381024
MinDispZ [ mm ]	-0.161992	1281	0.227195	0.0903818	-0.285922
MaxMises [ MPa ]	99.6420	50329	-0.189476	0.448402	-0.378528
MinMises [ MPa ]	0.0178249	63395	0.00173418	0.0436503	-0.266000
MaxPrincipleStress [ MPa ]	122.599	50329	-0.189476	0.448402	-0.378528
MinPrincipleStress [ MPa ]	-70.0067	20078	0.118986	0.0236254	-0.139215

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	1.45127 × 10⁶	1204.69	0
2	2.25520 × 10⁶	1501.73	0
3	2.28178 × 10⁶	1510.56	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.0482592	0.165394	-1.18526	0.126882	4.36384 × 10^-4	6.98069
2	-6.95496	5.59338	-0.0275183	2.62574	5.40573	-0.0733673
3	5.68534	6.87998	-0.0393362	5.40522	-2.64720	-0.146782

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.00232895	0.0273553	1.40484	0.0160991	1.90431 × 10^-7	48.7300
2	48.3714	31.2859	7.57256 × 10^-4	6.89453	29.2220	0.00538276
3	32.3231	47.3341	0.00154734	29.2164	7.00766	0.0215449
Total	80.6969	78.6474	1.40715	36.1270	36.2296	48.7570

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
408.334	408.334	408.334	50.3833	50.4154	59.5983

Run time information

Wall time [ hh:mm:ss ]

00:00:24

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.257127	20885	0.244406	0.0888201	-0.301221
MinDispAbs [ mm ]	0	18	-0.0719565	-0.0959504	-0.137262
MaxDispX [ mm ]	0.192983	47908	-0.106123	0.247286	-0.254154
MinDispX [ mm ]	-0.203401	8176	0.232512	-0.139731	-0.235715
MaxDispY [ mm ]	0.206445	30801	-0.194572	-0.165376	-0.233288
MinDispY [ mm ]	-0.206236	27996	0.229966	0.123989	-0.246167
MaxDispX [ mm ]	0.0977881	20063	0.393952	-0.146969	-0.381024
MinDispZ [ mm ]	-0.129407	1281	0.227195	0.0903818	-0.285922
MaxMises [ MPa ]	7085.82	36617	0.0294542	-0.451991	-0.362110
MinMises [ MPa ]	0.0170145	63395	0.00173418	0.0436503	-0.266000
MaxPrincipleStress [ MPa ]	4157.97	6298	0.0259443	-0.457167	-0.356996
MinPrincipleStress [ MPa ]	-3495.03	36617	0.0294542	-0.451991	-0.362110

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	1.45101 × 10⁶	1204.58	0
2	2.24519 × 10⁶	1498.39	0
3	2.27511 × 10⁶	1508.35	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.0450672	0.200129	-1.18160	0.144177	0.00612764	6.98055
2	-4.77384	7.61252	-2.30769 × 10^-4	4.25086	4.27723	-0.128972
3	7.61907	4.74564	-0.0174492	4.27730	-4.24474	-0.122787

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.00203105	0.0400516	1.39618	0.0207868	3.75479 × 10^-5	48.7280
2	22.7896	57.9504	5.32542 × 10^-8	18.0698	18.2947	0.0166337
3	58.0503	22.5210	3.04474 × 10^-4	18.2953	18.0178	0.0150767
Total	80.8419	80.5115	1.39649	36.3859	36.3125	48.7597

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
408.334	408.334	408.334	50.3833	50.4154	59.5983

Run time information

Wall time [ hh:mm:ss ]

00:00:24

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.194831	20885	0.244406	0.0888201	-0.301221
MinDispAbs [ mm ]	0	18	-0.0719565	-0.0959504	-0.137262
MaxDispX [ mm ]	0.143651	47812	-0.123241	0.225244	-0.256983
MinDispX [ mm ]	-0.148821	8176	0.232512	-0.139731	-0.235715
MaxDispY [ mm ]	0.150990	85632	-0.183936	-0.184064	-0.250280
MinDispY [ mm ]	-0.152040	27996	0.229966	0.123989	-0.246167
MaxDispX [ mm ]	0.0691267	28121	0.389981	-0.143084	-0.381288
MinDispZ [ mm ]	-0.0984767	1281	0.227195	0.0903818	-0.285922
MaxMises [ MPa ]	91.6987	50329	-0.189476	0.448402	-0.378528
MinMises [ MPa ]	0.0163936	63395	0.00173418	0.0436503	-0.266000
MaxPrincipleStress [ MPa ]	113.456	50329	-0.189476	0.448402	-0.378528
MinPrincipleStress [ MPa ]	-37.3622	20112	0.130629	0.0188983	-0.155664

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	1.45936 × 10⁶	1208.04	0
2	2.23628 × 10⁶	1495.42	0
3	2.27822 × 10⁶	1509.38	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.281903	0.144850	-1.13703	0.171691	-0.114357	6.97203
2	-5.65176	7.02289	-0.0312308	3.72643	4.74237	-0.0210737
3	7.00261	5.62148	-0.0100838	4.74306	-3.71760	-0.253908

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.0794695	0.0209817	1.29285	0.0294779	0.0130774	48.6092
2	31.9424	49.3210	9.75365 × 10^-4	13.8863	22.4900	4.44102 × 10^-4
3	49.0366	31.6010	1.01684 × 10^-4	22.4966	13.8206	0.0644692
Total	81.0584	80.9430	1.29392	36.4124	36.3237	48.6741

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
408.334	408.334	408.334	50.3833	50.4154	59.5983

Run time information

Wall time [ hh:mm:ss ]

00:00:24

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.164608	20885	0.244406	0.0888201	-0.301221
MinDispAbs [ mm ]	0	18	-0.0719565	-0.0959504	-0.137262
MaxDispX [ mm ]	0.121072	47812	-0.123241	0.225244	-0.256983
MinDispX [ mm ]	-0.123765	39616	0.150482	-0.220619	-0.242986
MaxDispY [ mm ]	0.128965	58	-0.225221	-0.146855	-0.309528
MinDispY [ mm ]	-0.127015	27851	0.227084	0.129468	-0.242626
MaxDispX [ mm ]	0.0556753	28121	0.389981	-0.143084	-0.381288
MinDispZ [ mm ]	-0.0834173	1281	0.227195	0.0903818	-0.285922
MaxMises [ MPa ]	562.830	36594	-0.0119765	-0.198282	-0.110438
MinMises [ MPa ]	0.0149814	21229	0.0649433	0.0139978	-0.266000
MaxPrincipleStress [ MPa ]	532.117	69525	-0.443932	-0.159347	-0.216725
MinPrincipleStress [ MPa ]	-890.639	36594	-0.0119765	-0.198282	-0.110438

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	1.45105 × 10⁶	1204.60	0
2	2.24622 × 10⁶	1498.74	0
3	2.27715 × 10⁶	1509.02	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.0498618	0.195871	-1.18426	0.142155	0.00357110	6.98122
2	-4.55188	7.73310	-0.00318743	4.36874	4.15209	-0.128532
3	7.77156	4.54329	-0.0492909	4.14996	-4.36891	-0.121037

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.00248620	0.0383656	1.40246	0.0202082	1.27527 × 10^-5	48.7375
2	20.7196	59.8008	1.01597 × 10^-5	19.0859	17.2399	0.0165206
3	60.3972	20.6415	0.00242959	17.2221	19.0874	0.0146500
Total	81.1193	80.4807	1.40490	36.3283	36.3272	48.7686

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
408.334	408.334	408.334	50.3833	50.4154	59.5983

Run time information

Wall time [ hh:mm:ss ]

00:00:25

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.135181	20885	0.244406	0.0888201	-0.301221
MinDispAbs [ mm ]	0	18	-0.0719565	-0.0959504	-0.137262
MaxDispX [ mm ]	0.0980196	20334	-0.166459	0.187276	-0.292497
MinDispX [ mm ]	-0.100612	39616	0.150482	-0.220619	-0.242986
MaxDispY [ mm ]	0.103229	58	-0.225221	-0.146855	-0.309528
MinDispY [ mm ]	-0.104049	1331	0.262584	0.0878516	-0.316290
MaxDispX [ mm ]	0.0428063	28121	0.389981	-0.143084	-0.381288
MinDispZ [ mm ]	-0.0689559	20836	0.245701	0.0893330	-0.301192
MaxMises [ MPa ]	86.7927	50329	-0.189476	0.448402	-0.378528
MinMises [ MPa ]	0.0157320	21229	0.0649433	0.0139978	-0.266000
MaxPrincipleStress [ MPa ]	107.570	50329	-0.189476	0.448402	-0.378528
MinPrincipleStress [ MPa ]	-22.4730	20112	0.130629	0.0188983	-0.155664

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	1.45101 × 10⁶	1204.58	0
2	2.24524 × 10⁶	1498.41	0
3	2.27573 × 10⁶	1508.55	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.0450801	0.200171	-1.18167	0.144215	0.00611023	6.98055
2	-4.70916	7.62781	0.00411623	4.28078	4.24233	-0.126824
3	7.64332	4.76261	-0.0384294	4.25785	-4.27637	-0.132568

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.00203222	0.0400683	1.39635	0.0207978	3.73349 × 10^-5	48.7281
2	22.1762	58.1835	1.69433 × 10^-5	18.3250	17.9974	0.0160842
3	58.4204	22.6825	0.00147682	18.1293	18.2874	0.0175744
Total	80.5987	80.9060	1.39784	36.4751	36.2848	48.7617

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
408.334	408.334	408.334	50.3833	50.4154	59.5983

Run time information

Wall time [ hh:mm:ss ]

00:00:24

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.109185	20885	0.244406	0.0888201	-0.301221
MinDispAbs [ mm ]	0	18	-0.0719565	-0.0959504	-0.137262
MaxDispX [ mm ]	0.0775346	750	-0.171333	0.198441	-0.302363
MinDispX [ mm ]	-0.0773449	42546	0.229322	-0.112990	-0.242745
MaxDispY [ mm ]	0.0787800	58	-0.225221	-0.146855	-0.309528
MinDispY [ mm ]	-0.0845513	1331	0.262584	0.0878516	-0.316290
MaxDispX [ mm ]	0.0326114	28121	0.389981	-0.143084	-0.381288
MinDispZ [ mm ]	-0.0566314	20836	0.245701	0.0893330	-0.301192
MaxMises [ MPa ]	86.7641	50329	-0.189476	0.448402	-0.378528
MinMises [ MPa ]	0.0153351	21229	0.0649433	0.0139978	-0.266000
MaxPrincipleStress [ MPa ]	107.621	50329	-0.189476	0.448402	-0.378528
MinPrincipleStress [ MPa ]	-17.1373	1124	0.257734	0.409109	-0.379842

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	1.45611 × 10⁶	1206.69	0
2	2.23802 × 10⁶	1496.00	0
3	2.27305 × 10⁶	1507.66	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	-0.0642241	0.181622	-1.20803	0.140656	0.0529186	6.98010
2	-3.49205	8.28058	-0.00459090	4.84662	3.55235	-0.157802
3	8.26813	3.54248	-0.0249025	3.57674	-4.85211	-0.0560859

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.00412473	0.0329865	1.45934	0.0197840	0.00280038	48.7218
2	12.1944	68.5680	2.10764 × 10^-5	23.4898	12.6192	0.0249016
3	68.3620	12.5491	6.20135 × 10^-4	12.7931	23.5430	0.00314563
Total	80.5605	81.1502	1.45998	36.3026	36.1650	48.7499

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
408.334	408.334	408.334	50.3833	50.4154	59.5983

Fluid-Structure Interaction Performed	yes
Thermal Effects Considered	no
Source for FSI	This TCFD Case
Rotates with CFD frame	rotating
Angular Velocity [ RPM ]	600.000

Name	steel
Density [ kg/m³ ]	7800.00
Type	isotropic
Young Modulus [ GPa ]	210.000
Poisson Ratio [ - ]	0.300000

Finite Element Order	2
Nonlinear Governing Equation
Eigenmodes for Deformed Solid	no

Number of Points	19518
Number of Elements	58565
Number of Surface Elements	35244
Shortest Edge [ mm ]	1.54000 × 10^-4
Longest Edge [ mm ]	0.0925180
Minimal Angle Between Edges [ deg ]	0.0436160
Maximal Angle Between Edges [ deg ]	179.400
Minimal Angle Between Faces [ deg ]	0.0528120
Maximal Angle Between Faces [ deg ]	179.861

Hi, this is steady-state FEA simulation report of:

Francis-Hydro-Turbine

General Settings

Material Descrtiption

Solver

Mesh Statistics

Speedline #1 Point #1

Run time information

Static Analysis

Speedline #1 Point #2

Run time information

Static Analysis

Speedline #1 Point #3

Run time information

Static Analysis

Speedline #1 Point #4

Run time information

Static Analysis

Speedline #1 Point #5

Run time information

Static Analysis

Speedline #1 Point #6

Run time information

Static Analysis

Speedline #1 Point #7

Run time information

Static Analysis

Speedline #1 Point #8

Run time information

Static Analysis

Speedline #1 Point #9

Run time information

Static Analysis

Speedline #1 Point #10

Run time information

Static Analysis

Hi, this is steady-state FEA simulation report of: Francis-Hydro-Turbine

Speedline #1 Point #1

Speedline #1 Point #2

Speedline #1 Point #3

Speedline #1 Point #4

Speedline #1 Point #5

Speedline #1 Point #6

Speedline #1 Point #7

Speedline #1 Point #8

Speedline #1 Point #9

Speedline #1 Point #10

Hi, this is steady-state FEA simulation report of:

Francis-Hydro-Turbine
