Hi, this is FEA simulation report of:

Beam-Ball-FSI-Benchmark

Created by TFEA 20.09 on Wed Oct 7 13:06:16 2020

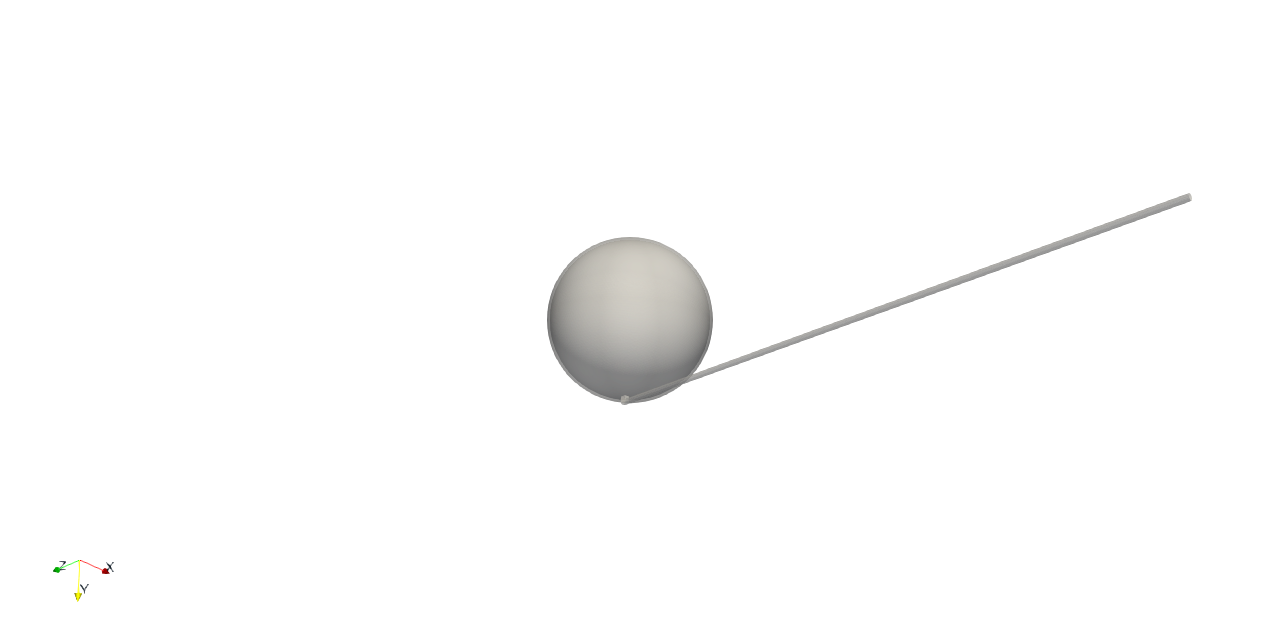

screenshot
DISCOVER

General Settings

Fluid-Structure Interaction Performed
yes
Thermal Effects Considered
no
Source for FSI
This TCFD Case
Rotates with CFD frame
static

Material Descrtiption

Name
steel
Density [ kg/m3 ]
7800.00
Type
isotropic
Young Modulus [ Pa ]
2.10000 × 1011
Poisson Ratio [ - ]
0.300000

Solver

Finite Element Order
2
Nonlinear Governing Equation
no

Mesh Statistics

Number of Points
63135
Number of Elements
189666
Number of Surface Elements
124742
Shortest Edge [ mm ]
3.78000 × 10-4
Longest Edge [ mm ]
0.0101110
Minimal Angle Between Edges [ deg ]
6.97633
Maximal Angle Between Edges [ deg ]
145.514
Minimal Angle Between Faces [ deg ]
4.94836
Maximal Angle Between Faces [ deg ]
169.359

Speedline #1 Point #-1

Run time information

Wall time [ hh:mm:ss ]
00:04:41

Static Analysis

Quantity
Value
Node
X-coordinate
Y-coordinate
Z-coordinate
MaxDispAbs [ m ]
0.0358947
22679
-0.00446297
-0.0366596
0.145368
MinDispAbs [ m ]
0
44
0.00489765
0.158994
-1.00000
MaxDispX [ m ]
1.84856 × 10-7
207
0.00222573
0.164457
-0.987665
MinDispX [ m ]
-0.00866535
25000
-0.00113667
-0.0591232
0.137824
MaxDispY [ m ]
0.0340691
18548
-0.0136179
-0.00114337
0.149354
MinDispY [ m ]
-9.36254 × 10-8
63657
0.00488618
0.160637
-0.988758
MaxDispZ [ m ]
0.0131203
33251
0.0341533
-0.146041
6.87623 × 10-4
MinDispZ [ m ]
-2.13565 × 10-4
390
-0.00109909
0.164859
-0.0410569
MaxMises [ Pa ]
9.19016 × 107
216
-2.94155 × 10-4
0.164973
-0.987958
MinMises [ Pa ]
-1.32263 × 106
1
-0.00500000
0.149833
0.00500000
MaxPrincipleStress [ Pa ]
9.24806 × 107
64065
0.00135499
0.155669
-0.974068
MinPrincipleStress [ Pa ]
-1.06769 × 108
63714
-0.00112108
0.164775
-0.988980
