General Settings

Fluid-Structure Interaction Performed
yes
Source for FSI
This TCFD Case
Rotates with CFD Frame
rotating
Used CFD Patches
2:impeller-LE
2:impeller-PS
2:impeller-SS
2:impeller-TE
2:impeller-hub
2:impeller-shroud
3:spiral-impeller-LE
3:spiral-impeller-TE
3:spiral-impeller-hub
3:spiral-impeller-shroud
Number of Components
1
Thermal Effects Considered
no
Angular Velocity [ RPM ]
-3000.00

Material Description - steel

Used for Components
Co1
Density [ kg/m3 ]
7800.00
Type
orthotropic
Young Moduli [ MPa ]
Shear Moduli [ MPa ]
Poisson Ratios

Solver

Number of Parallel Threads
32
Finite Element Order
2
Nonlinear Governing Equation
no
Eigenmodes for Deformed Solid
no

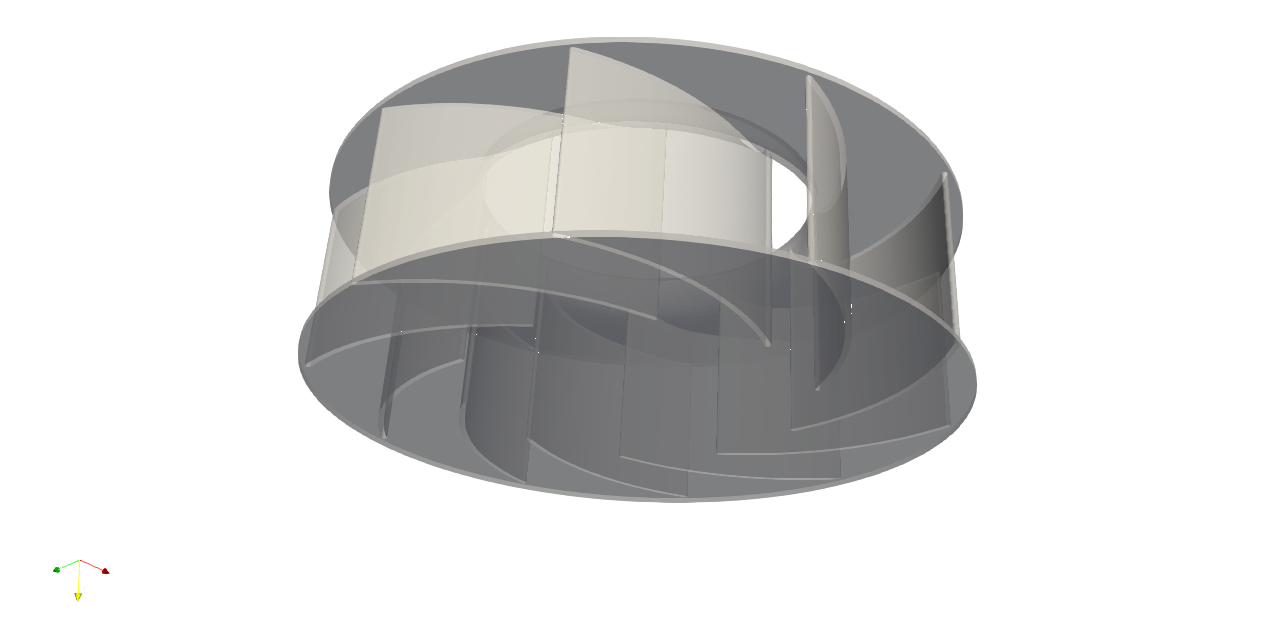

Mesh Statistics - Component Co1

Meshing Engine
NetGen
Meshing Time [ hh:mm:ss ]
00:00:35
Number of Points
35913
Number of Elements
109020
Number of Surface Faces
66618
Shortest Edge [ mm ]
2.10000 × 10-4
Longest Edge [ mm ]
0.0355210
Minimal Angle Between Edges [ deg ]
10.6278
Maximal Angle Between Edges [ deg ]
154.497
Minimal Angle Between Faces [ deg ]
3.28469
Maximal Angle Between Faces [ deg ]
171.753

Run time information

Wall time [ hh:mm:ss ]
00:00:50

Static Analysis

Quantity
Node
Value
Coordinates

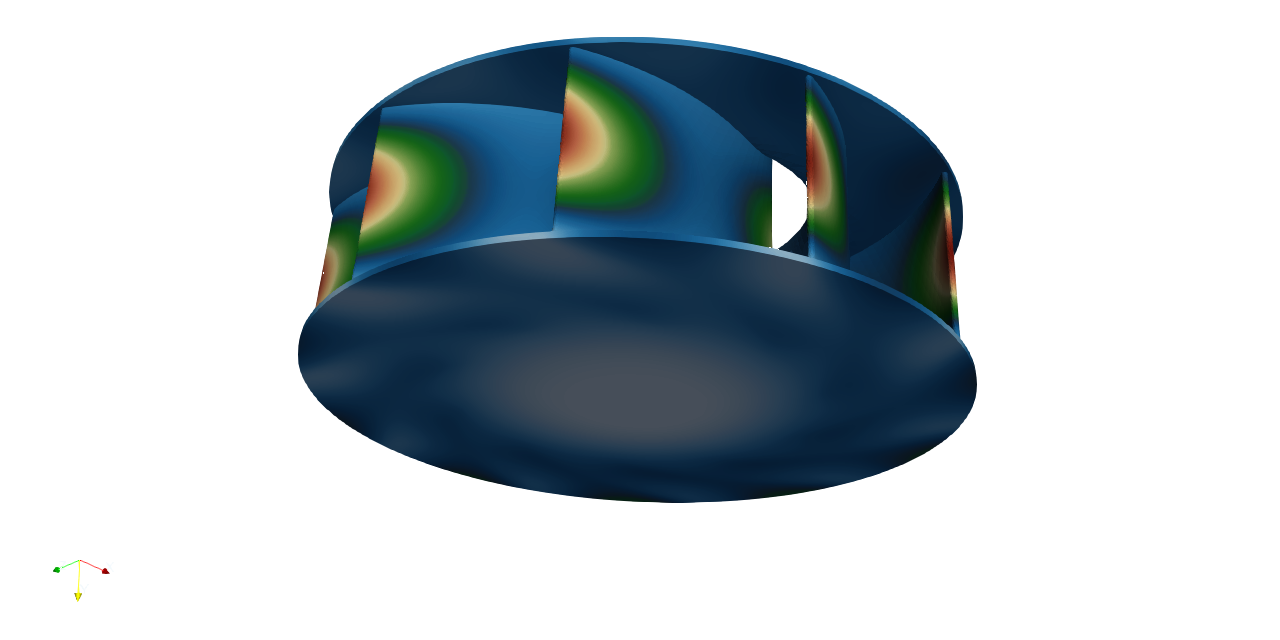

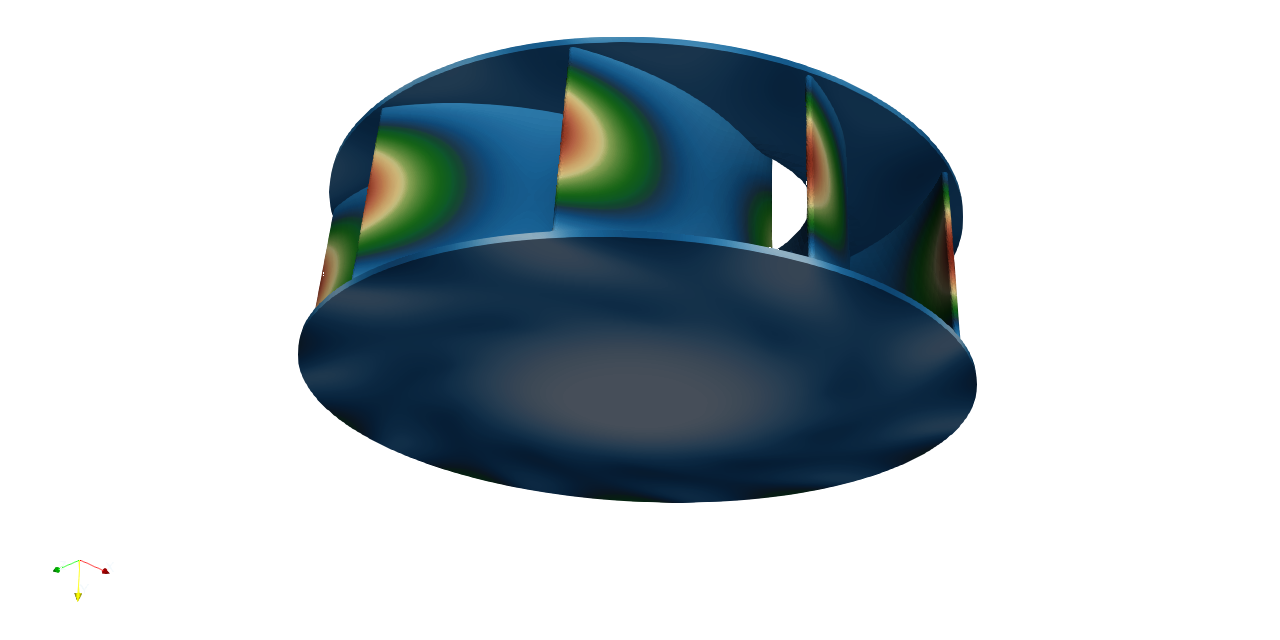

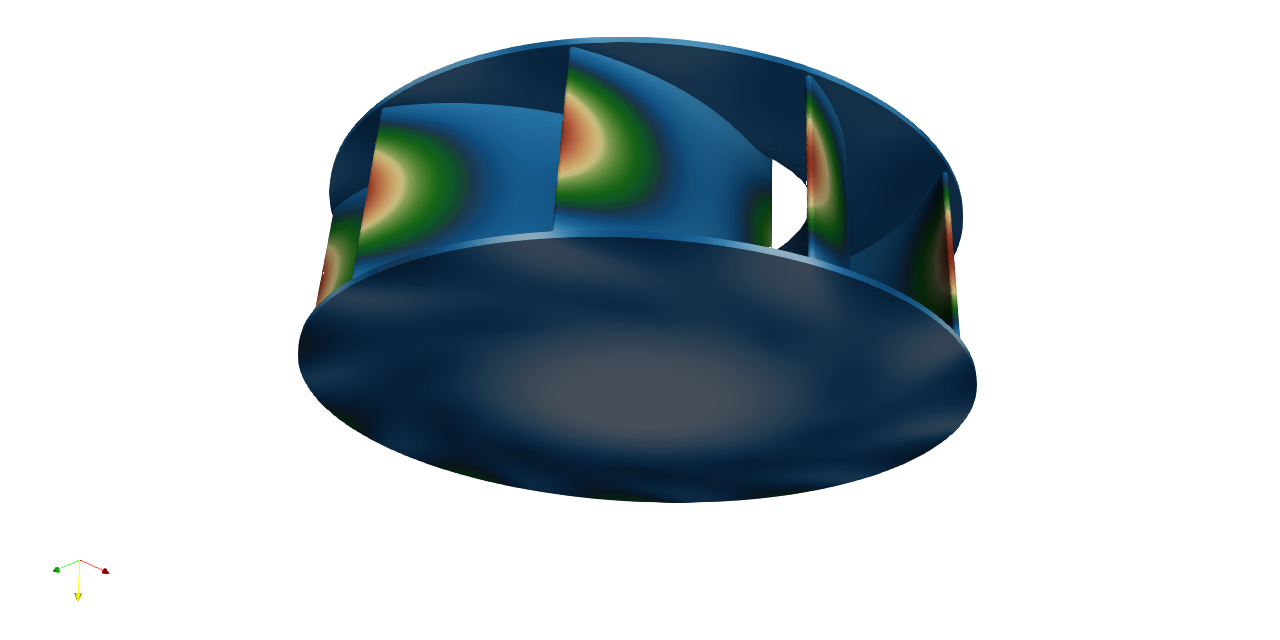

Maximal Displacement Magnitude
210691
0.00497738 [ m ]
(0.444551 -0.157156 0.321662)
Minimal Displacement Magnitude
5336
0 [ m ]
(-0.0802765 0.01 -0.0584746)
Maximal Displacement X
32901
0.00471336 [ m ]
(0.442705 -0.154928 -0.323423)
Minimal Displacement X
32870
-0.00460436 [ m ]
(-0.441571 -0.150341 0.32344)
Maximal Displacement Y
146297
0.00209447 [ m ]
(0.059694 0.005 0.55176)
Minimal Displacement Y
106859
-2.76452 × 10-4 [ m ]
(-0.0698369 -0.305 -0.550509)
Maximal Displacement Z
32770
0.00471422 [ m ]
(0.444556 -0.155604 0.321697)
Minimal Displacement Z
33030
-0.00445018 [ m ]
(-0.444507 -0.153974 -0.322561)
Maximal Displacement Axial
146297
0.00209447 [ m ]
(0.059694 0.005 0.55176)
Minimal Displacement Axial
106859
-2.76452 × 10-4 [ m ]
(-0.0698369 -0.305 -0.550509)
Maximal Displacement Radial
125773
0.00318023 [ m ]
(0.545654 -0.144662 -0.00257571)
Minimal Displacement Radial
125773
0.00318023 [ m ]
(0.545654 -0.144662 -0.00257571)
Maximal Displacement Tangential
2100
6.78554 × 10-5 [ m ]
(-0.262487 -0.387 0.145183)
Minimal Displacement Tangential
31876
-0.00316301 [ m ]
(0.446011 -0.152911 -0.321786)

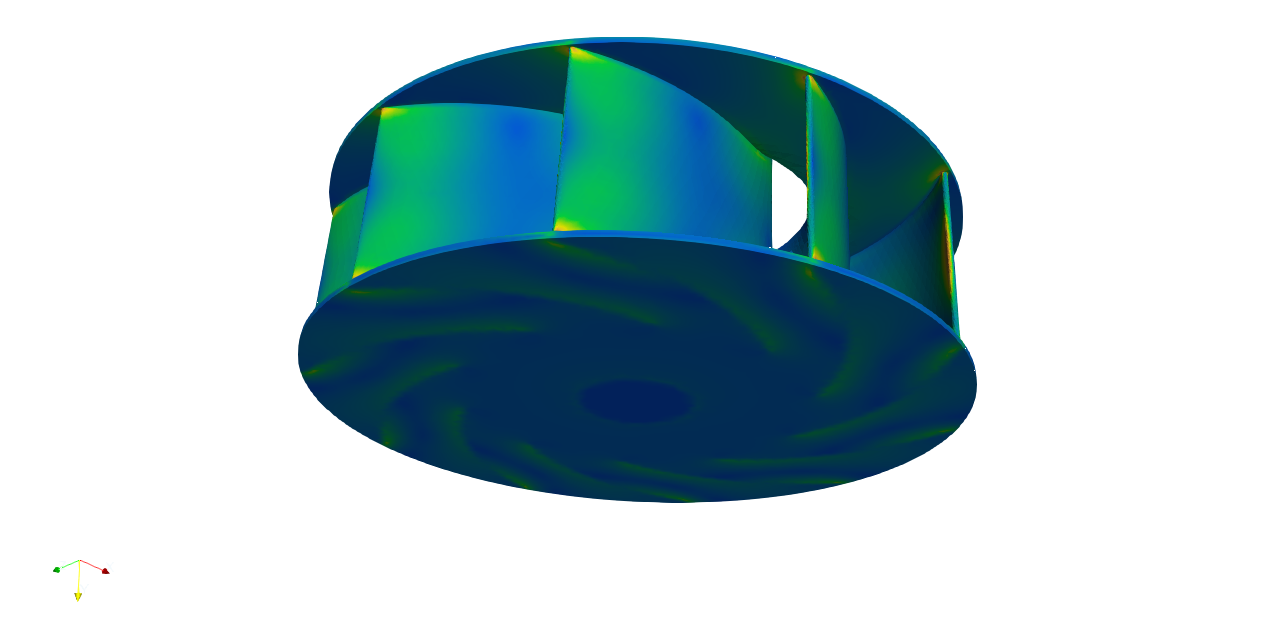

Maximal Von Mises Stress
206537
1511.91 [ MPa ]
(-0.541724 -0.00158723 0.00134227)
Minimal Von Mises Stress
5372
0 [ MPa ]
(0.0670834 0.01 0.0378897)
Maximal Principal Stress
1570
1080.00 [ MPa ]
(-0.438146 0 -0.317449)

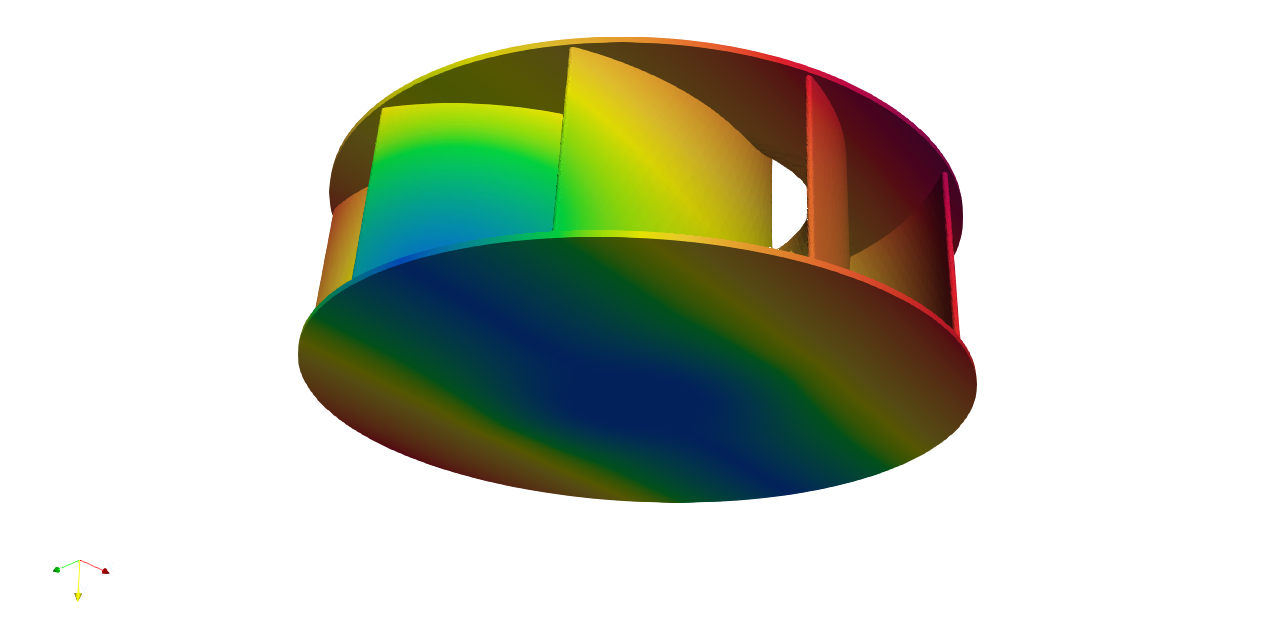

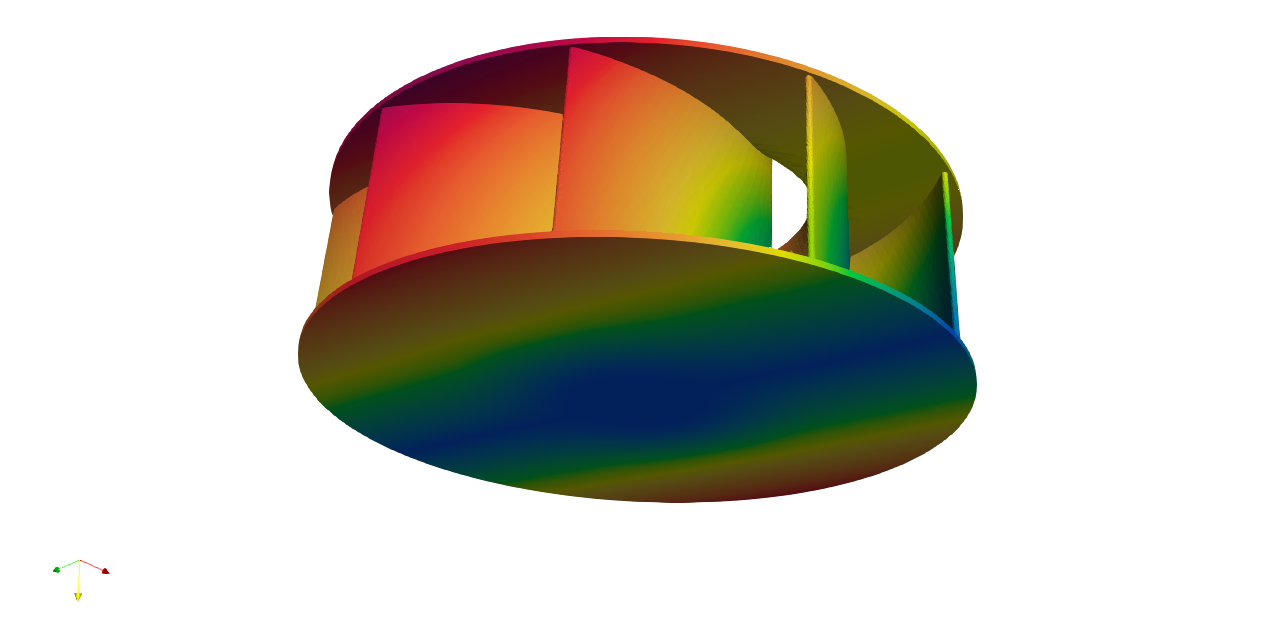

Frequency Analysis

Mode Nr.
Eigenvalue
Frequency - Real Part [ Hz ]
Frequency - Imaginary Part [ Hz ]
1
18526.2
21.6628
0
2
18628.5
21.7225
0
3
97566.2
49.7130
0

Participation Factor

Mode Nr.
Translation X
Translation Y
Translation Z
Rotation X
Rotation Y
Rotation Z
1
-6.55884
0.0461507
-1.14030
1.11556
1.63629 × 10-4
-5.42237
2
1.13870
-0.0751453
-6.55984
5.42236
2.33302 × 10-4
1.11579
3
-0.0244306
-15.2617
0.0332856
-0.0224443
-0.411940
-0.0220402

Effective Modal Mass

Mode Nr.
Translation X
Translation Y
Translation Z
Rotation X
Rotation Y
Rotation Z
1
43.0184
0.00212989
1.30029
1.24448
2.67744 × 10-8
29.4021
2
1.29664
0.00564682
43.0315
29.4019
5.44299 × 10-8
1.24497
3
5.96853 × 10-4
232.920
0.00110793
5.03748 × 10-4
0.169695
4.85768 × 10-4
Total
44.3156
232.928
44.3329
30.6469
30.6469
30.6469

Total Effective Mass

Translation X
Translation Y
Translation Z
Rotation X
Rotation Y
Rotation Z
241.105
241.105
241.105
30.7426
30.7426
30.7426

Run time information

Wall time [ hh:mm:ss ]
00:00:51

Static Analysis

Quantity
Node
Value
Coordinates
Maximal Displacement Magnitude
210691
0.00495949 [ m ]
(0.444551 -0.157156 0.321662)
Minimal Displacement Magnitude
5336
0 [ m ]
(-0.0802765 0.01 -0.0584746)
Maximal Displacement X
32901
0.00474310 [ m ]
(0.442705 -0.154928 -0.323423)
Minimal Displacement X
32870
-0.00457879 [ m ]
(-0.441571 -0.150341 0.32344)
Maximal Displacement Y
90349
0.00203971 [ m ]
(0.368184 0.005 0.415264)
Minimal Displacement Y
59703
-2.58494 × 10-4 [ m ]
(-0.378101 -0.305 -0.406227)
Maximal Displacement Z
32770
0.00468664 [ m ]
(0.444556 -0.155604 0.321697)
Minimal Displacement Z
33030
-0.00448017 [ m ]
(-0.444507 -0.153974 -0.322561)
Maximal Displacement Axial
90349
0.00203971 [ m ]
(0.368184 0.005 0.415264)
Minimal Displacement Axial
59703
-2.58494 × 10-4 [ m ]
(-0.378101 -0.305 -0.406227)
Maximal Displacement Radial
32912
0.00318559 [ m ]
(0.439354 -0.145446 -0.322522)
Minimal Displacement Radial
32912
0.00318559 [ m ]
(0.439354 -0.145446 -0.322522)
Maximal Displacement Tangential
2099
5.34907 × 10-5 [ m ]
(-0.25233 -0.387 0.162197)
Minimal Displacement Tangential
31876
-0.00315799 [ m ]
(0.446011 -0.152911 -0.321786)
Maximal Von Mises Stress
206537
1513.00 [ MPa ]
(-0.541724 -0.00158723 0.00134227)
Minimal Von Mises Stress
5372
0 [ MPa ]
(0.0670834 0.01 0.0378897)
Maximal Principal Stress
1570
1080.50 [ MPa ]
(-0.438146 0 -0.317449)

Frequency Analysis

Mode Nr.
Eigenvalue
Frequency - Real Part [ Hz ]
Frequency - Imaginary Part [ Hz ]
1
18526.2
21.6628
0
2
18628.5
21.7225
0
3
97566.2
49.7130
0

Participation Factor

Mode Nr.
Translation X
Translation Y
Translation Z
Rotation X
Rotation Y
Rotation Z
1
-6.55884
0.0461507
-1.14030
1.11556
1.63629 × 10-4
-5.42237
2
1.13870
-0.0751453
-6.55984
5.42236
2.33302 × 10-4
1.11579
3
-0.0244306
-15.2617
0.0332856
-0.0224443
-0.411940
-0.0220402

Effective Modal Mass

Mode Nr.
Translation X
Translation Y
Translation Z
Rotation X
Rotation Y
Rotation Z
1
43.0184
0.00212989
1.30029
1.24448
2.67744 × 10-8
29.4021
2
1.29664
0.00564682
43.0315
29.4019
5.44299 × 10-8
1.24497
3
5.96853 × 10-4
232.920
0.00110793
5.03748 × 10-4
0.169695
4.85768 × 10-4
Total
44.3156
232.928
44.3329
30.6469
30.6469
30.6469

Total Effective Mass

Translation X
Translation Y
Translation Z
Rotation X
Rotation Y
Rotation Z
241.105
241.105
241.105
30.7426
30.7426
30.7426

Run time information

Wall time [ hh:mm:ss ]
00:00:51

Static Analysis

Quantity
Node
Value
Coordinates
Maximal Displacement Magnitude
32704
0.00492546 [ m ]
(0.547831 -0.154889 -0.00178671)
Minimal Displacement Magnitude
5336
0 [ m ]
(-0.0802765 0.01 -0.0584746)
Maximal Displacement X
32901
0.00475924 [ m ]
(0.442705 -0.154928 -0.323423)
Minimal Displacement X
32870
-0.00456694 [ m ]
(-0.441571 -0.150341 0.32344)
Maximal Displacement Y
810
0.00197431 [ m ]
(0.369289 0.01 0.414287)
Minimal Displacement Y
1995
-2.30166 × 10-4 [ m ]
(-0.381493 -0.3 -0.403073)
Maximal Displacement Z
32770
0.00465369 [ m ]
(0.444556 -0.155604 0.321697)
Minimal Displacement Z
33030
-0.00451654 [ m ]
(-0.444507 -0.153974 -0.322561)
Maximal Displacement Axial
810
0.00197431 [ m ]
(0.369289 0.01 0.414287)
Minimal Displacement Axial
1995
-2.30166 × 10-4 [ m ]
(-0.381493 -0.3 -0.403073)
Maximal Displacement Radial
32912
0.00318998 [ m ]
(0.439354 -0.145446 -0.322522)
Minimal Displacement Radial
32912
0.00318998 [ m ]
(0.439354 -0.145446 -0.322522)
Maximal Displacement Tangential
149894
2.80852 × 10-5 [ m ]
(-0.121844 -0.387 0.273921)
Minimal Displacement Tangential
31876
-0.00314118 [ m ]
(0.446011 -0.152911 -0.321786)
Maximal Von Mises Stress
206537
1514.00 [ MPa ]
(-0.541724 -0.00158723 0.00134227)
Minimal Von Mises Stress
5372
0 [ MPa ]
(0.0670834 0.01 0.0378897)
Maximal Principal Stress
1570
1080.85 [ MPa ]
(-0.438146 0 -0.317449)

Frequency Analysis

Mode Nr.
Eigenvalue
Frequency - Real Part [ Hz ]
Frequency - Imaginary Part [ Hz ]
1
18526.2
21.6628
0
2
18628.5
21.7225
0
3
97566.2
49.7130
0

Participation Factor

Mode Nr.
Translation X
Translation Y
Translation Z
Rotation X
Rotation Y
Rotation Z
1
-6.55884
0.0461507
-1.14030
1.11556
1.63629 × 10-4
-5.42237
2
1.13870
-0.0751453
-6.55984
5.42236
2.33302 × 10-4
1.11579
3
-0.0244306
-15.2617
0.0332856
-0.0224443
-0.411940
-0.0220402

Effective Modal Mass

Mode Nr.
Translation X
Translation Y
Translation Z
Rotation X
Rotation Y
Rotation Z
1
43.0184
0.00212989
1.30029
1.24448
2.67744 × 10-8
29.4021
2
1.29664
0.00564682
43.0315
29.4019
5.44299 × 10-8
1.24497
3
5.96853 × 10-4
232.920
0.00110793
5.03748 × 10-4
0.169695
4.85768 × 10-4
Total
44.3156
232.928
44.3329
30.6469
30.6469
30.6469

Total Effective Mass

Translation X
Translation Y
Translation Z
Rotation X
Rotation Y
Rotation Z
241.105
241.105
241.105
30.7426
30.7426
30.7426

Run time information

Wall time [ hh:mm:ss ]
00:00:51

Static Analysis

Quantity
Node
Value
Coordinates
Maximal Displacement Magnitude
32704
0.00491627 [ m ]
(0.547831 -0.154889 -0.00178671)
Minimal Displacement Magnitude
5336
0 [ m ]
(-0.0802765 0.01 -0.0584746)
Maximal Displacement X
32901
0.00476152 [ m ]
(0.442705 -0.154928 -0.323423)
Minimal Displacement X
32870
-0.00456907 [ m ]
(-0.441571 -0.150341 0.32344)
Maximal Displacement Y
810
0.00192545 [ m ]
(0.369289 0.01 0.414287)
Minimal Displacement Y
1995
-2.22025 × 10-4 [ m ]
(-0.381493 -0.3 -0.403073)
Maximal Displacement Z
32770
0.00464323 [ m ]
(0.444556 -0.155604 0.321697)
Minimal Displacement Z
33030
-0.00453184 [ m ]
(-0.444507 -0.153974 -0.322561)
Maximal Displacement Axial
810
0.00192545 [ m ]
(0.369289 0.01 0.414287)
Minimal Displacement Axial
1995
-2.22025 × 10-4 [ m ]
(-0.381493 -0.3 -0.403073)
Maximal Displacement Radial
32912
0.00319485 [ m ]
(0.439354 -0.145446 -0.322522)
Minimal Displacement Radial
32912
0.00319485 [ m ]
(0.439354 -0.145446 -0.322522)
Maximal Displacement Tangential
4295
2.64880 × 10-5 [ m ]
(0.141072 0.01 -0.306182)
Minimal Displacement Tangential
191526
-0.00313555 [ m ]
(0.171762 -0.153521 -0.522462)
Maximal Von Mises Stress
206537
1514.66 [ MPa ]
(-0.541724 -0.00158723 0.00134227)
Minimal Von Mises Stress
5372
0 [ MPa ]
(0.0670834 0.01 0.0378897)
Maximal Principal Stress
1570
1081.14 [ MPa ]
(-0.438146 0 -0.317449)

Frequency Analysis

Mode Nr.
Eigenvalue
Frequency - Real Part [ Hz ]
Frequency - Imaginary Part [ Hz ]
1
18526.2
21.6628
0
2
18628.5
21.7225
0
3
97566.2
49.7130
0

Participation Factor

Mode Nr.
Translation X
Translation Y
Translation Z
Rotation X
Rotation Y
Rotation Z
1
-6.55884
0.0461507
-1.14030
1.11556
1.63629 × 10-4
-5.42237
2
1.13870
-0.0751453
-6.55984
5.42236
2.33302 × 10-4
1.11579
3
-0.0244306
-15.2617
0.0332856
-0.0224443
-0.411940
-0.0220402

Effective Modal Mass

Mode Nr.
Translation X
Translation Y
Translation Z
Rotation X
Rotation Y
Rotation Z
1
43.0184
0.00212989
1.30029
1.24448
2.67744 × 10-8
29.4021
2
1.29664
0.00564682
43.0315
29.4019
5.44299 × 10-8
1.24497
3
5.96853 × 10-4
232.920
0.00110793
5.03748 × 10-4
0.169695
4.85768 × 10-4
Total
44.3156
232.928
44.3329
30.6469
30.6469
30.6469

Total Effective Mass

Translation X
Translation Y
Translation Z
Rotation X
Rotation Y
Rotation Z
241.105
241.105
241.105
30.7426
30.7426
30.7426

Run time information

Wall time [ hh:mm:ss ]
00:00:51

Static Analysis

Quantity
Node
Value
Coordinates
Maximal Displacement Magnitude
32770
0.00488915 [ m ]
(0.444556 -0.155604 0.321697)
Minimal Displacement Magnitude
5336
0 [ m ]
(-0.0802765 0.01 -0.0584746)
Maximal Displacement X
32901
0.00472899 [ m ]
(0.442705 -0.154928 -0.323423)
Minimal Displacement X
32870
-0.00460363 [ m ]
(-0.441571 -0.150341 0.32344)
Maximal Displacement Y
90349
0.00187136 [ m ]
(0.368184 0.005 0.415264)
Minimal Displacement Y
1995
-1.62428 × 10-4 [ m ]
(-0.381493 -0.3 -0.403073)
Maximal Displacement Z
32770
0.00465581 [ m ]
(0.444556 -0.155604 0.321697)
Minimal Displacement Z
33030
-0.00452284 [ m ]
(-0.444507 -0.153974 -0.322561)
Maximal Displacement Axial
90349
0.00187136 [ m ]
(0.368184 0.005 0.415264)
Minimal Displacement Axial
1995
-1.62428 × 10-4 [ m ]
(-0.381493 -0.3 -0.403073)
Maximal Displacement Radial
32912
0.00319288 [ m ]
(0.439354 -0.145446 -0.322522)
Minimal Displacement Radial
32912
0.00319288 [ m ]
(0.439354 -0.145446 -0.322522)
Maximal Displacement Tangential
198729
2.51961 × 10-5 [ m ]
(0.292858 0.01 -0.16711)
Minimal Displacement Tangential
31876
-0.00312528 [ m ]
(0.446011 -0.152911 -0.321786)
Maximal Von Mises Stress
206537
1514.23 [ MPa ]
(-0.541724 -0.00158723 0.00134227)
Minimal Von Mises Stress
5372
0 [ MPa ]
(0.0670834 0.01 0.0378897)
Maximal Principal Stress
1570
1080.87 [ MPa ]
(-0.438146 0 -0.317449)

Frequency Analysis

Mode Nr.
Eigenvalue
Frequency - Real Part [ Hz ]
Frequency - Imaginary Part [ Hz ]
1
18526.2
21.6628
0
2
18628.5
21.7225
0
3
97566.2
49.7130
0

Participation Factor

Mode Nr.
Translation X
Translation Y
Translation Z
Rotation X
Rotation Y
Rotation Z
1
-6.55884
0.0461507
-1.14030
1.11556
1.63629 × 10-4
-5.42237
2
1.13870
-0.0751453
-6.55984
5.42236
2.33302 × 10-4
1.11579
3
-0.0244306
-15.2617
0.0332856
-0.0224443
-0.411940
-0.0220402

Effective Modal Mass

Mode Nr.
Translation X
Translation Y
Translation Z
Rotation X
Rotation Y
Rotation Z
1
43.0184
0.00212989
1.30029
1.24448
2.67744 × 10-8
29.4021
2
1.29664
0.00564682
43.0315
29.4019
5.44299 × 10-8
1.24497
3
5.96853 × 10-4
232.920
0.00110793
5.03748 × 10-4
0.169695
4.85768 × 10-4
Total
44.3156
232.928
44.3329
30.6469
30.6469
30.6469

Total Effective Mass

Translation X
Translation Y
Translation Z
Rotation X
Rotation Y
Rotation Z
241.105
241.105
241.105
30.7426
30.7426
30.7426
