eveningTest CFD Simulation Resuls

Simulation Stats

Test Case Name

eveningTest

Number of Points [ – ]

5

Machine Type

fan

Rotation Speed [ RPM ]

4500.00

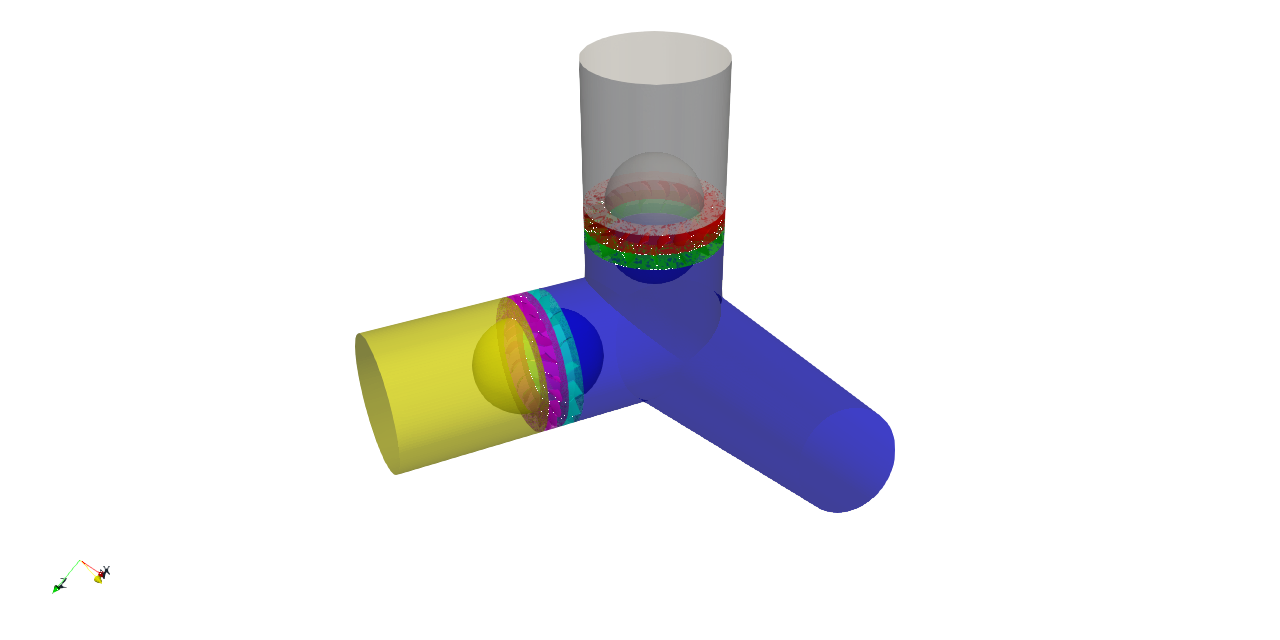

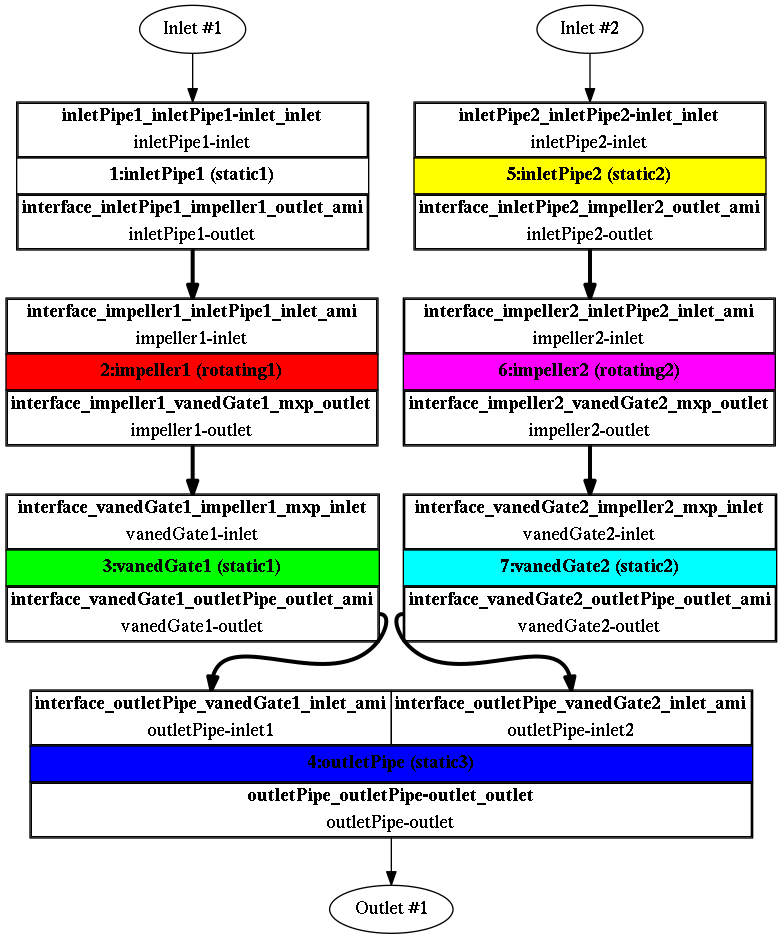

Number of Components [ – ]

(topology)

7

Mesh Size [ cells ]

(details)

inletPipe1 : 33093

impeller1 : 113970

vanedGate1 : 96702

outletPipe : 118720

inletPipe2 : 33098

impeller2 : 113894

vanedGate2 : 96729

Total : 606206

Mesh details [ mm ]:

Component	Property	Min	Max	Avg
1	cellOpenness	N/A	2.90604 × 10^-16	N/A
1	cellVolume	55.2287	4832.39	N/A
1	faceArea	14.1756	340.787	N/A
1	aspectRatio	N/A	4.44985	N/A
1	nonOrthogonality	N/A	47.8255	11.0547
1	skewness	N/A	0.701191	N/A
1	edgeLength	N/A	N/A	N/A
1	concaveAngle	N/A	20.5796	N/A
1	faceFlatness	0.911908	N/A	0.999063
1	cellDeterminant	0.183752	N/A	15.5018
1	faceInterpolationWeight	0.135380	N/A	0.458718
1	faceVolumeRatio	0.0410505	0.789256	N/A
1	Warnings:	12 faces with low quality or negative volume decomposition tets 52 faces with concave angles 1808 concave cells
2	cellOpenness	N/A	3.73978 × 10^-16	N/A
2	cellVolume	0.0763378	680.461	N/A
2	faceArea	0.00285461	108.446	N/A
2	aspectRatio	N/A	7.10674	N/A
2	nonOrthogonality	N/A	64.9795	17.0467
2	skewness	N/A	8.29345	N/A
2	edgeLength	0	11.9943	N/A
2	concaveAngle	N/A	79.9528	N/A
2	faceFlatness	0.315473	N/A	0.994772
2	cellDeterminant	0.0194224	N/A	26.0046
2	faceInterpolationWeight	0.0597284	N/A	0.420344
2	faceVolumeRatio	0.0101508	0.605564	N/A
2	Warnings:	25 skew faces 1242 faces with low quality or negative volume decomposition tets 24 points on short edges 5059 faces with concave angles 192 warped faces 12485 concave cells
3	cellOpenness	N/A	3.73858 × 10^-16	N/A
3	cellVolume	0.0440535	639.766	N/A
3	faceArea	0.00173743	96.8504	N/A
3	aspectRatio	N/A	8.35354	N/A
3	nonOrthogonality	N/A	64.9668	16.0912
3	skewness	N/A	11.6276	N/A
3	edgeLength	0	11.2577	N/A
3	concaveAngle	N/A	79.9842	N/A
3	faceFlatness	0.249961	N/A	0.994738
3	cellDeterminant	0.0162255	N/A	23.6156
3	faceInterpolationWeight	0.0552493	N/A	0.422623
3	faceVolumeRatio	0.0104577	0.618826	N/A
3	Warnings:	4 conflicting points 6 skew faces 739 faces with low quality or negative volume decomposition tets 32 points on short edges 3178 faces with concave angles 65 warped faces 9212 concave cells
4	cellOpenness	N/A	3.91374 × 10^-16	N/A
4	cellVolume	50.9270	4483.80	N/A
4	faceArea	10.2252	347.807	N/A
4	aspectRatio	N/A	5.70618	N/A
4	nonOrthogonality	N/A	55.1763	11.0730
4	skewness	N/A	1.25455	N/A
4	edgeLength	N/A	N/A	N/A
4	concaveAngle	N/A	55.8918	N/A
4	faceFlatness	0.850779	N/A	0.998254
4	cellDeterminant	0.174927	N/A	16.0505
4	faceInterpolationWeight	0.114609	N/A	0.460895
4	faceVolumeRatio	0.0194201	0.794283	N/A
4	Warnings:	129 faces with low quality or negative volume decomposition tets 198 faces with concave angles 5478 concave cells
5	cellOpenness	N/A	2.87790 × 10^-16	N/A
5	cellVolume	55.2748	4831.23	N/A
5	faceArea	14.1758	340.760	N/A
5	aspectRatio	N/A	4.42605	N/A
5	nonOrthogonality	N/A	47.8302	11.0525
5	skewness	N/A	0.706339	N/A
5	edgeLength	N/A	N/A	N/A
5	concaveAngle	N/A	20.5811	N/A
5	faceFlatness	0.913011	N/A	0.999069
5	cellDeterminant	0.183676	N/A	15.4919
5	faceInterpolationWeight	0.135980	N/A	0.458706
5	faceVolumeRatio	0.0410098	0.789246	N/A
5	Warnings:	12 faces with low quality or negative volume decomposition tets 56 faces with concave angles 1801 concave cells
6	cellOpenness	N/A	3.24005 × 10^-16	N/A
6	cellVolume	0.0972658	679.151	N/A
6	faceArea	0.00294506	108.441	N/A
6	aspectRatio	N/A	11.2291	N/A
6	nonOrthogonality	N/A	64.9822	17.0834
6	skewness	N/A	9.26012	N/A
6	edgeLength	0	11.9932	N/A
6	concaveAngle	N/A	79.9715	N/A
6	faceFlatness	0.162199	N/A	0.994747
6	cellDeterminant	0.0129614	N/A	26.0006
6	faceInterpolationWeight	0.0596858	N/A	0.420233
6	faceVolumeRatio	0.0104297	0.605061	N/A
6	Warnings:	38 skew faces 1266 faces with low quality or negative volume decomposition tets 20 points on short edges 5024 faces with concave angles 223 warped faces 12502 concave cells
7	cellOpenness	N/A	3.24927 × 10^-16	N/A
7	cellVolume	0.0432995	638.815	N/A
7	faceArea	0.00120642	96.8558	N/A
7	aspectRatio	N/A	8.33137	N/A
7	nonOrthogonality	N/A	64.9864	16.0734
7	skewness	N/A	12.6617	N/A
7	edgeLength	0	11.2560	N/A
7	concaveAngle	N/A	79.9900	N/A
7	faceFlatness	0.222079	N/A	0.994747
7	cellDeterminant	0.0448049	N/A	23.6156
7	faceInterpolationWeight	0.0777355	N/A	0.422703
7	faceVolumeRatio	0.0100476	0.619117	N/A
7	Warnings:	4 conflicting points 6 skew faces 739 faces with low quality or negative volume decomposition tets 34 points on short edges 3206 faces with concave angles 65 warped faces 9273 concave cells

Average y+ at walls [ – ]
(details)

263.904

y+ details:

Point	Patch	Min	Max	Avg
1	inletPipe1_inletPipe1-wall_wall	47.5240	427.686	250.656
1	inletPipe1_inletPipe1-hub_wall	89.5804	494.075	259.094
1	impeller1_impeller1-bladele_wall	7.78744	140.144	50.8244
1	impeller1_impeller1-shroud_wall	11.0923	696.767	139.468
1	impeller1_impeller1-bladeps_wall	13.1177	330.998	67.6364
1	impeller1_impeller1-hub_wall	4.34201	622.978	126.124
1	impeller1_impeller1-bladess_wall	9.70829	371.724	78.5480
1	vanedGate1_vanedGate1-hub_wall	6.78412	611.177	146.874
1	vanedGate1_vanedGate1-bladess_wall	9.96699	417.389	73.1320
1	vanedGate1_vanedGate1-shroud_wall	8.09678	634.708	156.466
1	vanedGate1_vanedGate1-bladeps_wall	7.79240	411.455	77.8008
1	vanedGate1_vanedGate1-bladele_wall	9.25601	180.033	42.6430
1	vanedGate1_vanedGate1-bladete_wall	16.3495	296.912	119.889
1	outletPipe_outletPipe-hub2_wall	93.1765	619.672	263.904
1	outletPipe_outletPipe-hub1_wall	94.2498	617.931	263.755
1	outletPipe_outletPipe-wall_wall	1.53366	619.714	170.257
1	inletPipe2_inletPipe2-wall_wall	47.5417	427.758	250.610
1	inletPipe2_inletPipe2-hub_wall	89.7758	496.136	259.320
1	impeller2_impeller2-shroud_wall	10.8560	692.905	139.036
1	impeller2_impeller2-bladess_wall	9.74468	352.368	78.8043
1	impeller2_impeller2-bladele_wall	4.79699	151.808	50.8508
1	impeller2_impeller2-hub_wall	4.35826	624.714	127.000
1	impeller2_impeller2-bladeps_wall	13.2172	346.137	67.9566
1	vanedGate2_vanedGate2-shroud_wall	8.56463	635.010	156.307
1	vanedGate2_vanedGate2-bladess_wall	9.98582	410.958	73.0742
1	vanedGate2_vanedGate2-bladete_wall	16.4092	297.543	119.555
1	vanedGate2_vanedGate2-bladeps_wall	7.78023	416.883	77.6973
1	vanedGate2_vanedGate2-bladele_wall	9.13725	222.250	42.6739
1	vanedGate2_vanedGate2-hub_wall	6.80024	607.123	146.376
2	inletPipe1_inletPipe1-wall_wall	41.7104	377.553	221.520
2	inletPipe1_inletPipe1-hub_wall	79.2661	438.951	230.964
2	impeller1_impeller1-bladele_wall	6.84205	122.750	44.4745
2	impeller1_impeller1-shroud_wall	10.1189	651.858	128.483
2	impeller1_impeller1-bladeps_wall	11.7115	310.159	61.0064
2	impeller1_impeller1-hub_wall	3.76287	576.606	115.289
2	impeller1_impeller1-bladess_wall	8.94104	354.087	71.3519
2	vanedGate1_vanedGate1-hub_wall	6.35687	568.965	135.743
2	vanedGate1_vanedGate1-bladess_wall	9.29898	396.537	67.6829
2	vanedGate1_vanedGate1-shroud_wall	7.59547	596.462	146.384
2	vanedGate1_vanedGate1-bladeps_wall	7.31592	382.780	72.8694
2	vanedGate1_vanedGate1-bladele_wall	7.66512	170.744	39.3200
2	vanedGate1_vanedGate1-bladete_wall	15.1934	253.106	110.256
2	outletPipe_outletPipe-hub2_wall	83.1079	571.889	240.789
2	outletPipe_outletPipe-hub1_wall	81.8649	569.934	240.641
2	outletPipe_outletPipe-wall_wall	43.1042	579.537	248.476
2	inletPipe2_inletPipe2-wall_wall	41.7259	377.609	221.478
2	inletPipe2_inletPipe2-hub_wall	79.4422	440.975	231.174
2	impeller2_impeller2-shroud_wall	9.93608	648.190	128.089
2	impeller2_impeller2-bladess_wall	8.97884	335.452	71.5966
2	impeller2_impeller2-bladele_wall	2.64207	136.233	44.5080
2	impeller2_impeller2-hub_wall	3.78236	578.580	116.119
2	impeller2_impeller2-bladeps_wall	11.8027	326.787	61.3148
2	vanedGate2_vanedGate2-shroud_wall	8.13913	596.837	146.250
2	vanedGate2_vanedGate2-bladess_wall	9.32245	389.903	67.6297
2	vanedGate2_vanedGate2-bladete_wall	15.2663	254.109	109.930
2	vanedGate2_vanedGate2-bladeps_wall	7.31407	388.123	72.7791
2	vanedGate2_vanedGate2-bladele_wall	7.94679	207.688	39.3451
2	vanedGate2_vanedGate2-hub_wall	6.36224	565.830	135.323
3	inletPipe1_inletPipe1-wall_wall	35.8844	326.429	192.120
3	inletPipe1_inletPipe1-hub_wall	69.0926	388.765	203.581
3	impeller1_impeller1-bladele_wall	5.91377	110.722	38.7844
3	impeller1_impeller1-shroud_wall	8.96624	589.694	115.580
3	impeller1_impeller1-bladeps_wall	9.08519	281.767	53.8965
3	impeller1_impeller1-hub_wall	3.19746	527.336	103.990
3	impeller1_impeller1-bladess_wall	8.22591	326.954	63.7271
3	vanedGate1_vanedGate1-hub_wall	5.72512	517.597	122.499
3	vanedGate1_vanedGate1-bladess_wall	8.44361	367.828	61.0969
3	vanedGate1_vanedGate1-shroud_wall	6.98494	546.018	133.331
3	vanedGate1_vanedGate1-bladeps_wall	6.69550	347.872	66.4283
3	vanedGate1_vanedGate1-bladele_wall	7.67594	158.438	35.8611
3	vanedGate1_vanedGate1-bladete_wall	13.8259	207.019	98.0706
3	outletPipe_outletPipe-hub2_wall	67.4677	513.178	212.545
3	outletPipe_outletPipe-hub1_wall	66.1684	511.140	212.408
3	outletPipe_outletPipe-wall_wall	50.2029	529.692	223.696
3	inletPipe2_inletPipe2-wall_wall	35.8977	326.420	192.081
3	inletPipe2_inletPipe2-hub_wall	69.2500	388.757	203.779
3	impeller2_impeller2-shroud_wall	8.82790	586.238	115.217
3	impeller2_impeller2-bladess_wall	8.26434	309.257	63.9430
3	impeller2_impeller2-bladele_wall	3.34812	121.591	38.7963
3	impeller2_impeller2-hub_wall	3.21548	528.991	104.752
3	impeller2_impeller2-bladeps_wall	9.15524	299.941	54.1731
3	vanedGate2_vanedGate2-shroud_wall	7.42903	546.189	133.211
3	vanedGate2_vanedGate2-bladess_wall	8.46768	361.591	61.0487
3	vanedGate2_vanedGate2-bladete_wall	13.9111	205.312	97.7308
3	vanedGate2_vanedGate2-bladeps_wall	6.69615	352.147	66.3300
3	vanedGate2_vanedGate2-bladele_wall	7.34817	189.070	35.8788
3	vanedGate2_vanedGate2-hub_wall	5.70600	515.600	122.164
4	inletPipe1_inletPipe1-wall_wall	30.0432	274.805	162.423
4	inletPipe1_inletPipe1-hub_wall	59.1556	346.351	177.530
4	impeller1_impeller1-bladele_wall	5.40184	102.035	35.3242
4	impeller1_impeller1-shroud_wall	7.79035	539.028	104.917
4	impeller1_impeller1-bladeps_wall	8.21176	260.575	49.0220
4	impeller1_impeller1-hub_wall	2.74304	488.876	94.8456
4	impeller1_impeller1-bladess_wall	7.66810	301.956	58.1896
4	vanedGate1_vanedGate1-hub_wall	5.10961	477.617	110.326
4	vanedGate1_vanedGate1-bladess_wall	7.80684	346.476	56.6158
4	vanedGate1_vanedGate1-shroud_wall	6.43273	510.256	123.411
4	vanedGate1_vanedGate1-bladeps_wall	6.14711	310.786	60.6707
4	vanedGate1_vanedGate1-bladele_wall	6.96302	151.319	33.8213
4	vanedGate1_vanedGate1-bladete_wall	12.6948	197.688	85.4671
4	outletPipe_outletPipe-hub2_wall	48.2845	460.380	188.055
4	outletPipe_outletPipe-hub1_wall	47.0635	458.223	187.978
4	outletPipe_outletPipe-wall_wall	42.3572	493.724	195.023
4	inletPipe2_inletPipe2-wall_wall	30.0543	274.717	162.385
4	inletPipe2_inletPipe2-hub_wall	59.2944	346.548	177.721
4	impeller2_impeller2-shroud_wall	7.64213	535.689	104.573
4	impeller2_impeller2-bladess_wall	7.70730	284.657	58.3849
4	impeller2_impeller2-bladele_wall	3.34300	113.540	35.3174
4	impeller2_impeller2-hub_wall	2.76309	489.926	95.5573
4	impeller2_impeller2-bladeps_wall	8.26151	279.025	49.2773
4	vanedGate2_vanedGate2-shroud_wall	6.69221	510.060	123.338
4	vanedGate2_vanedGate2-bladess_wall	7.82836	340.990	56.5719
4	vanedGate2_vanedGate2-bladete_wall	12.7834	165.376	85.1709
4	vanedGate2_vanedGate2-bladeps_wall	6.16434	314.663	60.6028
4	vanedGate2_vanedGate2-bladele_wall	6.98859	175.644	33.8498
4	vanedGate2_vanedGate2-hub_wall	5.10995	476.402	110.095
5	inletPipe1_inletPipe1-wall_wall	24.1828	221.555	132.235
5	inletPipe1_inletPipe1-hub_wall	49.6325	314.519	154.163
5	impeller1_impeller1-bladele_wall	4.97443	96.0412	34.9996
5	impeller1_impeller1-shroud_wall	6.95945	495.297	95.9822
5	impeller1_impeller1-bladeps_wall	7.76229	244.492	46.7479
5	impeller1_impeller1-hub_wall	2.41863	459.790	88.3103
5	impeller1_impeller1-bladess_wall	7.24758	274.458	54.9412
5	vanedGate1_vanedGate1-hub_wall	5.60116	611.483	127.000
5	vanedGate1_vanedGate1-bladess_wall	7.40390	333.554	57.2607
5	vanedGate1_vanedGate1-shroud_wall	3.97107	480.691	116.889
5	vanedGate1_vanedGate1-bladeps_wall	5.18462	430.672	64.1755
5	vanedGate1_vanedGate1-bladele_wall	6.64886	192.034	35.2219
5	vanedGate1_vanedGate1-bladete_wall	13.0350	197.496	102.533
5	outletPipe_outletPipe-hub2_wall	58.9540	523.022	204.862
5	outletPipe_outletPipe-hub1_wall	58.2332	529.978	204.226
5	outletPipe_outletPipe-wall_wall	38.2173	486.060	173.031
5	inletPipe2_inletPipe2-wall_wall	24.1916	222.117	132.194
5	inletPipe2_inletPipe2-hub_wall	49.7296	314.831	154.363
5	impeller2_impeller2-shroud_wall	6.80255	492.665	95.6647
5	impeller2_impeller2-bladess_wall	7.25851	257.584	55.1363
5	impeller2_impeller2-bladele_wall	3.40126	116.554	34.9822
5	impeller2_impeller2-hub_wall	2.43956	544.364	89.1090
5	impeller2_impeller2-bladeps_wall	7.78893	264.087	46.9866
5	vanedGate2_vanedGate2-shroud_wall	6.19685	479.971	116.848
5	vanedGate2_vanedGate2-bladess_wall	7.42767	328.605	57.4138
5	vanedGate2_vanedGate2-bladete_wall	13.2663	192.347	102.001
5	vanedGate2_vanedGate2-bladeps_wall	5.69551	436.836	64.0760
5	vanedGate2_vanedGate2-bladele_wall	6.61064	249.732	35.4985
5	vanedGate2_vanedGate2-hub_wall	5.71637	590.168	128.651

Wall-clock time [ hh:mm:ss ]

00:11:17

Parallel Processors [ – ]

24

Fluid Name

air

Compressibility

incompressible

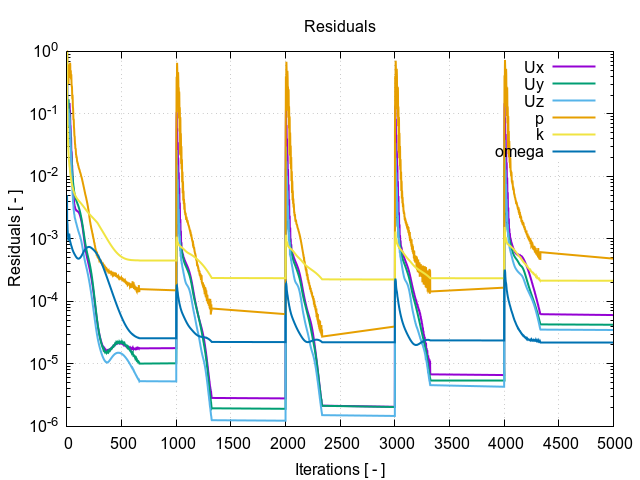

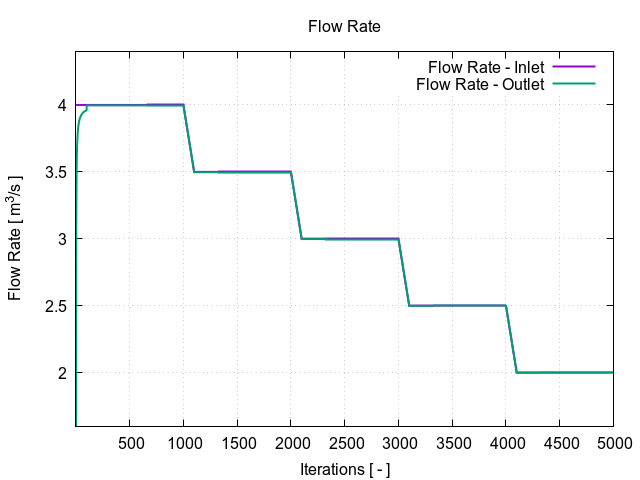

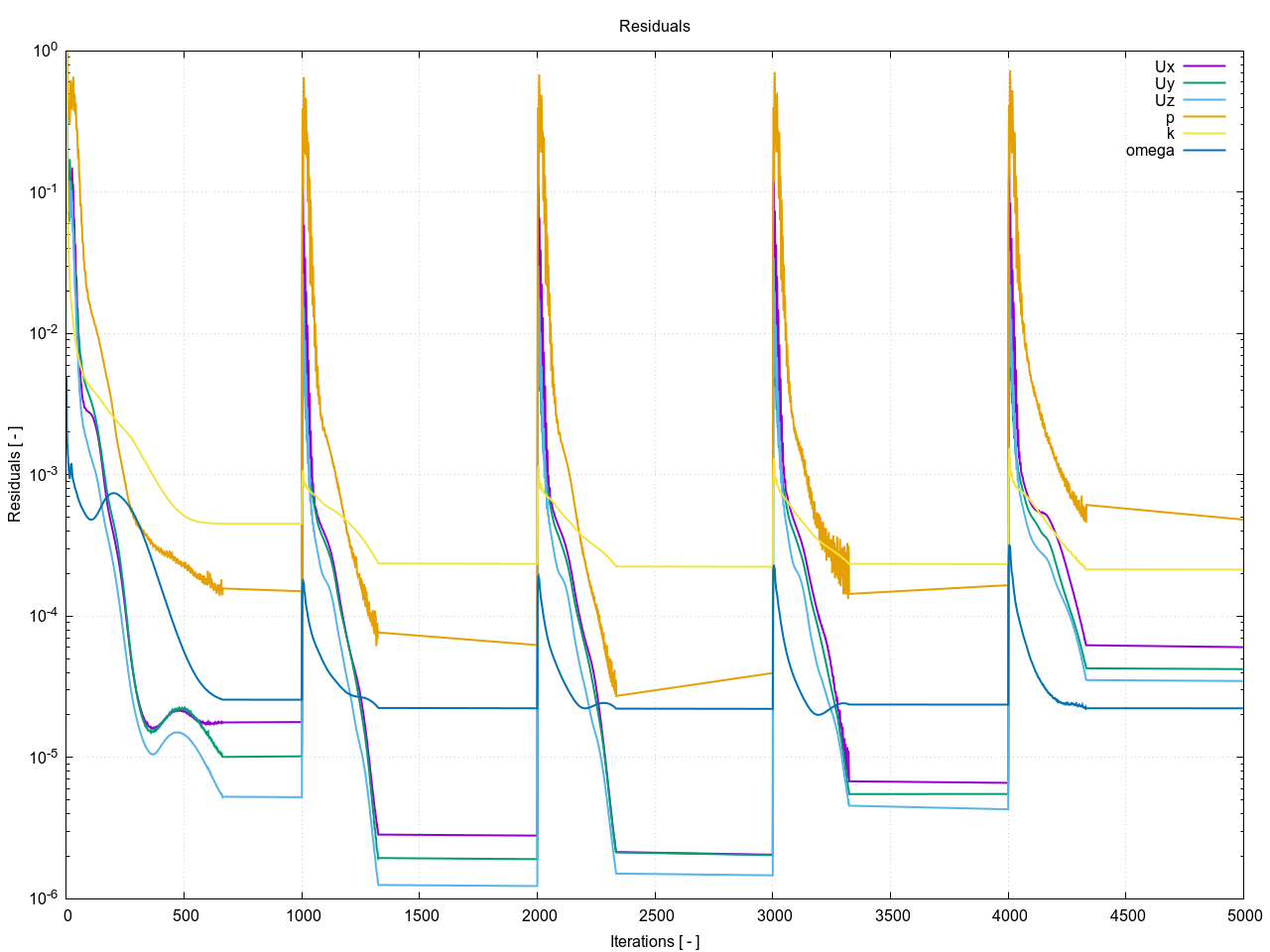

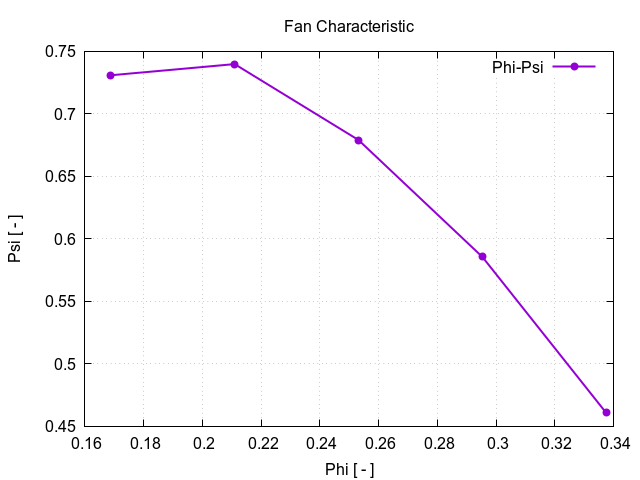

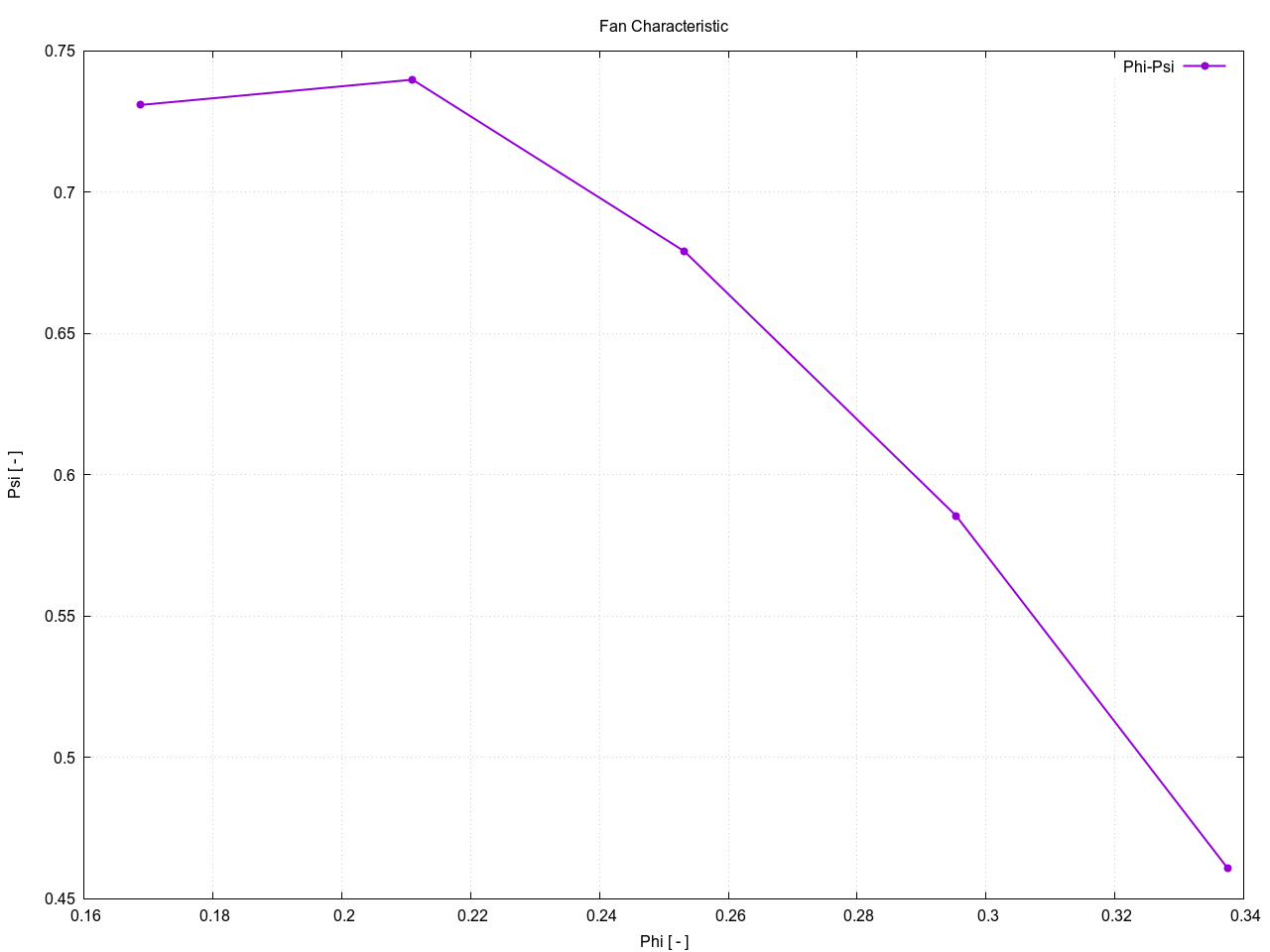

Fan Characteristic

1:inletPipe1-inlet — 3:vanedGate1-outlet

Point Nr.	Flow number [ – ]	Compression number [ – ]
1	0.337541	0.460695
2	0.295348	0.585544
3	0.253156	0.679111
4	0.210963	0.739843
5	0.168770	0.730915

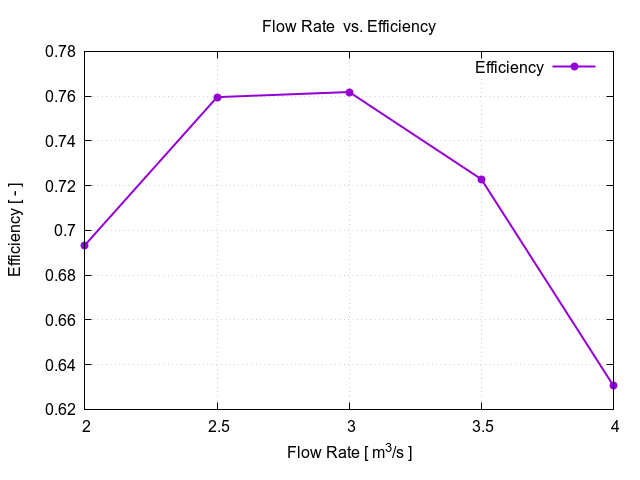

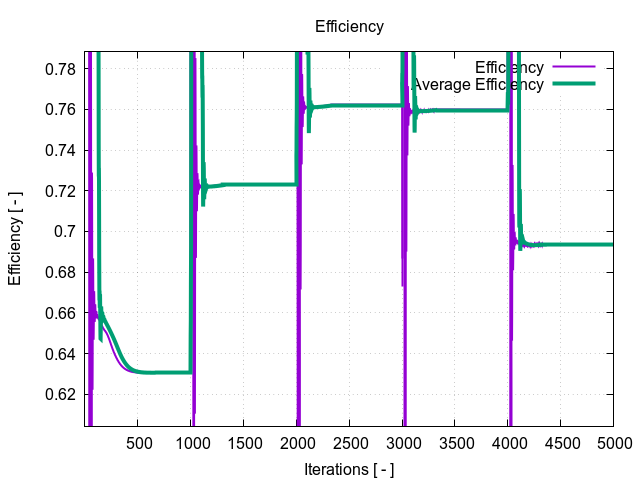

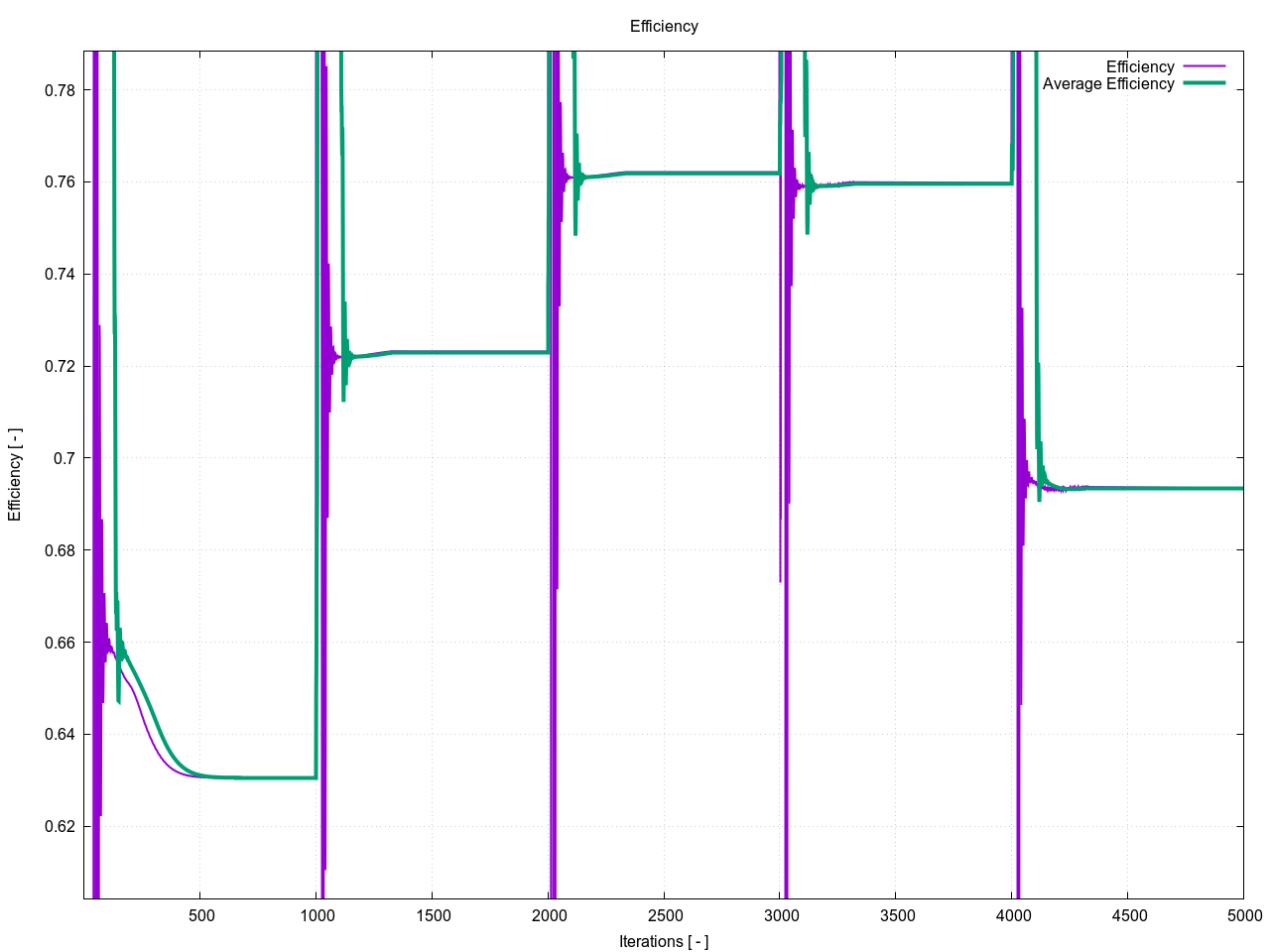

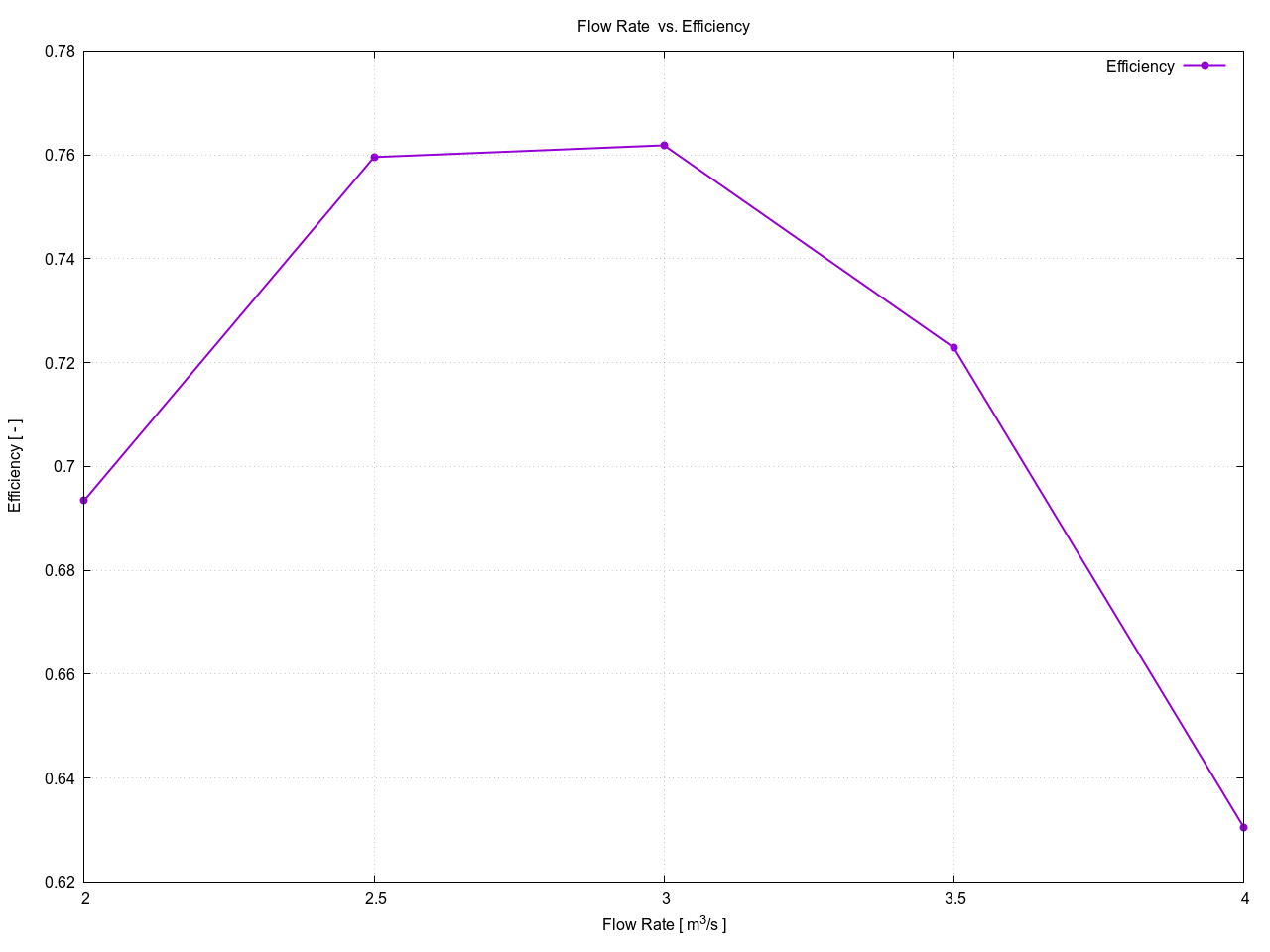

Efficiency

1:inletPipe1-inlet — 3:vanedGate1-outlet

Point Nr.	Flow Rate [ m³/s ]	Efficiency [ – ]
1	4.00000	0.630557
2	3.50000	0.722858
3	3.00000	0.761843
4	2.50000	0.759582
5	2.00000	0.693450

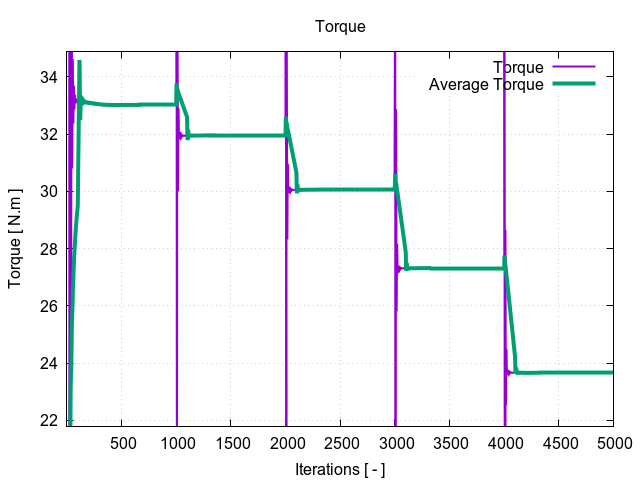

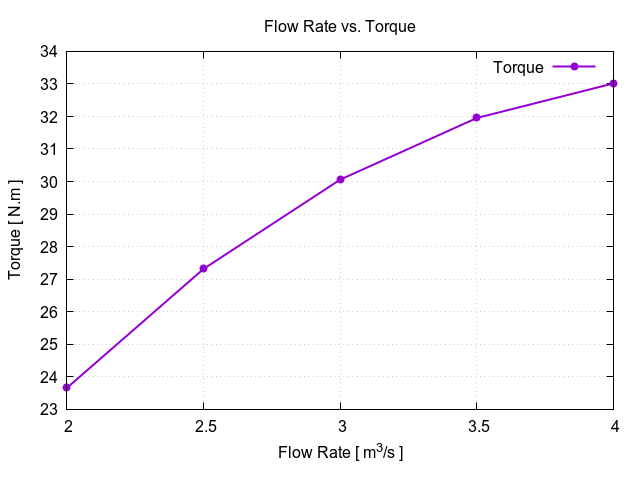

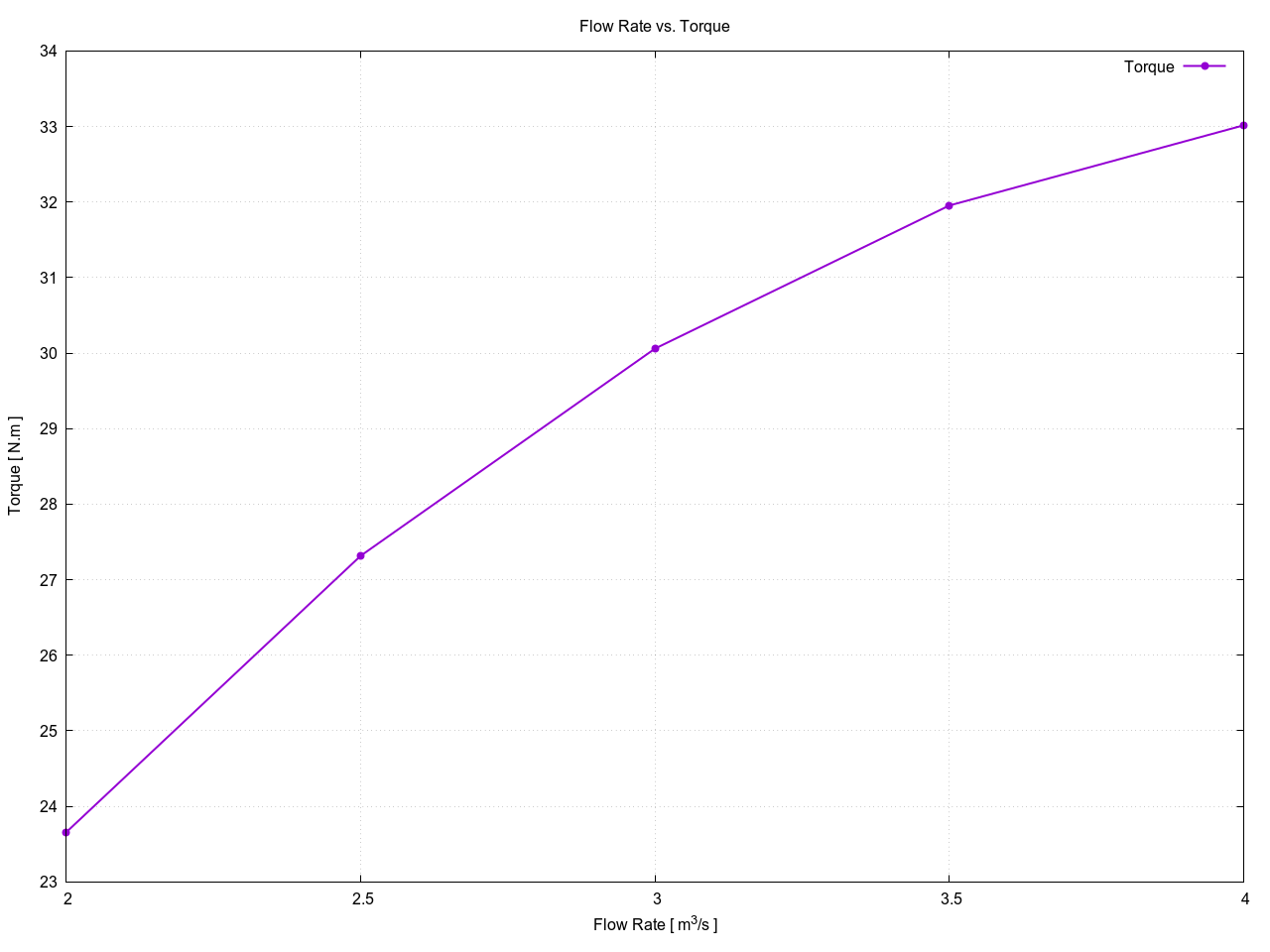

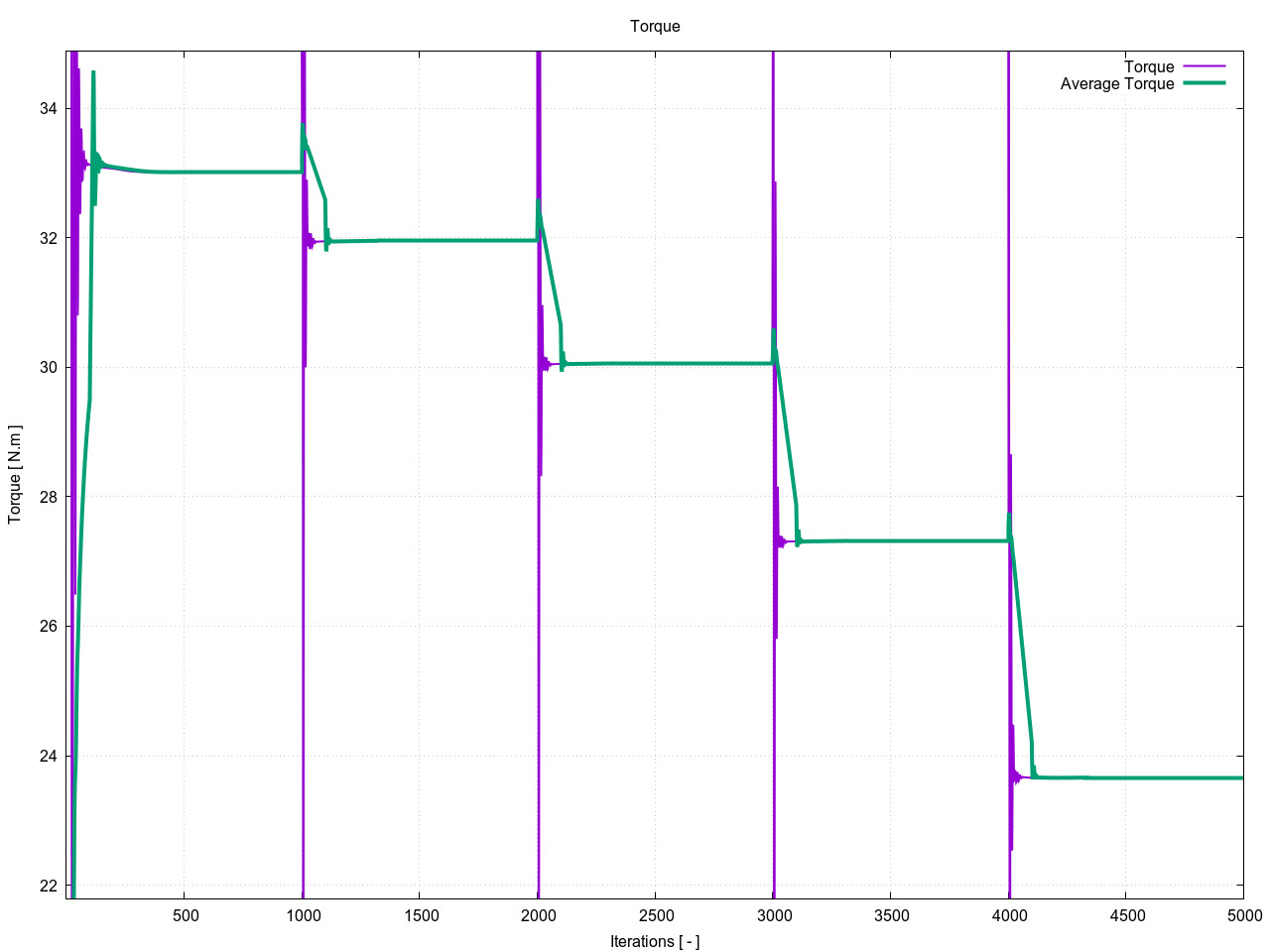

Torque

Point Nr.	Torque [ N.m ]
1	33.0160
2	31.9551
3	30.0608
4	27.3183
5	23.6605

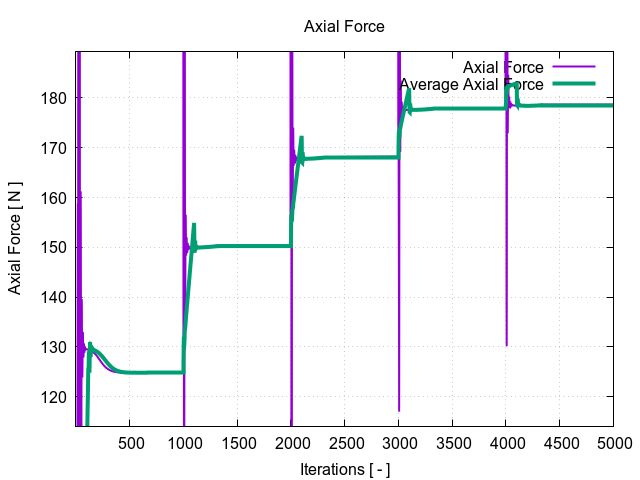

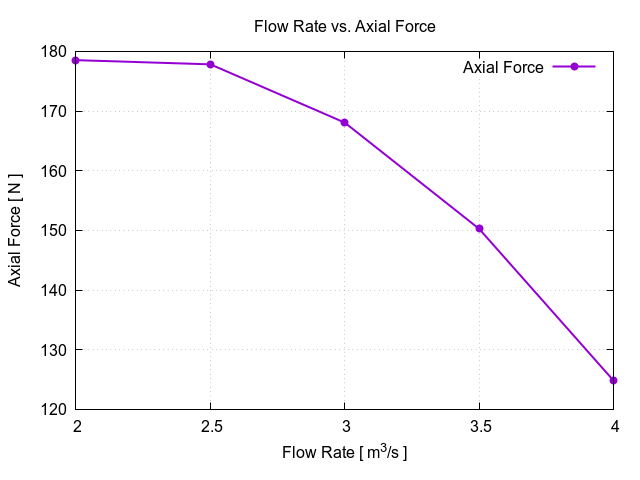

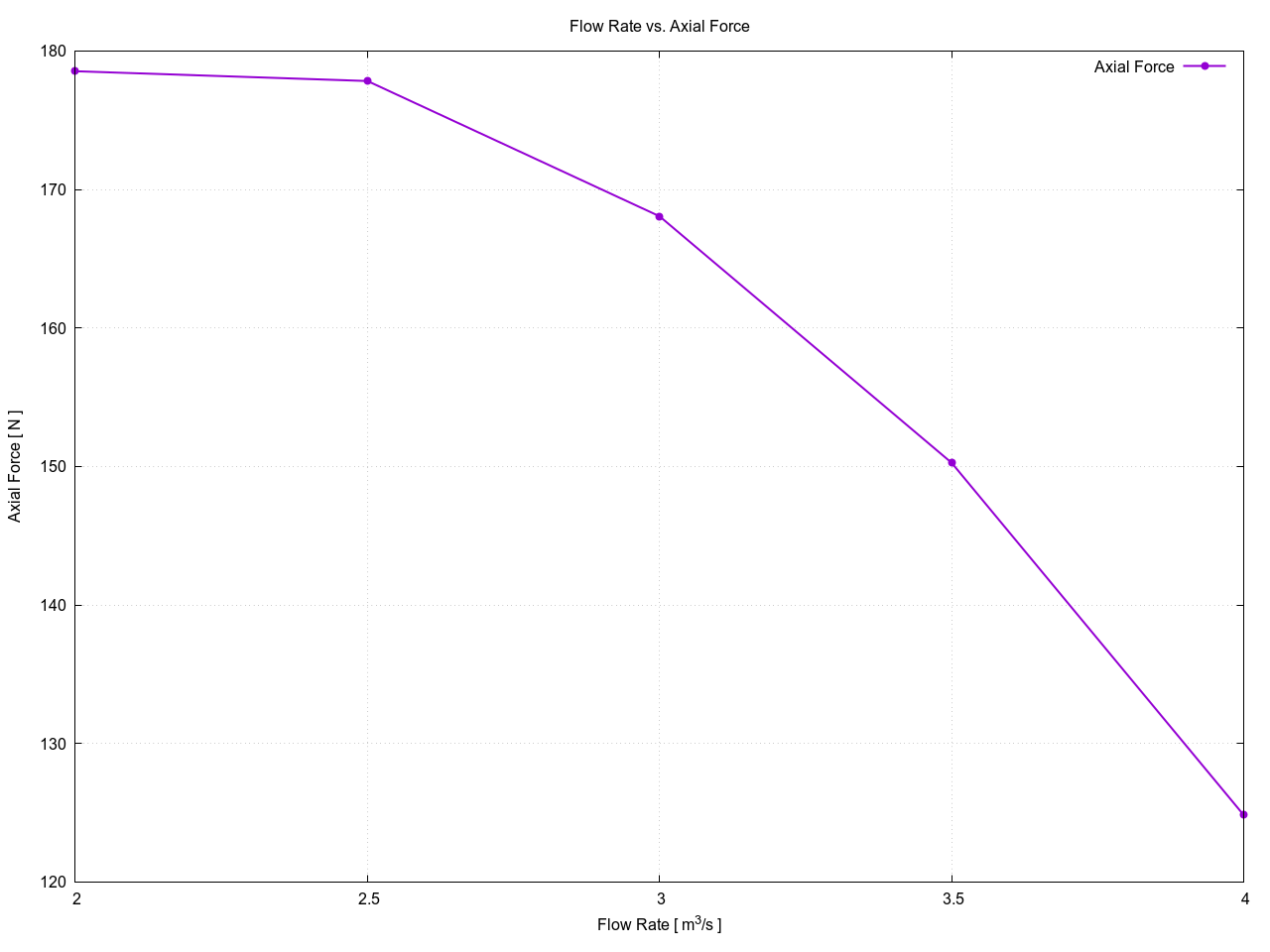

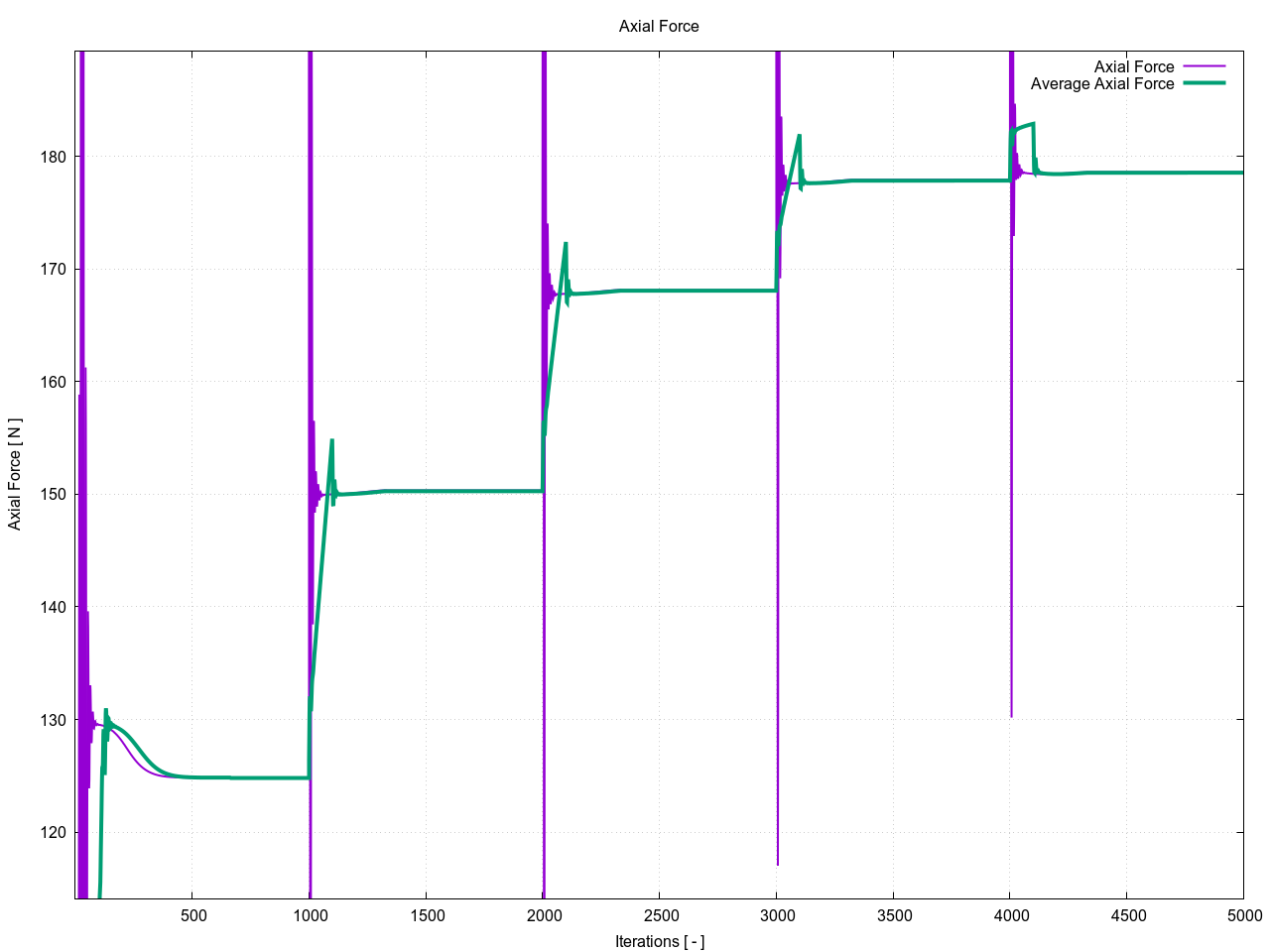

Axial Force

Point Nr.	Axial Force [ N ]
1	124.833
2	150.262
3	168.063
4	177.830
5	178.535

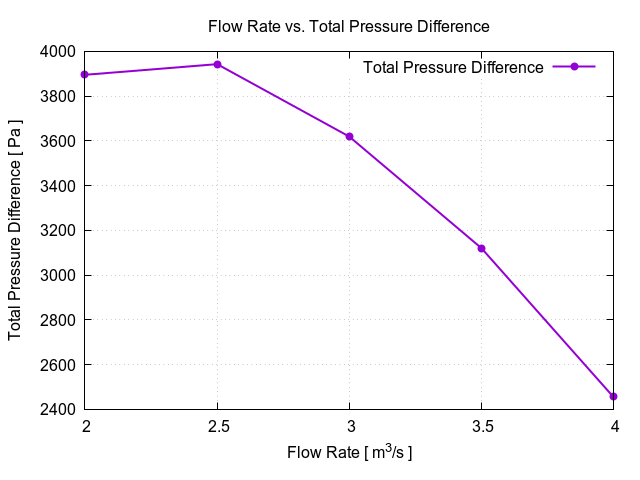

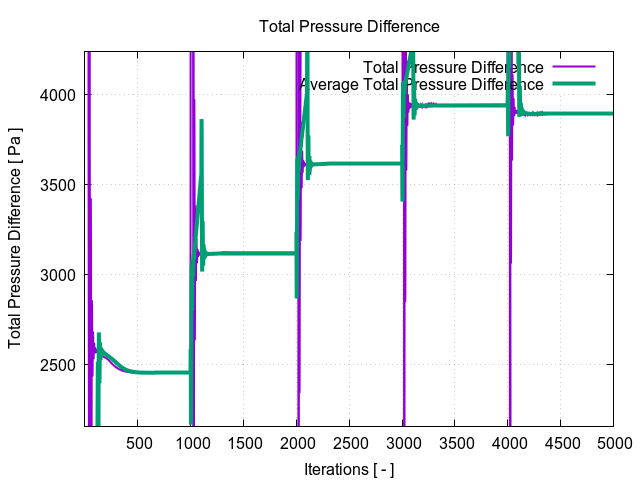

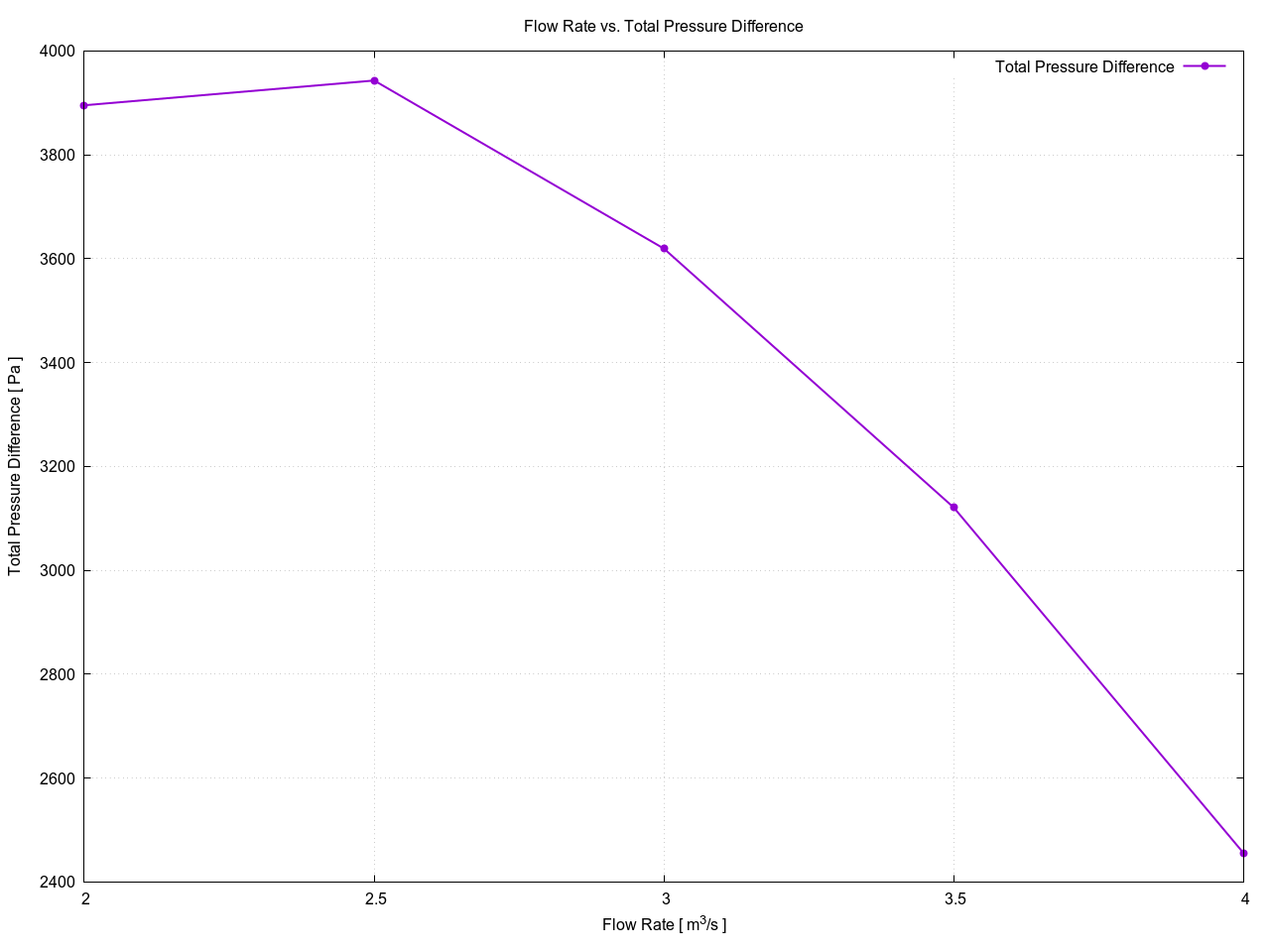

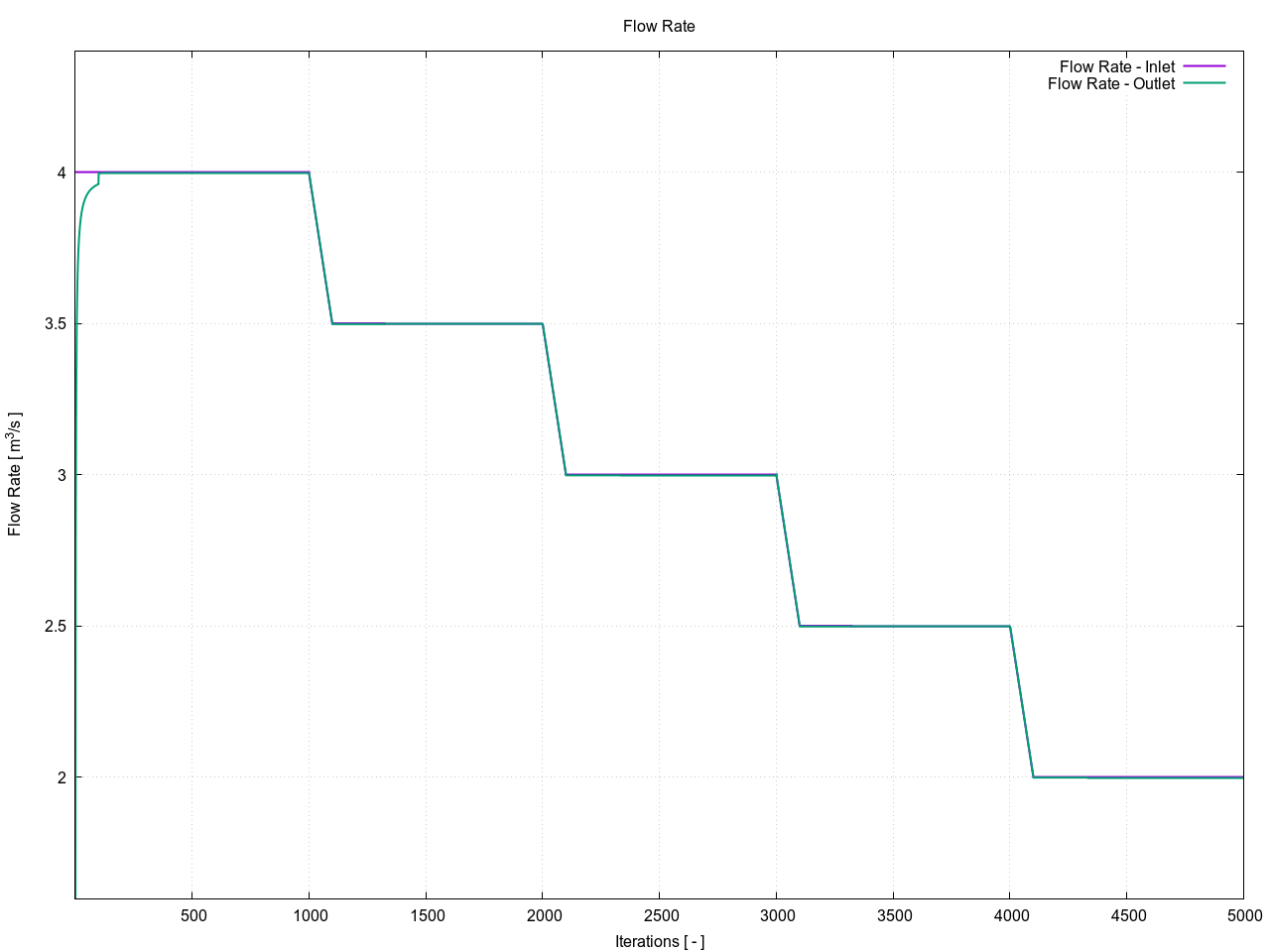

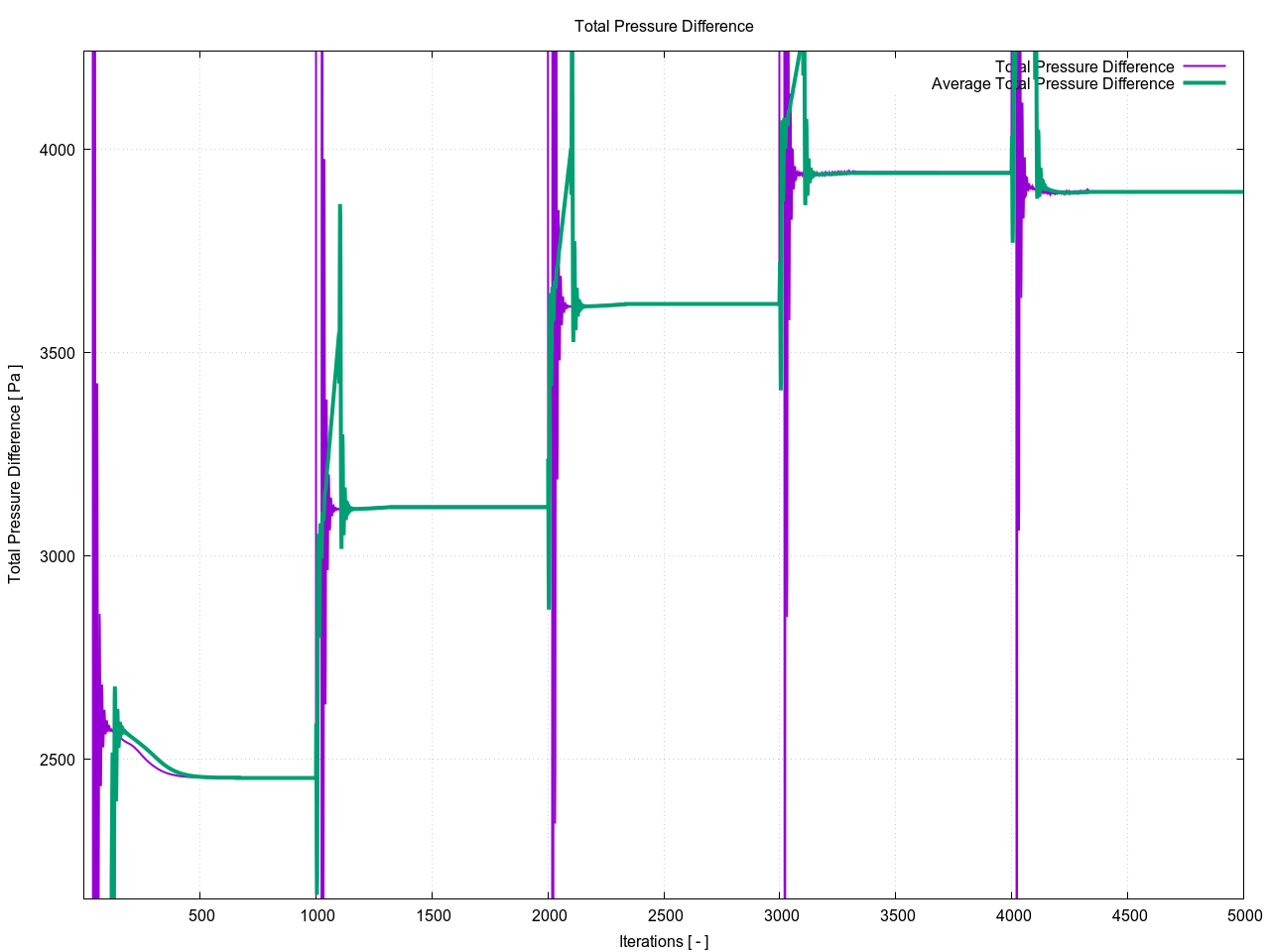

Total Pressure Difference

1:inletPipe1-inlet — 3:vanedGate1-outlet

Point Nr.	Flow Rate [ m³/s ]	Total Pressure Difference [ Pa ]
1	4.00000	2455.31
2	3.50000	3120.71
3	3.00000	3619.38
4	2.50000	3943.06
5	2.00000	3895.48

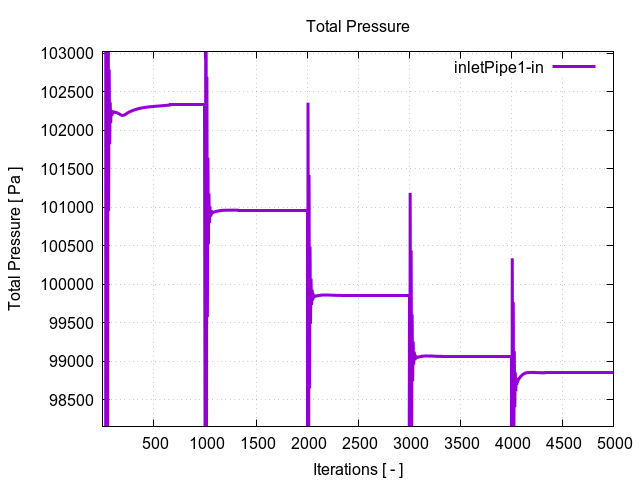

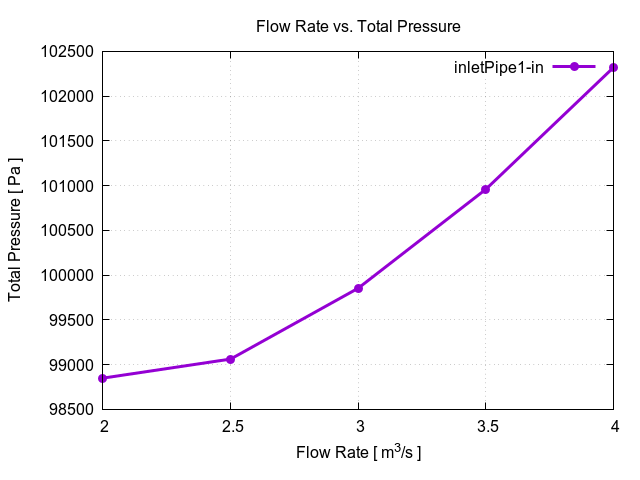

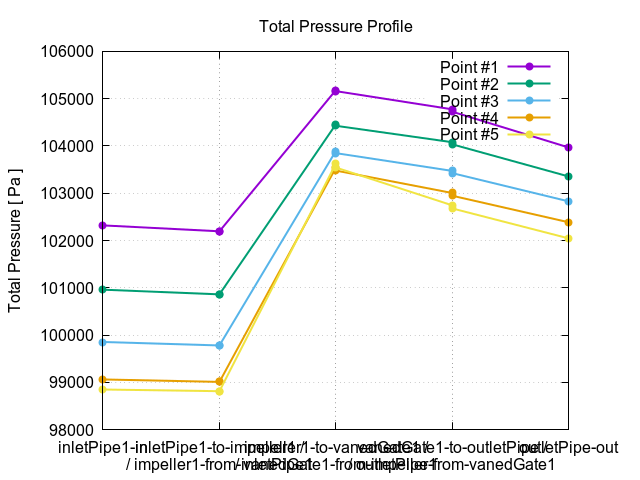

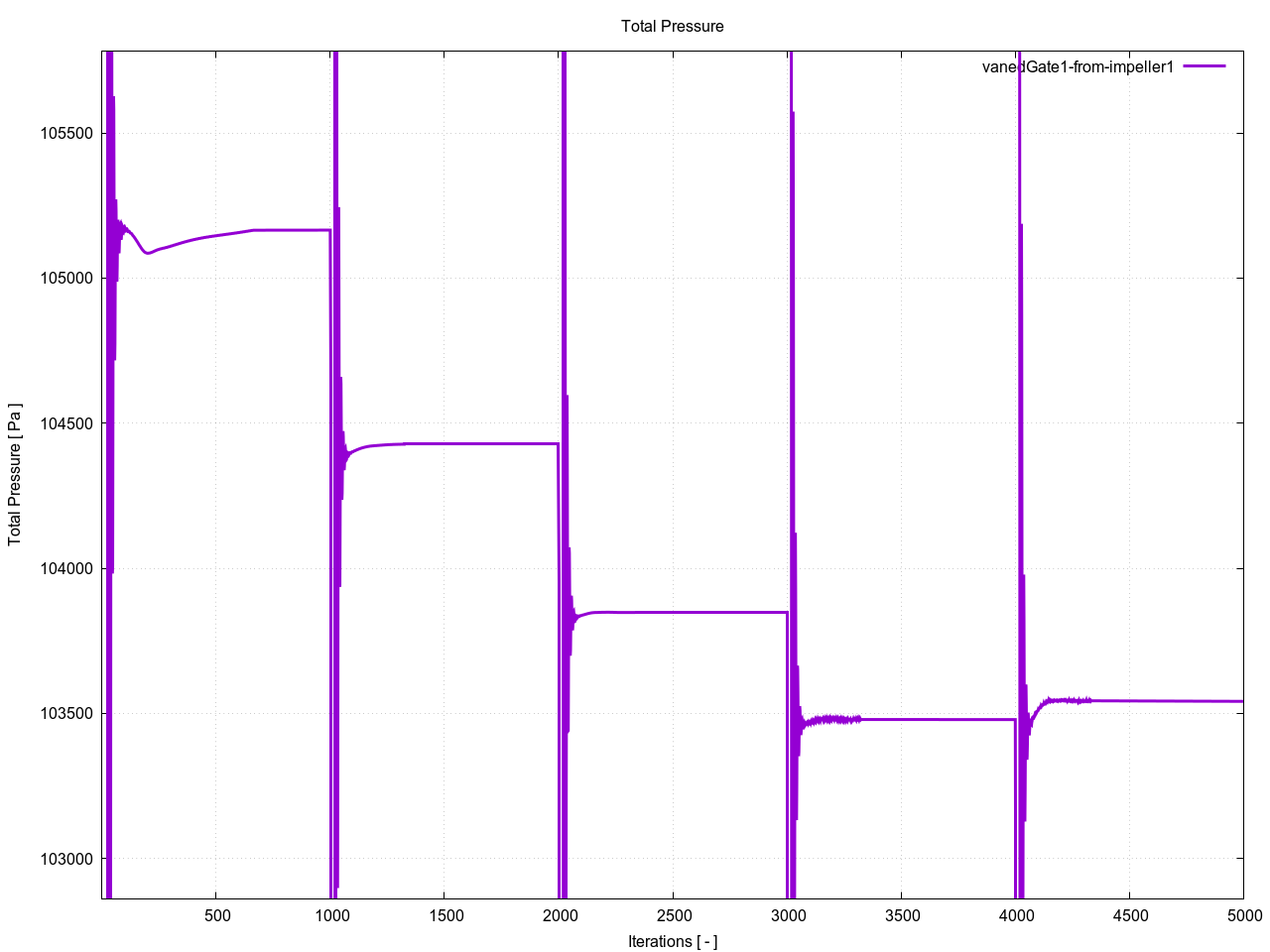

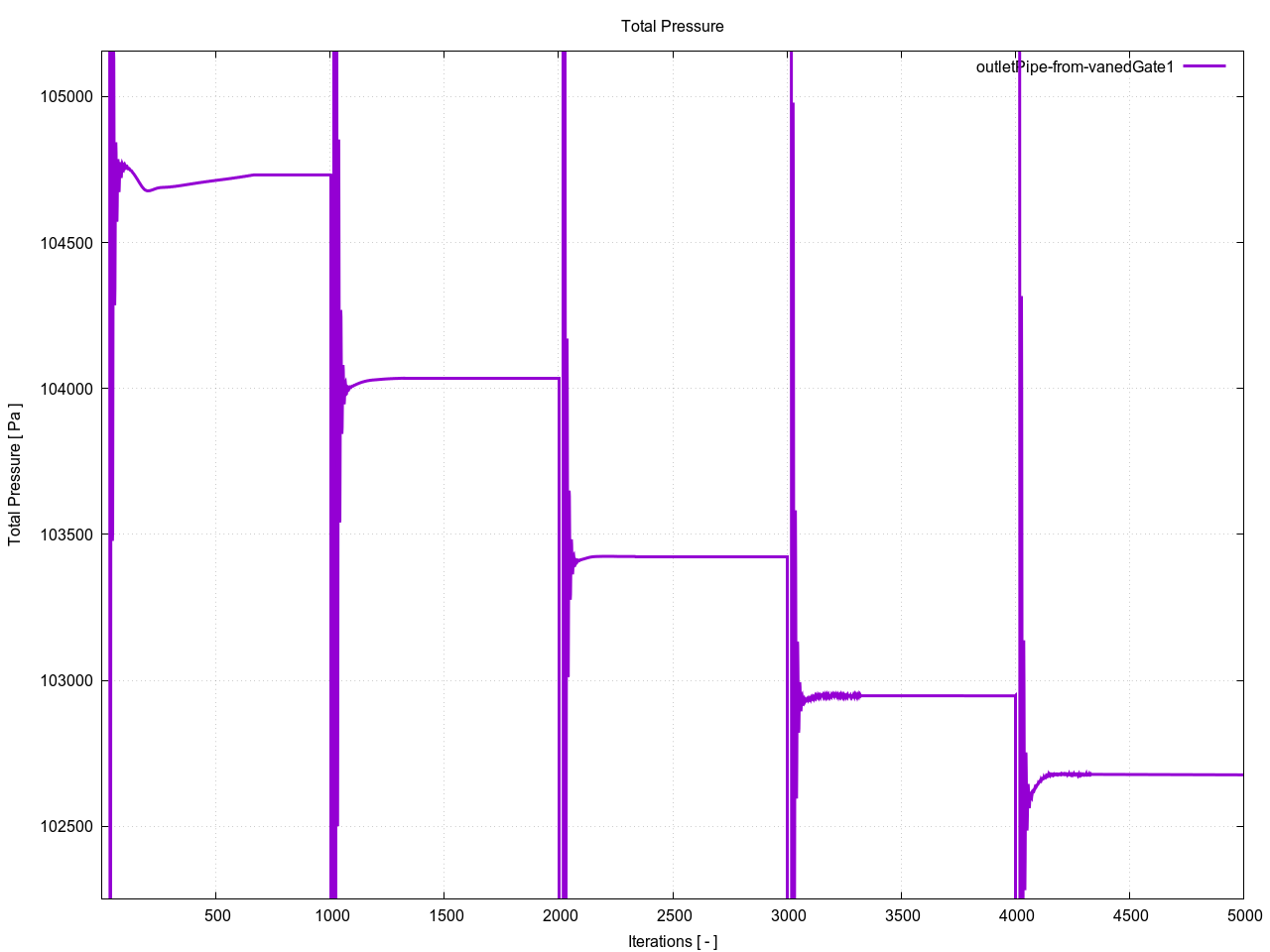

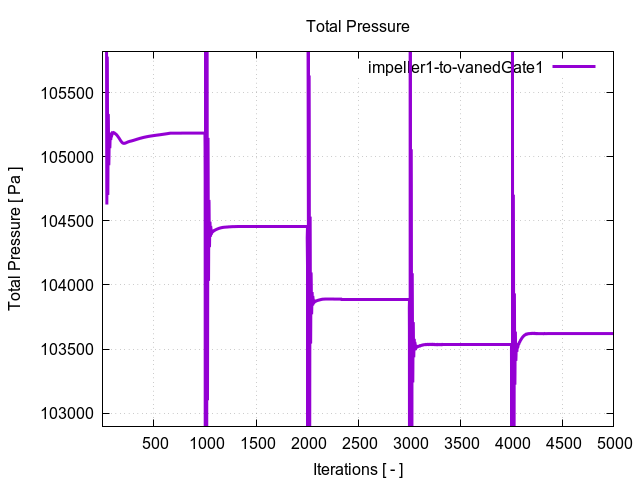

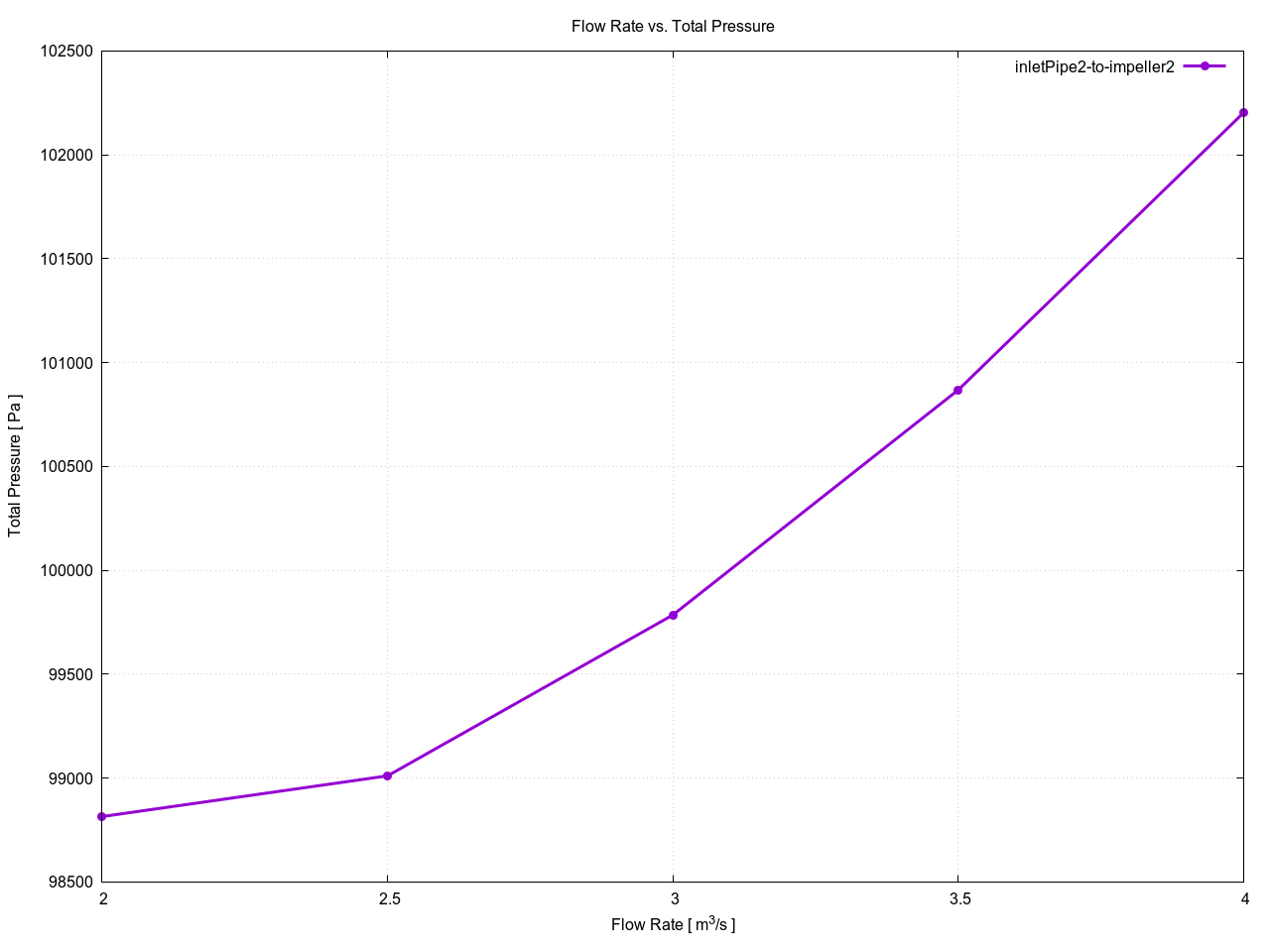

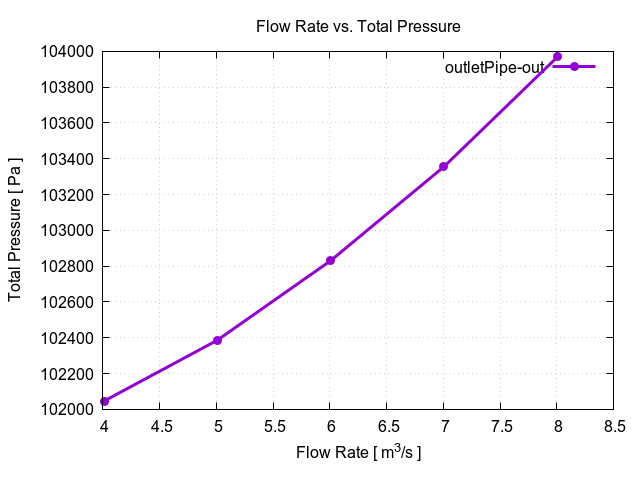

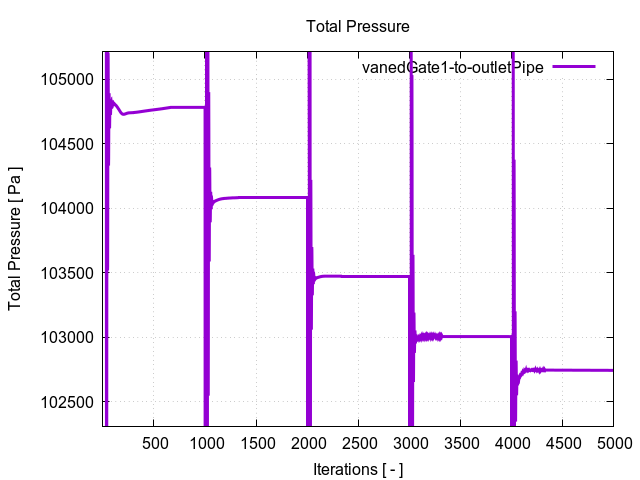

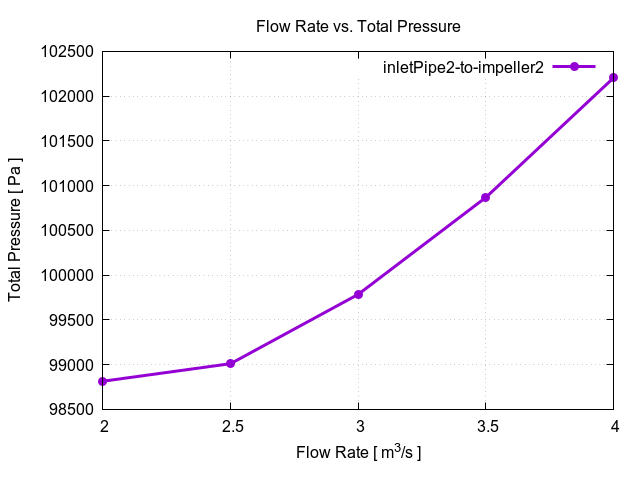

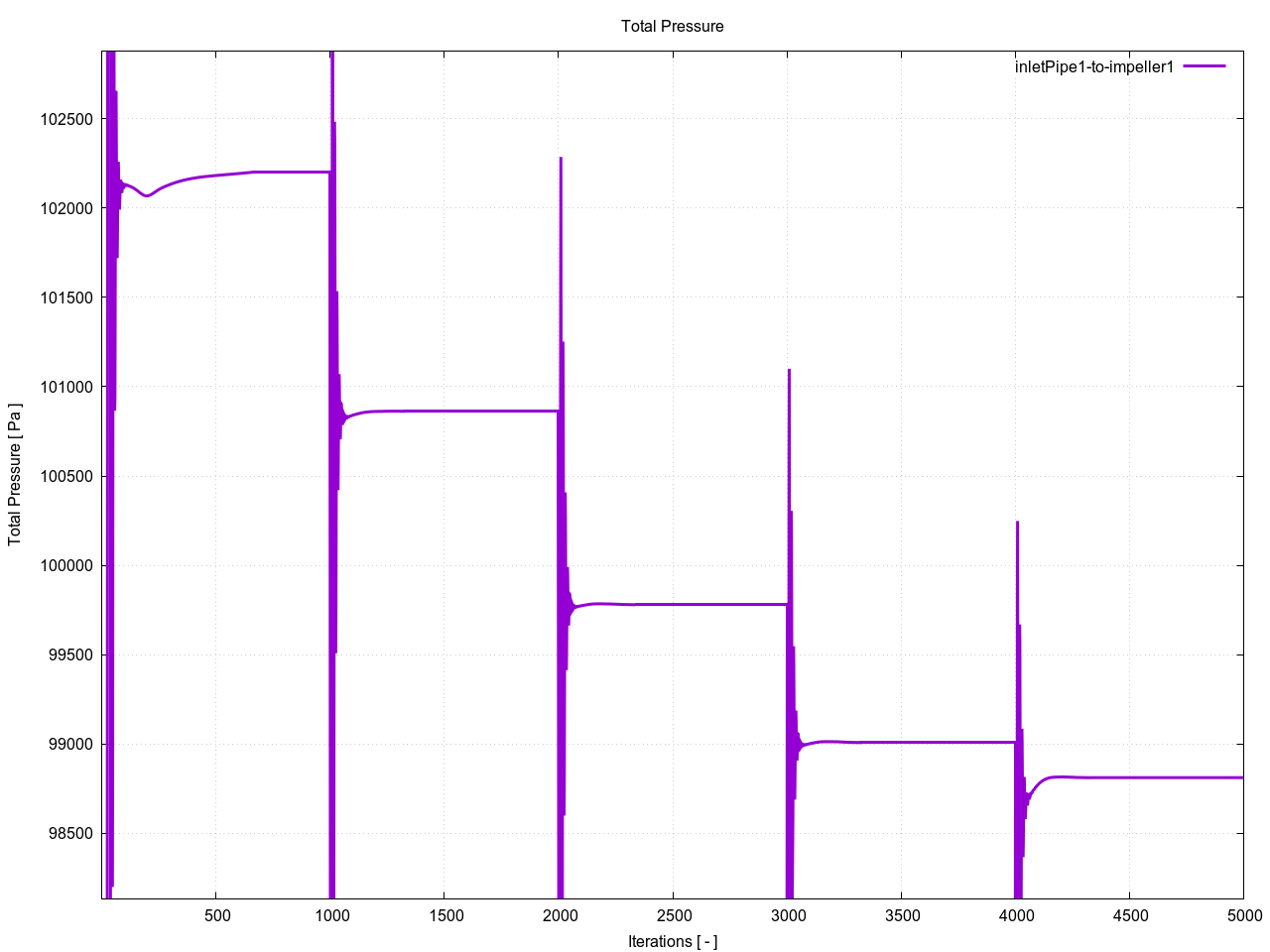

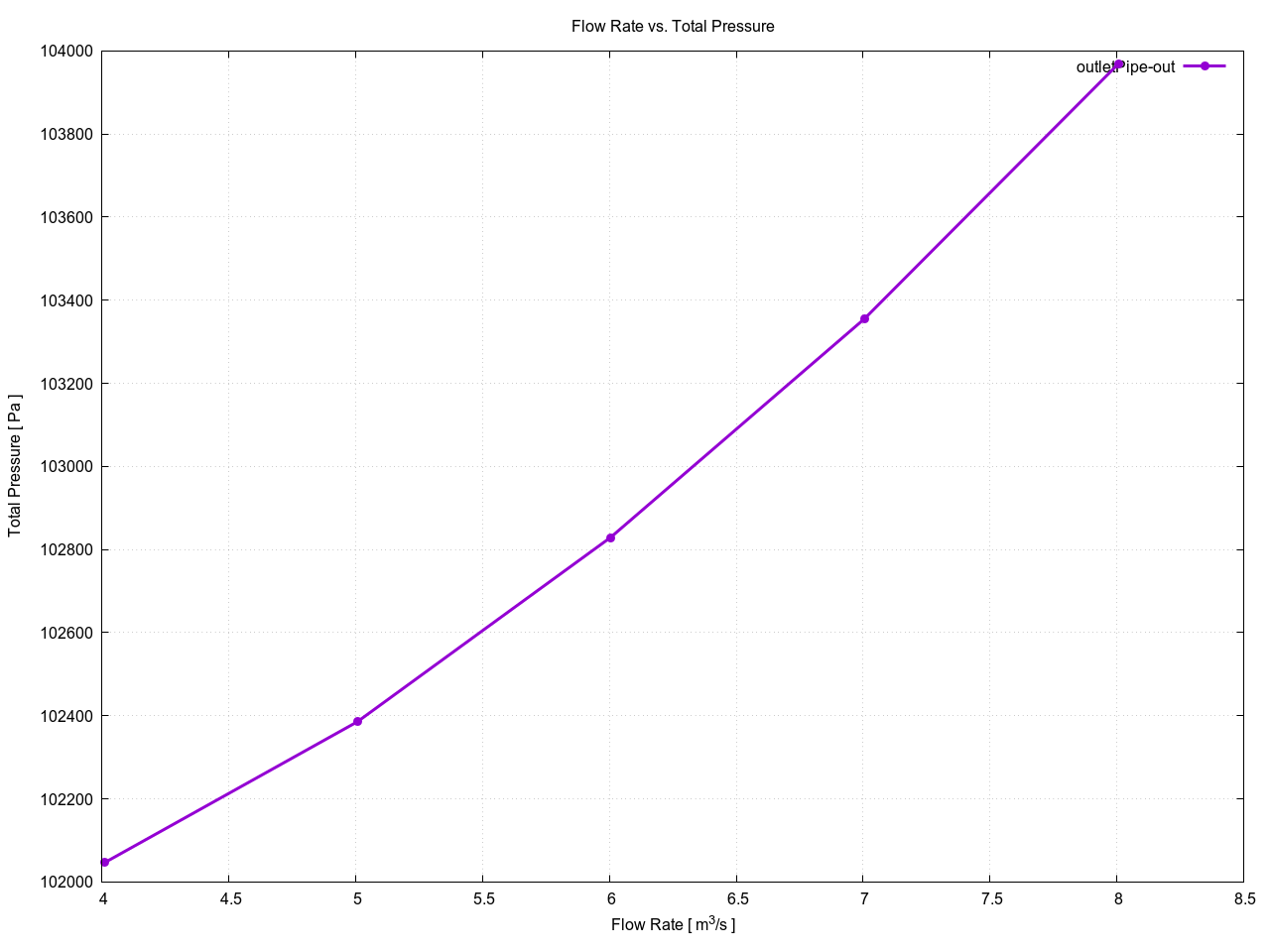

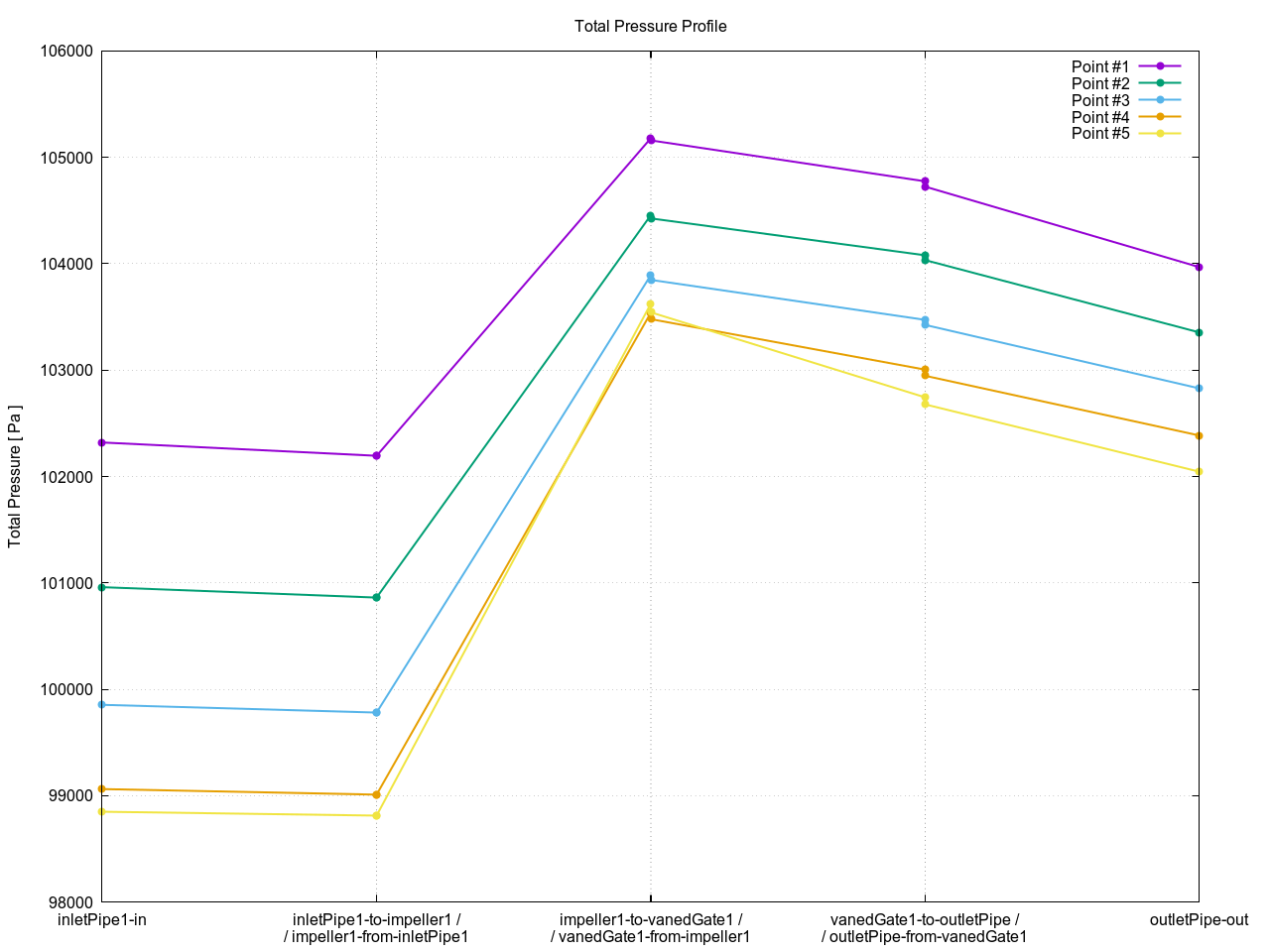

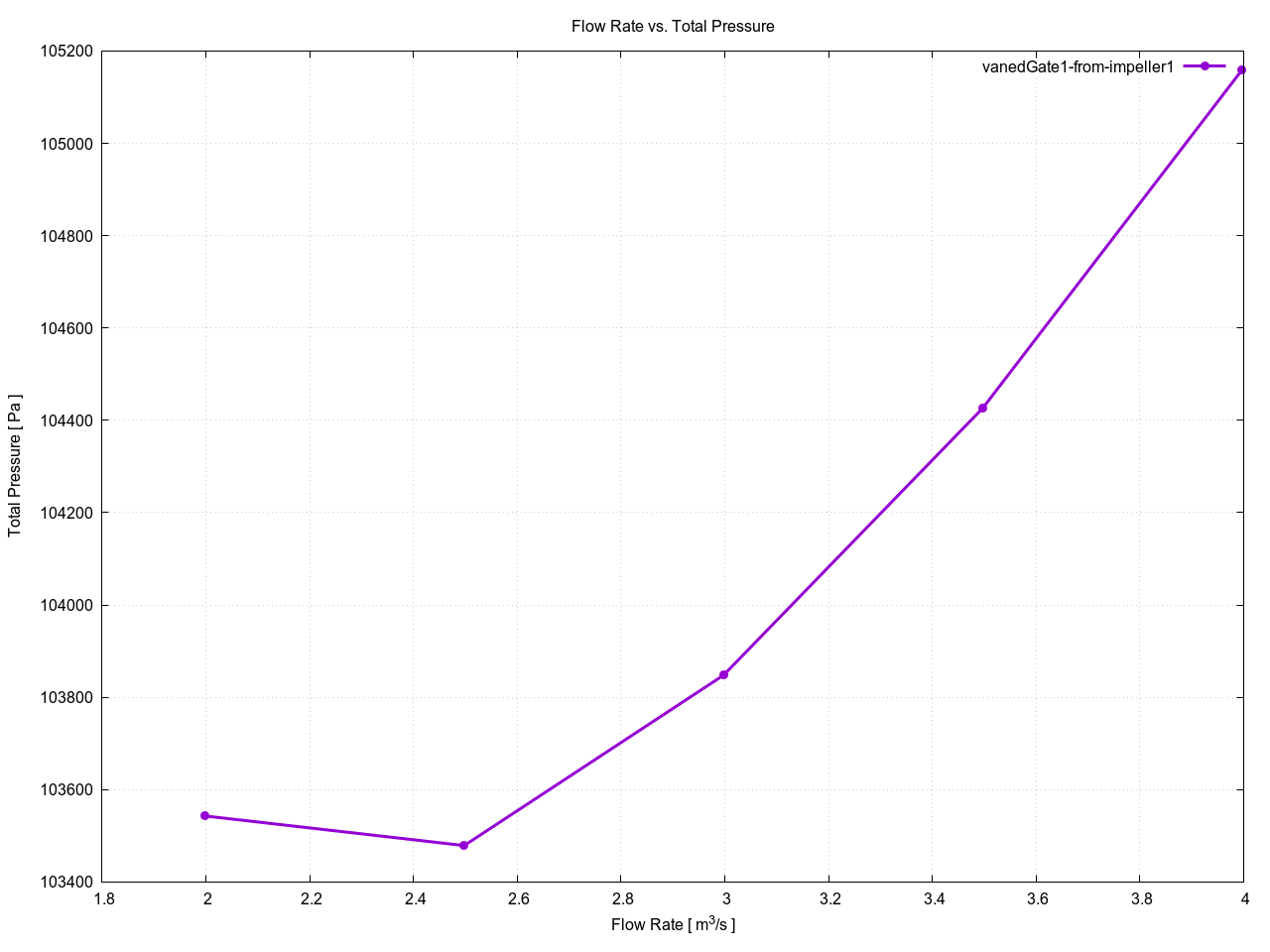

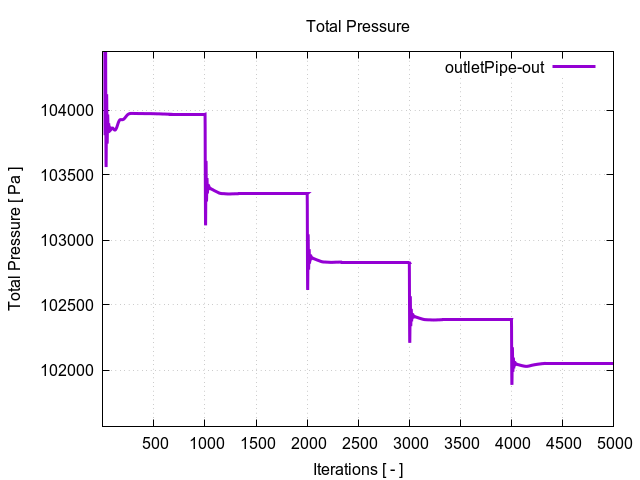

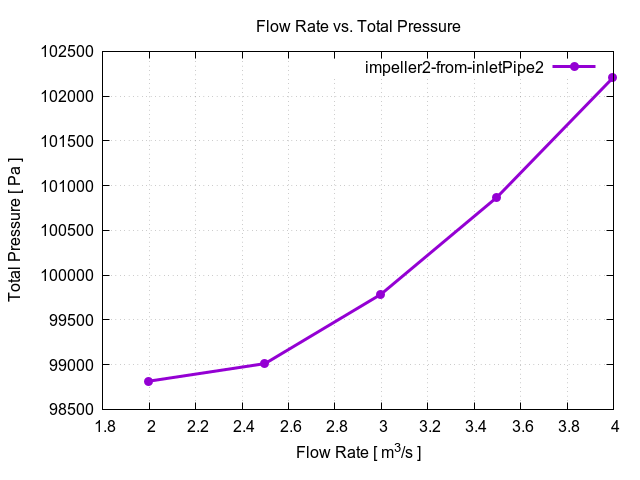

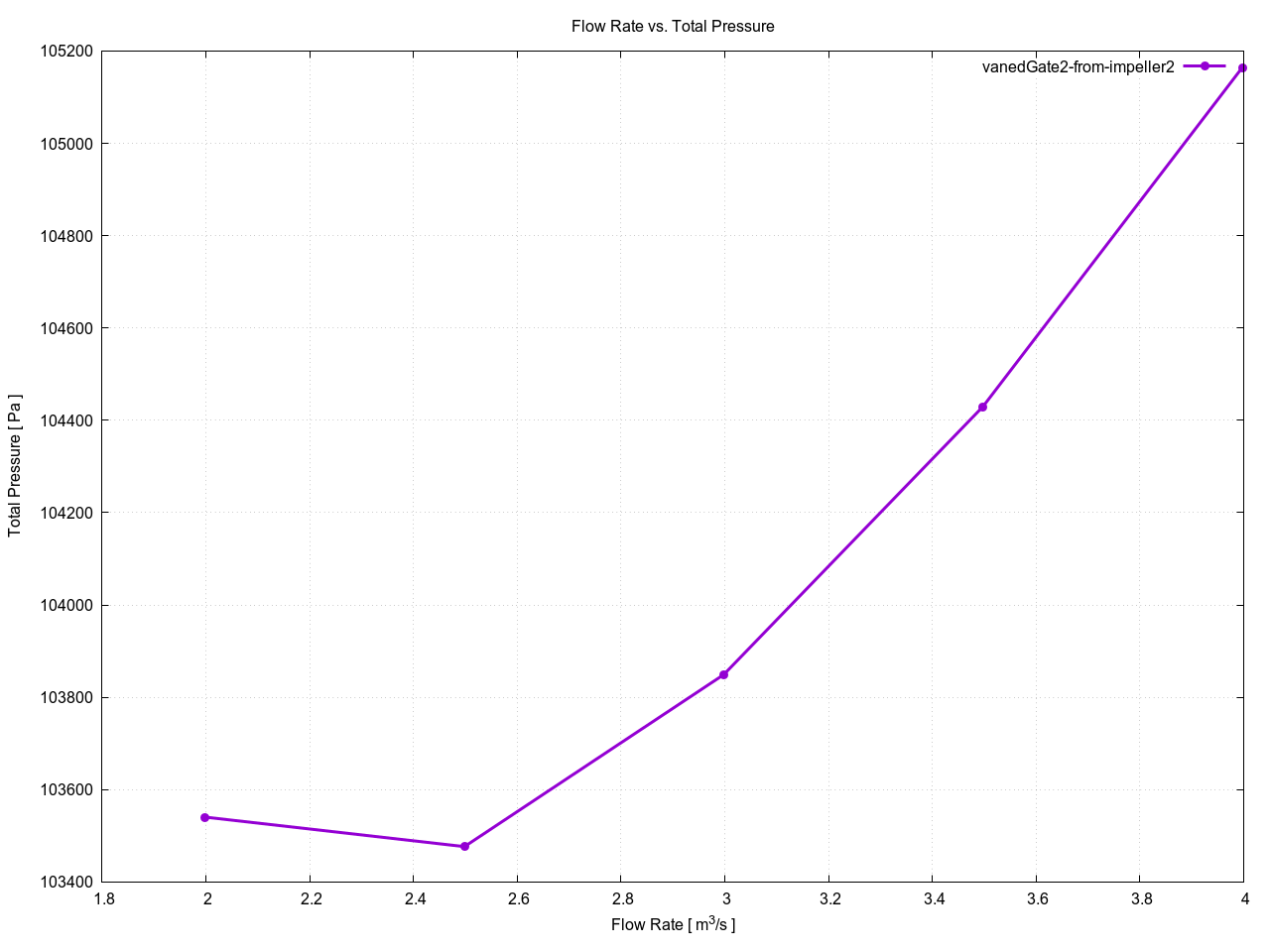

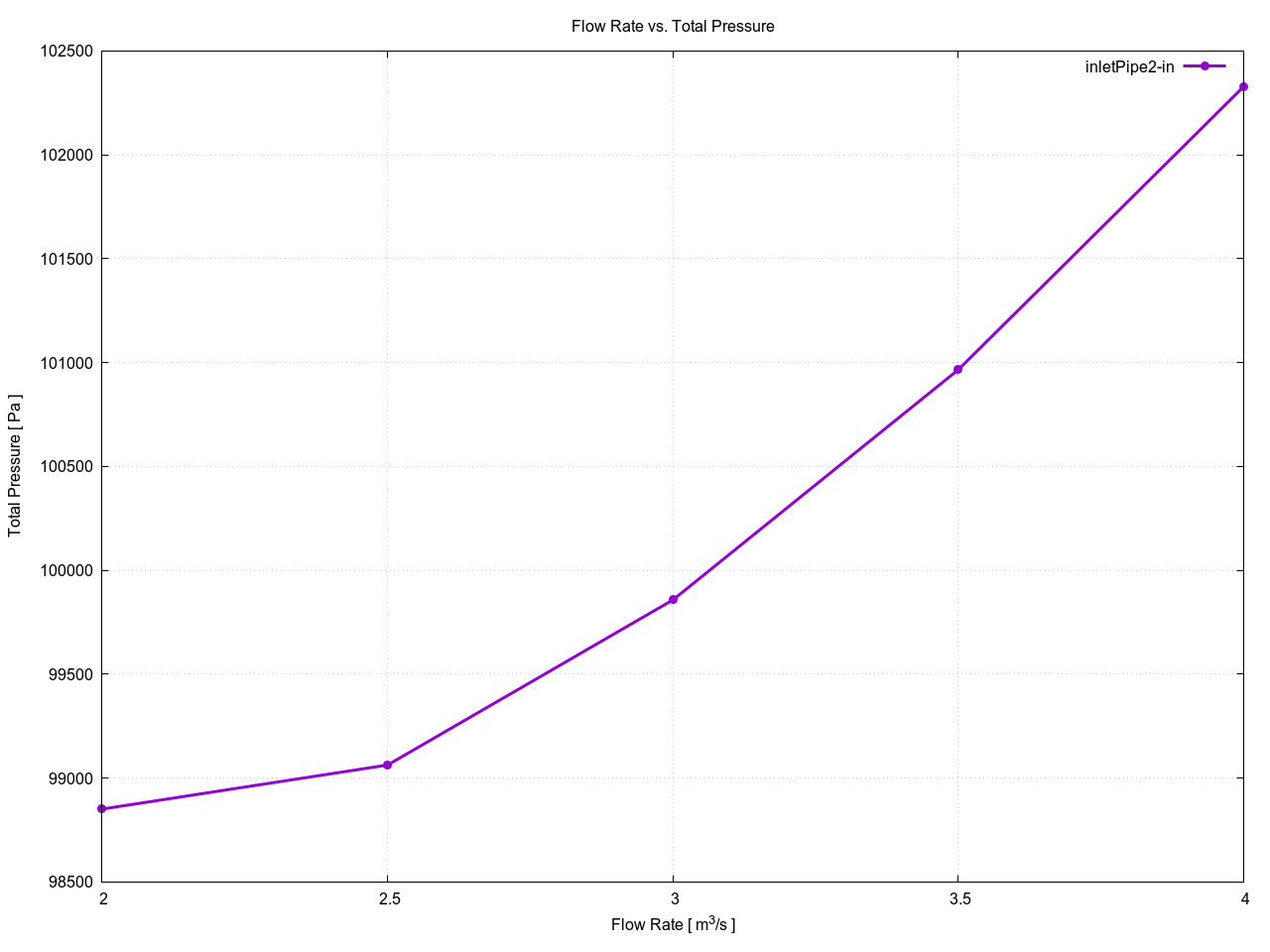

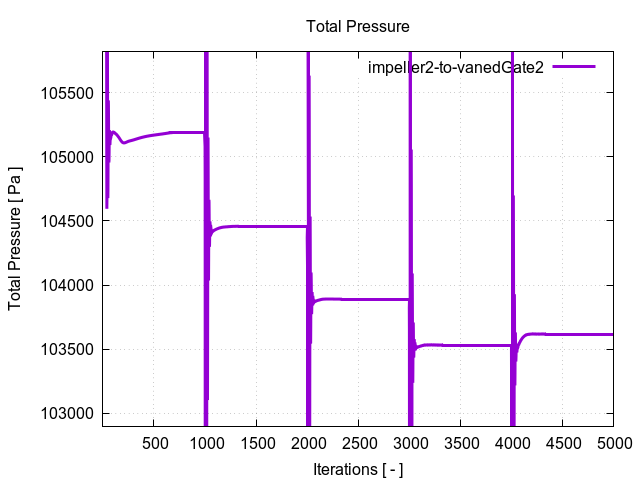

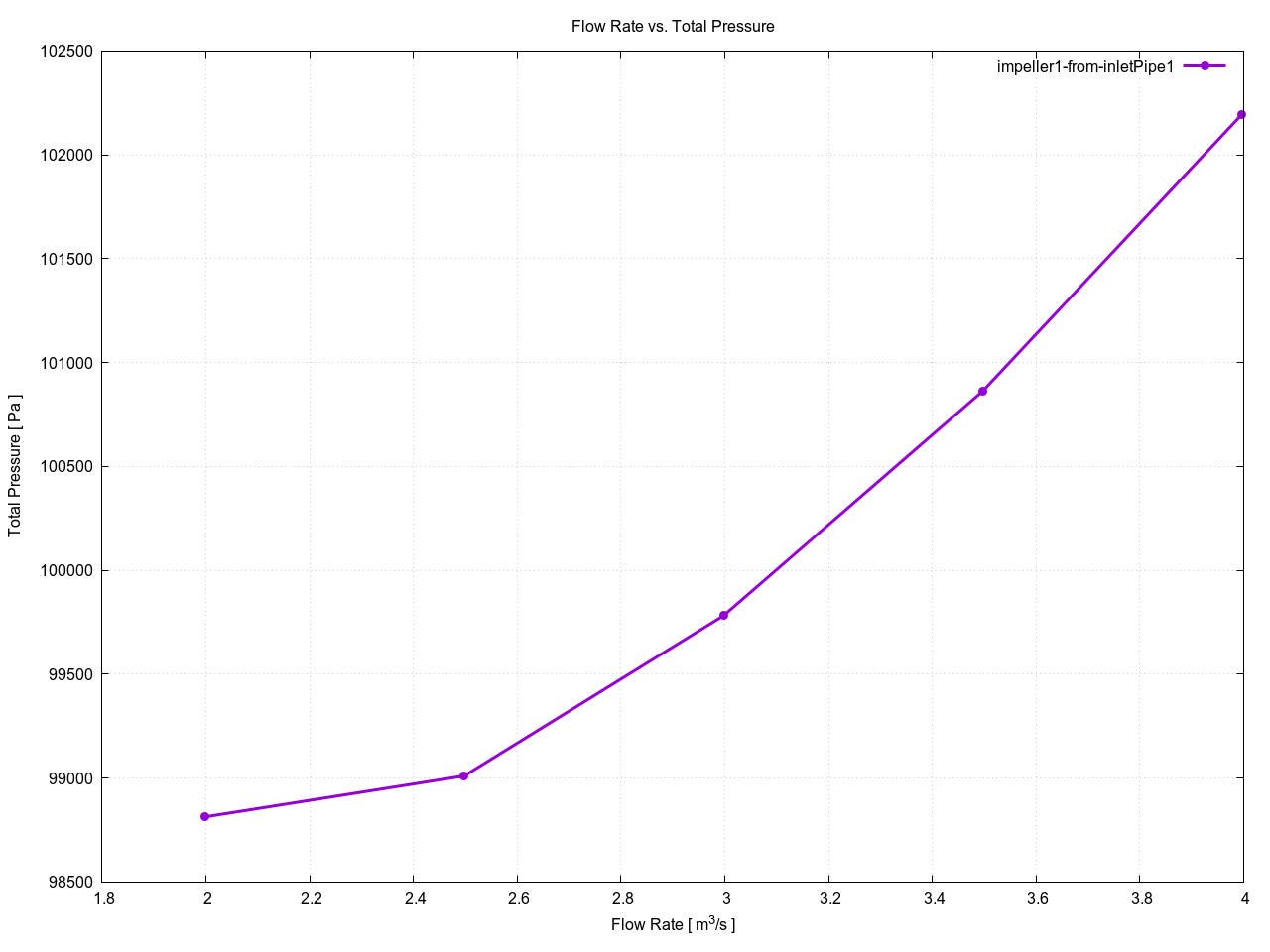

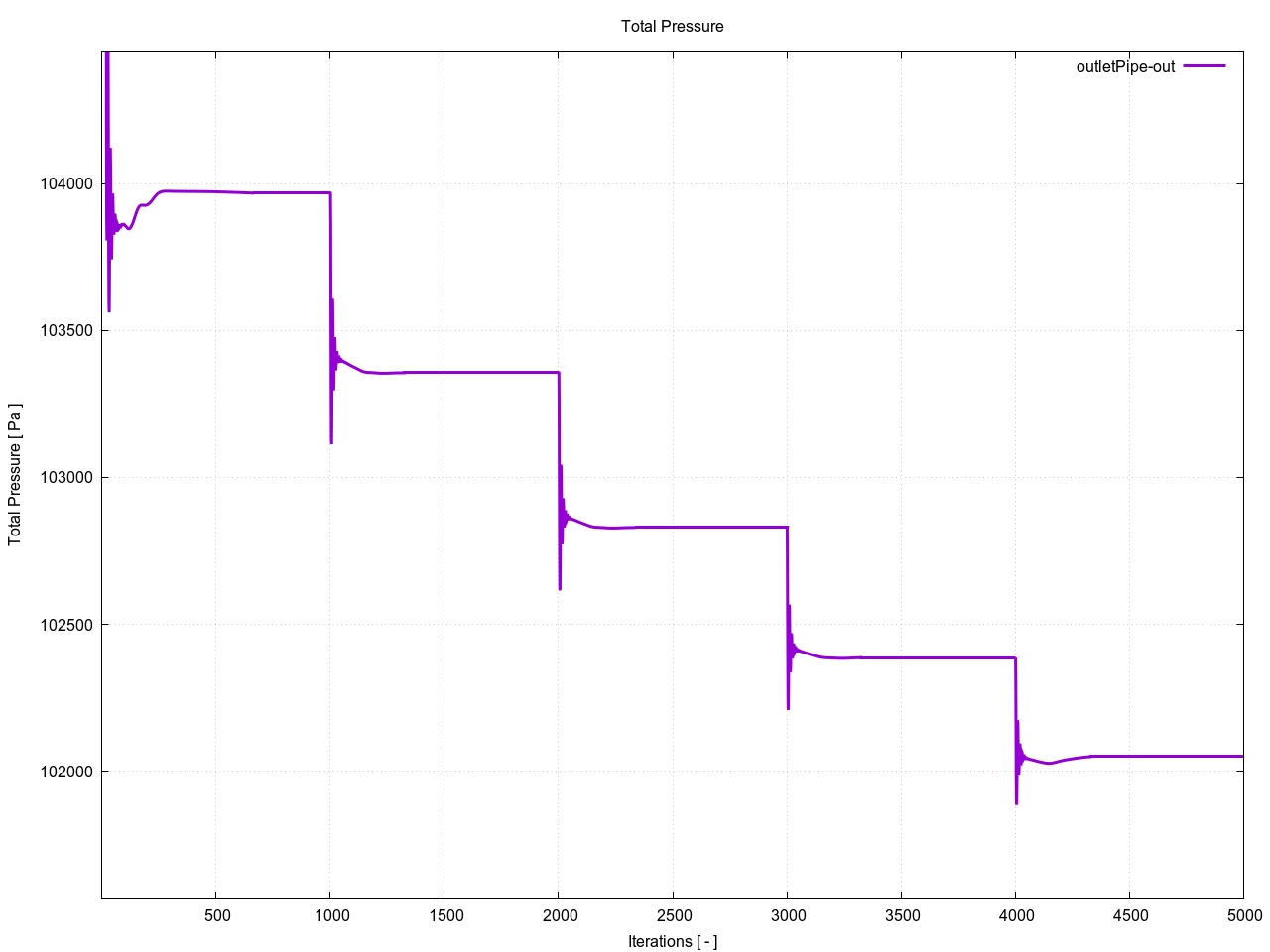

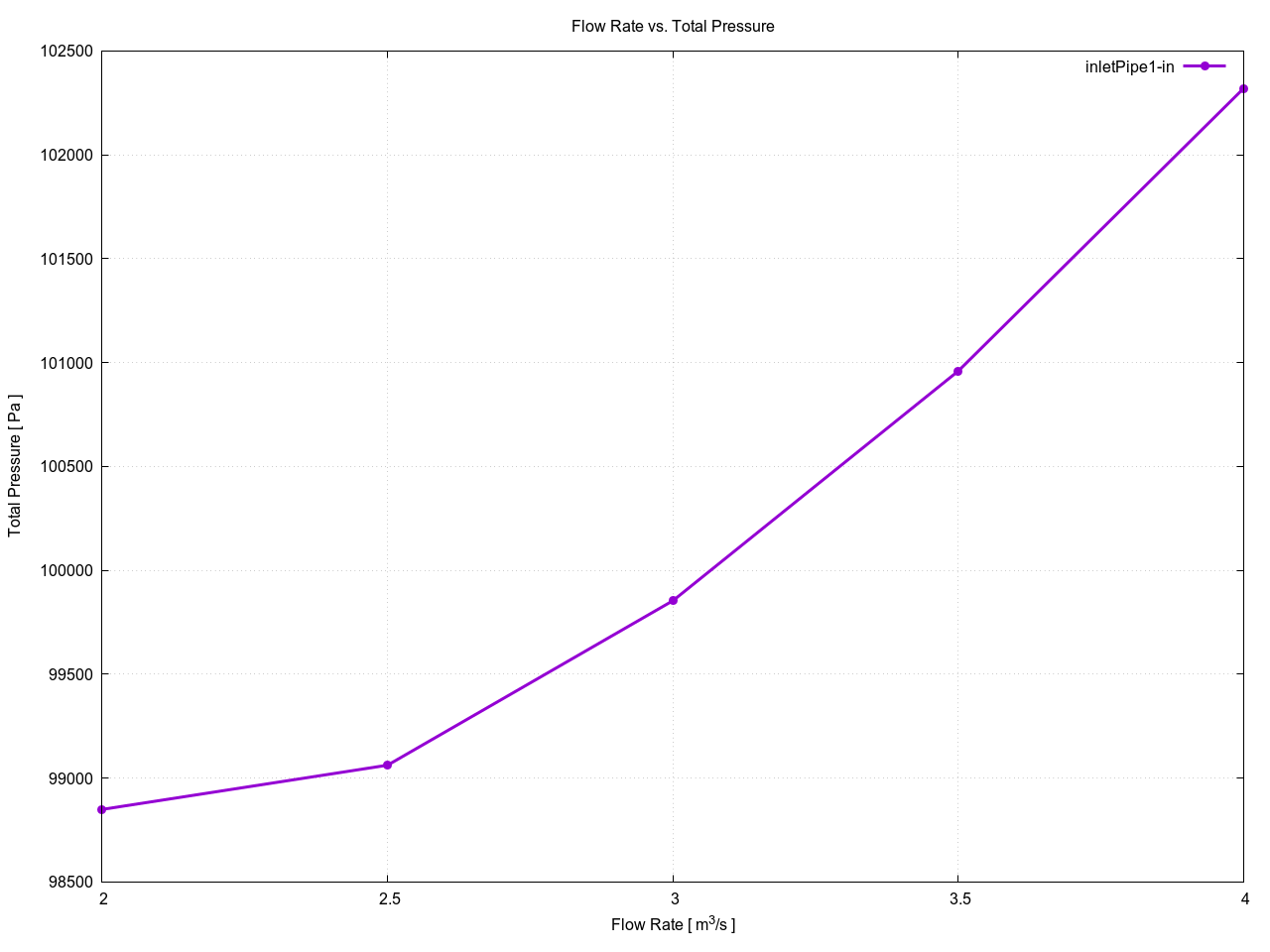

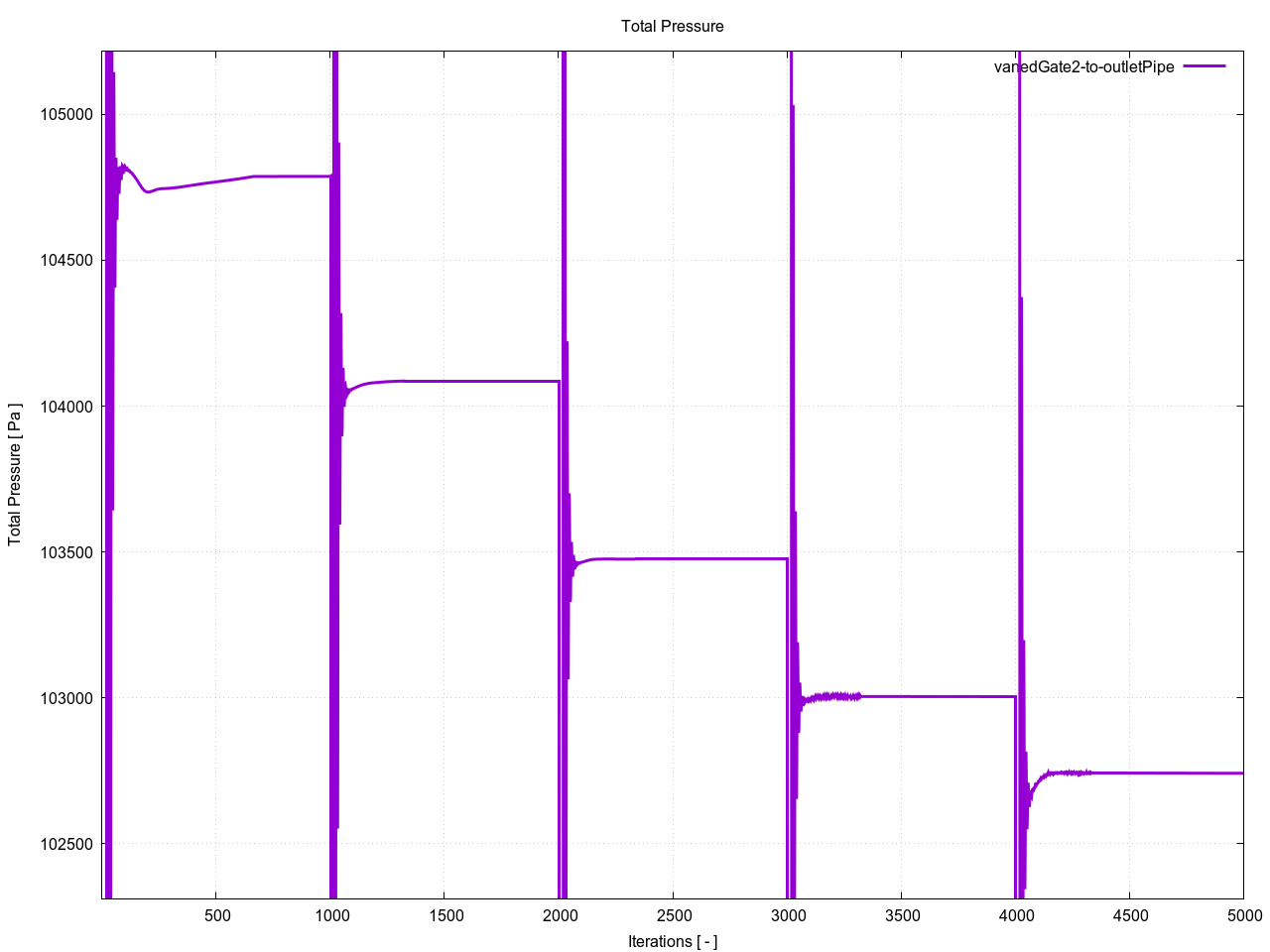

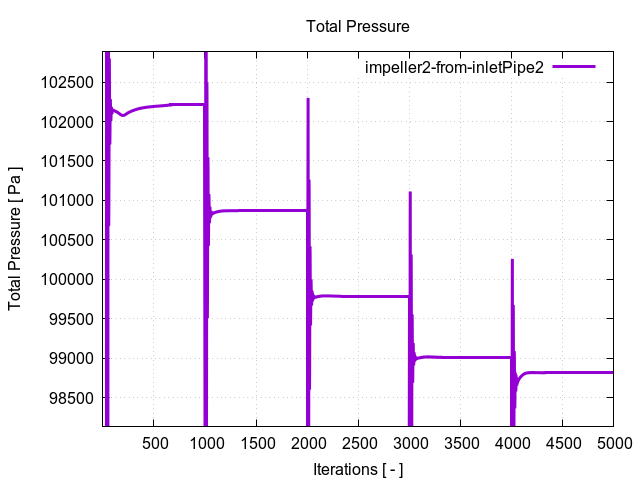

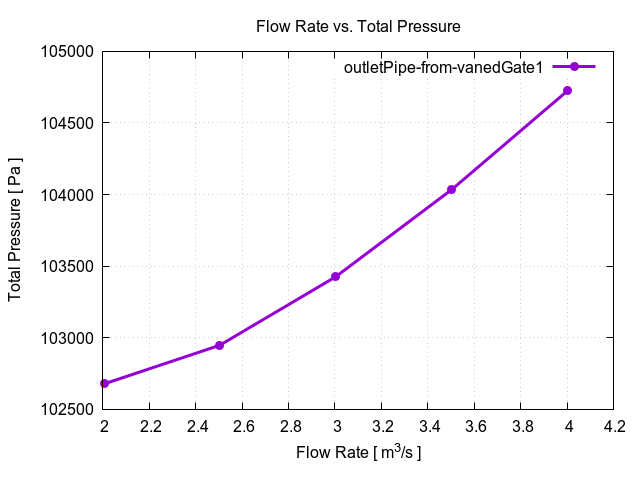

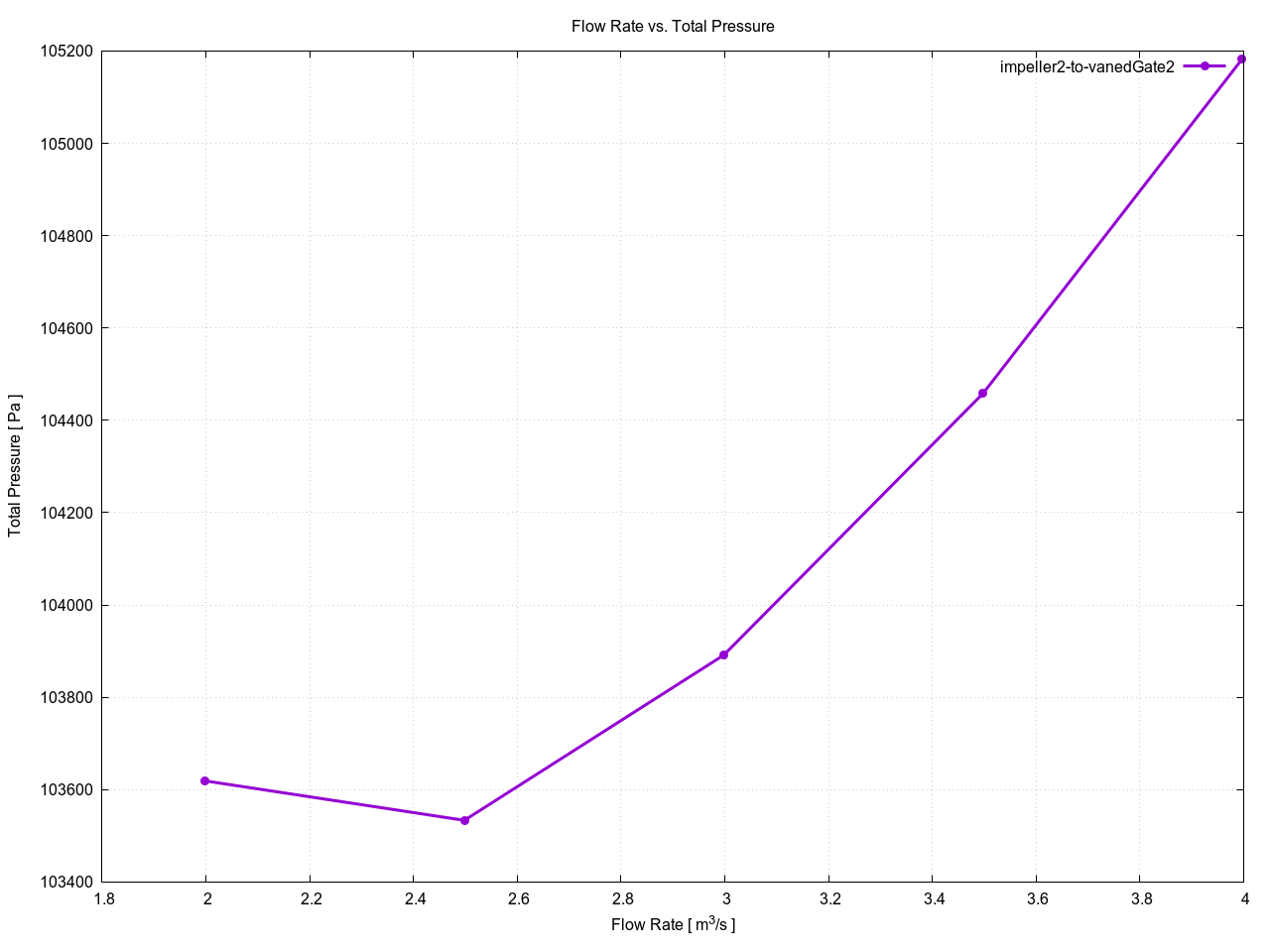

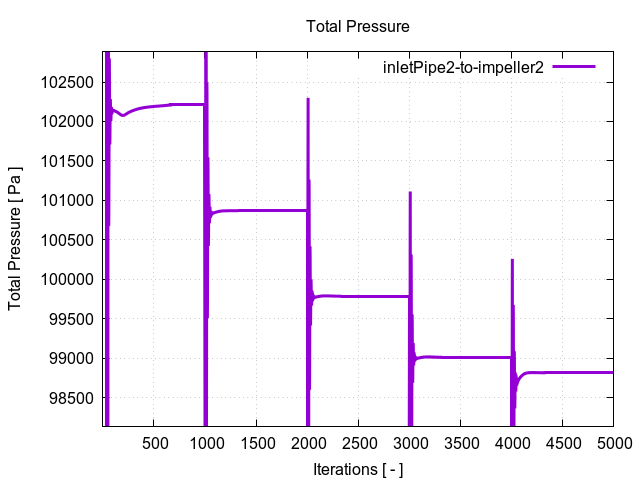

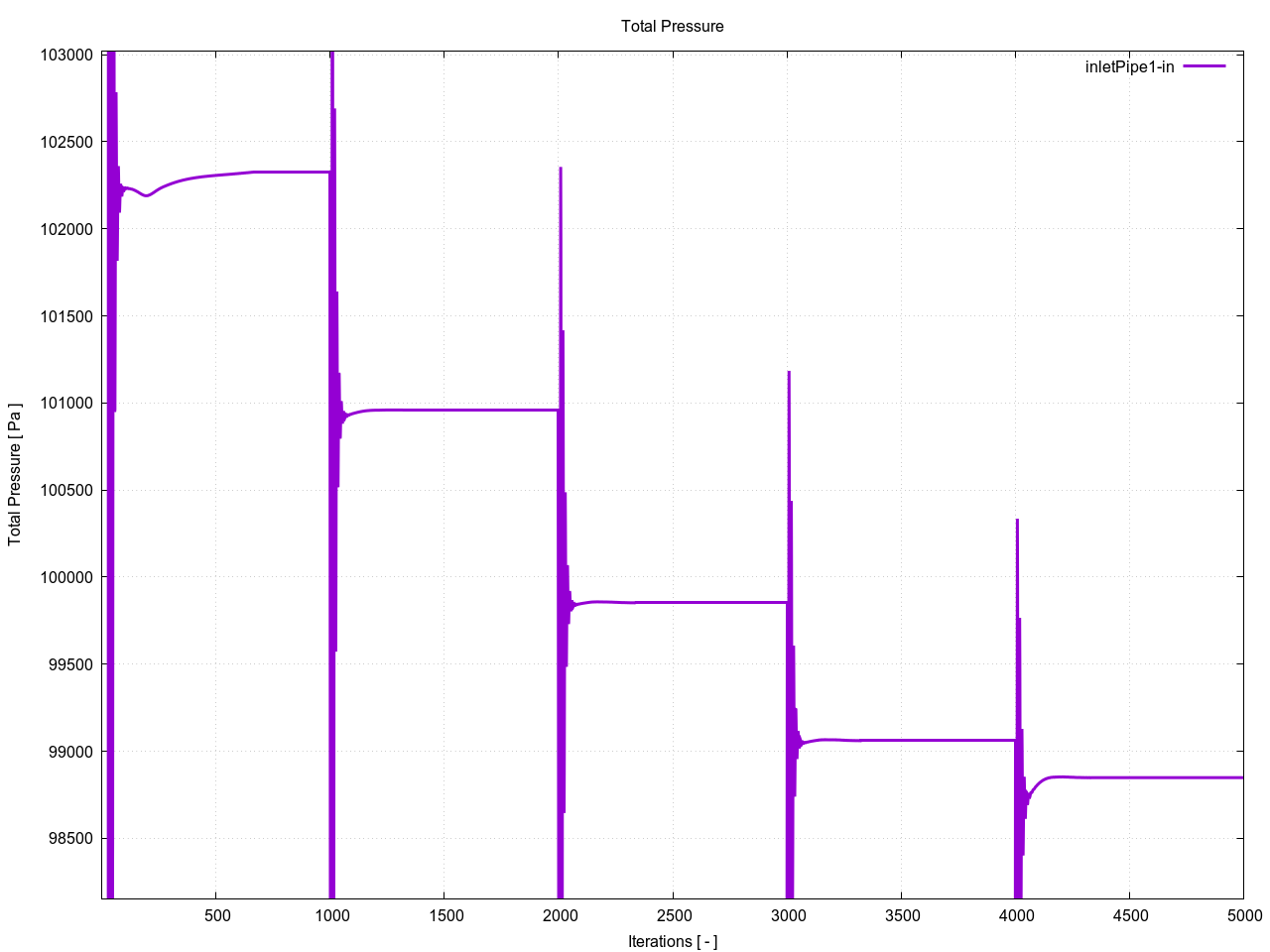

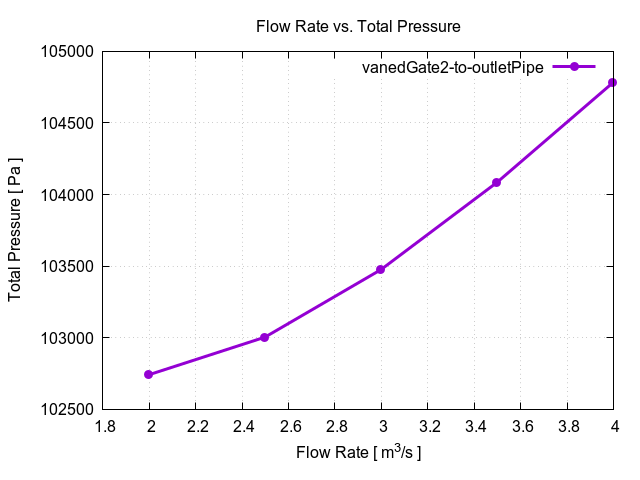

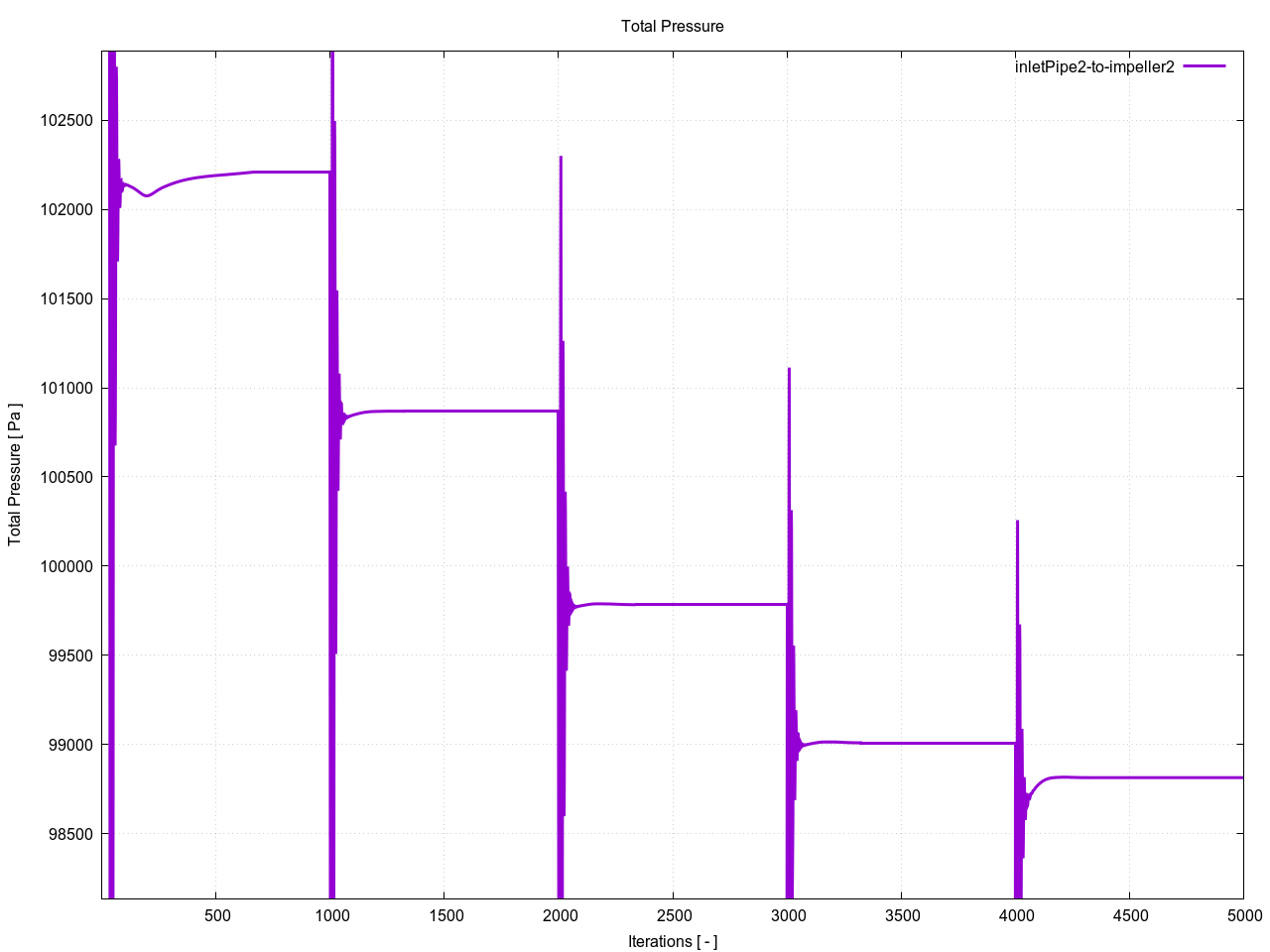

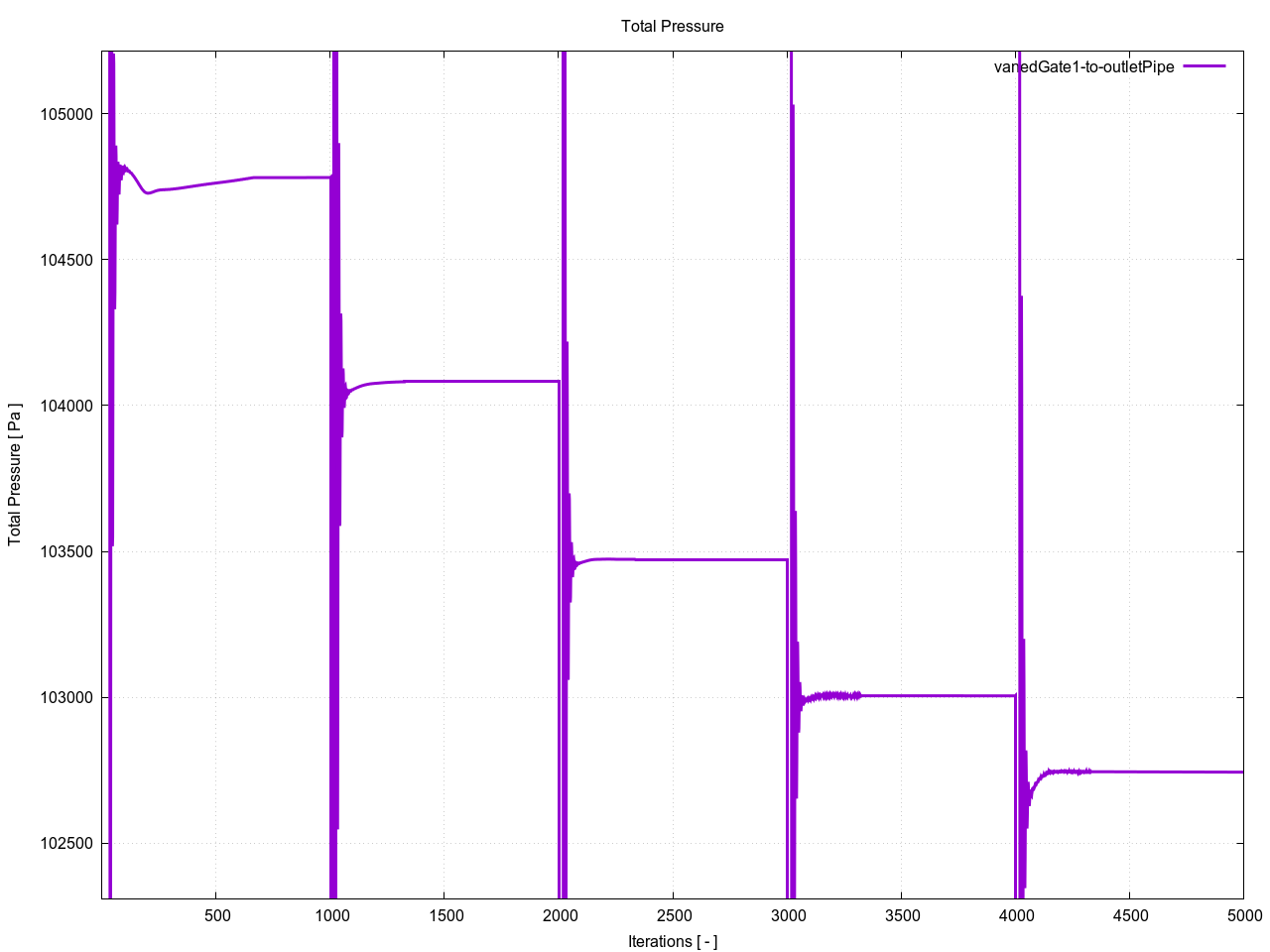

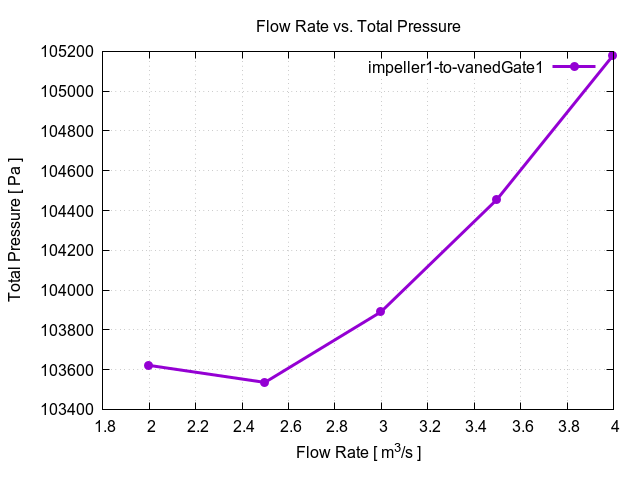

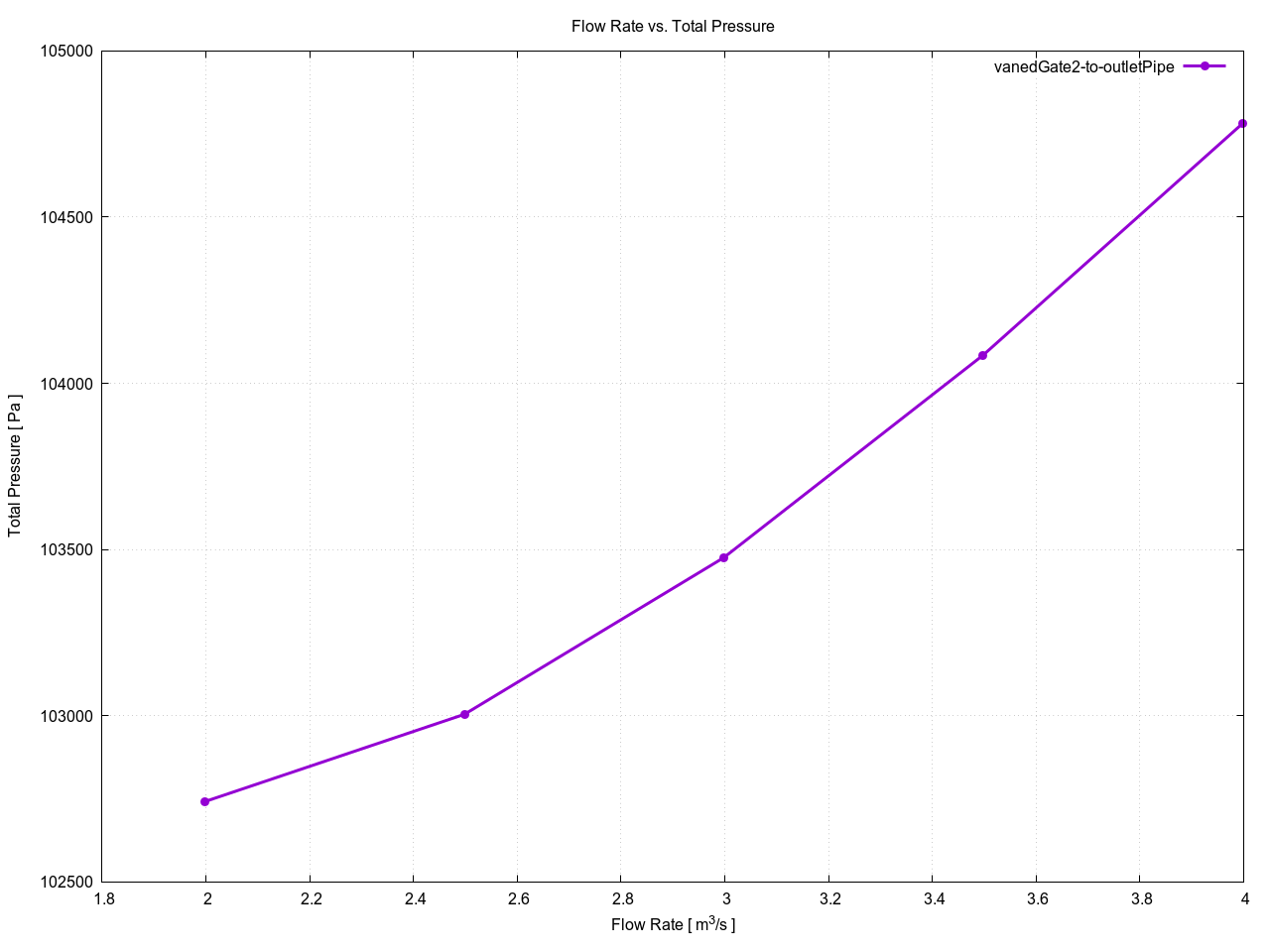

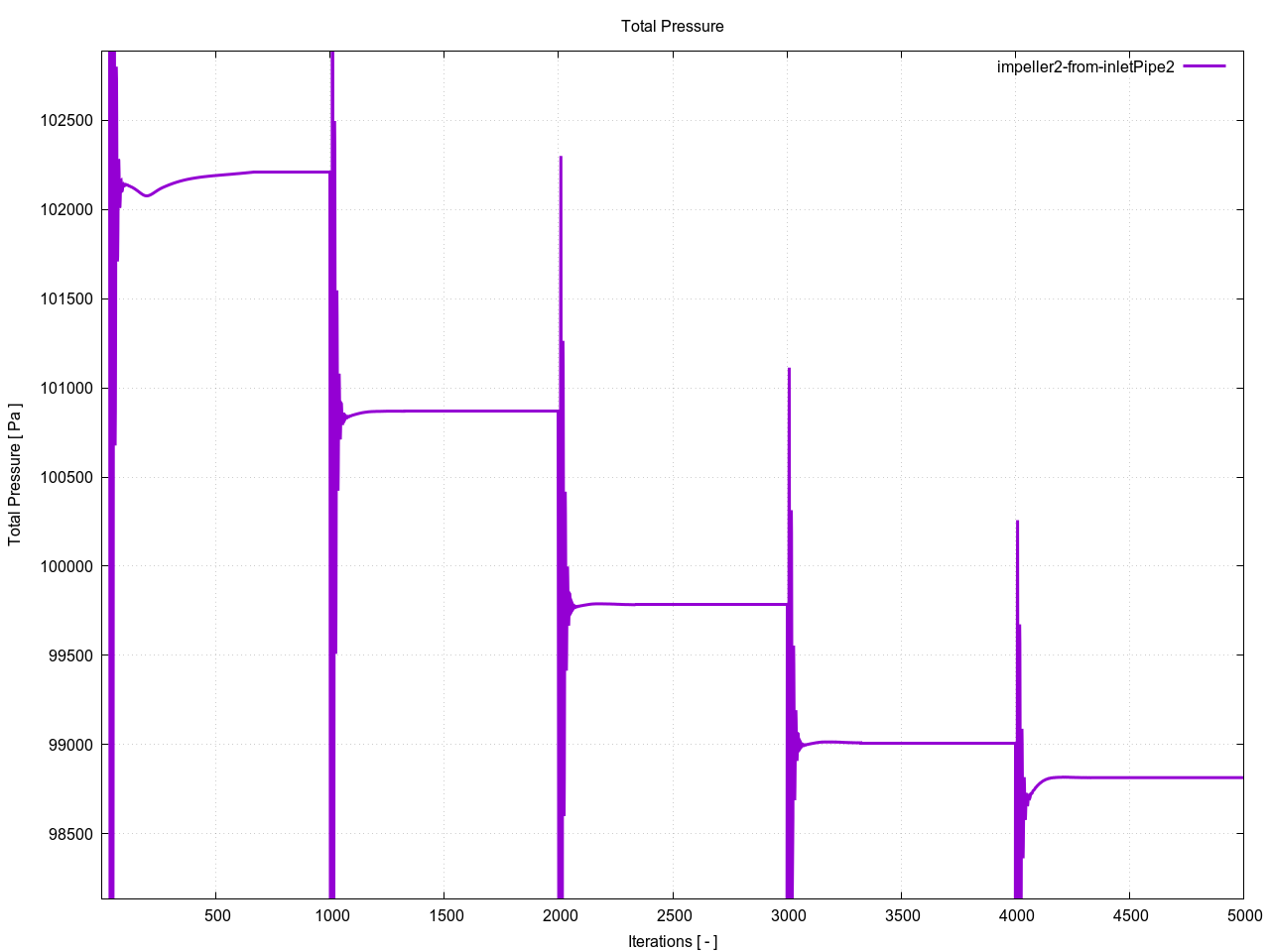

Total Pressure per Interfaces

Point Nr.	Interface Name	Flow Rate [ m³/s ]	Total Pressure [ Pa ]
1	inletPipe1-in	4.00000	102320.
1	inletPipe1-to-impeller1	4.00000	102195.
1	impeller1-from-inletPipe1	3.99687	102195.
1	impeller1-to-vanedGate1	3.99687	105178.
1	vanedGate1-from-impeller1	3.99680	105159.
1	vanedGate1-to-outletPipe	3.99680	104775.
1	outletPipe-from-vanedGate1	4.00266	104725.
1	outletPipe-from-vanedGate2	4.00296	104731.
1	outletPipe-out	8.00563	103969.
1	inletPipe2-in	4.00000	102328.
1	inletPipe2-to-impeller2	4.00000	102203.
1	impeller2-from-inletPipe2	3.99710	102204.
1	impeller2-to-vanedGate2	3.99710	105183.
1	vanedGate2-from-impeller2	3.99723	105164.
1	vanedGate2-to-outletPipe	3.99723	104781.
2	inletPipe1-in	3.50000	100960.
2	inletPipe1-to-impeller1	3.50000	100862.
2	impeller1-from-inletPipe1	3.49724	100863.
2	impeller1-to-vanedGate1	3.49724	104454.
2	vanedGate1-from-impeller1	3.49715	104426.
2	vanedGate1-to-outletPipe	3.49715	104080.
2	outletPipe-from-vanedGate1	3.50205	104034.
2	outletPipe-from-vanedGate2	3.50240	104038.
2	outletPipe-out	7.00444	103355.
2	inletPipe2-in	3.50000	100966.
2	inletPipe2-to-impeller2	3.50000	100869.
2	impeller2-from-inletPipe2	3.49744	100869.
2	impeller2-to-vanedGate2	3.49744	104458.
2	vanedGate2-from-impeller2	3.49759	104430.
2	vanedGate2-to-outletPipe	3.49759	104084.
3	inletPipe1-in	3.00000	99853.8
3	inletPipe1-to-impeller1	3.00000	99781.3
3	impeller1-from-inletPipe1	2.99759	99781.6
3	impeller1-to-vanedGate1	2.99759	103890.
3	vanedGate1-from-impeller1	2.99748	103848.
3	vanedGate1-to-outletPipe	2.99749	103473.
3	outletPipe-from-vanedGate1	3.00182	103425.
3	outletPipe-from-vanedGate2	3.00219	103427.
3	outletPipe-out	6.00401	102829.
3	inletPipe2-in	3.00000	99857.7
3	inletPipe2-to-impeller2	3.00000	99785.2
3	impeller2-from-inletPipe2	2.99777	99785.5
3	impeller2-to-vanedGate2	2.99777	103891.
3	vanedGate2-from-impeller2	2.99793	103849.
3	vanedGate2-to-outletPipe	2.99793	103476.
4	inletPipe1-in	2.50000	99062.2
4	inletPipe1-to-impeller1	2.50000	99010.1
4	impeller1-from-inletPipe1	2.49791	99010.3
4	impeller1-to-vanedGate1	2.49791	103536.
4	vanedGate1-from-impeller1	2.49778	103479.
4	vanedGate1-to-outletPipe	2.49778	103005.
4	outletPipe-from-vanedGate1	2.50270	102947.
4	outletPipe-from-vanedGate2	2.50310	102946.
4	outletPipe-out	5.00580	102386.
4	inletPipe2-in	2.50000	99062.9
4	inletPipe2-to-impeller2	2.50000	99010.8
4	impeller2-from-inletPipe2	2.49806	99011.0
4	impeller2-to-vanedGate2	2.49806	103533.
4	vanedGate2-from-impeller2	2.49824	103476.
4	vanedGate2-to-outletPipe	2.49824	103004.
5	inletPipe1-in	2.00000	98849.2
5	inletPipe1-to-impeller1	2.00000	98813.0
5	impeller1-from-inletPipe1	1.99818	98813.2
5	impeller1-to-vanedGate1	1.99818	103621.
5	vanedGate1-from-impeller1	1.99803	103543.
5	vanedGate1-to-outletPipe	1.99803	102745.
5	outletPipe-from-vanedGate1	2.00472	102678.
5	outletPipe-from-vanedGate2	2.00509	102675.
5	outletPipe-out	4.00980	102046.
5	inletPipe2-in	2.00000	98851.0
5	inletPipe2-to-impeller2	2.00000	98814.8
5	impeller2-from-inletPipe2	1.99830	98815.0
5	impeller2-to-vanedGate2	1.99830	103619.
5	vanedGate2-from-impeller2	1.99849	103540.
5	vanedGate2-to-outletPipe	1.99849	102742.

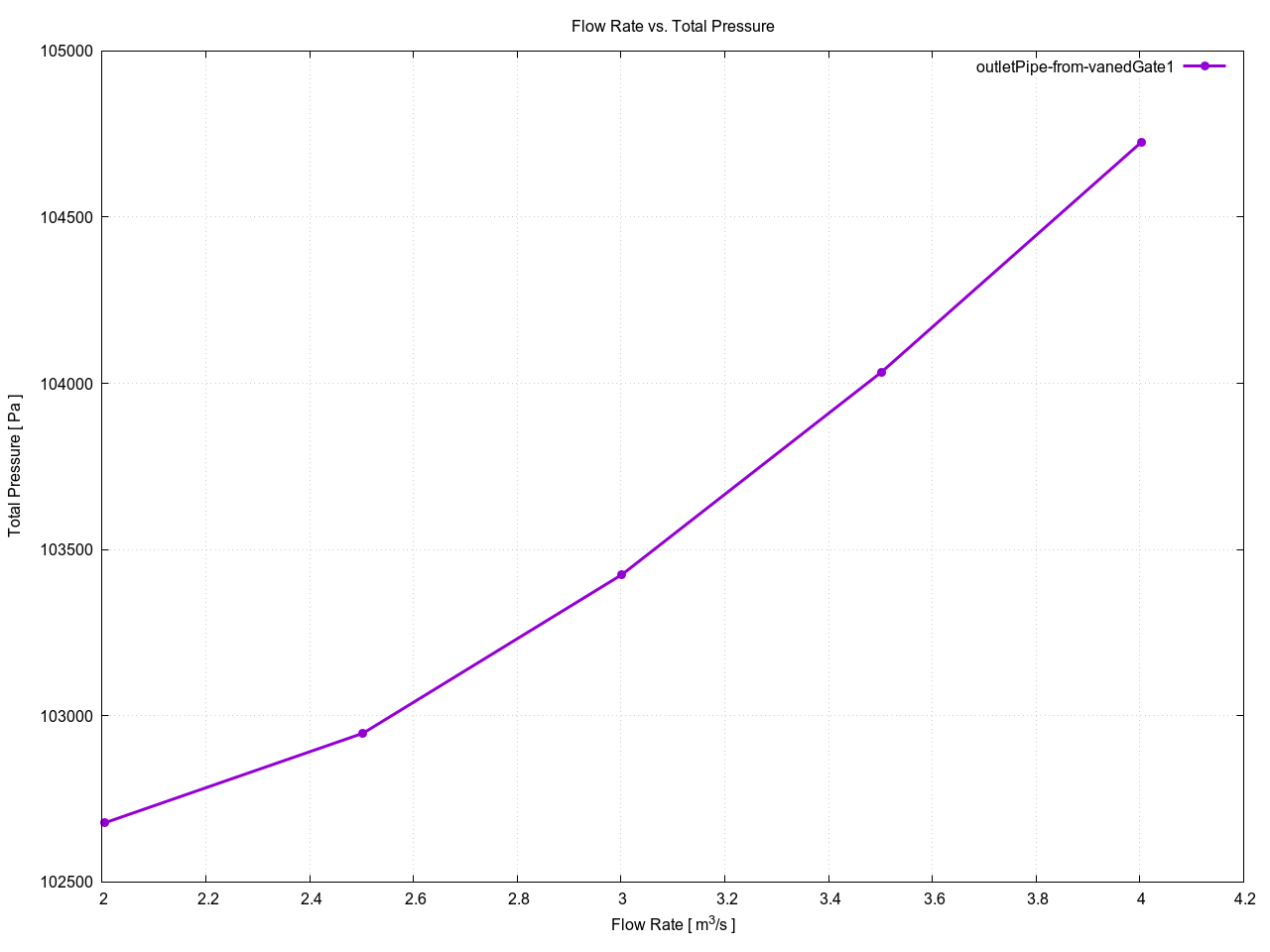

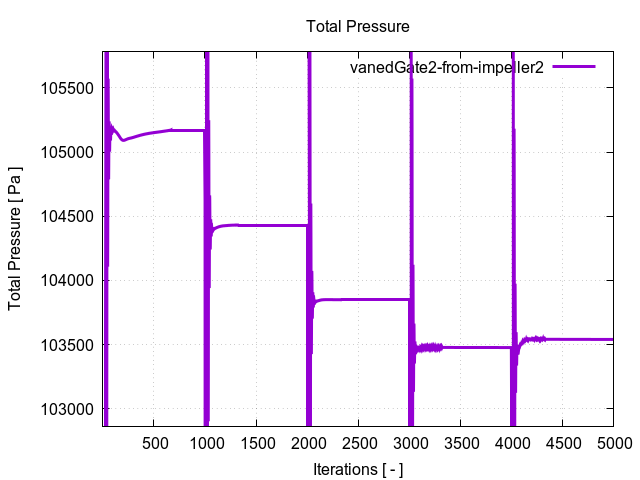

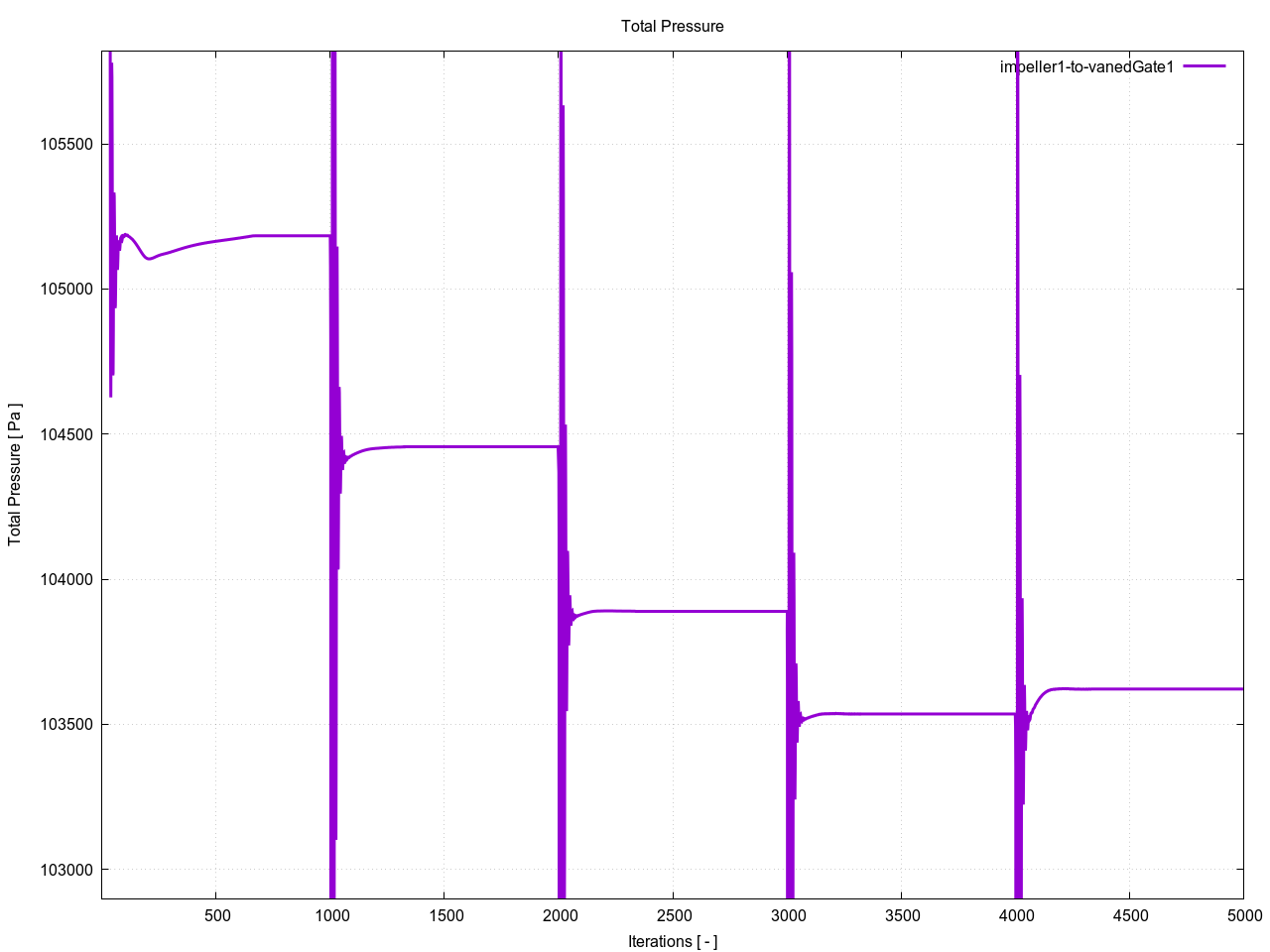

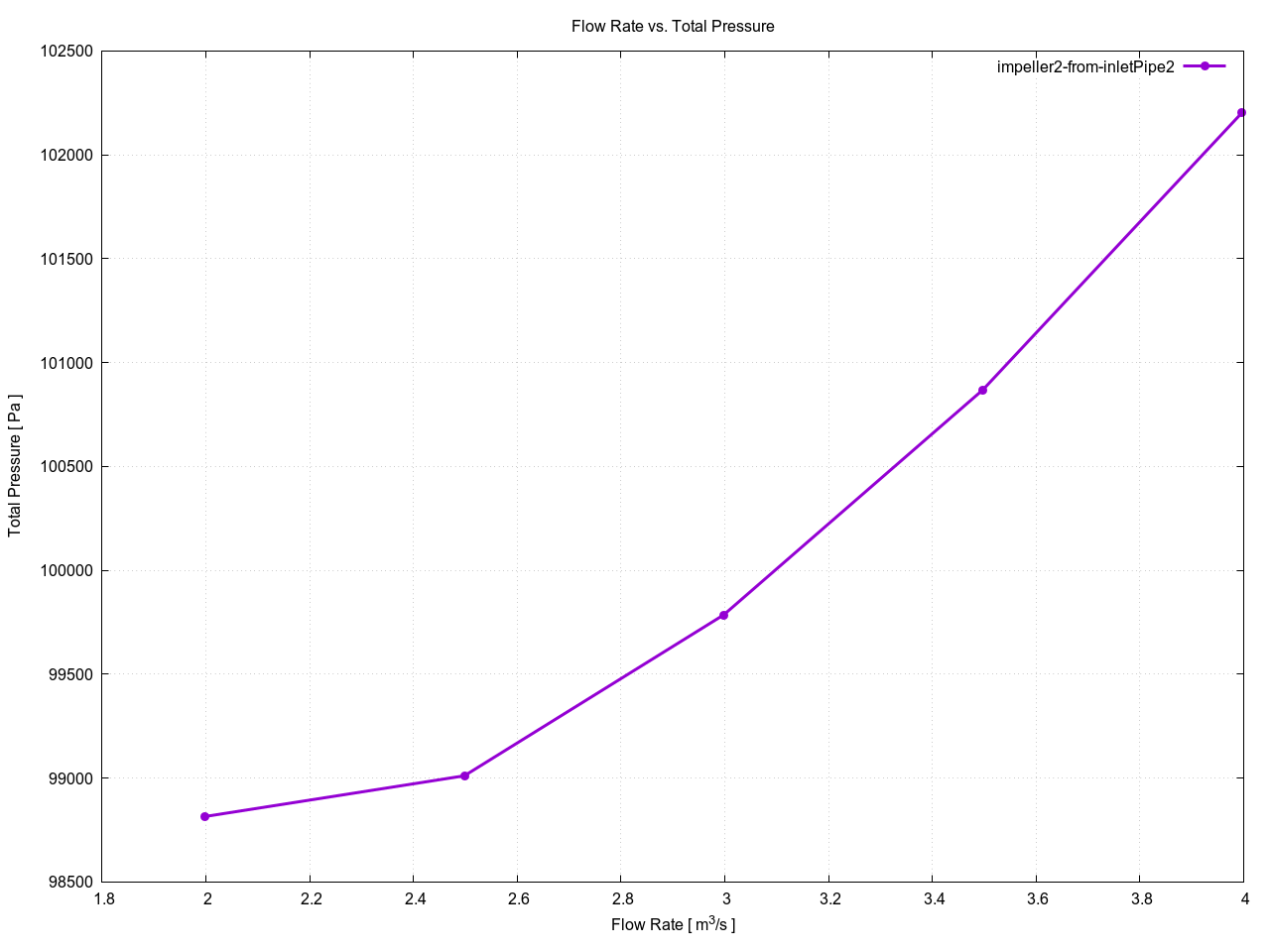

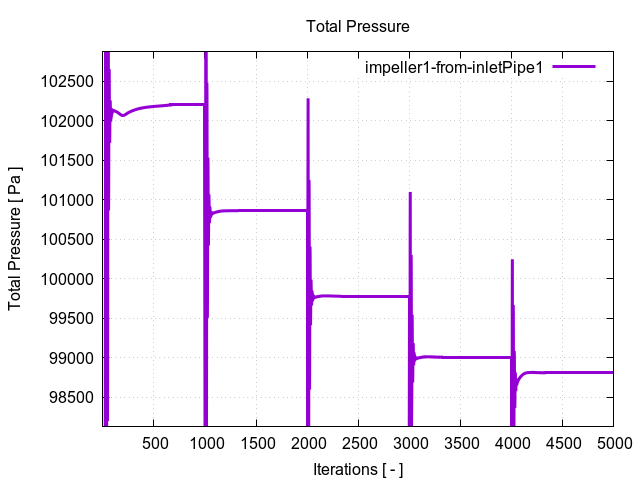

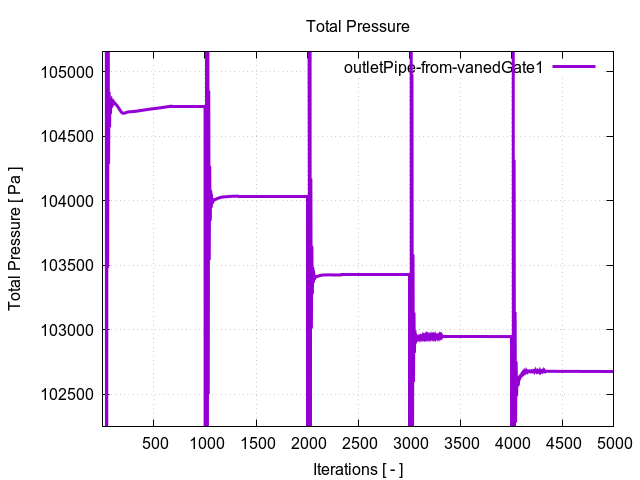

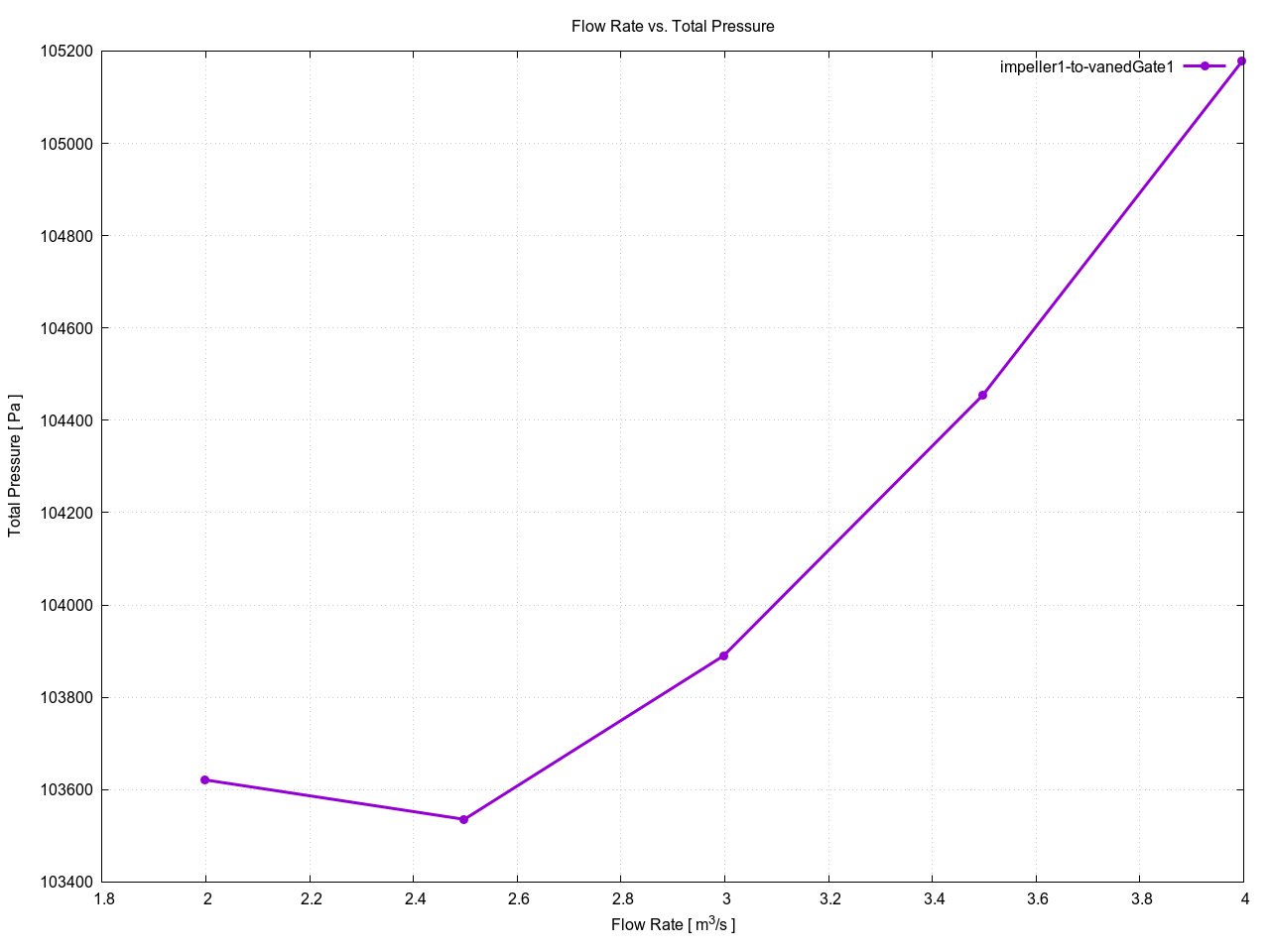

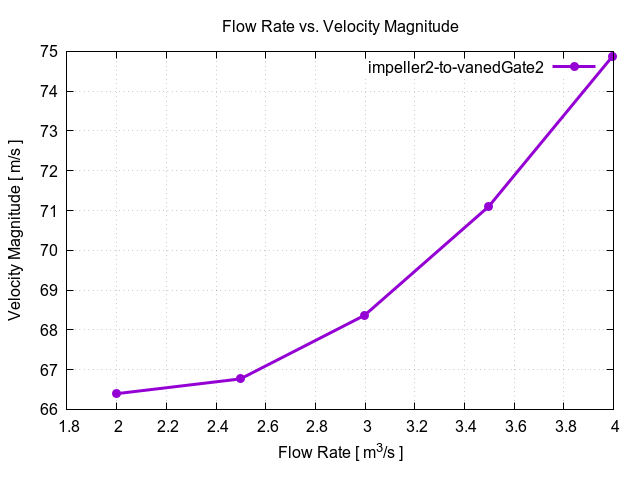

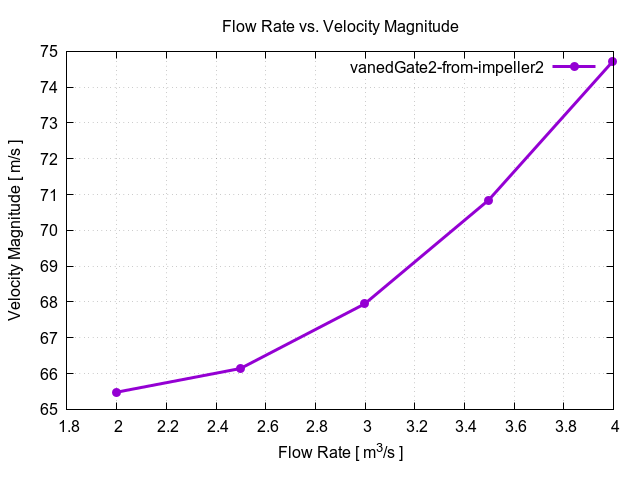

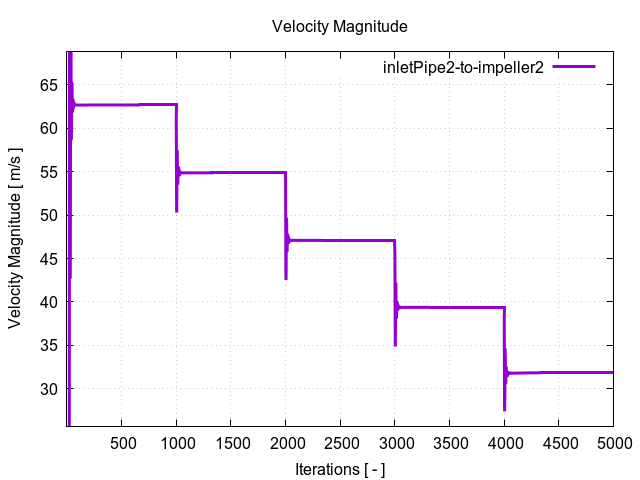

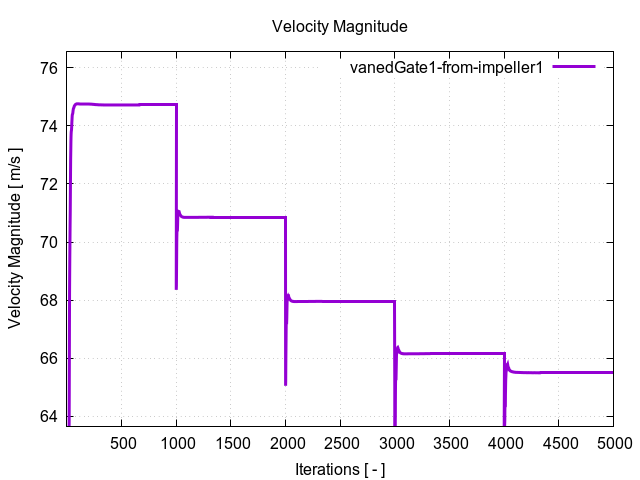

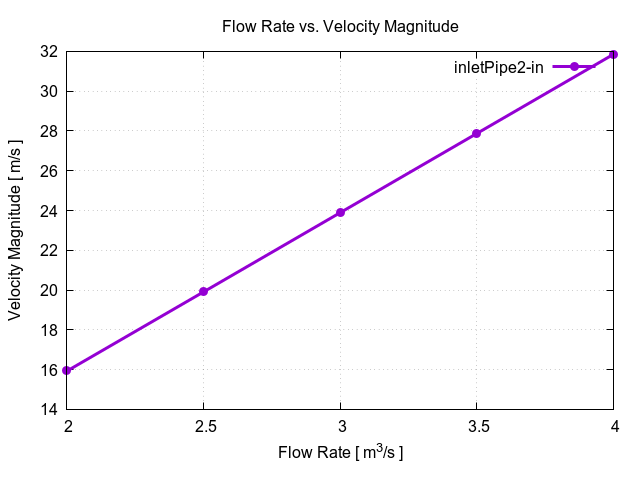

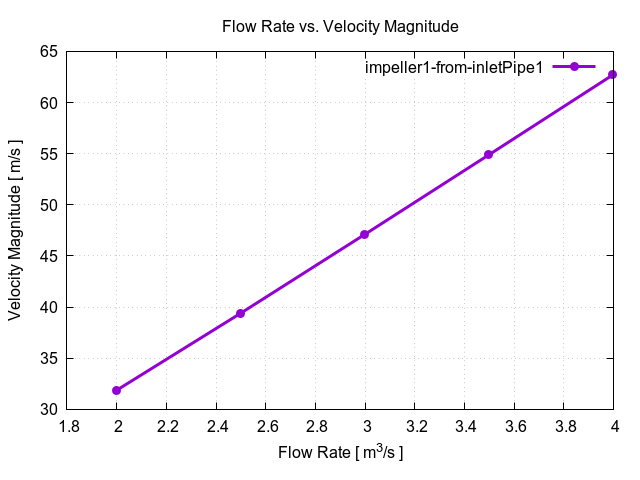

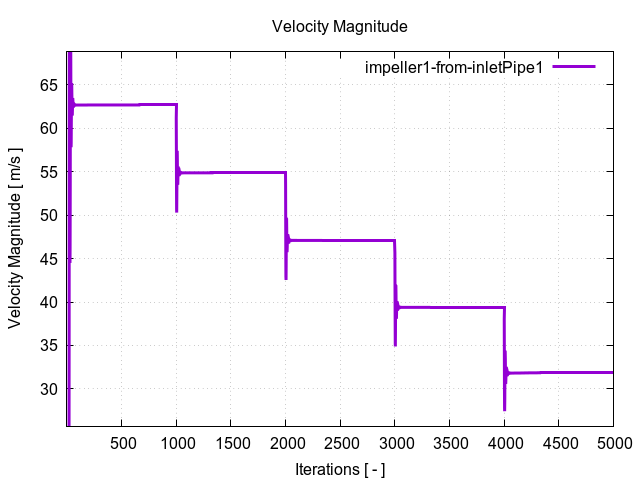

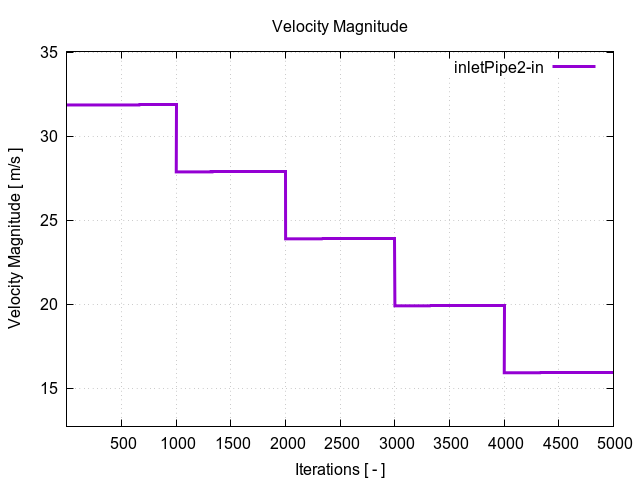

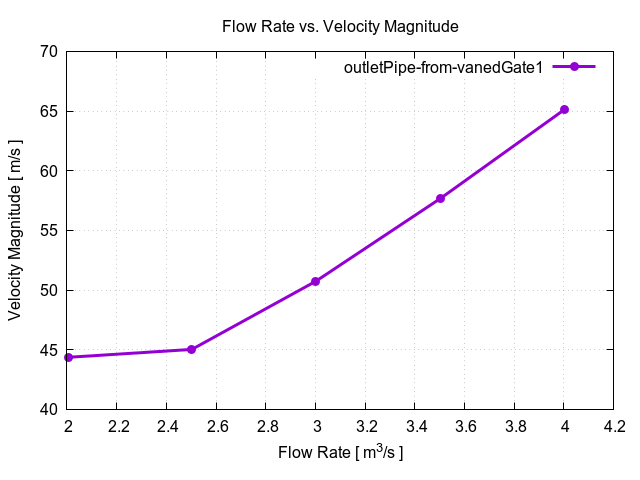

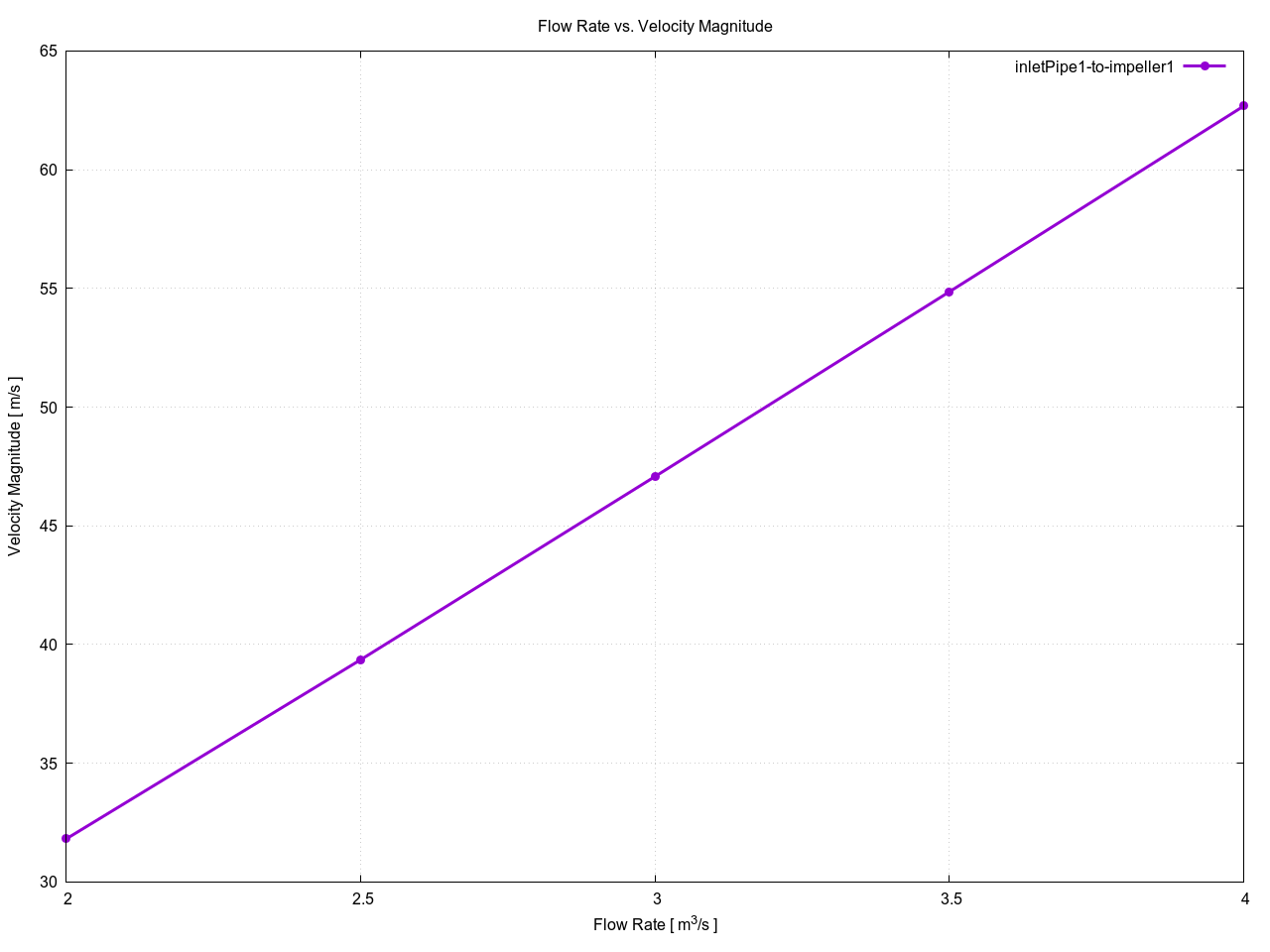

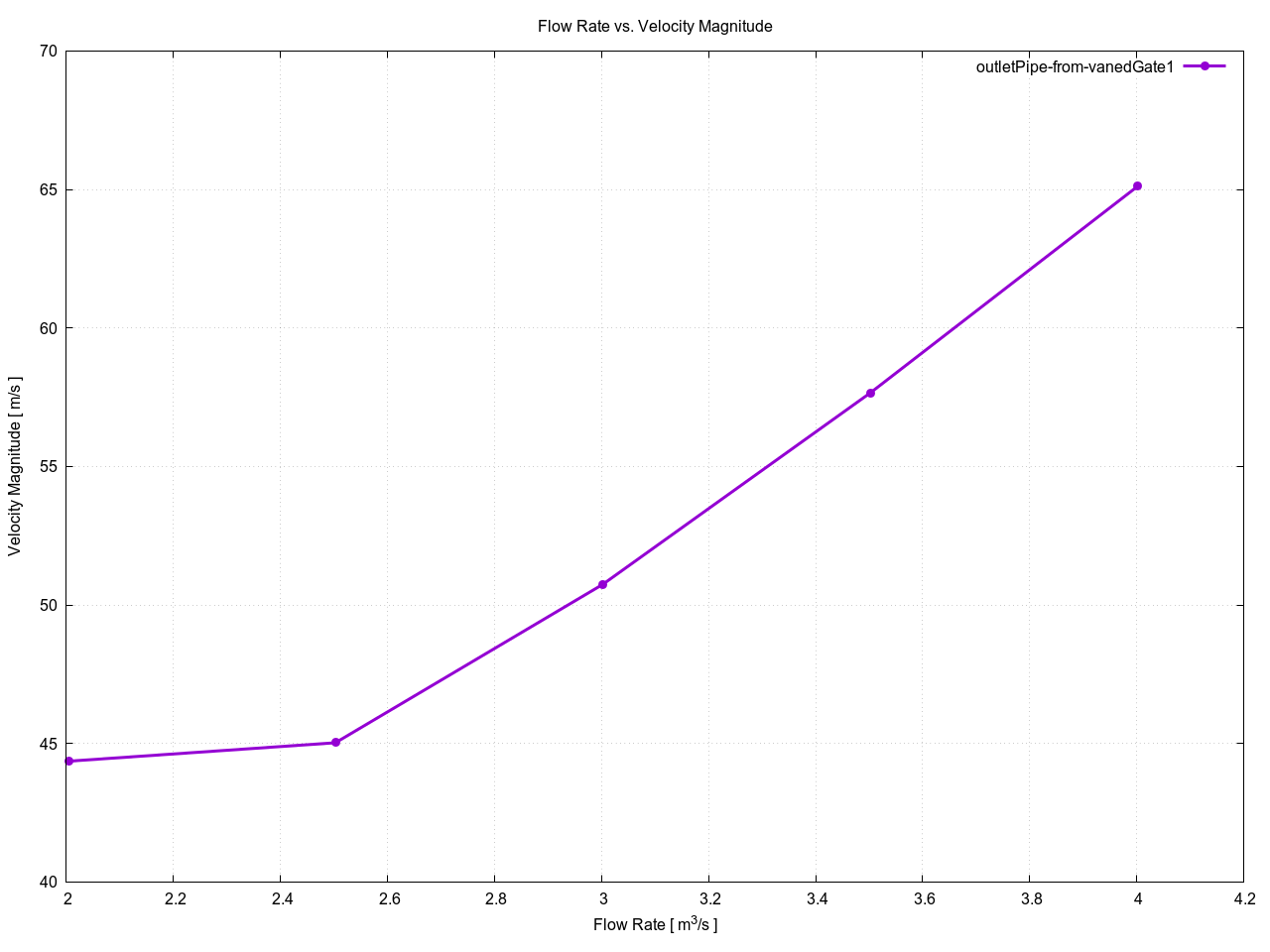

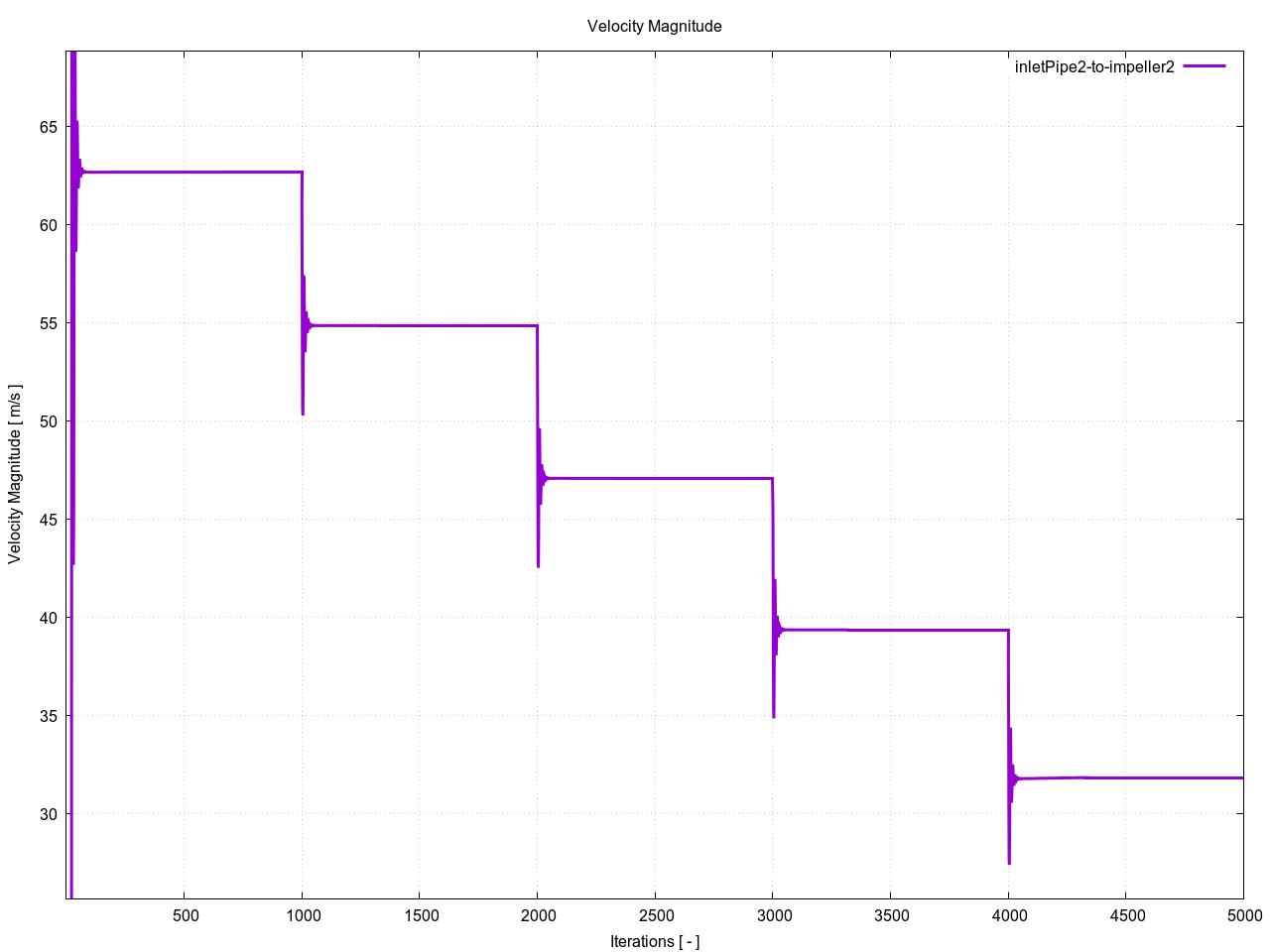

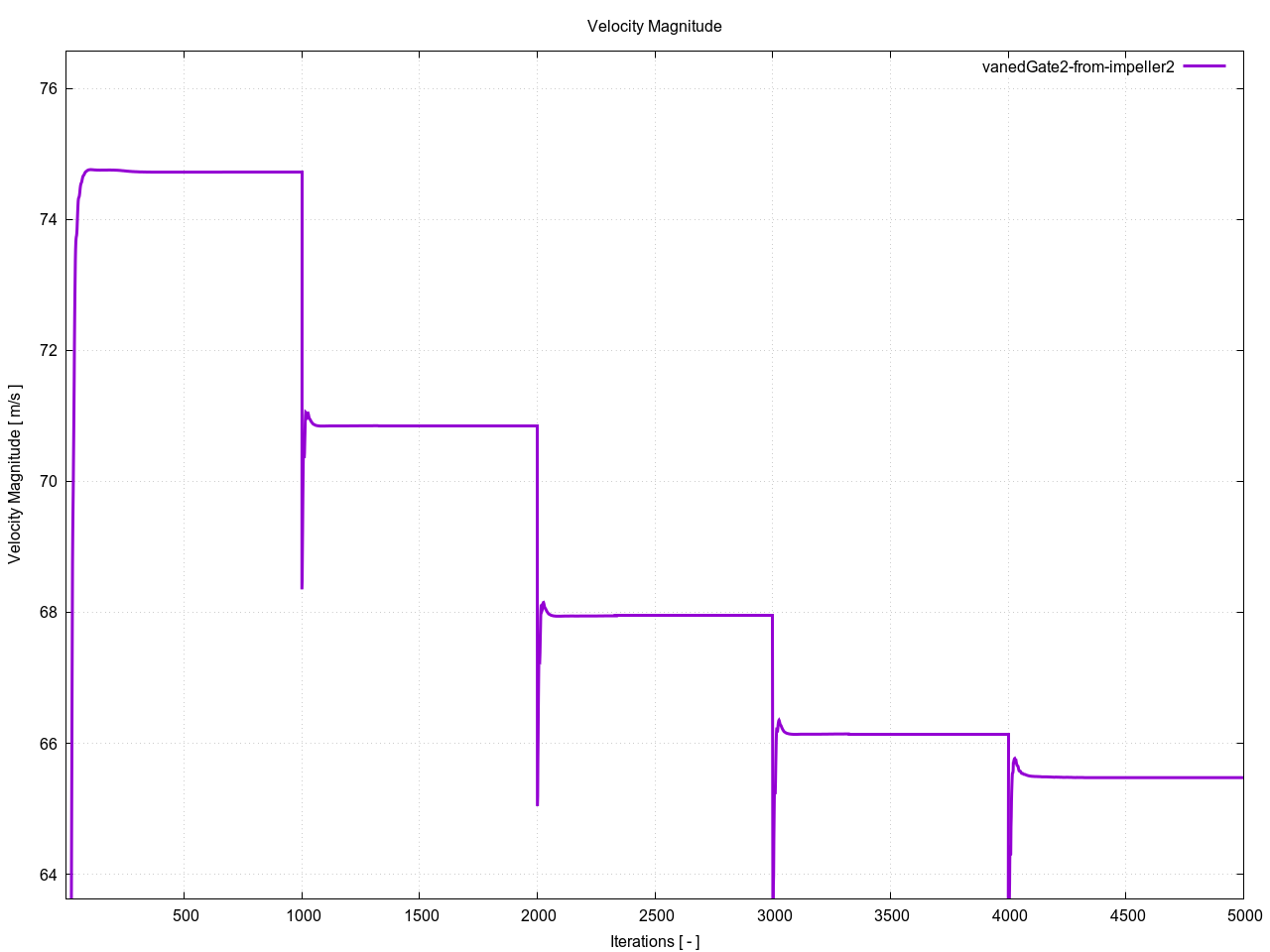

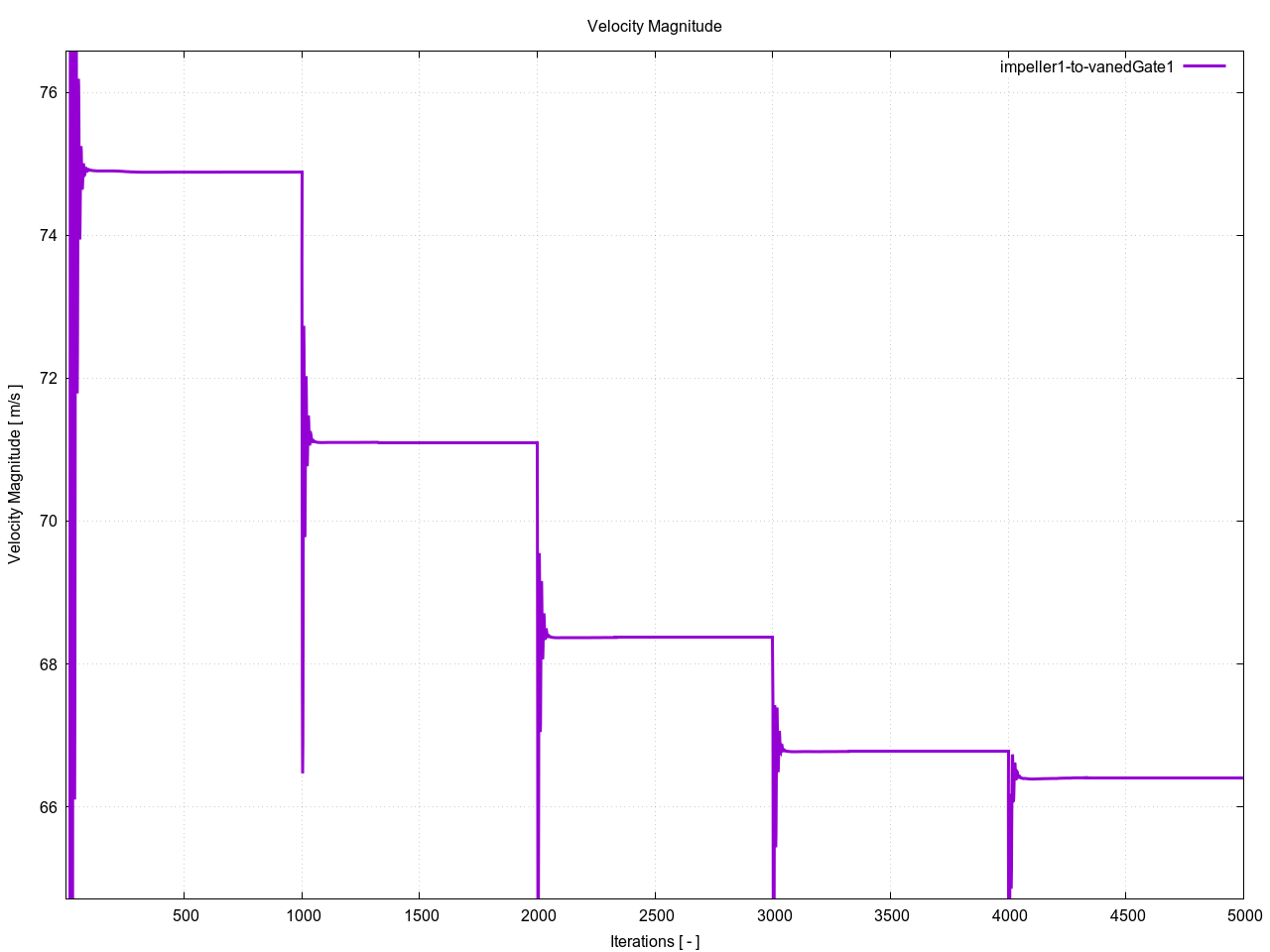

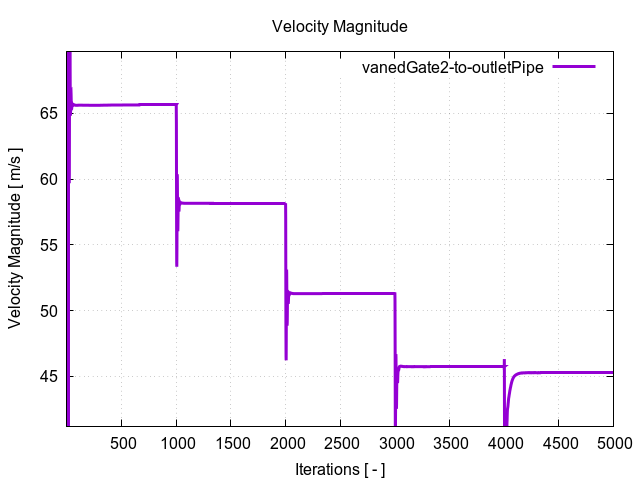

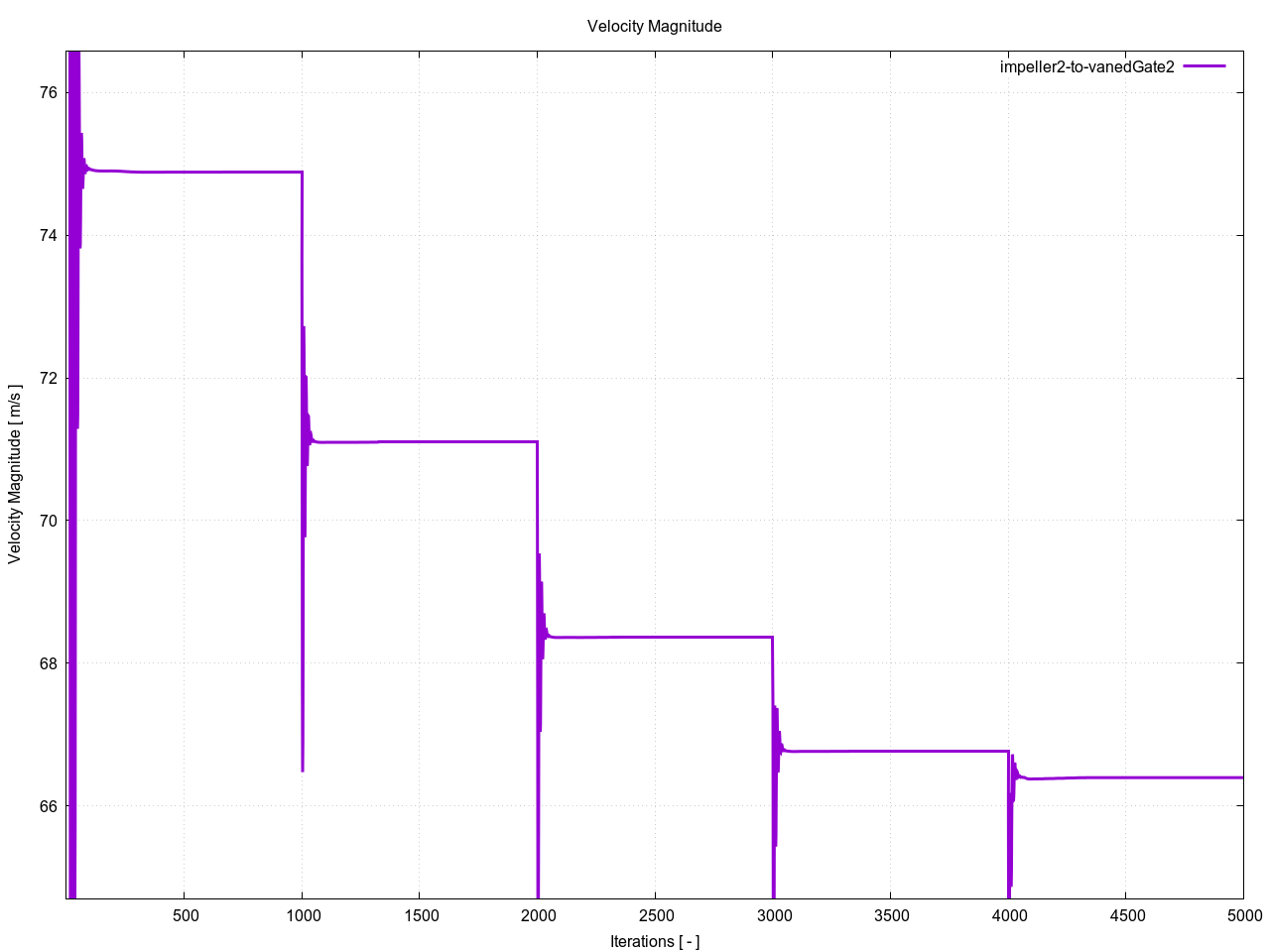

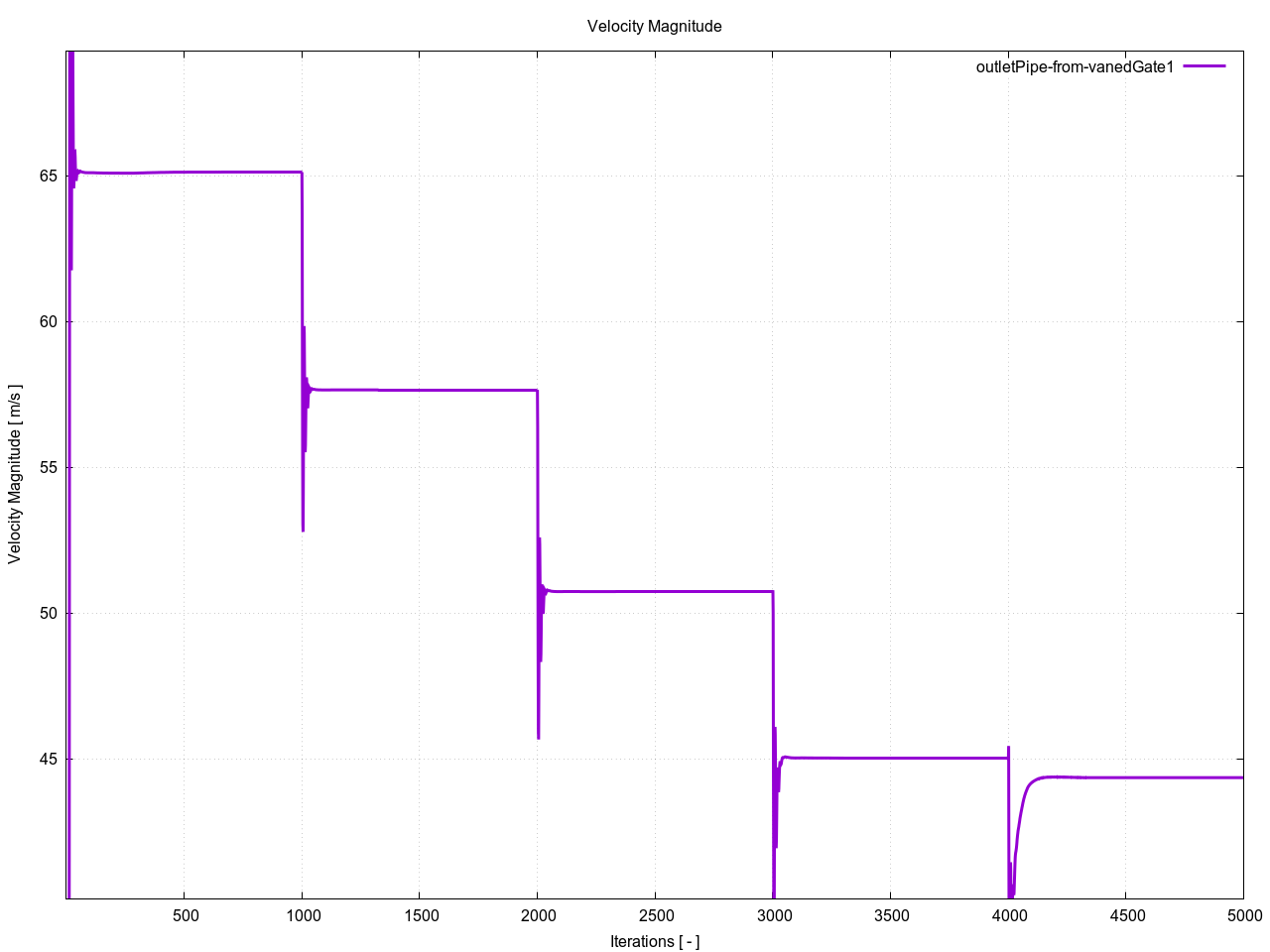

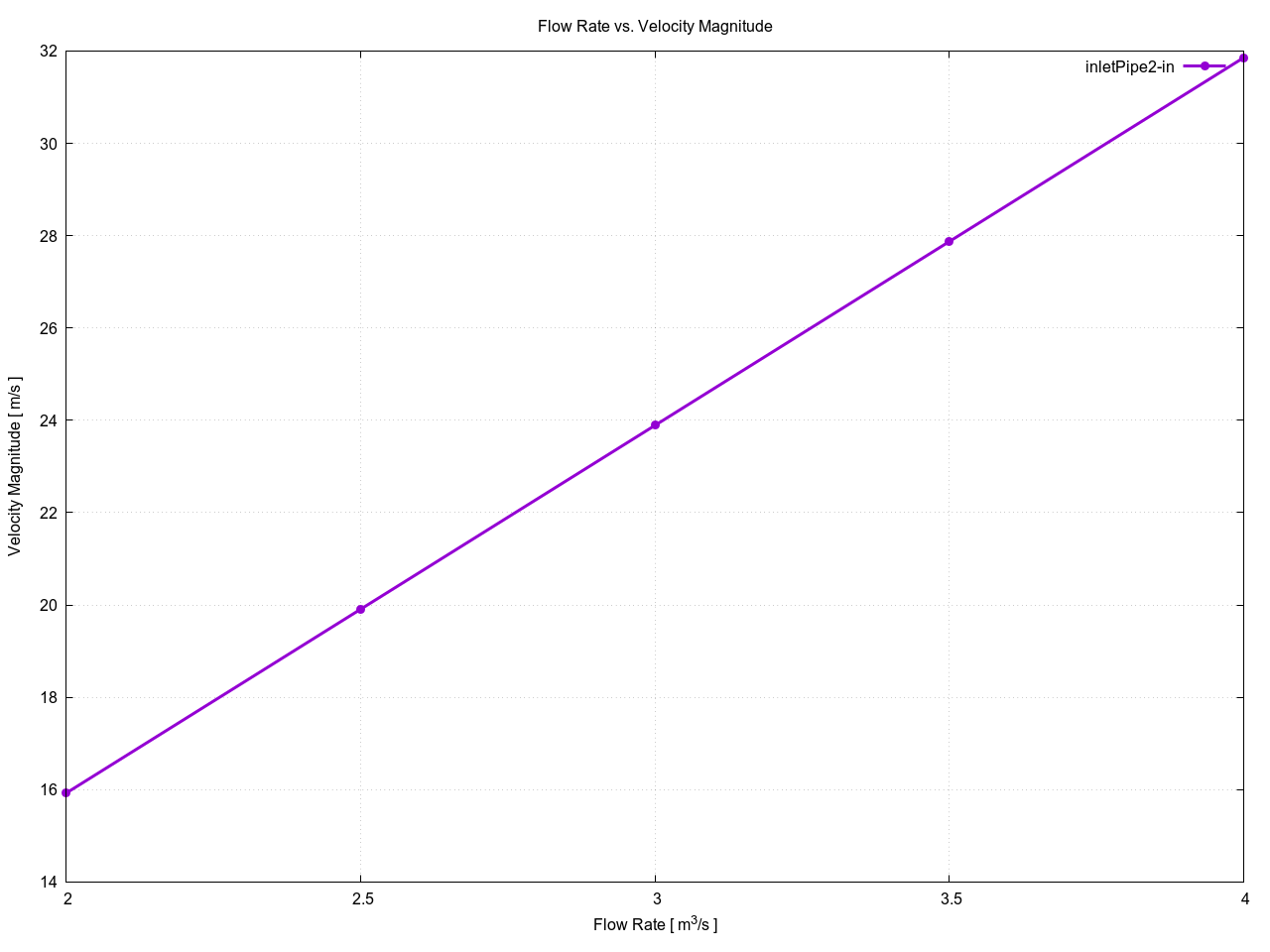

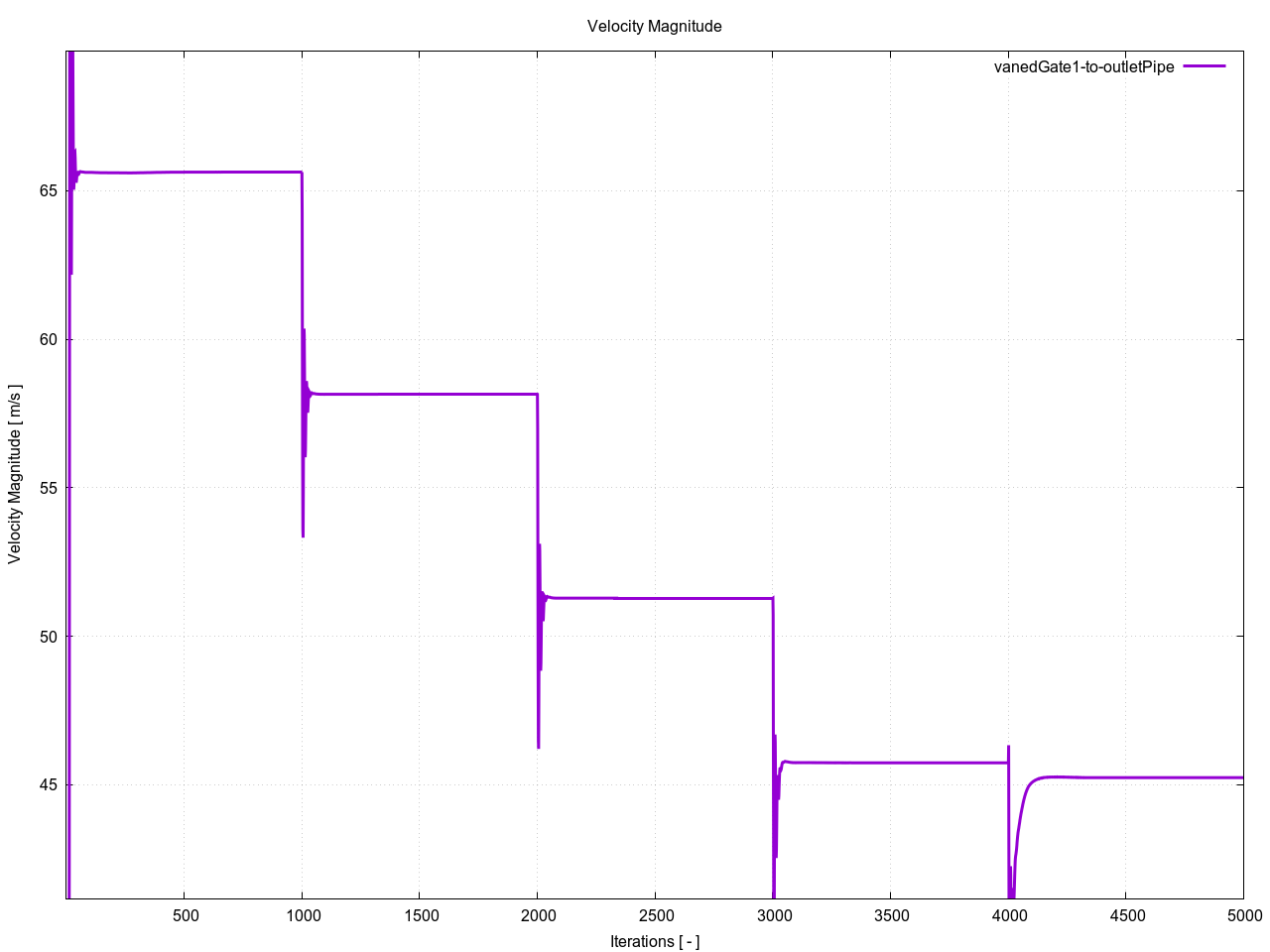

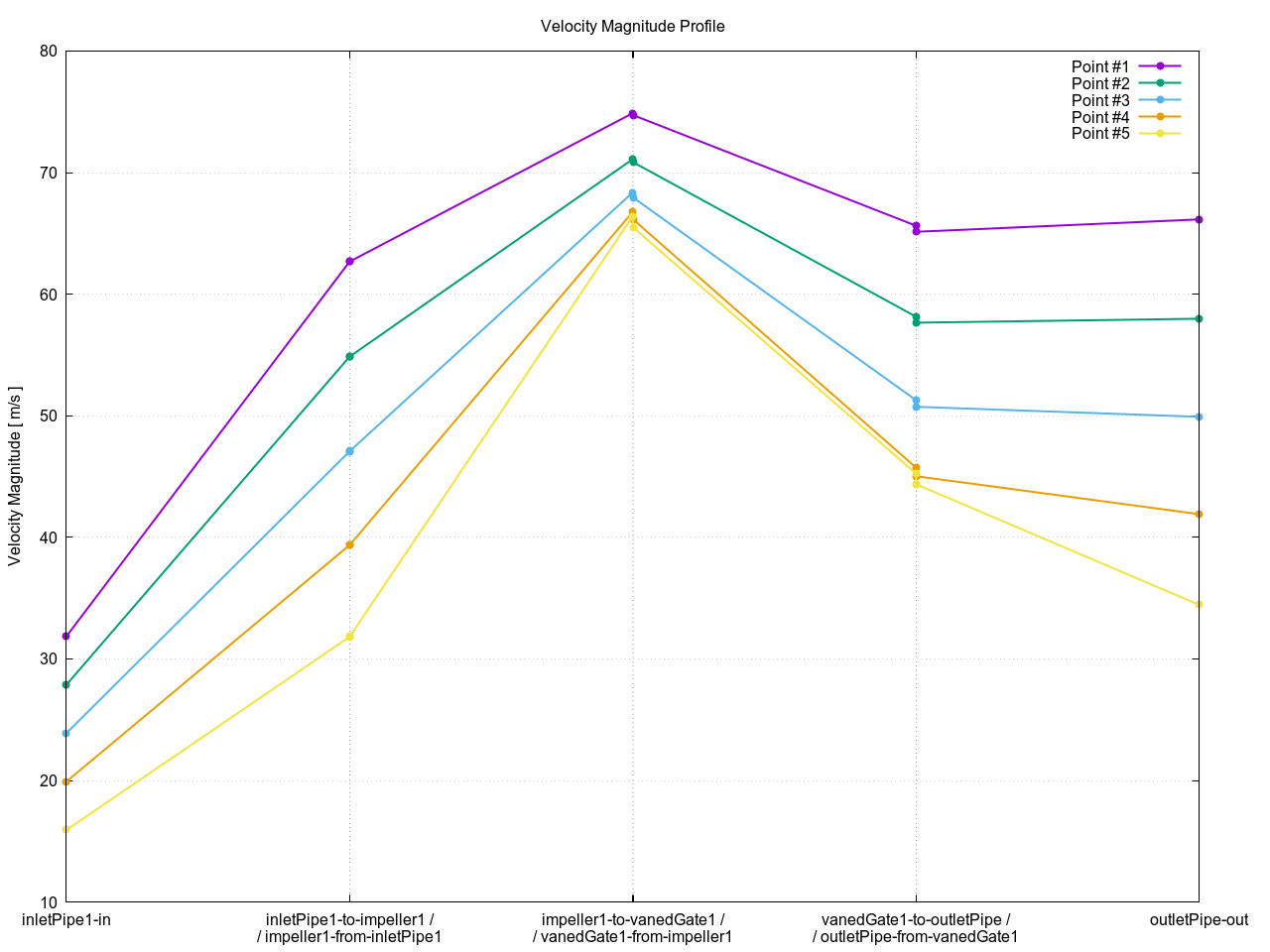

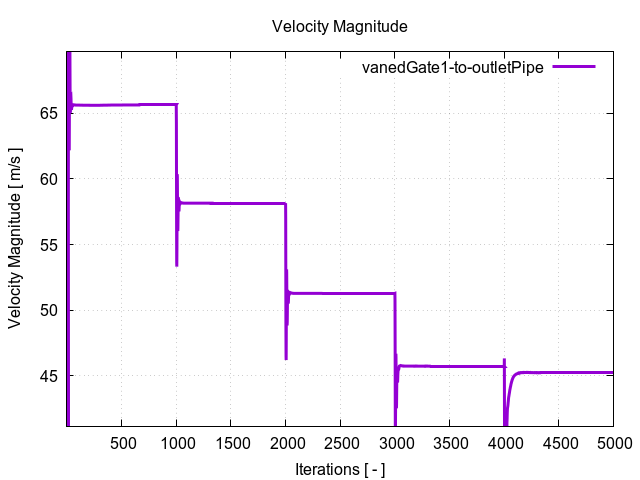

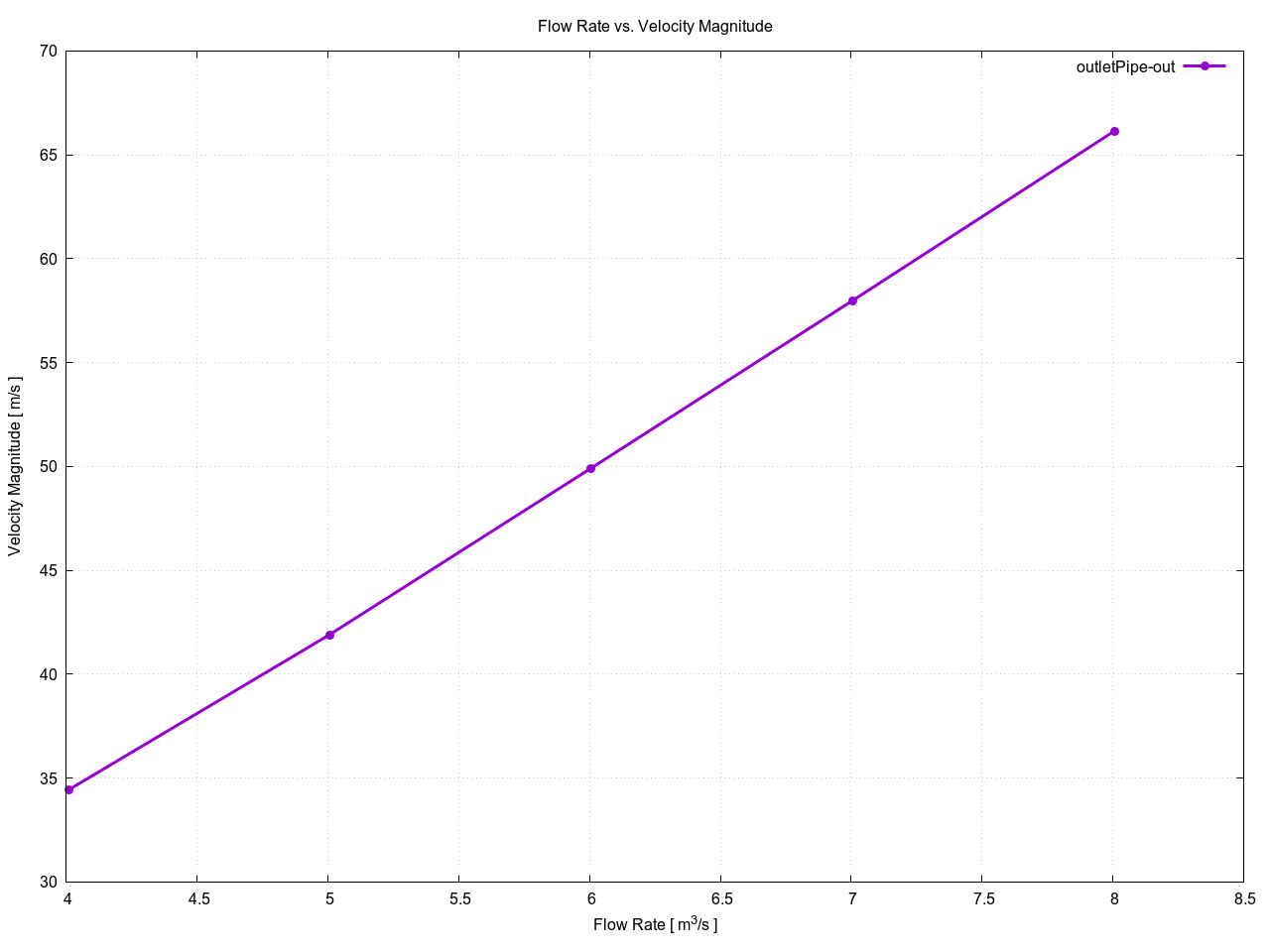

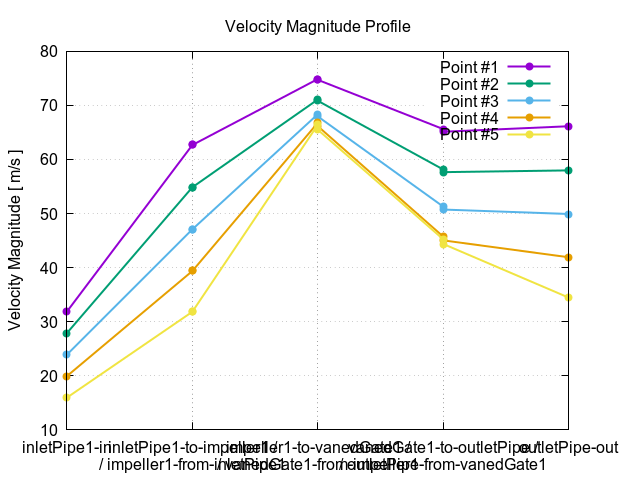

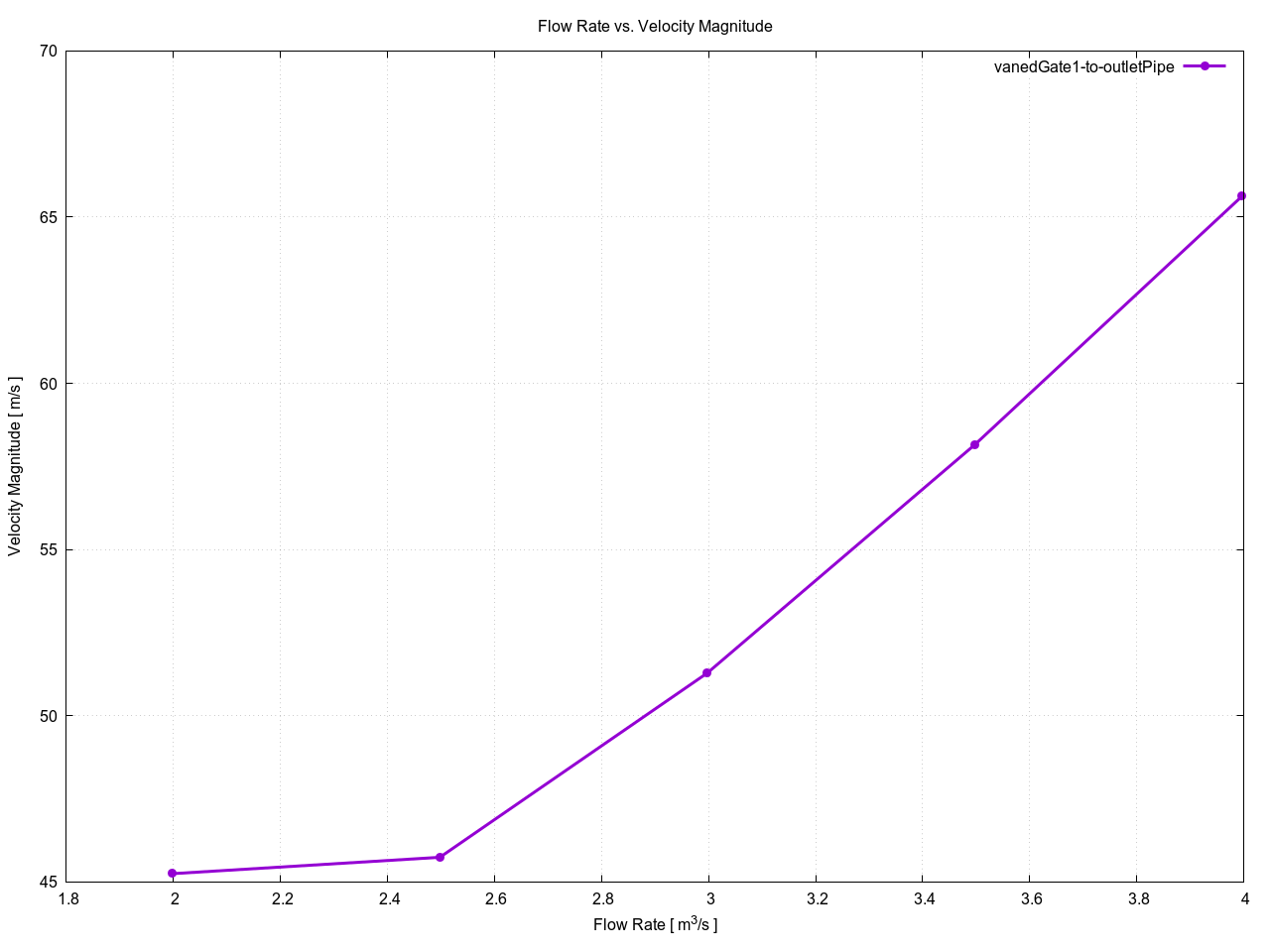

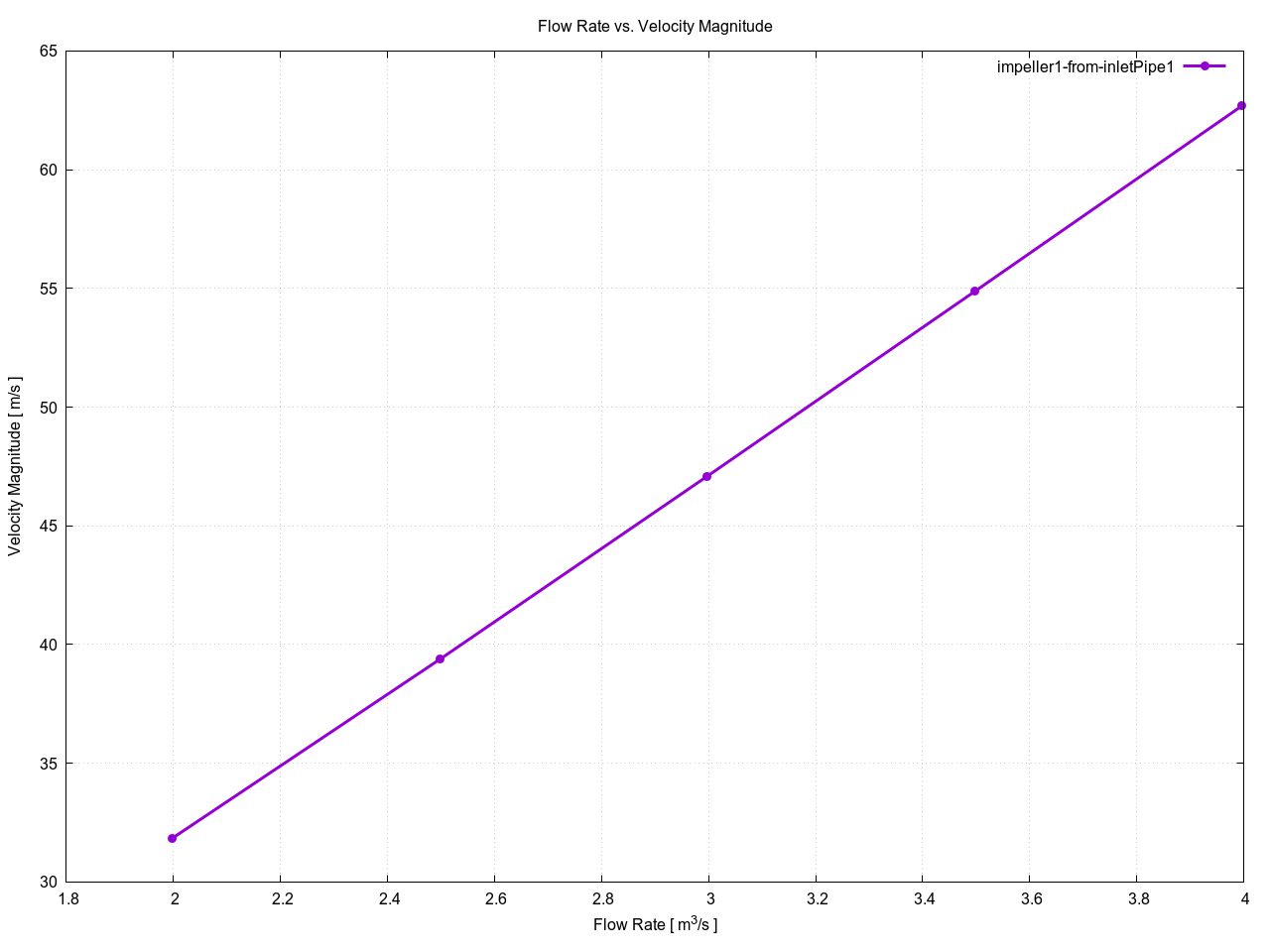

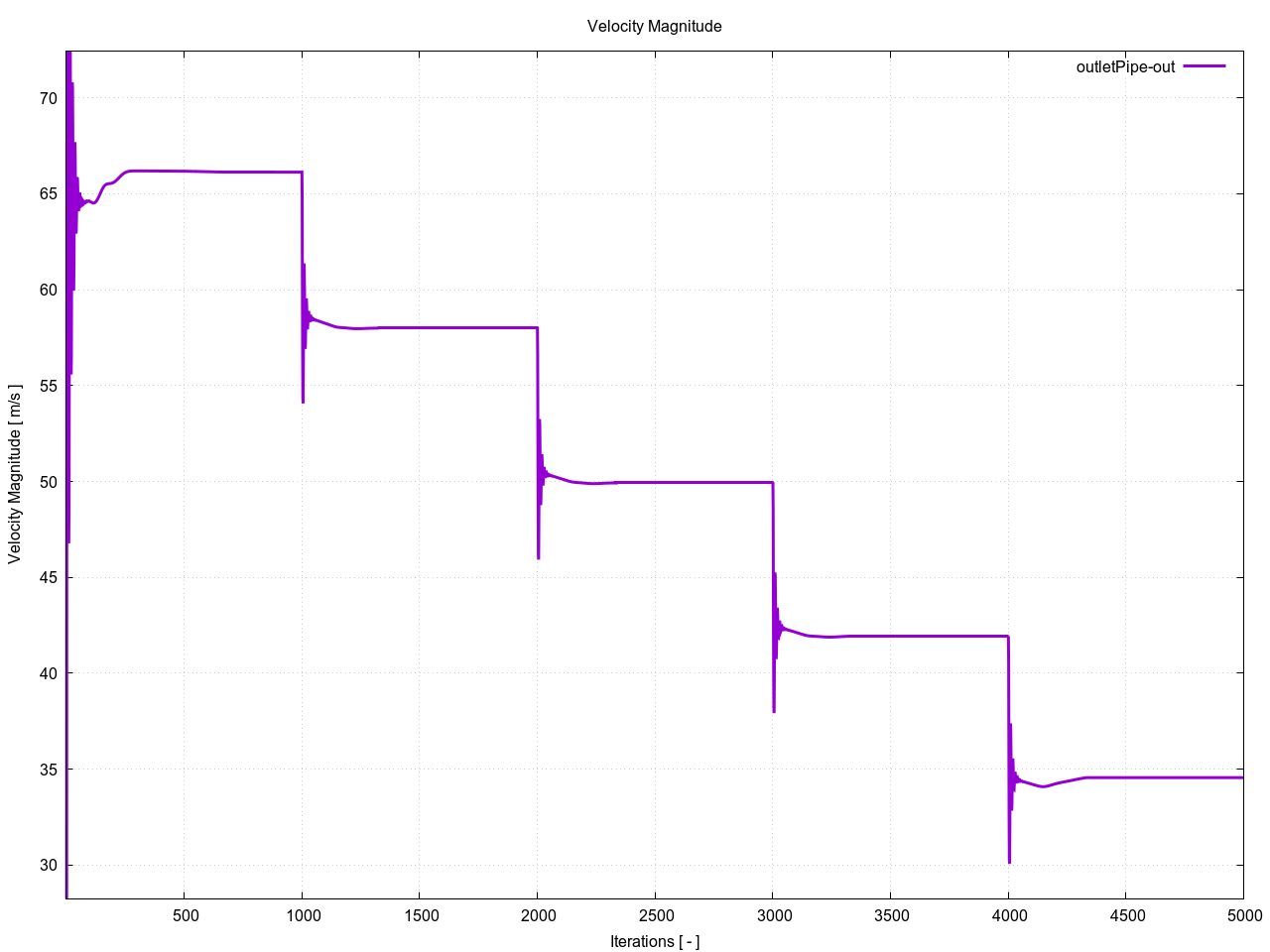

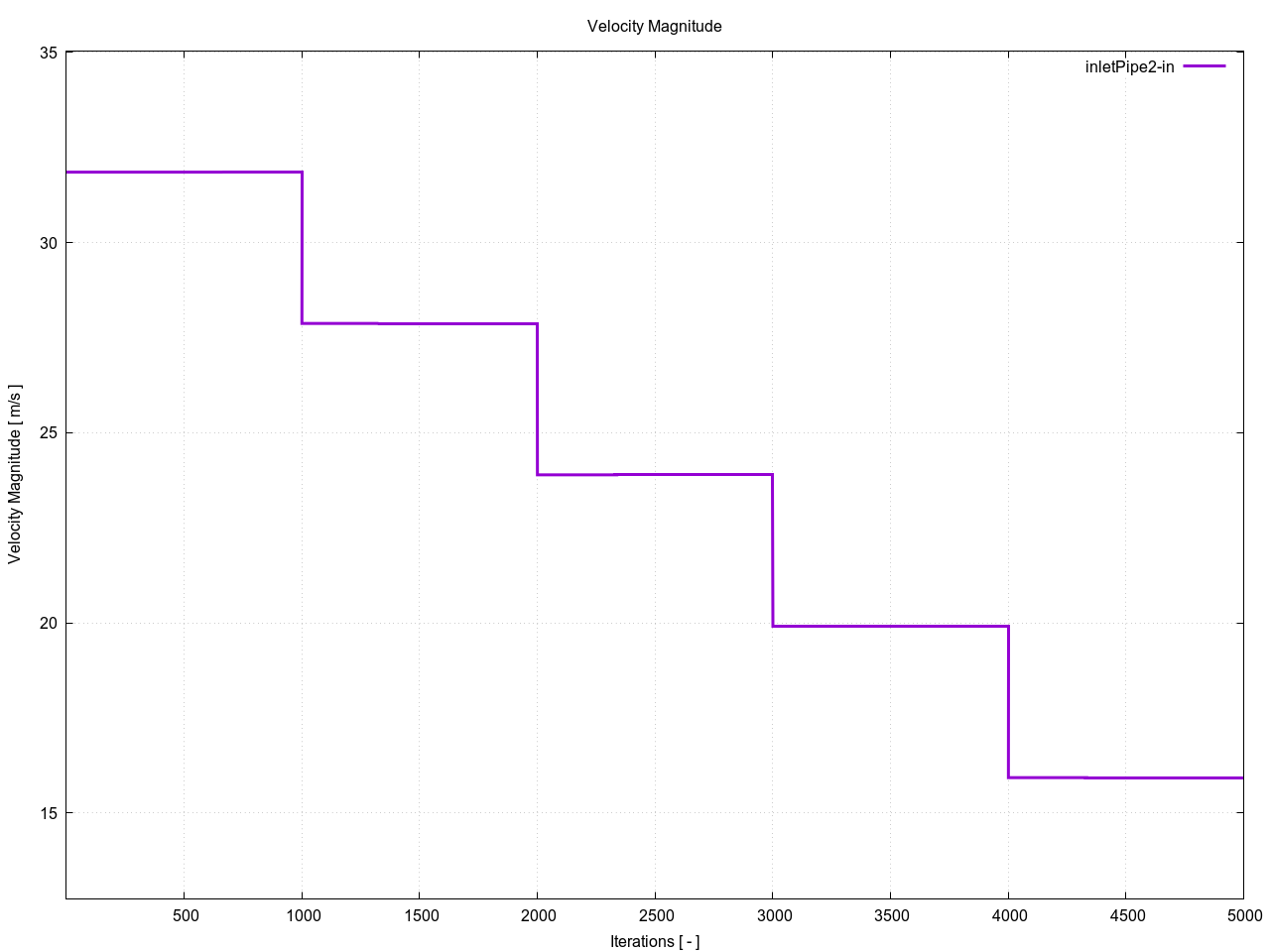

Velocity Magnitude per Interfaces

Point Nr.	Interface Name	Flow Rate [ m³/s ]	Velocity Magnitude [ m/s ]
1	inletPipe1-in	4.00000	31.8552
1	inletPipe1-to-impeller1	4.00000	62.6782
1	impeller1-from-inletPipe1	3.99687	62.6903
1	impeller1-to-vanedGate1	3.99687	74.8847
1	vanedGate1-from-impeller1	3.99680	74.7213
1	vanedGate1-to-outletPipe	3.99680	65.6274
1	outletPipe-from-vanedGate1	4.00266	65.1264
1	outletPipe-from-vanedGate2	4.00296	65.1337
1	outletPipe-out	8.00563	66.1448
1	inletPipe2-in	4.00000	31.8552
1	inletPipe2-to-impeller2	4.00000	62.6826
1	impeller2-from-inletPipe2	3.99710	62.6946
1	impeller2-to-vanedGate2	3.99710	74.8844
1	vanedGate2-from-impeller2	3.99723	74.7207
1	vanedGate2-to-outletPipe	3.99723	65.6359
2	inletPipe1-in	3.50000	27.8733
2	inletPipe1-to-impeller1	3.50000	54.8587
2	impeller1-from-inletPipe1	3.49724	54.8699
2	impeller1-to-vanedGate1	3.49724	71.1016
2	vanedGate1-from-impeller1	3.49715	70.8511
2	vanedGate1-to-outletPipe	3.49715	58.1490
2	outletPipe-from-vanedGate1	3.50205	57.6530
2	outletPipe-from-vanedGate2	3.50240	57.6565
2	outletPipe-out	7.00444	57.9794
2	inletPipe2-in	3.50000	27.8733
2	inletPipe2-to-impeller2	3.50000	54.8628
2	impeller2-from-inletPipe2	3.49744	54.8739
2	impeller2-to-vanedGate2	3.49744	71.0983
2	vanedGate2-from-impeller2	3.49759	70.8473
2	vanedGate2-to-outletPipe	3.49759	58.1544
3	inletPipe1-in	3.00000	23.8914
3	inletPipe1-to-impeller1	3.00000	47.0771
3	impeller1-from-inletPipe1	2.99759	47.0892
3	impeller1-to-vanedGate1	2.99759	68.3698
3	vanedGate1-from-impeller1	2.99748	67.9521
3	vanedGate1-to-outletPipe	2.99749	51.2845
3	outletPipe-from-vanedGate1	3.00182	50.7363
3	outletPipe-from-vanedGate2	3.00219	50.7342
3	outletPipe-out	6.00401	49.9063
3	inletPipe2-in	3.00000	23.8914
3	inletPipe2-to-impeller2	3.00000	47.0812
3	impeller2-from-inletPipe2	2.99777	47.0933
3	impeller2-to-vanedGate2	2.99777	68.3637
3	vanedGate2-from-impeller2	2.99793	67.9448
3	vanedGate2-to-outletPipe	2.99793	51.2834
4	inletPipe1-in	2.50000	19.9095
4	inletPipe1-to-impeller1	2.50000	39.3623
4	impeller1-from-inletPipe1	2.49791	39.3786
4	impeller1-to-vanedGate1	2.49791	66.7742
4	vanedGate1-from-impeller1	2.49778	66.1514
4	vanedGate1-to-outletPipe	2.49778	45.7416
4	outletPipe-from-vanedGate1	2.50270	45.0242
4	outletPipe-from-vanedGate2	2.50310	45.0082
4	outletPipe-out	5.00580	41.9020
4	inletPipe2-in	2.50000	19.9095
4	inletPipe2-to-impeller2	2.50000	39.3674
4	impeller2-from-inletPipe2	2.49806	39.3837
4	impeller2-to-vanedGate2	2.49806	66.7660
4	vanedGate2-from-impeller2	2.49824	66.1414
4	vanedGate2-to-outletPipe	2.49824	45.7256
5	inletPipe1-in	2.00000	15.9276
5	inletPipe1-to-impeller1	2.00000	31.8193
5	impeller1-from-inletPipe1	1.99818	31.8453
5	impeller1-to-vanedGate1	1.99818	66.4052
5	vanedGate1-from-impeller1	1.99803	65.4946
5	vanedGate1-to-outletPipe	1.99803	45.2494
5	outletPipe-from-vanedGate1	2.00472	44.3610
5	outletPipe-from-vanedGate2	2.00509	44.3841
5	outletPipe-out	4.00980	34.4470
5	inletPipe2-in	2.00000	15.9276
5	inletPipe2-to-impeller2	2.00000	31.8337
5	impeller2-from-inletPipe2	1.99830	31.8597
5	impeller2-to-vanedGate2	1.99830	66.3937
5	vanedGate2-from-impeller2	1.99849	65.4781
5	vanedGate2-to-outletPipe	1.99849	45.2671

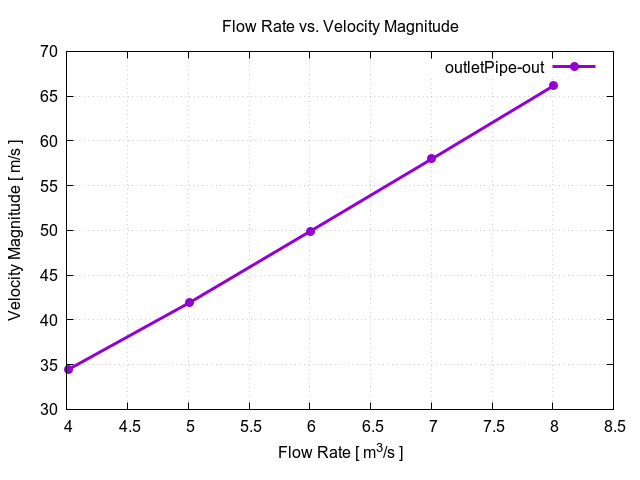

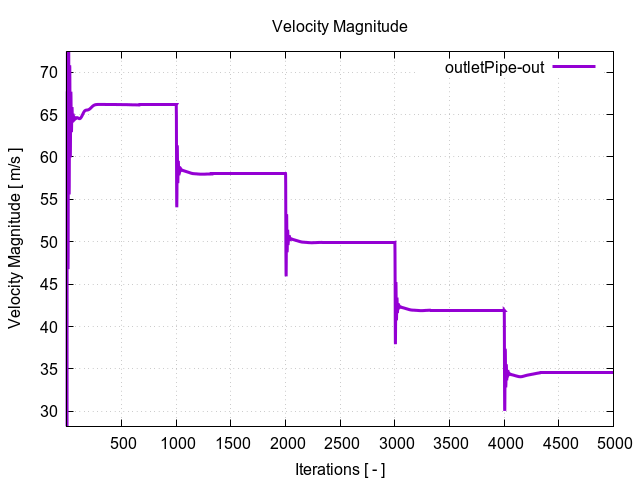

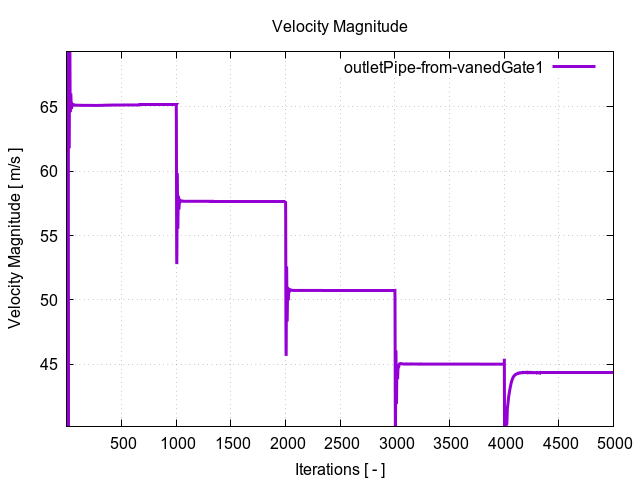

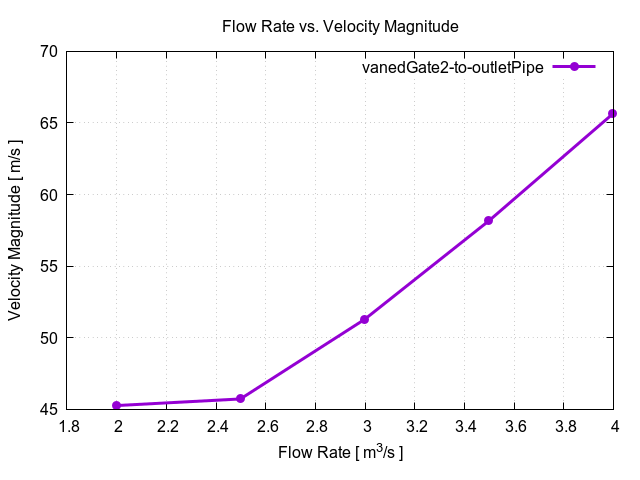

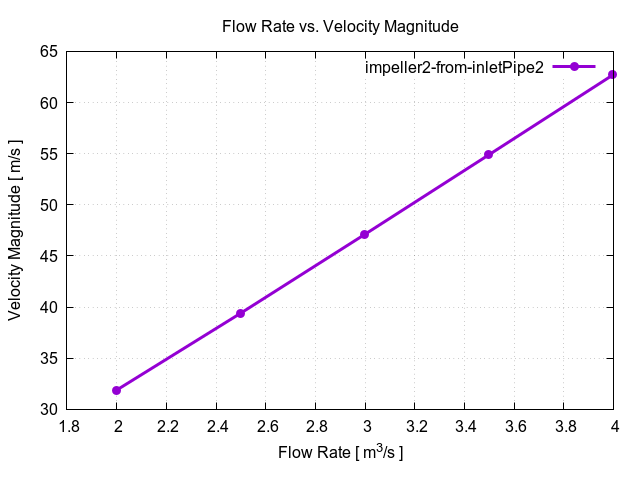

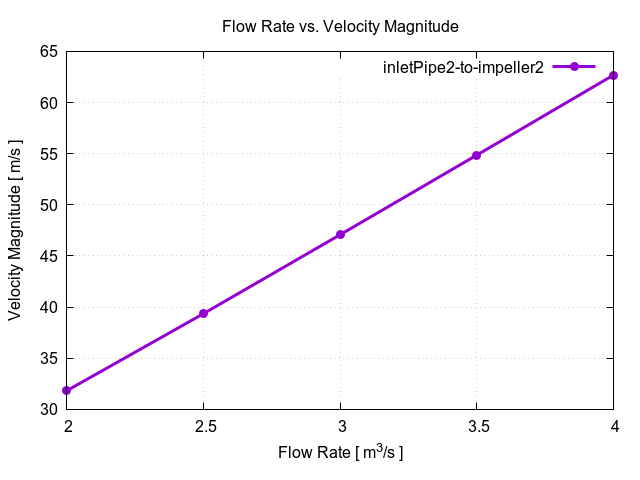

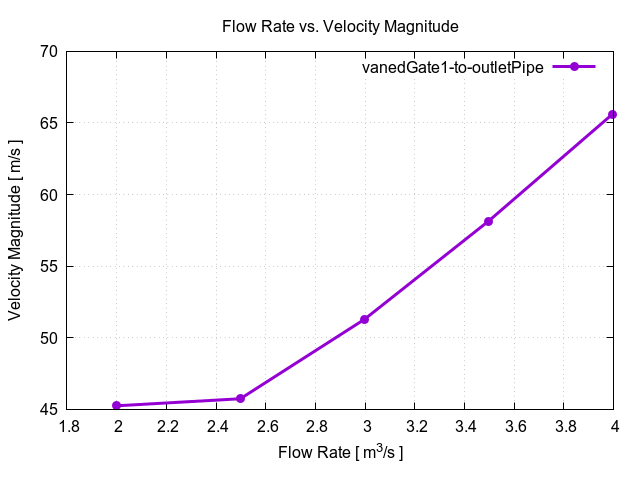

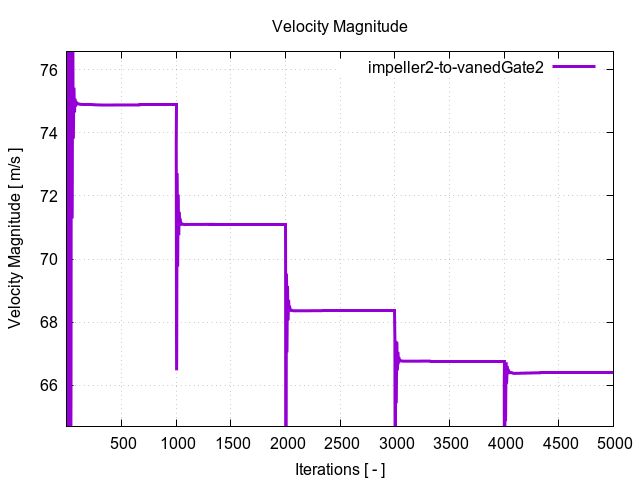

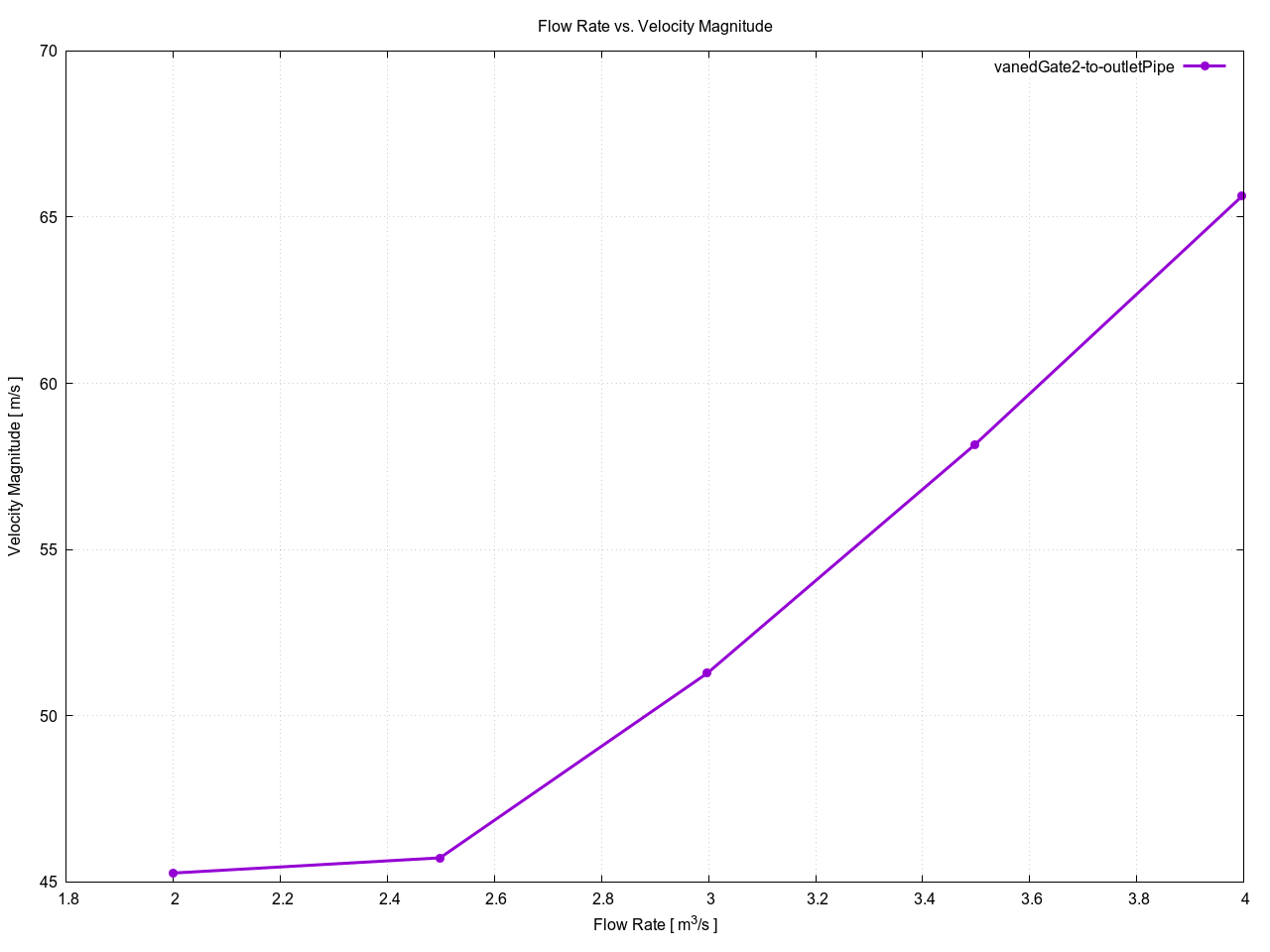

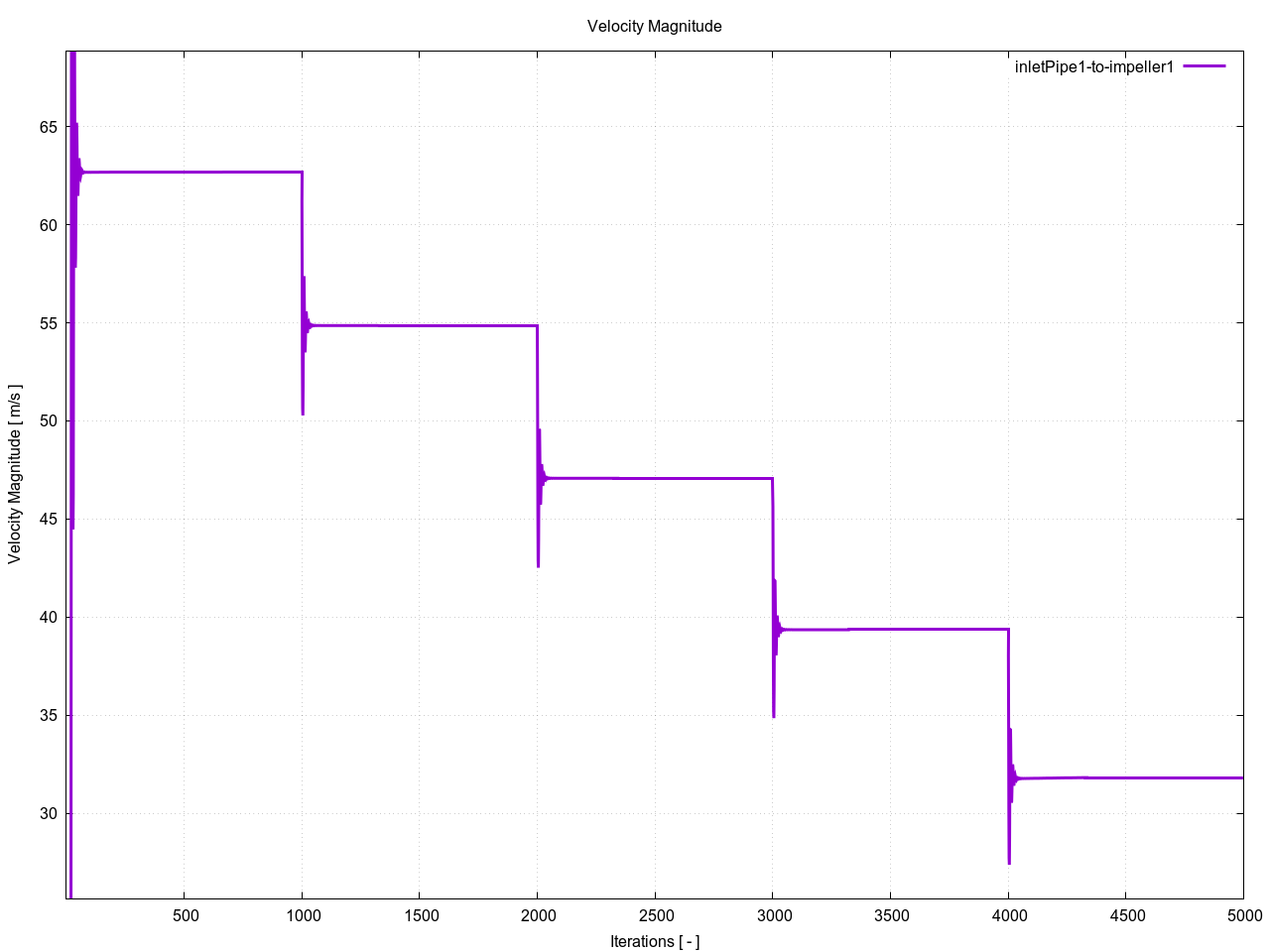

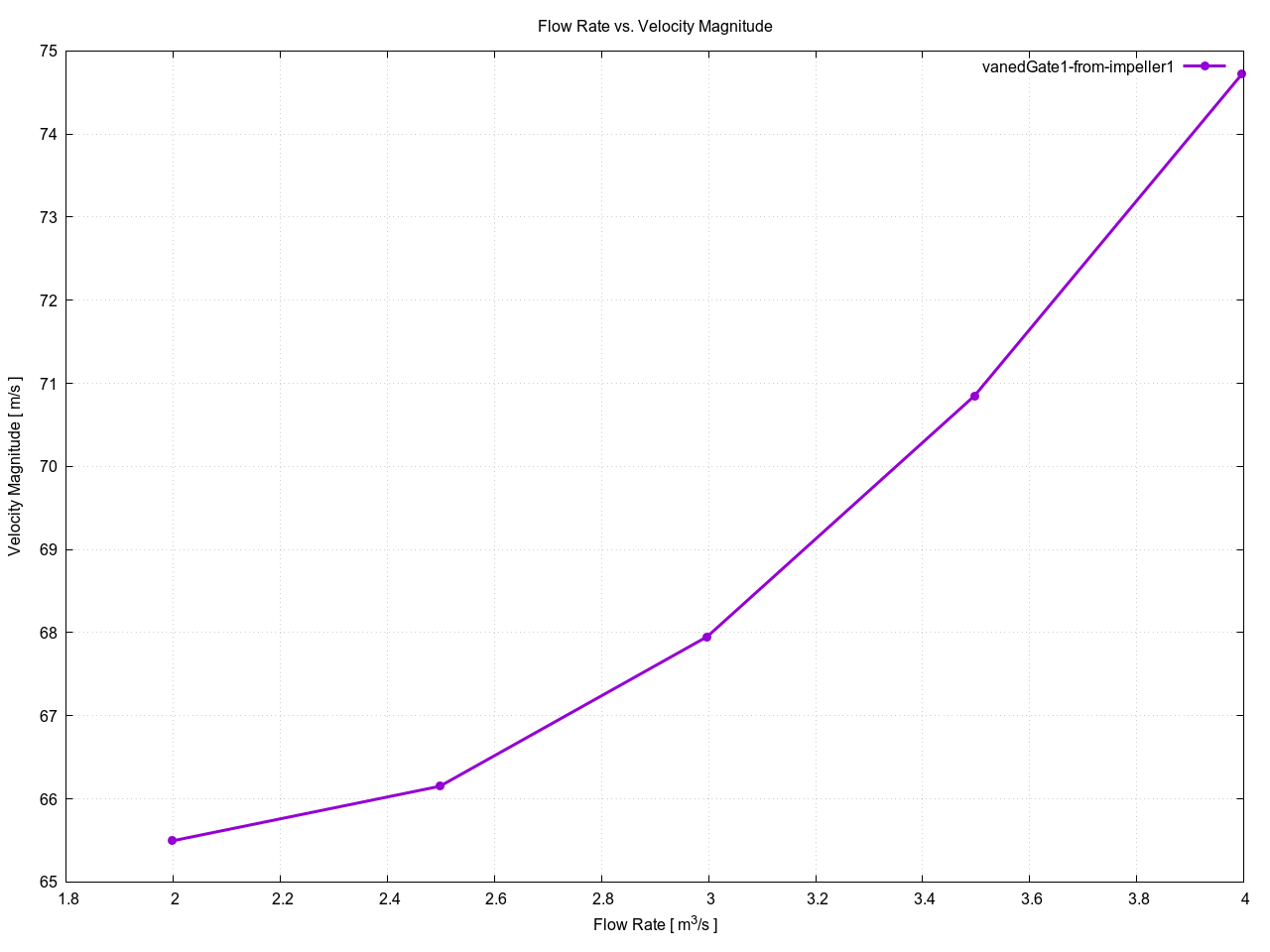

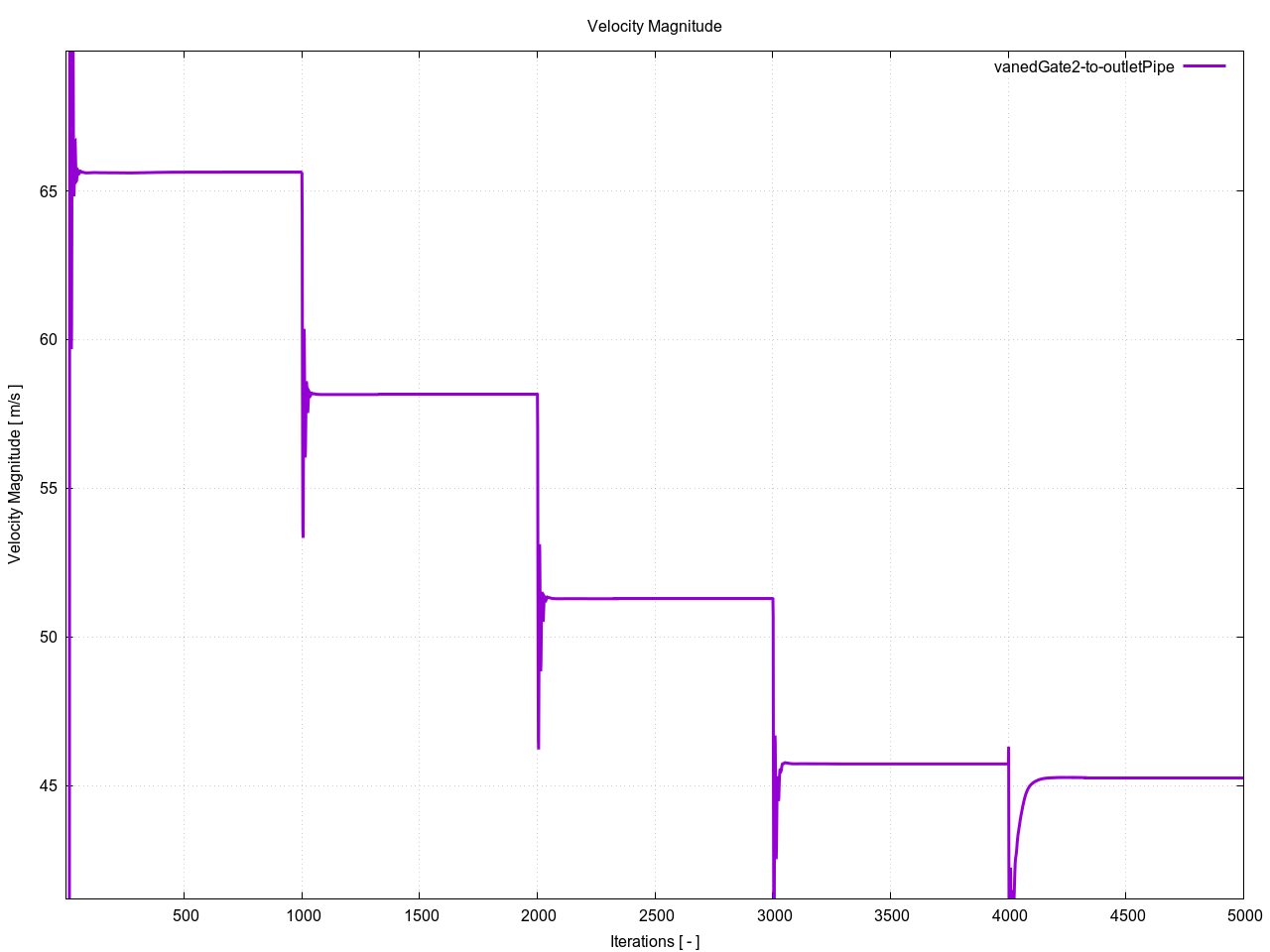

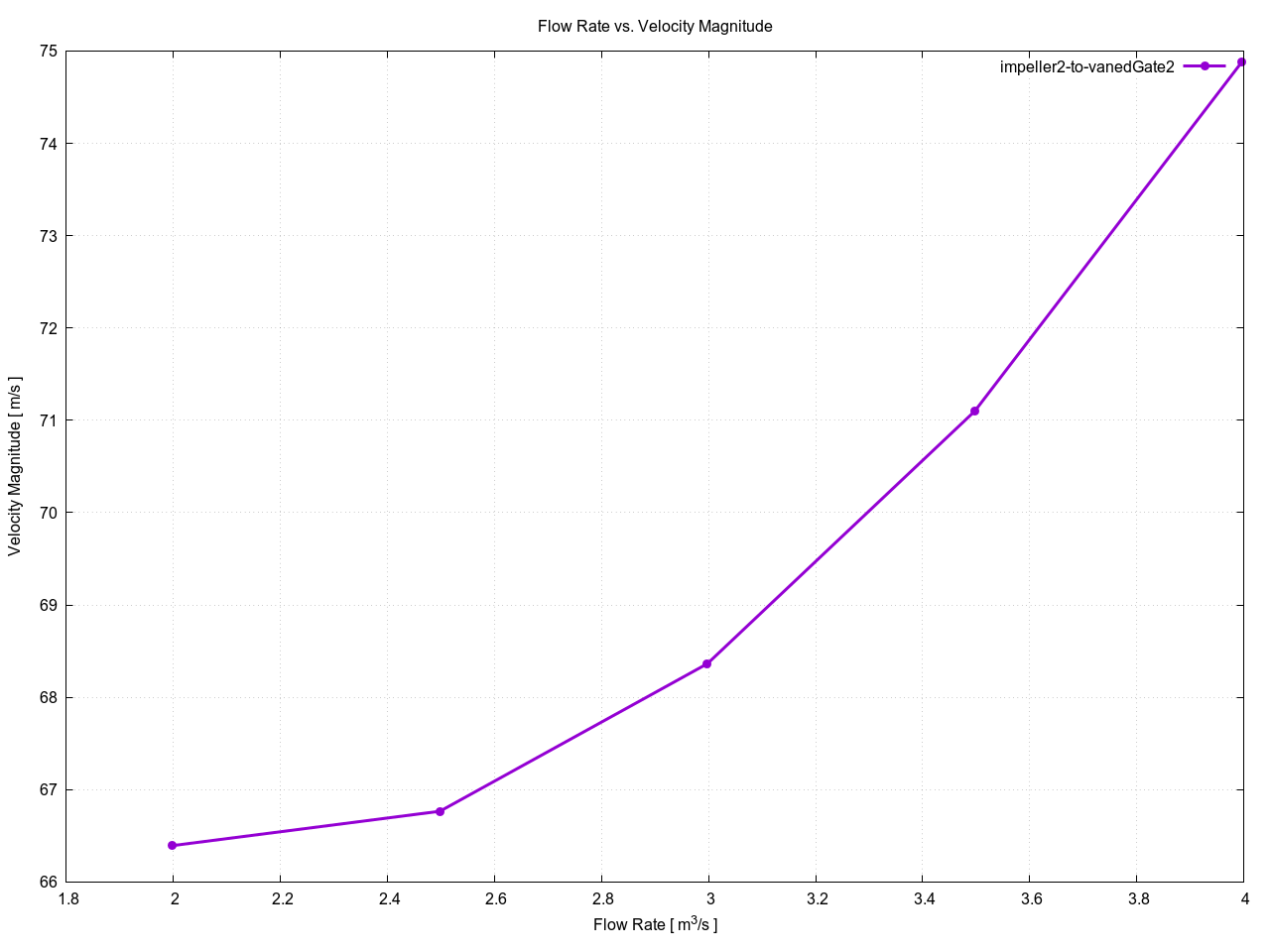

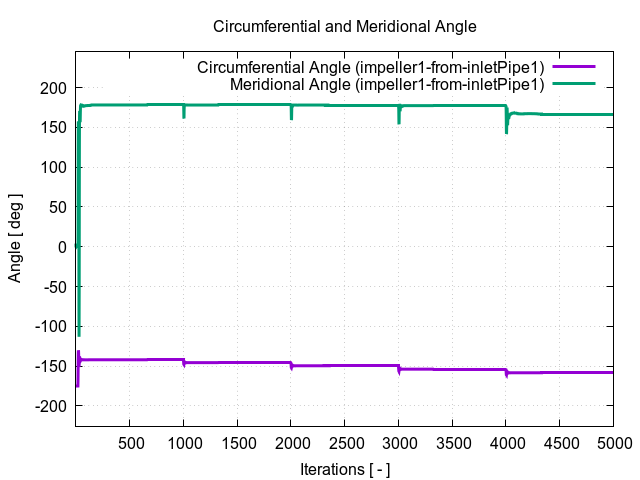

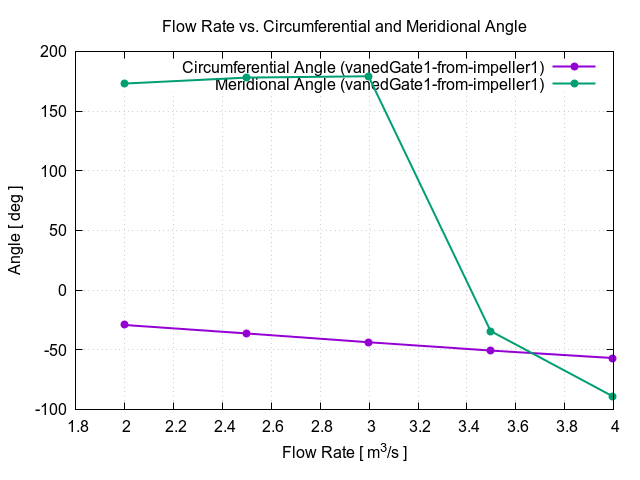

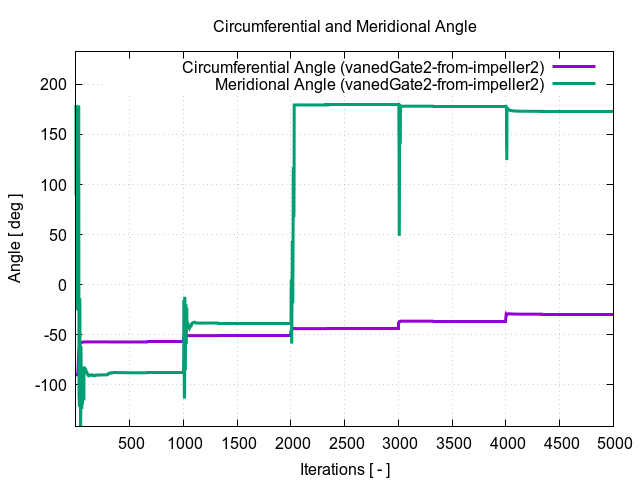

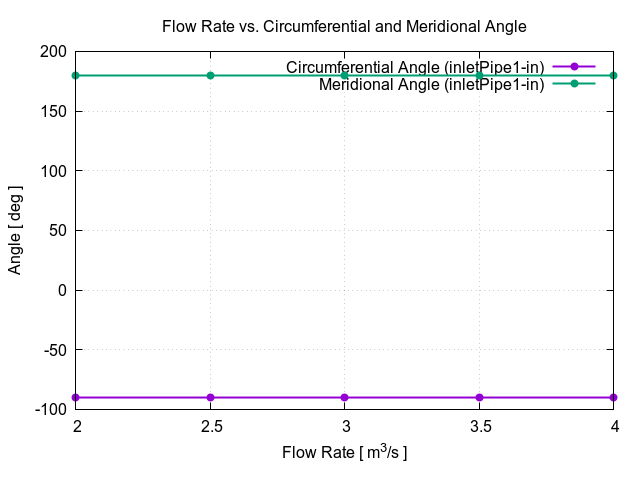

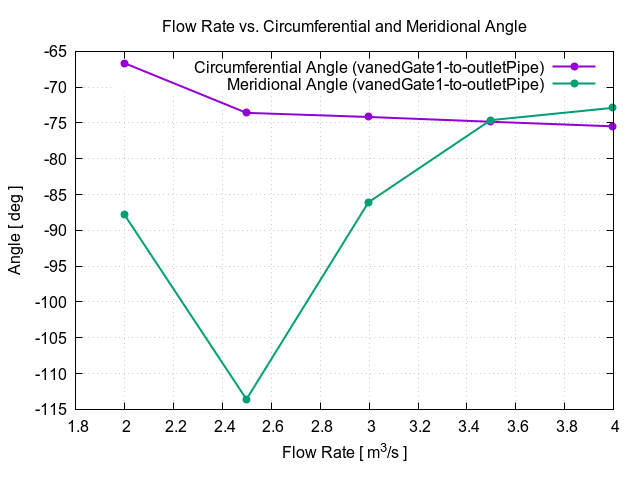

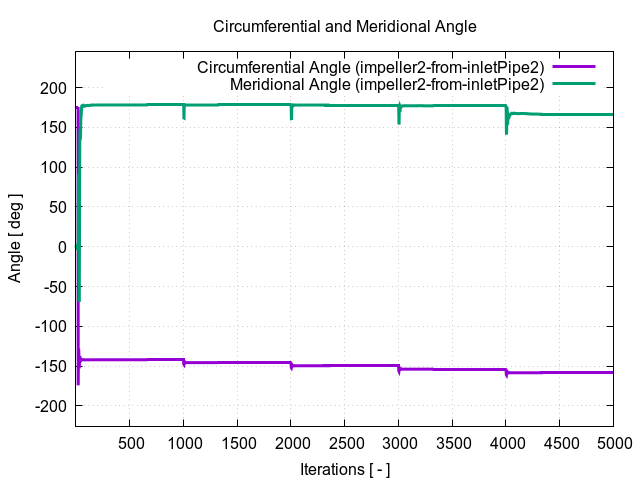

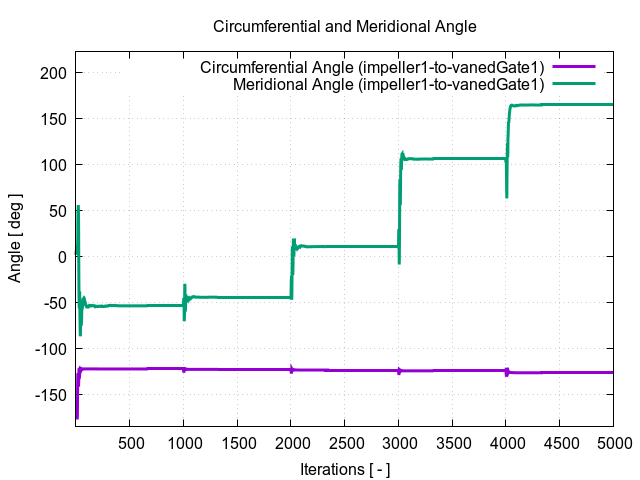

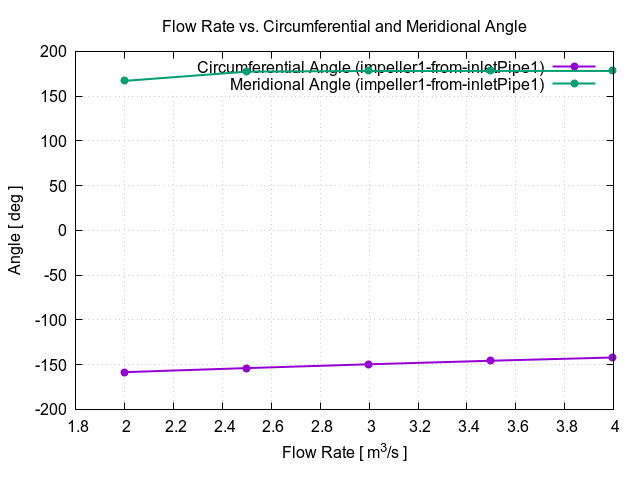

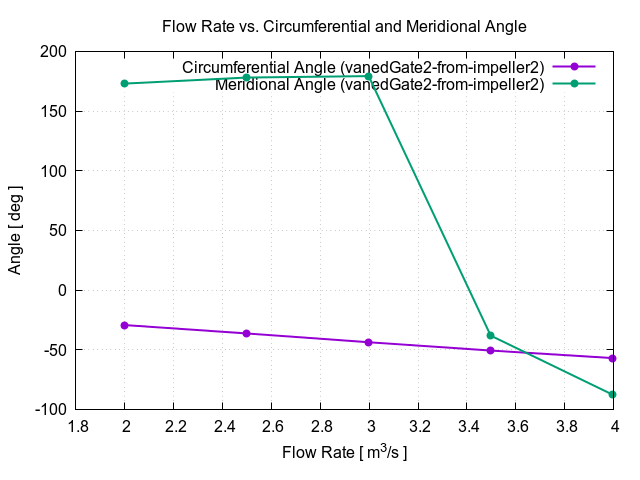

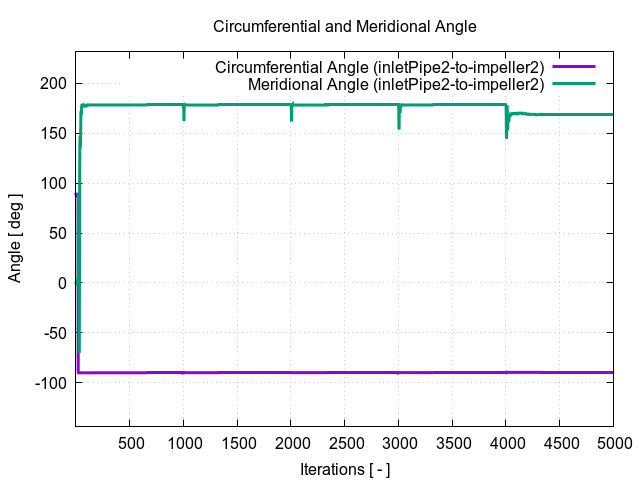

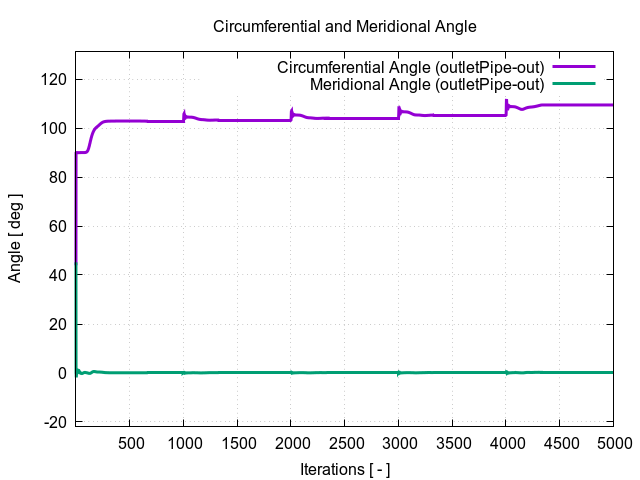

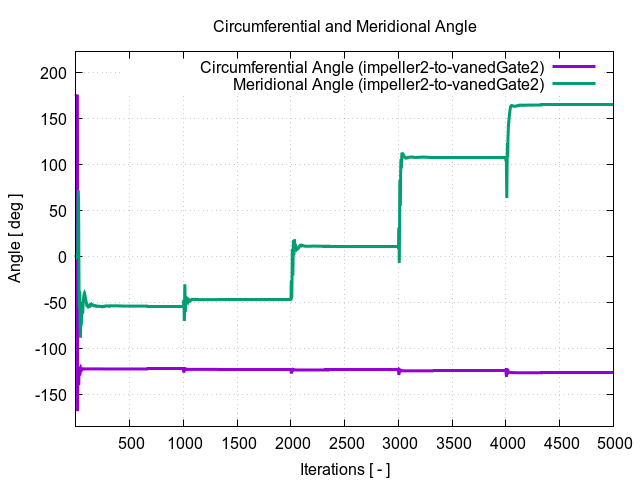

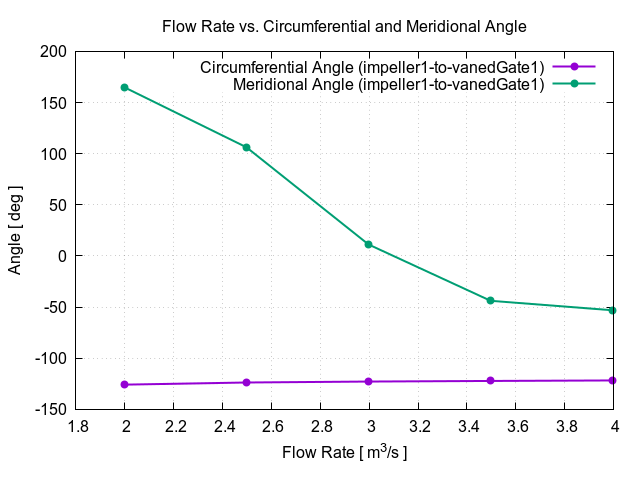

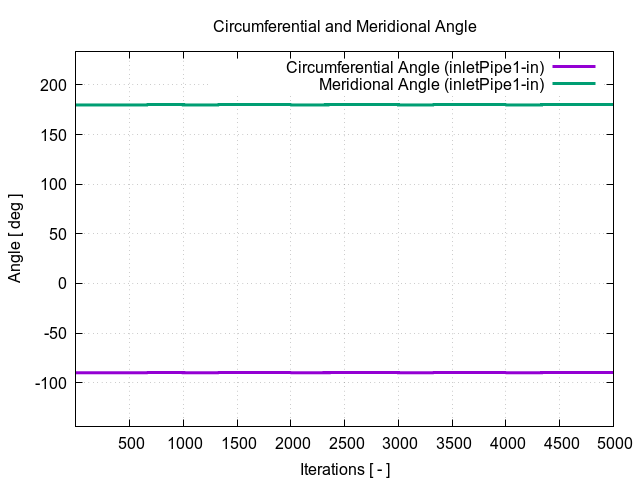

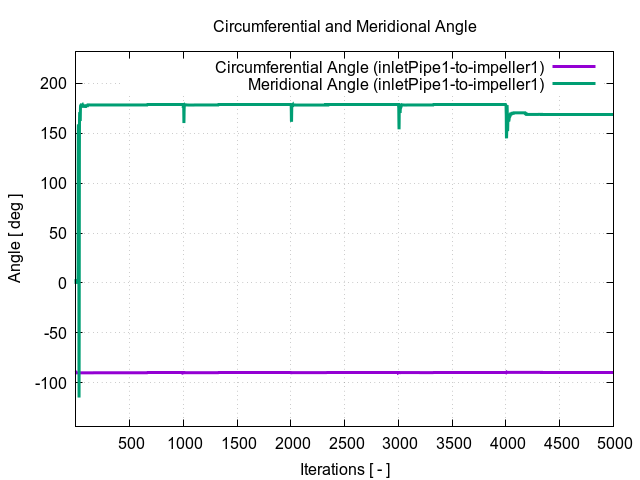

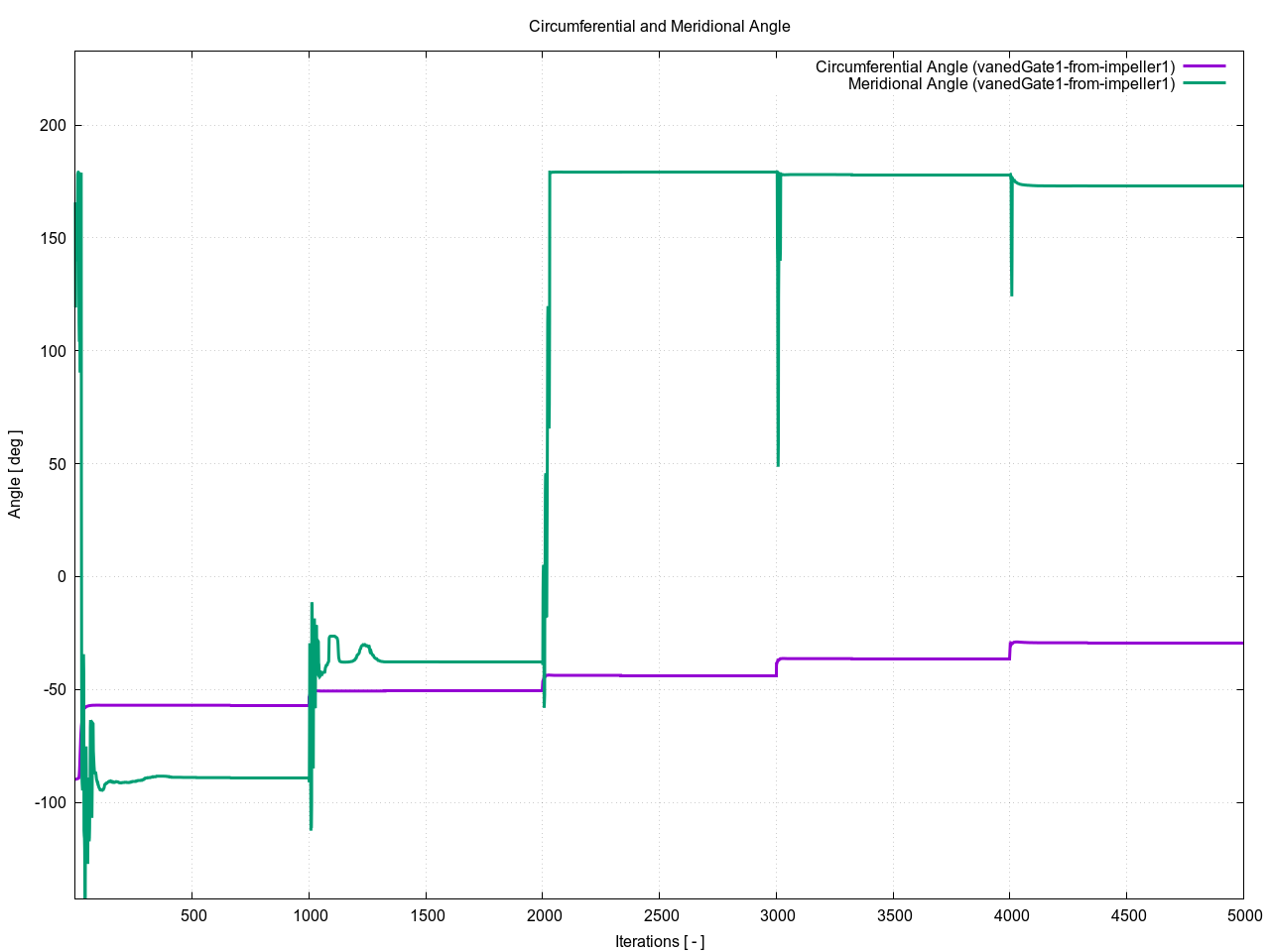

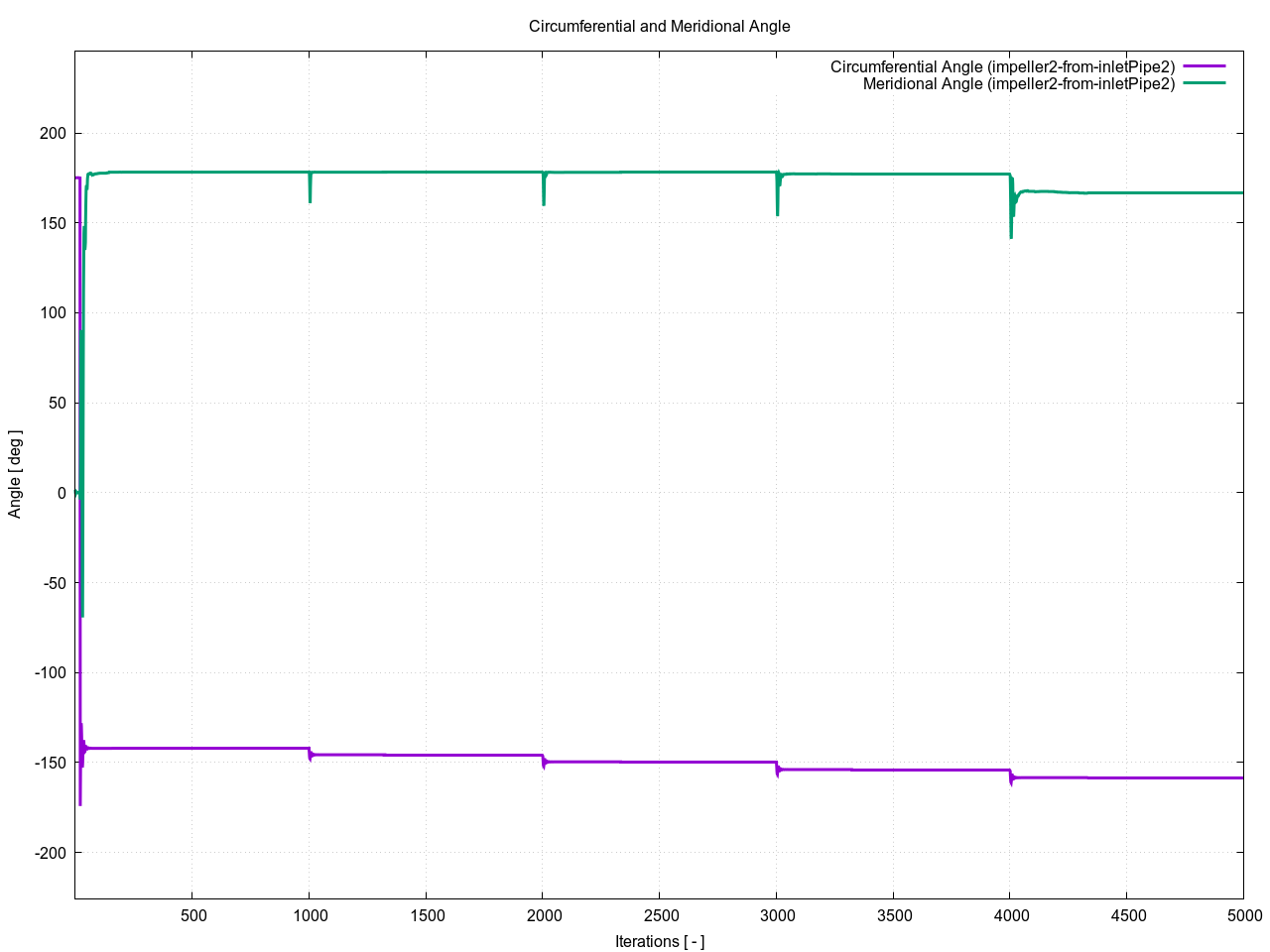

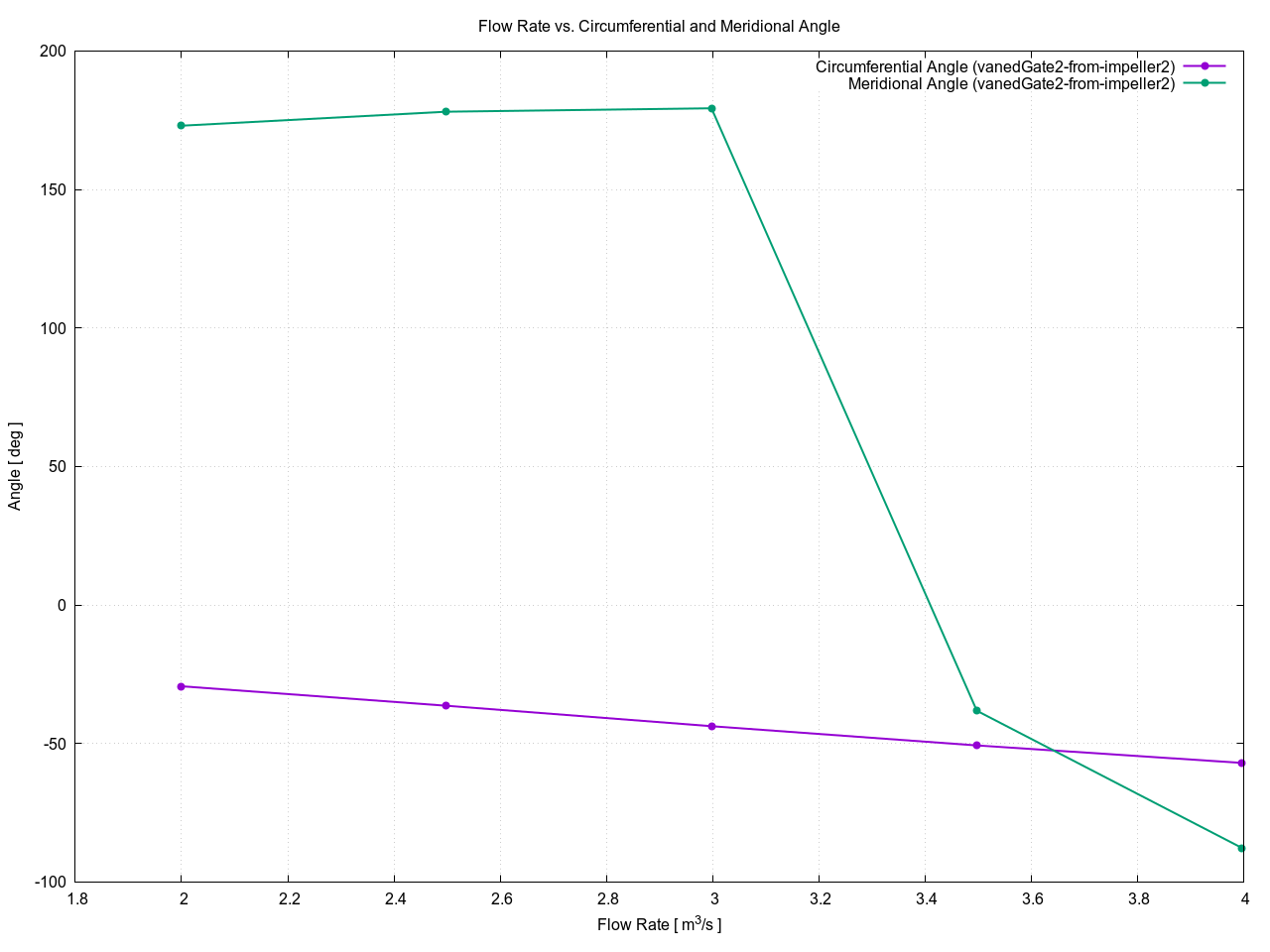

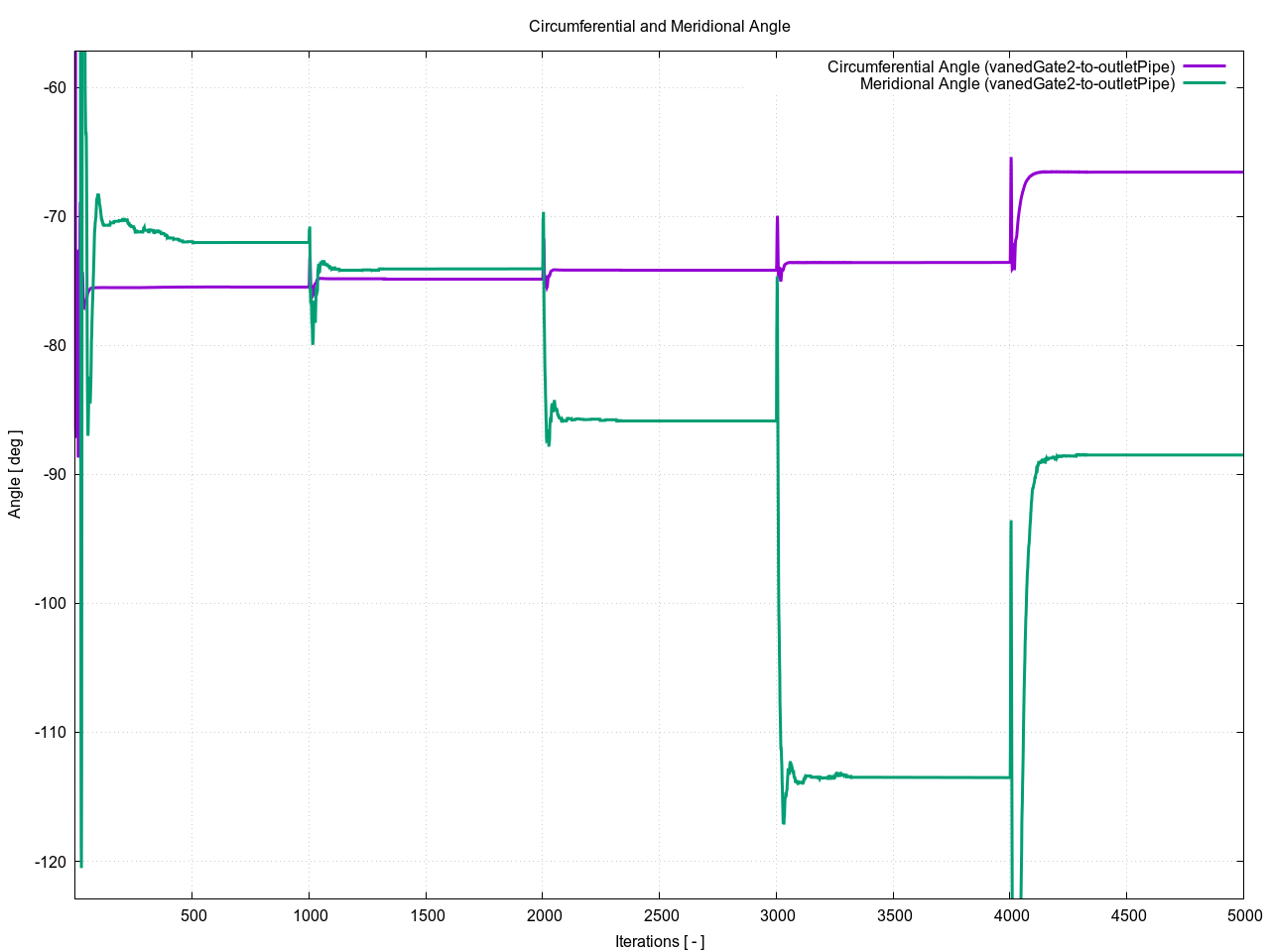

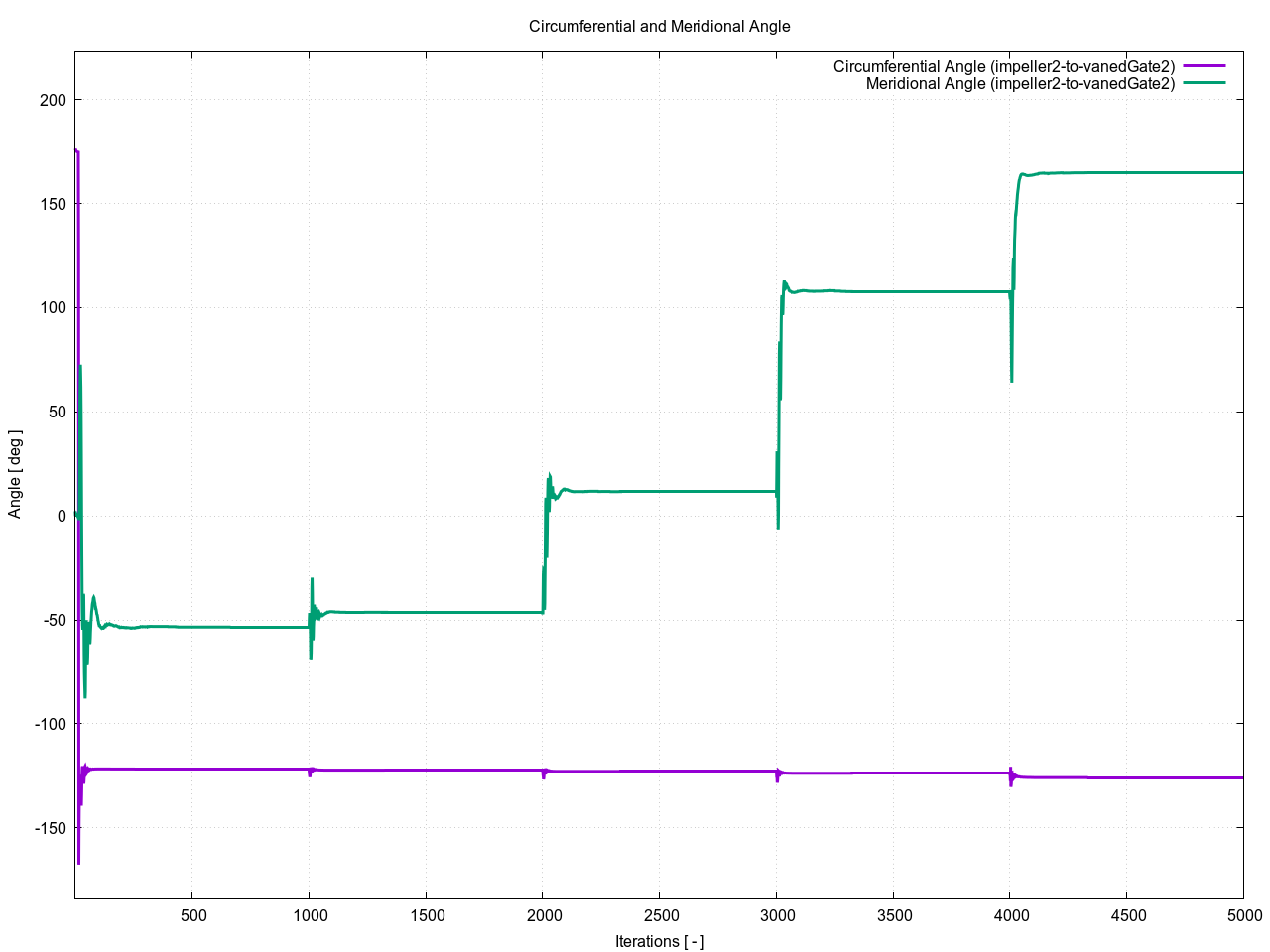

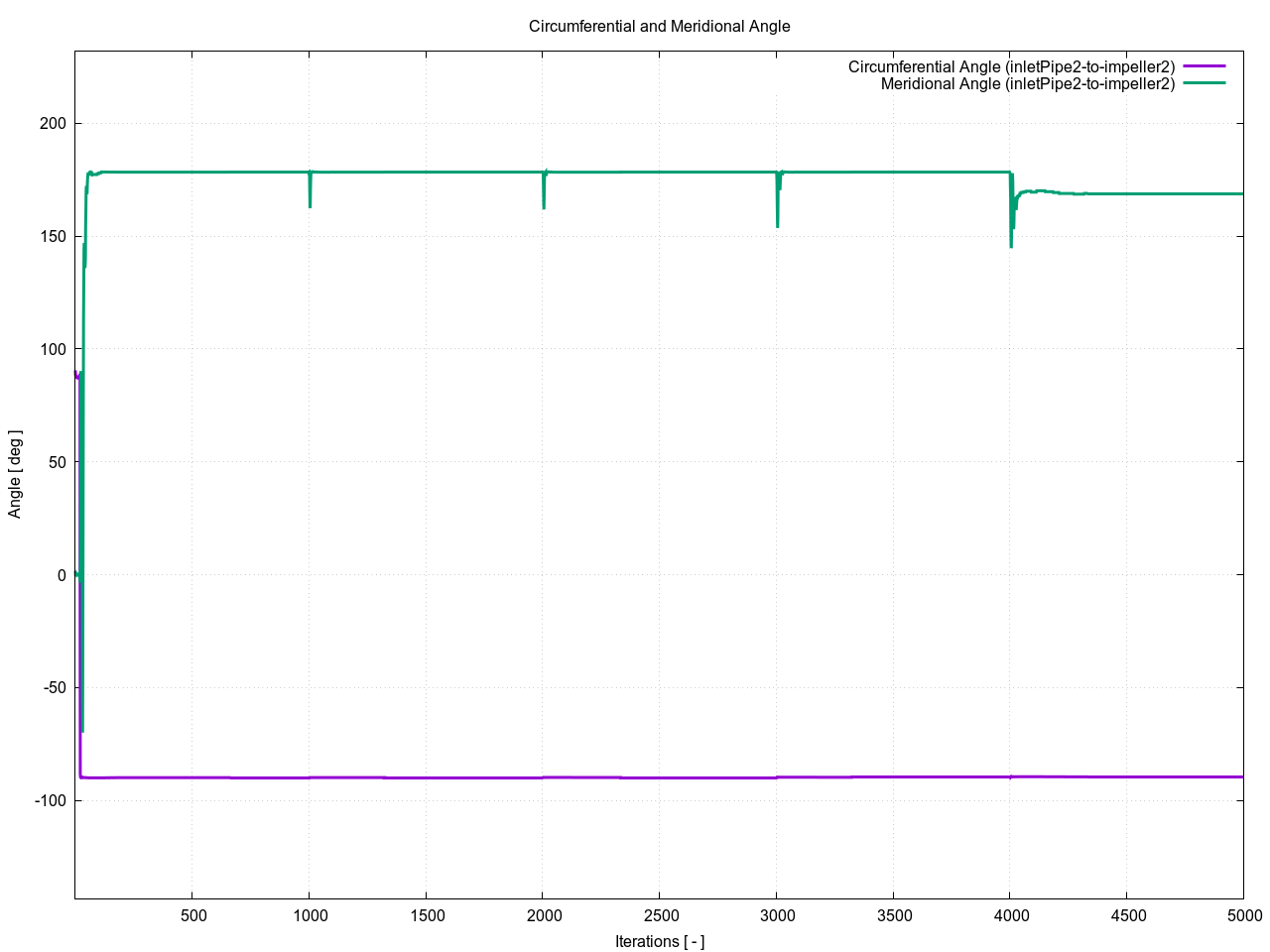

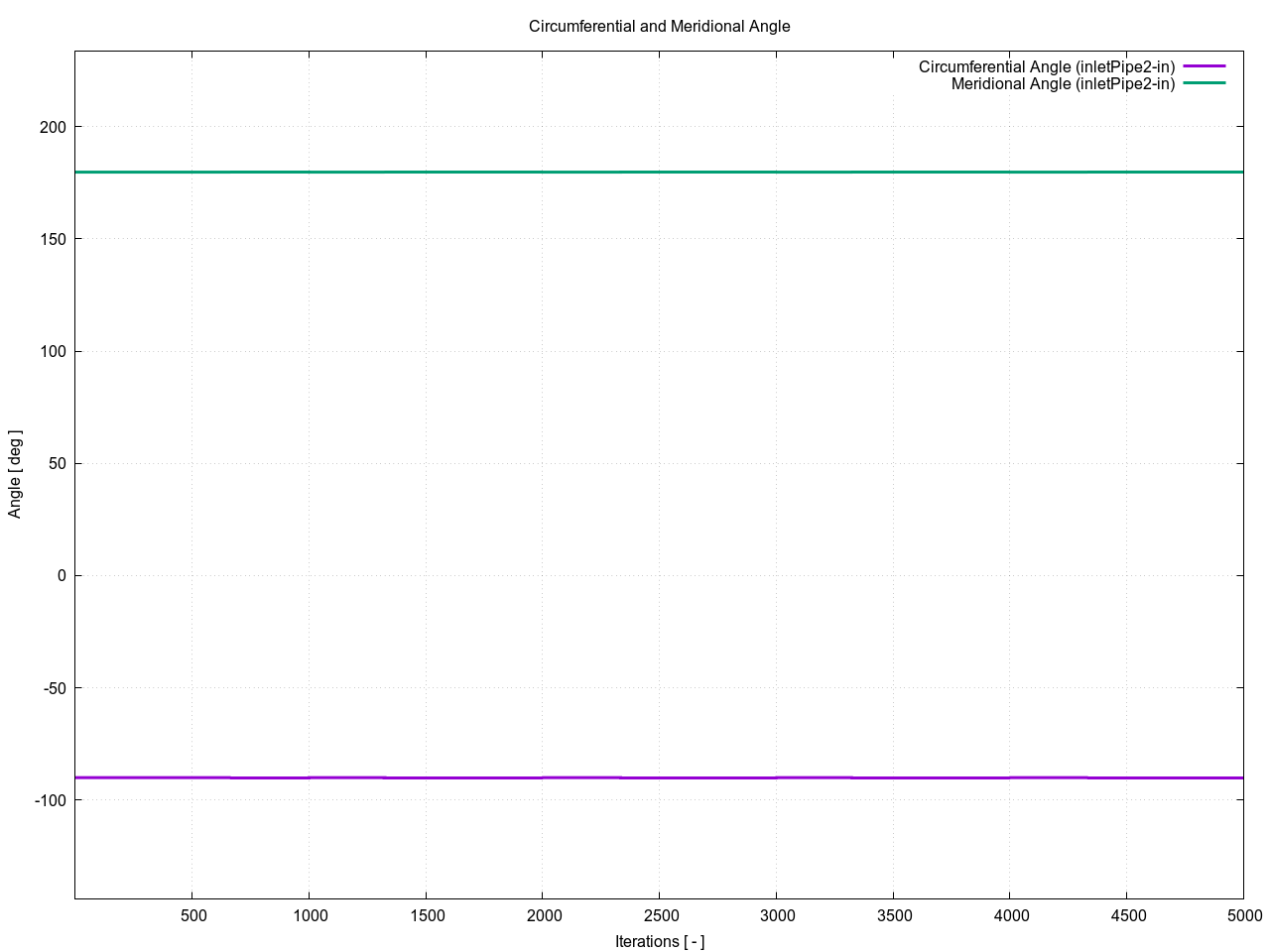

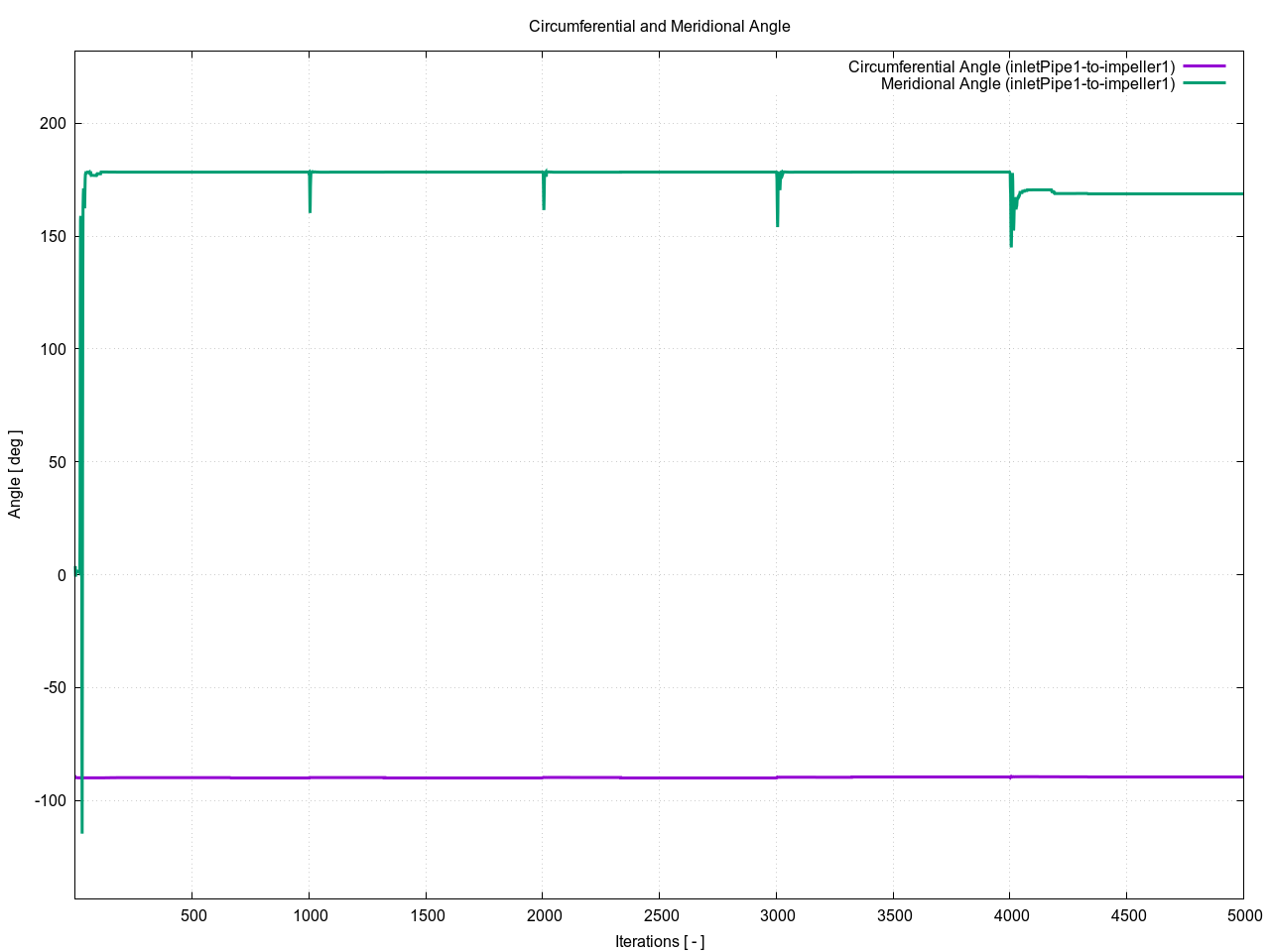

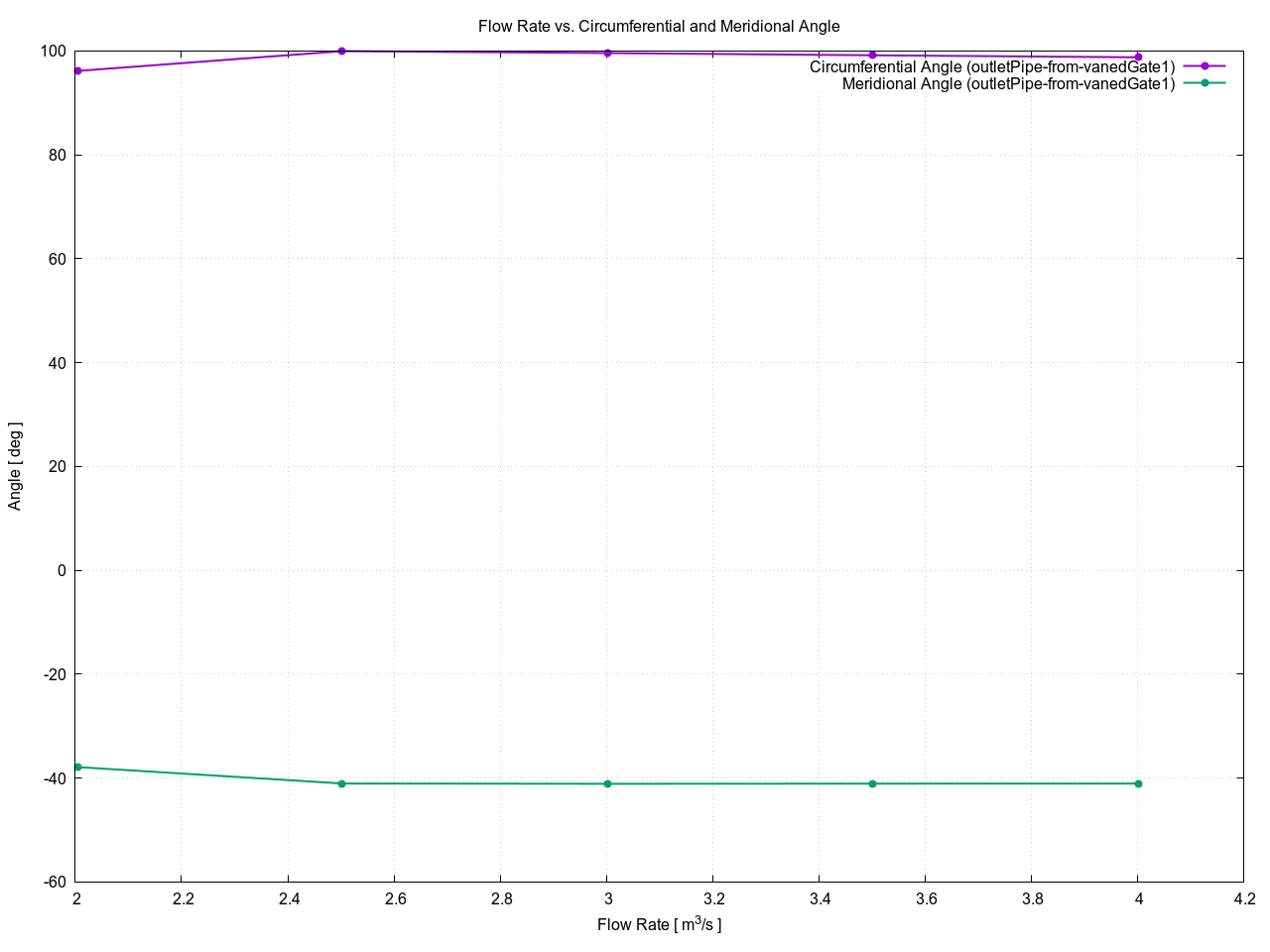

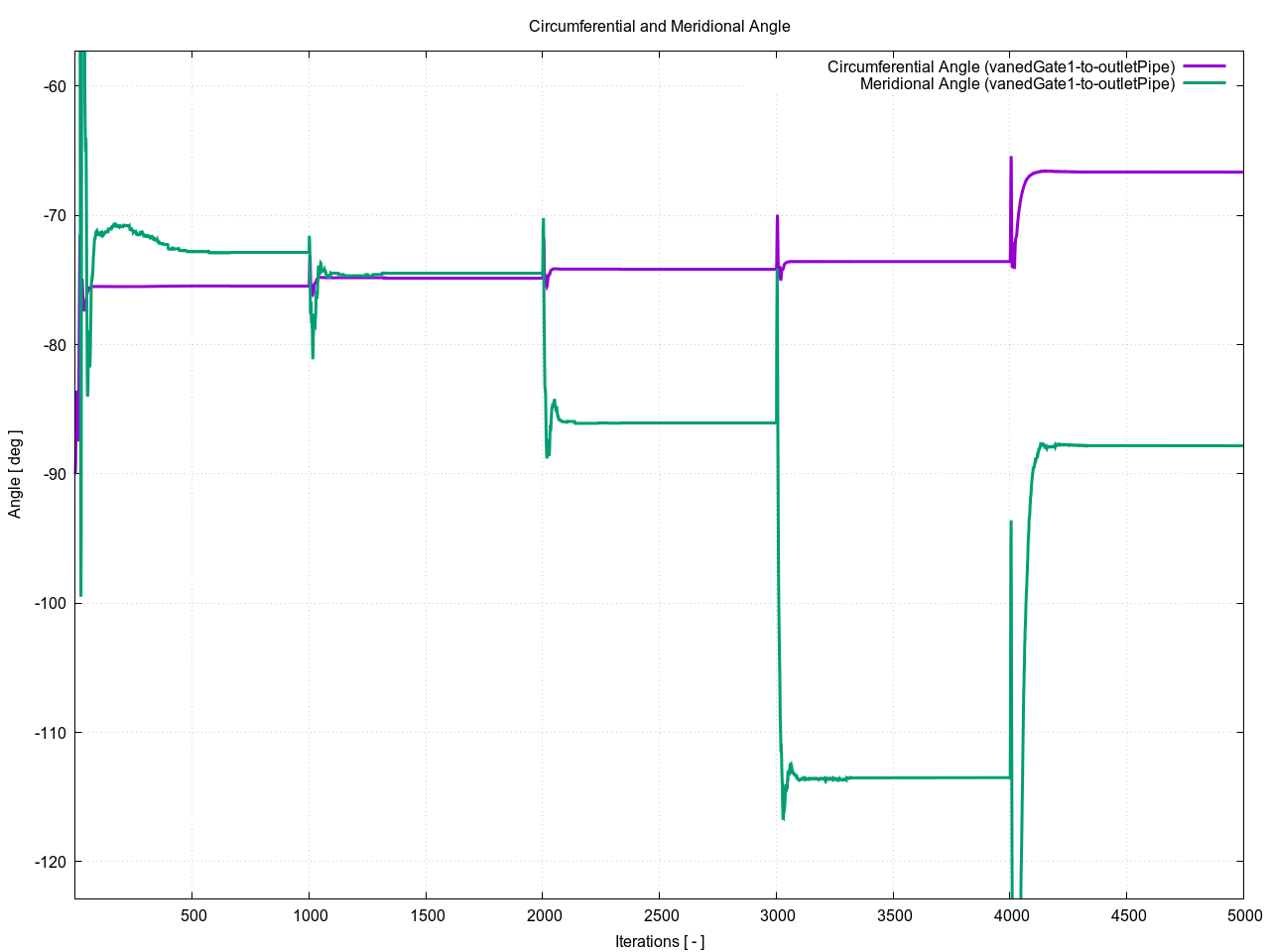

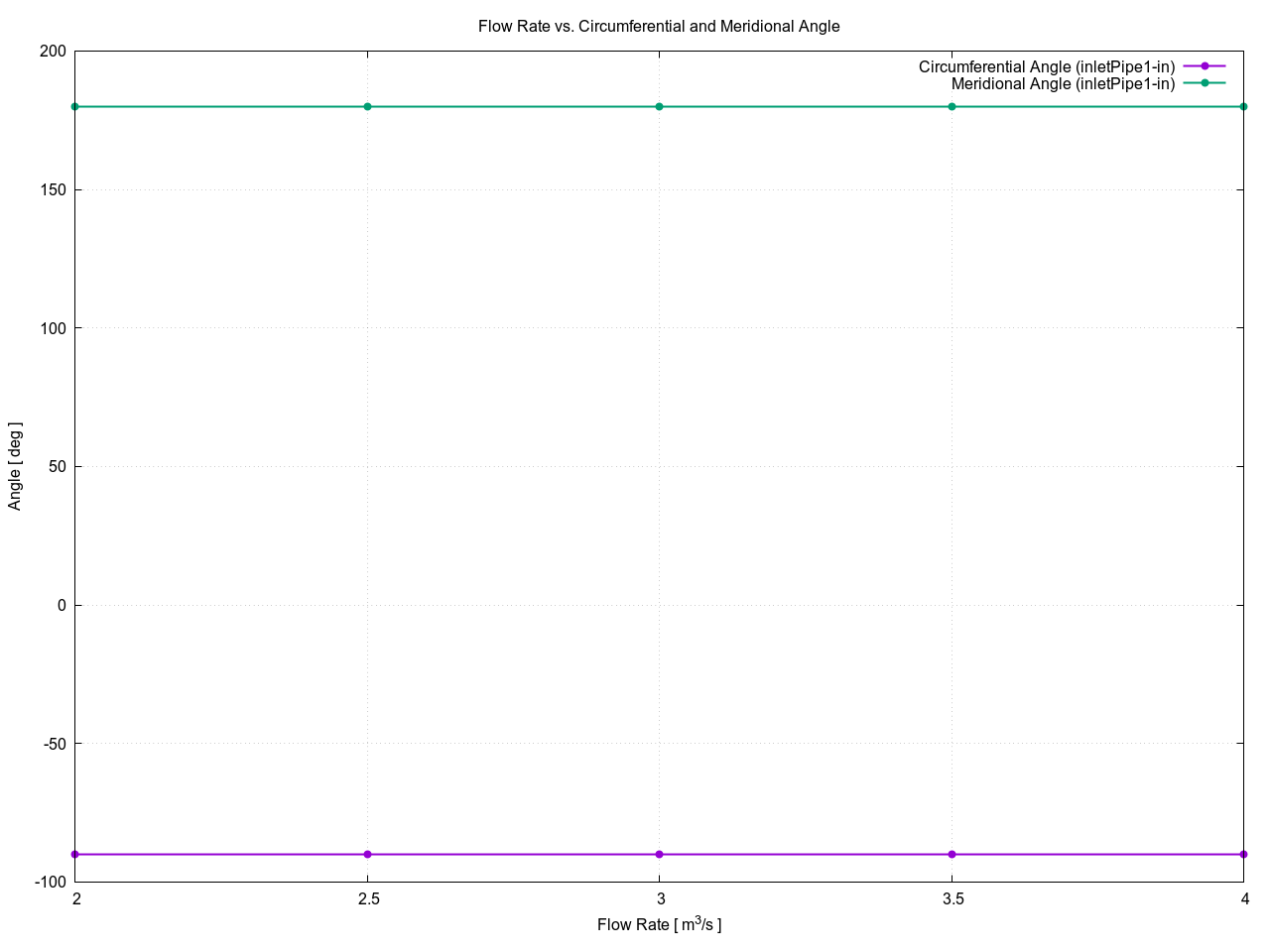

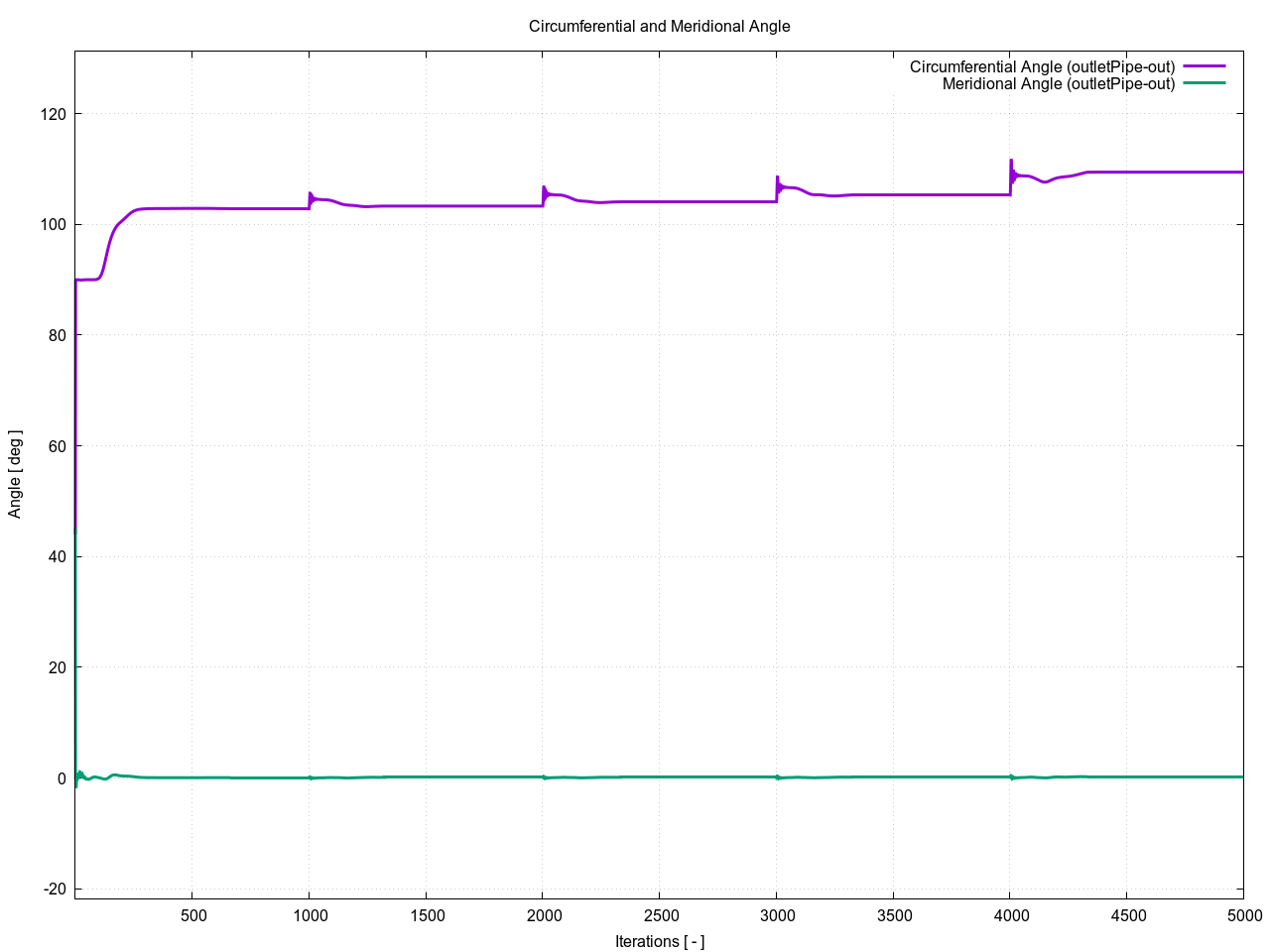

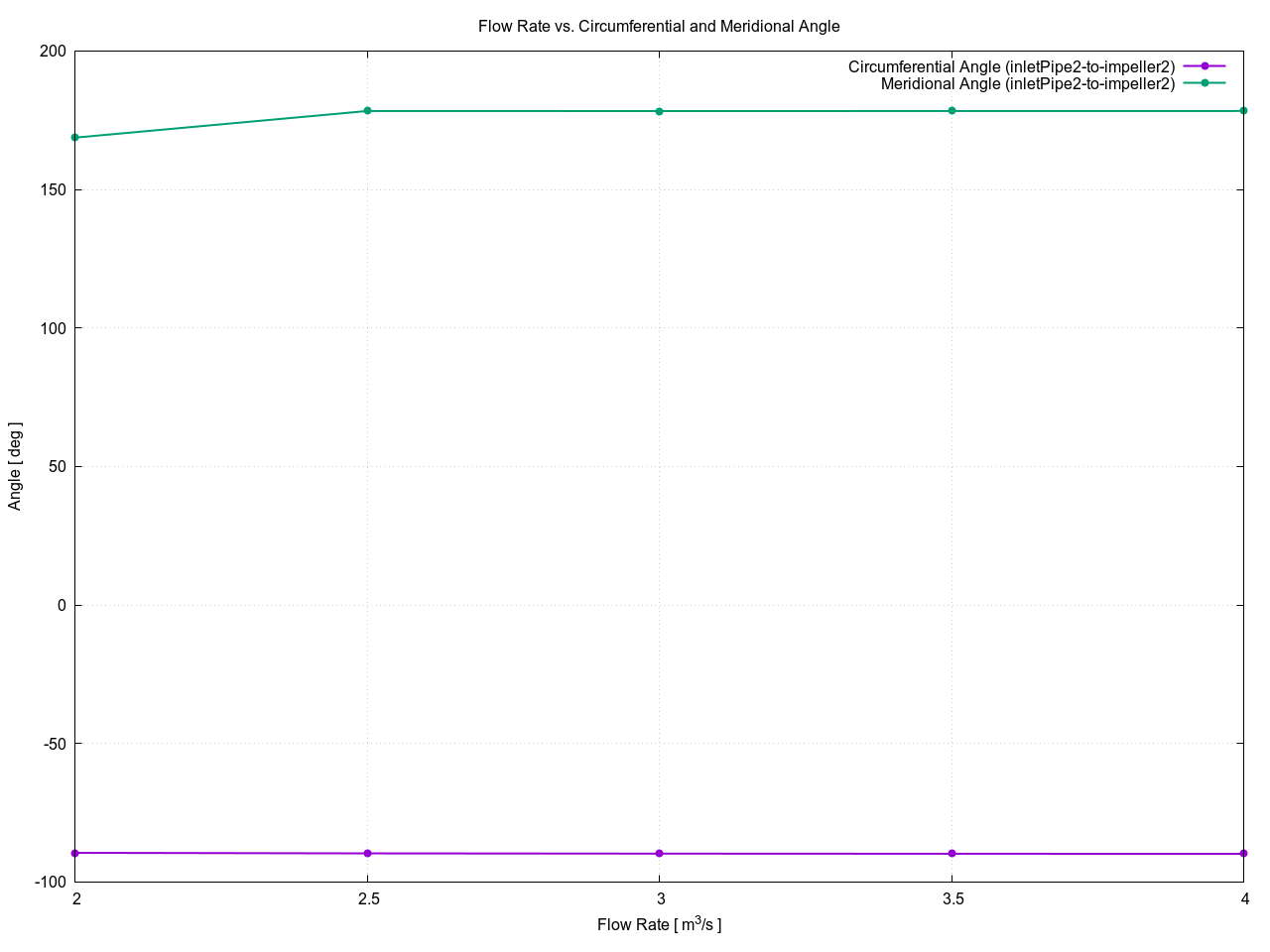

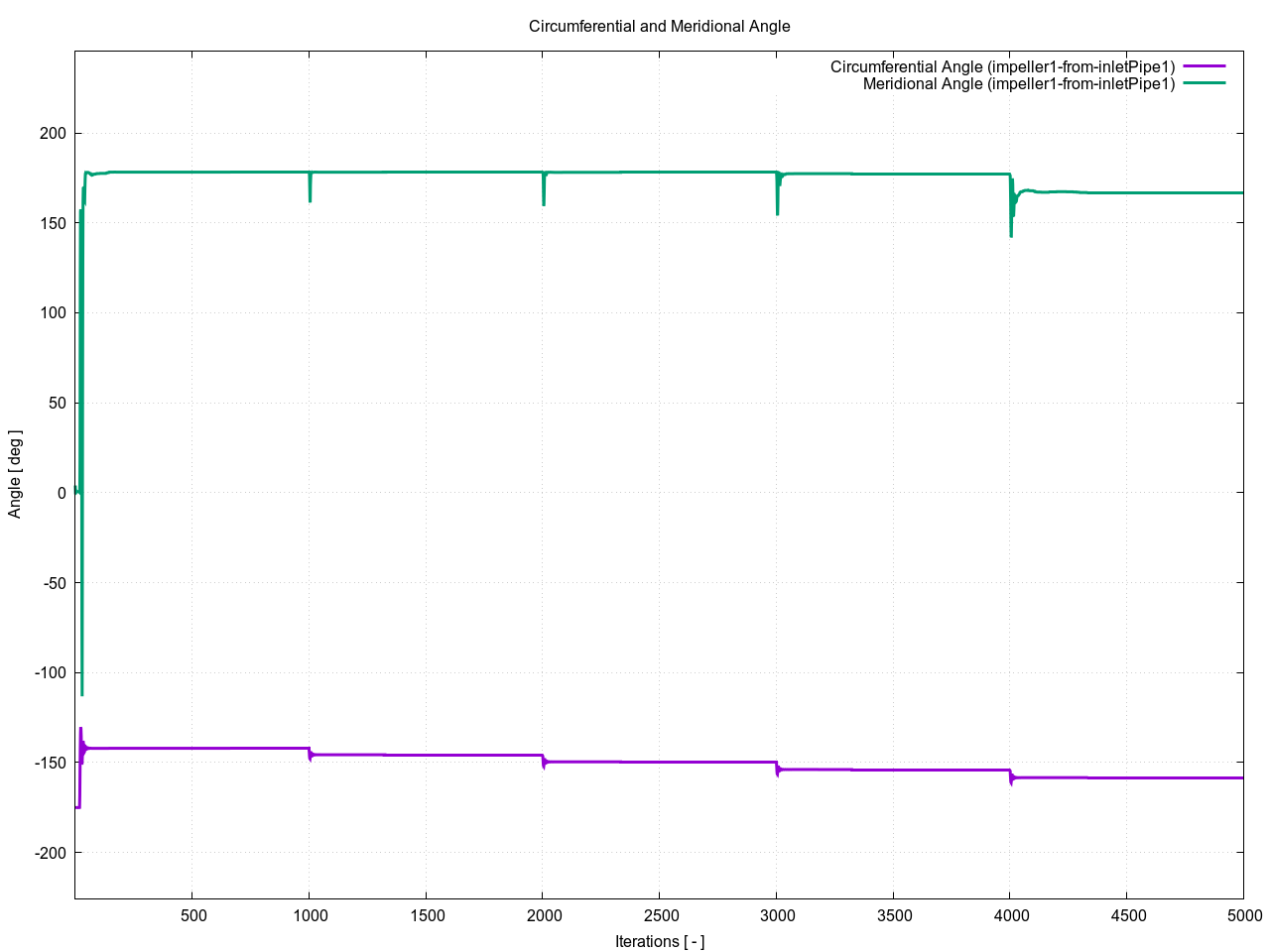

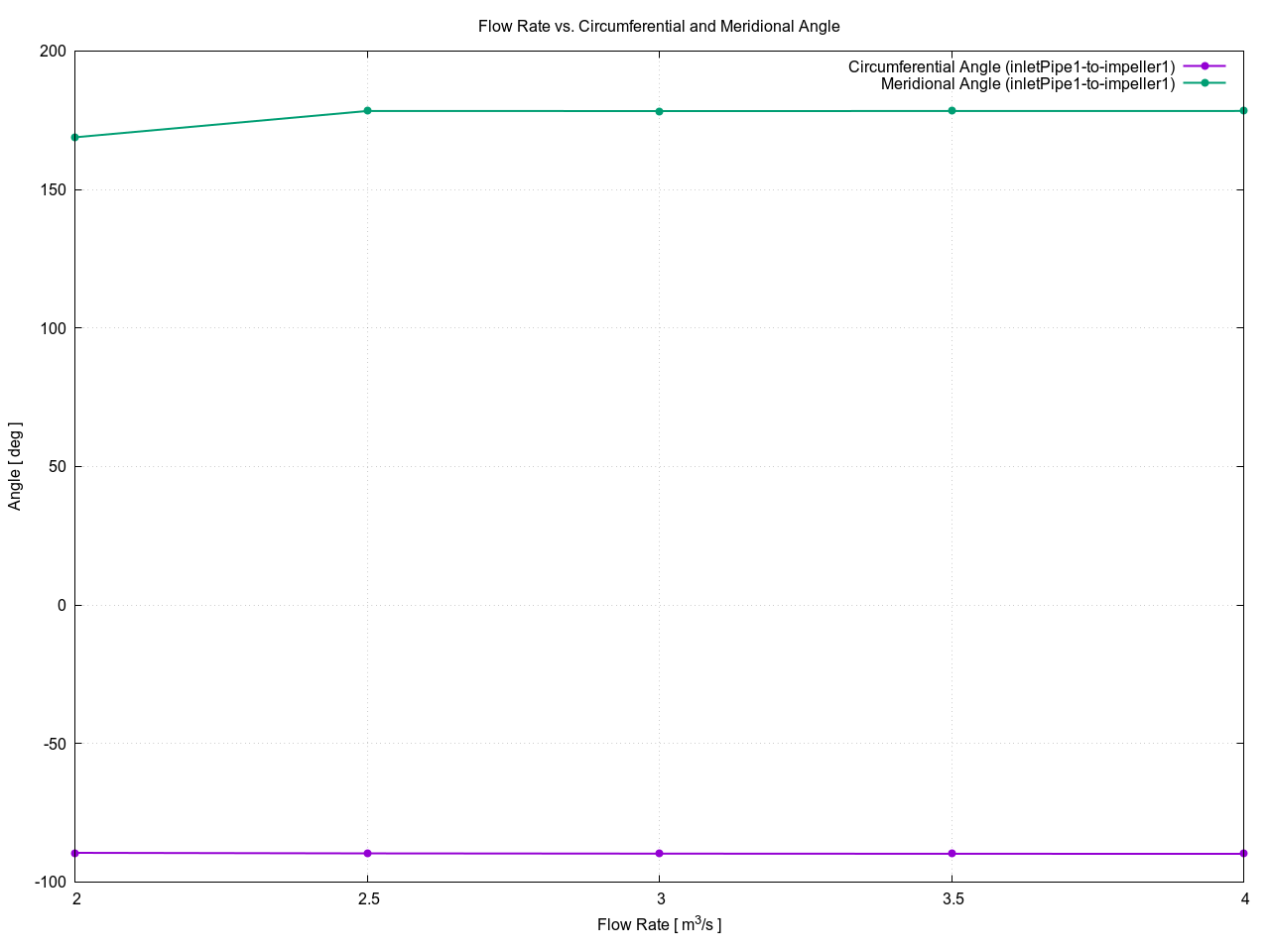

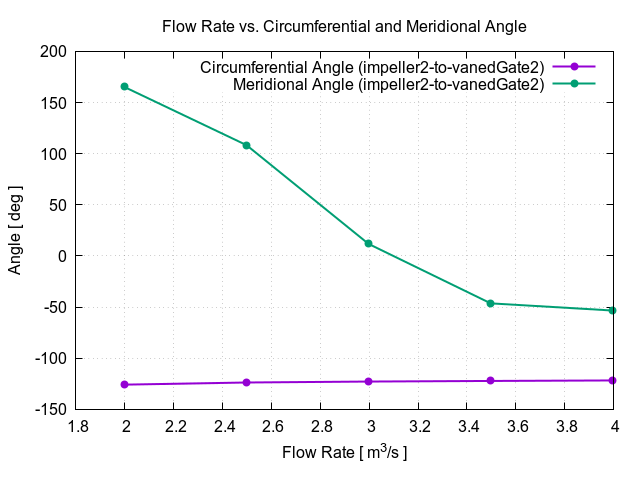

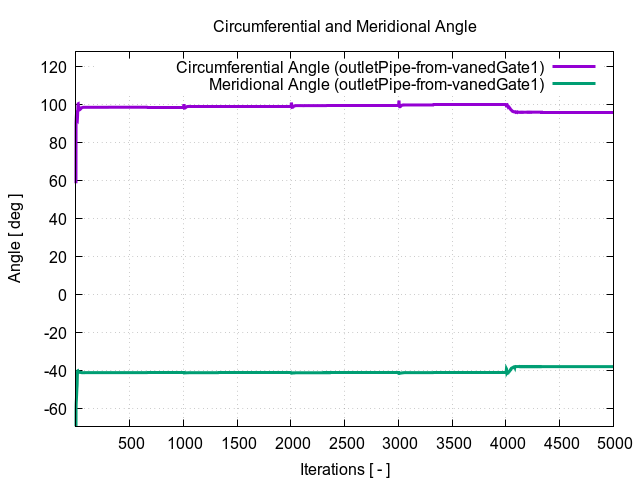

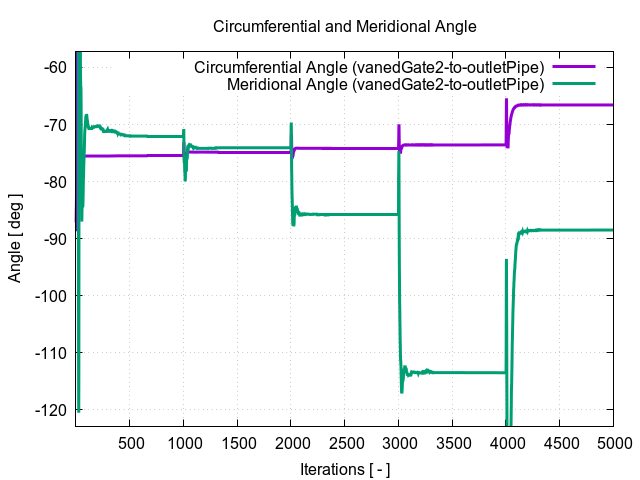

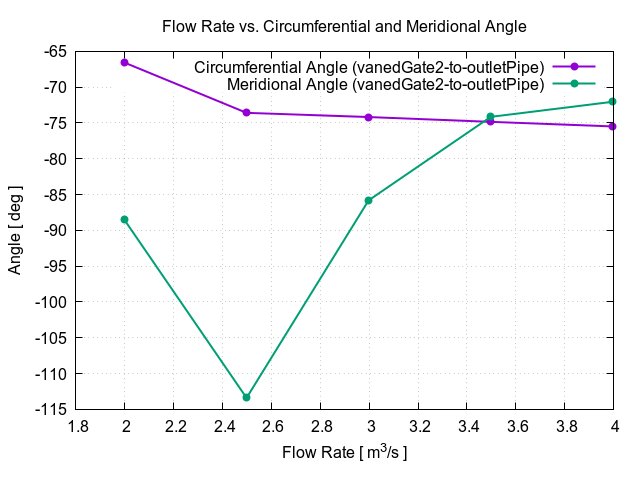

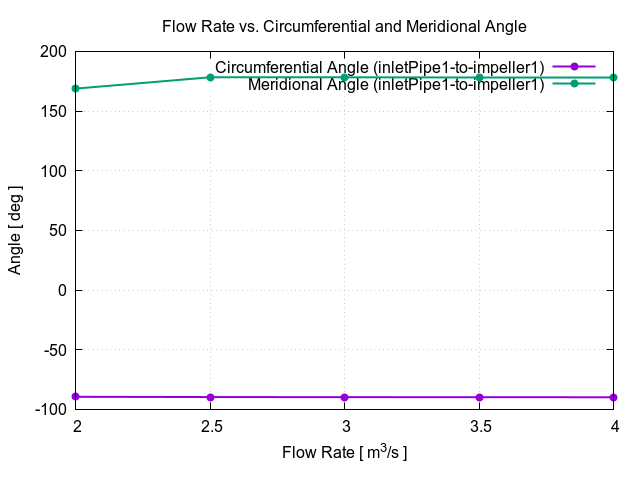

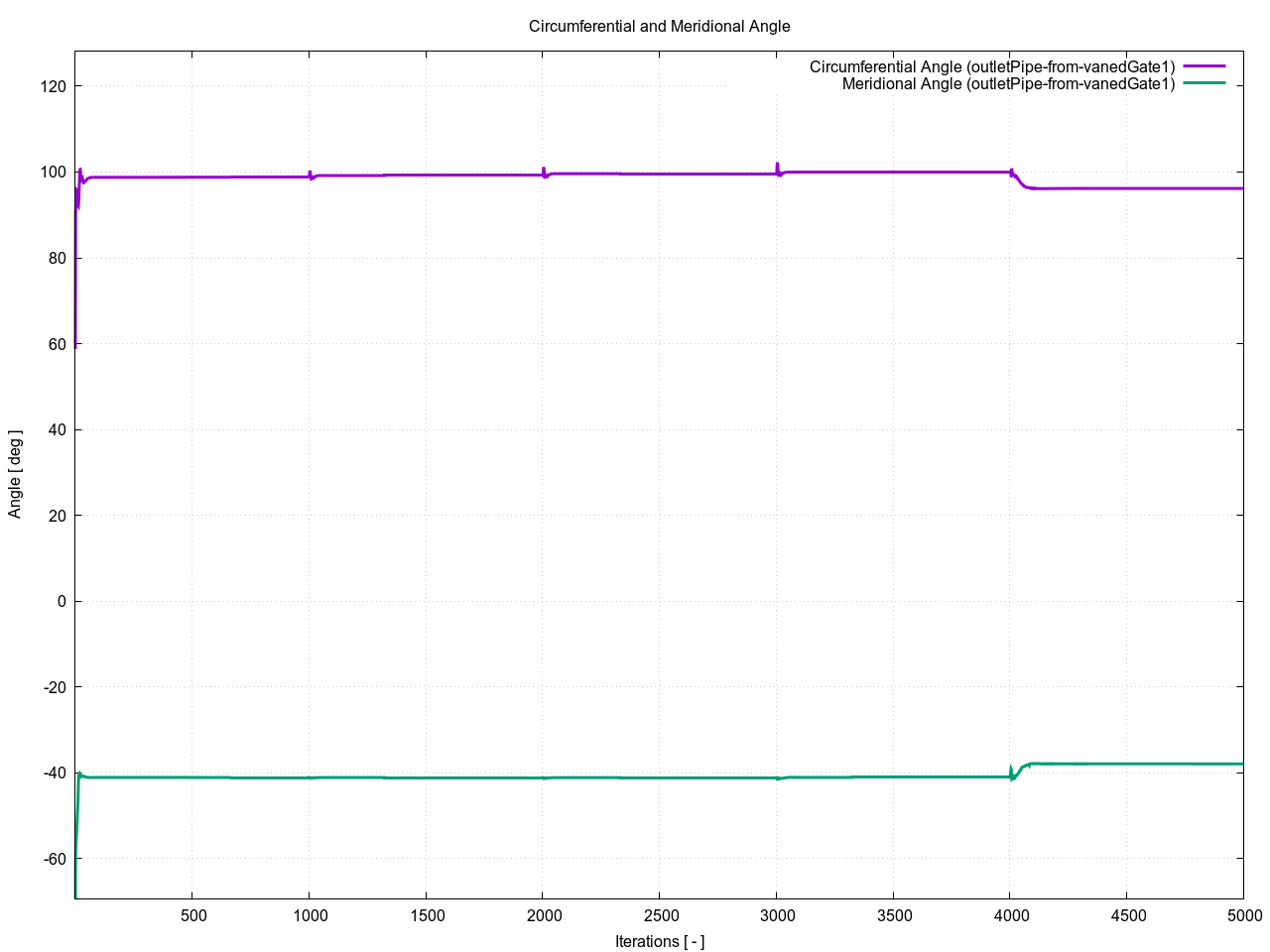

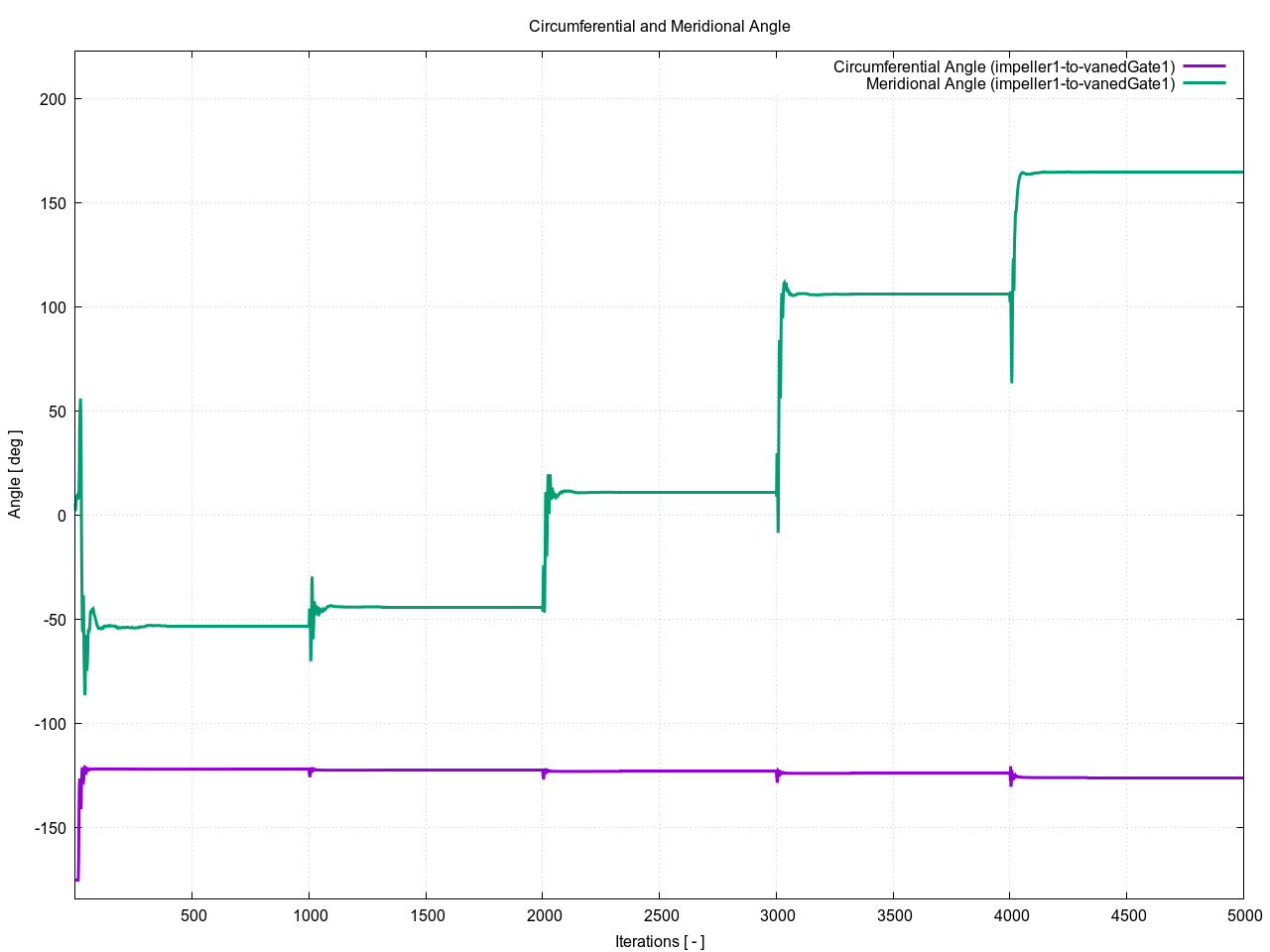

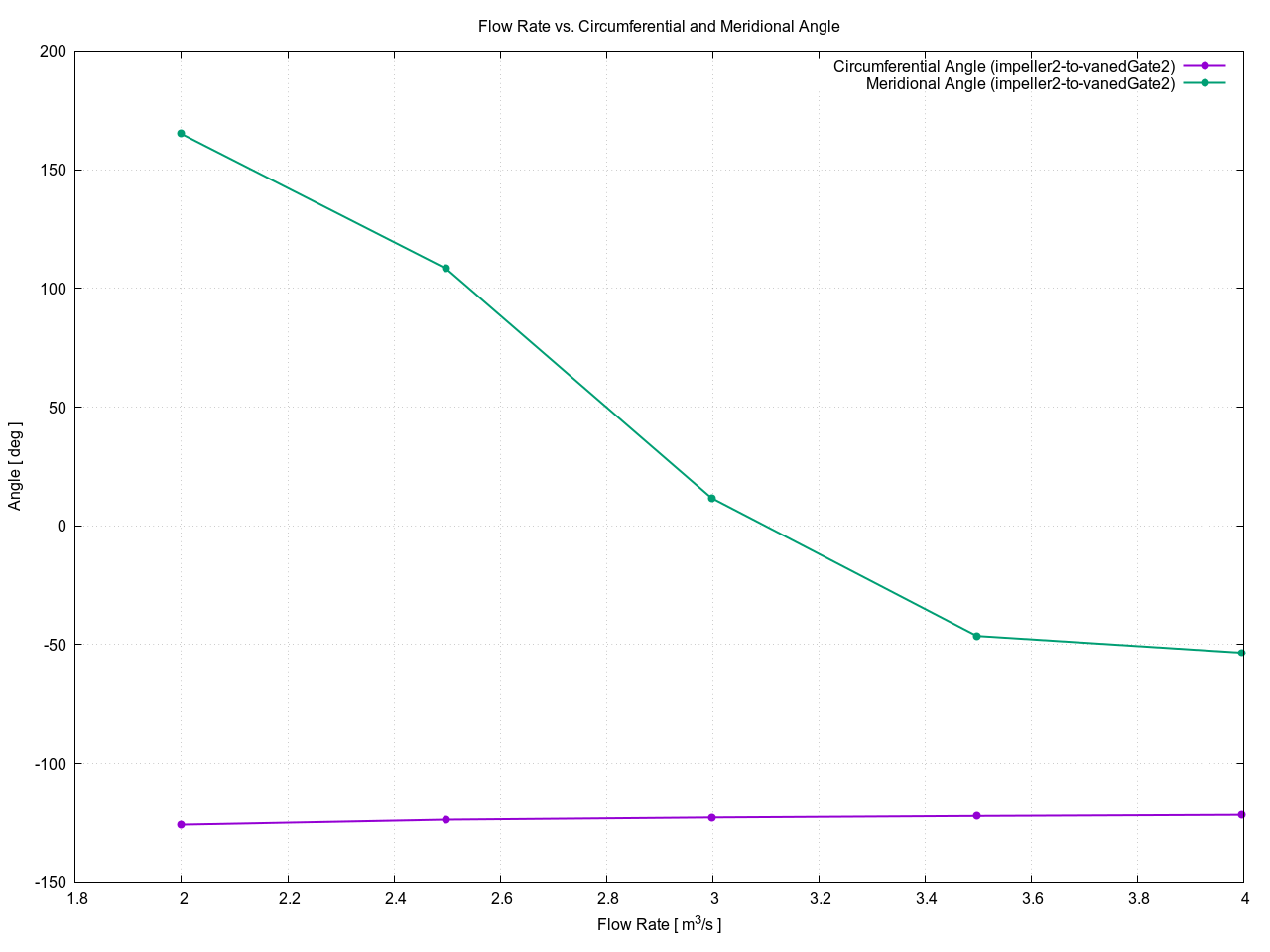

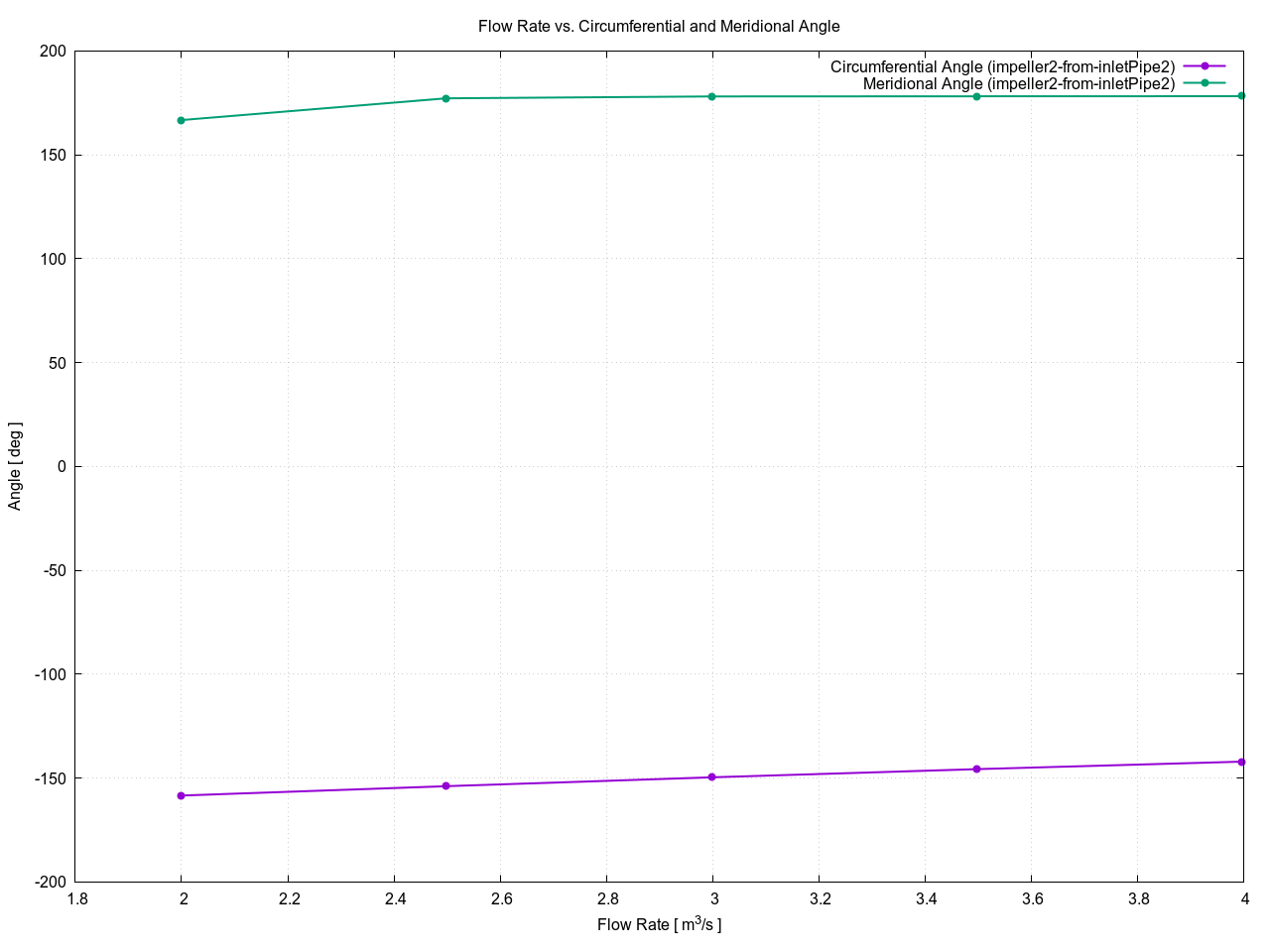

Circumferential and Meridional Angle

Point Nr.	Interface Name	Flow Rate [ m³/s ]	Circumferential Angle [ deg ]	Meridional Angle [ deg ]
1	inletPipe1-in	4.00000	-90.0000	179.792
1	inletPipe1-to-impeller1	4.00000	-89.8570	178.332
1	impeller1-from-inletPipe1	3.99687	-142.076*	178.219*
1	impeller1-to-vanedGate1	3.99687	-121.728*	-53.1393*
1	vanedGate1-from-impeller1	3.99680	-57.0228	-89.0676
1	vanedGate1-to-outletPipe	3.99680	-75.4682	-72.8868
1	outletPipe-from-vanedGate1	4.00266	98.7762	-41.0588
1	outletPipe-from-vanedGate2	4.00296	98.7097	-41.0135
1	outletPipe-out	8.00563	102.859	0.0904425
1	inletPipe2-in	4.00000	-90.0000	179.792
1	inletPipe2-to-impeller2	4.00000	-89.8577	178.331
1	impeller2-from-inletPipe2	3.99710	-142.075*	178.240*
1	impeller2-to-vanedGate2	3.99710	-121.726*	-53.4161*
1	vanedGate2-from-impeller2	3.99723	-57.0312	-87.7664
1	vanedGate2-to-outletPipe	3.99723	-75.4807	-72.0333
2	inletPipe1-in	3.50000	-90.0000	179.792
2	inletPipe1-to-impeller1	3.50000	-89.8305	178.315
2	impeller1-from-inletPipe1	3.49724	-145.692*	178.157*
2	impeller1-to-vanedGate1	3.49724	-122.211*	-43.8638*
2	vanedGate1-from-impeller1	3.49715	-50.7151	-34.3826
2	vanedGate1-to-outletPipe	3.49715	-74.8303	-74.6030
2	outletPipe-from-vanedGate1	3.50205	99.1713	-41.0808
2	outletPipe-from-vanedGate2	3.50240	99.1061	-41.0376
2	outletPipe-out	7.00444	103.253	0.142013
2	inletPipe2-in	3.50000	-90.0000	179.792
2	inletPipe2-to-impeller2	3.50000	-89.8310	178.314
2	impeller2-from-inletPipe2	3.49744	-145.690*	178.179*
2	impeller2-to-vanedGate2	3.49744	-122.210*	-46.3470*
2	vanedGate2-from-impeller2	3.49759	-50.7249	-38.2143
2	vanedGate2-to-outletPipe	3.49759	-74.8406	-74.1443
3	inletPipe1-in	3.00000	-90.0000	179.792
3	inletPipe1-to-impeller1	3.00000	-89.7854	178.309
3	impeller1-from-inletPipe1	2.99759	-149.638*	178.088*
3	impeller1-to-vanedGate1	2.99759	-122.828*	11.1652*
3	vanedGate1-from-impeller1	2.99748	-43.7693	179.158
3	vanedGate1-to-outletPipe	2.99749	-74.1619	-86.0698
3	outletPipe-from-vanedGate1	3.00182	99.5968	-41.1034
3	outletPipe-from-vanedGate2	3.00219	99.5466	-41.0652
3	outletPipe-out	6.00401	104.006	0.156989
3	inletPipe2-in	3.00000	-90.0000	179.792
3	inletPipe2-to-impeller2	3.00000	-89.7855	178.308
3	impeller2-from-inletPipe2	2.99777	-149.636*	178.107*
3	impeller2-to-vanedGate2	2.99777	-122.829*	11.7050*

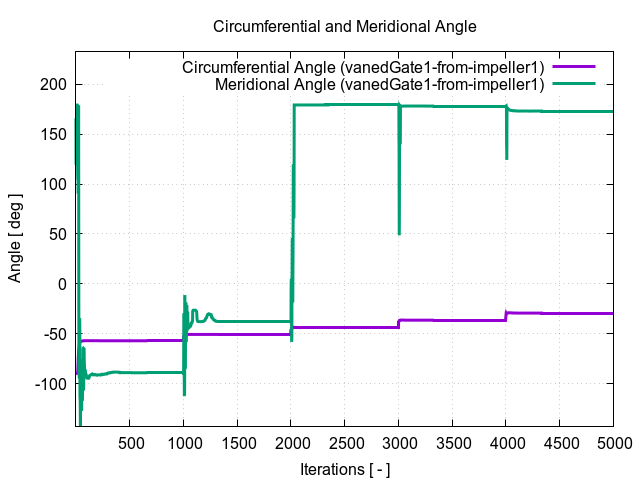

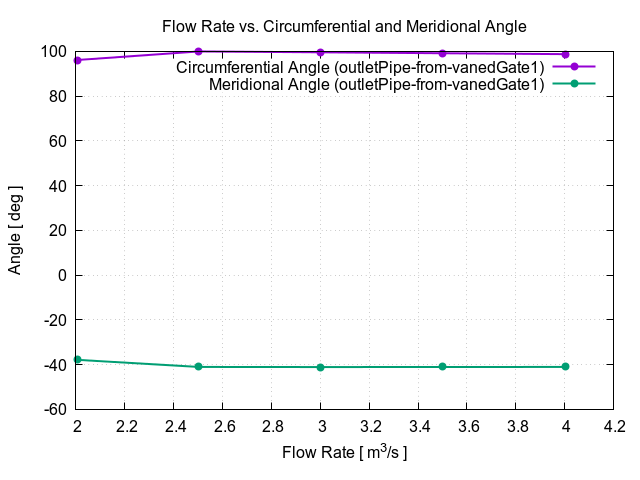

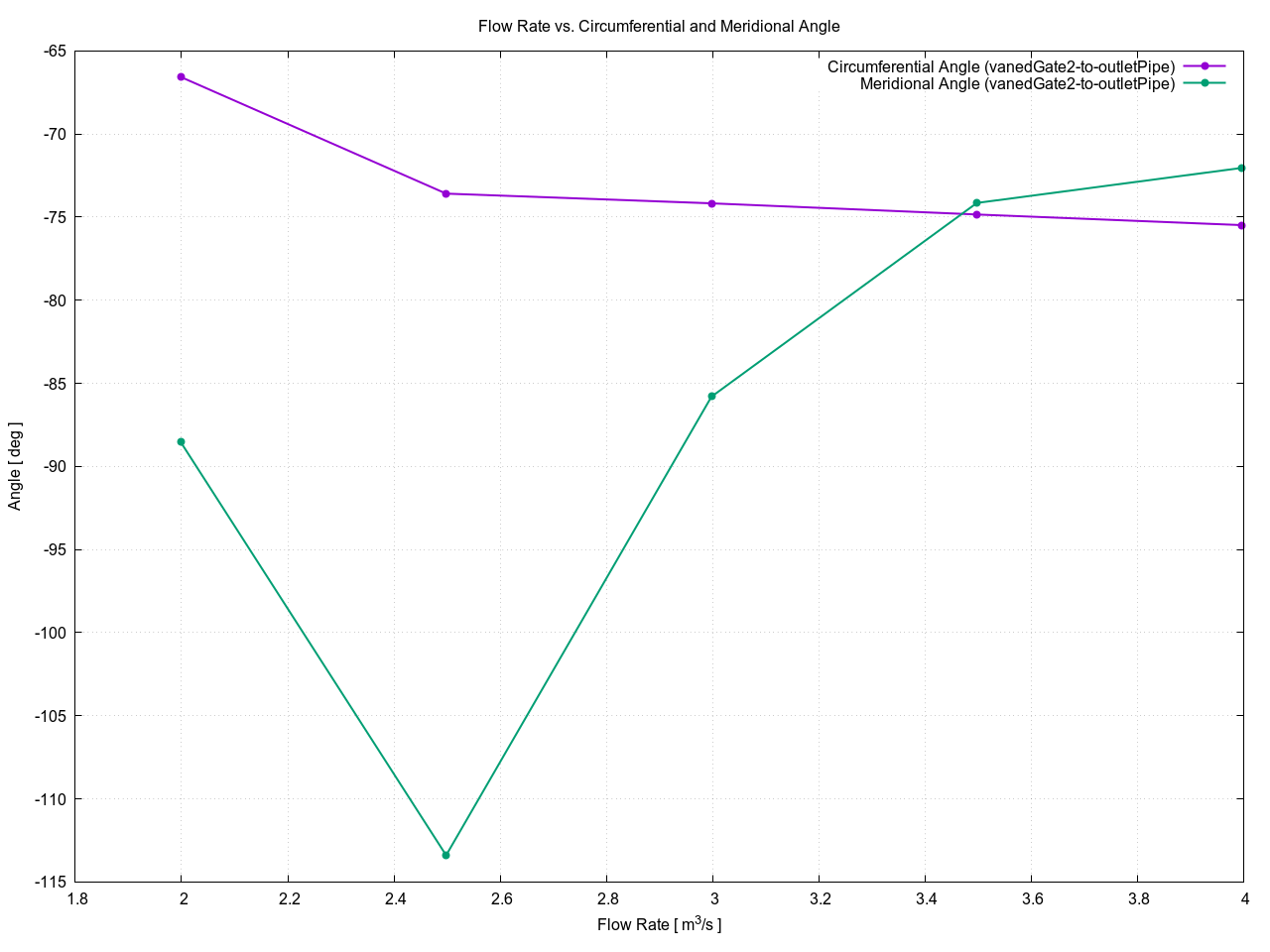

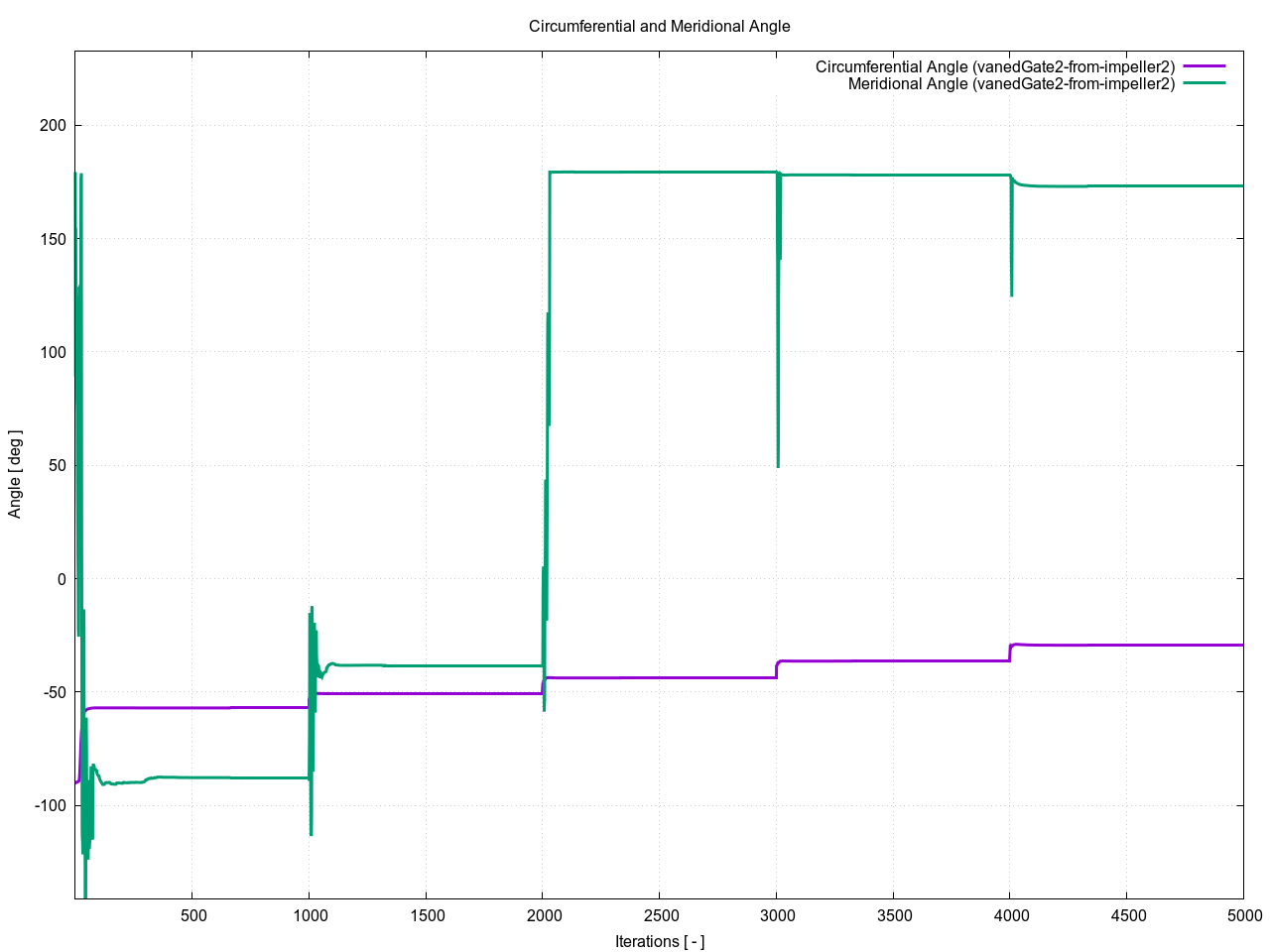

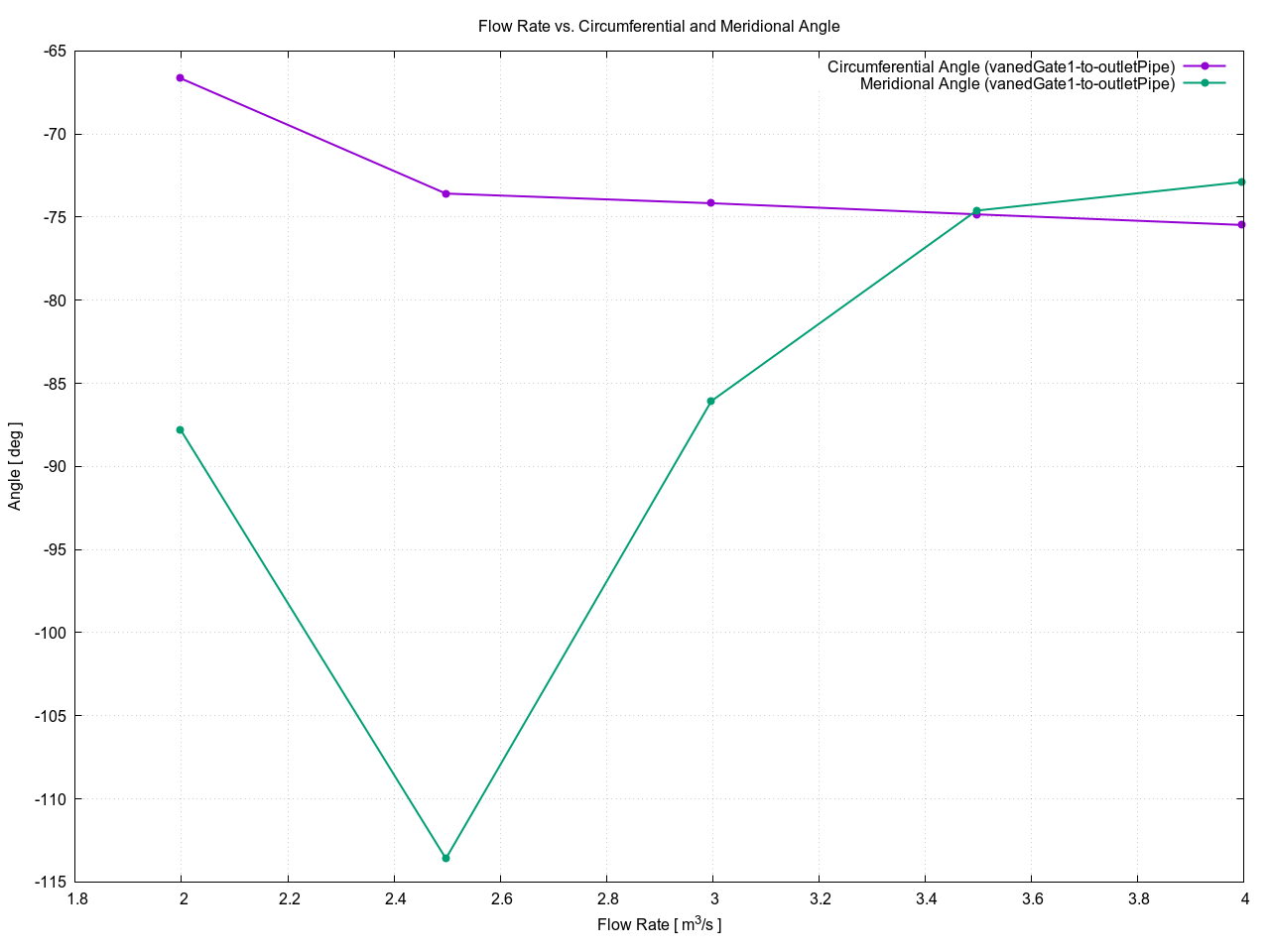

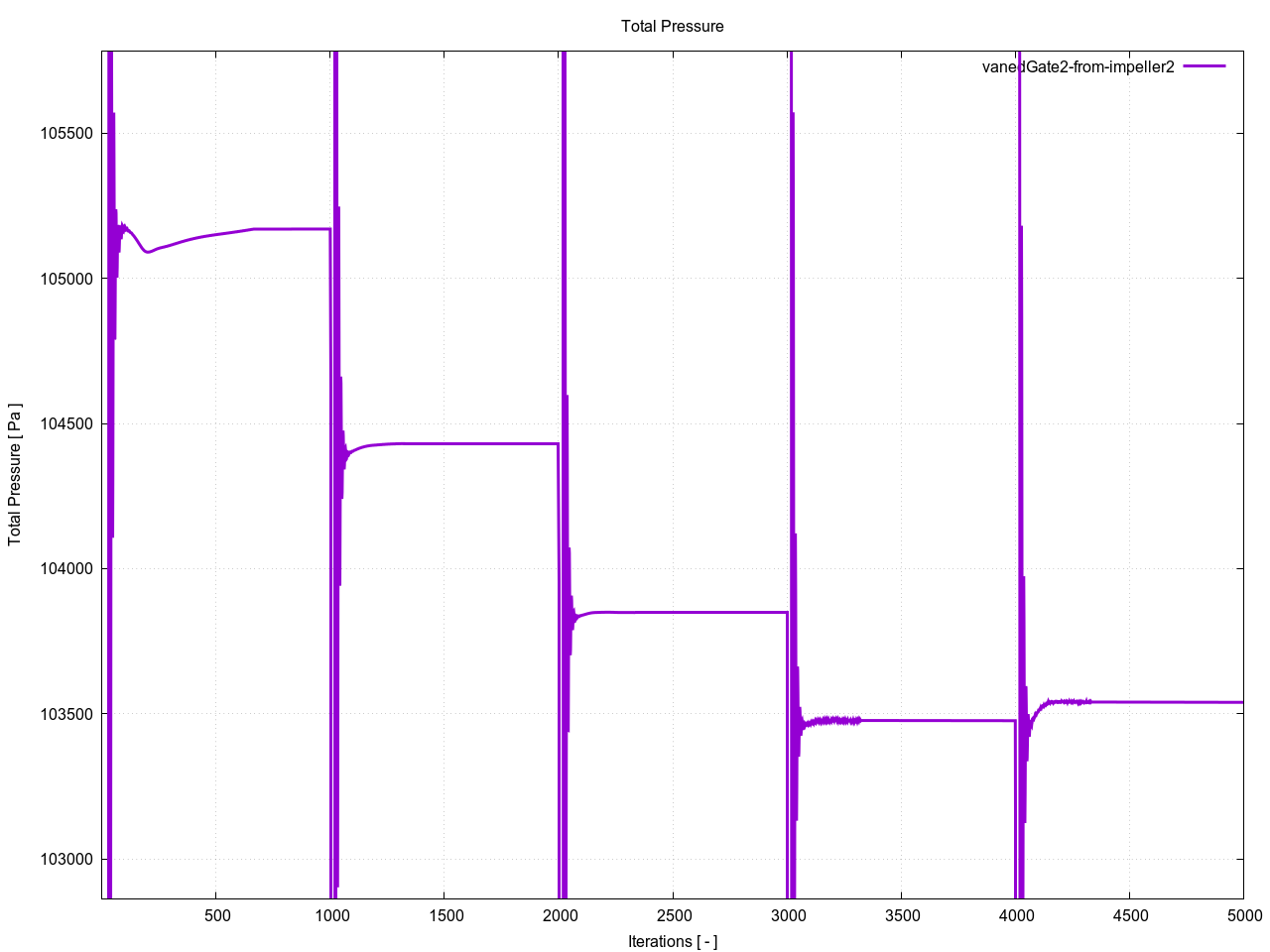

3	vanedGate2-from-impeller2	2.99793	-43.7793	179.313
3	vanedGate2-to-outletPipe	2.99793	-74.1681	-85.7974
4	inletPipe1-in	2.50000	-90.0000	179.792
4	inletPipe1-to-impeller1	2.50000	-89.6962	178.332
4	impeller1-from-inletPipe1	2.49791	-153.903*	177.360*
4	impeller1-to-vanedGate1	2.49791	-123.741*	106.252*
4	vanedGate1-from-impeller1	2.49778	-36.3672	178.045
4	vanedGate1-to-outletPipe	2.49778	-73.5809	-113.595
4	outletPipe-from-vanedGate1	2.50270	99.9755	-41.0511
4	outletPipe-from-vanedGate2	2.50310	99.9883	-41.0869
4	outletPipe-out	5.00580	105.202	0.172921

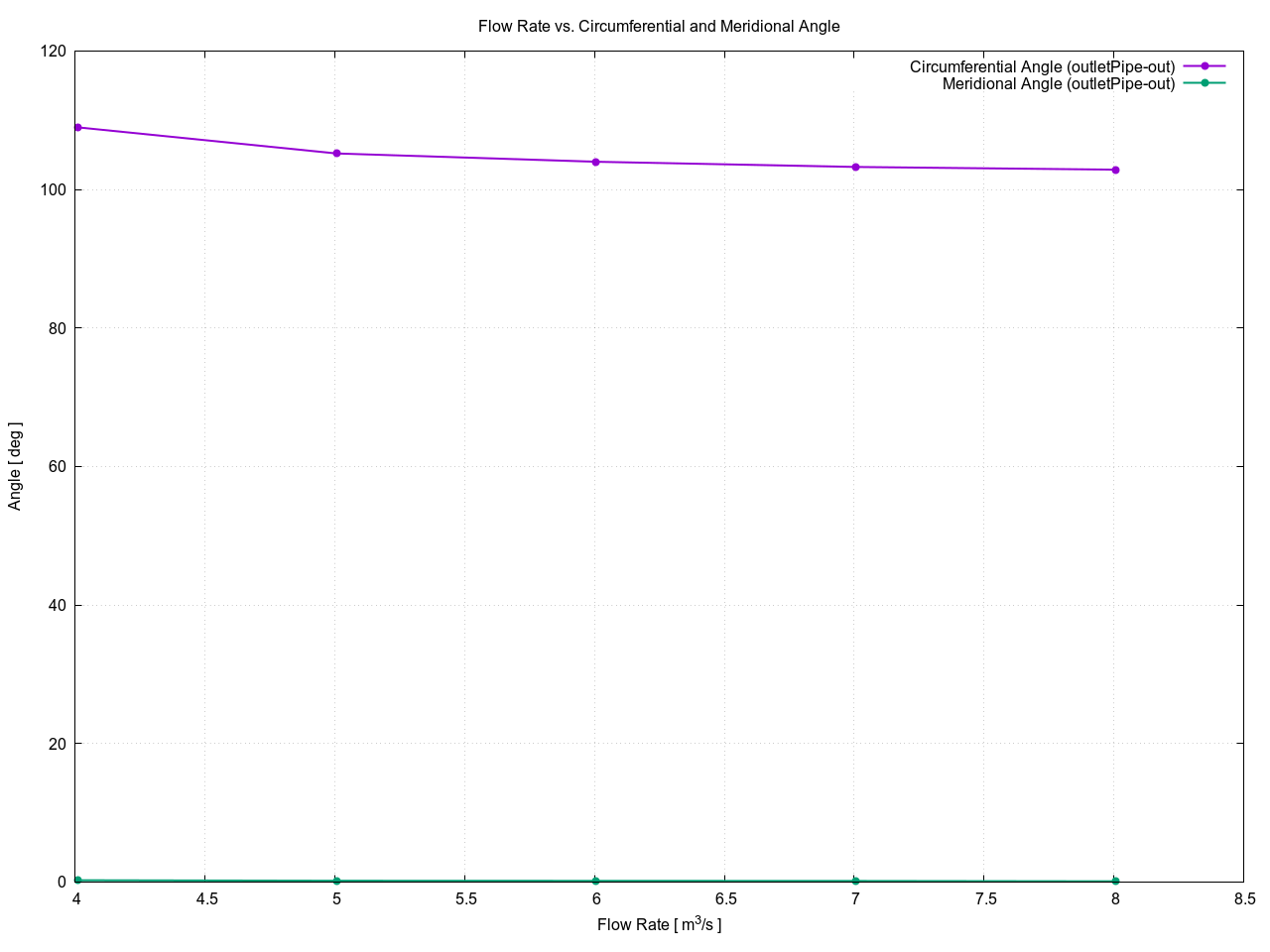

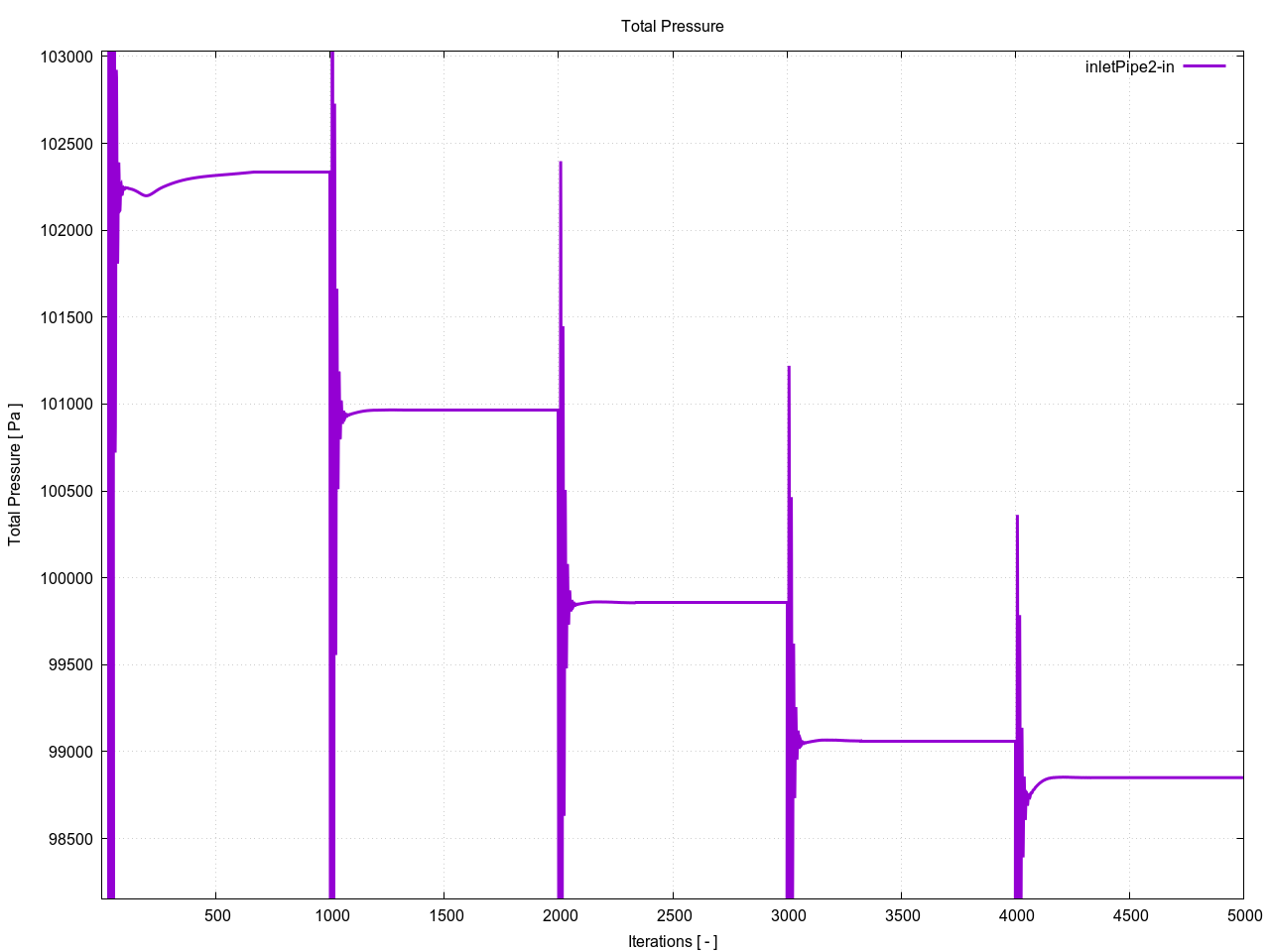

4	inletPipe2-in	2.50000	-90.0000	179.792
4	inletPipe2-to-impeller2	2.50000	-89.6957	178.333
4	impeller2-from-inletPipe2	2.49806	-153.900*	177.196*
4	impeller2-to-vanedGate2	2.49806	-123.741*	108.347*
4	vanedGate2-from-impeller2	2.49824	-36.3752	178.077
4	vanedGate2-to-outletPipe	2.49824	-73.5831	-113.398
5	inletPipe1-in	2.00000	-90.0000	179.792
5	inletPipe1-to-impeller1	2.00000	-89.4915	168.846
5	impeller1-from-inletPipe1	1.99818	-158.422*	167.060*
5	impeller1-to-vanedGate1	1.99818	-125.832*	164.893*
5	vanedGate1-from-impeller1	1.99803	-29.3258	173.034
5	vanedGate1-to-outletPipe	1.99803	-66.6425	-87.7873
5	outletPipe-from-vanedGate1	2.00472	96.1593	-37.8850
5	outletPipe-from-vanedGate2	2.00509	96.2382	-37.5533
5	outletPipe-out	4.00980	108.966	0.240386
5	inletPipe2-in	2.00000	-90.0000	179.792
5	inletPipe2-to-impeller2	2.00000	-89.4881	168.731
5	impeller2-from-inletPipe2	1.99830	-158.415*	166.718*
5	impeller2-to-vanedGate2	1.99830	-125.848*	165.201*
5	vanedGate2-from-impeller2	1.99849	-29.3388	172.999
5	vanedGate2-to-outletPipe	1.99849	-66.5651	-88.5398

(*) Calculated from the relative velocity.

Hi, this is steady-state CFD simulation report of: eveningTest

Hi, this is steady-state CFD simulation report of:

eveningTest
