Hi, this is steady-state CFD simulation report of:

eveningTest

Created by TCFD^® 18.10 on Fri Oct 19 20:38:58 2018

DISCOVER

Simulation Stats

Test Case Name	eveningTest
Number of Points [ – ]	10
Machine Type	hydroTurbine
Rotation Speed [ rad/s ]	-19.6350

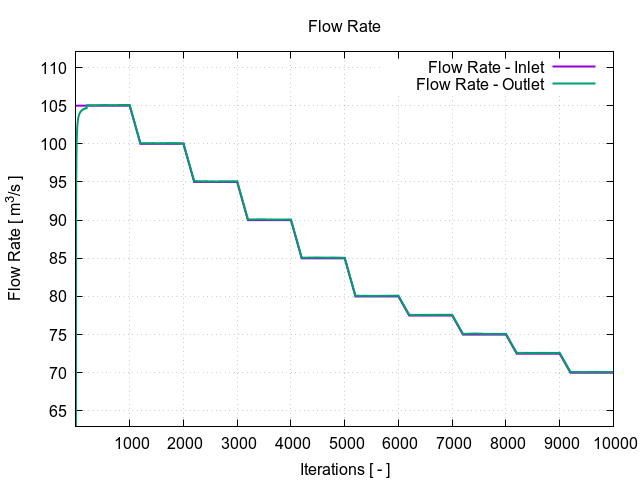

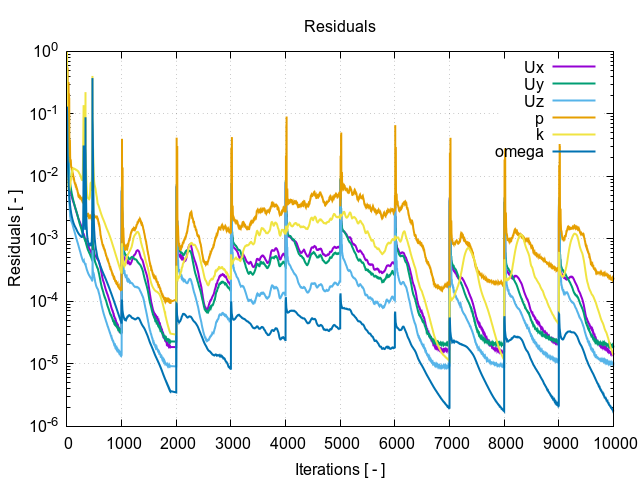

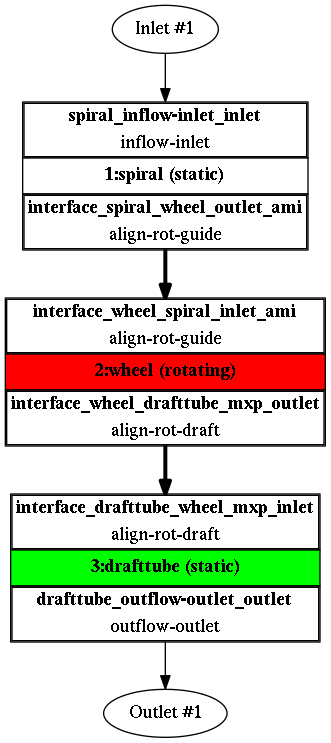

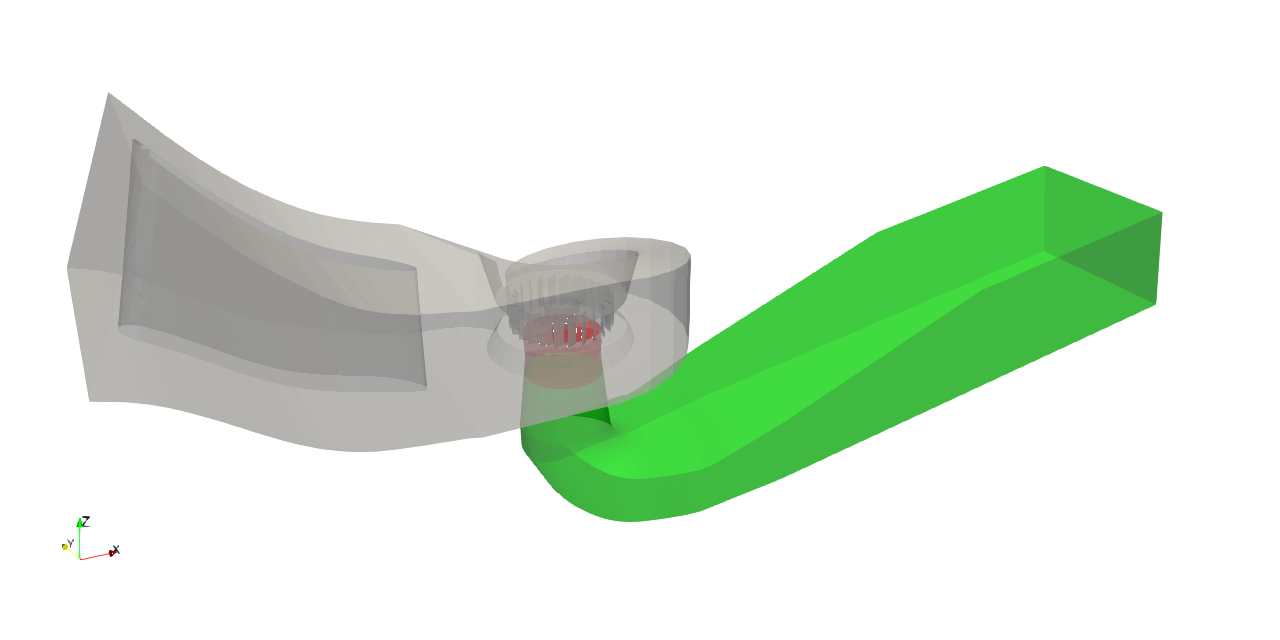

Number of Components [ – ] ( topology )	3
Mesh Size [ cells ] ( details )	spiral : 208742 wheel : 204363 drafttube : 67996 Total : 481101
Mesh details [ mm ]: Component Property Min Max Avg 1 cellOpenness N/A 4.16749 × 10-16 N/A 1 cellVolume 2950.15 1.04775 × 109 N/A 1 faceArea 168.401 1.04334 × 106 N/A 1 aspectRatio N/A 8.91057 N/A 1 nonOrthogonality N/A 60.1570 12.9240 1 skewness N/A 2.39491 N/A 1 edgeLength 0 1028.41 N/A 1 concaveAngle N/A 78.9290 N/A 1 faceFlatness 0.734927 N/A 0.999097 1 cellDeterminant 0.0541152 N/A 19.6111 1 faceInterpolationWeight 0.0893488 N/A 0.447786 1 faceVolumeRatio 0.0191152 0.731727 N/A 1 Warnings: 77 faces with low quality or negative volume decomposition tets 2 points on short edges 1064 faces with concave angles 2 warped faces 16117 concave cells 2 cellOpenness N/A 2.93347 × 10-16 N/A 2 cellVolume 62.5688 648110. N/A 2 faceArea 0.372211 7819.94 N/A 2 aspectRatio N/A 7.56207 N/A 2 nonOrthogonality N/A 64.9943 14.7777 2 skewness N/A 5.02865 N/A 2 edgeLength 0 91.9633 N/A 2 concaveAngle N/A 78.5927 N/A 2 faceFlatness 0.456279 N/A 0.996664 2 cellDeterminant 6.07931 × 10-4 N/A 22.6389 2 faceInterpolationWeight 0.0547080 N/A 0.436021 2 faceVolumeRatio 0.0100911 0.671078 N/A 2 Warnings: 3 skew faces 322 faces with low quality or negative volume decomposition tets 22 points on short edges 2490 faces with concave angles 52 warped faces 1 under-determined cells 16964 concave cells 3 cellOpenness N/A 4.24999 × 10-16 N/A 3 cellVolume 2977.82 1.09245 × 109 N/A 3 faceArea 205.380 1.08774 × 106 N/A 3 aspectRatio N/A 7.57294 N/A 3 nonOrthogonality N/A 64.9954 12.4721 3 skewness N/A 2.12992 N/A 3 edgeLength N/A N/A N/A 3 concaveAngle N/A 67.3011 N/A 3 faceFlatness 0.813450 N/A 0.999224 3 cellDeterminant 0.0711000 N/A 16.6692 3 faceInterpolationWeight 0.100172 N/A 0.449095 3 faceVolumeRatio 0.0196658 0.750356 N/A 3 Warnings: 36 faces with low quality or negative volume decomposition tets 731 faces with concave angles 3792 concave cells
Average y+ at walls [ – ] ( details )	15144.9
y+ details: Point Patch Min Max Avg 1 spiral_shroud-guide_wall 216.040 7299.10 2089.25 1 spiral_inflow-stay_wall 232.587 8937.77 1920.54 1 spiral_blade-guide_wall 251.581 5723.32 2318.35 1 spiral_hub-guide_wall 631.374 9533.16 3331.38 1 wheel_hub-rot_wall 454.463 10371.2 3708.35 1 wheel_blade-rot_wall 275.186 6489.96 2005.20 1 wheel_shroud-rot_wall 178.434 9452.27 2460.98 1 drafttube_outflow-drafttube_wall 363.992 35018.6 12313.8 1 drafttube_hub-rot-cap_wall 7085.46 25166.3 15144.9 2 spiral_shroud-guide_wall 206.903 7023.47 2008.27 2 spiral_inflow-stay_wall 219.408 8522.38 1831.56 2 spiral_blade-guide_wall 239.782 5485.29 2211.84 2 spiral_hub-guide_wall 599.632 9187.06 3193.19 2 wheel_hub-rot_wall 438.999 9783.10 3515.94 2 wheel_blade-rot_wall 241.605 6208.63 1847.90 2 wheel_shroud-rot_wall 170.884 8085.04 2351.14 2 drafttube_outflow-drafttube_wall 421.701 29197.6 9505.58 2 drafttube_hub-rot-cap_wall 5803.67 18734.3 10596.4 3 spiral_shroud-guide_wall 196.304 6669.02 1912.10 3 spiral_inflow-stay_wall 205.418 8116.98 1741.08 3 spiral_blade-guide_wall 227.690 5226.37 2102.01 3 spiral_hub-guide_wall 568.220 8734.85 3038.84 3 wheel_hub-rot_wall 415.877 9077.70 3234.15 3 wheel_blade-rot_wall 213.983 5684.69 1675.66 3 wheel_shroud-rot_wall 162.049 7556.65 2115.39 3 drafttube_outflow-drafttube_wall 382.395 27674.2 9122.69 3 drafttube_hub-rot-cap_wall 4987.17 19324.5 10376.5 4 spiral_shroud-guide_wall 185.612 6316.45 1817.53 4 spiral_inflow-stay_wall 191.718 7719.33 1651.16 4 spiral_blade-guide_wall 215.633 4970.52 1993.45 4 spiral_hub-guide_wall 536.882 8291.62 2887.96 4 wheel_hub-rot_wall 393.585 8381.94 2964.12 4 wheel_blade-rot_wall 187.492 5198.20 1527.91 4 wheel_shroud-rot_wall 153.409 7098.92 1926.76 4 drafttube_outflow-drafttube_wall 352.195 29856.4 9560.63 4 drafttube_hub-rot-cap_wall 3437.94 17576.1 8239.53 5 spiral_shroud-guide_wall 174.667 5959.67 1722.79 5 spiral_inflow-stay_wall 177.750 7320.39 1561.21 5 spiral_blade-guide_wall 203.552 4714.62 1884.86 5 spiral_hub-guide_wall 505.434 7847.72 2736.48 5 wheel_hub-rot_wall 371.869 7673.64 2719.89 5 wheel_blade-rot_wall 166.041 4726.92 1402.88 5 wheel_shroud-rot_wall 144.820 6764.45 1774.29 5 drafttube_outflow-drafttube_wall 327.969 30333.6 9445.99 5 drafttube_hub-rot-cap_wall 2754.20 12974.6 6400.46 6 spiral_shroud-guide_wall 162.794 5599.10 1627.73 6 spiral_inflow-stay_wall 163.913 6921.26 1471.26 6 spiral_blade-guide_wall 191.447 4458.54 1776.30 6 spiral_hub-guide_wall 473.928 7403.40 2584.93 6 wheel_hub-rot_wall 350.612 6987.01 2486.79 6 wheel_blade-rot_wall 150.868 4275.57 1305.69 6 wheel_shroud-rot_wall 136.410 6700.50 1668.11 6 drafttube_outflow-drafttube_wall 284.417 19614.0 6687.24 6 drafttube_hub-rot-cap_wall 2330.91 10215.5 5151.27 7 spiral_shroud-guide_wall 156.924 5410.02 1579.06 7 spiral_inflow-stay_wall 157.006 6714.71 1426.03 7 spiral_blade-guide_wall 185.413 4328.35 1721.36 7 spiral_hub-guide_wall 458.214 7174.74 2507.34 7 wheel_hub-rot_wall 339.903 6651.26 2375.95 7 wheel_blade-rot_wall 147.512 4059.02 1268.37 7 wheel_shroud-rot_wall 132.166 6807.01 1633.68 7 drafttube_outflow-drafttube_wall 303.032 19143.0 6364.32 7 drafttube_hub-rot-cap_wall 2214.89 9589.52 4838.57 8 spiral_shroud-guide_wall 150.857 5224.26 1531.21 8 spiral_inflow-stay_wall 150.137 6514.26 1381.05 8 spiral_blade-guide_wall 179.358 4199.85 1667.06 8 spiral_hub-guide_wall 442.462 6953.26 2431.33 8 wheel_hub-rot_wall 302.452 6341.55 2274.97 8 wheel_blade-rot_wall 148.068 3868.28 1243.76 8 wheel_shroud-rot_wall 128.020 7056.41 1625.37 8 drafttube_outflow-drafttube_wall 301.192 22541.9 8023.53 8 drafttube_hub-rot-cap_wall 2180.35 9694.58 4879.32 9 spiral_shroud-guide_wall 144.831 5037.45 1483.20 9 spiral_inflow-stay_wall 143.330 6313.32 1336.07 9 spiral_blade-guide_wall 173.306 4071.45 1612.77 9 spiral_hub-guide_wall 426.714 6733.18 2355.34 9 wheel_hub-rot_wall 269.358 6044.71 2187.07 9 wheel_blade-rot_wall 151.500 4061.46 1230.00 9 wheel_shroud-rot_wall 123.895 7422.35 1640.85 9 drafttube_outflow-drafttube_wall 302.631 36790.2 9928.41 9 drafttube_hub-rot-cap_wall 2590.18 10723.7 5714.80 10 spiral_shroud-guide_wall 138.993 4852.15 1435.01 10 spiral_inflow-stay_wall 136.544 6112.04 1291.09 10 spiral_blade-guide_wall 167.254 3942.24 1558.46 10 spiral_hub-guide_wall 410.952 6514.38 2279.25 10 wheel_hub-rot_wall 299.073 5755.23 2117.76 10 wheel_blade-rot_wall 157.868 4282.47 1226.48 10 wheel_shroud-rot_wall 119.832 7832.17 1681.58 10 drafttube_outflow-drafttube_wall 183.745 45526.2 11258.5 10 drafttube_hub-rot-cap_wall 3057.98 10630.6 6124.98
Wall-clock time [ hh:mm:ss ]	01:59:59
Parallel Processors [ – ]	6
Fluid Name	water
Compressibility	incompressible

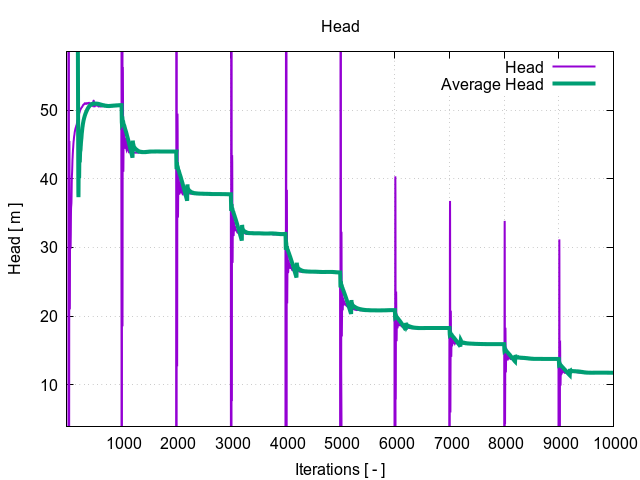

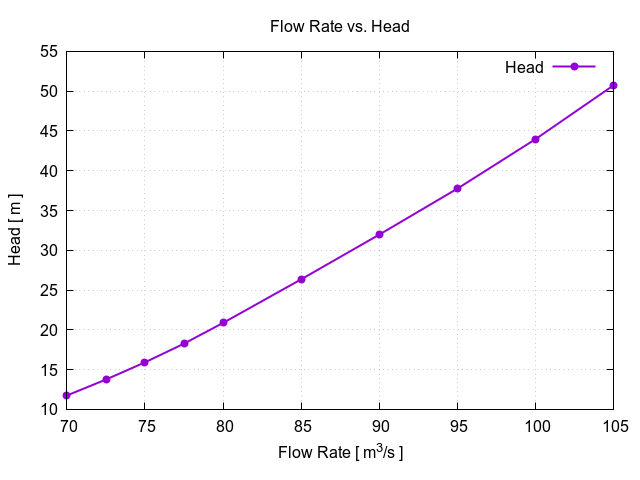

Head

1:inflow-inlet — 3:outflow-outlet

Point Nr.	Flow Rate [ m3/s ]	Head [ m ]
1	105.000	50.7282
2	100.000	43.9612
3	95.0000	37.7464
4	90.0000	31.9703
5	85.0000	26.3478
6	80.0000	20.8728
7	77.5000	18.2670
8	75.0000	15.9118
9	72.5000	13.7537
10	70.0000	11.7500

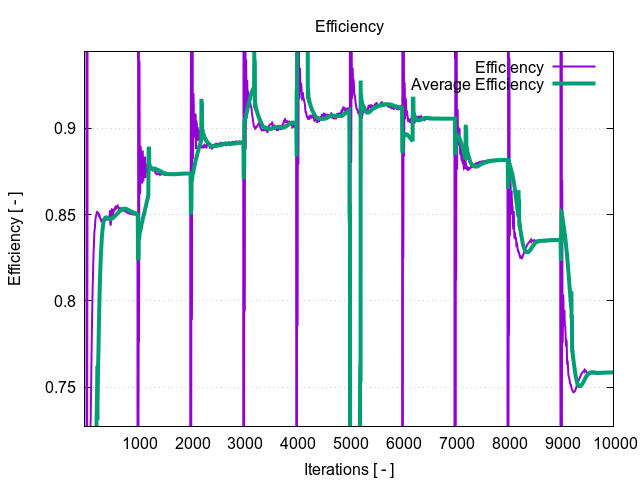

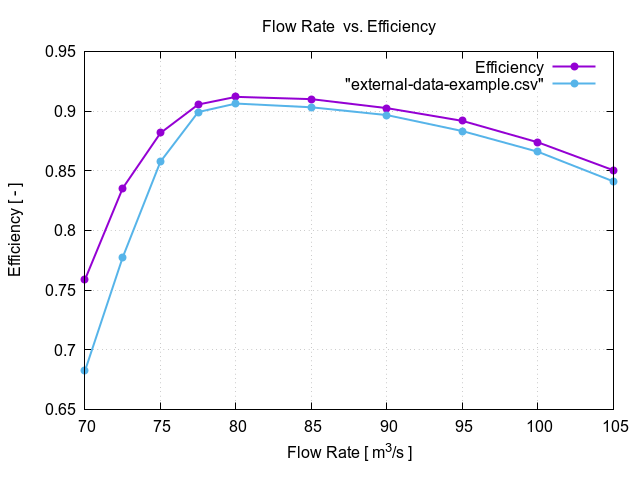

Efficiency

1:inflow-inlet — 3:outflow-outlet

Point Nr.	Flow Rate [ m3/s ]	Efficiency [ – ]
1	105.000	0.850343
2	100.000	0.873766
3	95.0000	0.891765
4	90.0000	0.902441
5	85.0000	0.909963
6	80.0000	0.911927
7	77.5000	0.905512
8	75.0000	0.881599
9	72.5000	0.835341
10	70.0000	0.758651

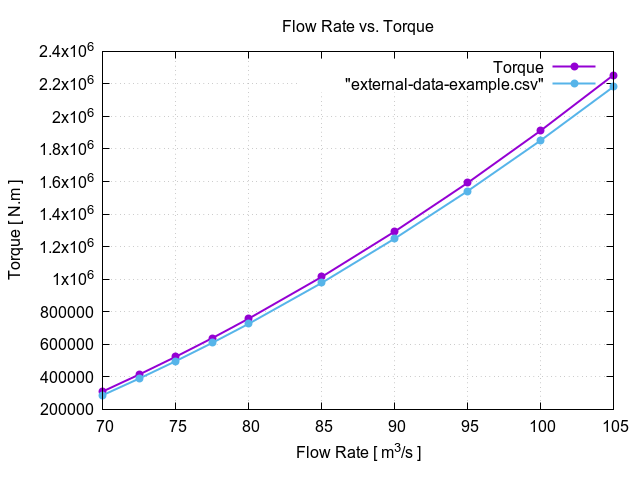

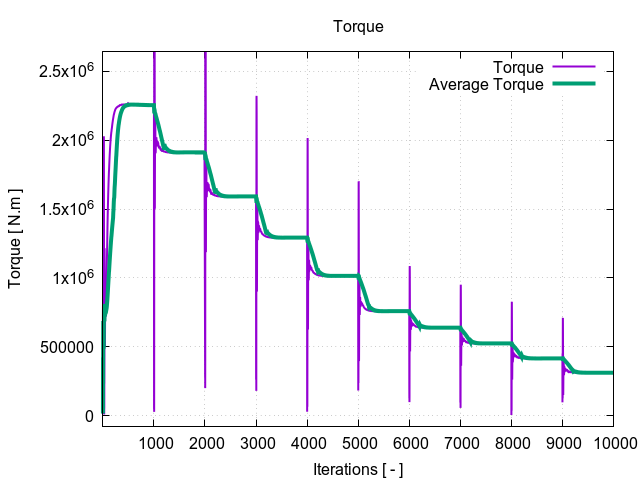

Torque

Point Nr.	Torque [ N.m ]
1	2.25480 × 106
2	1.91223 × 106
3	1.59197 × 106
4	1.29272 × 106
5	1.01450 × 106
6	758186.
7	638292.
8	523866.
9	414768.
10	310728.

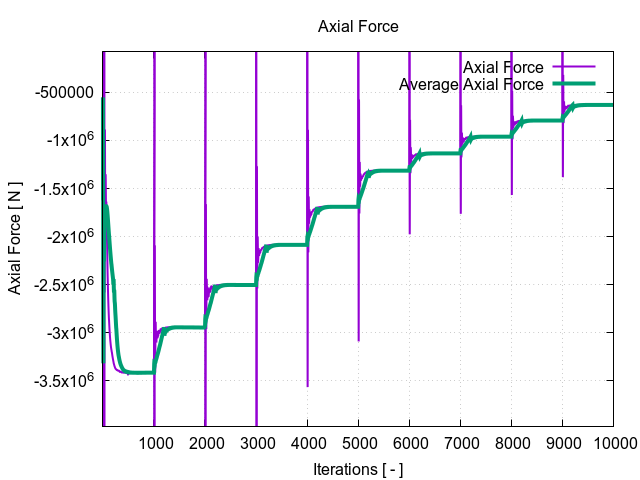

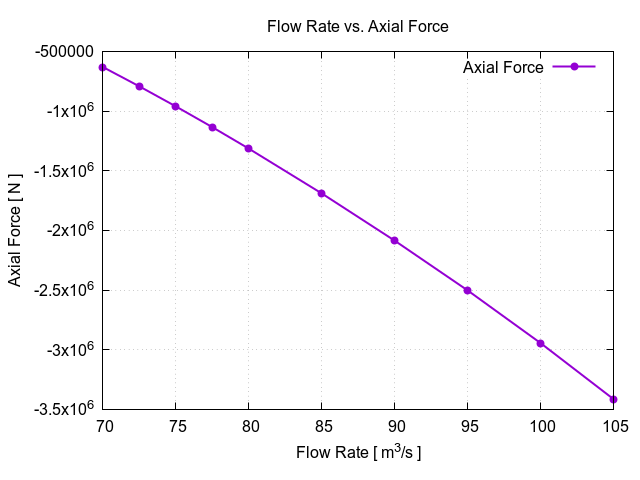

Axial Force

Point Nr.	Axial Force [ N ]
1	-3.41413 × 106
2	-2.94419 × 106
3	-2.50315 × 106
4	-2.08621 × 106
5	-1.69035 × 106
6	-1.31496 × 106
7	-1.13528 × 106
8	-961400.
9	-793447.
10	-631614.

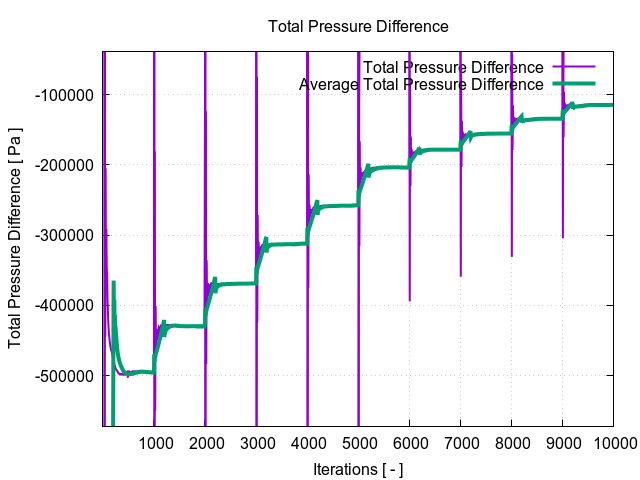

Total Pressure Difference

1:inflow-inlet — 3:outflow-outlet

Point Nr.	Flow Rate [ m3/s ]	Total Pressure Difference [ Pa ]
1	105.000	-495653.
2	100.000	-429534.
3	95.0000	-368811.
4	90.0000	-312374.
5	85.0000	-257438.
6	80.0000	-203943.
7	77.5000	-178483.
8	75.0000	-155470.
9	72.5000	-134384.
10	70.0000	-114806.

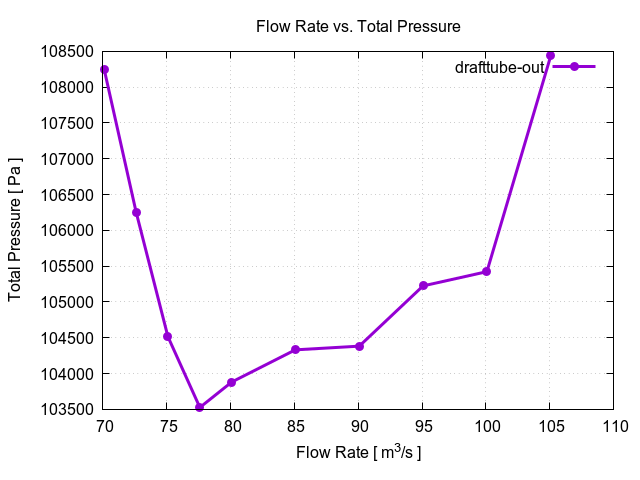

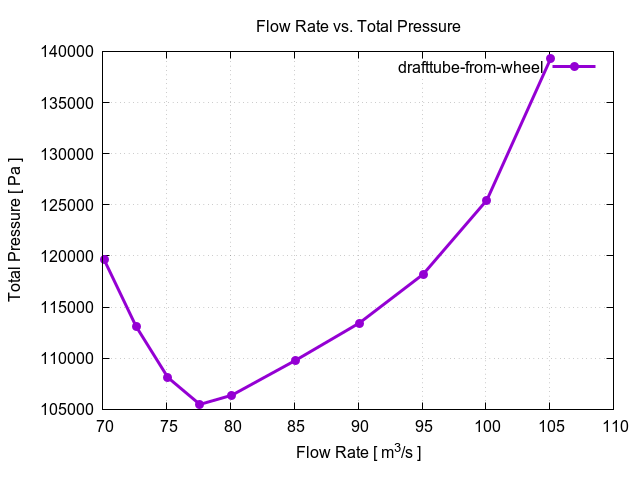

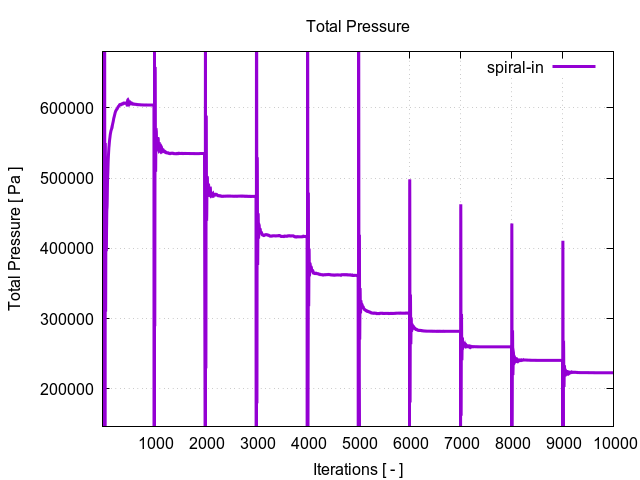

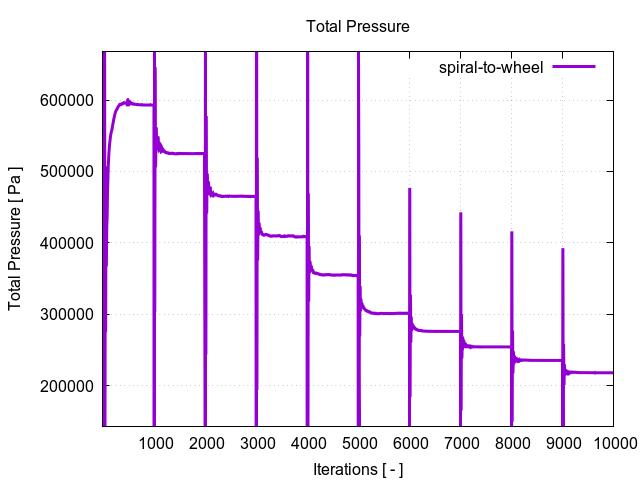

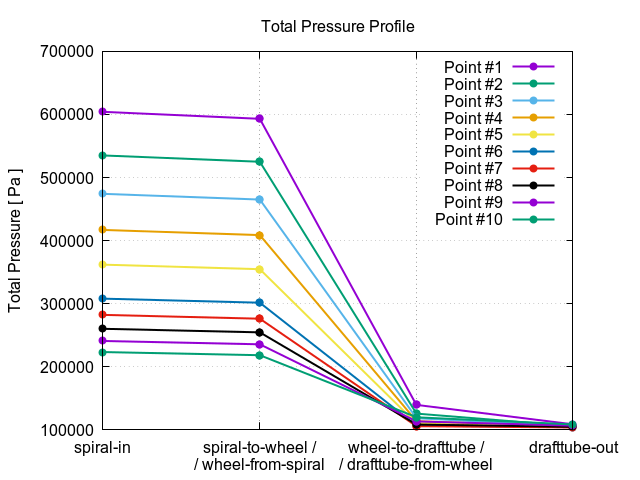

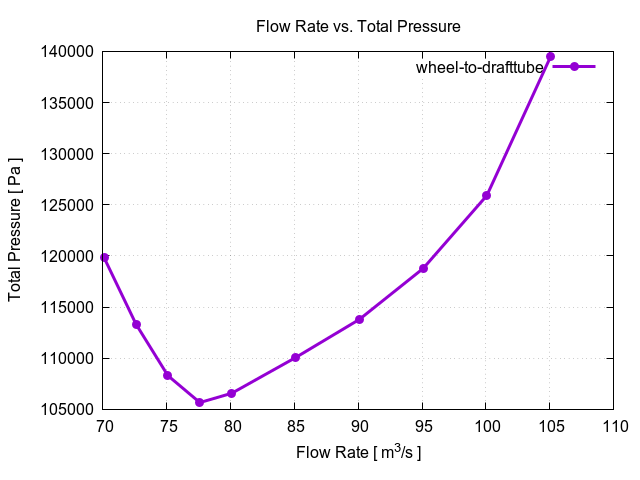

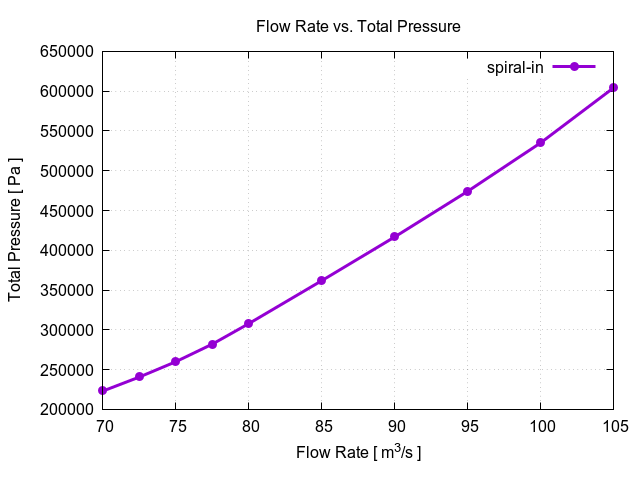

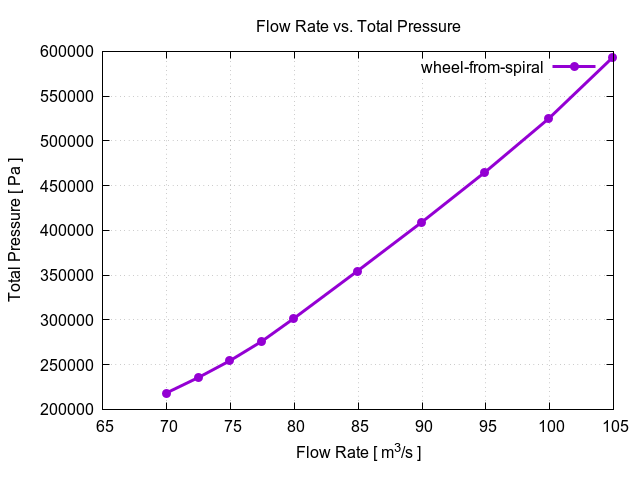

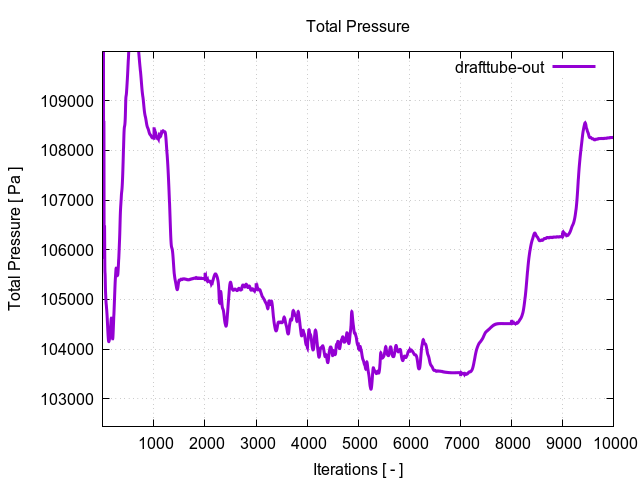

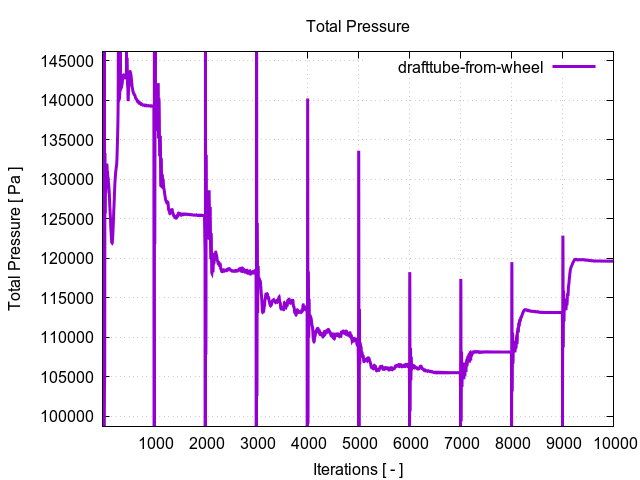

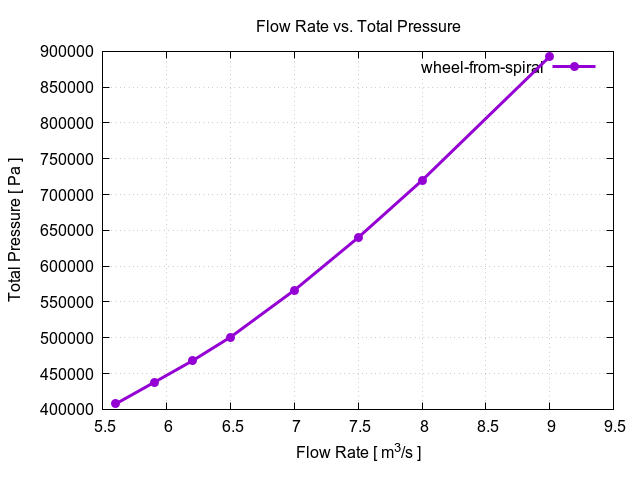

Total Pressure per Interfaces

Point Nr.	Interface Name	Flow Rate [ m3/s ]	Total Pressure [ Pa ]
1	spiral-in	105.000	604090.
1	spiral-to-wheel	105.000	593061.
1	wheel-from-spiral	104.927	593066.
1	wheel-to-drafttube	105.078	139495.
1	drafttube-from-wheel	105.078	139298.
1	drafttube-out	105.086	108437.
2	spiral-in	100.000	534957.
2	spiral-to-wheel	100.000	524943.
2	wheel-from-spiral	99.9291	524947.
2	wheel-to-drafttube	100.080	125910.
2	drafttube-from-wheel	100.080	125455.
2	drafttube-out	100.082	105423.
3	spiral-in	95.0000	474036.
3	spiral-to-wheel	95.0000	464994.
3	wheel-from-spiral	94.9317	464997.
3	wheel-to-drafttube	95.0821	118767.
3	drafttube-from-wheel	95.0821	118198.
3	drafttube-out	95.0820	105224.
4	spiral-in	90.0000	416757.
4	spiral-to-wheel	90.0000	408636.
4	wheel-from-spiral	89.9344	408639.
4	wheel-to-drafttube	90.0849	113789.
4	drafttube-from-wheel	90.0849	113438.
4	drafttube-out	90.0833	104382.
5	spiral-in	85.0000	361770.
5	spiral-to-wheel	85.0000	354519.
5	wheel-from-spiral	84.9371	354522.
5	wheel-to-drafttube	85.0875	110059.
5	drafttube-from-wheel	85.0875	109789.
5	drafttube-out	85.0667	104331.
6	spiral-in	80.0000	307825.
6	spiral-to-wheel	80.0000	301398.
6	wheel-from-spiral	79.9402	301401.
6	wheel-to-drafttube	80.0907	106574.
6	drafttube-from-wheel	80.0907	106378.
6	drafttube-out	80.0914	103882.
7	spiral-in	77.5000	282009.
7	spiral-to-wheel	77.5000	275978.
7	wheel-from-spiral	77.4418	275980.
7	wheel-to-drafttube	77.5923	105666.
7	drafttube-from-wheel	77.5923	105484.
7	drafttube-out	77.5924	103526.
8	spiral-in	75.0000	259984.
8	spiral-to-wheel	75.0000	254335.
8	wheel-from-spiral	74.9437	254337.
8	wheel-to-drafttube	75.0942	108292.
8	drafttube-from-wheel	75.0942	108106.
8	drafttube-out	75.0936	104514.
9	spiral-in	72.5000	240641.
9	spiral-to-wheel	72.5000	235362.
9	wheel-from-spiral	72.4459	235364.
9	wheel-to-drafttube	72.5964	113313.
9	drafttube-from-wheel	72.5964	113106.
9	drafttube-out	72.5958	106257.
10	spiral-in	70.0000	223054.
10	spiral-to-wheel	70.0000	218134.
10	wheel-from-spiral	69.9484	218135.
10	wheel-to-drafttube	70.0989	119811.
10	drafttube-from-wheel	70.0989	119617.
10	drafttube-out	70.0990	108248.

Spiral-in

Spiral-to-wheel

Wheel-from-spiral

Wheel-to-drafttube

Drafttube-from-wheel

​

Drafttube-out

Spiral-in

Spiral-to-wheel

Wheel-from-spiral

Wheel-to-drafttube

Drafttube-from-wheel

​

Drafttube-out

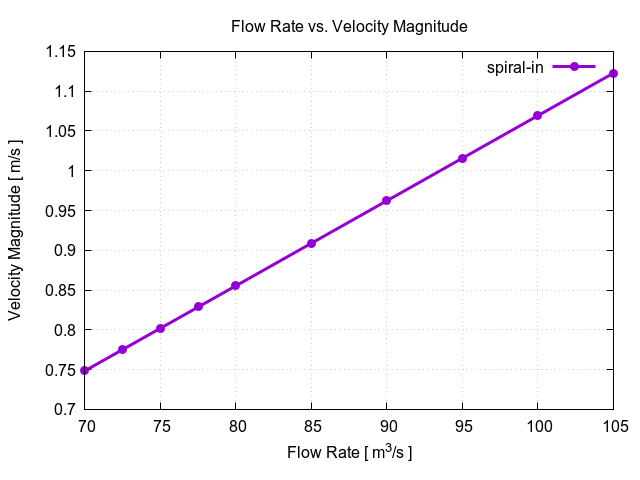

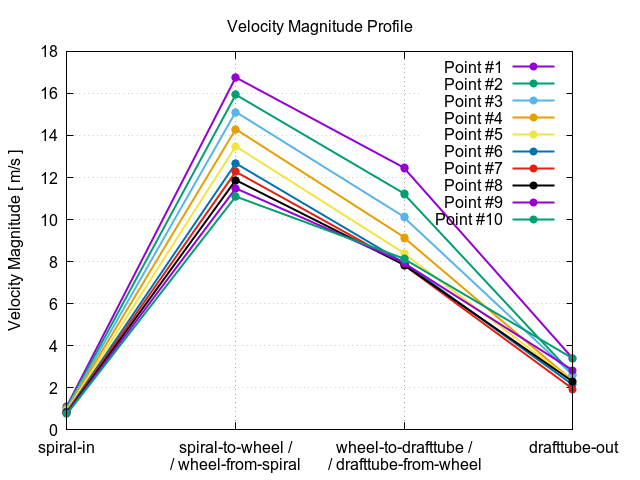

Velocity Magnitude per Interfaces

Point Nr.	Interface Name	Flow Rate [ m3/s ]	Velocity Magnitude [ m/s ]
1	spiral-in	105.000	1.12273
1	spiral-to-wheel	105.000	16.7559
1	wheel-from-spiral	104.927	16.7578
1	wheel-to-drafttube	105.078	12.4555
1	drafttube-from-wheel	105.078	12.4272
1	drafttube-out	105.086	3.37412
2	spiral-in	100.000	1.06926
2	spiral-to-wheel	100.000	15.9344
2	wheel-from-spiral	99.9291	15.9362
2	wheel-to-drafttube	100.080	11.2311
2	drafttube-from-wheel	100.080	11.1907
2	drafttube-out	100.082	2.60912
3	spiral-in	95.0000	1.01580
3	spiral-to-wheel	95.0000	15.1134
3	wheel-from-spiral	94.9317	15.1152
3	wheel-to-drafttube	95.0821	10.1228
3	drafttube-from-wheel	95.0821	10.0747
3	drafttube-out	95.0820	2.58953
4	spiral-in	90.0000	0.962337
4	spiral-to-wheel	90.0000	14.2938
4	wheel-from-spiral	89.9344	14.2955
4	wheel-to-drafttube	90.0849	9.15238
4	drafttube-from-wheel	90.0849	9.11654
4	drafttube-out	90.0833	2.30592
5	spiral-in	85.0000	0.908874
5	spiral-to-wheel	85.0000	13.4777
5	wheel-from-spiral	84.9371	13.4793
5	wheel-to-drafttube	85.0875	8.39333
5	drafttube-from-wheel	85.0875	8.36689
5	drafttube-out	85.0667	2.29208
6	spiral-in	80.0000	0.855411
6	spiral-to-wheel	80.0000	12.6688
6	wheel-from-spiral	79.9402	12.6703
6	wheel-to-drafttube	80.0907	7.93051
6	drafttube-from-wheel	80.0907	7.90845
6	drafttube-out	80.0914	2.12705
7	spiral-in	77.5000	0.828679
7	spiral-to-wheel	77.5000	12.2685
7	wheel-from-spiral	77.4418	12.2700
7	wheel-to-drafttube	77.5923	7.83428
7	drafttube-from-wheel	77.5923	7.81295
7	drafttube-out	77.5924	1.92882
8	spiral-in	75.0000	0.801948
8	spiral-to-wheel	75.0000	11.8715
8	wheel-from-spiral	74.9437	11.8729
8	wheel-to-drafttube	75.0942	7.83609
8	drafttube-from-wheel	75.0942	7.81385
8	drafttube-out	75.0936	2.28002
9	spiral-in	72.5000	0.775216
9	spiral-to-wheel	72.5000	11.4786
9	wheel-from-spiral	72.4459	11.4800
9	wheel-to-drafttube	72.5964	7.93964
9	drafttube-from-wheel	72.5964	7.91411
9	drafttube-out	72.5958	2.81754
10	spiral-in	70.0000	0.748484
10	spiral-to-wheel	70.0000	11.0902
10	wheel-from-spiral	69.9484	11.0915
10	wheel-to-drafttube	70.0989	8.13375
10	drafttube-from-wheel	70.0989	8.11095
10	drafttube-out	70.0990	3.38174

Spiral-in

Spiral-to-wheel

Wheel-from-spiral

Wheel-to-drafttube

Drafttube-from-wheel

​

Drafttube-out

Spiral-in

Spiral-to-wheel

Wheel-from-spiral

Wheel-to-drafttube

Drafttube-from-wheel

​

Drafttube-out

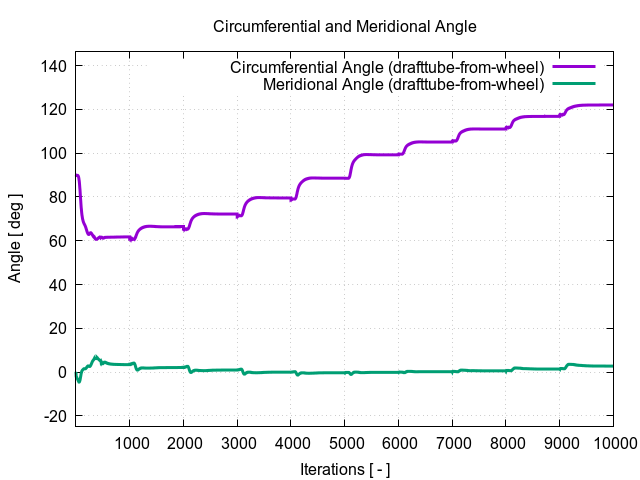

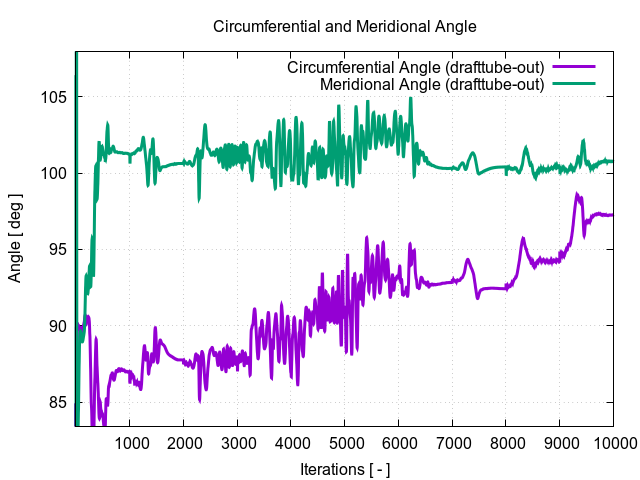

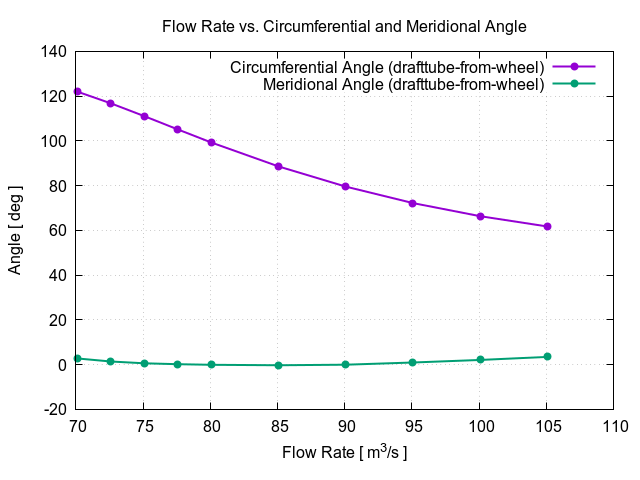

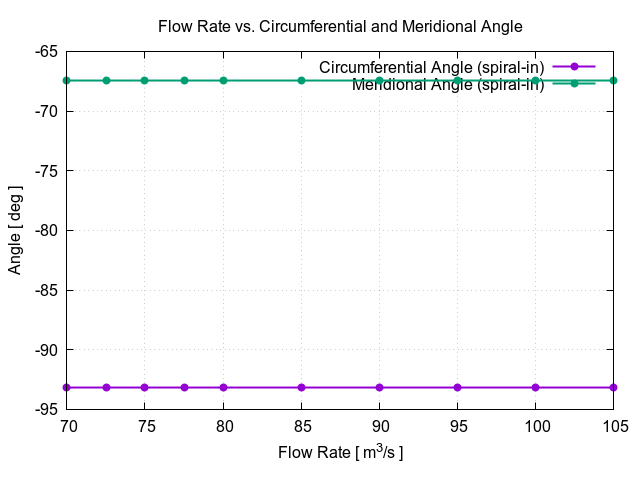

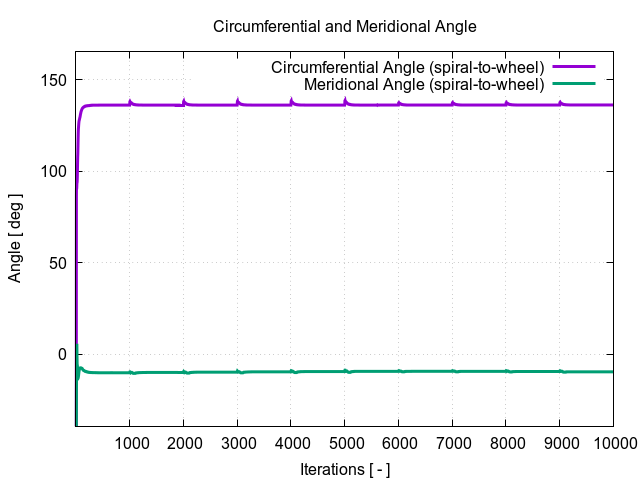

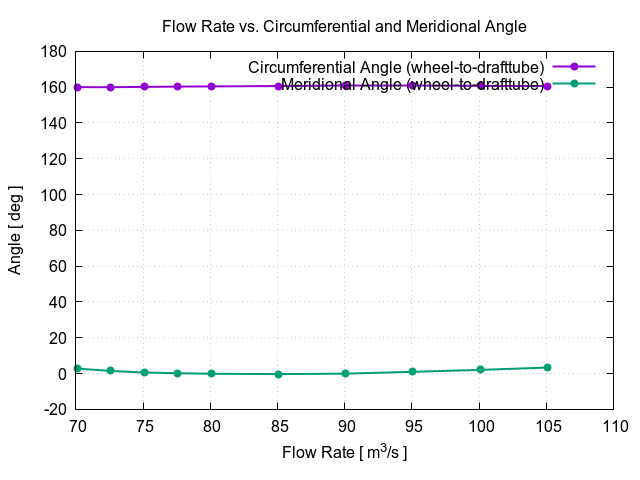

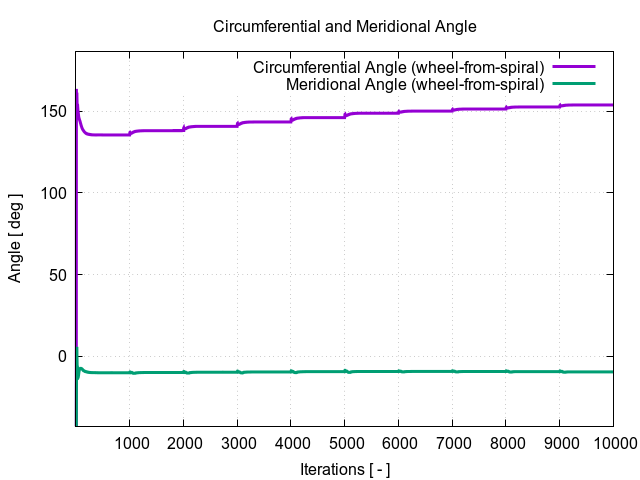

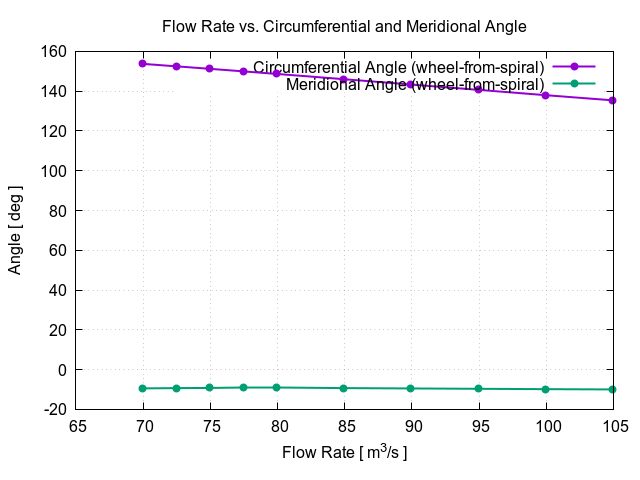

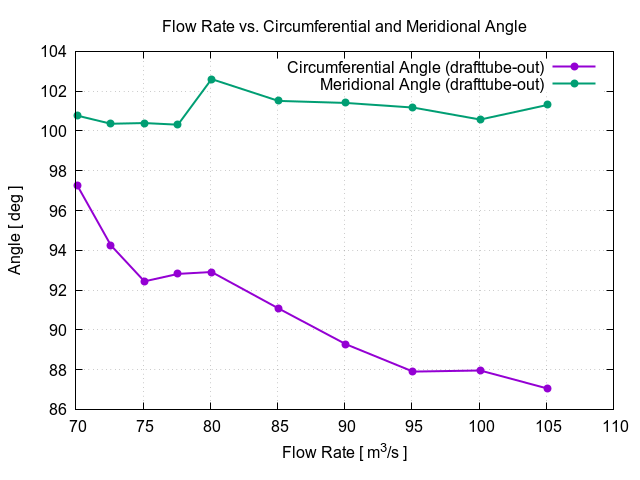

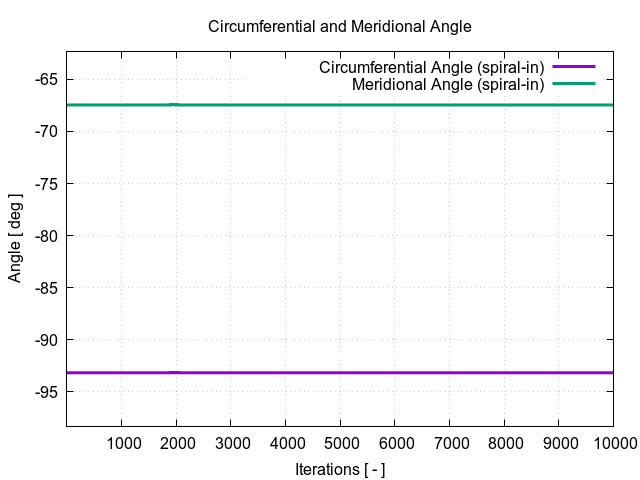

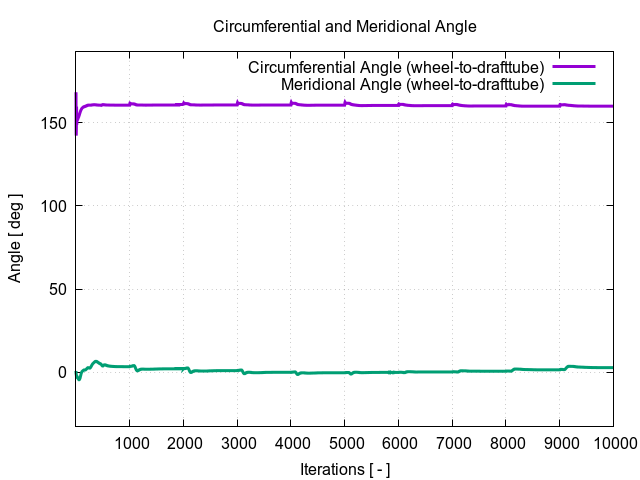

Circumferential and Meridional Angle

Point Nr.	Interface Name	Flow Rate [ m3/s ]	Circumferential Angle [ deg ]	Meridional Angle [ deg ]
1	spiral-in	105.000	-93.1605	-67.4651
1	spiral-to-wheel	105.000	136.178	-9.97476
1	wheel-from-spiral	104.927	135.389*	-9.98259*
1	wheel-to-drafttube	105.078	160.632*	3.34137*
1	drafttube-from-wheel	105.078	61.7385	3.44183
1	drafttube-out	105.086	87.0484	101.307
2	spiral-in	100.000	-93.1605	-67.4651
2	spiral-to-wheel	100.000	136.184	-9.82285
2	wheel-from-spiral	99.9291	138.006*	-9.83032*
2	wheel-to-drafttube	100.080	160.726*	2.04004*
2	drafttube-from-wheel	100.080	66.3400	2.07848
2	drafttube-out	100.082	87.9537	100.574
3	spiral-in	95.0000	-93.1605	-67.4651
3	spiral-to-wheel	95.0000	136.190	-9.66137
3	wheel-from-spiral	94.9317	140.657*	-9.66845*
3	wheel-to-drafttube	95.0821	160.752*	0.970429*
3	drafttube-from-wheel	95.0821	72.2027	0.939525
3	drafttube-out	95.0820	87.8993	101.177
4	spiral-in	90.0000	-93.1605	-67.4651
4	spiral-to-wheel	90.0000	136.191	-9.48373
4	wheel-from-spiral	89.9344	143.334*	-9.49040*
4	wheel-to-drafttube	90.0849	160.740*	-0.0394247*
4	drafttube-from-wheel	90.0849	79.5451	-0.0360913
4	drafttube-out	90.0833	89.2774	101.407
5	spiral-in	85.0000	-93.1605	-67.4651
5	spiral-to-wheel	85.0000	136.191	-9.31442
5	wheel-from-spiral	84.9371	146.016*	-9.32052*
5	wheel-to-drafttube	85.0875	160.635*	-0.303240*
5	drafttube-from-wheel	85.0875	88.5518	-0.286793
5	drafttube-out	85.0667	91.0754	101.510
6	spiral-in	80.0000	-93.1605	-67.4651
6	spiral-to-wheel	80.0000	136.197	-9.20779
6	wheel-from-spiral	79.9402	148.670*	-9.21351*
6	wheel-to-drafttube	80.0907	160.458*	-0.112784*
6	drafttube-from-wheel	80.0907	99.2335	-0.0969781
6	drafttube-out	80.0914	92.9069	102.607
7	spiral-in	77.5000	-93.1605	-67.4651
7	spiral-to-wheel	77.5000	136.205	-9.19706
7	wheel-from-spiral	77.4418	149.974*	-9.20254*
7	wheel-to-drafttube	77.5923	160.333*	0.165787*
7	drafttube-from-wheel	77.5923	105.083	0.181921
7	drafttube-out	77.5924	92.8118	100.313
8	spiral-in	75.0000	-93.1605	-67.4651
8	spiral-to-wheel	75.0000	136.218	-9.22687
8	wheel-from-spiral	74.9437	151.256*	-9.23210*
8	wheel-to-drafttube	75.0942	160.156*	0.579914*
8	drafttube-from-wheel	75.0942	111.035	0.590469
8	drafttube-out	75.0936	92.4356	100.398
9	spiral-in	72.5000	-93.1605	-67.4651
9	spiral-to-wheel	72.5000	136.236	-9.31010
9	wheel-from-spiral	72.4459	152.512*	-9.31511*
9	wheel-to-drafttube	72.5964	159.999*	1.44285*
9	drafttube-from-wheel	72.5964	116.773	1.39580
9	drafttube-out	72.5958	94.2485	100.363
10	spiral-in	70.0000	-93.1605	-67.4651
10	spiral-to-wheel	70.0000	136.261	-9.45903
10	wheel-from-spiral	69.9484	153.735*	-9.46370*
10	wheel-to-drafttube	70.0989	160.023*	2.78056*
10	drafttube-from-wheel	70.0989	122.007	2.75476
10	drafttube-out	70.0990	97.2565	100.769

Spiral-in

Spiral-to-wheel

Wheel-from-spiral

Wheel-to-drafttube

Drafttube-from-wheel

​

Drafttube-out

Spiral-in

Spiral-to-wheel

Wheel-from-spiral

Wheel-to-drafttube

Drafttube-from-wheel

​

Drafttube-out

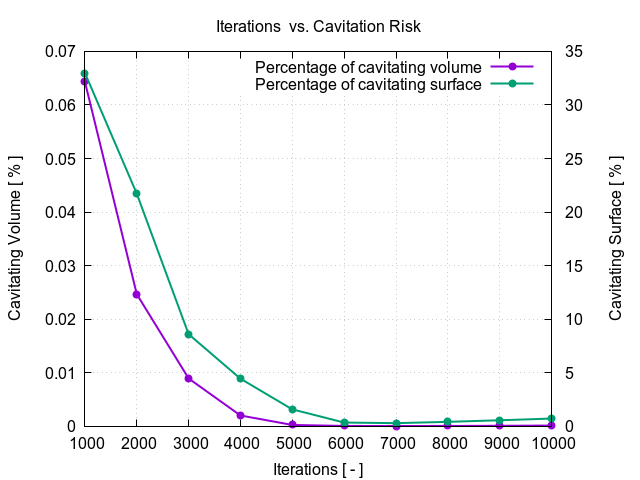

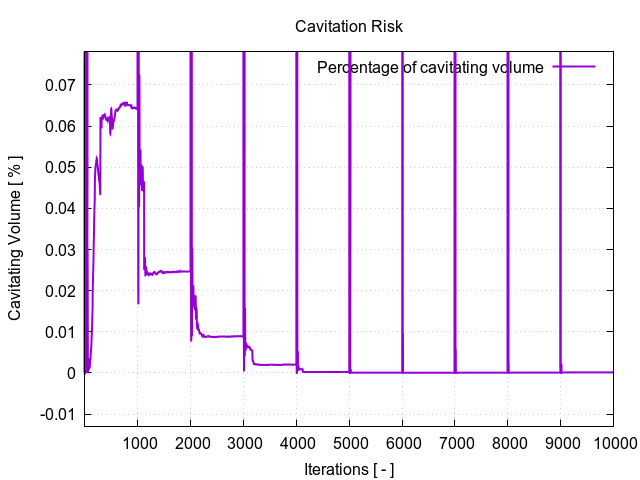

Cavitation Risk

Point Nr.	Flow Rate [ m3/s ]	Cavitating Volume [ m3 ]	Cavitating Volume [ % ]
1	105.000	1.69630	0.0643009
2	100.000	0.650441	0.0246560
3	95.0000	0.235335	0.00892075
4	90.0000	0.0531836	0.00201601
5	85.0000	0.00656844	2.48988 × 10-4
6	80.0000	0.00173427	6.57401 × 10-5
7	77.5000	0.00148831	5.64168 × 10-5
8	75.0000	0.00168634	6.39236 × 10-5
9	72.5000	0.00234589	8.89248 × 10-5
10	70.0000	0.00360264	1.36564 × 10-4

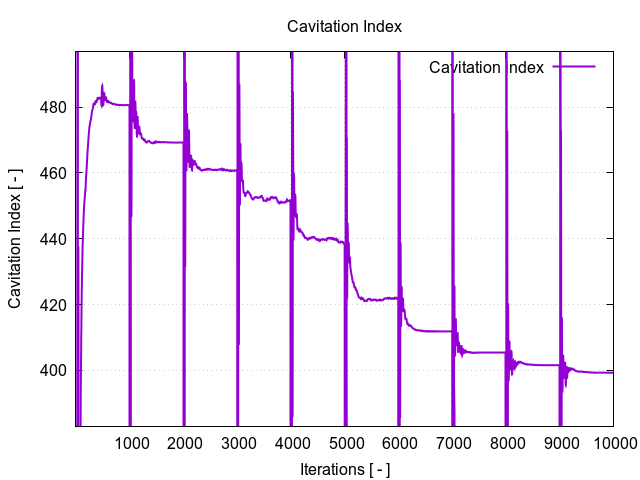

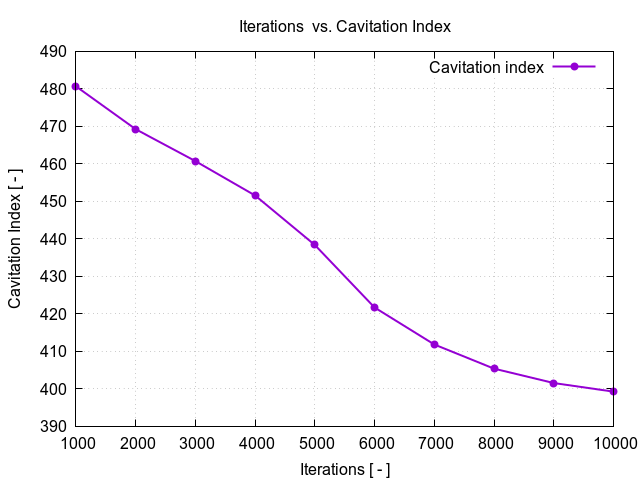

Cavitation Index

Point Nr.	Flow Rate [ m3/s ]	Cavitating Volume [ – ]
1	105.000	480.682
2	100.000	469.252
3	95.0000	460.728
4	90.0000	451.562
5	85.0000	438.361
6	80.0000	421.690
7	77.5000	411.816
8	75.0000	405.376
9	72.5000	401.536
10	70.0000	399.243

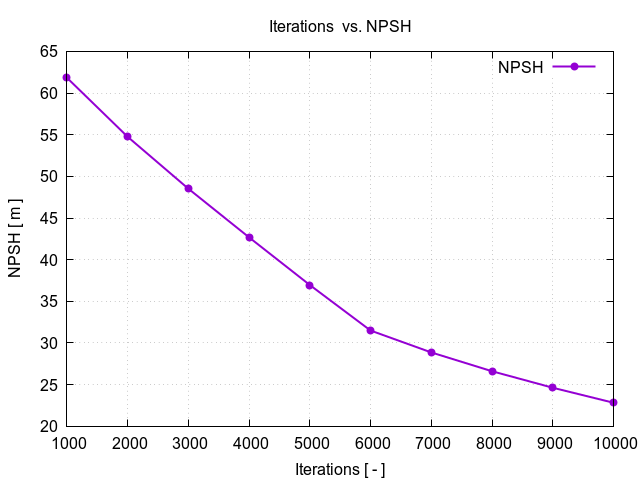

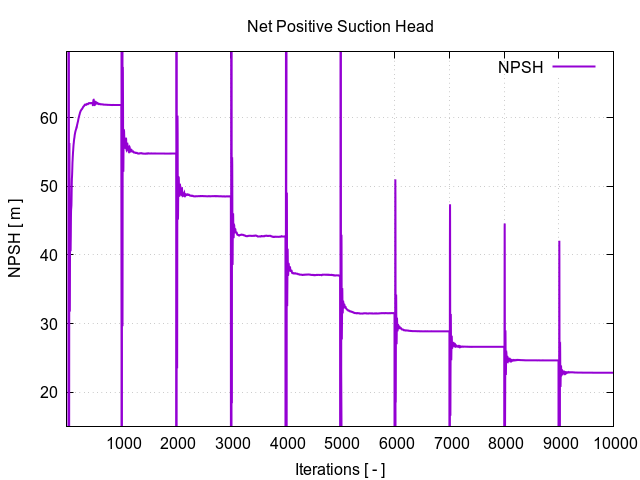

Net Positive Suction Head

Point Nr.	Flow Rate [ m3/s ]	NPSH [ m ]
1	105.000	61.8284
2	100.000	54.7481
3	95.0000	48.5136
4	90.0000	42.6760
5	85.0000	36.9543
6	80.0000	31.4912
7	77.5000	28.8625
8	75.0000	26.6082
9	72.5000	24.6287
10	70.0000	22.8285

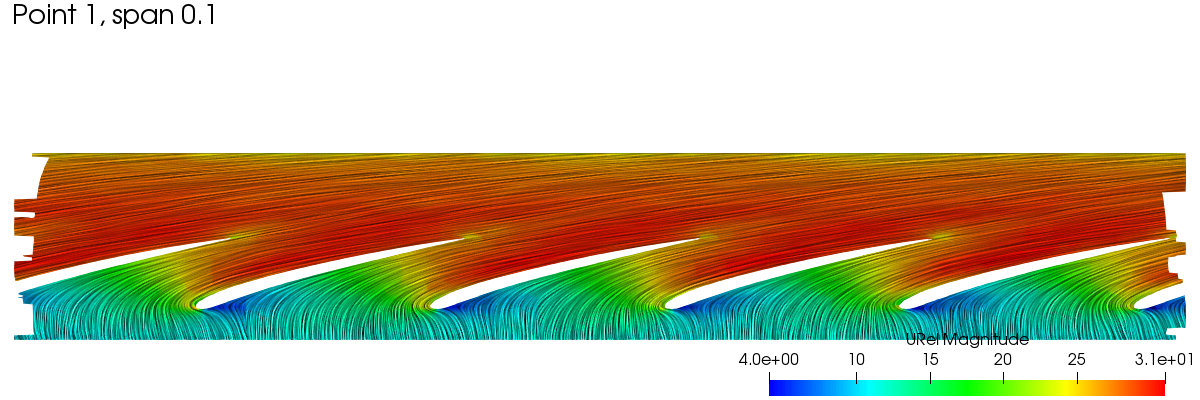

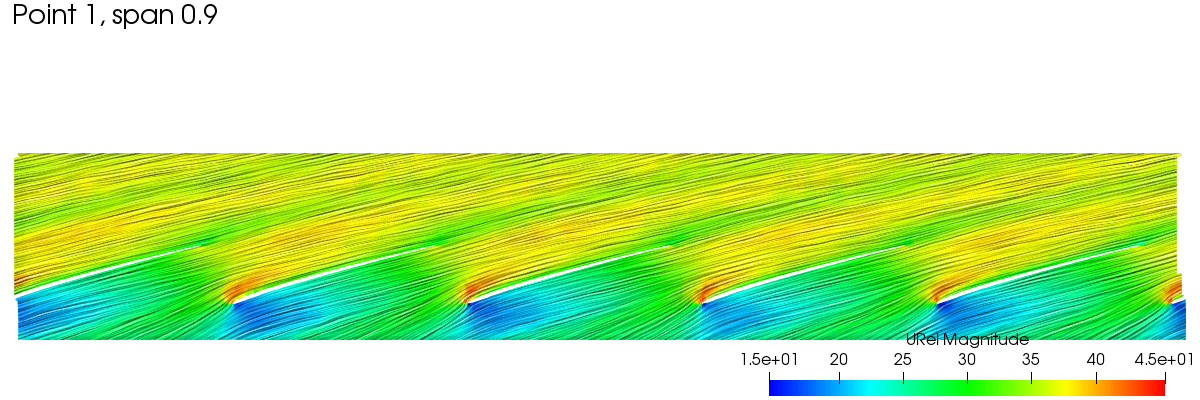

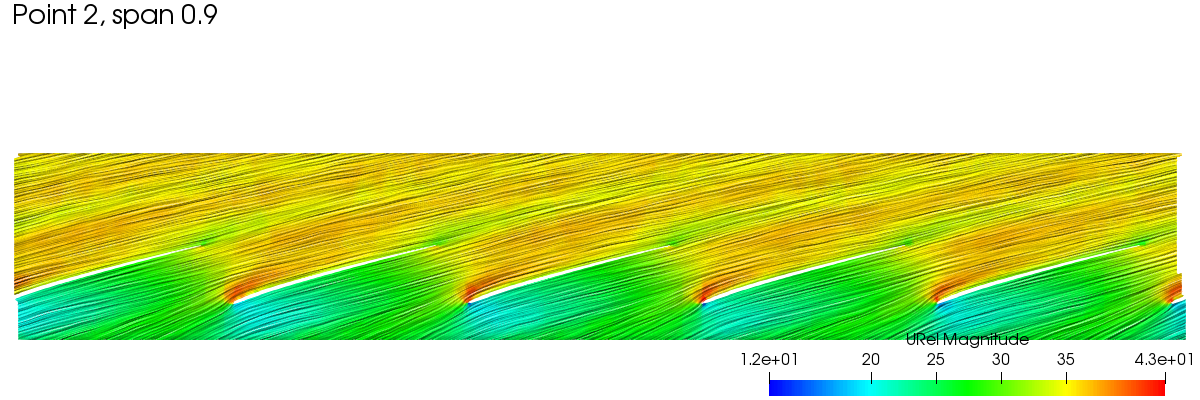

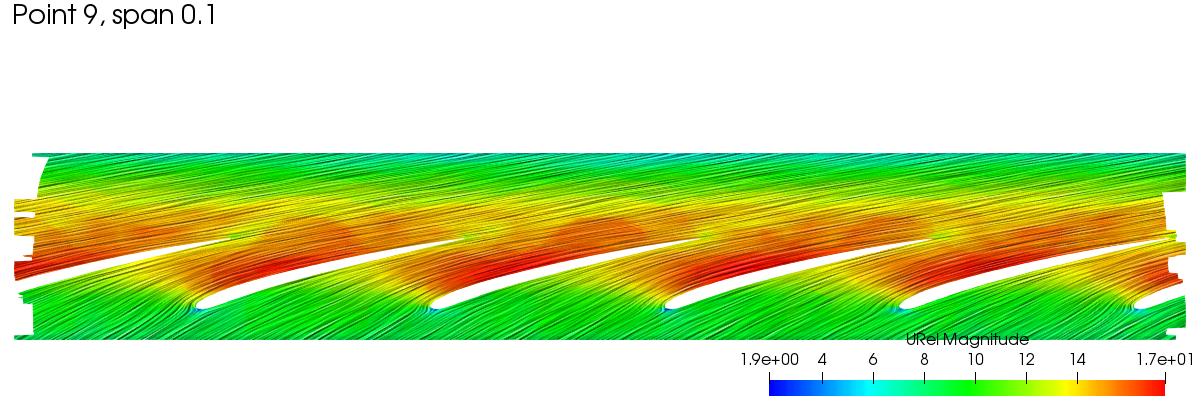

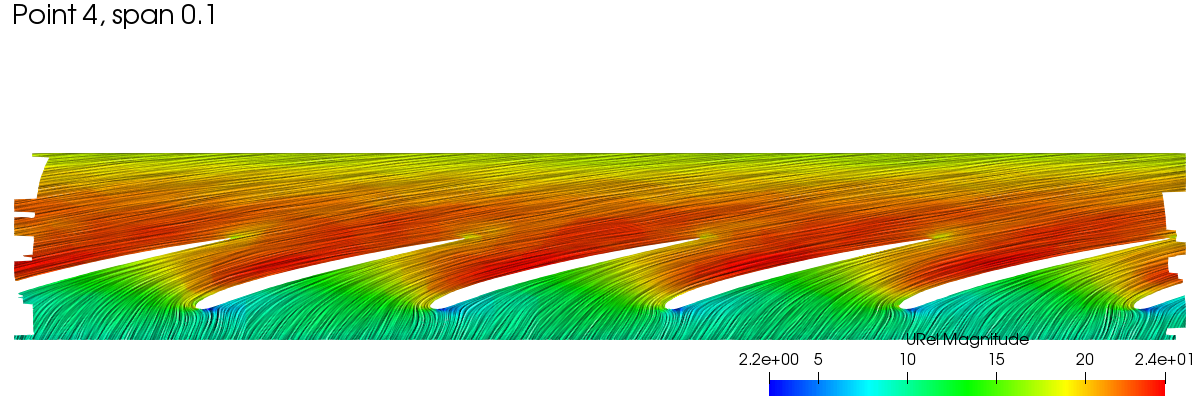

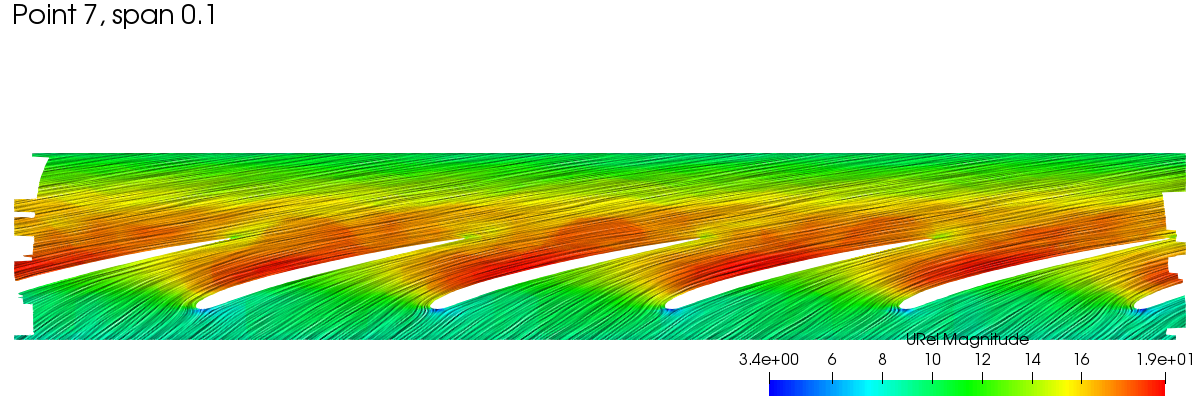

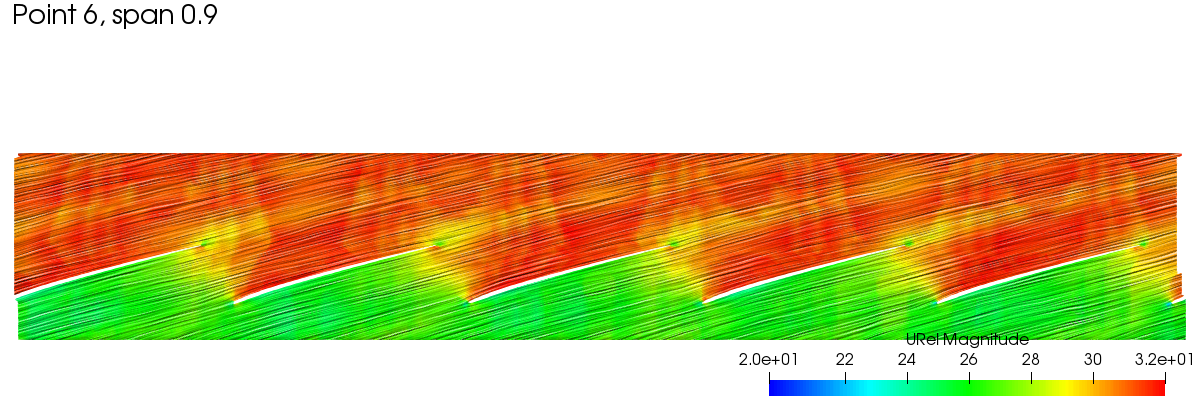

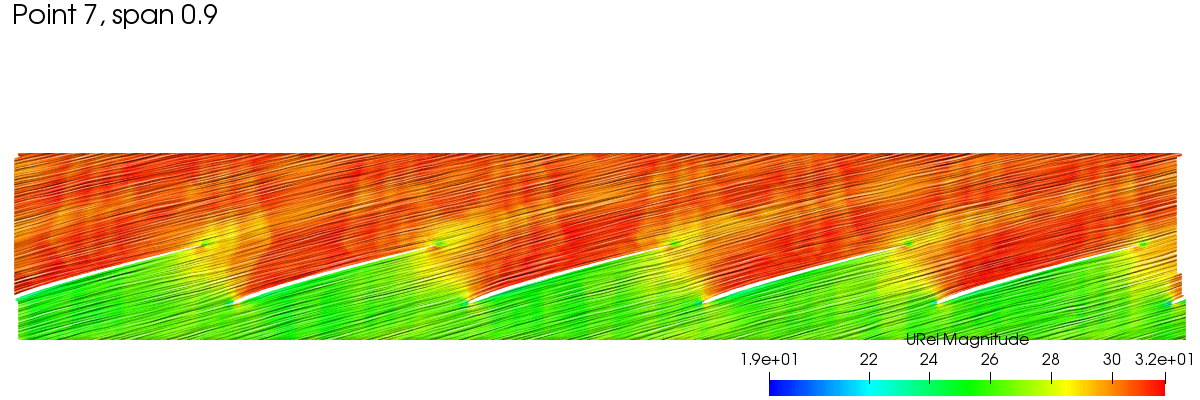

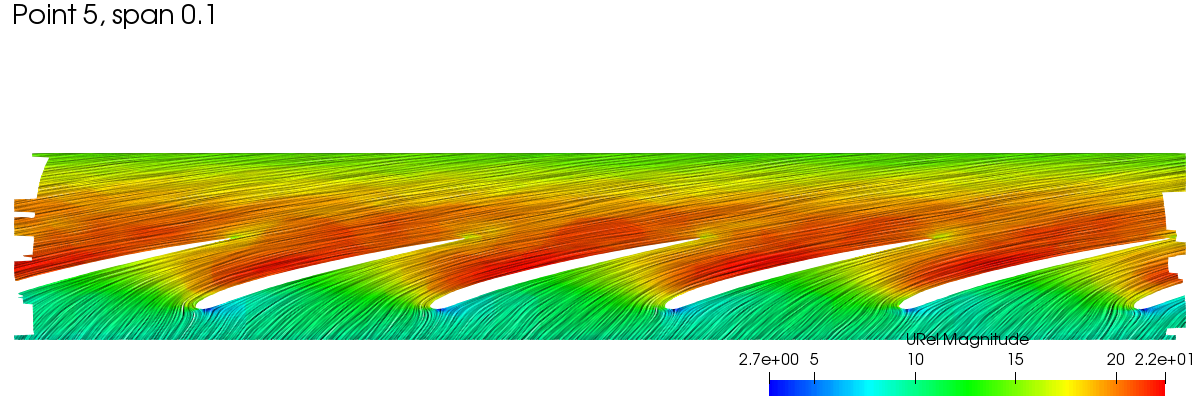

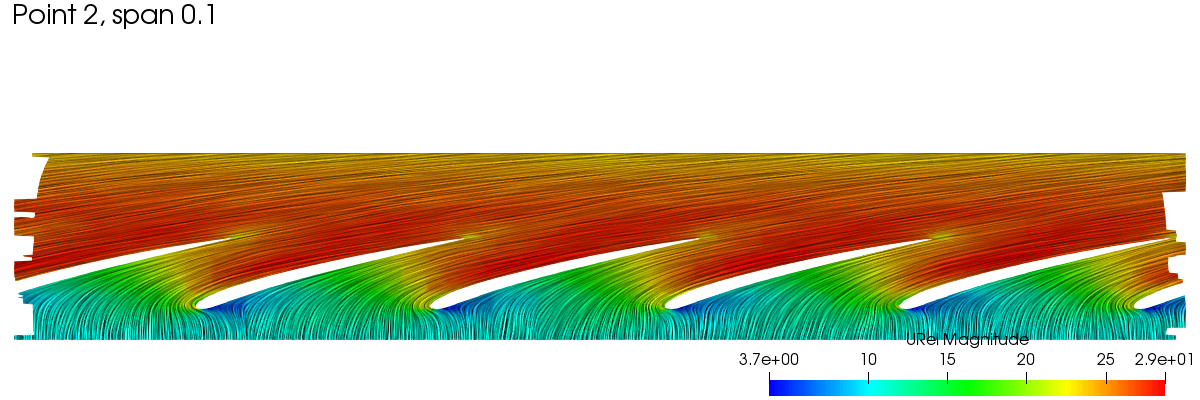

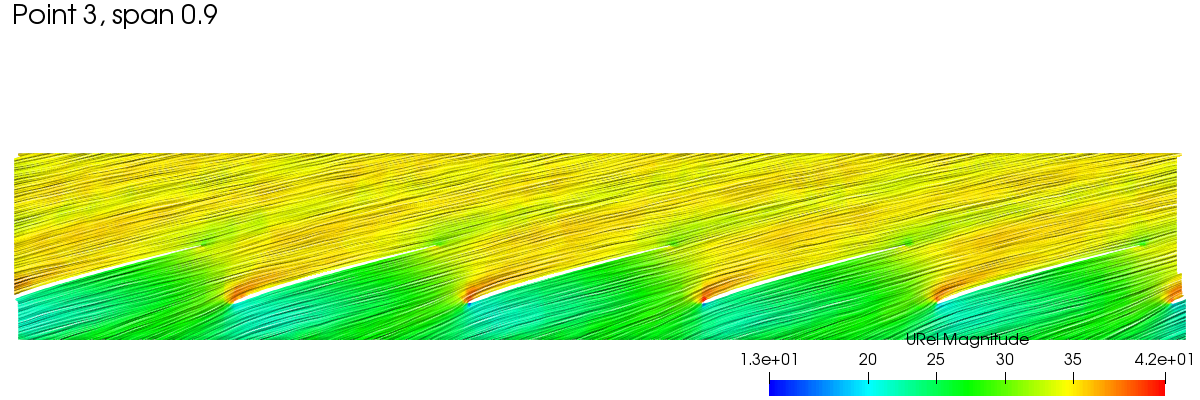

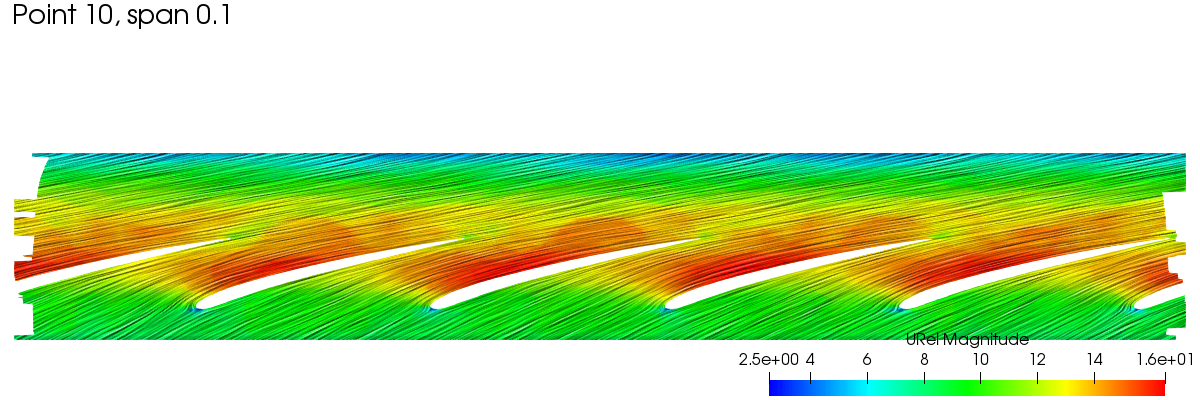

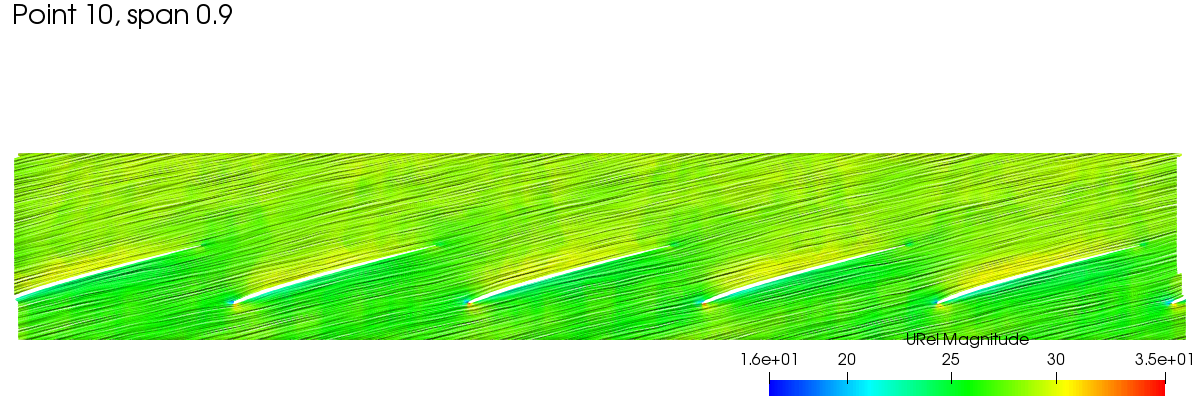

Blade to Blade View

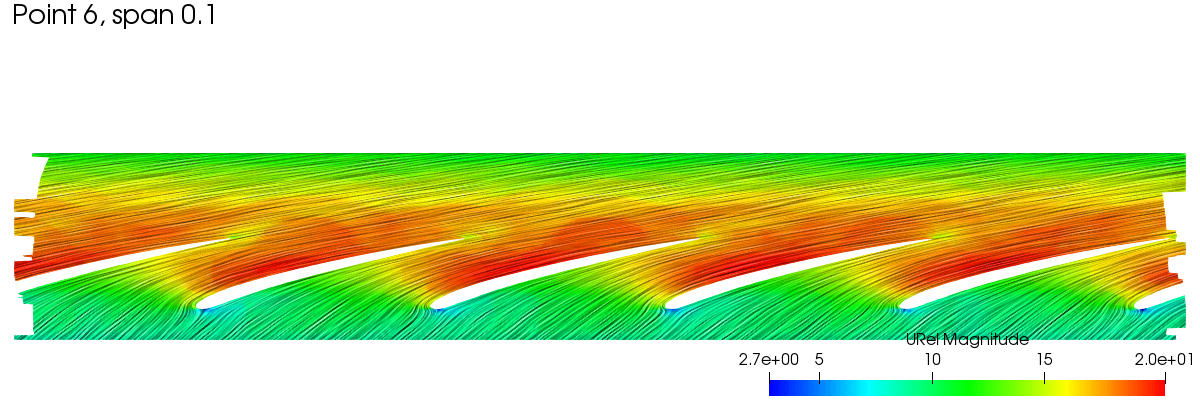

Setup #1

Meshes:	2
Hub patches:	2:hub-rot
Shroud patches:	2:shroud-rot
Field:	URel,LIC
Span:	0.1

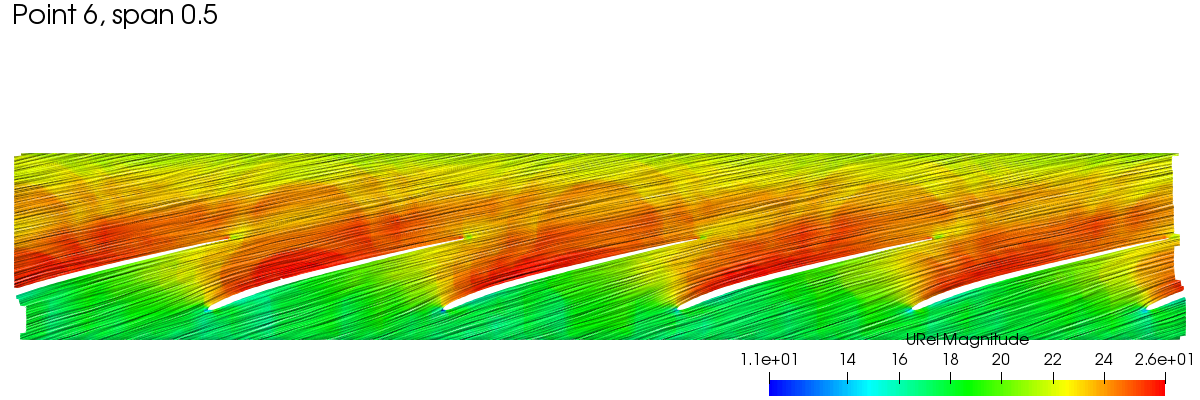

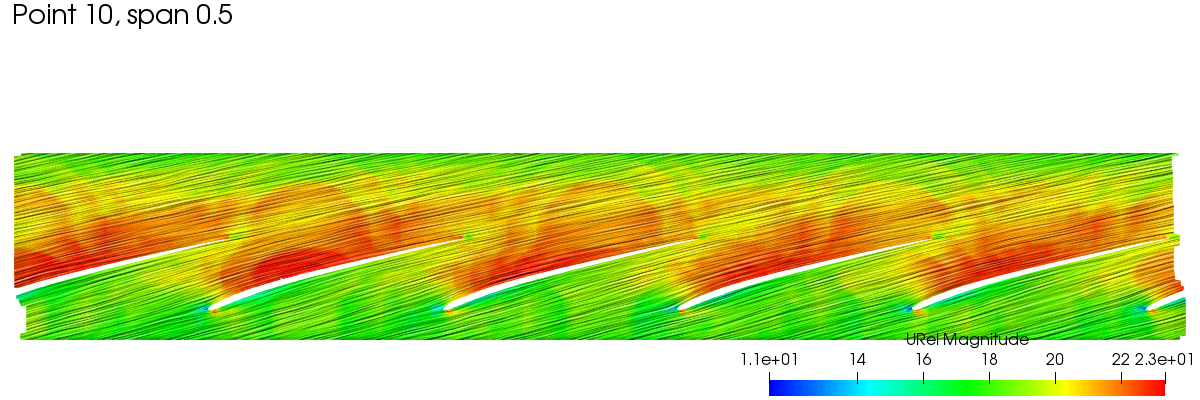

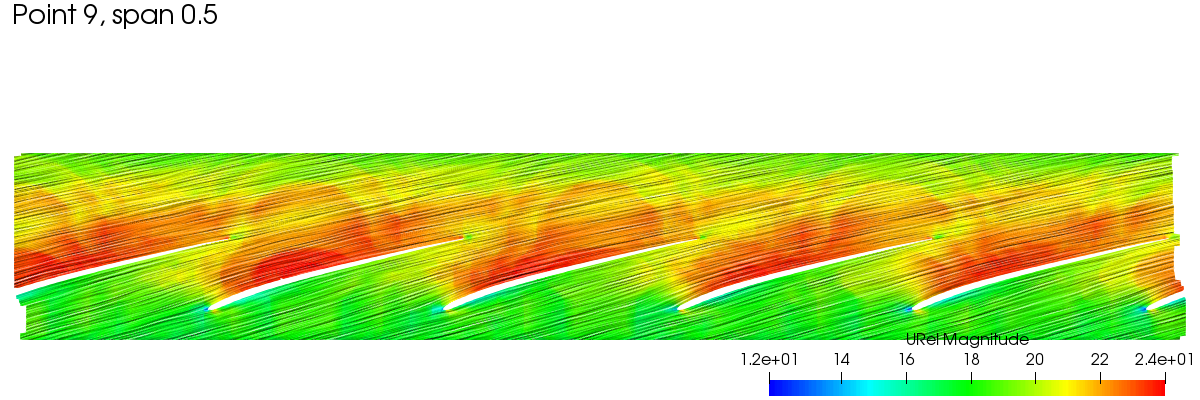

Setup #2

Setup #2
Meshes:	2
Hub patches:	2:hub-rot
Shroud patches:	2:shroud-rot
Field:	URel,LIC
Span:	0.5

Setup #3

Setup #3
Meshes:	2
Hub patches:	2:hub-rot
Shroud patches:	2:shroud-rot
Field:	URel,LIC
Span:	0.9

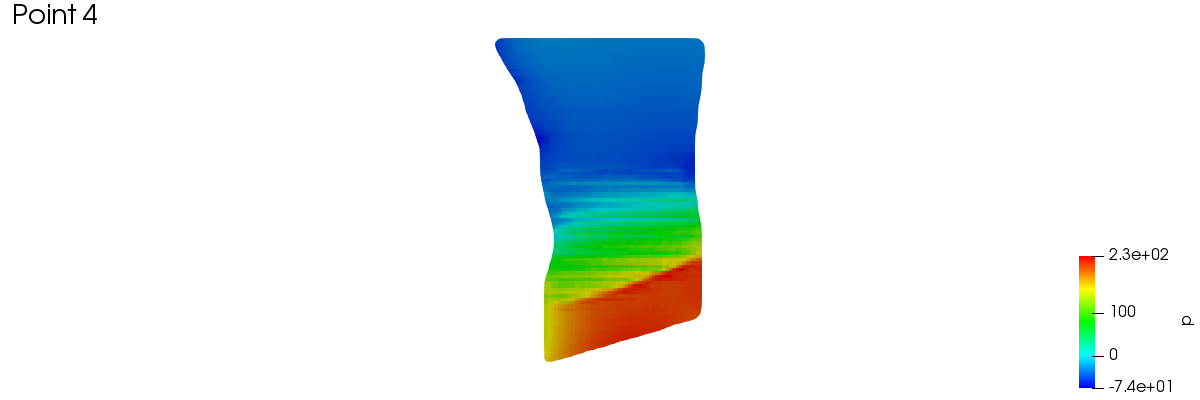

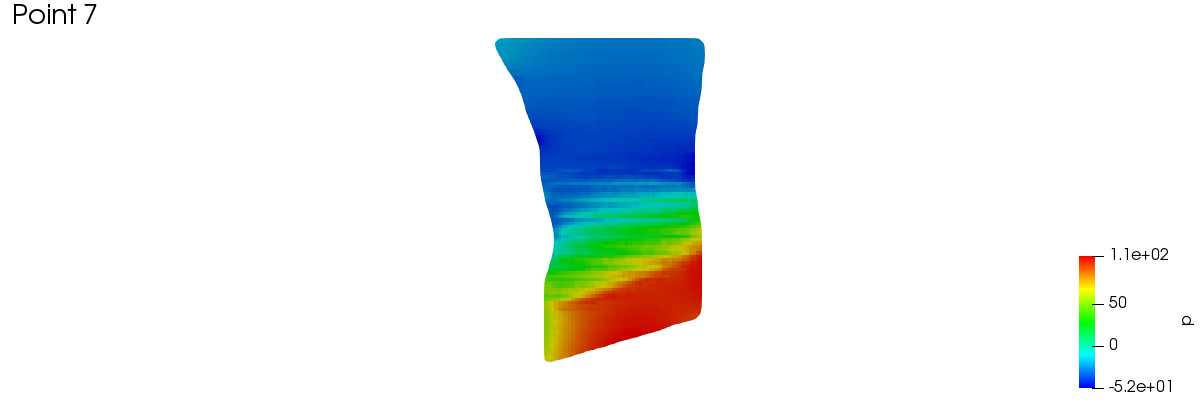

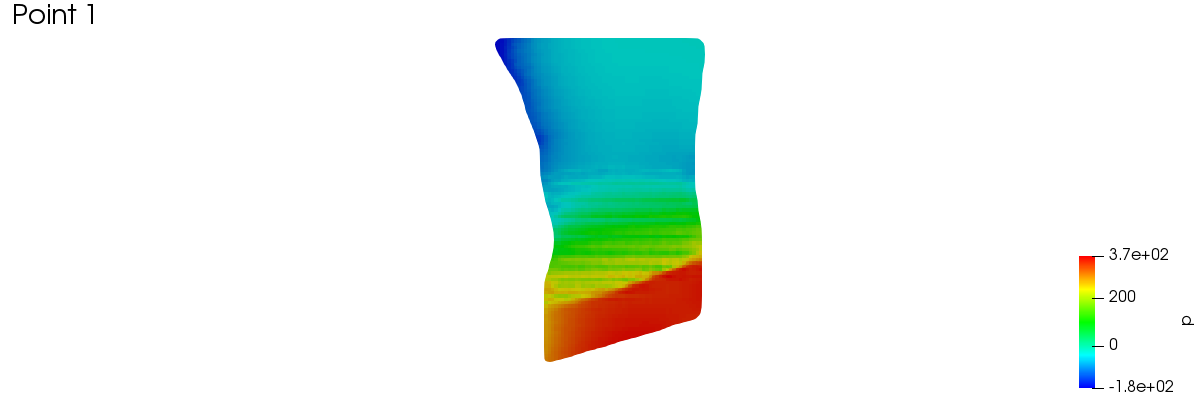

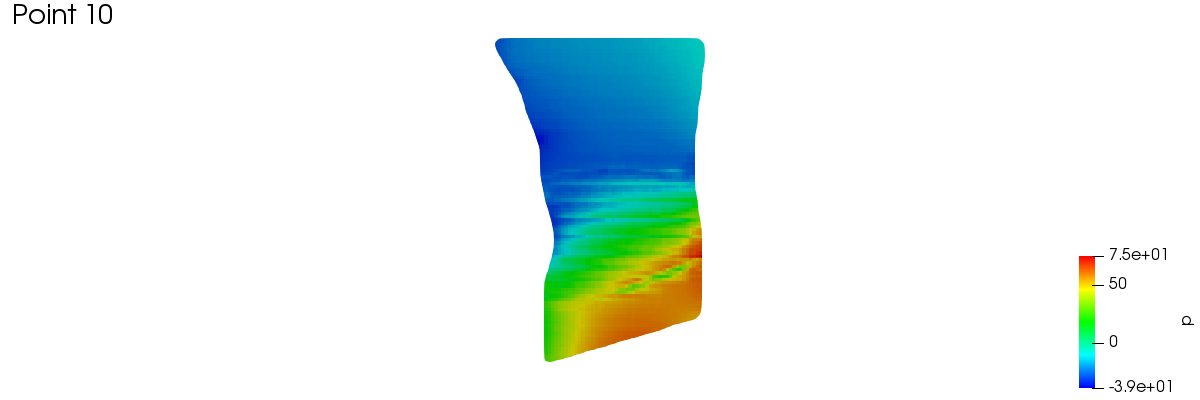

Meridional Average

Setup #1

Setup #1
Meshes:	2
Field:	p

info@cfdsupport.com    +420 212 243 883      © CFD support, s.r.o., Sokolovská 270/201, 19000 Praha 9, Czech Republic

Design: HTML5 UP

TCFD^® 19.10 license is issued for CFDSUPPORT  Test Licence as Limited and will be valid until Oct 06, 2022.
