Hi, this is steady-state CFD simulation report of:

eveningTest

Created by TCFD® 18.10 on Sat Oct 20 01:20:21 2018

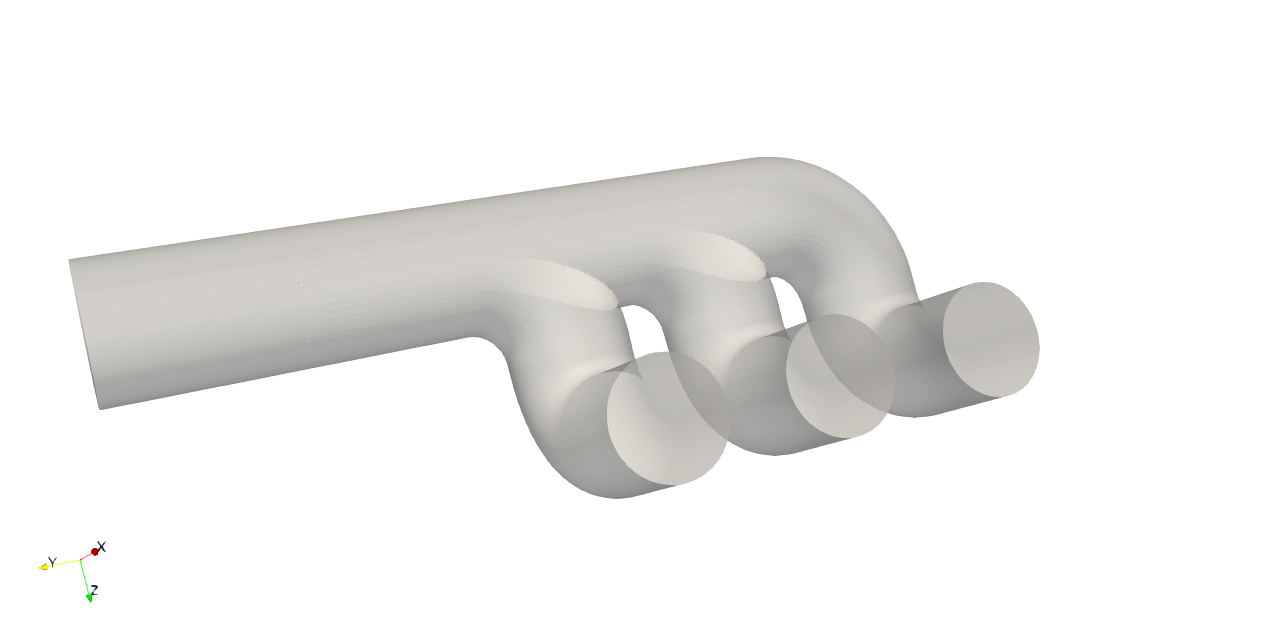

screenshot 23
DISCOVER

Simulation Stats

Test Case Name
eveningTest
Number of Points [ – ]
1
Machine Type
stator
Rotation Speed [ RPM ]
0
Number of Components [ – ]
( topology )
1
Mesh Size [ cells ]
( details )
manifold : 341742
Total : 341742
Average y+ at walls [ – ]
( details )
0
Wall-clock time [ hh:mm:ss ]
00:09:05
Parallel Processors [ – ]
6
Fluid Name
air
Compressibility
compressible
plotFlowRate 1 19
residuum 1 18

Efficiency

1:inlet2,1:inlet1,1:inlet3 — 1:outlet
Point Nr.
Flow Rate [ kg/s ]
Efficiency [ – ]
1
0.00450000
0.999983
flowRateVsEfficiency 1 17
efficiency 1 17

Total Pressure Difference

1:inlet2,1:inlet1,1:inlet3 — 1:outlet
Point Nr.
Flow Rate [ kg/s ]
Total Pressure Difference [ Pa ]
1
0.00450000
-1.74081
flowRateVsTotalPressureDifference 1 16
totalPressureDifference 1 16

Total Pressure Ratio

1:inlet2,1:inlet1,1:inlet3 — 1:outlet
Point Nr.
Flow Rate [ kg/s ]
Total Pressure Ratio [ – ]
1
0.00450000
0.999983
flowRateVsTotalPressureRatio 1 4
totalPressureRatio 1 4

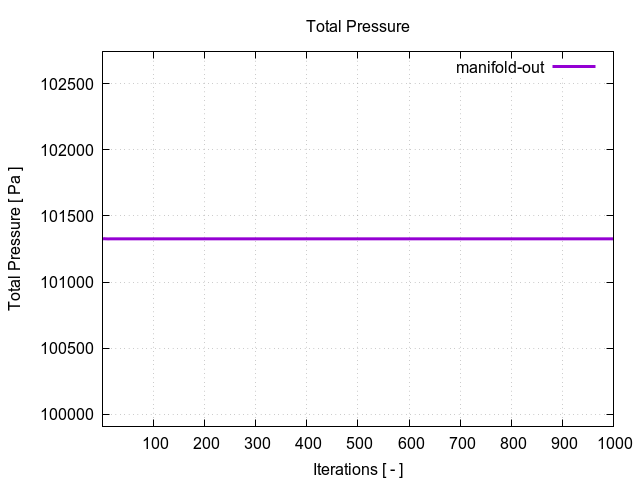

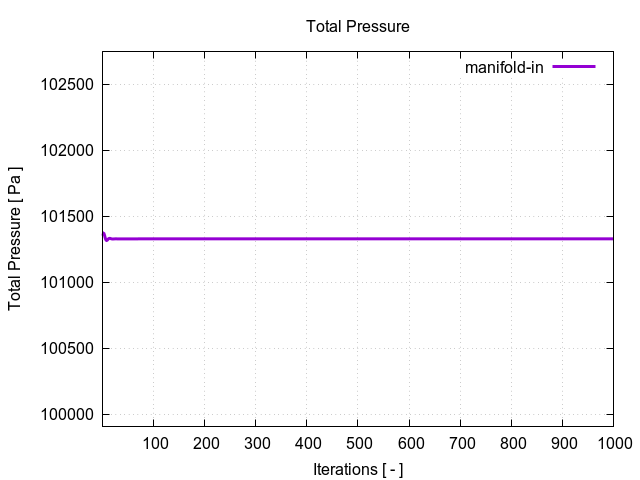

Total Pressure per Interfaces

Point Nr.
Interface Name
Flow Rate [ kg/s ]
Total Pressure [ Pa ]
1
manifold-in
0.00450000
101328.
1
manifold-out
0.00450000
101326.

flowRateVsTotalPressurePerInterfaces manifold in 1

flowRateVsTotalPressurePerInterfaces manifold out 1

totalPressurePerInterfaces manifold in 1

totalPressurePerInterfaces manifold out 1

totalPressureProfile 1 17

Total Temperature Difference

1:inlet2,1:inlet1,1:inlet3 — 1:outlet
Point Nr.
Flow Rate [ kg/s ]
Total Temperature Difference [ K ]
1
0.00450000
-0.343954
flowRateVsTotalTemperatureDifference 1 3
totalTemperatureDifference 1 3

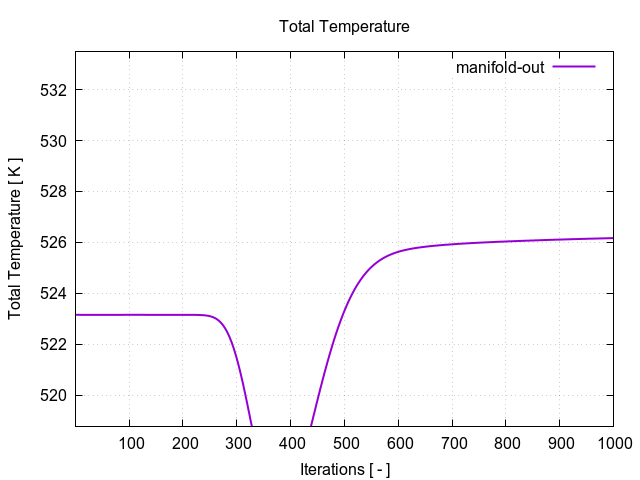

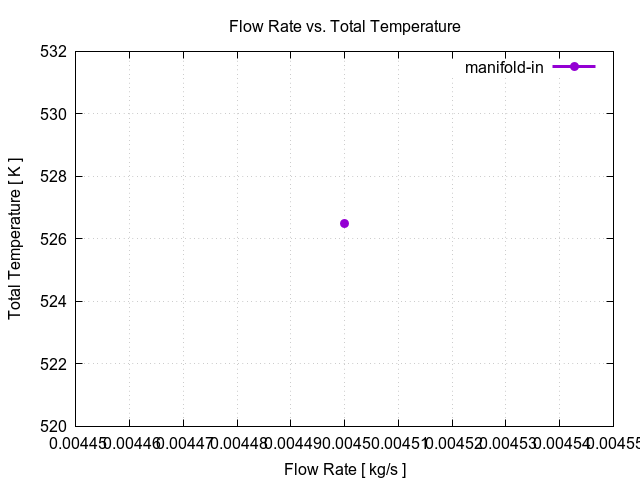

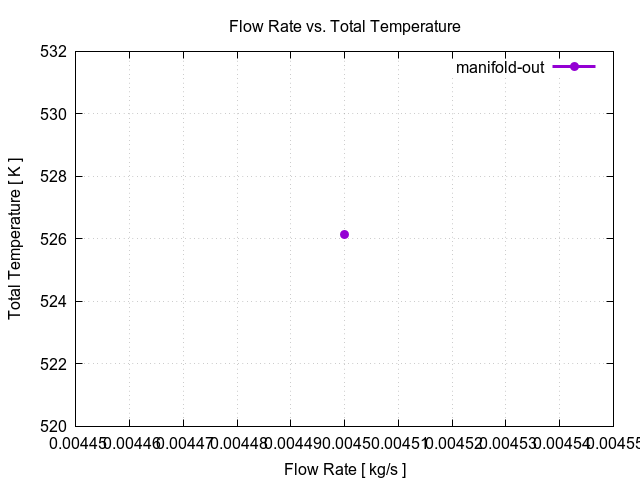

Total Temperature per Interfaces

Point Nr.
Interface Name
Flow Rate [ kg/s ]
Total Temperature [ K ]
1
manifold-in
0.00450000
526.483
1
manifold-out
0.00450000
526.139

flowRateVsTotalTemperaturePerInterfaces manifold in 1

flowRateVsTotalTemperaturePerInterfaces manifold out 1

totalTemperaturePerInterfaces manifold in 1

totalTemperaturePerInterfaces manifold out 1

totalTemperatureProfile 1 3

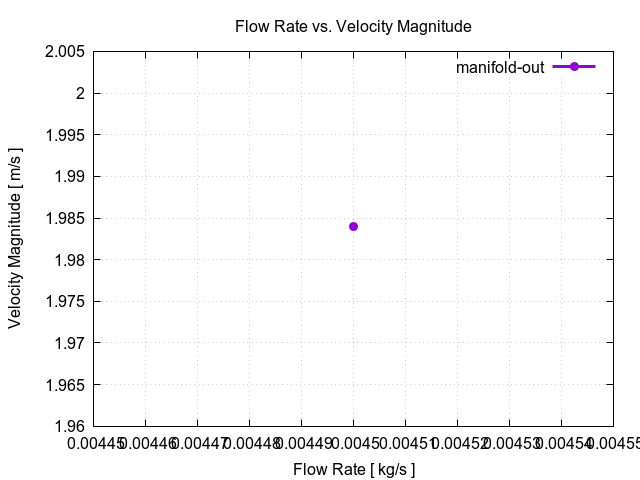

Velocity Magnitude per Interfaces

Point Nr.
Interface Name
Flow Rate [ kg/s ]
Velocity Magnitude [ m/s ]
1
manifold-in
0.00450000
1.44503
1
manifold-out
0.00450000
1.98394

flowRateVsVelocityMagnitudePerInterfaces manifold in 1

flowRateVsVelocityMagnitudePerInterfaces manifold out 1

velocityMagnitudePerInterfaces manifold in 1

velocityMagnitudePerInterfaces manifold out 1

velocityMagnitudeProfile 1 18

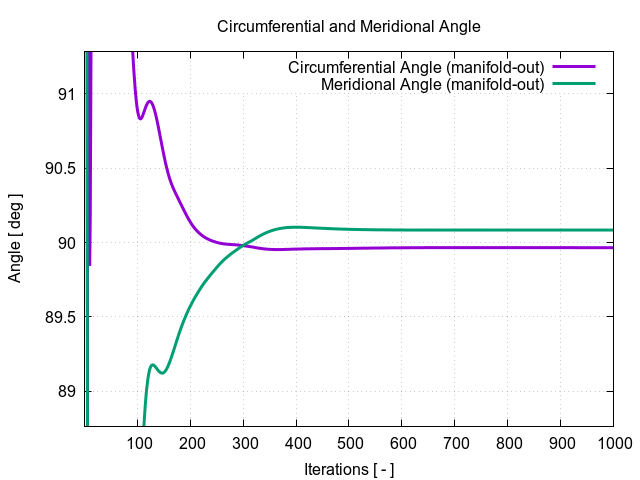

Circumferential and Meridional Angle

Point Nr.
Interface Name
Flow Rate [ kg/s ]
Circumferential Angle [ deg ]
Meridional Angle [ deg ]
1
manifold-in
0.00450000
60.0002
-90.0000
1
manifold-out
0.00450000
89.9658
90.0847

flowRateVsCircumferentialAngle manifold in 1

flowRateVsCircumferentialAngle manifold out 1

circumferentialAngle manifold in 1

circumferentialAngle manifold out 1
