Hi, this is FEA simulation report of:

pipe-tutorial

Created by TFEA 20.09 on Tue Nov 10 11:44:36 2020

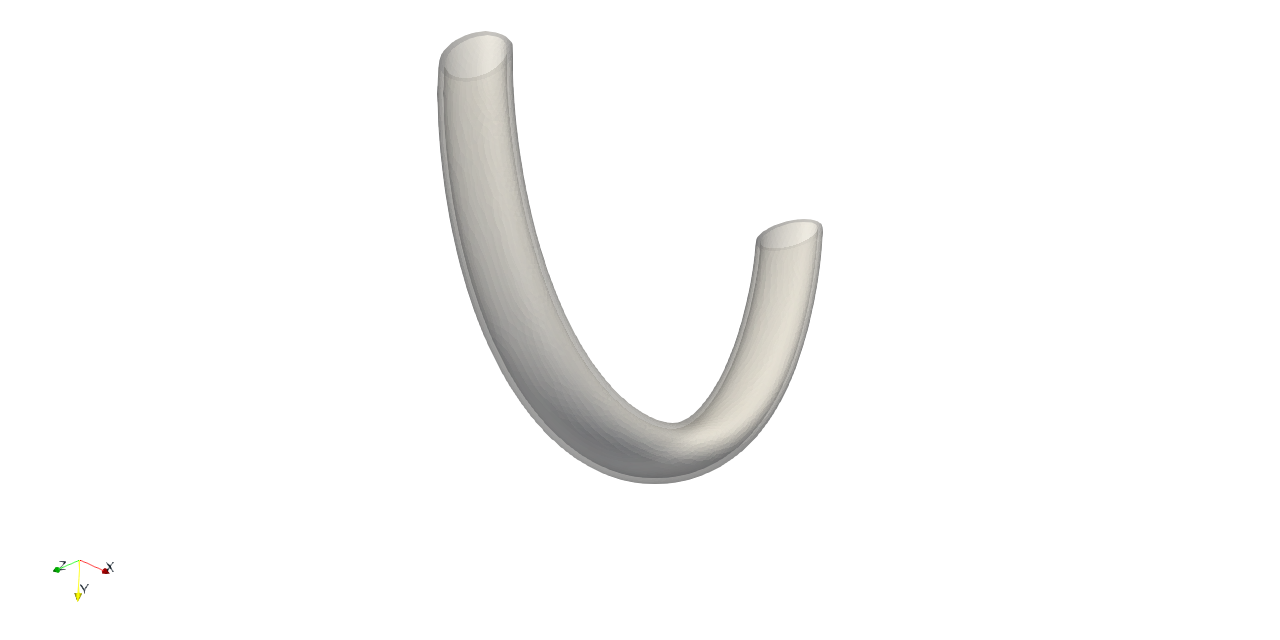

screenshot 7
DISCOVER

General Settings

Fluid-Structure Interaction Performed
yes
Thermal Effects Considered
no
Source for FSI
This TCFD Case
Rotates with CFD frame
static

Material Descrtiption

Name
Polyethylene (HDPE)
Density [ kg/m3 ]
960.000
Type
isotropic
Young Modulus [ MPa ]
900.000
Poisson Ratio [ - ]
0.460000

Solver

Finite Element Order
2
Nonlinear Governing Equation
no

Mesh Statistics

Number of Points
18144
Number of Elements
54006
Number of Surface Elements
36288
Shortest Edge [ mm ]
0.00286900
Longest Edge [ mm ]
0.00827300
Minimal Angle Between Edges [ deg ]
25.6919
Maximal Angle Between Edges [ deg ]
109.832
Minimal Angle Between Faces [ deg ]
9.89038
Maximal Angle Between Faces [ deg ]
164.470

Speedline #1 Point #1

Run time information

Wall time [ hh:mm:ss ]
00:00:30

Static Analysis

Quantity
Value
Node
X-coordinate
Y-coordinate
Z-coordinate
MaxDispAbs [ m ]
6.59334 × 10-4
184
0.424956
6.00000 × 10-16
0.00131861
MinDispAbs [ m ]
0
1
0
0
0.0350000
MaxDispX [ m ]
3.59887 × 10-4
79
0.419969
-4.00000 × 10-16
3.77798 × 10-4
MinDispX [ m ]
-1.84054 × 10-4
18120
0.198720
0.315349
0.00112007
MaxDispY [ m ]
5.52453 × 10-4
184
0.424956
6.00000 × 10-16
0.00131861
MinDispY [ m ]
-2.65353 × 10-6
10622
-0.0124090
0.0791364
0.00274189
MaxDispZ [ m ]
6.65640 × 10-6
88899
0.135854
0.270980
-0.0372366
MinDispZ [ m ]
-6.64534 × 10-6
93594
0.135023
0.271161
0.0372929
MaxMises [ Pa ]
133914.
43690
-0.0194072
0.0105539
0.0242570
MinMises [ Pa ]
0.00828828
18253
-0.0106398
-7.50000 × 10-16
-0.0361353
MaxPrincipleStress [ Pa ]
162118.
40733
0.155598
0.281760
0.0347183
MinPrincipleStress [ Pa ]
-172201.
43690
-0.0194072
0.0105539
0.0242570

Speedline #1 Point #2

Run time information

Wall time [ hh:mm:ss ]
00:00:30

Static Analysis

Quantity
Value
Node
X-coordinate
Y-coordinate
Z-coordinate
MaxDispAbs [ m ]
0.00415246
184
0.424956
6.00000 × 10-16
0.00131861
MinDispAbs [ m ]
0
1
0
0
0.0350000
MaxDispX [ m ]
0.00225719
79
0.419969
-4.00000 × 10-16
3.77798 × 10-4
MinDispX [ m ]
-0.00116750
18120
0.198720
0.315349
0.00112007
MaxDispY [ m ]
0.00348541
184
0.424956
6.00000 × 10-16
0.00131861
MinDispY [ m ]
-1.71716 × 10-5
10622
-0.0124090
0.0791364
0.00274189
MaxDispZ [ m ]
4.15500 × 10-5
88899
0.135854
0.270980
-0.0372366
MinDispZ [ m ]
-4.14119 × 10-5
93594
0.135023
0.271161
0.0372929
MaxMises [ Pa ]
853191.
43690
-0.0194072
0.0105539
0.0242570
MinMises [ Pa ]
0.0530759
18253
-0.0106398
-7.50000 × 10-16
-0.0361353
MaxPrincipleStress [ Pa ]
1.00979 × 106
40733
0.155598
0.281760
0.0347183
MinPrincipleStress [ Pa ]
-1.09732 × 106
43690
-0.0194072
0.0105539
0.0242570

Speedline #1 Point #3

Run time information

Wall time [ hh:mm:ss ]
00:00:29

Static Analysis

Quantity
Value
Node
X-coordinate
Y-coordinate
Z-coordinate
MaxDispAbs [ m ]
0.0166351
184
0.424956
6.00000 × 10-16
0.00131861
MinDispAbs [ m ]
0
1
0
0
0.0350000
MaxDispX [ m ]
0.00902845
79
0.419969
-4.00000 × 10-16
3.77798 × 10-4
MinDispX [ m ]
-0.00468950
18120
0.198720
0.315349
0.00112007
MaxDispY [ m ]
0.0139719
184
0.424956
6.00000 × 10-16
0.00131861
MinDispY [ m ]
-6.94723 × 10-5
10622
-0.0124090
0.0791364
0.00274189
MaxDispZ [ m ]
1.65962 × 10-4
88899
0.135854
0.270980
-0.0372366
MinDispZ [ m ]
-1.65132 × 10-4
93594
0.135023
0.271161
0.0372929
MaxMises [ Pa ]
3.43247 × 106
43690
-0.0194072
0.0105539
0.0242570
MinMises [ Pa ]
0.213967
18253
-0.0106398
-7.50000 × 10-16
-0.0361353
MaxPrincipleStress [ Pa ]
4.02780 × 106
40733
0.155598
0.281760
0.0347183
MinPrincipleStress [ Pa ]
-4.41493 × 106
43690
-0.0194072
0.0105539
0.0242570
