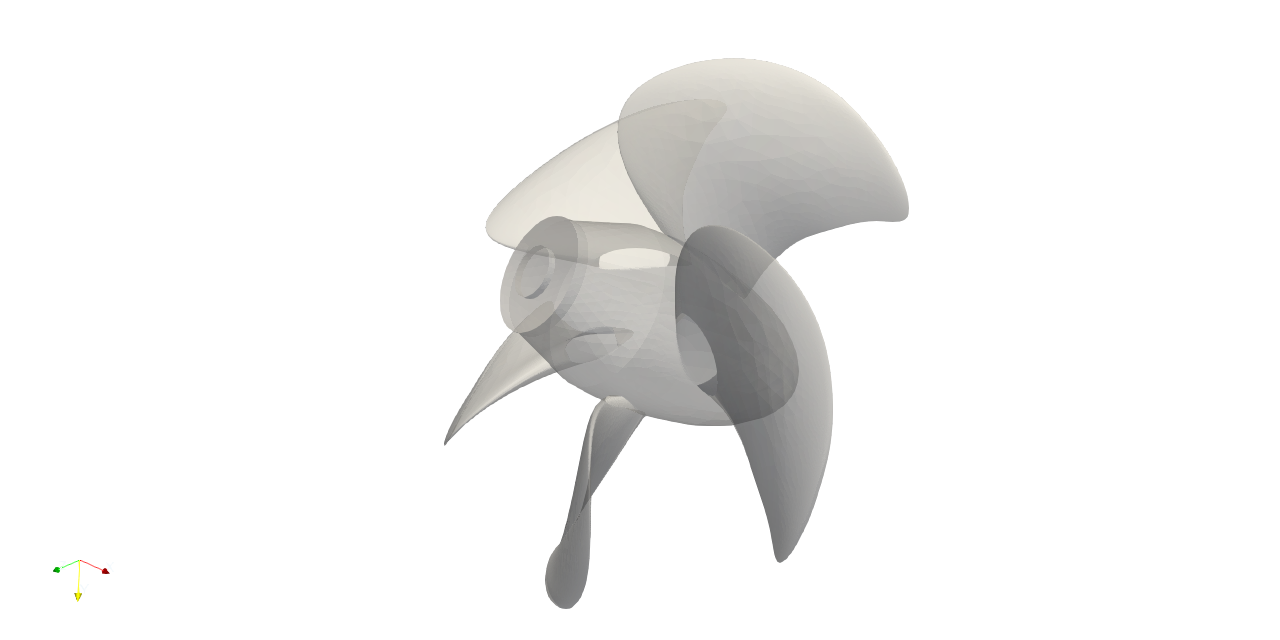

Potsdam-Propeller-CFD+FEA+FSI CFD Simulation Resuls

Run time information

Wall time [ hh:mm:ss ]

02:33:06

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.0145301	422	0.0163454	-0.0426737	0.116990
MinDispAbs [ mm ]	0	602	0.0937398	0.00131519	0.00105192
MaxDispX [ mm ]	0.00753875	3237	-0.0397417	-0.0877805	-0.0418221
MinDispX [ mm ]	-0.0109294	434	0.0169864	-0.0440048	0.116360
MaxDispY [ mm ]	0.00894291	3414	0.0183091	-0.0298140	-0.120444
MinDispY [ mm ]	-0.00955563	370	0.0133900	-0.0362945	0.119586
MaxDispX [ mm ]	0.00830612	342366	0.0109810	0.105864	0.0664424
MinDispZ [ mm ]	-0.00941909	1867	0.0165730	-0.124390	-0.00495423
MaxMises [ MPa ]	893.700	479473	0.00990946	0.0298003	0.0234528
MinMises [ MPa ]	0	602	0.0937398	0.00131519	0.00105192
MaxPrincipleStress [ MPa ]	997.697	479473	0.00990946	0.0298003	0.0234528
MinPrincipleStress [ MPa ]	-384.223	421882	0.00997136	0.0298970	0.0235025

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	4.72113 × 10⁷	6871.05	0
2	5.12362 × 10⁷	7157.94	0
3	5.12914 × 10⁷	7161.80	0
4	5.14536 × 10⁷	7173.12	0
5	5.14791 × 10⁷	7174.89	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.432745	0.00709315	-0.00568649	-0.0615862	6.61882 × 10^-4	-5.06062 × 10^-4
2	-0.00785009	0.321450	0.0461913	0.00115744	0.0269353	-0.00130774
3	-0.00699019	0.144751	-0.311562	9.60709 × 10^-4	0.00691307	-0.0277059
4	-2.45853 × 10^-4	-0.139158	-0.213596	3.08468 × 10^-5	-0.0147219	-0.0151761
5	-0.00504191	-0.0417064	-0.0228995	7.14215 × 10^-4	-0.00376668	-0.00121902

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.187268	5.03128 × 10^-5	3.23361 × 10^-5	0.00379286	4.38087 × 10^-7	2.56099 × 10^-7
2	6.16238 × 10^-5	0.103330	0.00213364	1.33967 × 10^-6	7.25509 × 10^-4	1.71020 × 10^-6
3	4.88627 × 10^-5	0.0209529	0.0970707	9.22962 × 10^-7	4.77905 × 10^-5	7.67616 × 10^-4
4	6.04438 × 10^-8	0.0193649	0.0456231	9.51523 × 10^-10	2.16735 × 10^-4	2.30314 × 10^-4
5	2.54208 × 10^-5	0.00173942	5.24385 × 10^-4	5.10103 × 10^-7	1.41879 × 10^-5	1.48600 × 10^-6
Total	0.187404	0.145438	0.145384	0.00379563	0.00100466	0.00100138

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
4.80675	4.80675	4.80675	0.00897960	0.00953115	0.00952622

Run time information

Wall time [ hh:mm:ss ]

02:28:56

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.0164716	3361	0.0136499	-0.0403403	-0.118250
MinDispAbs [ mm ]	0	602	0.0937398	0.00131519	0.00105192
MaxDispX [ mm ]	0.00525388	3256	-0.0424385	-0.0849324	-0.0367122
MinDispX [ mm ]	-0.0120450	3361	0.0136499	-0.0403403	-0.118250
MaxDispY [ mm ]	0.0102838	10941	0.0168243	-0.0327413	-0.119965
MinDispY [ mm ]	-0.0109588	370	0.0133900	-0.0362945	0.119586
MaxDispX [ mm ]	0.00987439	6543	0.0101341	0.106907	0.0647548
MinDispZ [ mm ]	-0.0109315	1816	0.0138429	-0.124908	0.00137043
MaxMises [ MPa ]	779.817	479473	0.00990946	0.0298003	0.0234528
MinMises [ MPa ]	0	602	0.0937398	0.00131519	0.00105192
MaxPrincipleStress [ MPa ]	866.499	479473	0.00990946	0.0298003	0.0234528
MinPrincipleStress [ MPa ]	-324.825	421882	0.00997136	0.0298970	0.0235025

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	4.72116 × 10⁷	6871.07	0
2	5.12344 × 10⁷	7157.82	0
3	5.12917 × 10⁷	7161.82	0
4	5.14542 × 10⁷	7173.15	0
5	5.14800 × 10⁷	7174.95	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.432746	0.00701861	-0.00567145	-0.0615856	6.58552 × 10^-4	-5.03779 × 10^-4
2	-0.00799711	0.319832	0.0448210	0.00113387	0.0267805	-0.00139802
3	-0.00711281	0.143934	-0.313625	9.56986 × 10^-4	0.00681245	-0.0278547
4	2.11617 × 10^-4	-0.140751	-0.209328	-3.45408 × 10^-5	-0.0147865	-0.0148138
5	-0.00492762	-0.0508520	-0.0342118	7.15824 × 10^-4	-0.00469112	-0.00199897

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.187269	4.92609 × 10^-5	3.21653 × 10^-5	0.00379279	4.33691 × 10^-7	2.53793 × 10^-7
2	6.39538 × 10^-5	0.102292	0.00200892	1.28567 × 10^-6	7.17196 × 10^-4	1.95445 × 10^-6
3	5.05920 × 10^-5	0.0207169	0.0983605	9.15822 × 10^-7	4.64094 × 10^-5	7.75885 × 10^-4
4	4.47819 × 10^-8	0.0198109	0.0438180	1.19307 × 10^-9	2.18639 × 10^-4	2.19448 × 10^-4
5	2.42815 × 10^-5	0.00258593	0.00117045	5.12405 × 10^-7	2.20066 × 10^-5	3.99588 × 10^-6
Total	0.187408	0.145455	0.145390	0.00379551	0.00100469	0.00100154

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
4.80675	4.80675	4.80675	0.00897960	0.00953115	0.00952622

Run time information

Wall time [ hh:mm:ss ]

02:28:07

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.0187731	3361	0.0136499	-0.0403403	-0.118250
MinDispAbs [ mm ]	0	602	0.0937398	0.00131519	0.00105192
MaxDispX [ mm ]	0.00285681	4961	-0.0445605	0.00502846	-0.0863921
MinDispX [ mm ]	-0.0135237	3361	0.0136499	-0.0403403	-0.118250
MaxDispY [ mm ]	0.0118546	10927	0.0154332	-0.0351310	-0.119408
MinDispY [ mm ]	-0.0127319	370	0.0133900	-0.0362945	0.119586
MaxDispX [ mm ]	0.0118622	6528	0.00288331	0.114710	0.0496367
MinDispZ [ mm ]	-0.0126958	1816	0.0138429	-0.124908	0.00137043
MaxMises [ MPa ]	641.480	479473	0.00990946	0.0298003	0.0234528
MinMises [ MPa ]	0	602	0.0937398	0.00131519	0.00105192
MaxPrincipleStress [ MPa ]	717.310	479473	0.00990946	0.0298003	0.0234528
MinPrincipleStress [ MPa ]	-274.409	421882	0.00997136	0.0298970	0.0235025

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	4.72118 × 10⁷	6871.09	0
2	5.12349 × 10⁷	7157.86	0
3	5.12914 × 10⁷	7161.80	0
4	5.14540 × 10⁷	7173.14	0
5	5.14796 × 10⁷	7174.93	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.432748	0.00700474	-0.00569094	-0.0615853	6.57380 × 10^-4	-5.05470 × 10^-4
2	-0.00799186	0.320564	0.0439171	0.00113536	0.0268235	-0.00148051
3	-0.00710285	0.142855	-0.313613	9.54047 × 10^-4	0.00672701	-0.0278389
4	6.81147 × 10^-5	-0.141421	-0.210333	-1.12211 × 10^-5	-0.0148640	-0.0148782
5	-0.00494423	-0.0471311	-0.0290750	7.17873 × 10^-4	-0.00430915	-0.00163735

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.187271	4.90664 × 10^-5	3.23868 × 10^-5	0.00379274	4.32149 × 10^-7	2.55500 × 10^-7
2	6.38698 × 10^-5	0.102761	0.00192871	1.28904 × 10^-6	7.19498 × 10^-4	2.19192 × 10^-6
3	5.04505 × 10^-5	0.0204077	0.0983532	9.10206 × 10^-7	4.52527 × 10^-5	7.75006 × 10^-4
4	4.63961 × 10^-9	0.0199999	0.0442397	1.25914 × 10^-10	2.20939 × 10^-4	2.21362 × 10^-4
5	2.44454 × 10^-5	0.00222134	8.45356 × 10^-4	5.15341 × 10^-7	1.85688 × 10^-5	2.68092 × 10^-6
Total	0.187410	0.145439	0.145399	0.00379546	0.00100469	0.00100150

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
4.80675	4.80675	4.80675	0.00897960	0.00953115	0.00952622

Run time information

Wall time [ hh:mm:ss ]

02:30:58

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.0218575	3361	0.0136499	-0.0403403	-0.118250
MinDispAbs [ mm ]	0	602	0.0937398	0.00131519	0.00105192
MaxDispX [ mm ]	9.10326 × 10^-4	12390	-0.0438678	0.00154491	-0.0719855
MinDispX [ mm ]	-0.0155887	3361	0.0136499	-0.0403403	-0.118250
MaxDispY [ mm ]	0.0139378	25466	0.0143271	-0.0371747	-0.118903
MinDispY [ mm ]	-0.0150216	370	0.0133900	-0.0362945	0.119586
MaxDispX [ mm ]	0.0146384	6745	-3.46291 × 10^-4	0.117165	0.0427037
MinDispZ [ mm ]	-0.0149826	1816	0.0138429	-0.124908	0.00137043
MaxMises [ MPa ]	543.953	479473	0.00990946	0.0298003	0.0234528
MinMises [ MPa ]	0	602	0.0937398	0.00131519	0.00105192
MaxPrincipleStress [ MPa ]	607.391	479473	0.00990946	0.0298003	0.0234528
MinPrincipleStress [ MPa ]	-225.693	421882	0.00997136	0.0298970	0.0235025

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	4.72176 × 10⁷	6871.51	0
2	5.12357 × 10⁷	7157.91	0
3	5.12974 × 10⁷	7162.22	0
4	5.14506 × 10⁷	7172.90	0
5	5.14811 × 10⁷	7175.03	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.432600	0.00648664	-0.00536619	-0.0615838	6.31994 × 10^-4	-4.68535 × 10^-4
2	-0.00804493	0.325003	0.0401978	0.00117050	0.0271274	-0.00185296
3	-0.00624944	0.134355	-0.317734	8.26049 × 10^-4	0.00597597	-0.0280391
4	-3.11852 × 10^-4	-0.137345	-0.202484	3.98492 × 10^-5	-0.0144041	-0.0143010
5	-0.00467124	-0.0534698	-0.0419095	7.18155 × 10^-4	-0.00502536	-0.00258020

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.187142	4.20764 × 10^-5	2.87960 × 10^-5	0.00379257	3.99416 × 10^-7	2.19525 × 10^-7
2	6.47209 × 10^-5	0.105627	0.00161586	1.37006 × 10^-6	7.35898 × 10^-4	3.43348 × 10^-6
3	3.90555 × 10^-5	0.0180514	0.100955	6.82357 × 10^-7	3.57123 × 10^-5	7.86189 × 10^-4
4	9.72518 × 10^-8	0.0188635	0.0409997	1.58796 × 10^-9	2.07477 × 10^-4	2.04519 × 10^-4
5	2.18205 × 10^-5	0.00285902	0.00175641	5.15746 × 10^-7	2.52542 × 10^-5	6.65742 × 10^-6
Total	0.187268	0.145443	0.145356	0.00379514	0.00100474	0.00100102

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
4.80675	4.80675	4.80675	0.00897960	0.00953115	0.00952622

Run time information

Wall time [ hh:mm:ss ]

02:26:40

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.0246428	3361	0.0136499	-0.0403403	-0.118250
MinDispAbs [ mm ]	0	602	0.0937398	0.00131519	0.00105192
MaxDispX [ mm ]	2.87788 × 10^-4	45881	-0.0345696	0.00423117	-0.0550076
MinDispX [ mm ]	-0.0175273	3361	0.0136499	-0.0403403	-0.118250
MaxDispY [ mm ]	0.0157574	25463	0.0140249	-0.0377901	-0.118755
MinDispY [ mm ]	-0.0171727	634	0.00291958	-0.0118354	0.124426
MaxDispX [ mm ]	0.0171323	6064	-0.00745111	0.119633	0.0284489
MinDispZ [ mm ]	-0.0168972	1816	0.0138429	-0.124908	0.00137043
MaxMises [ MPa ]	487.691	479473	0.00990946	0.0298003	0.0234528
MinMises [ MPa ]	0	602	0.0937398	0.00131519	0.00105192
MaxPrincipleStress [ MPa ]	544.782	479473	0.00990946	0.0298003	0.0234528
MinPrincipleStress [ MPa ]	-200.350	421882	0.00997136	0.0298970	0.0235025

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	4.72116 × 10⁷	6871.07	0
2	5.12347 × 10⁷	7157.85	0
3	5.12916 × 10⁷	7161.81	0
4	5.14541 × 10⁷	7173.15	0
5	5.14796 × 10⁷	7174.93	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.432745	0.00701428	-0.00566684	-0.0615857	6.58663 × 10^-4	-5.03464 × 10^-4
2	-0.00799331	0.320169	0.0449705	0.00113513	0.0268075	-0.00138846
3	-0.00709592	0.144000	-0.313266	9.54166 × 10^-4	0.00682608	-0.0278290
4	8.01724 × 10^-5	-0.141075	-0.210537	-1.27528 × 10^-5	-0.0148387	-0.0149009
5	-0.00494461	-0.0473924	-0.0296504	7.18006 × 10^-4	-0.00433943	-0.00168007

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.187268	4.92001 × 10^-5	3.21131 × 10^-5	0.00379280	4.33836 × 10^-7	2.53476 × 10^-7
2	6.38930 × 10^-5	0.102508	0.00202235	1.28852 × 10^-6	7.18643 × 10^-4	1.92781 × 10^-6
3	5.03521 × 10^-5	0.0207360	0.0981357	9.10432 × 10^-7	4.65954 × 10^-5	7.74451 × 10^-4
4	6.42762 × 10^-9	0.0199021	0.0443258	1.62633 × 10^-10	2.20186 × 10^-4	2.22036 × 10^-4
5	2.44492 × 10^-5	0.00224604	8.79149 × 10^-4	5.15532 × 10^-7	1.88307 × 10^-5	2.82263 × 10^-6
Total	0.187407	0.145441	0.145395	0.00379551	0.00100469	0.00100149

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
4.80675	4.80675	4.80675	0.00897960	0.00953115	0.00952622

Run time information

Wall time [ hh:mm:ss ]

02:31:00

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.0298548	6064	-0.00745111	0.119633	0.0284489
MinDispAbs [ mm ]	0	602	0.0937398	0.00131519	0.00105192
MaxDispX [ mm ]	1.08725 × 10^-4	515580	-0.0227044	-0.0323512	0.0292424
MinDispX [ mm ]	-0.0214407	6064	-0.00745111	0.119633	0.0284489
MaxDispY [ mm ]	0.0187560	5365	-0.00605649	0.0663437	-0.103983
MinDispY [ mm ]	-0.0203937	647	0.00171095	-0.00920247	0.124603
MaxDispX [ mm ]	0.0207695	6064	-0.00745111	0.119633	0.0284489
MinDispZ [ mm ]	-0.0197372	1816	0.0138429	-0.124908	0.00137043
MaxMises [ MPa ]	435.438	479473	0.00990946	0.0298003	0.0234528
MinMises [ MPa ]	0	602	0.0937398	0.00131519	0.00105192
MaxPrincipleStress [ MPa ]	487.808	479473	0.00990946	0.0298003	0.0234528
MinPrincipleStress [ MPa ]	-179.021	421882	0.00997136	0.0298970	0.0235025

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	4.72116 × 10⁷	6871.07	0
2	5.12348 × 10⁷	7157.85	0
3	5.12916 × 10⁷	7161.81	0
4	5.14541 × 10⁷	7173.15	0
5	5.14796 × 10⁷	7174.93	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.432746	0.00701731	-0.00566879	-0.0615857	6.58727 × 10^-4	-5.03551 × 10^-4
2	-0.00799481	0.320159	0.0449586	0.00113532	0.0268068	-0.00138912
3	-0.00709622	0.144002	-0.313264	9.54193 × 10^-4	0.00682626	-0.0278288
4	7.76483 × 10^-5	-0.141115	-0.210561	-1.22346 × 10^-5	-0.0148423	-0.0149020
5	-0.00494423	-0.0473128	-0.0295375	7.18122 × 10^-4	-0.00433120	-0.00167210

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.187269	4.92427 × 10^-5	3.21352 × 10^-5	0.00379280	4.33922 × 10^-7	2.53563 × 10^-7
2	6.39170 × 10^-5	0.102502	0.00202127	1.28894 × 10^-6	7.18605 × 10^-4	1.92966 × 10^-6
3	5.03564 × 10^-5	0.0207367	0.0981345	9.10484 × 10^-7	4.65978 × 10^-5	7.74443 × 10^-4
4	6.02926 × 10^-9	0.0199134	0.0443361	1.49686 × 10^-10	2.20294 × 10^-4	2.22070 × 10^-4
5	2.44455 × 10^-5	0.00223851	8.72463 × 10^-4	5.15699 × 10^-7	1.87593 × 10^-5	2.79591 × 10^-6
Total	0.187408	0.145440	0.145397	0.00379552	0.00100469	0.00100149

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
4.80675	4.80675	4.80675	0.00897960	0.00953115	0.00952622

Run time information

Wall time [ hh:mm:ss ]

02:32:34

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.0362955	6064	-0.00745111	0.119633	0.0284489
MinDispAbs [ mm ]	0	602	0.0937398	0.00131519	0.00105192
MaxDispX [ mm ]	1.00034 × 10^-4	3342	0.0199130	-0.00792846	-0.0362992
MinDispX [ mm ]	-0.0264107	6064	-0.00745111	0.119633	0.0284489
MaxDispY [ mm ]	0.0224888	5365	-0.00605649	0.0663437	-0.103983
MinDispY [ mm ]	-0.0242104	8644	2.33220 × 10^-5	-0.00596890	0.124654
MaxDispX [ mm ]	0.0248919	6064	-0.00745111	0.119633	0.0284489
MinDispZ [ mm ]	-0.0231755	1816	0.0138429	-0.124908	0.00137043
MaxMises [ MPa ]	417.861	6064	-0.00745111	0.119633	0.0284489
MinMises [ MPa ]	0	602	0.0937398	0.00131519	0.00105192
MaxPrincipleStress [ MPa ]	448.607	479473	0.00990946	0.0298003	0.0234528
MinPrincipleStress [ MPa ]	-205.461	391675	0.0135706	-0.0402576	-0.118260

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	4.72116 × 10⁷	6871.07	0
2	5.12348 × 10⁷	7157.85	0
3	5.12916 × 10⁷	7161.81	0
4	5.14541 × 10⁷	7173.15	0
5	5.14796 × 10⁷	7174.93	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.432745	0.00701832	-0.00566796	-0.0615857	6.58731 × 10^-4	-5.03603 × 10^-4
2	-0.00799486	0.320217	0.0449756	0.00113539	0.0268118	-0.00138859
3	-0.00709447	0.143983	-0.313239	9.53927 × 10^-4	0.00682512	-0.0278266
4	6.29275 × 10^-5	-0.141120	-0.210657	-1.01416 × 10^-5	-0.0148444	-0.0149096
5	-0.00494687	-0.0469567	-0.0290764	7.18295 × 10^-4	-0.00429501	-0.00164020

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.187268	4.92568 × 10^-5	3.21258 × 10^-5	0.00379280	4.33926 × 10^-7	2.53616 × 10^-7
2	6.39177 × 10^-5	0.102539	0.00202280	1.28911 × 10^-6	7.18872 × 10^-4	1.92819 × 10^-6
3	5.03316 × 10^-5	0.0207312	0.0981188	9.09977 × 10^-7	4.65822 × 10^-5	7.74321 × 10^-4
4	3.95987 × 10^-9	0.0199149	0.0443762	1.02853 × 10^-10	2.20355 × 10^-4	2.22297 × 10^-4
5	2.44715 × 10^-5	0.00220493	8.45439 × 10^-4	5.15948 × 10^-7	1.84471 × 10^-5	2.69025 × 10^-6
Total	0.187407	0.145439	0.145395	0.00379552	0.00100469	0.00100149

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
4.80675	4.80675	4.80675	0.00897960	0.00953115	0.00952622

Run time information

Wall time [ hh:mm:ss ]

02:32:37

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.0429662	6064	-0.00745111	0.119633	0.0284489
MinDispAbs [ mm ]	0	602	0.0937398	0.00131519	0.00105192
MaxDispX [ mm ]	1.15921 × 10^-4	3342	0.0199130	-0.00792846	-0.0362992
MinDispX [ mm ]	-0.0315097	6064	-0.00745111	0.119633	0.0284489
MaxDispY [ mm ]	0.0263514	5365	-0.00605649	0.0663437	-0.103983
MinDispY [ mm ]	-0.0283065	8644	2.33220 × 10^-5	-0.00596890	0.124654
MaxDispX [ mm ]	0.0292063	6064	-0.00745111	0.119633	0.0284489
MinDispZ [ mm ]	-0.0268646	1816	0.0138429	-0.124908	0.00137043
MaxMises [ MPa ]	488.169	6064	-0.00745111	0.119633	0.0284489
MinMises [ MPa ]	0	602	0.0937398	0.00131519	0.00105192
MaxPrincipleStress [ MPa ]	433.767	479473	0.00990946	0.0298003	0.0234528
MinPrincipleStress [ MPa ]	-245.783	391675	0.0135706	-0.0402576	-0.118260

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	4.72115 × 10⁷	6871.06	0
2	5.12363 × 10⁷	7157.95	0
3	5.12856 × 10⁷	7161.40	0
4	5.14249 × 10⁷	7171.11	0
5	5.14820 × 10⁷	7175.09	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.432750	0.00704049	-0.00566838	-0.0615863	6.60576 × 10^-4	-5.03646 × 10^-4
2	-0.00765550	0.307430	0.0575468	0.00108338	0.0259633	-1.66898 × 10^-4
3	-0.00750357	0.175425	-0.290057	0.00100712	0.00975420	-0.0264290
4	-5.53860 × 10^-4	-0.135661	-0.238959	7.80195 × 10^-5	-0.0148427	-0.0173210
5	-0.00516922	-0.0414267	-0.0271476	7.42308 × 10^-4	-0.00381591	-0.00157488

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.187272	4.95685 × 10^-5	3.21305 × 10^-5	0.00379288	4.36360 × 10^-7	2.53659 × 10^-7
2	5.86066 × 10^-5	0.0945132	0.00331163	1.17372 × 10^-6	6.74095 × 10^-4	2.78550 × 10^-8
3	5.63036 × 10^-5	0.0307737	0.0841331	1.01430 × 10^-6	9.51445 × 10^-5	6.98492 × 10^-4
4	3.06761 × 10^-7	0.0184040	0.0571014	6.08704 × 10^-9	2.20306 × 10^-4	3.00016 × 10^-4
5	2.67208 × 10^-5	0.00171617	7.36992 × 10^-4	5.51021 × 10^-7	1.45611 × 10^-5	2.48025 × 10^-6
Total	0.187414	0.145457	0.145315	0.00379562	0.00100454	0.00100127

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
4.80675	4.80675	4.80675	0.00897960	0.00953115	0.00952622

Run time information

Wall time [ hh:mm:ss ]

02:32:46

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.0502027	6064	-0.00745111	0.119633	0.0284489
MinDispAbs [ mm ]	0	602	0.0937398	0.00131519	0.00105192
MaxDispX [ mm ]	1.33032 × 10^-4	3342	0.0199130	-0.00792846	-0.0362992
MinDispX [ mm ]	-0.0370156	6064	-0.00745111	0.119633	0.0284489
MaxDispY [ mm ]	0.0305959	5365	-0.00605649	0.0663437	-0.103983
MinDispY [ mm ]	-0.0327741	8650	-3.77463 × 10^-4	-0.00502214	0.124640
MaxDispX [ mm ]	0.0339108	6064	-0.00745111	0.119633	0.0284489
MinDispZ [ mm ]	-0.0309555	1816	0.0138429	-0.124908	0.00137043
MaxMises [ MPa ]	564.002	6064	-0.00745111	0.119633	0.0284489
MinMises [ MPa ]	0	602	0.0937398	0.00131519	0.00105192
MaxPrincipleStress [ MPa ]	437.644	479473	0.00990946	0.0298003	0.0234528
MinPrincipleStress [ MPa ]	-295.030	391675	0.0135706	-0.0402576	-0.118260

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	4.67855 × 10⁷	6839.99	0
2	5.09901 × 10⁷	7140.73	0
3	5.12411 × 10⁷	7158.29	0
4	5.14784 × 10⁷	7174.84	0
5	5.16791 × 10⁷	7188.82	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.428666	0.0189754	-0.0157096	-0.0610102	0.00168053	-0.00211854
2	0.0484383	-0.0389557	0.273939	-0.00664148	0.00111911	0.0233153
3	-0.0132870	0.346559	-0.0721183	0.00184390	0.0271132	-0.0113726
4	-0.00644069	-0.0351449	0.0115613	9.19464 × 10^-4	-0.00269549	0.00147342
5	0.0206365	-0.149855	-0.249054	-0.00257608	-0.0159348	-0.0179814

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.183754	3.60066 × 10^-4	2.46793 × 10^-4	0.00372224	2.82420 × 10^-6	4.48822 × 10^-6
2	0.00234627	0.00151755	0.0750428	4.41093 × 10^-5	1.25242 × 10^-6	5.43605 × 10^-4
3	1.76543 × 10^-4	0.120103	0.00520105	3.39998 × 10^-6	7.35124 × 10^-4	1.29337 × 10^-4
4	4.14825 × 10^-5	0.00123516	1.33663 × 10^-4	8.45413 × 10^-7	7.26569 × 10^-6	2.17096 × 10^-6
5	4.25866 × 10^-4	0.0224566	0.0620279	6.63618 × 10^-6	2.53919 × 10^-4	3.23330 × 10^-4
Total	0.186744	0.145672	0.142652	0.00377723	0.00100038	0.00100293

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
4.80675	4.80675	4.80675	0.00897960	0.00953115	0.00952622

Run time information

Wall time [ hh:mm:ss ]

02:34:41

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.0583539	6064	-0.00745111	0.119633	0.0284489
MinDispAbs [ mm ]	0	602	0.0937398	0.00131519	0.00105192
MaxDispX [ mm ]	1.52893 × 10^-4	3342	0.0199130	-0.00792846	-0.0362992
MinDispX [ mm ]	-0.0431972	6064	-0.00745111	0.119633	0.0284489
MaxDispY [ mm ]	0.0354770	5365	-0.00605649	0.0663437	-0.103983
MinDispY [ mm ]	-0.0378485	8650	-3.77463 × 10^-4	-0.00502214	0.124640
MaxDispX [ mm ]	0.0392296	6064	-0.00745111	0.119633	0.0284489
MinDispZ [ mm ]	-0.0357180	1816	0.0138429	-0.124908	0.00137043
MaxMises [ MPa ]	656.366	6064	-0.00745111	0.119633	0.0284489
MinMises [ MPa ]	0	602	0.0937398	0.00131519	0.00105192
MaxPrincipleStress [ MPa ]	484.631	6064	-0.00745111	0.119633	0.0284489
MinPrincipleStress [ MPa ]	-355.853	391675	0.0135706	-0.0402576	-0.118260

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	4.72116 × 10⁷	6871.07	0
2	5.12348 × 10⁷	7157.85	0
3	5.12916 × 10⁷	7161.81	0
4	5.14541 × 10⁷	7173.15	0
5	5.14798 × 10⁷	7174.95	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.432745	0.00701829	-0.00566748	-0.0615858	6.58748 × 10^-4	-5.03587 × 10^-4
2	-0.00799493	0.320142	0.0449722	0.00113521	0.0268055	-0.00138774
3	-0.00709703	0.144033	-0.313262	9.54182 × 10^-4	0.00682875	-0.0278293
4	6.15167 × 10^-5	-0.141324	-0.210667	-9.60774 × 10^-6	-0.0148612	-0.0149070
5	-0.00495394	-0.0467134	-0.0287731	7.18405 × 10^-4	-0.00427045	-0.00162015

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.187268	4.92564 × 10^-5	3.21204 × 10^-5	0.00379280	4.33949 × 10^-7	2.53600 × 10^-7
2	6.39189 × 10^-5	0.102491	0.00202250	1.28870 × 10^-6	7.18537 × 10^-4	1.92582 × 10^-6
3	5.03679 × 10^-5	0.0207454	0.0981332	9.10463 × 10^-7	4.66319 × 10^-5	7.74469 × 10^-4
4	3.78431 × 10^-9	0.0199725	0.0443806	9.23087 × 10^-11	2.20855 × 10^-4	2.22218 × 10^-4
5	2.45416 × 10^-5	0.00218214	8.27893 × 10^-4	5.16106 × 10^-7	1.82367 × 10^-5	2.62489 × 10^-6
Total	0.187407	0.145440	0.145396	0.00379552	0.00100469	0.00100149

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
4.80675	4.80675	4.80675	0.00897960	0.00953115	0.00952622

Run time information

Wall time [ hh:mm:ss ]

02:36:30

Static Analysis

Quantity	Value	Node	X-coordinate	Y-coordinate	Z-coordinate
MaxDispAbs [ mm ]	0.0667624	6064	-0.00745111	0.119633	0.0284489
MinDispAbs [ mm ]	0	602	0.0937398	0.00131519	0.00105192
MaxDispX [ mm ]	1.73845 × 10^-4	3342	0.0199130	-0.00792846	-0.0362992
MinDispX [ mm ]	-0.0495463	6064	-0.00745111	0.119633	0.0284489
MaxDispY [ mm ]	0.0406531	5365	-0.00605649	0.0663437	-0.103983
MinDispY [ mm ]	-0.0430957	8650	-3.77463 × 10^-4	-0.00502214	0.124640
MaxDispX [ mm ]	0.0447459	6064	-0.00745111	0.119633	0.0284489
MinDispZ [ mm ]	-0.0407219	1816	0.0138429	-0.124908	0.00137043
MaxMises [ MPa ]	786.422	6064	-0.00745111	0.119633	0.0284489
MinMises [ MPa ]	0	602	0.0937398	0.00131519	0.00105192
MaxPrincipleStress [ MPa ]	584.660	6064	-0.00745111	0.119633	0.0284489
MinPrincipleStress [ MPa ]	-428.174	391675	0.0135706	-0.0402576	-0.118260

Frequency Analysis

Mode Nr.	Eigenvalue	Frequency - Real Part	Frequency - Imaginary Part
1	4.72116 × 10⁷	6871.07	0
2	5.12348 × 10⁷	7157.85	0
3	5.12916 × 10⁷	7161.81	0
4	5.14541 × 10⁷	7173.15	0
5	5.14796 × 10⁷	7174.93	0

Participation Factor

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.432745	0.00701818	-0.00566759	-0.0615858	6.58727 × 10^-4	-5.03591 × 10^-4
2	-0.00799485	0.320151	0.0449631	0.00113532	0.0268061	-0.00138853
3	-0.00709667	0.144015	-0.313260	9.54215 × 10^-4	0.00682737	-0.0278287
4	7.59460 × 10^-5	-0.141128	-0.210572	-1.20635 × 10^-5	-0.0148438	-0.0149026
5	-0.00494447	-0.0472875	-0.0294995	7.18129 × 10^-4	-0.00432860	-0.00166937

Effective Modal Mass

Mode Nr.	Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
1	0.187269	4.92548 × 10^-5	3.21216 × 10^-5	0.00379280	4.33921 × 10^-7	2.53604 × 10^-7
2	6.39177 × 10^-5	0.102497	0.00202168	1.28895 × 10^-6	7.18569 × 10^-4	1.92803 × 10^-6
3	5.03627 × 10^-5	0.0207403	0.0981315	9.10526 × 10^-7	4.66130 × 10^-5	7.74438 × 10^-4
4	5.76780 × 10^-9	0.0199172	0.0443405	1.45527 × 10^-10	2.20337 × 10^-4	2.22086 × 10^-4
5	2.44478 × 10^-5	0.00223611	8.70221 × 10^-4	5.15710 × 10^-7	1.87367 × 10^-5	2.78681 × 10^-6
Total	0.187407	0.145440	0.145396	0.00379552	0.00100469	0.00100149

Total Effective Mass

Translation X	Translation Y	Translation Z	Rotation X	Rotation Y	Rotation Z
4.80675	4.80675	4.80675	0.00897960	0.00953115	0.00952622

Fluid-Structure Interaction Performed	yes
Thermal Effects Considered	no
Source for FSI	This TCFD Case
Rotates with CFD frame	rotating
Angular Velocity [ RPM ]	900.000

Name	steel
Density [ kg/m³ ]	7800.00
Type	isotropic
Young Modulus [ GPa ]	210.000
Poisson Ratio [ - ]	0.300000

Finite Element Order	2
Nonlinear Governing Equation
Eigenmodes for Deformed Solid	no

Number of Points	78803
Number of Elements	315217
Number of Surface Elements	93144
Shortest Edge [ mm ]	7.00000 × 10^-6
Longest Edge [ mm ]	0.0277790
Minimal Angle Between Edges [ deg ]	4.85142
Maximal Angle Between Edges [ deg ]	161.642
Minimal Angle Between Faces [ deg ]	5.49907
Maximal Angle Between Faces [ deg ]	167.607

Hi, this is steady-state FEA simulation report of:

Potsdam-Propeller-CFD+FEA+FSI

General Settings

Material Descrtiption

Solver

Mesh Statistics

Speedline #1 Point #1

Run time information

Static Analysis

Speedline #1 Point #2

Run time information

Static Analysis

Speedline #1 Point #3

Run time information

Static Analysis

Speedline #1 Point #4

Run time information

Static Analysis

Speedline #1 Point #5

Run time information

Static Analysis

Speedline #1 Point #6

Run time information

Static Analysis

Speedline #1 Point #7

Run time information

Static Analysis

Speedline #1 Point #8

Run time information

Static Analysis

Speedline #1 Point #9

Run time information

Static Analysis

Speedline #1 Point #10

Run time information

Static Analysis

Speedline #1 Point #11

Run time information

Static Analysis

Hi, this is steady-state FEA simulation report of: Potsdam-Propeller-CFD+FEA+FSI

Speedline #1 Point #1

Speedline #1 Point #2

Speedline #1 Point #3

Speedline #1 Point #4

Speedline #1 Point #5

Speedline #1 Point #6

Speedline #1 Point #7

Speedline #1 Point #8

Speedline #1 Point #9

Speedline #1 Point #10

Speedline #1 Point #11

Hi, this is steady-state FEA simulation report of:

Potsdam-Propeller-CFD+FEA+FSI
