eveningTest CFD Simulation Resuls

Simulation Stats

Test Case Name

eveningTest

Number of Points [ – ]

7

Machine Type

pump

Rotation Speed [ RPM ]

-1770.00

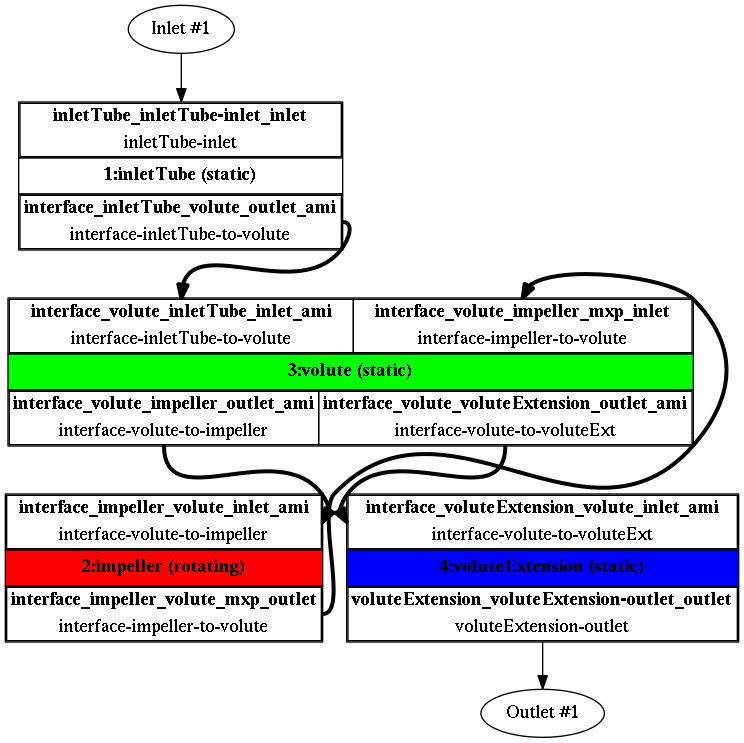

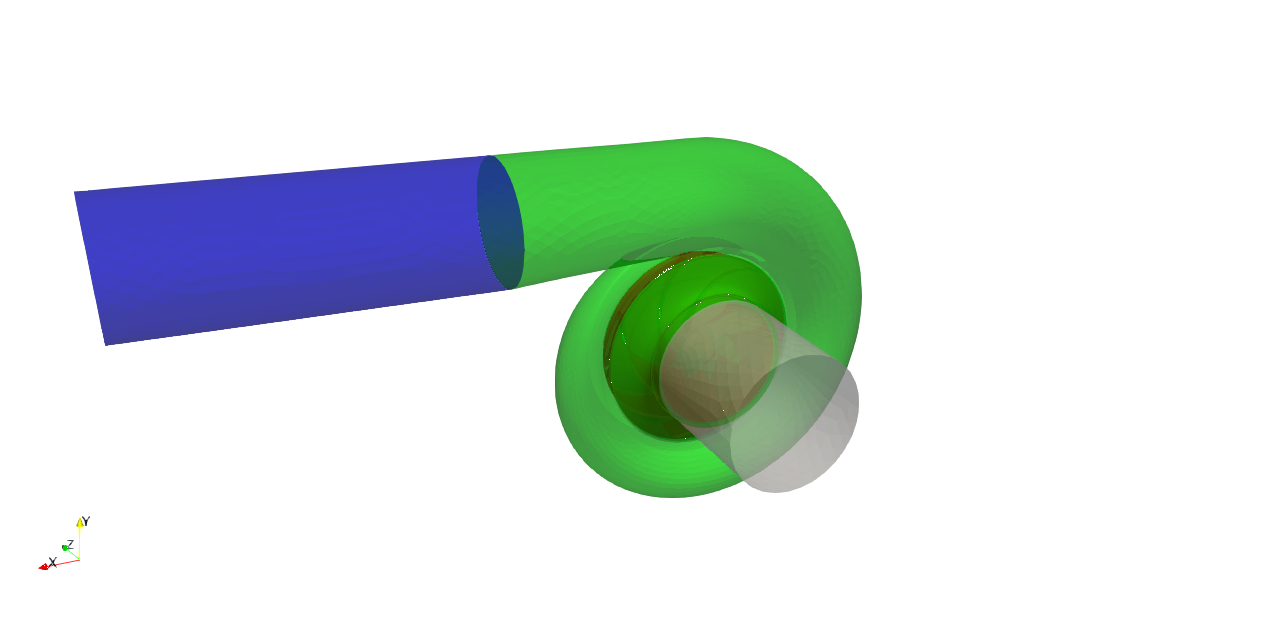

Number of Components [ – ]

(topology)

4

Mesh Size [ cells ]

(details)

inletTube : 33681

impeller : 461250

volute : 1594975

voluteExtension : 40167

Total : 2130073

Mesh details [ mm ]:

Component	Property	Min	Max	Avg
1	cellOpenness	N/A	3.17138 × 10^-16	N/A
1	cellVolume	2.02180	816.061	N/A
1	faceArea	0.366178	91.1284	N/A
1	aspectRatio	N/A	5.55832	N/A
1	nonOrthogonality	N/A	49.1477	10.1764
1	skewness	N/A	1.97121	N/A
1	edgeLength	0	10.0246	N/A
1	concaveAngle	N/A	78.1259	N/A
1	faceFlatness	0.839502	N/A	0.999662
1	cellDeterminant	0.151028	N/A	13.4317
1	faceInterpolationWeight	0.143059	N/A	0.463617
1	faceVolumeRatio	0.0327267	0.815433	N/A
1	Warnings:	31 faces with low quality or negative volume decomposition tets 2 points on short edges 53 faces with concave angles 2522 concave cells
2	cellOpenness	N/A	3.42024 × 10^-16	N/A
2	cellVolume	0.0148127	105.963	N/A
2	faceArea	4.50732 × 10^-4	23.2830	N/A
2	aspectRatio	N/A	7.64956	N/A
2	nonOrthogonality	N/A	64.8836	16.2595
2	skewness	N/A	6.06944	N/A
2	edgeLength	0	4.85982	N/A
2	concaveAngle	N/A	79.9814	N/A
2	faceFlatness	0.428756	N/A	0.994535
2	cellDeterminant	0.0268384	N/A	25.9239
2	faceInterpolationWeight	0.0768233	N/A	0.424005
2	faceVolumeRatio	0.0106375	0.612282	N/A
2	Warnings:	8 skew faces 2457 faces with low quality or negative volume decomposition tets 8 points on short edges 12010 faces with concave angles 53 warped faces 44610 concave cells
3	cellOpenness	N/A	4.09145 × 10^-16	N/A
3	cellVolume	0.0152343	118.165	N/A
3	faceArea	2.16393 × 10^-4	25.1074	N/A
3	aspectRatio	N/A	7.09373	N/A
3	nonOrthogonality	N/A	64.9293	13.5535
3	skewness	N/A	4.94577	N/A
3	edgeLength	4.81262 × 10^-4	5.19155	N/A
3	concaveAngle	N/A	79.9824	N/A
3	faceFlatness	0.744422	N/A	0.997157
3	cellDeterminant	0.0753752	N/A	18.1396
3	faceInterpolationWeight	0.0656903	N/A	0.443024
3	faceVolumeRatio	0.0132954	0.706279	N/A
3	Warnings:	28 skew faces 1157 faces with low quality or negative volume decomposition tets 8 points on short edges 11837 faces with concave angles 25 warped faces 111070 concave cells
4	cellOpenness	N/A	3.26085 × 10^-16	N/A
4	cellVolume	11.2030	931.428	N/A
4	faceArea	3.50872	99.2189	N/A
4	aspectRatio	N/A	6.76513	N/A
4	nonOrthogonality	N/A	50.7615	10.8865
4	skewness	N/A	0.865504	N/A
4	edgeLength	0	10.2142	N/A
4	concaveAngle	N/A	17.9537	N/A
4	faceFlatness	0.885231	N/A	0.999456
4	cellDeterminant	0.0927797	N/A	14.9607
4	faceInterpolationWeight	0.139780	N/A	0.460232
4	faceVolumeRatio	0.0240407	0.795960	N/A
4	Warnings:	7 faces with low quality or negative volume decomposition tets 2 points on short edges 113 faces with concave angles 2185 concave cells

Average y+ at walls [ – ]
(details)

378.069

y+ details:

Point	Patch	Min	Max	Avg
1	inletTube_inletTube-wall_wall	31.9270	870.219	352.039
1	impeller_impeller-innerShroud_wall	7.14641	668.332	129.572
1	impeller_impeller-innerHub_wall	8.50415	463.973	136.526
1	impeller_impeller-blades_wall	7.03622	434.854	79.5460
1	impeller_impeller-bladeFillets_wall	7.03622	308.180	46.5394
1	volute_impeller-outerHub_wall	0.535575	991.921	85.4829
1	volute_impeller-outerShroud_wall	2.52647	640.633	169.007
1	volute_impeller-hubWall_wall	8.65482	1088.86	122.407
1	volute_volute-shroudWithLeakage_wall	1.30648	269.353	68.9356
1	volute_impeller-shroudWall_wall	20.8635	1032.21	150.143
1	volute_volute-spiral_wall	1.66886	1154.03	167.513
1	voluteExtension_voluteExtension-wall_wall	59.2778	792.533	378.069
2	inletTube_inletTube-wall_wall	52.3849	1209.04	344.554
2	impeller_impeller-innerShroud_wall	9.31872	771.300	144.780
2	impeller_impeller-innerHub_wall	7.99456	503.727	141.685
2	impeller_impeller-blades_wall	8.48961	587.395	82.0465
2	impeller_impeller-bladeFillets_wall	6.60203	336.461	52.3783
2	volute_impeller-outerHub_wall	0.328591	949.598	92.9005
2	volute_impeller-outerShroud_wall	30.8817	680.930	197.175
2	volute_impeller-hubWall_wall	28.5524	1071.56	141.793
2	volute_volute-shroudWithLeakage_wall	11.2416	338.903	93.3236
2	volute_impeller-shroudWall_wall	24.5634	923.679	154.510
2	volute_volute-spiral_wall	2.11863	705.706	184.615
2	voluteExtension_voluteExtension-wall_wall	58.0065	799.625	361.448
3	inletTube_inletTube-wall_wall	76.4584	1193.09	333.237
3	impeller_impeller-innerShroud_wall	9.00273	786.220	144.520
3	impeller_impeller-innerHub_wall	7.28991	542.895	137.072
3	impeller_impeller-blades_wall	7.64375	603.771	80.1825
3	impeller_impeller-bladeFillets_wall	5.70818	326.918	50.7041
3	volute_impeller-outerHub_wall	0.343385	875.652	88.3592
3	volute_impeller-outerShroud_wall	32.6274	700.312	197.172
3	volute_impeller-hubWall_wall	28.2303	997.285	131.761
3	volute_volute-shroudWithLeakage_wall	17.1517	337.567	95.8521
3	volute_impeller-shroudWall_wall	23.5811	706.668	141.614
3	volute_volute-spiral_wall	2.27095	692.890	179.840
3	voluteExtension_voluteExtension-wall_wall	57.6927	701.563	342.168
4	inletTube_inletTube-wall_wall	71.9826	1232.53	319.889
4	impeller_impeller-innerShroud_wall	8.64095	820.691	141.810
4	impeller_impeller-innerHub_wall	6.69266	626.601	132.730
4	impeller_impeller-blades_wall	6.83647	621.847	78.0853
4	impeller_impeller-bladeFillets_wall	4.85698	325.175	48.7806
4	volute_impeller-outerHub_wall	0.408901	807.737	83.4276
4	volute_impeller-outerShroud_wall	32.9311	666.474	194.756
4	volute_impeller-hubWall_wall	26.3032	925.257	125.847
4	volute_volute-shroudWithLeakage_wall	17.3641	329.316	96.6971
4	volute_impeller-shroudWall_wall	22.0961	618.058	129.187
4	volute_volute-spiral_wall	2.51677	681.957	177.581
4	voluteExtension_voluteExtension-wall_wall	54.2824	700.484	313.831
5	inletTube_inletTube-wall_wall	67.4994	1312.25	306.263
5	impeller_impeller-innerShroud_wall	8.25499	847.511	138.501
5	impeller_impeller-innerHub_wall	6.15132	648.730	129.127
5	impeller_impeller-blades_wall	6.09045	653.552	76.1187
5	impeller_impeller-bladeFillets_wall	4.05505	326.244	46.8089
5	volute_impeller-outerHub_wall	0.439494	794.188	80.7960
5	volute_impeller-outerShroud_wall	32.8388	693.284	192.282
5	volute_impeller-hubWall_wall	24.4440	898.331	122.521
5	volute_volute-shroudWithLeakage_wall	17.7588	321.774	97.7653
5	volute_impeller-shroudWall_wall	20.6976	509.741	118.947
5	volute_volute-spiral_wall	2.75078	688.998	176.088
5	voluteExtension_voluteExtension-wall_wall	46.9633	636.602	286.843
6	inletTube_inletTube-wall_wall	63.0082	1510.93	293.734
6	impeller_impeller-innerShroud_wall	7.89390	829.770	134.782
6	impeller_impeller-innerHub_wall	5.64559	794.325	126.283
6	impeller_impeller-blades_wall	5.46485	675.127	74.4321
6	impeller_impeller-bladeFillets_wall	3.55102	331.407	44.8506
6	volute_impeller-outerHub_wall	0.421337	788.871	80.3161
6	volute_impeller-outerShroud_wall	32.6796	742.875	189.850
6	volute_impeller-hubWall_wall	22.6349	890.510	118.436
6	volute_volute-shroudWithLeakage_wall	18.4021	356.138	98.9525
6	volute_impeller-shroudWall_wall	19.2457	432.657	110.459
6	volute_volute-spiral_wall	2.75484	762.580	173.894
6	voluteExtension_voluteExtension-wall_wall	38.7269	558.107	269.109
7	inletTube_inletTube-wall_wall	58.5086	1578.43	283.648
7	impeller_impeller-innerShroud_wall	7.63257	812.008	131.129
7	impeller_impeller-innerHub_wall	5.21807	805.283	124.870
7	impeller_impeller-blades_wall	4.48388	701.539	73.4149
7	impeller_impeller-bladeFillets_wall	3.11535	420.210	42.9597
7	volute_impeller-outerHub_wall	0.414200	810.322	82.2922
7	volute_impeller-outerShroud_wall	32.5731	731.525	188.030
7	volute_impeller-hubWall_wall	21.4891	889.895	117.709
7	volute_volute-shroudWithLeakage_wall	19.3869	398.936	99.8693
7	volute_impeller-shroudWall_wall	18.0782	417.335	105.371
7	volute_volute-spiral_wall	2.75180	858.113	172.568
7	voluteExtension_voluteExtension-wall_wall	33.6846	574.084	264.733

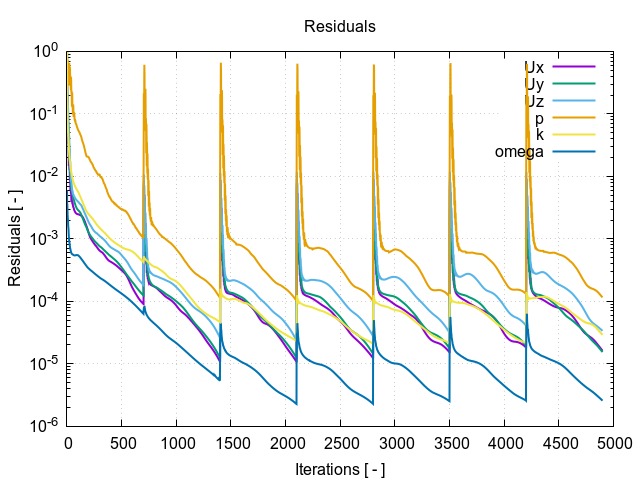

Wall-clock time [ hh:mm:ss ]

05:12:56

Parallel Processors [ – ]

6

Fluid Name

water

Compressibility

incompressible

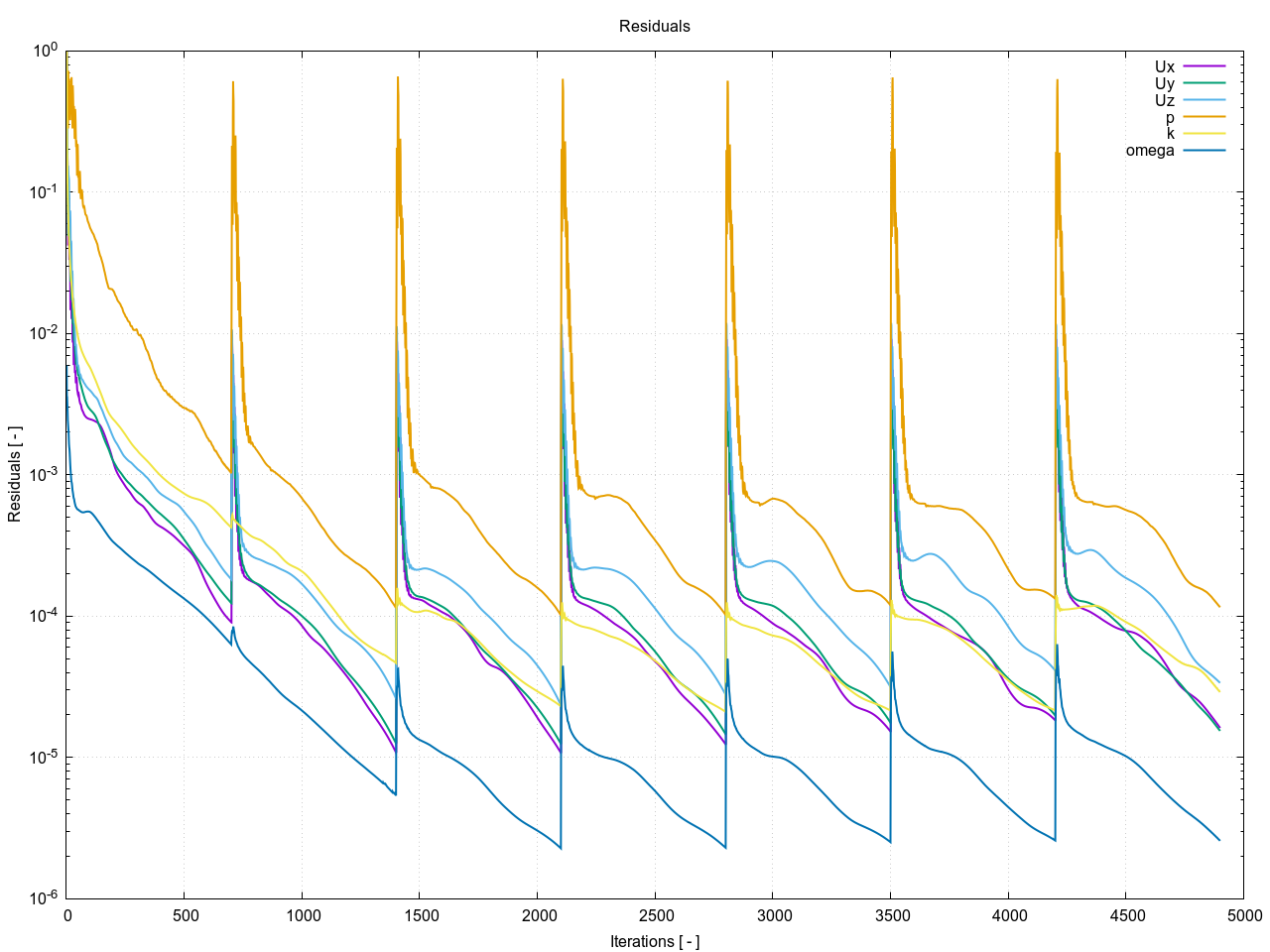

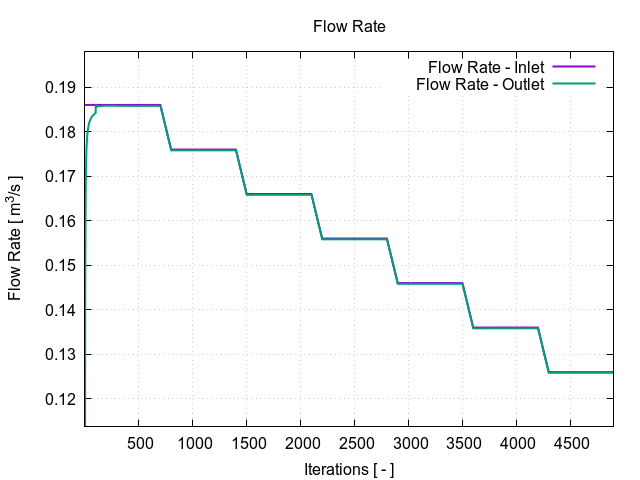

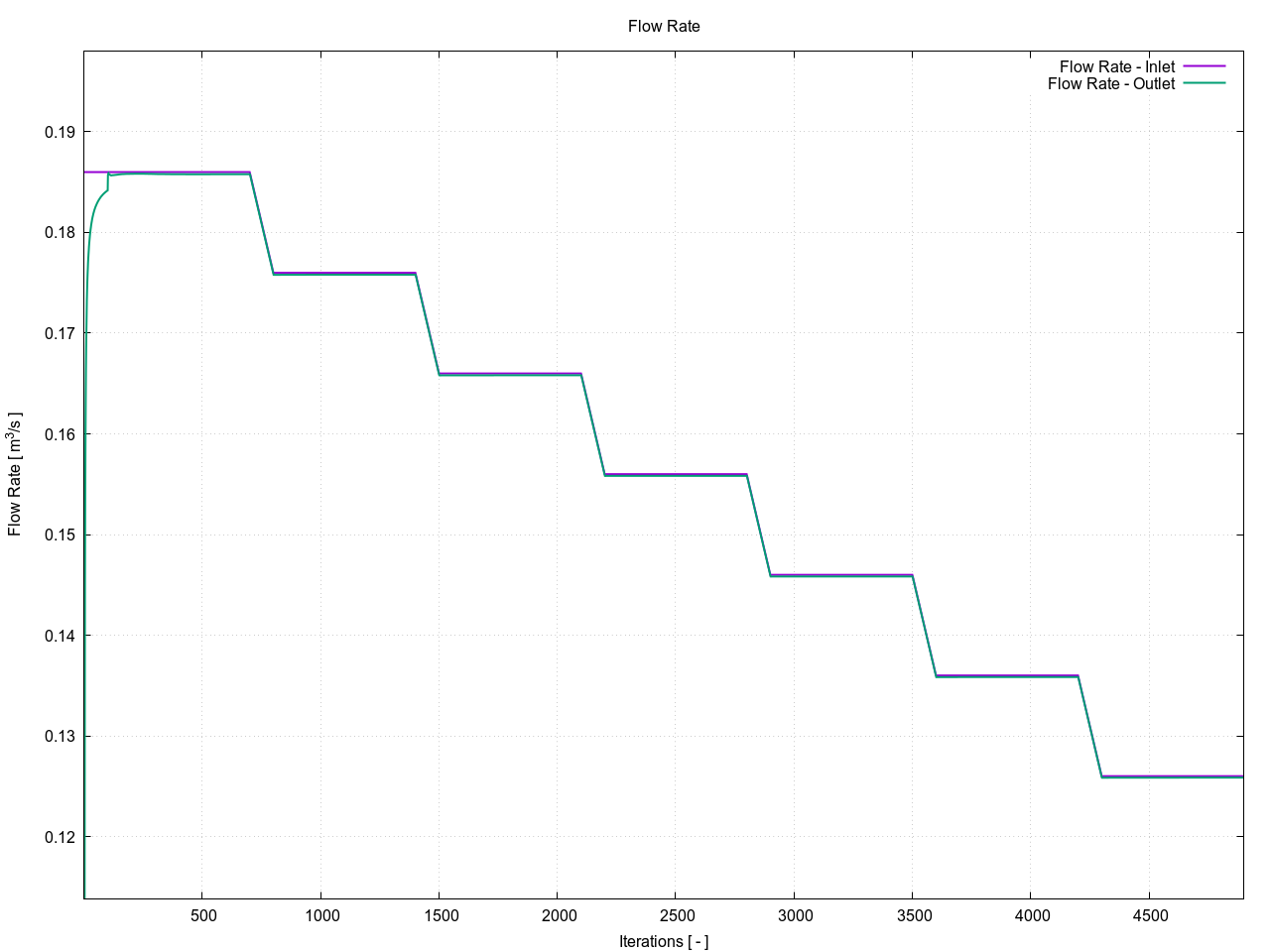

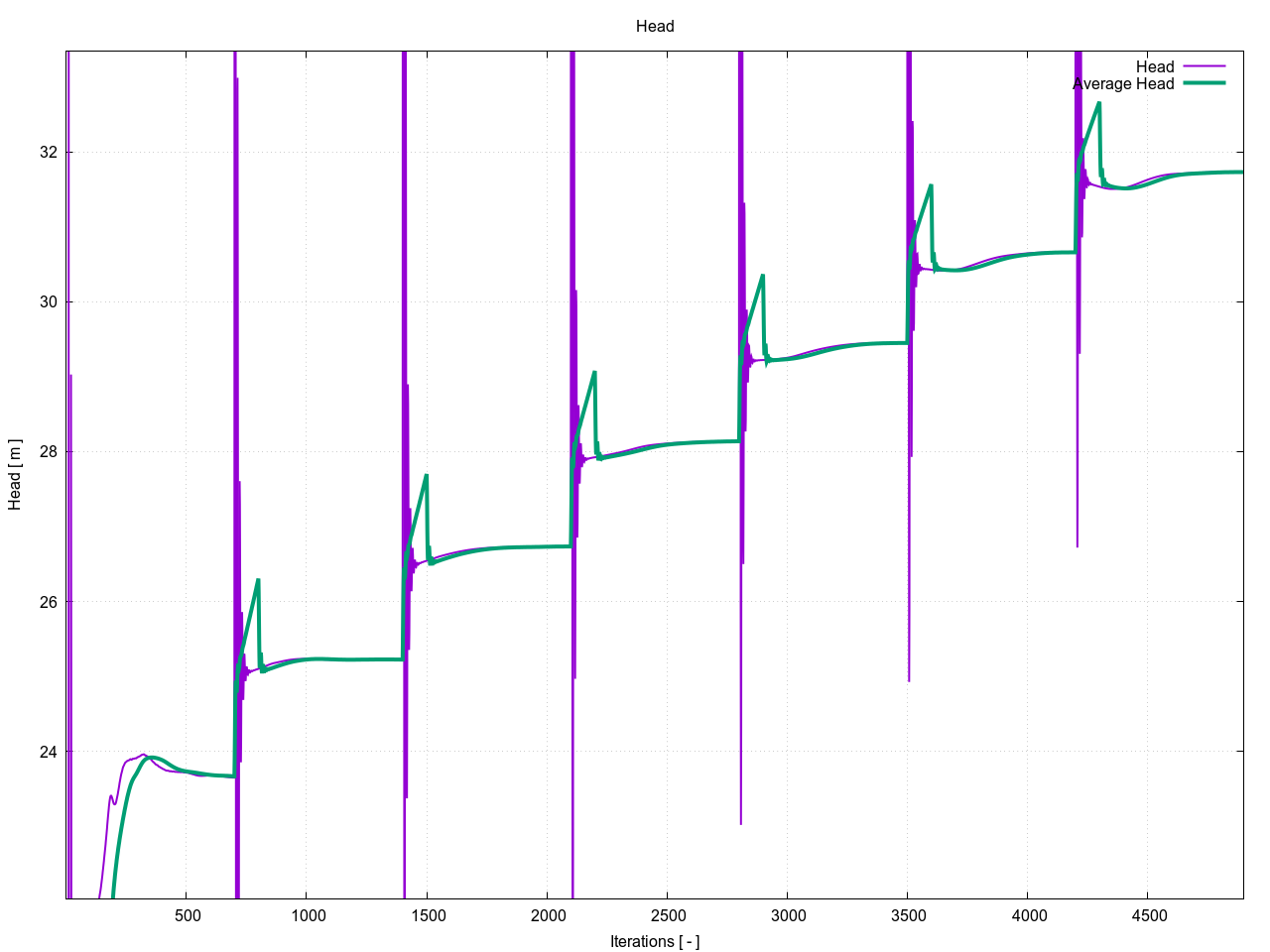

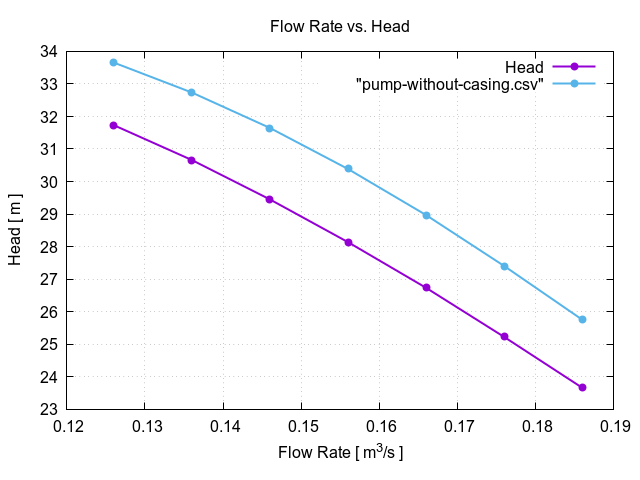

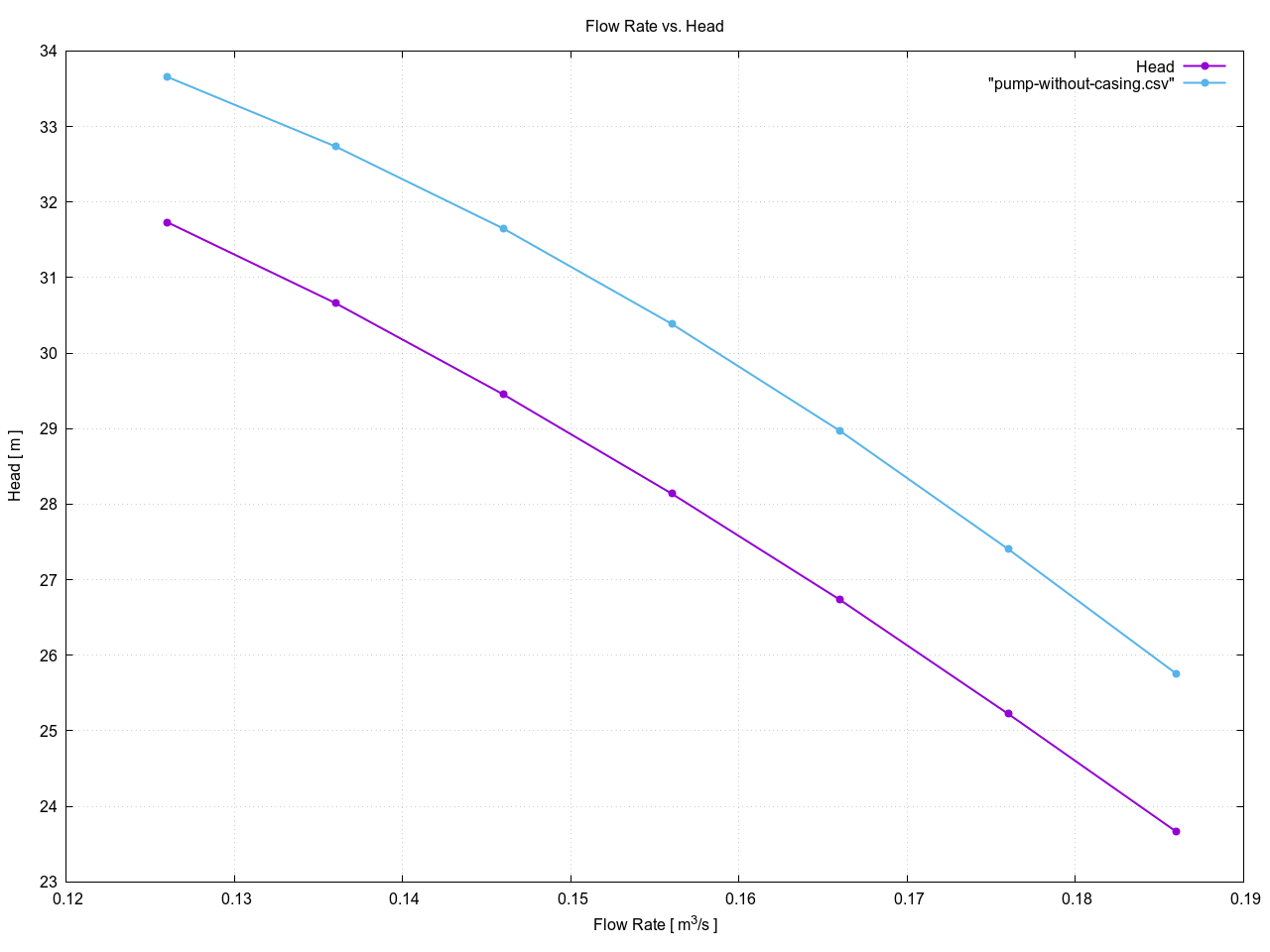

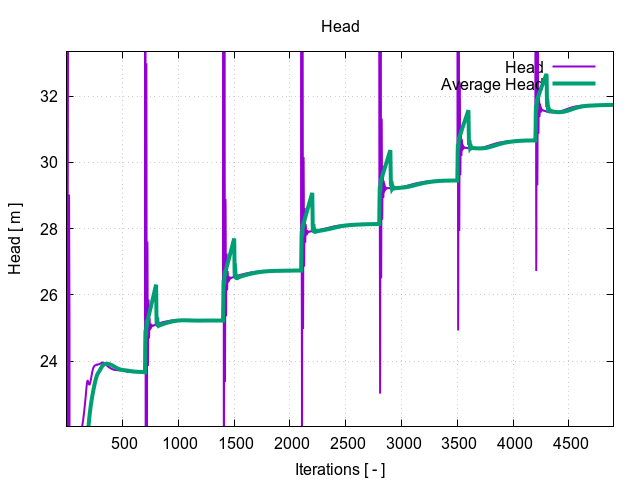

Head

1:inletTube-inlet — 4:voluteExtension-outlet

Point Nr.	Flow Rate [ m³/s ]	Head [ m ]
1	0.186000	23.6645
2	0.176000	25.2243
3	0.166000	26.7343
4	0.156000	28.1386
5	0.146000	29.4510
6	0.136000	30.6615
7	0.126000	31.7326

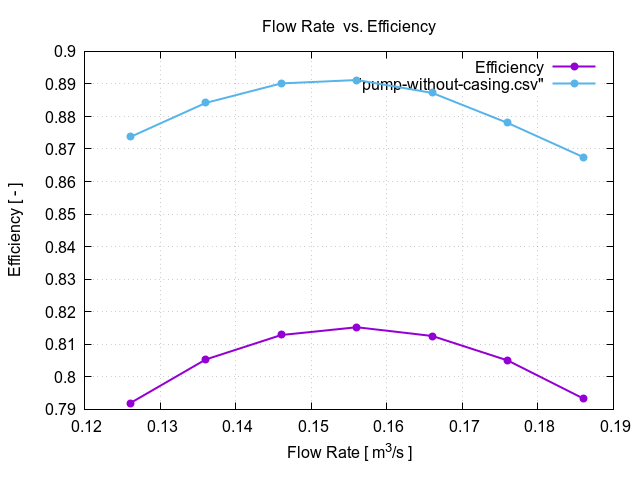

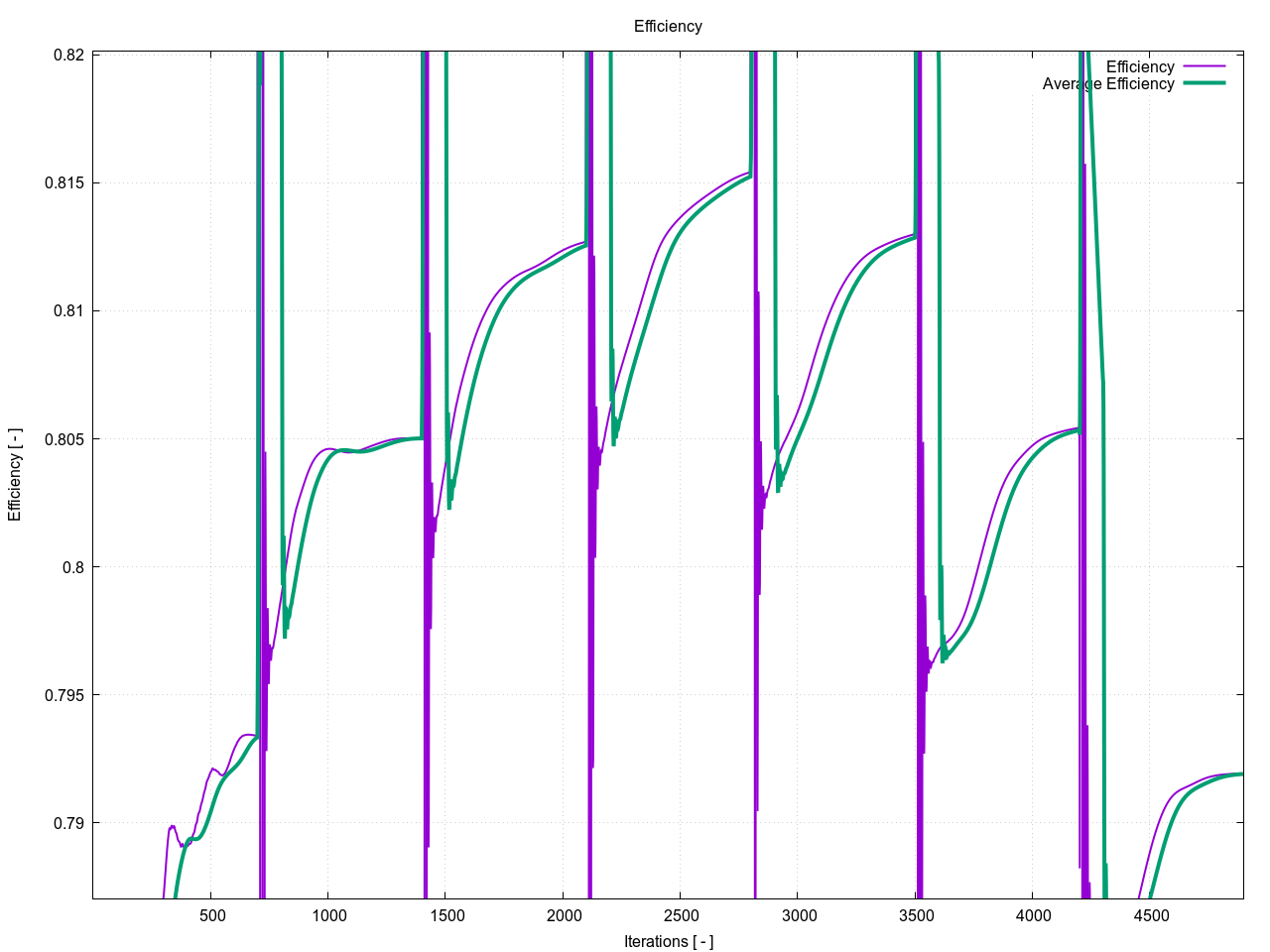

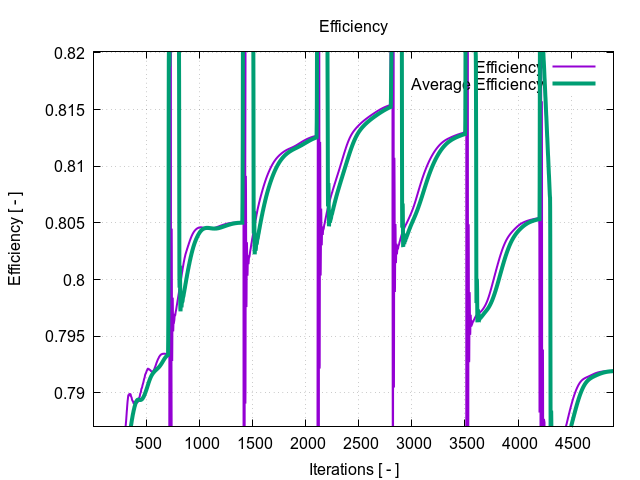

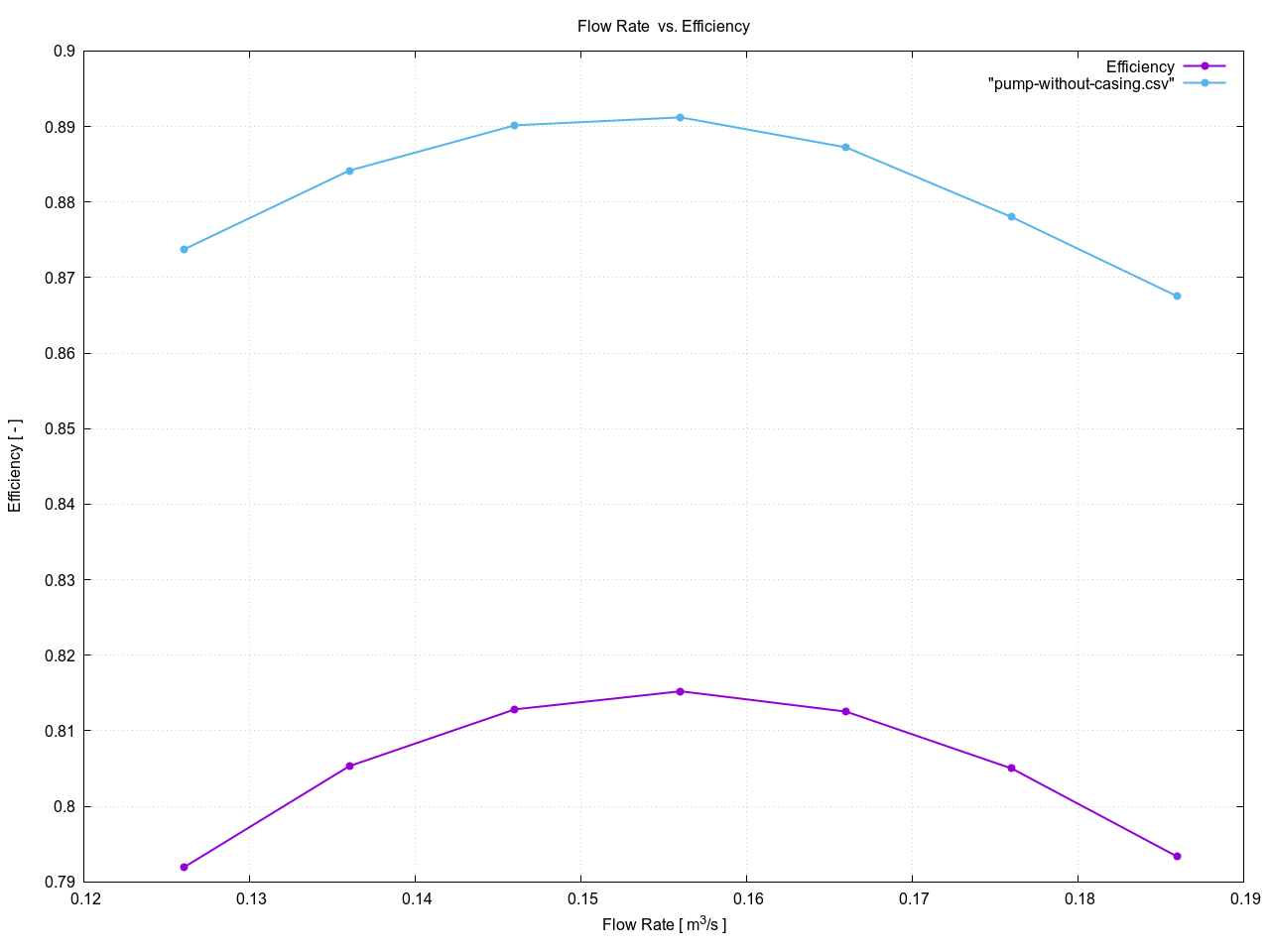

Efficiency

1:inletTube-inlet — 4:voluteExtension-outlet

Point Nr.	Flow Rate [ m³/s ]	Efficiency [ – ]
1	0.186000	0.793340
2	0.176000	0.805014
3	0.166000	0.812548
4	0.156000	0.815237
5	0.146000	0.812851
6	0.136000	0.805335
7	0.126000	0.791915

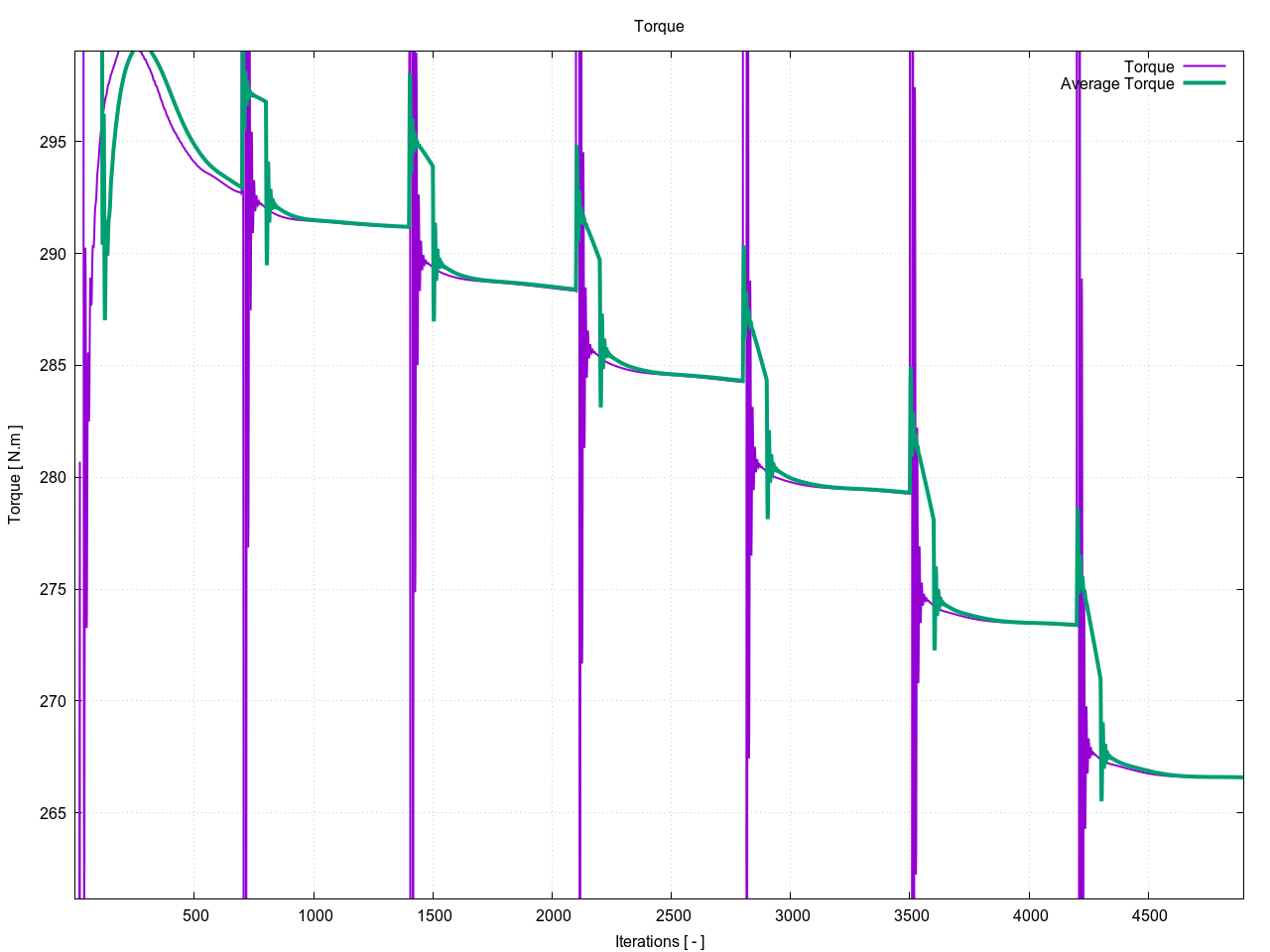

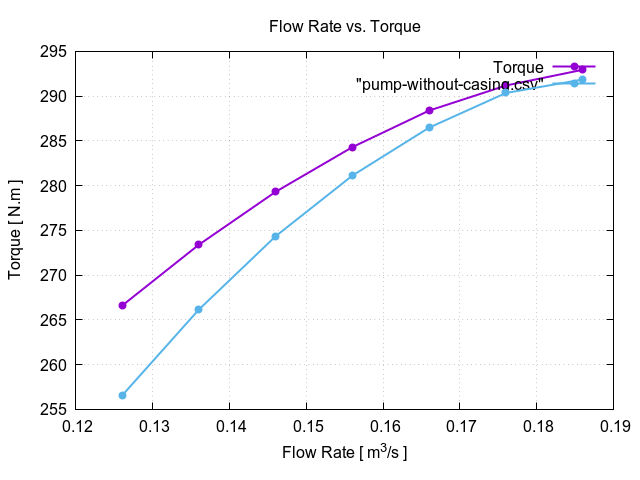

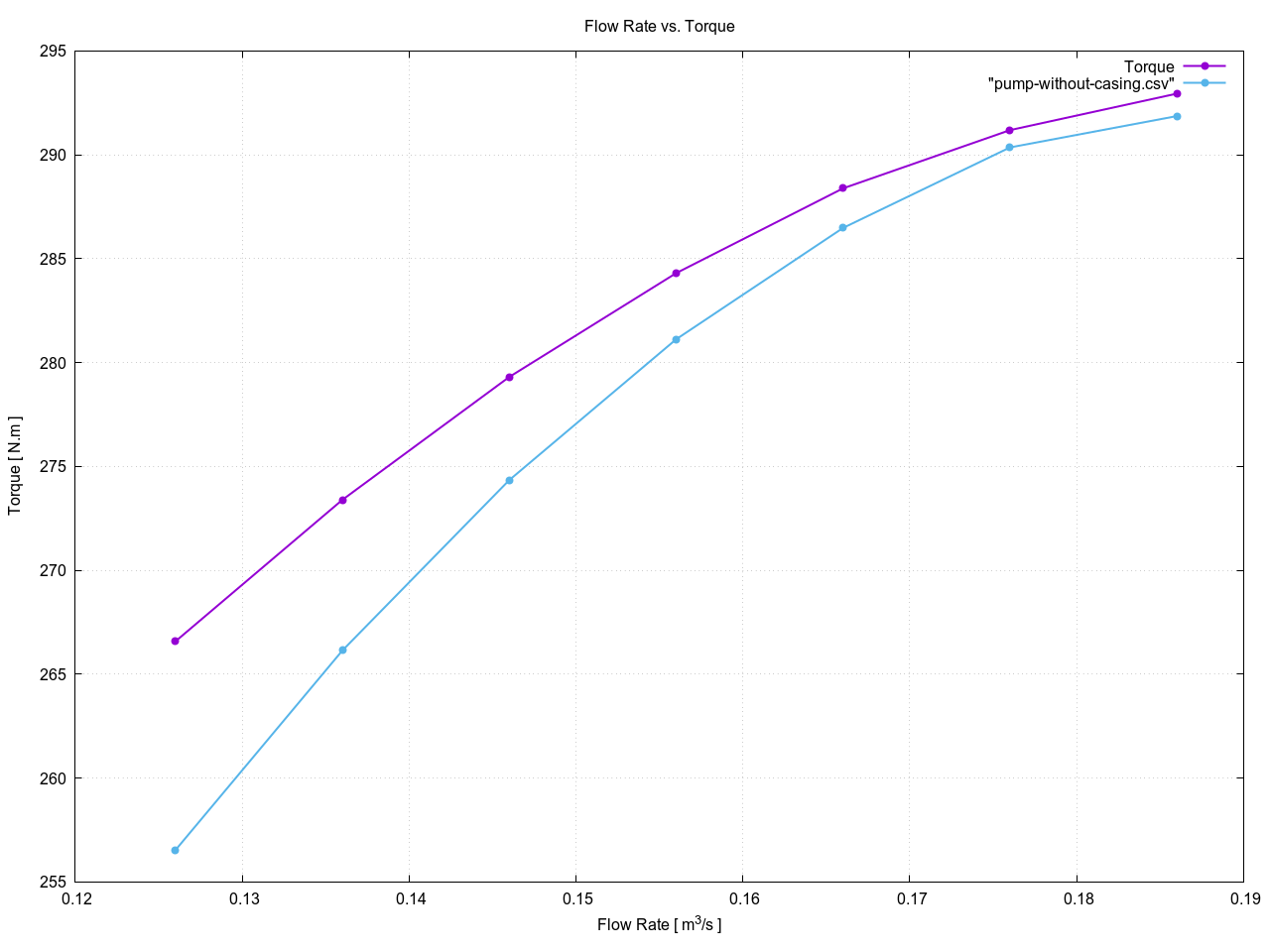

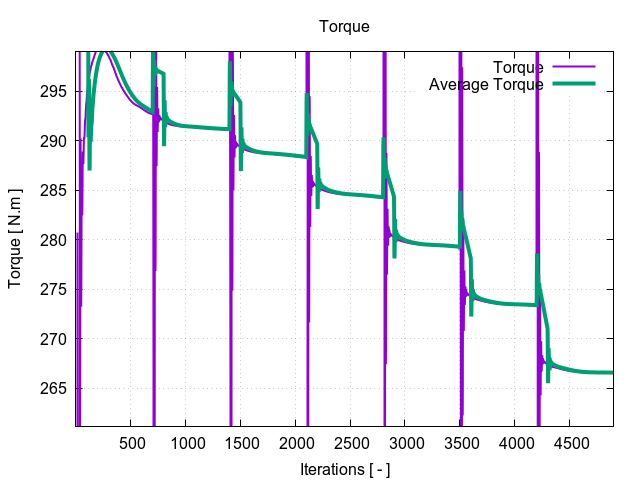

Torque

Point Nr.	Torque [ N.m ]
1	292.948
2	291.191
3	288.388
4	284.308
5	279.309
6	273.396
7	266.583

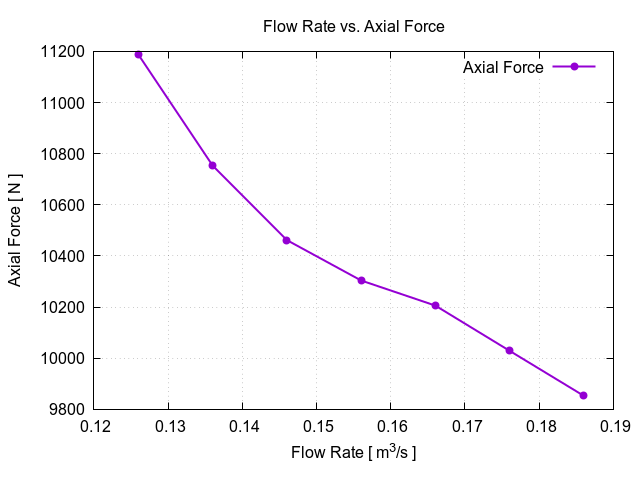

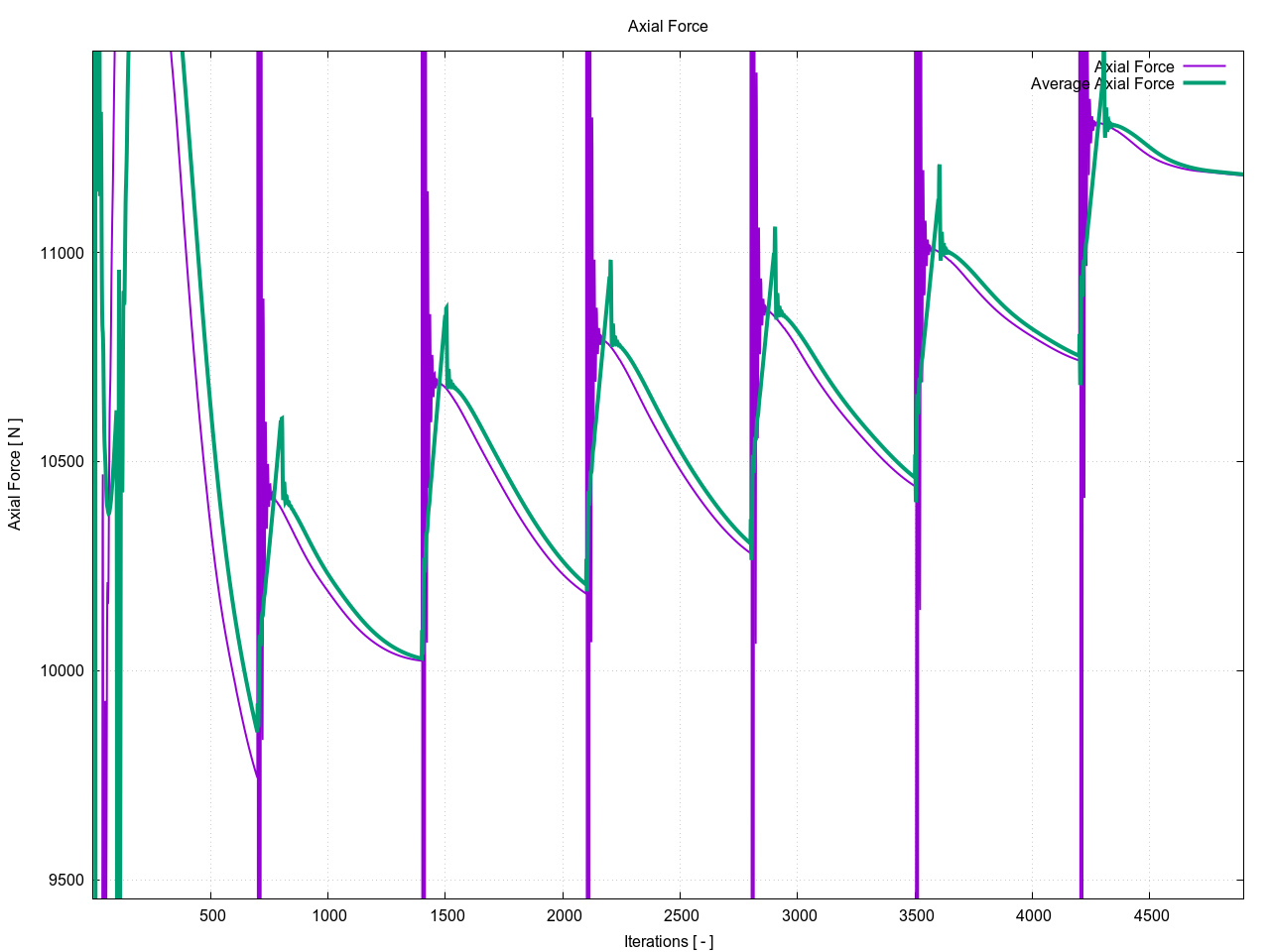

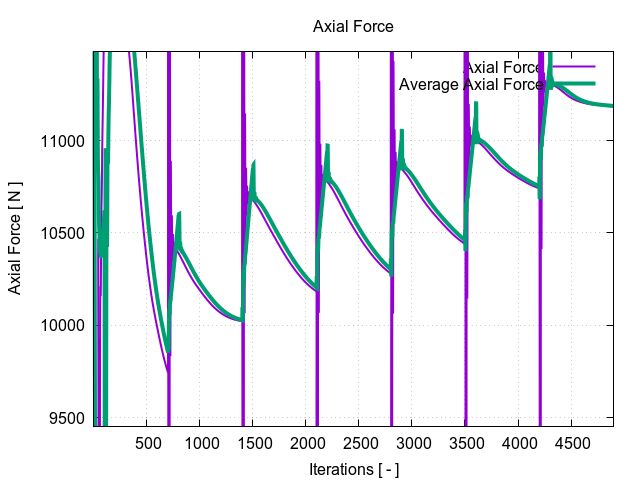

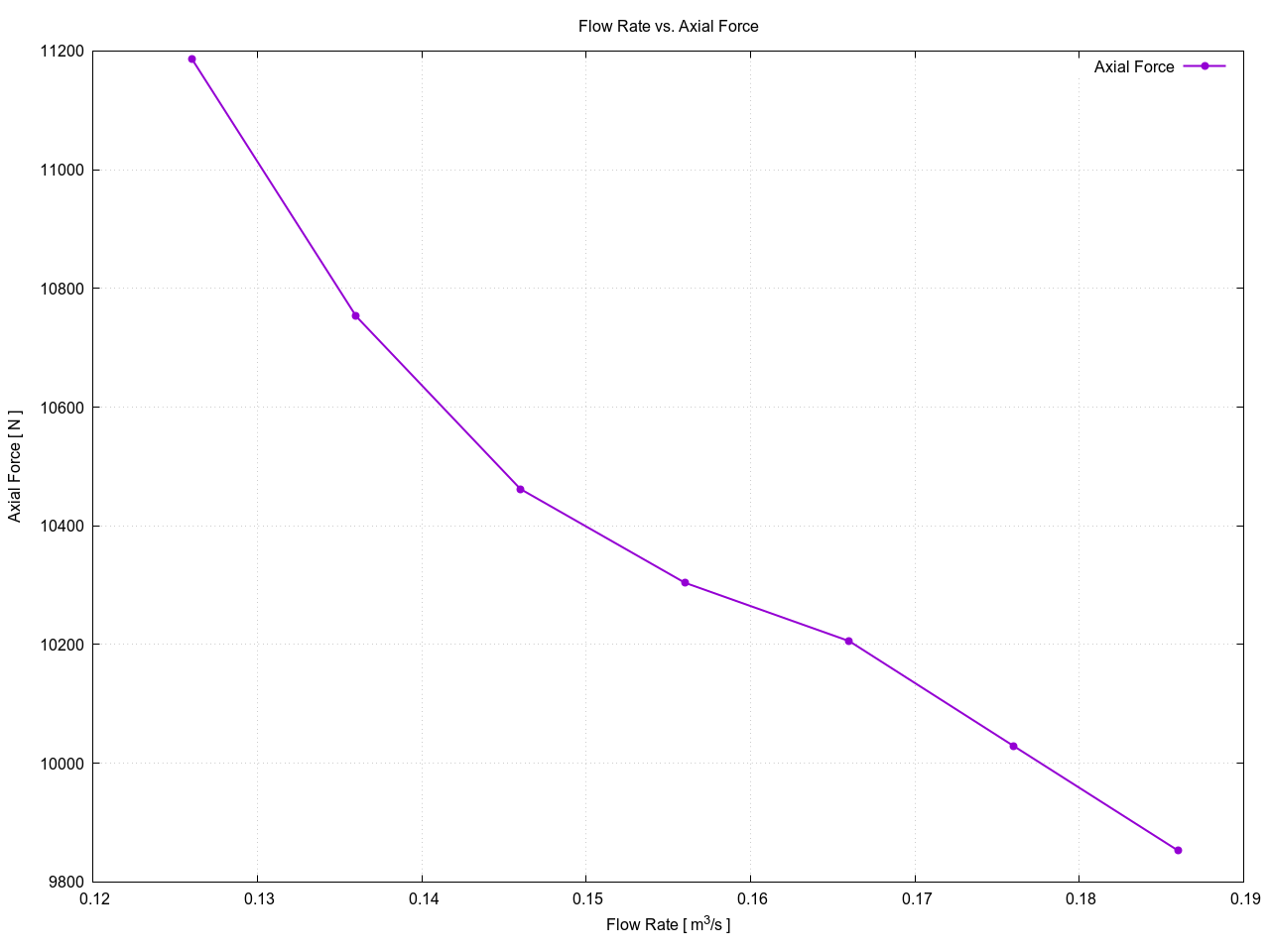

Axial Force

Point Nr.	Axial Force [ N ]
1	9852.92
2	10029.1
3	10205.8
4	10304.0
5	10461.9
6	10752.9
7	11186.7

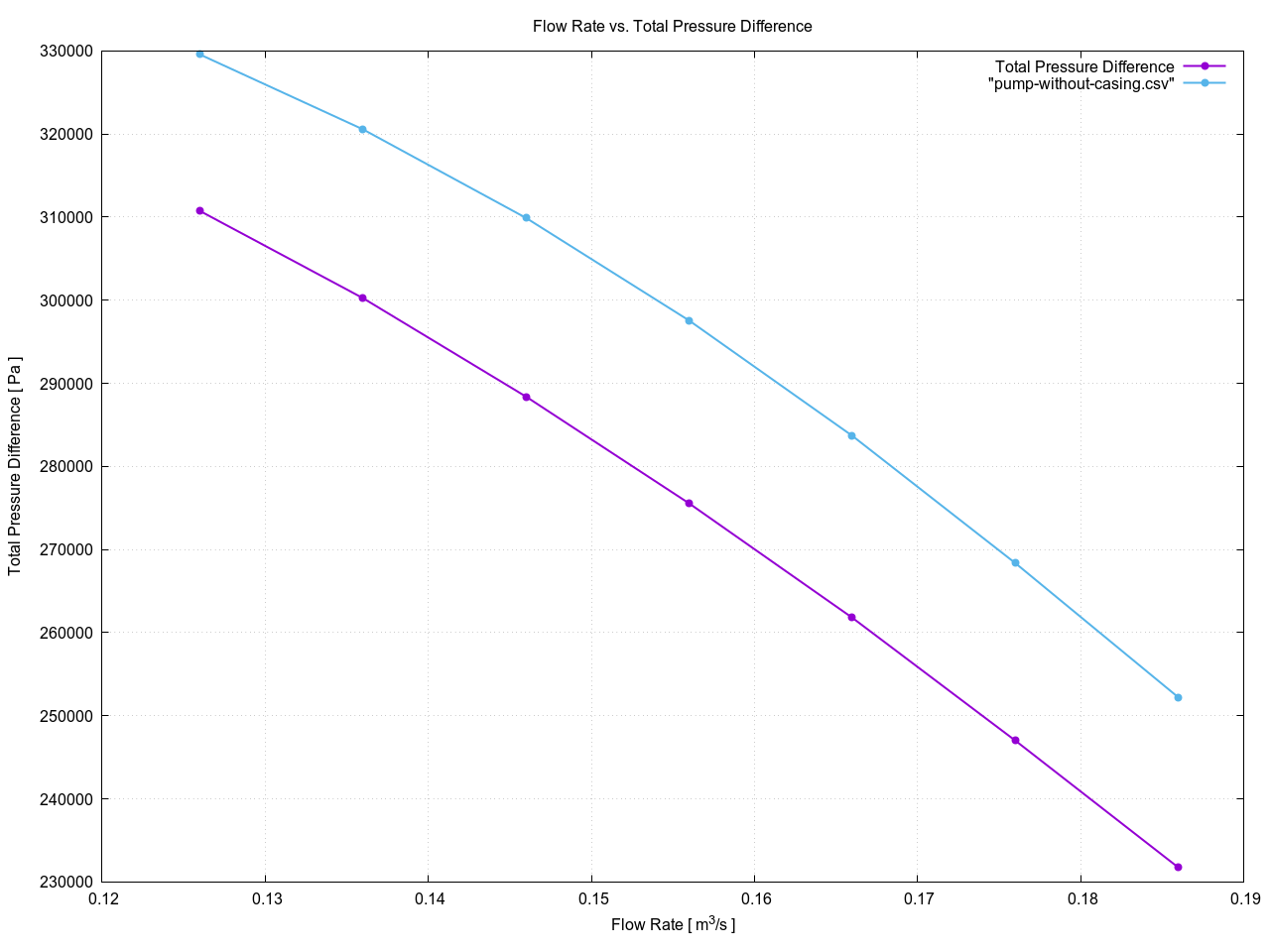

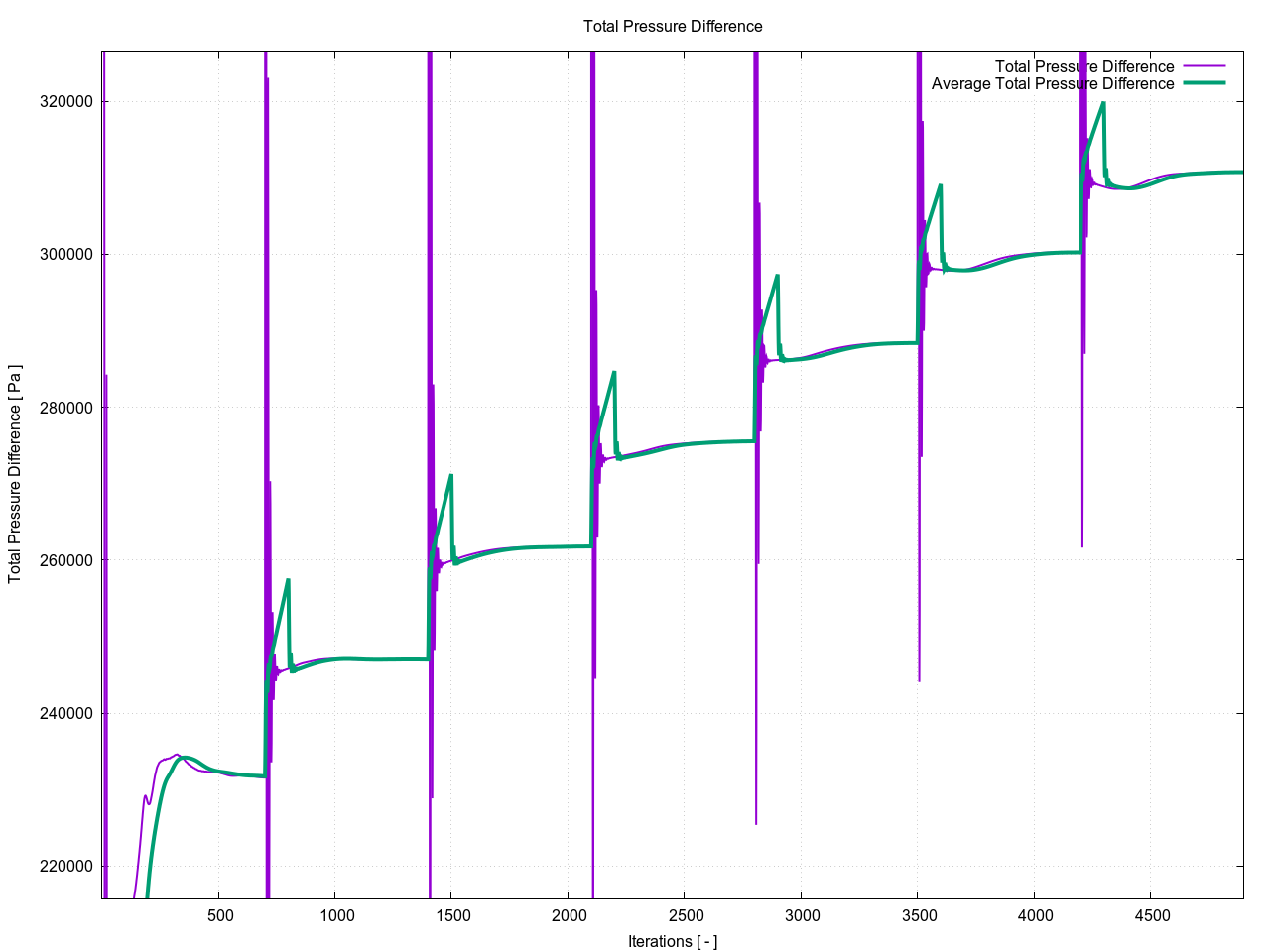

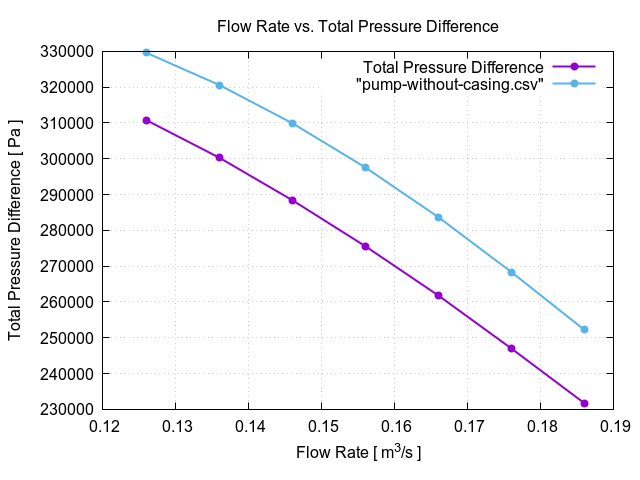

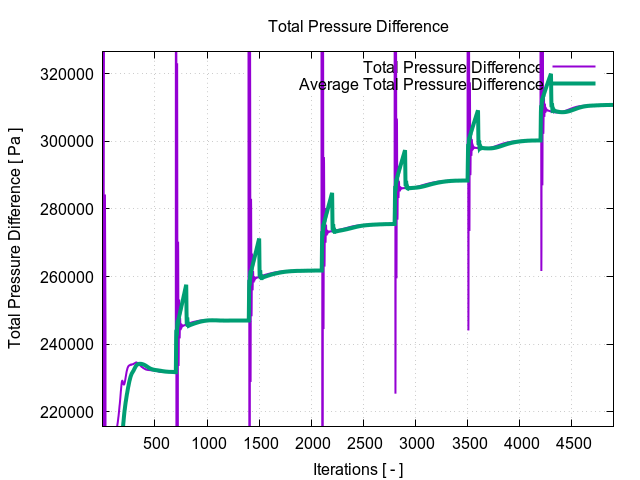

Total Pressure Difference

1:inletTube-inlet — 4:voluteExtension-outlet

Point Nr.	Flow Rate [ m³/s ]	Total Pressure Difference [ Pa ]
1	0.186000	231731.
2	0.176000	247004.
3	0.166000	261792.
4	0.156000	275543.
5	0.146000	288395.
6	0.136000	300248.
7	0.126000	310736.

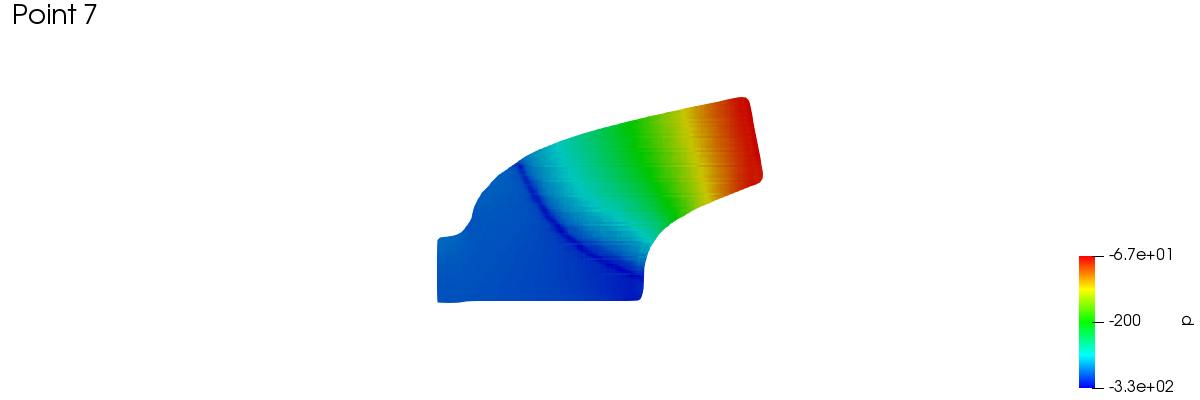

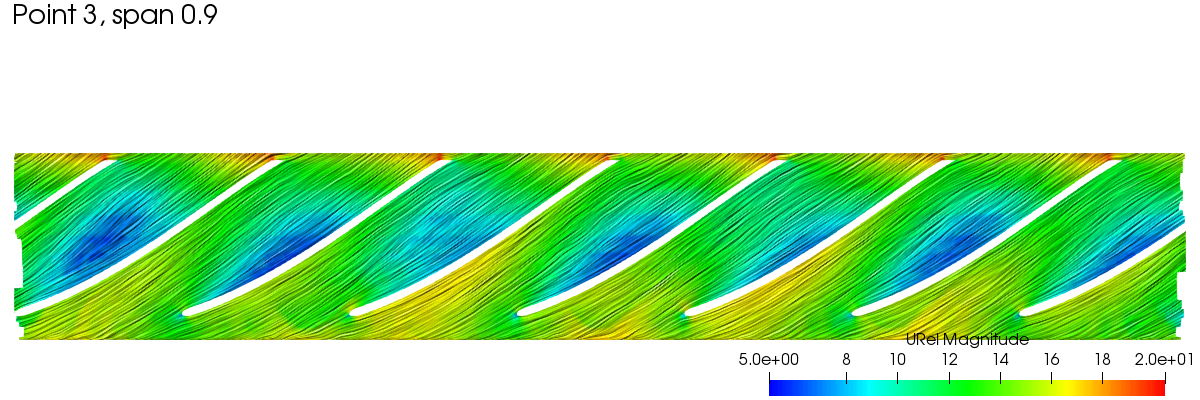

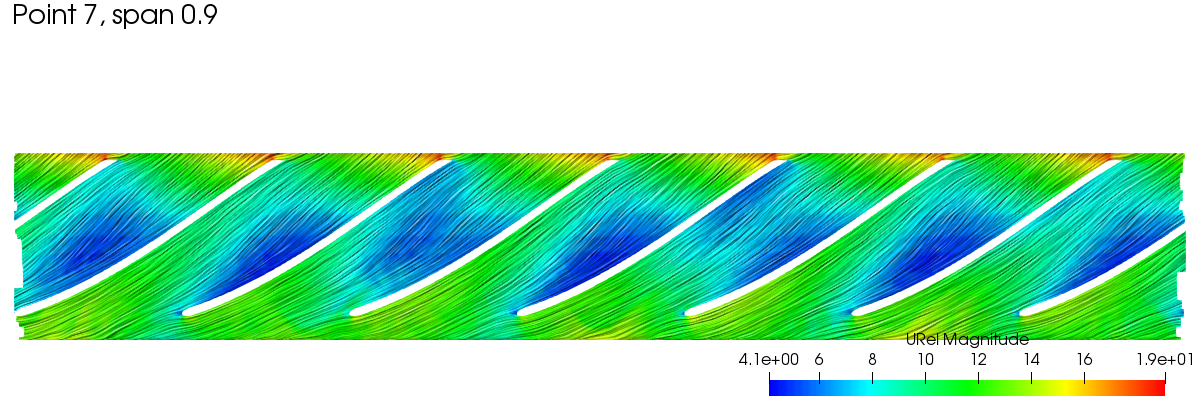

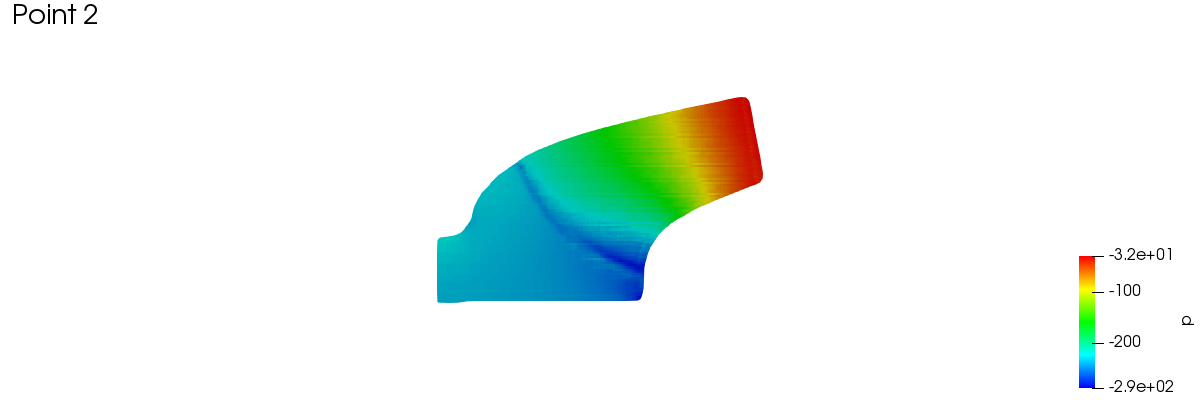

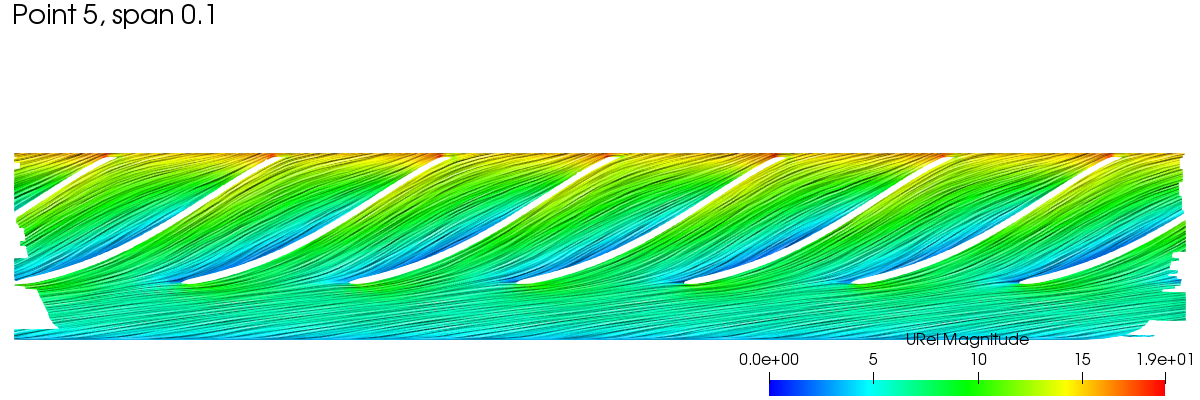

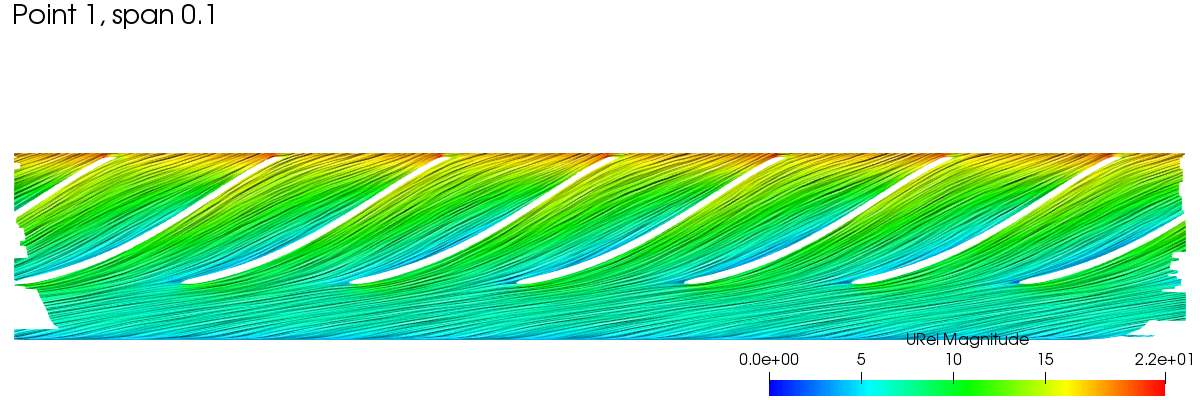

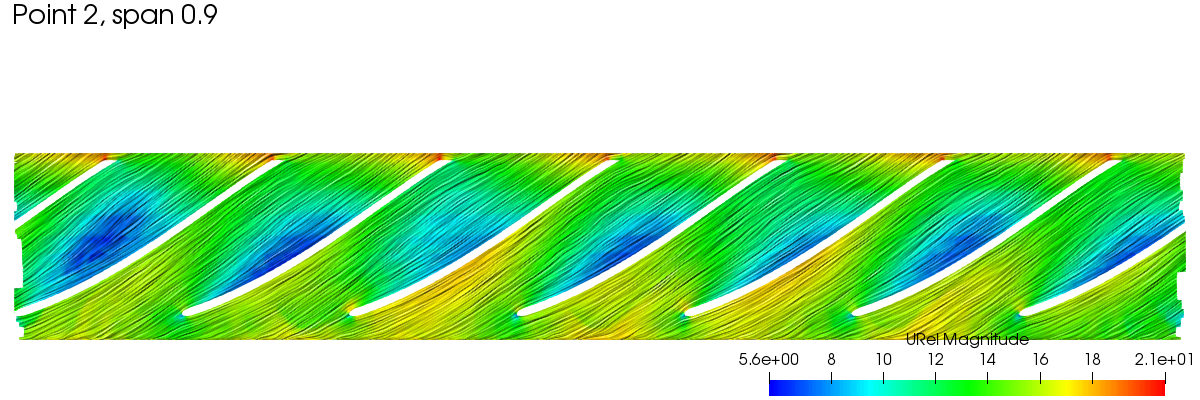

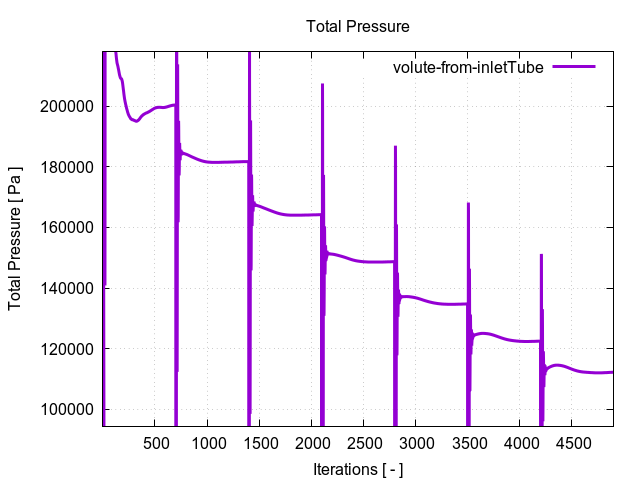

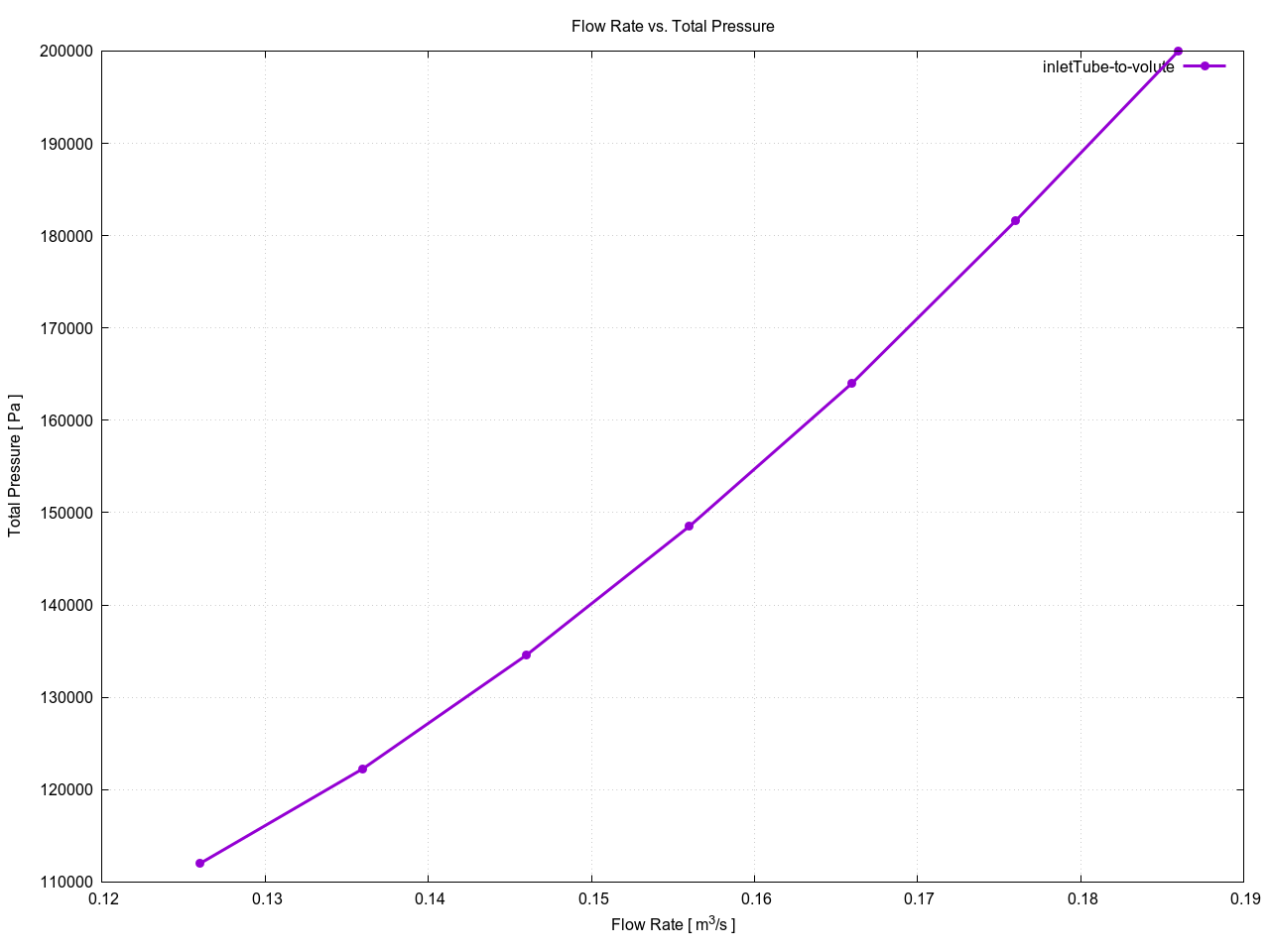

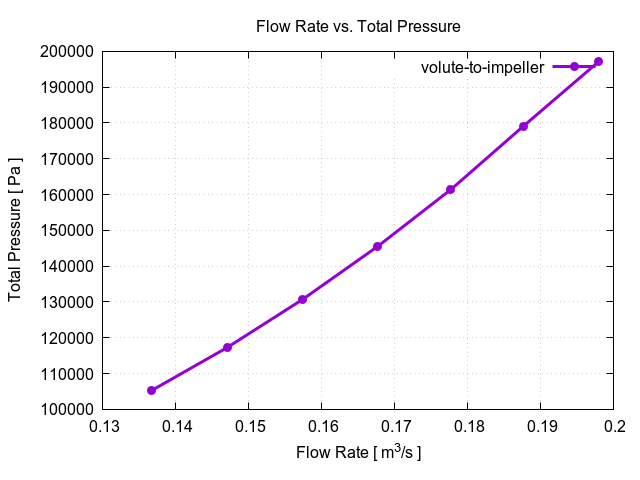

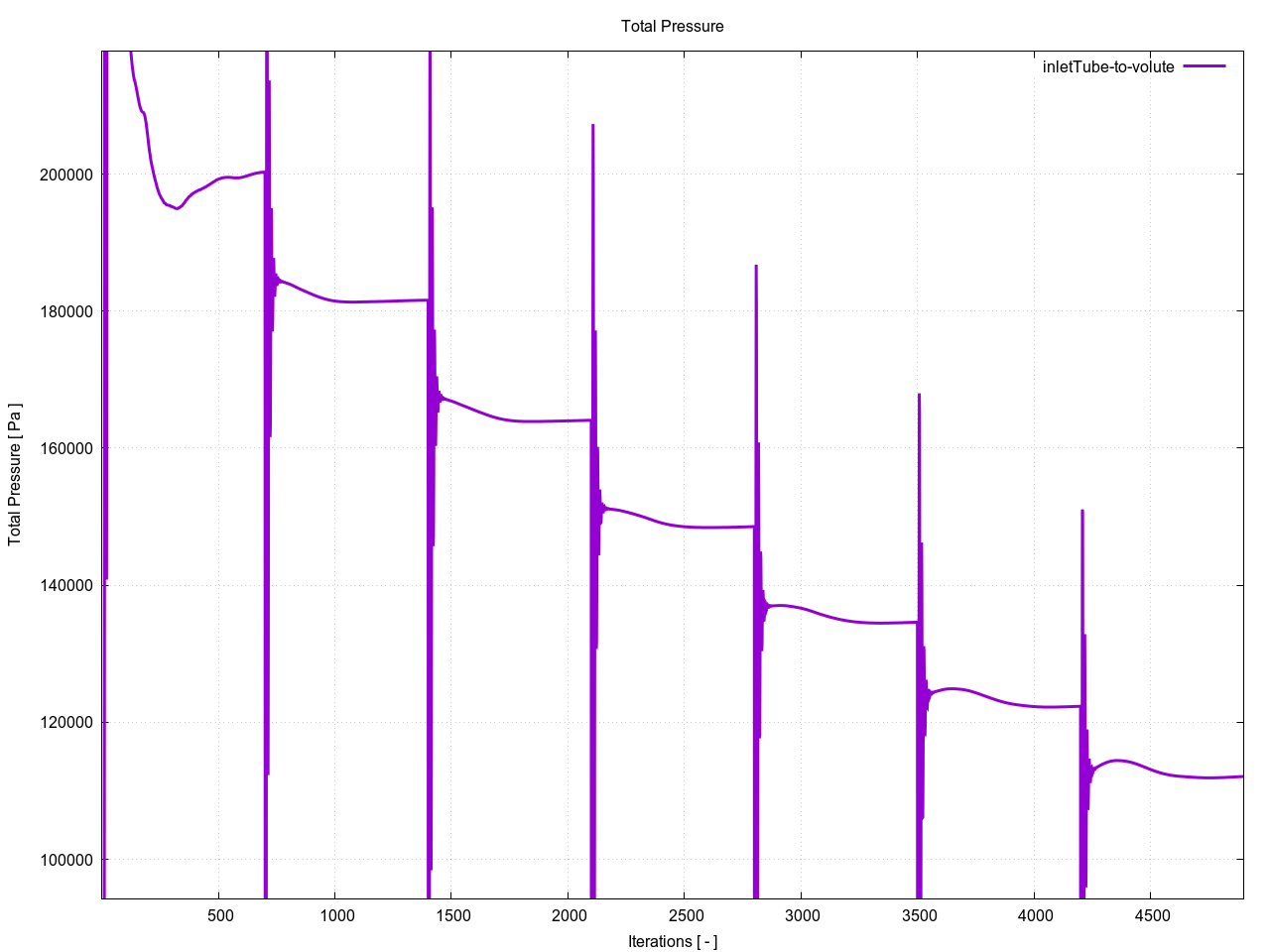

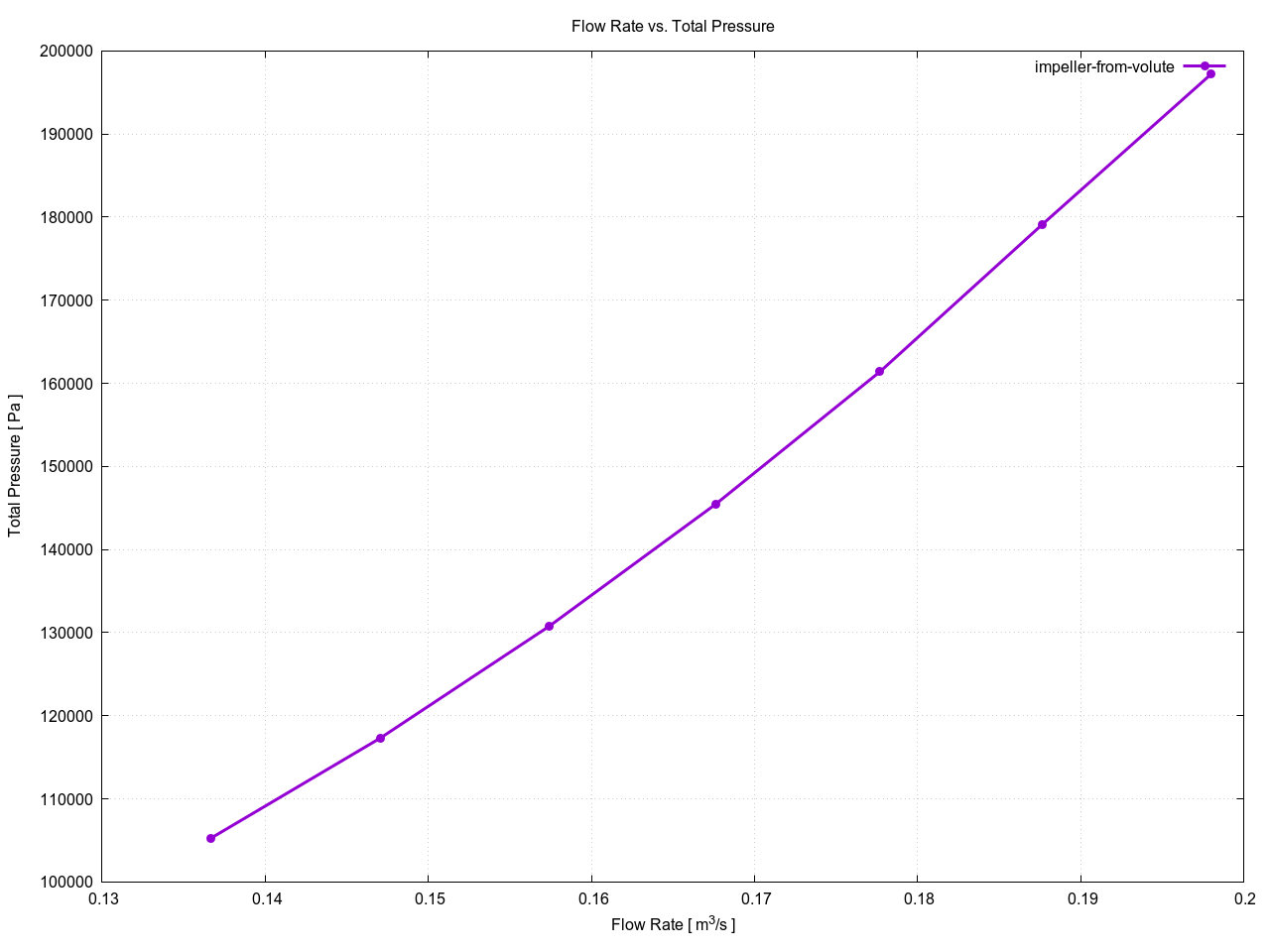

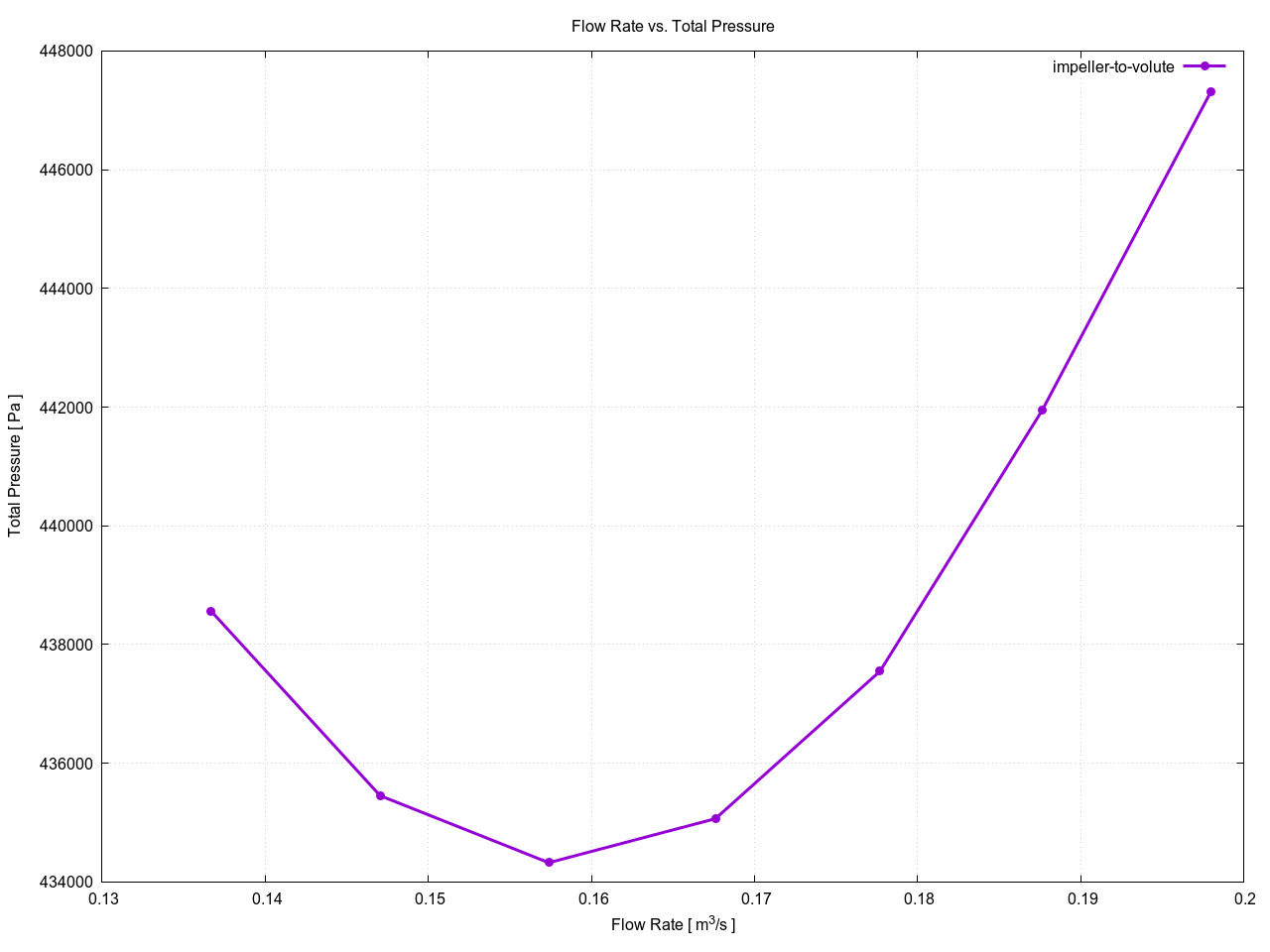

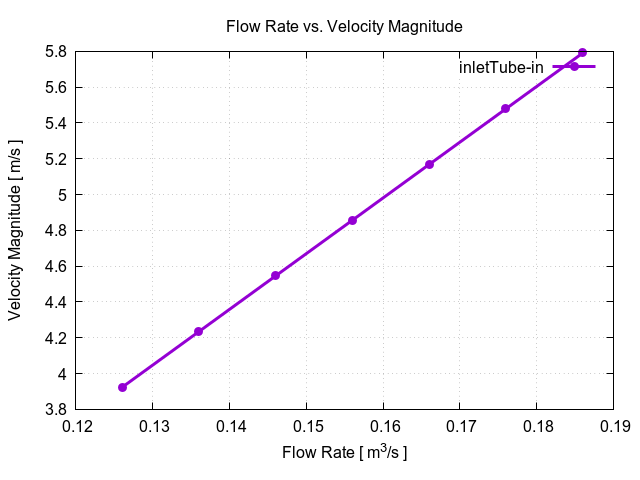

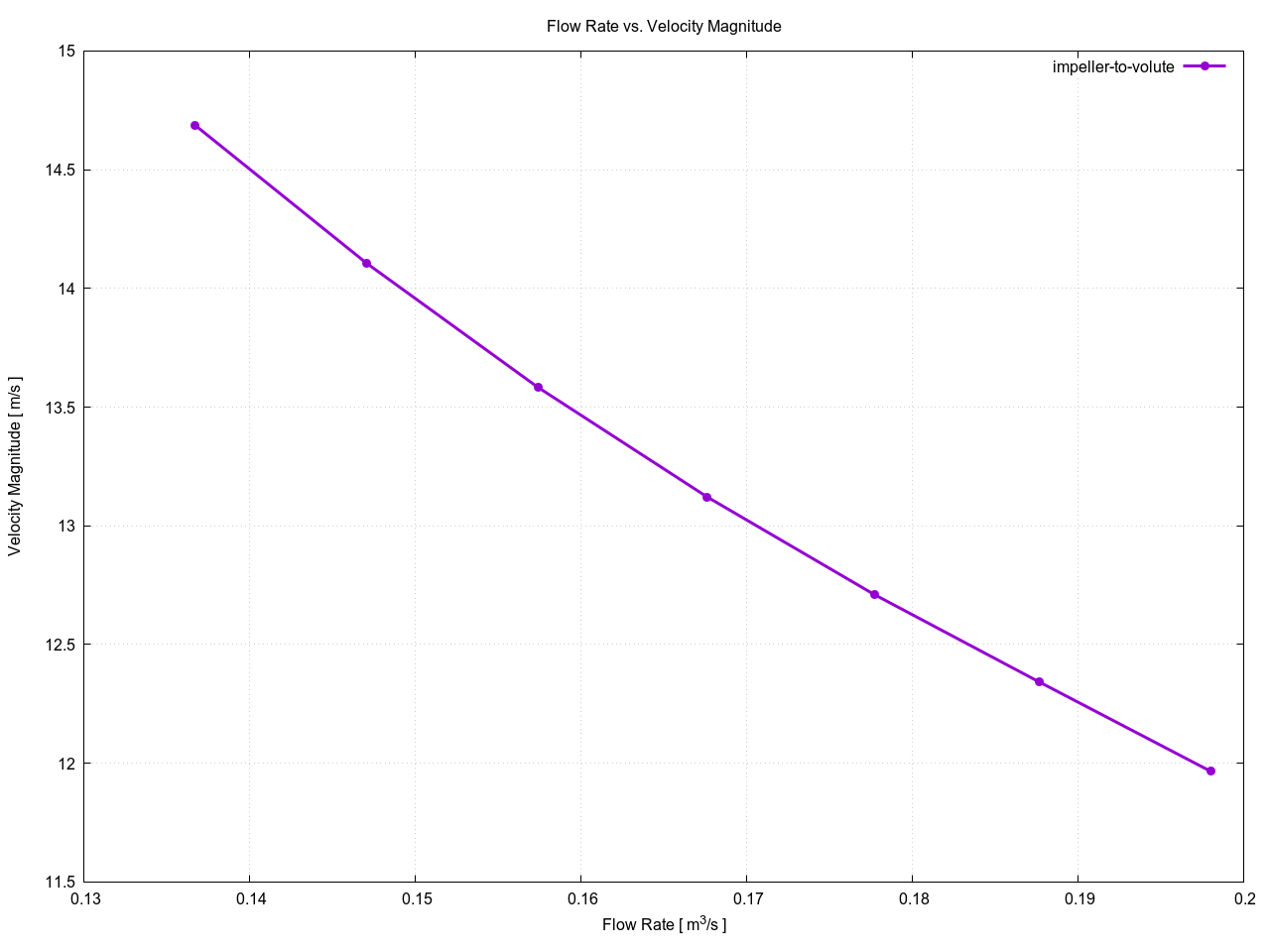

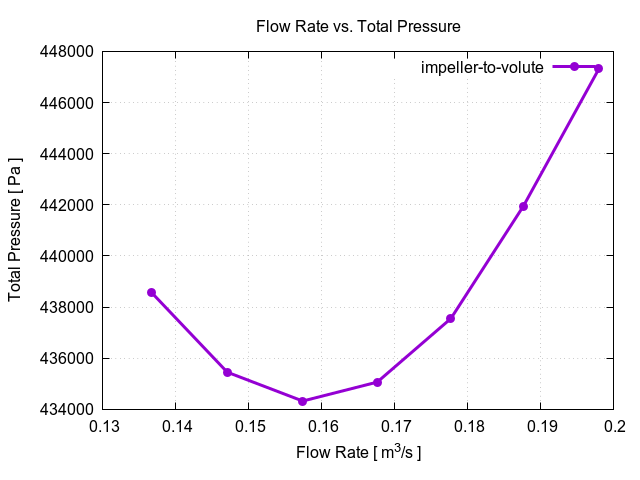

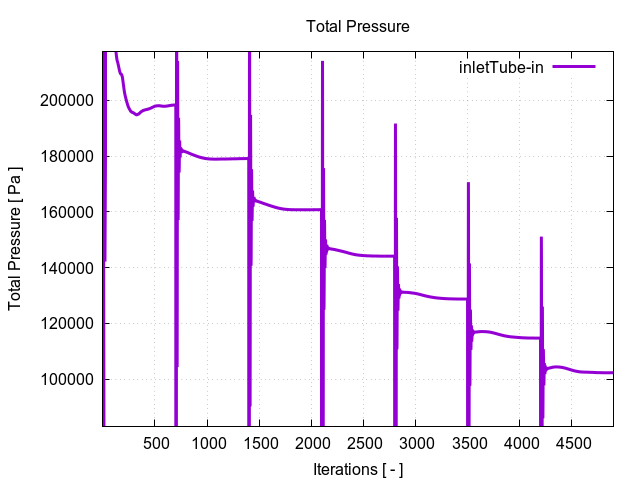

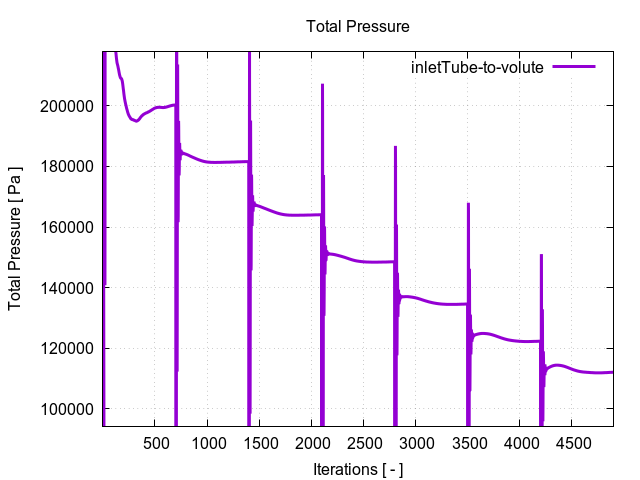

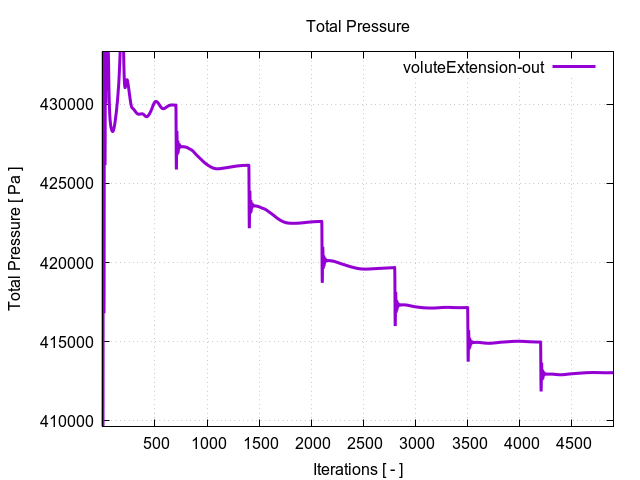

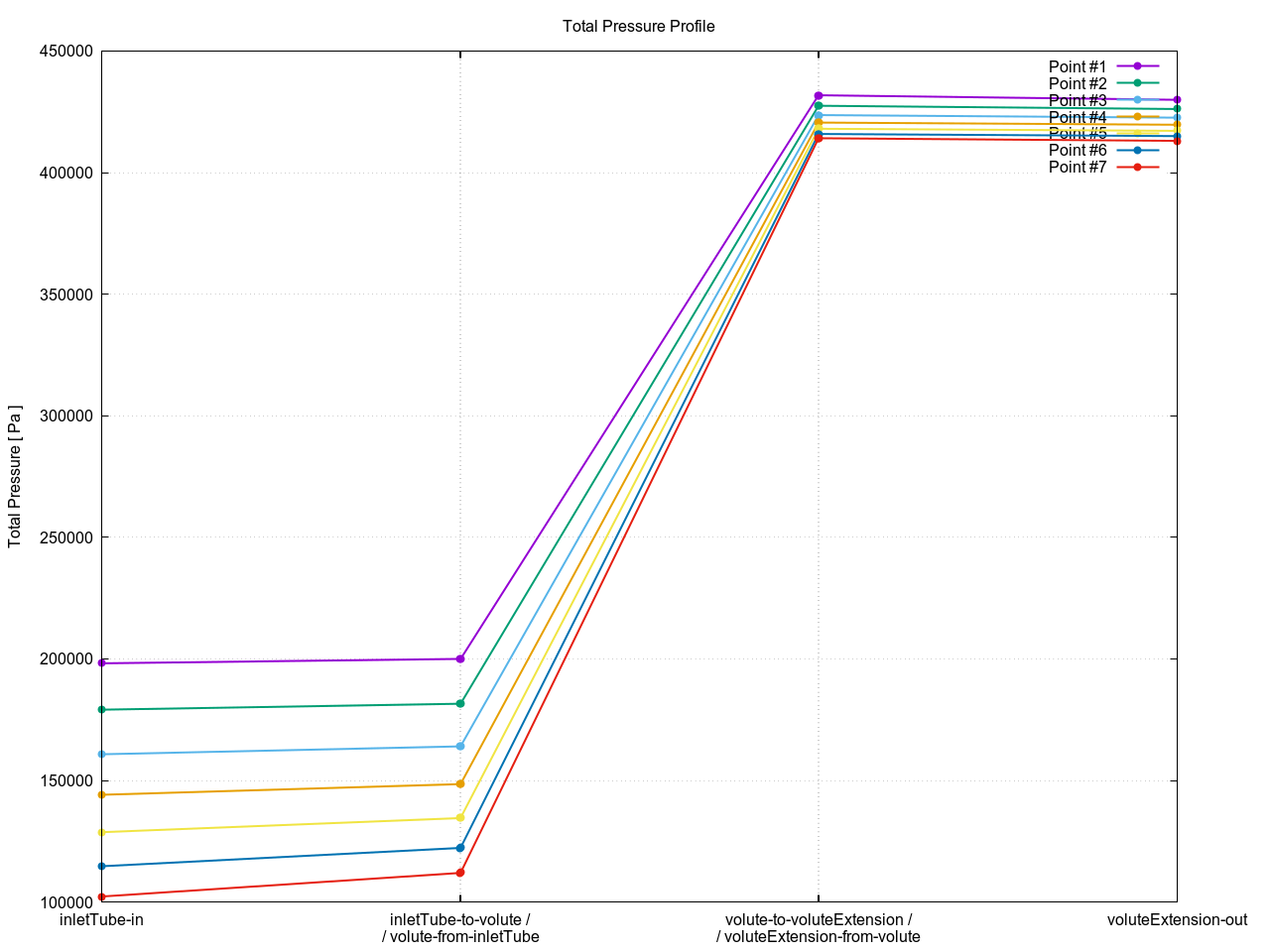

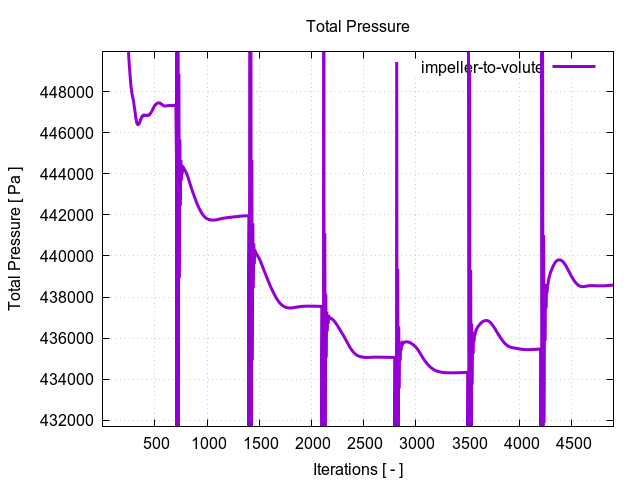

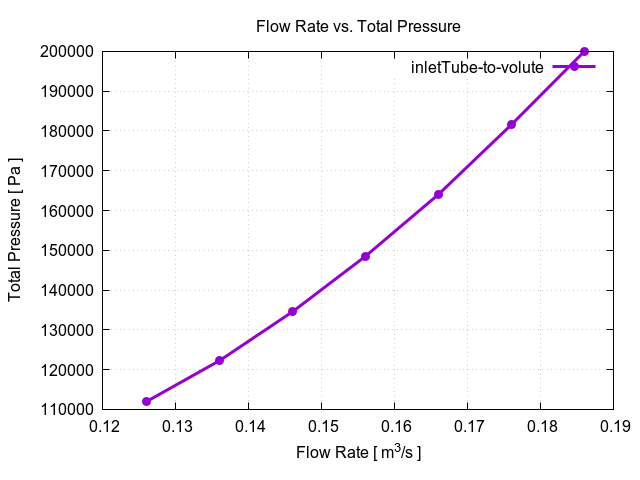

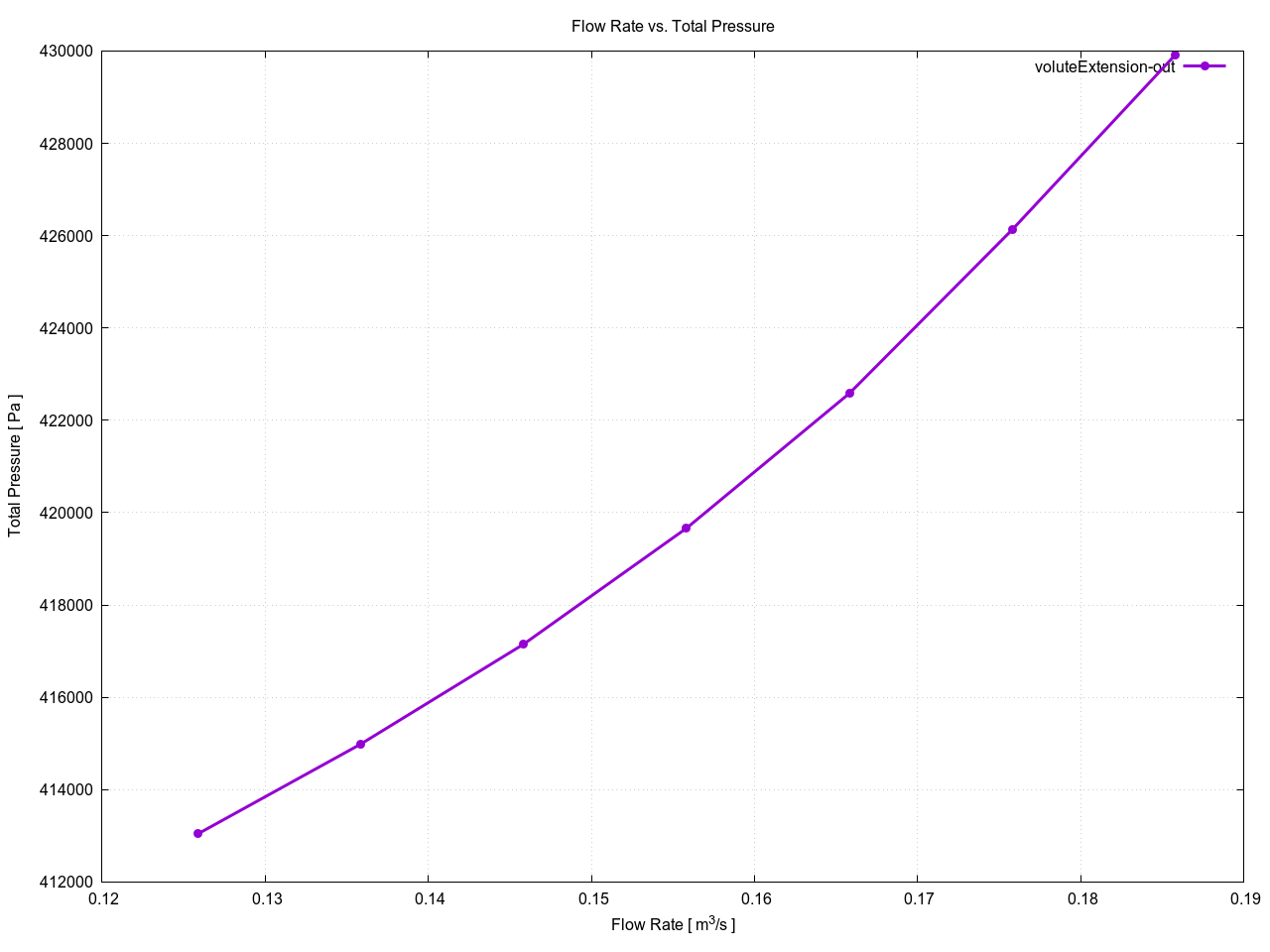

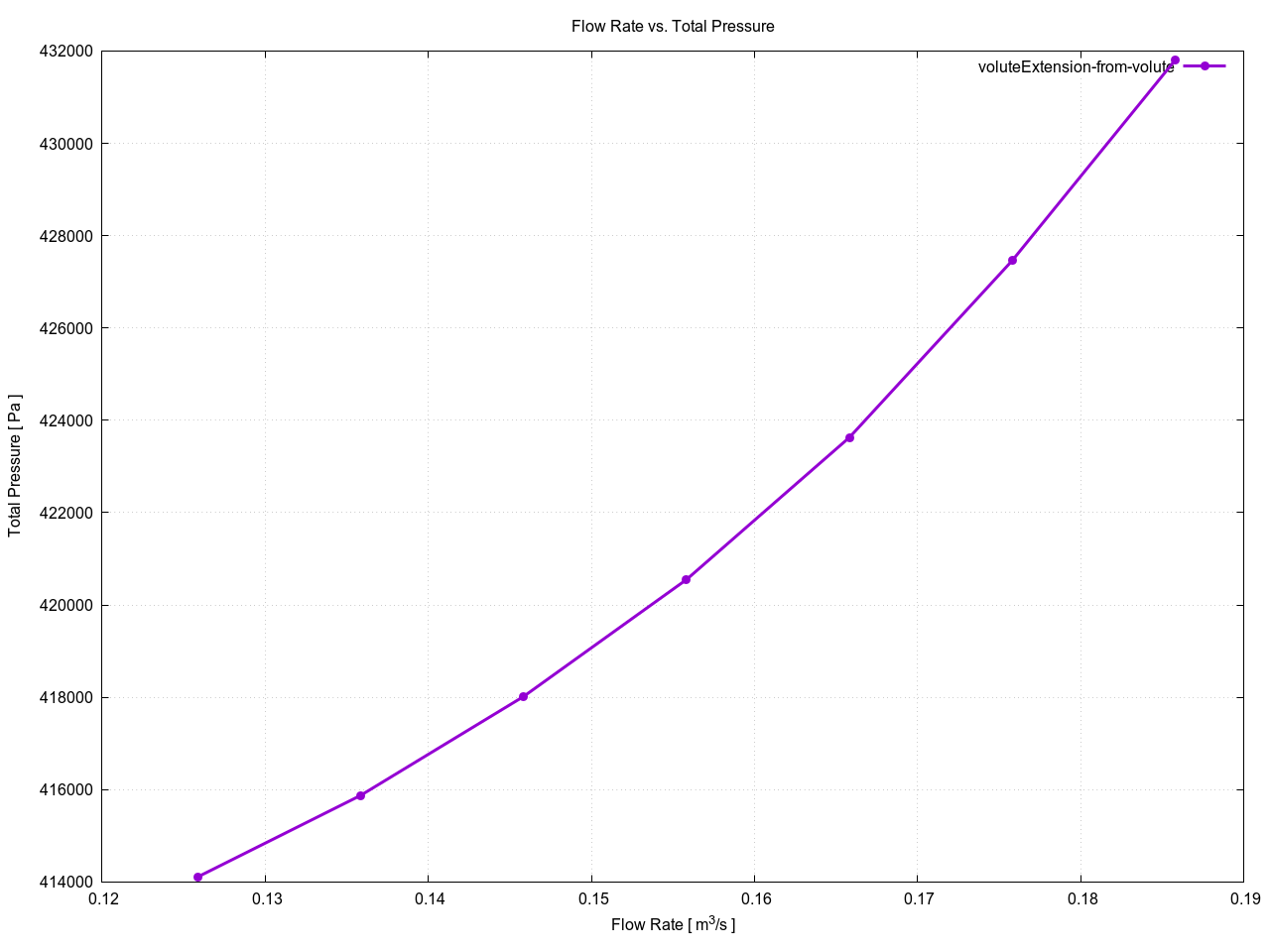

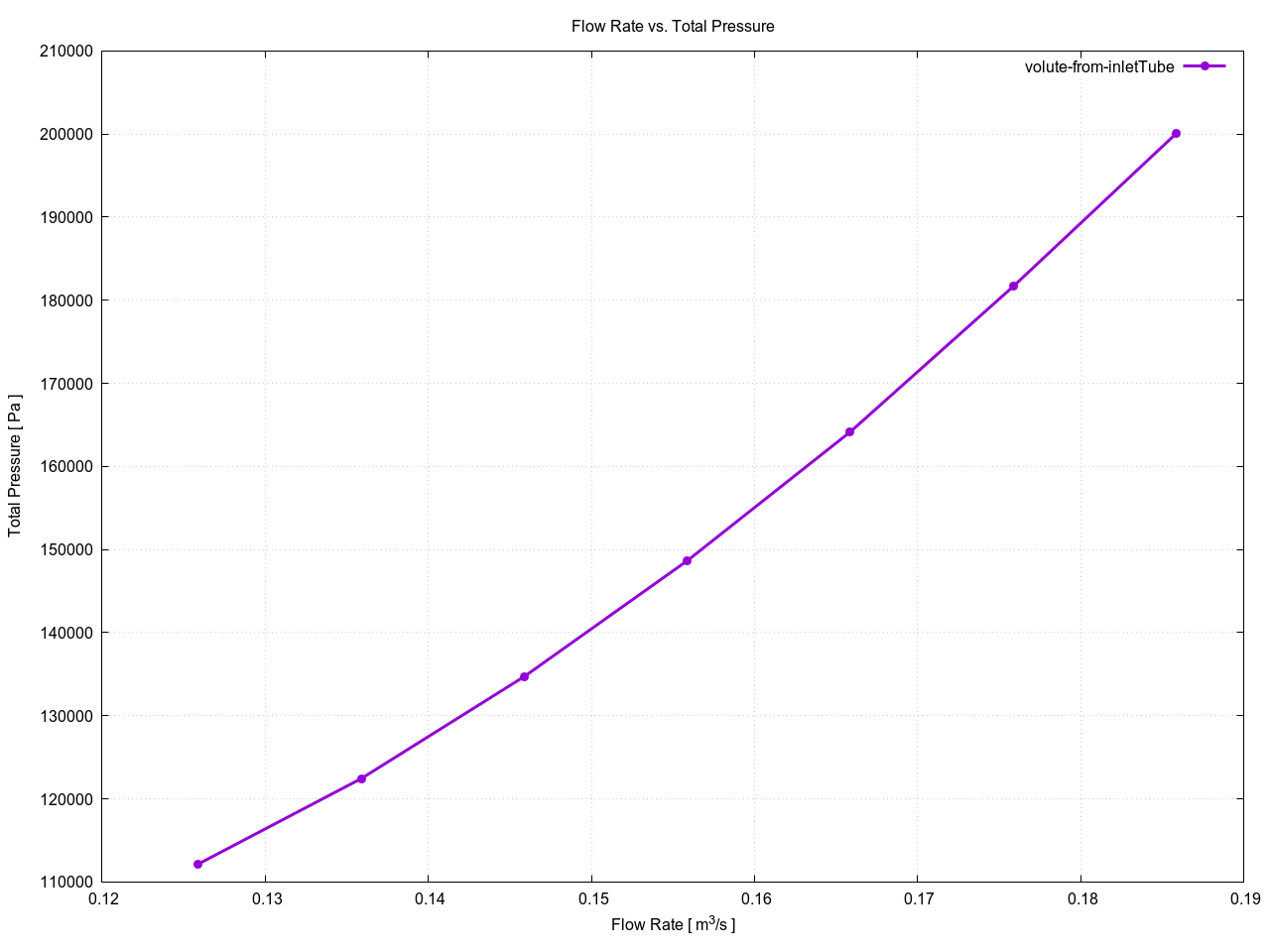

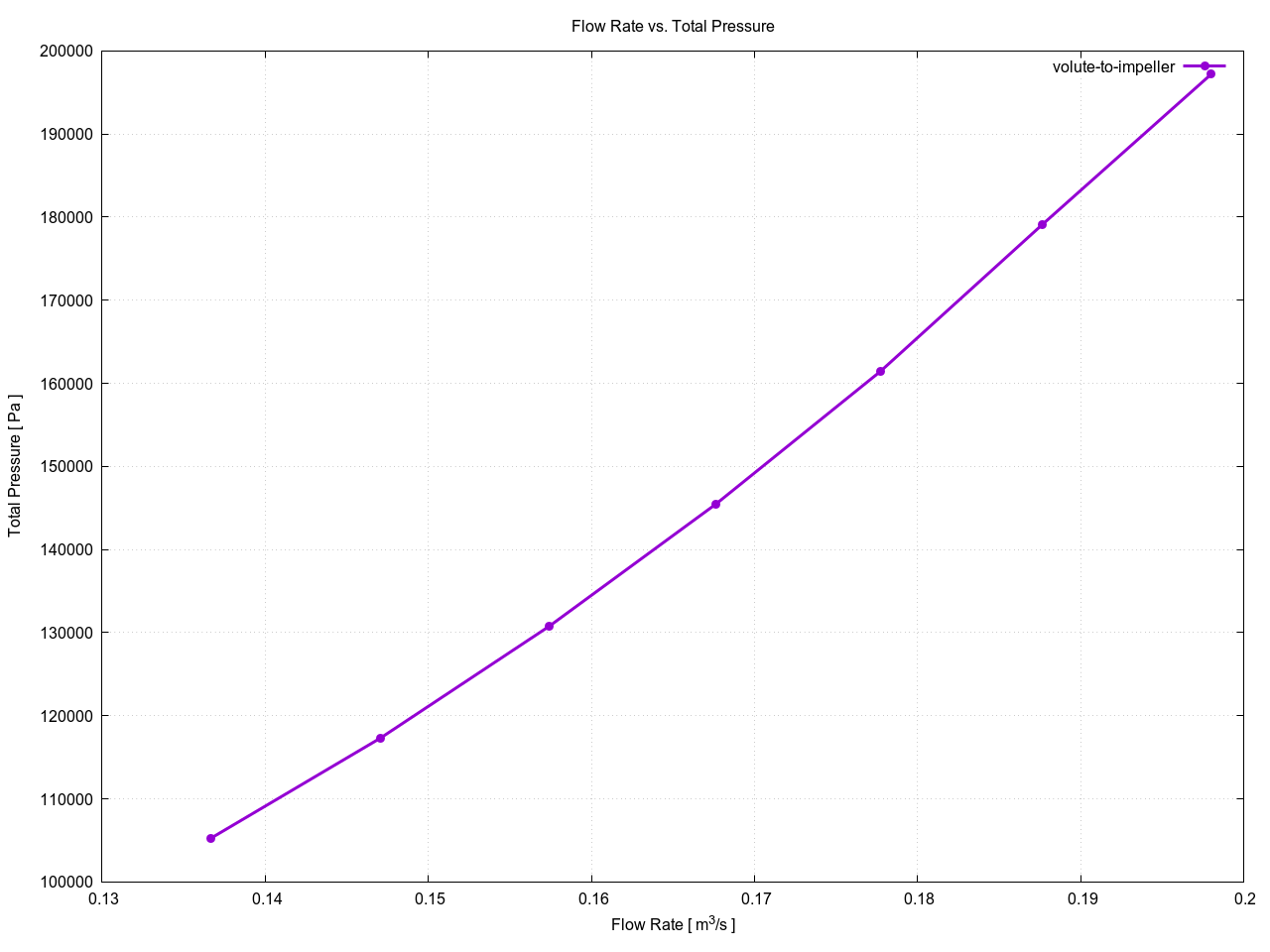

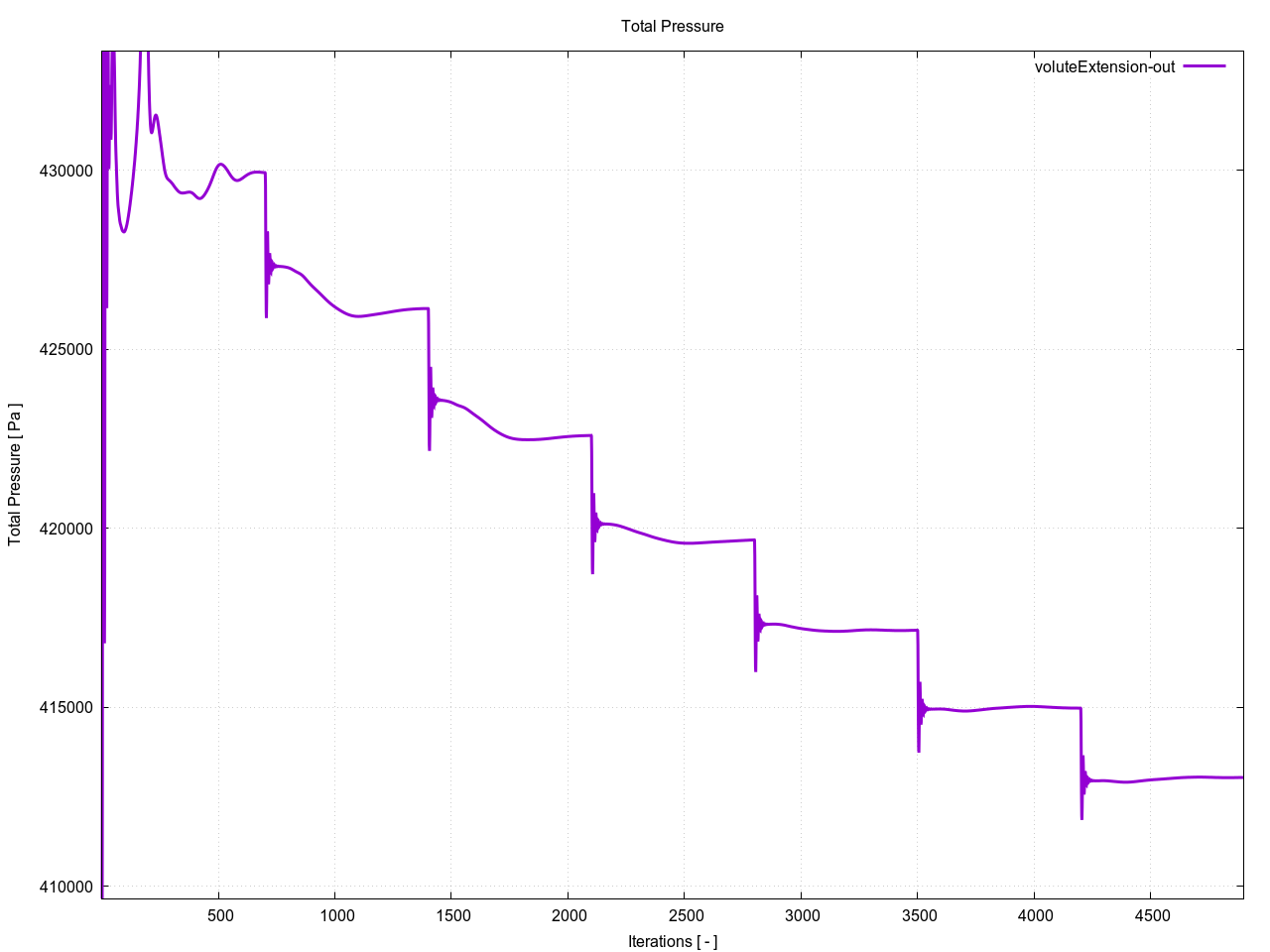

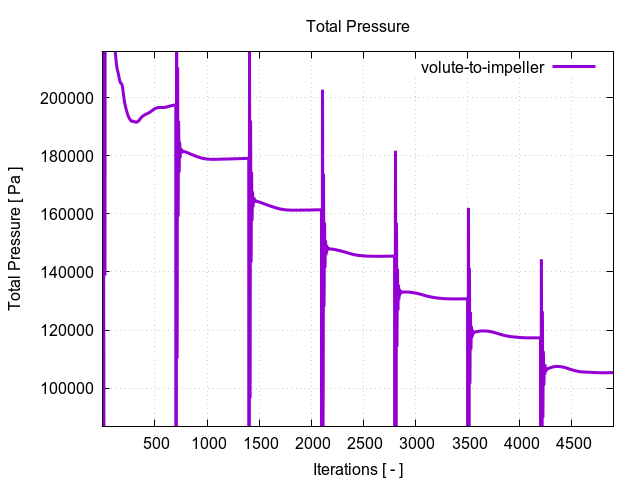

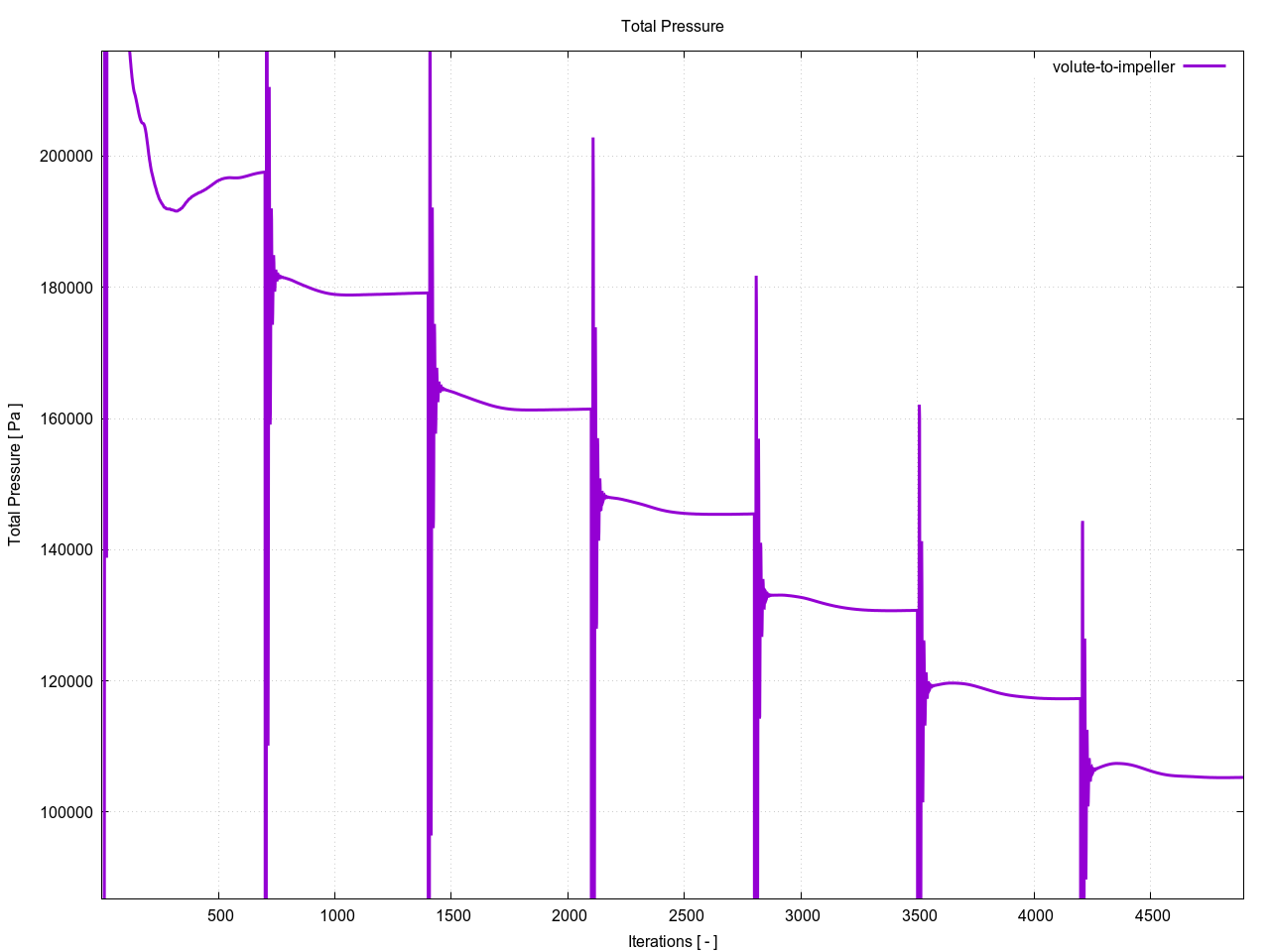

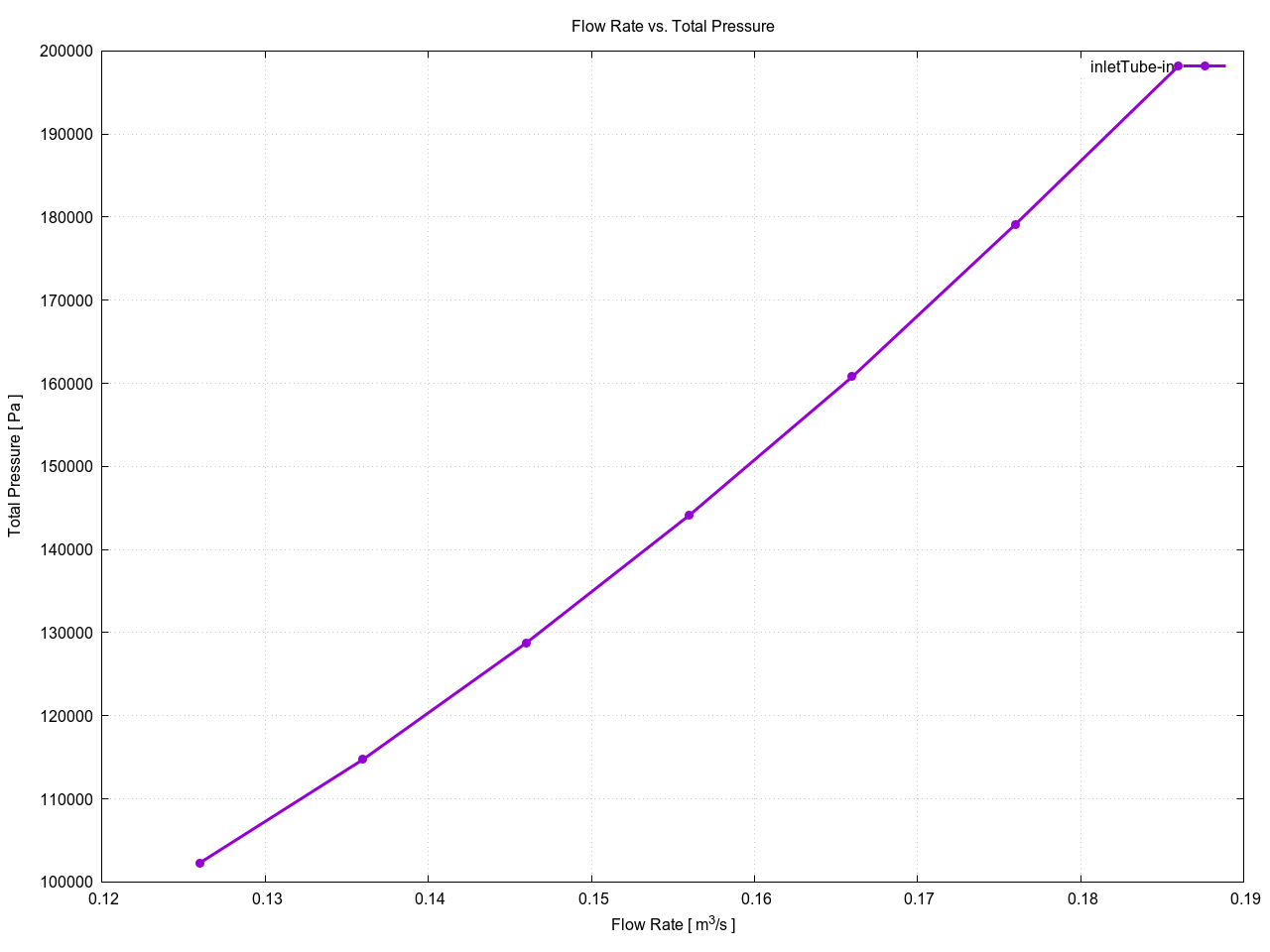

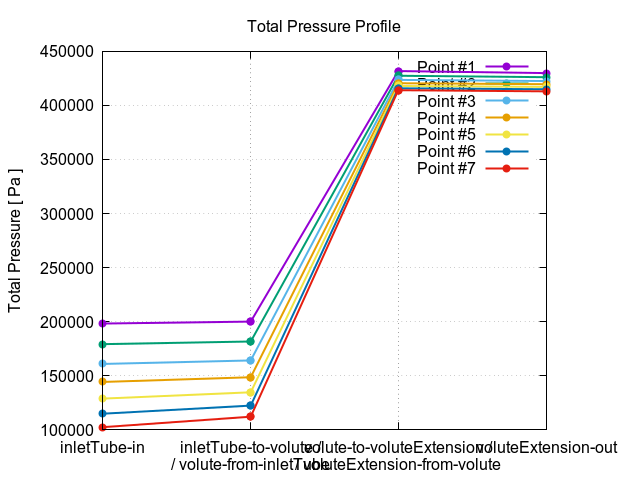

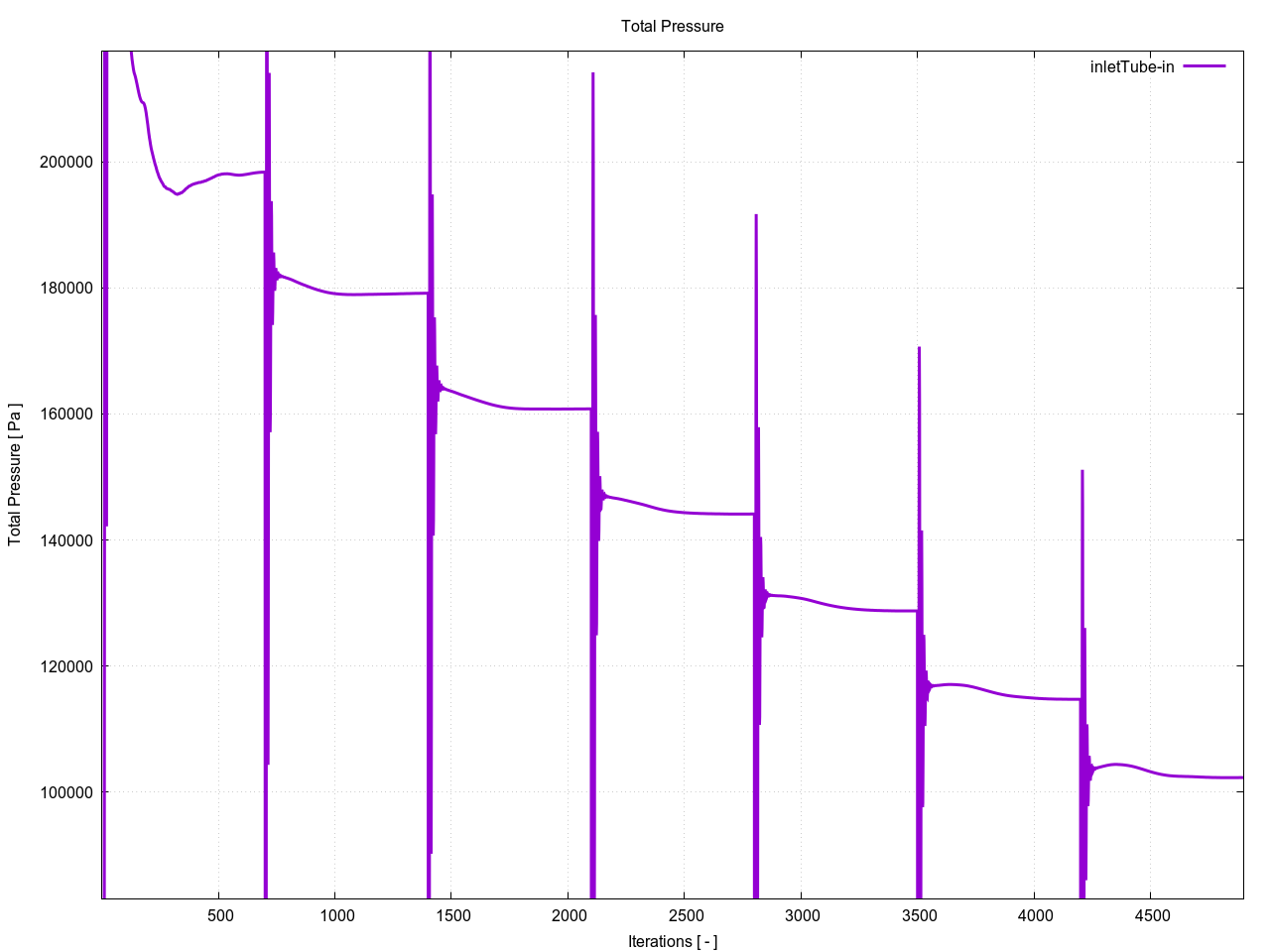

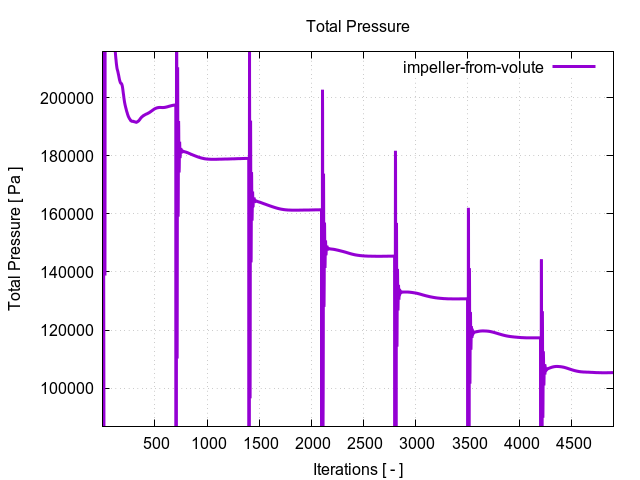

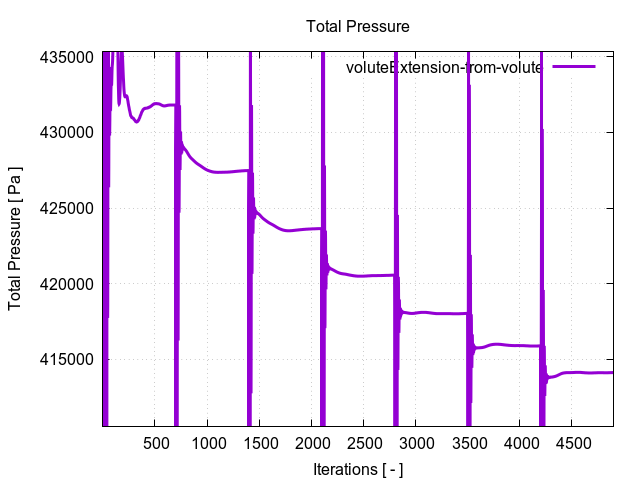

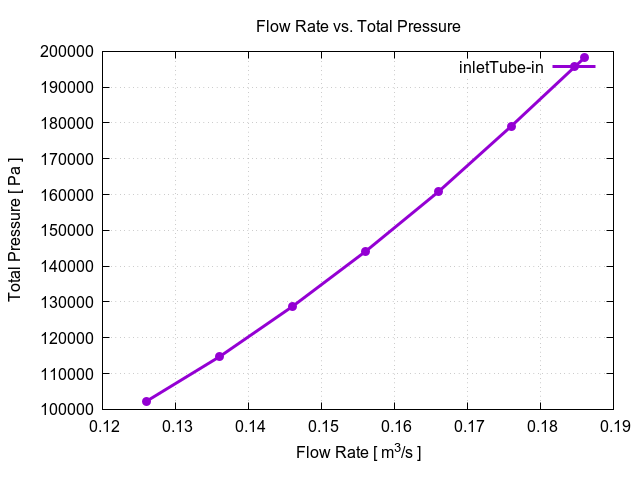

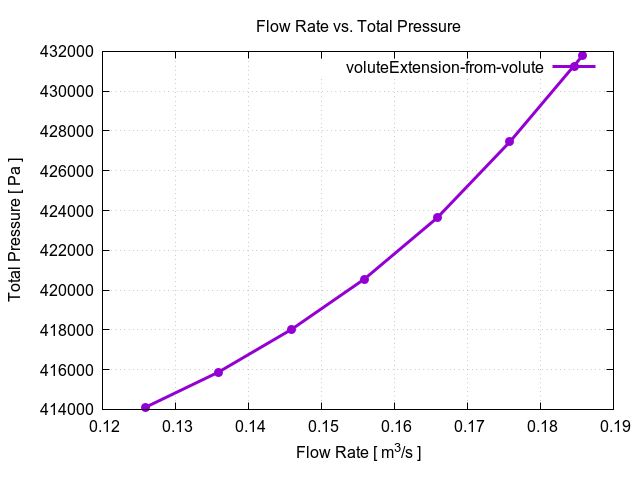

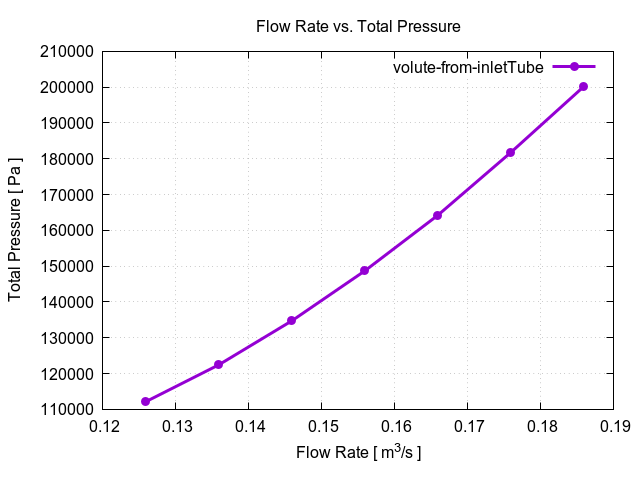

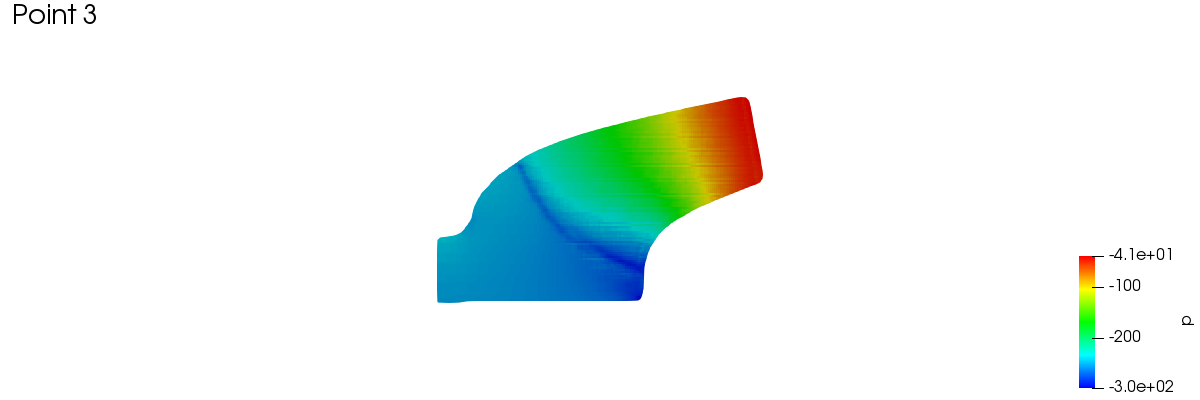

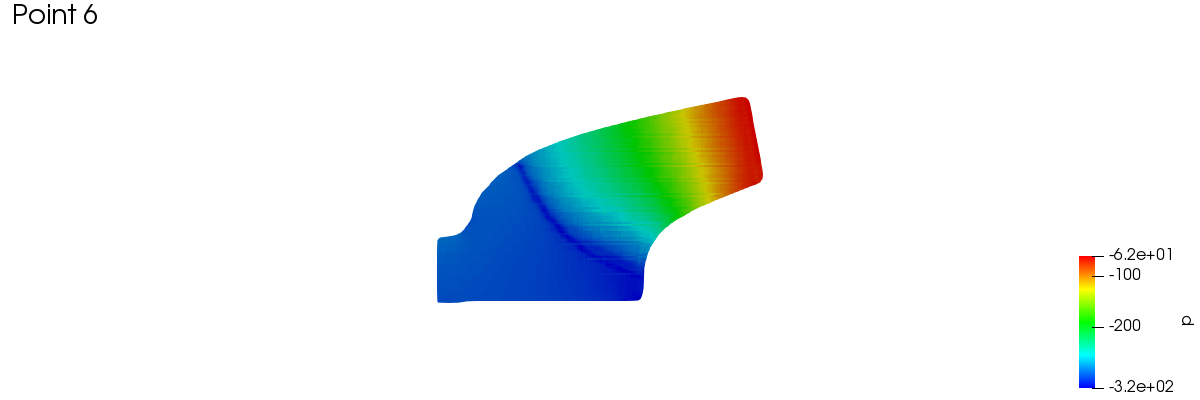

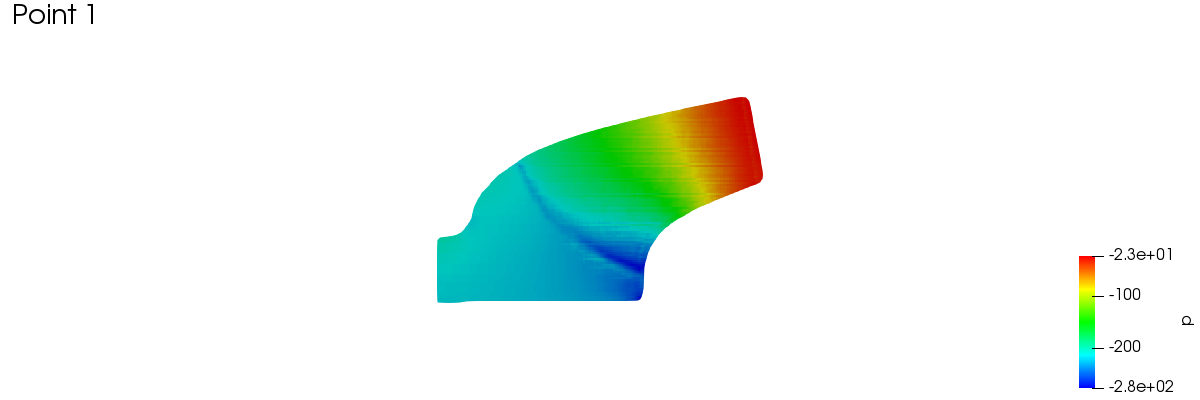

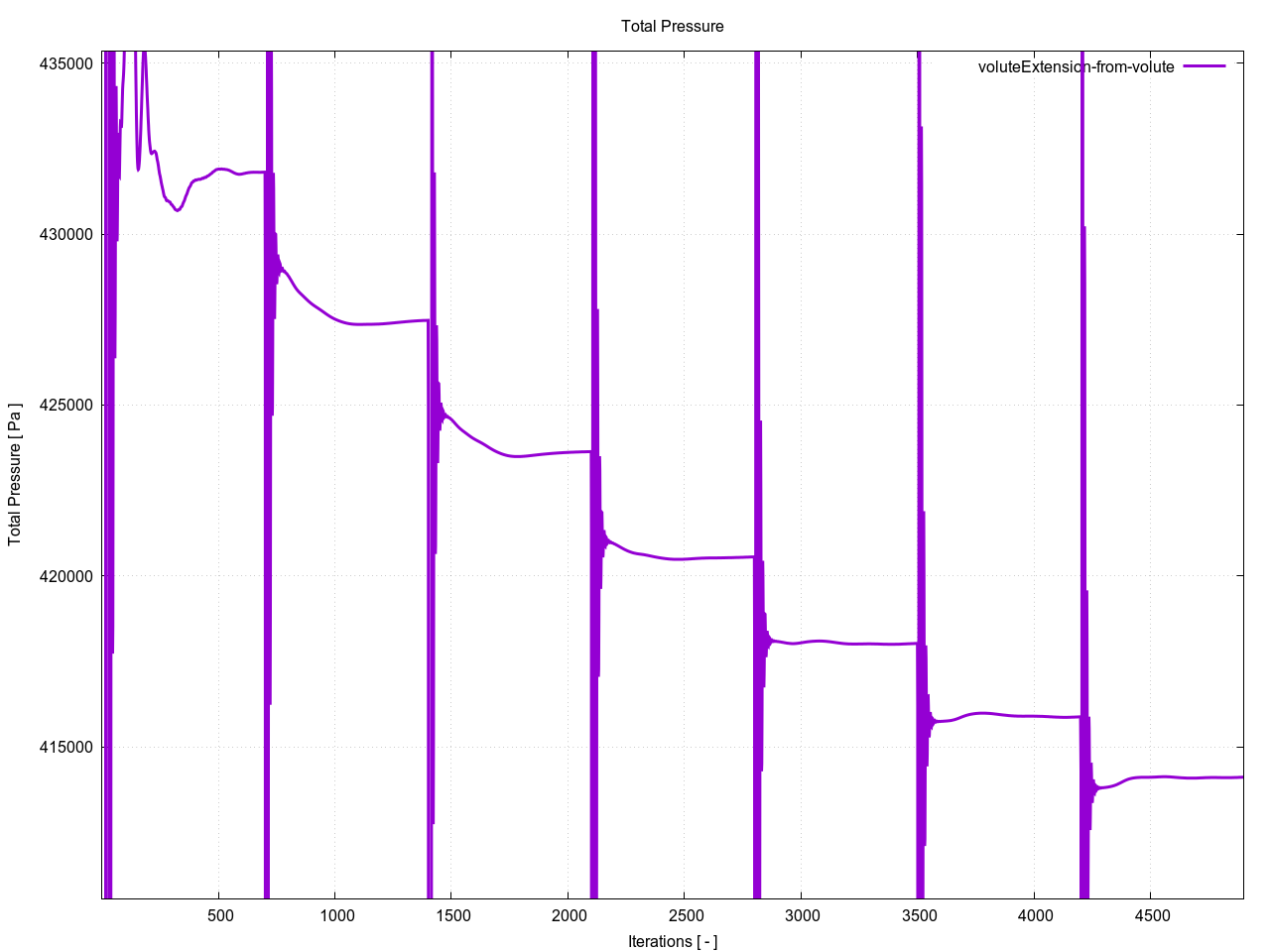

Total Pressure per Interfaces

Point Nr.	Interface Name	Flow Rate [ m³/s ]	Total Pressure [ Pa ]
1	inletTube-in	0.186000	198178.
1	inletTube-to-volute	0.186000	199990.
1	impeller-from-volute	0.198009	197219.

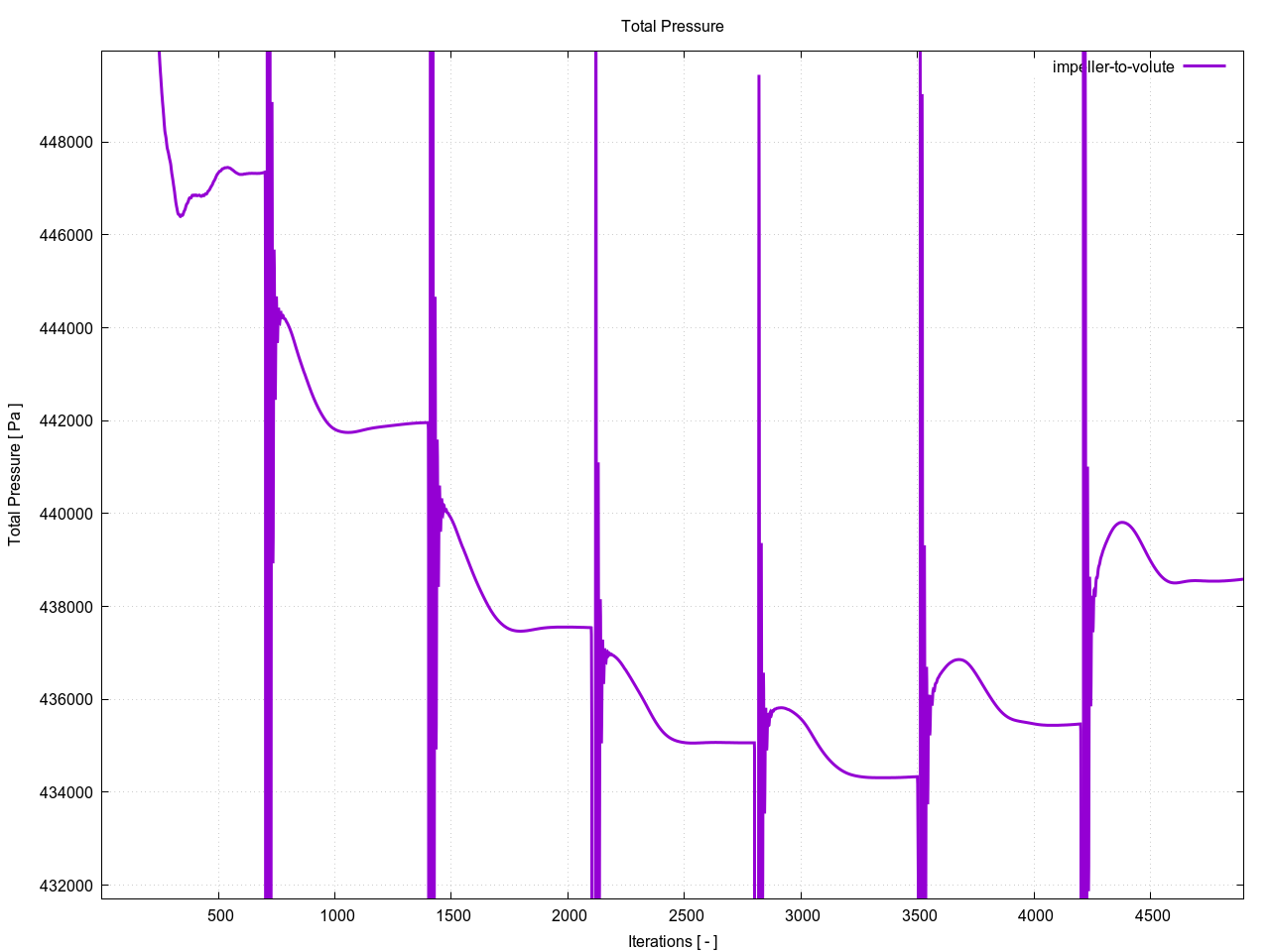

1	impeller-to-volute	0.198009	447322.

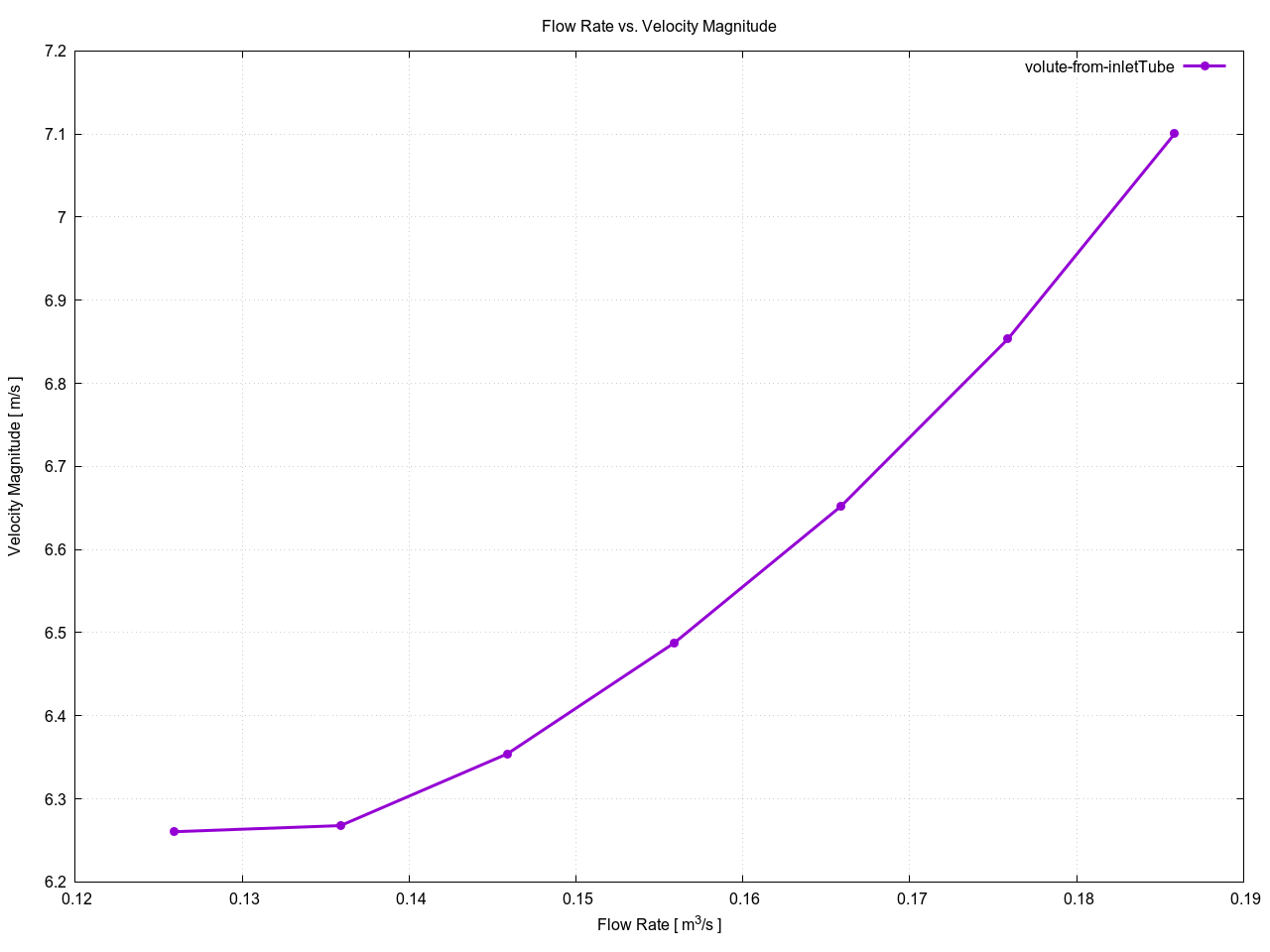

1	volute-from-inletTube	0.185859	200060.
1	volute-from-impeller	0.198012	443560.
1	volute-to-impeller	0.198016	197222.
1	volute-to-voluteExtension	0.185855	431804.

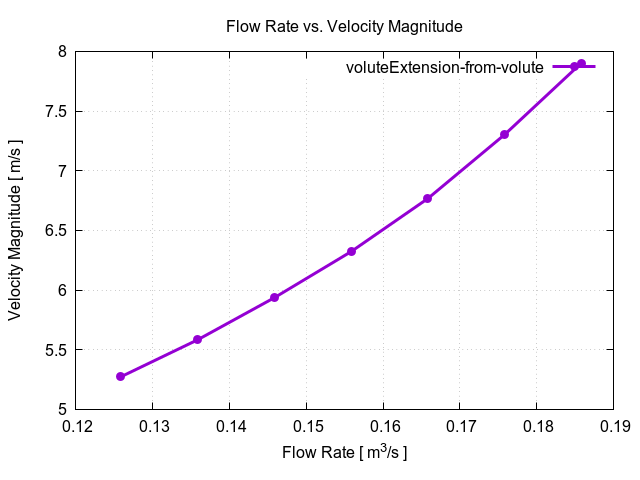

1	voluteExtension-from-volute	0.185790	431799.
1	voluteExtension-out	0.185790	429910.
2	inletTube-in	0.176000	179124.
2	inletTube-to-volute	0.176000	181568.
2	impeller-from-volute	0.187643	179107.
2	impeller-to-volute	0.187643	441945.
2	volute-from-inletTube	0.175873	181672.
2	volute-from-impeller	0.187643	438118.
2	volute-to-impeller	0.187648	179106.
2	volute-to-voluteExtension	0.175867	427464.
2	voluteExtension-from-volute	0.175810	427460.
2	voluteExtension-out	0.175810	426129.
3	inletTube-in	0.166000	160792.
3	inletTube-to-volute	0.166000	164033.
3	impeller-from-volute	0.177701	161413.
3	impeller-to-volute	0.177701	437551.
3	volute-from-inletTube	0.165877	164160.
3	volute-from-impeller	0.177702	433734.
3	volute-to-impeller	0.177706	161410.
3	volute-to-voluteExtension	0.165873	423632.
3	voluteExtension-from-volute	0.165820	423628.
3	voluteExtension-out	0.165820	422583.
4	inletTube-in	0.156000	144119.
4	inletTube-to-volute	0.156000	148503.
4	impeller-from-volute	0.167606	145437.
4	impeller-to-volute	0.167606	435066.
4	volute-from-inletTube	0.155880	148653.
4	volute-from-impeller	0.167607	431188.
4	volute-to-impeller	0.167610	145434.
4	volute-to-voluteExtension	0.155876	420552.
4	voluteExtension-from-volute	0.155829	420548.
4	voluteExtension-out	0.155829	419662.
5	inletTube-in	0.146000	128754.
5	inletTube-to-volute	0.146000	134547.
5	impeller-from-volute	0.157384	130738.
5	impeller-to-volute	0.157384	434324.
5	volute-from-inletTube	0.145883	134715.
5	volute-from-impeller	0.157385	430308.
5	volute-to-impeller	0.157388	130734.
5	volute-to-voluteExtension	0.145880	418019.
5	voluteExtension-from-volute	0.145837	418016.
5	voluteExtension-out	0.145837	417149.
6	inletTube-in	0.136000	114736.
6	inletTube-to-volute	0.136000	122271.
6	impeller-from-volute	0.147046	117296.
6	impeller-to-volute	0.147046	435454.
6	volute-from-inletTube	0.135888	122443.
6	volute-from-impeller	0.147046	431215.
6	volute-to-impeller	0.147050	117295.
6	volute-to-voluteExtension	0.135885	415876.
6	voluteExtension-from-volute	0.135845	415873.
6	voluteExtension-out	0.135845	414984.
7	inletTube-in	0.126000	102303.
7	inletTube-to-volute	0.126000	111997.
7	impeller-from-volute	0.136677	105275.
7	impeller-to-volute	0.136677	438564.
7	volute-from-inletTube	0.125896	112159.
7	volute-from-impeller	0.136677	434034.
7	volute-to-impeller	0.136682	105274.
7	volute-to-voluteExtension	0.125891	414113.
7	voluteExtension-from-volute	0.125855	414108.
7	voluteExtension-out	0.125855	413039.

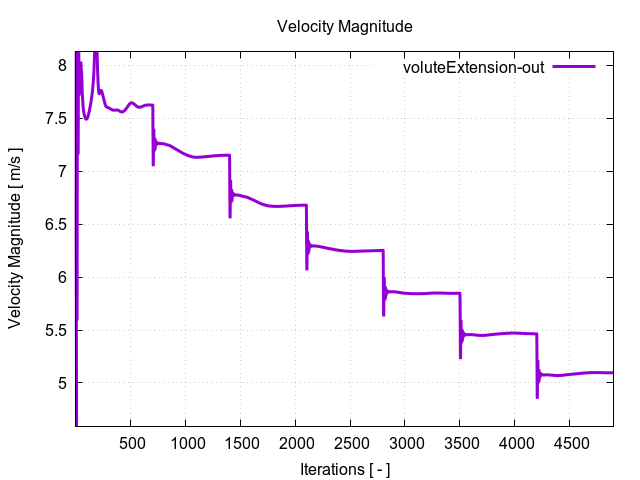

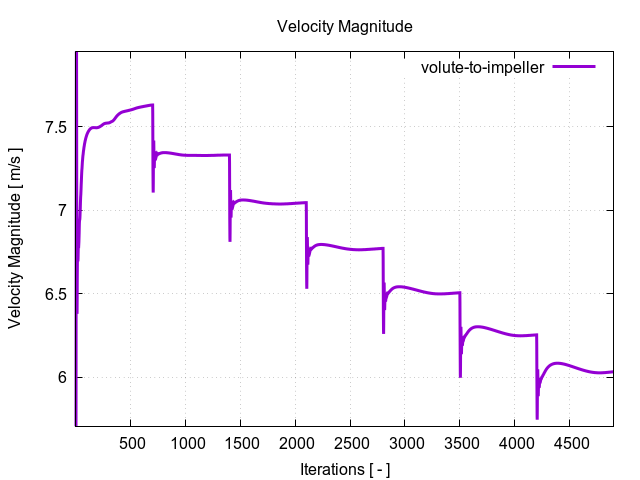

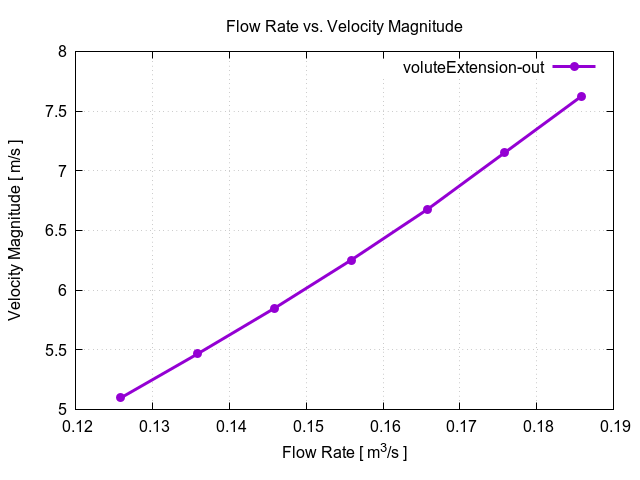

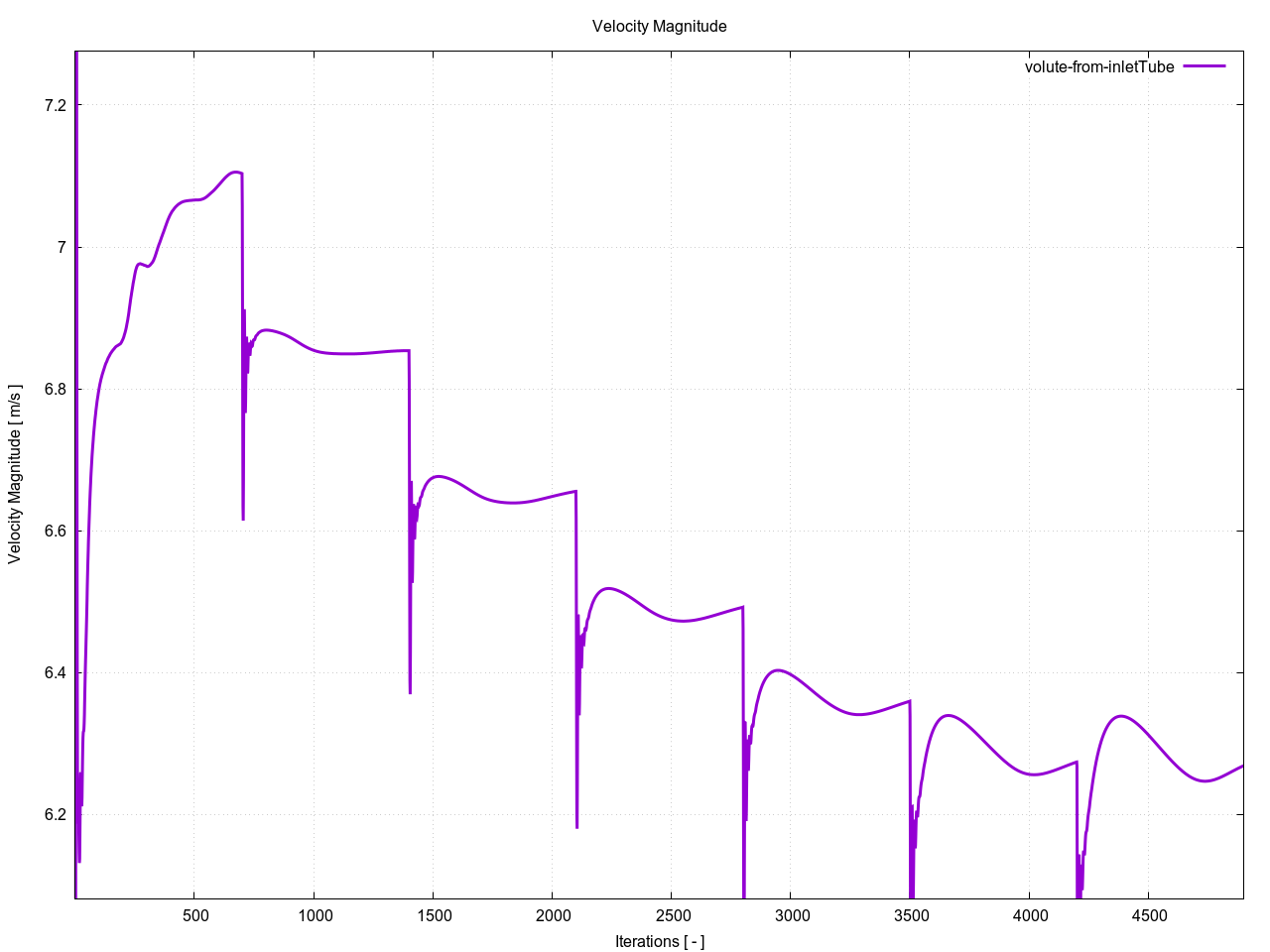

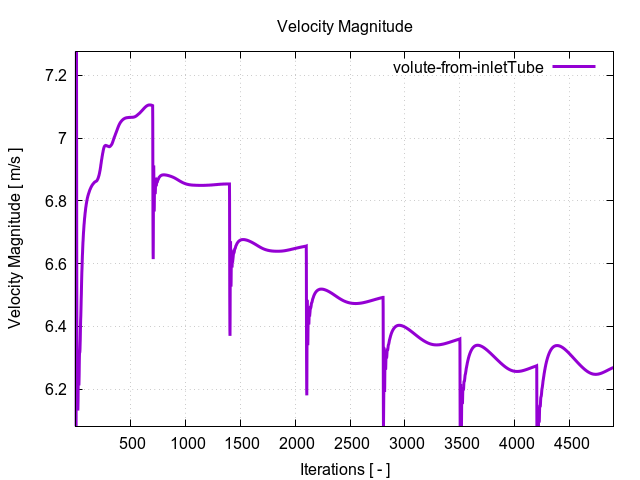

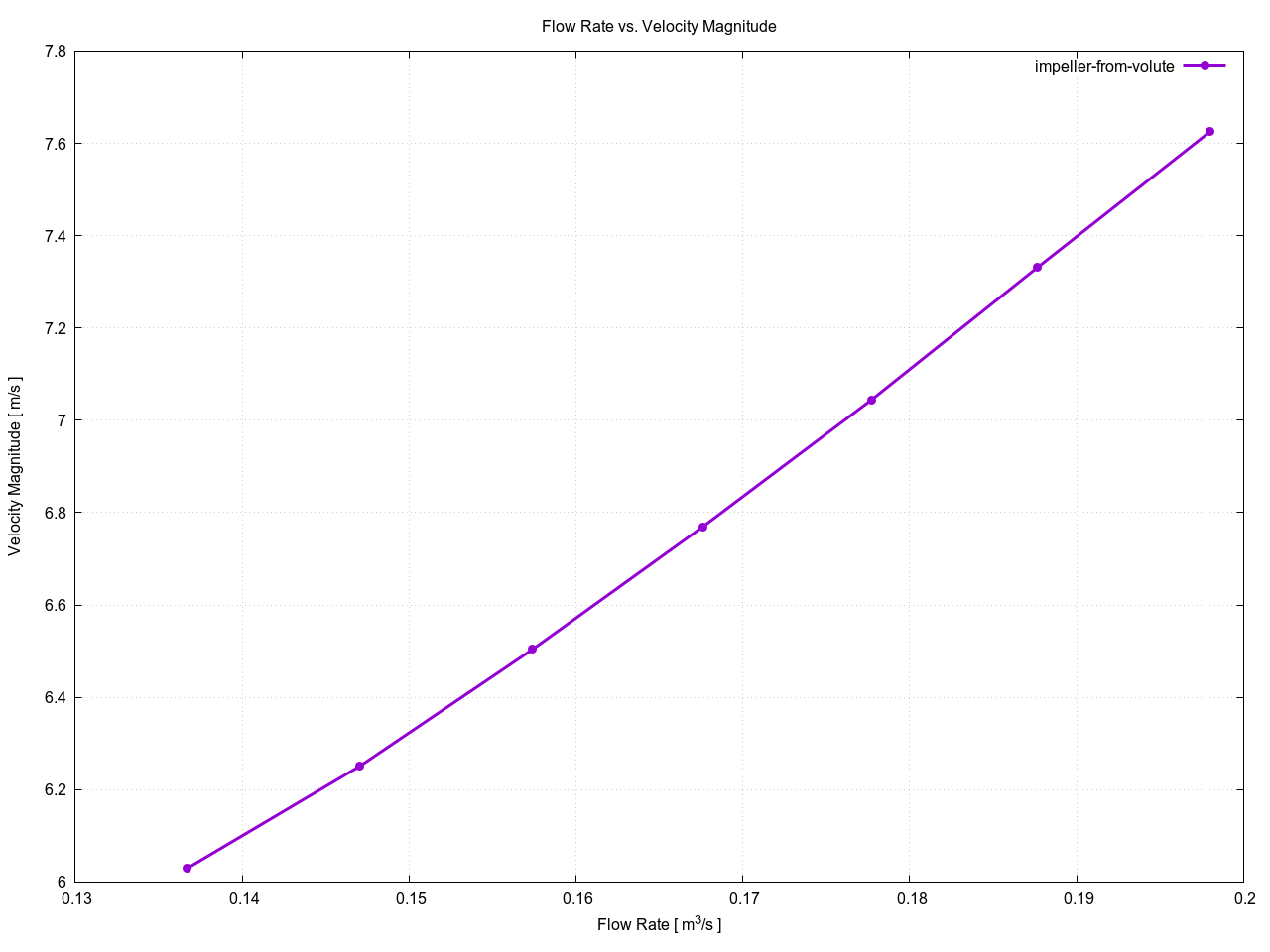

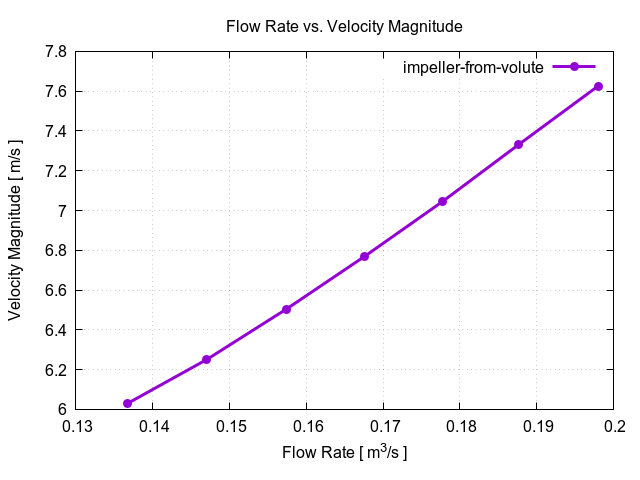

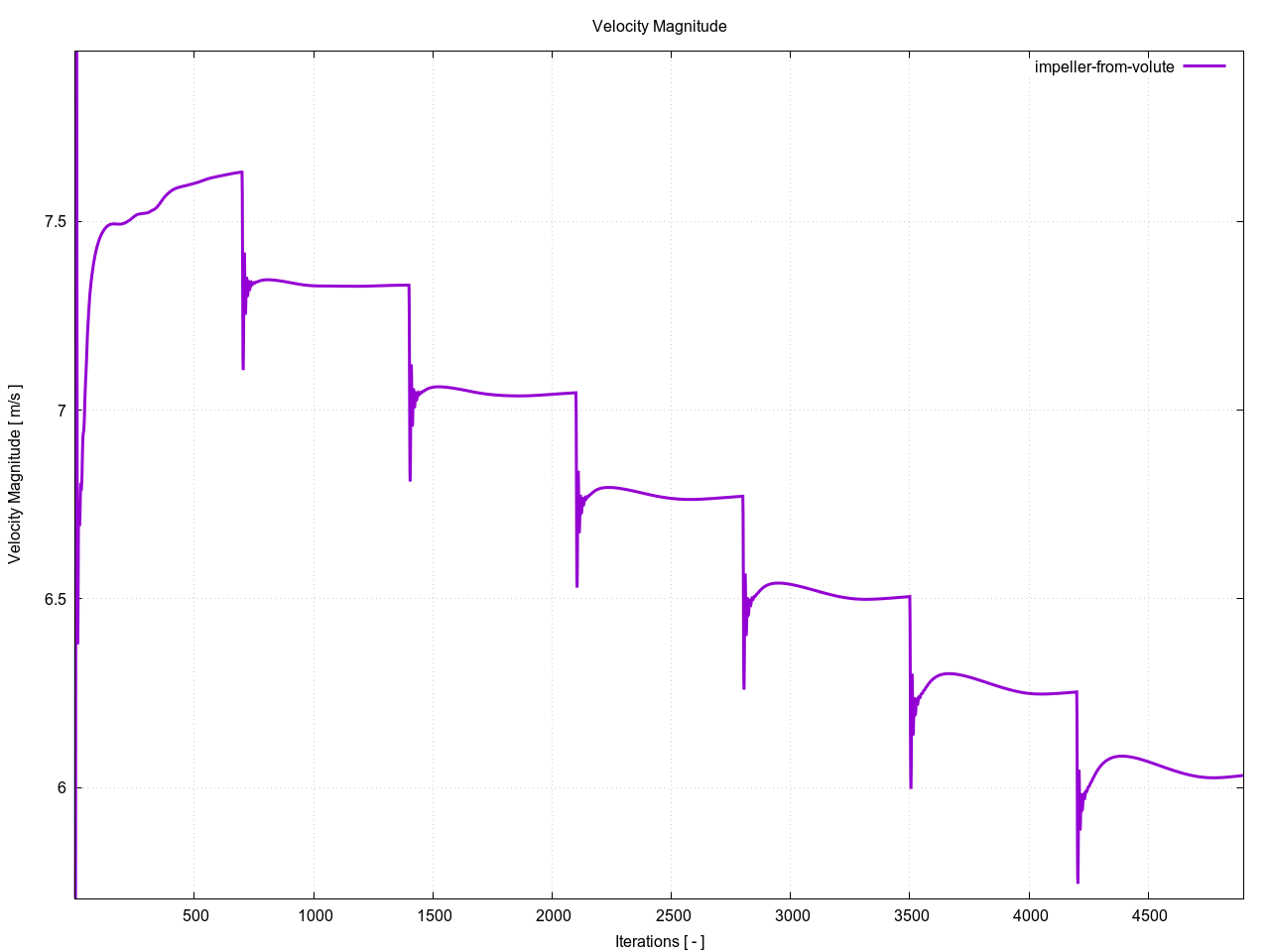

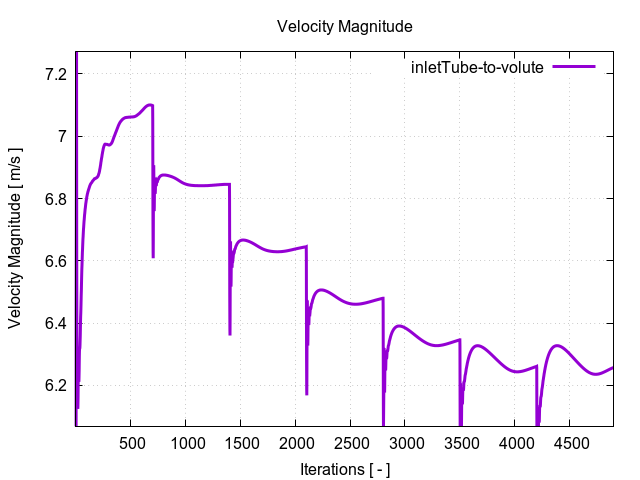

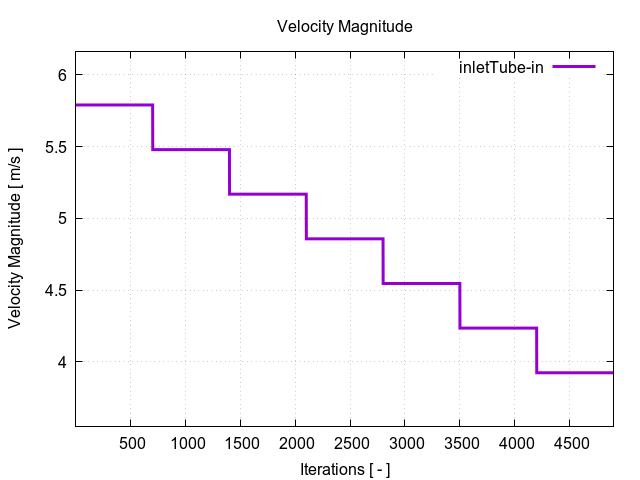

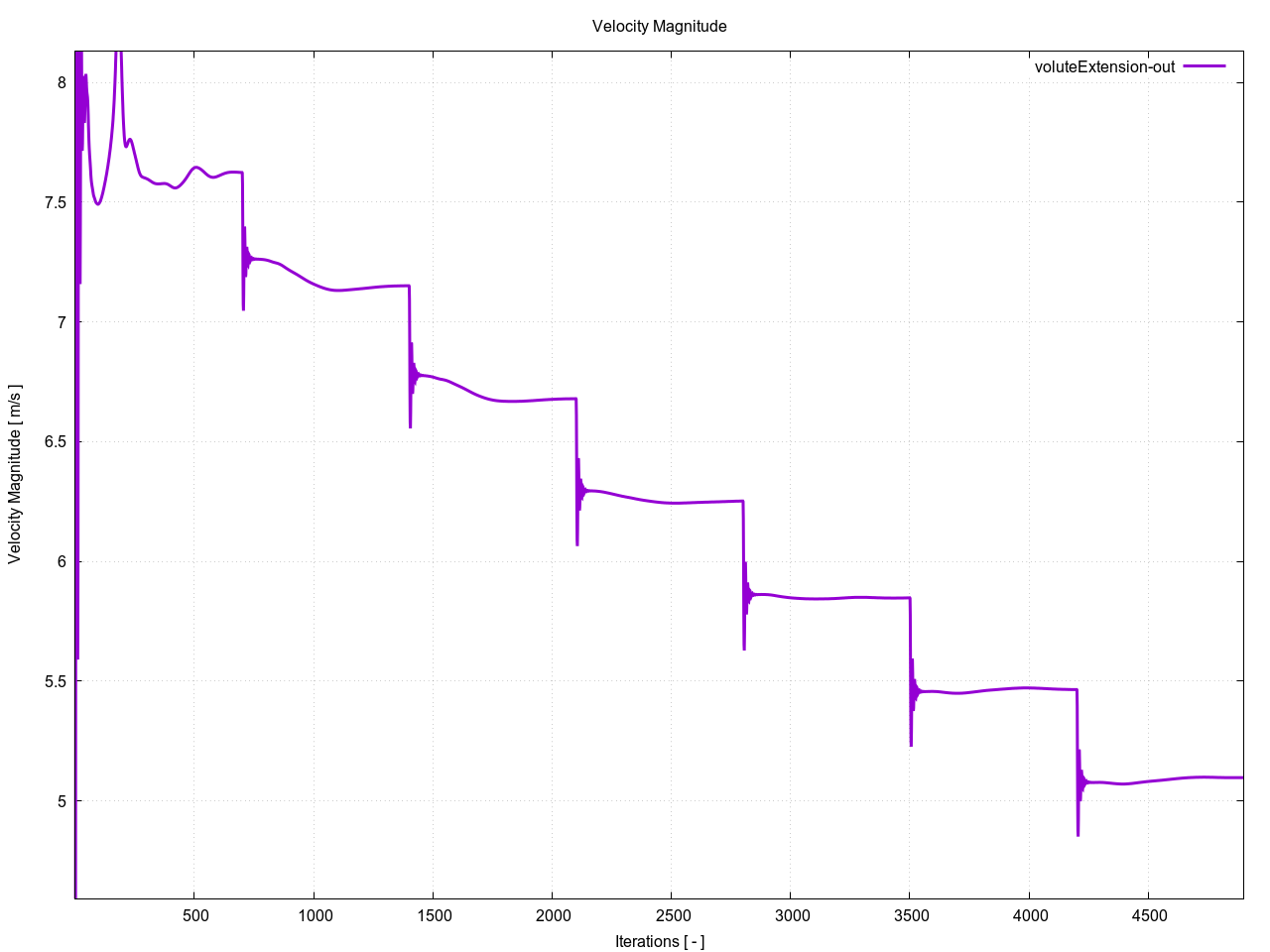

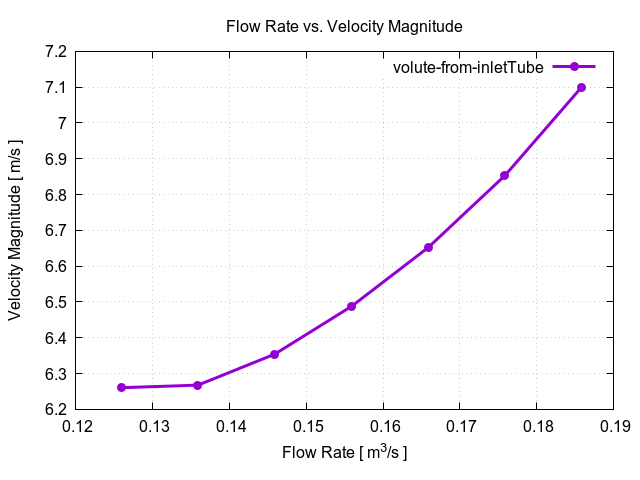

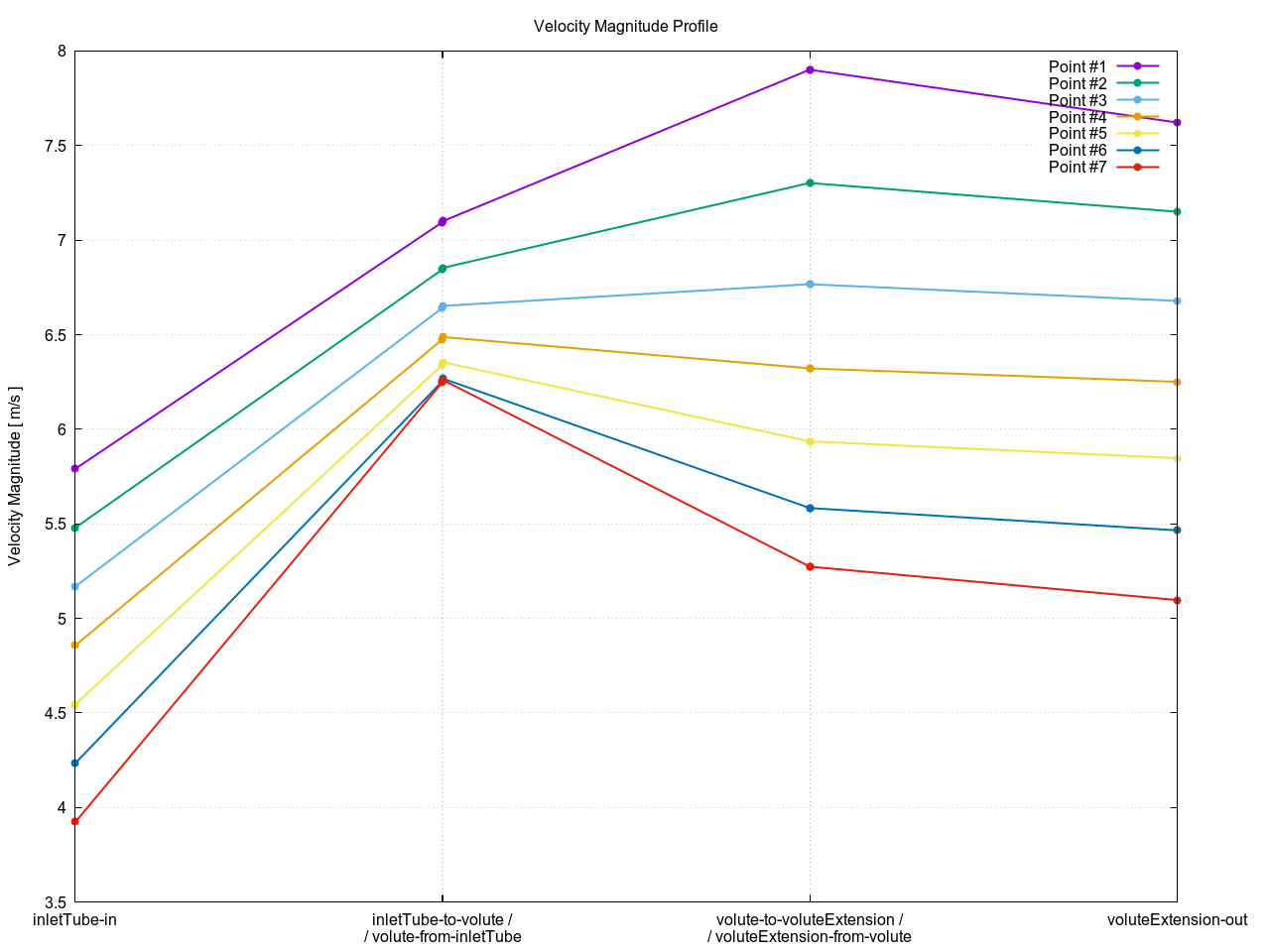

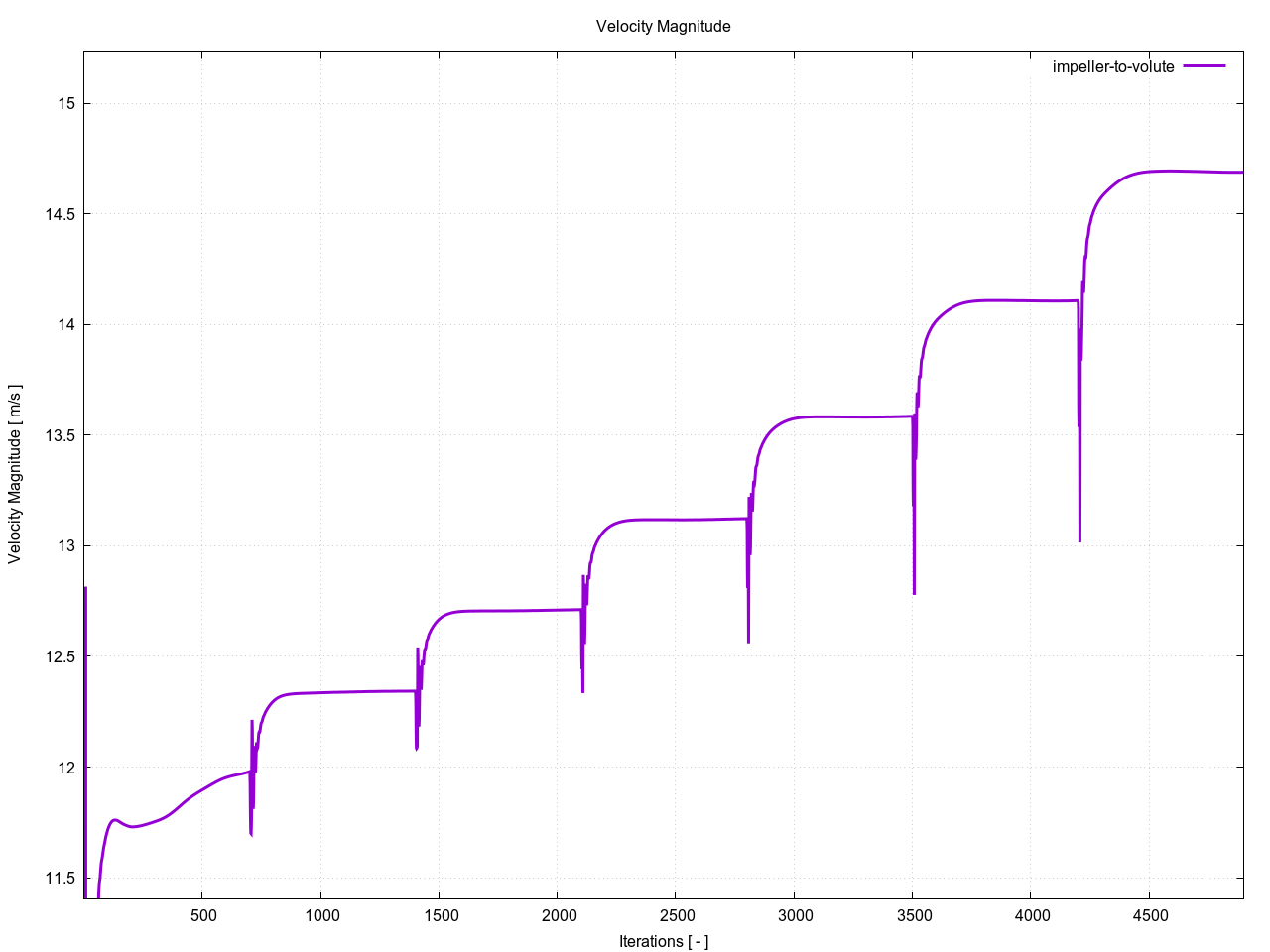

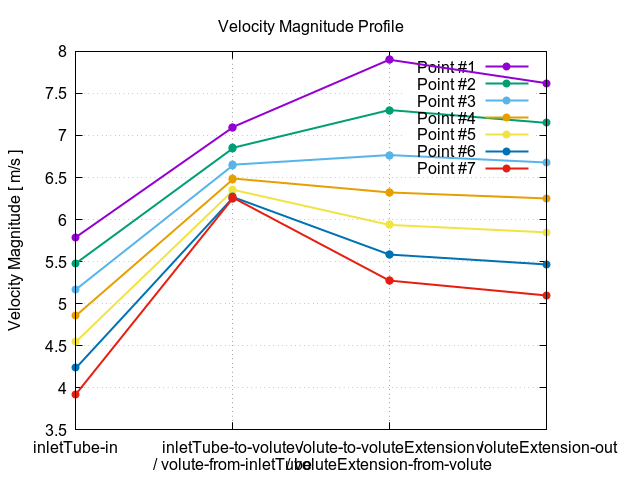

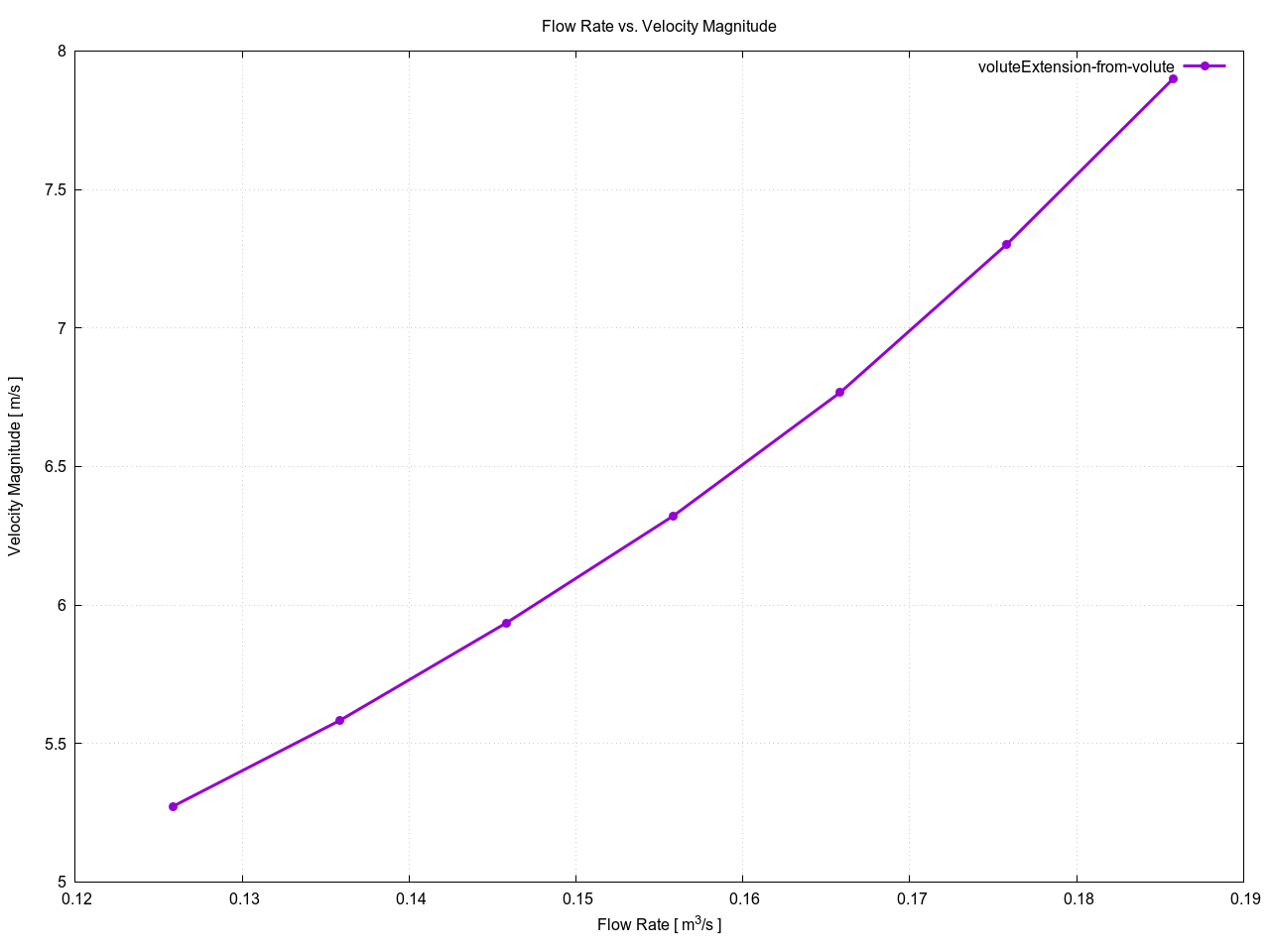

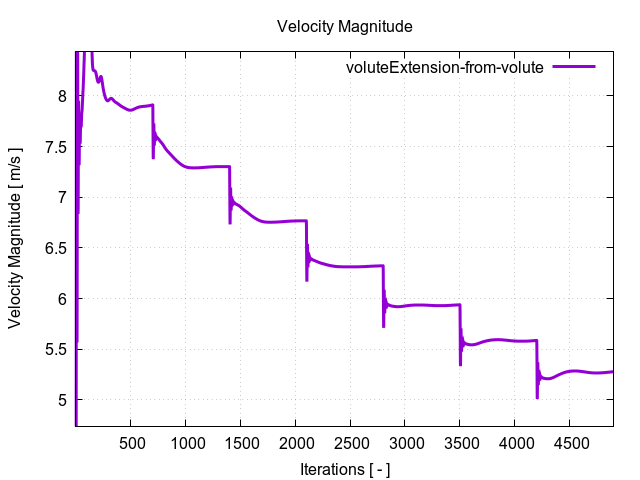

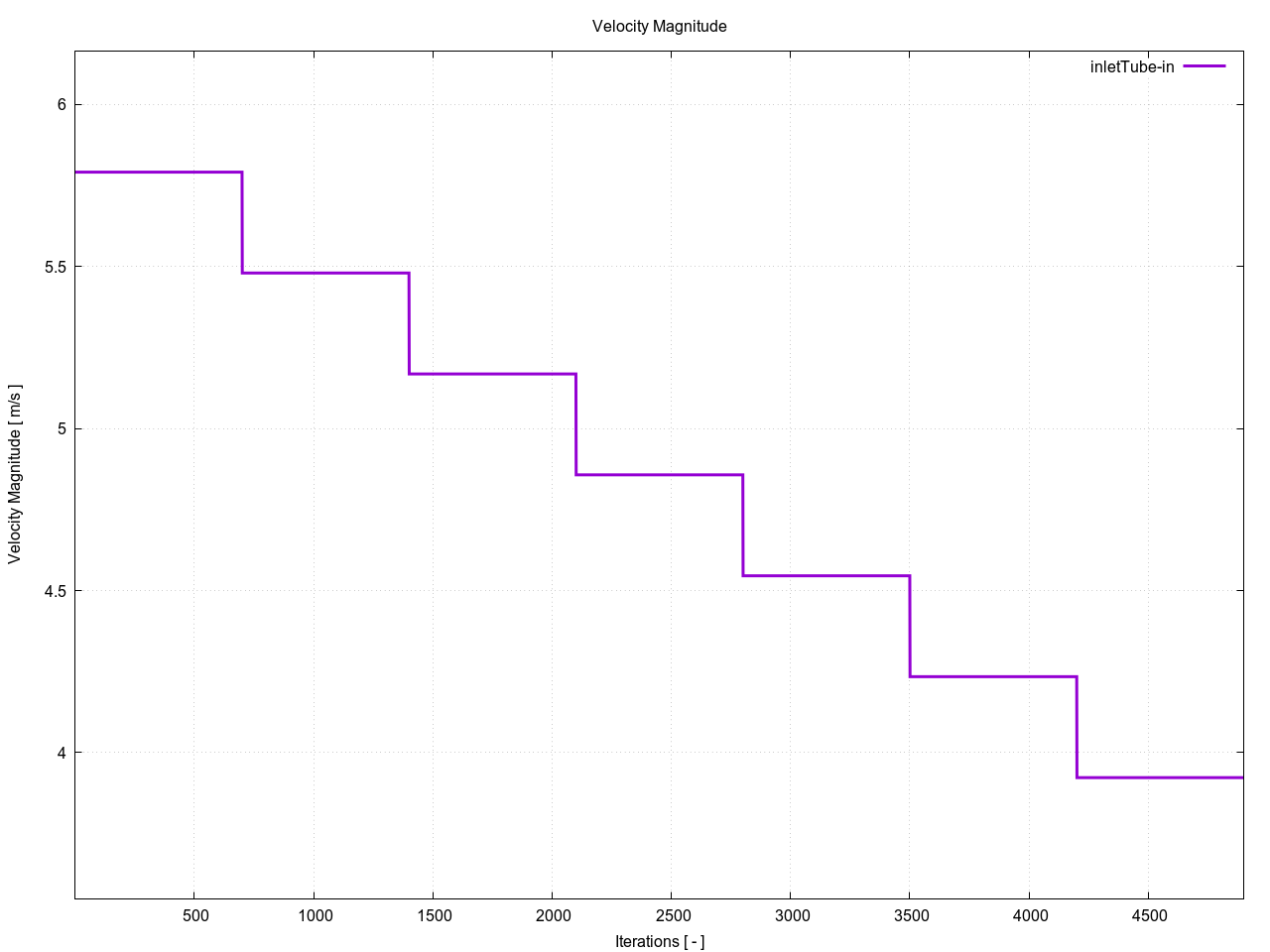

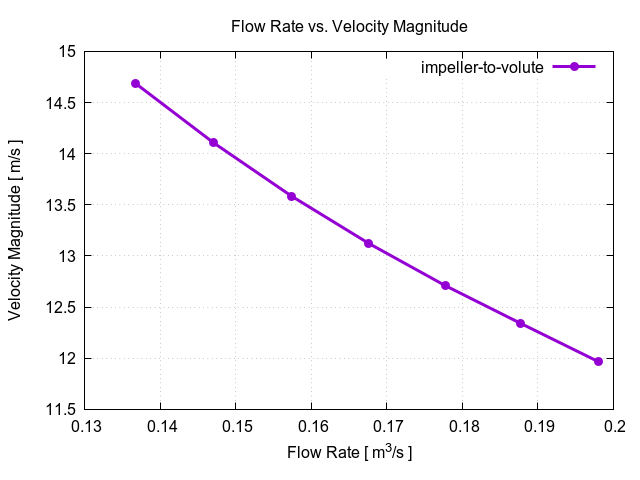

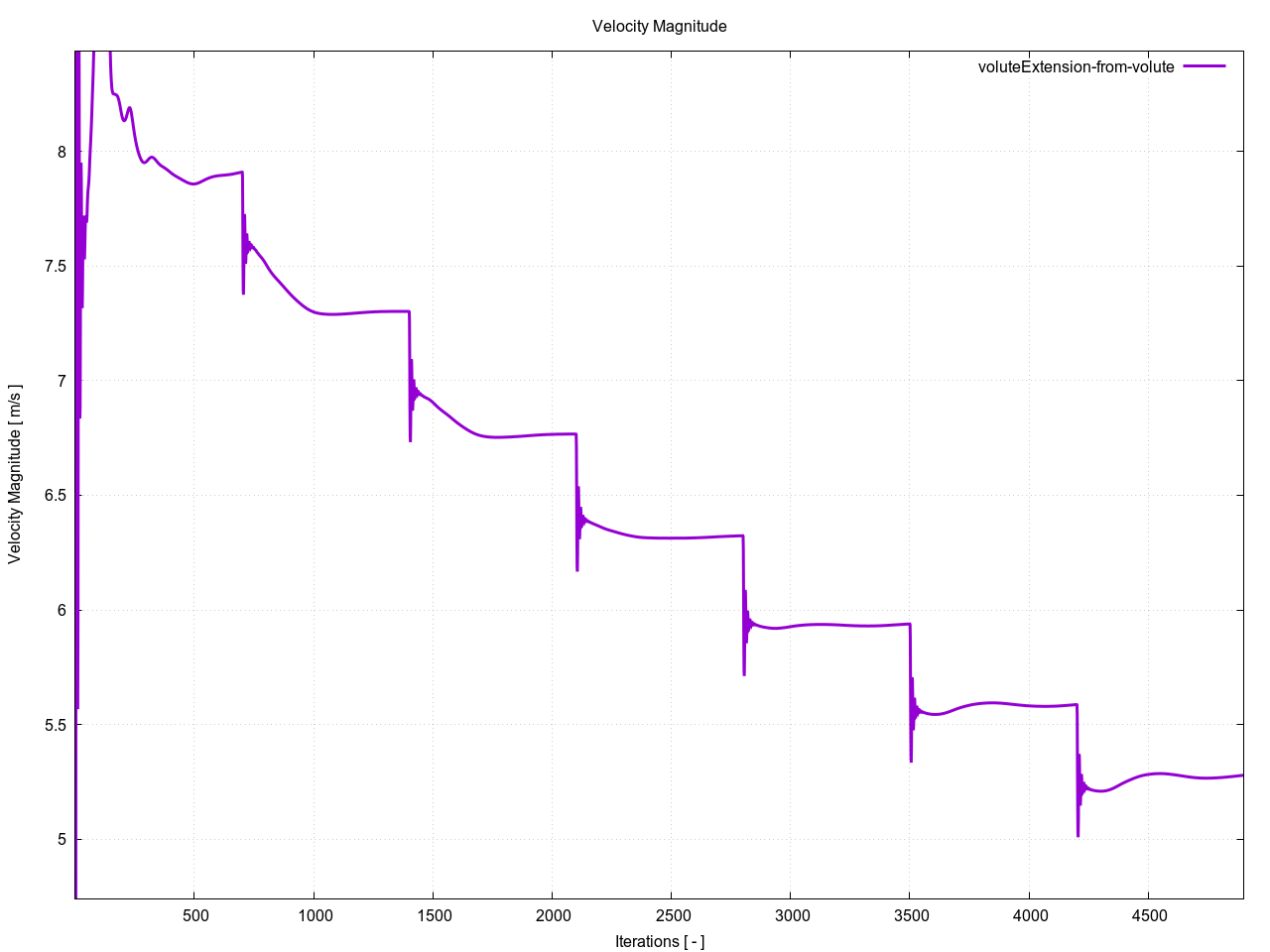

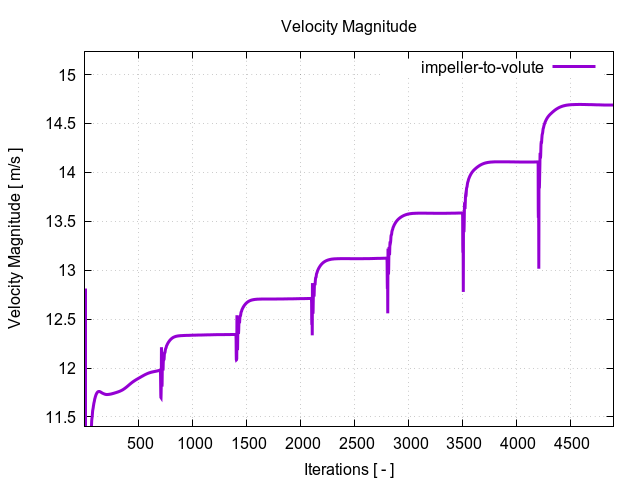

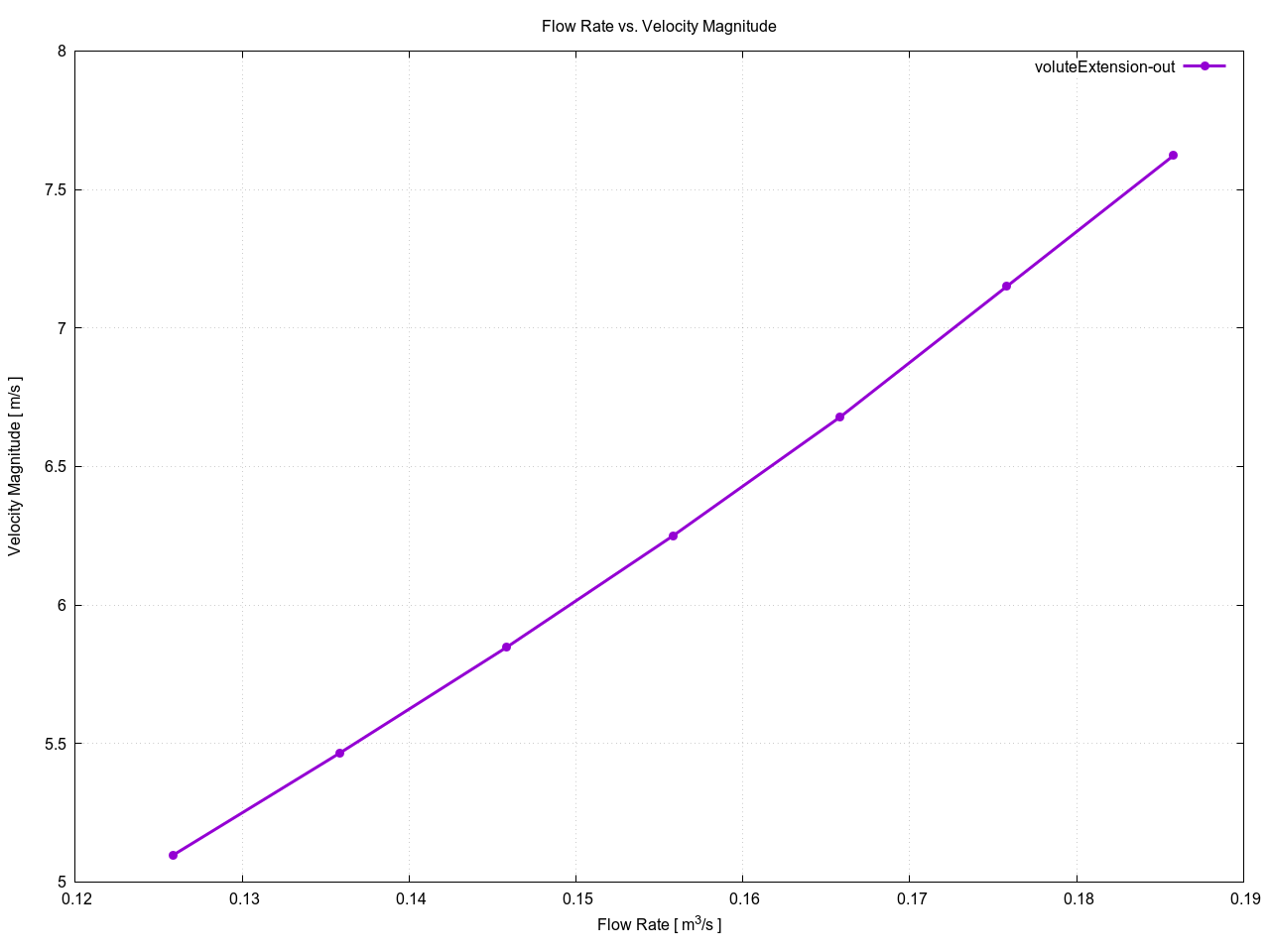

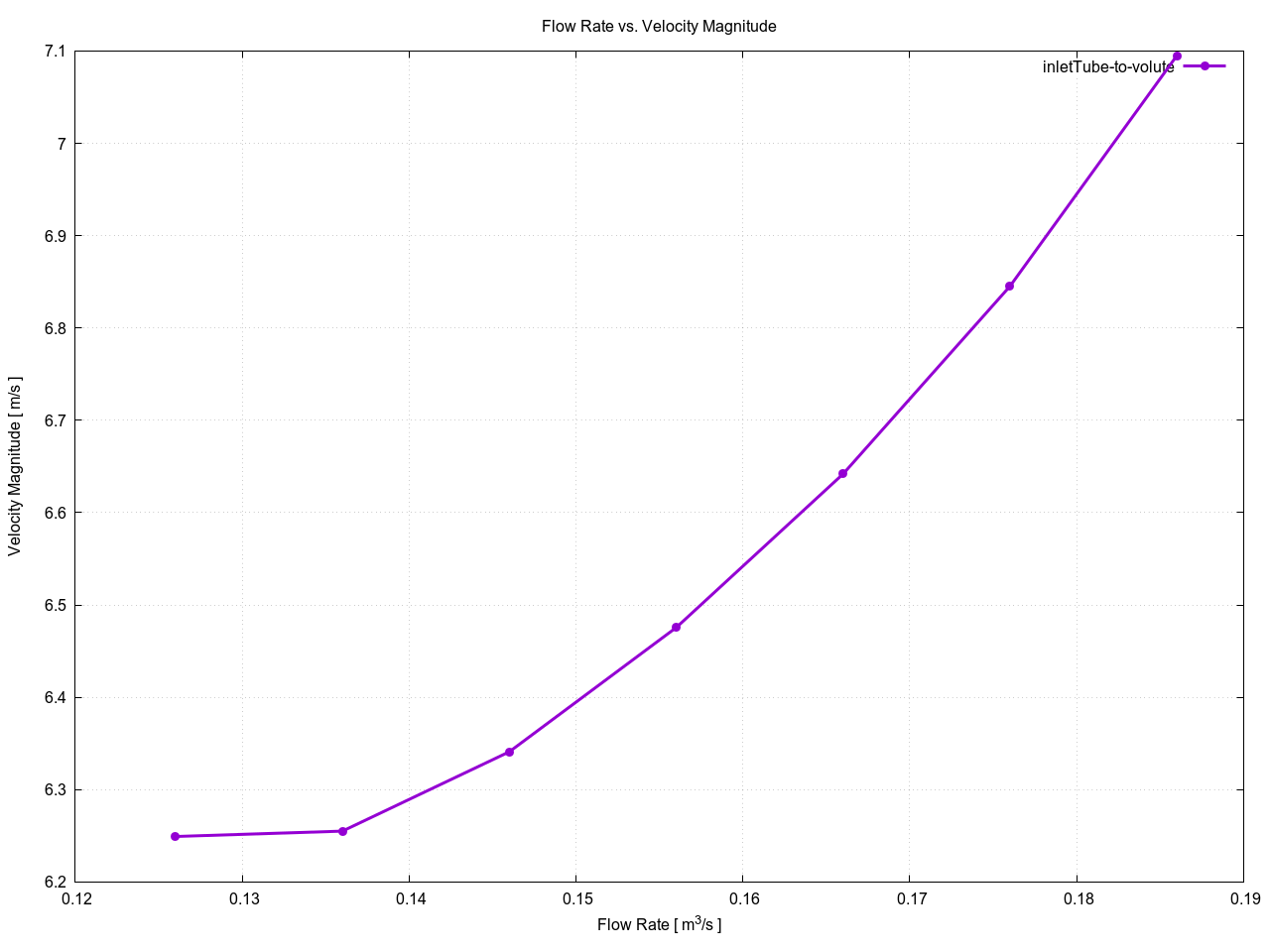

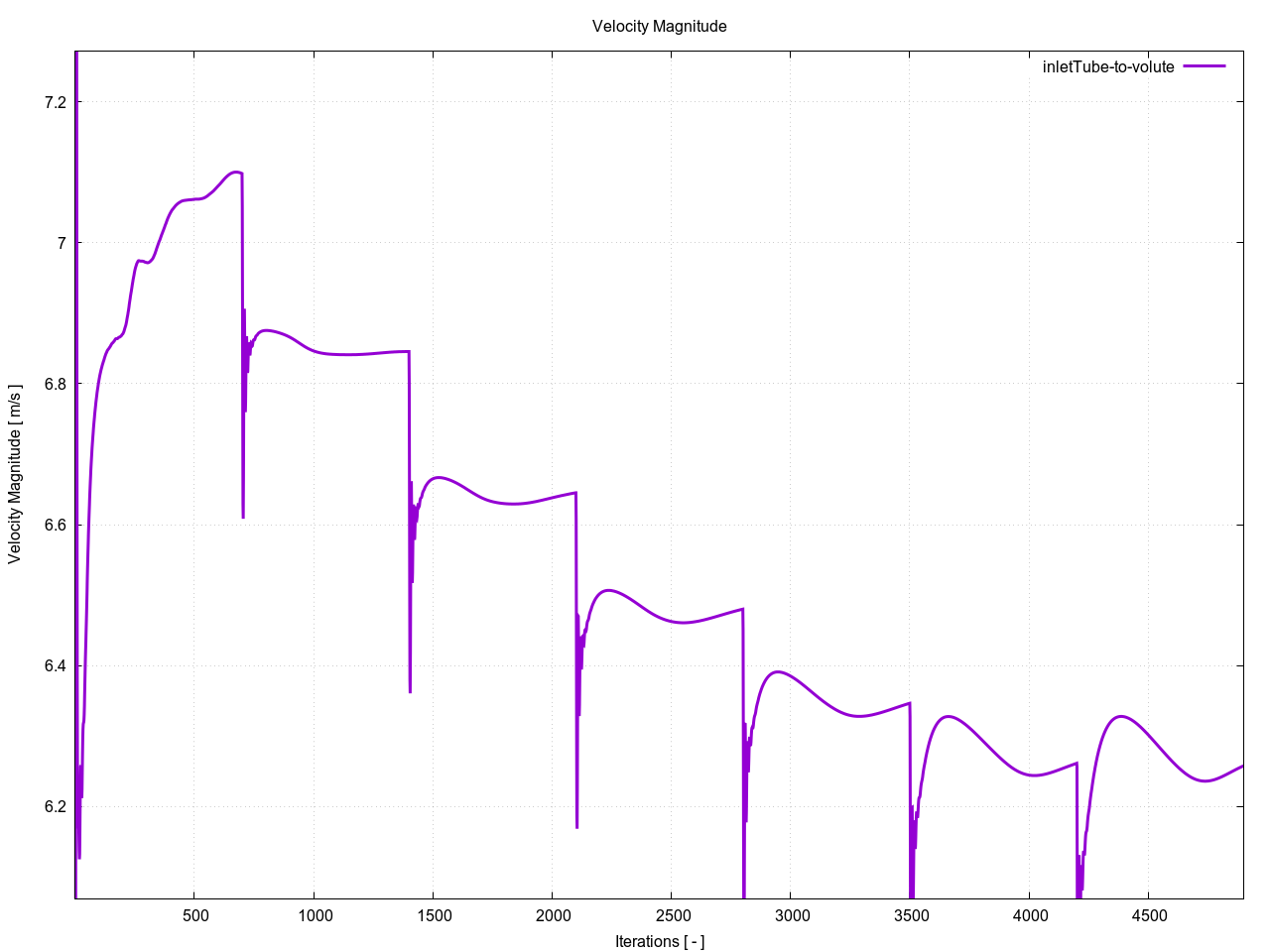

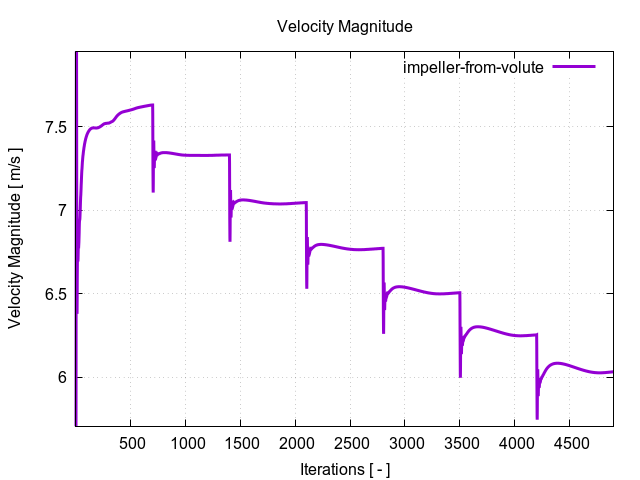

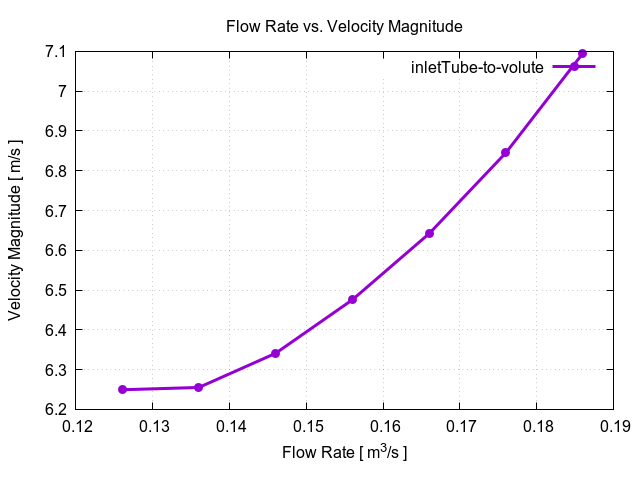

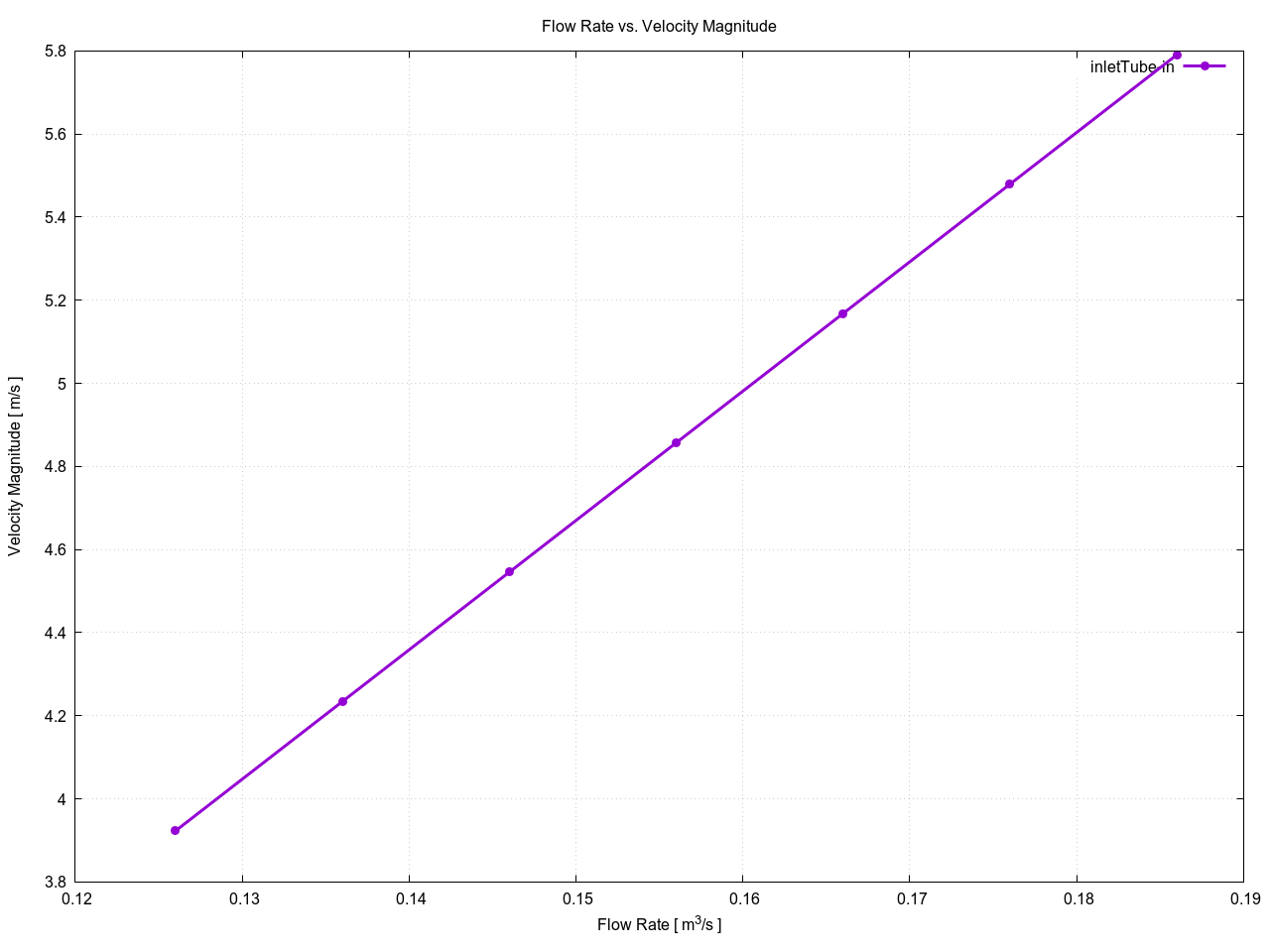

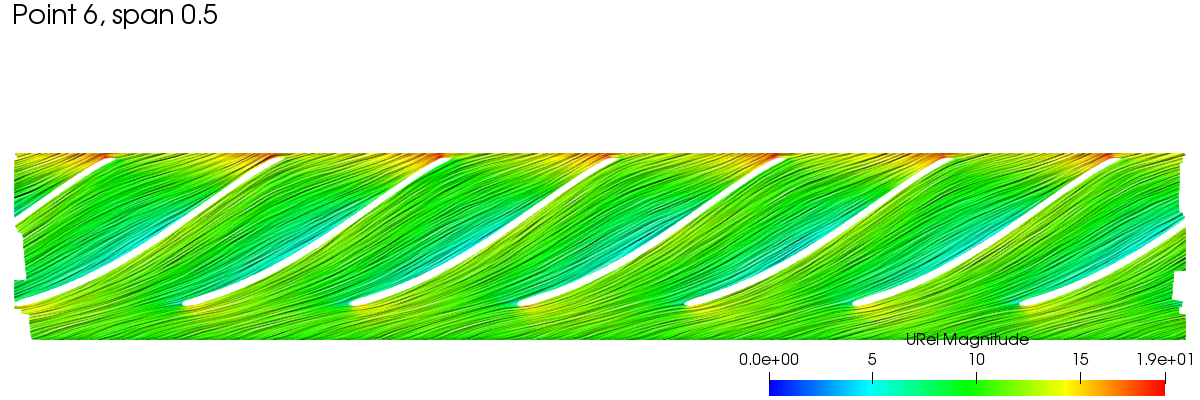

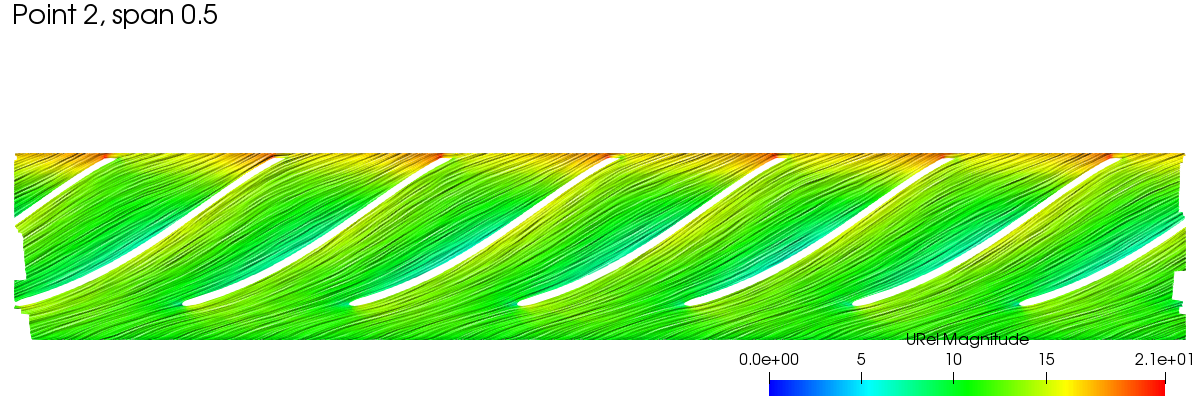

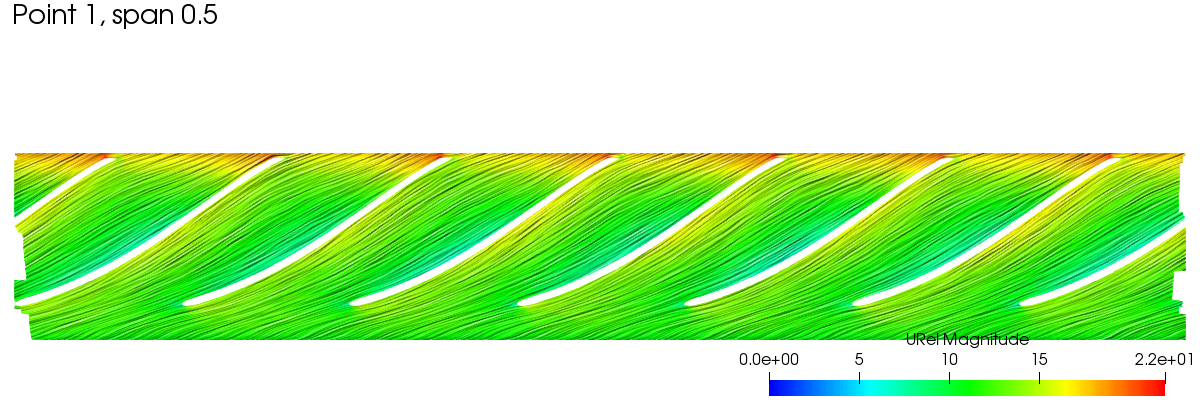

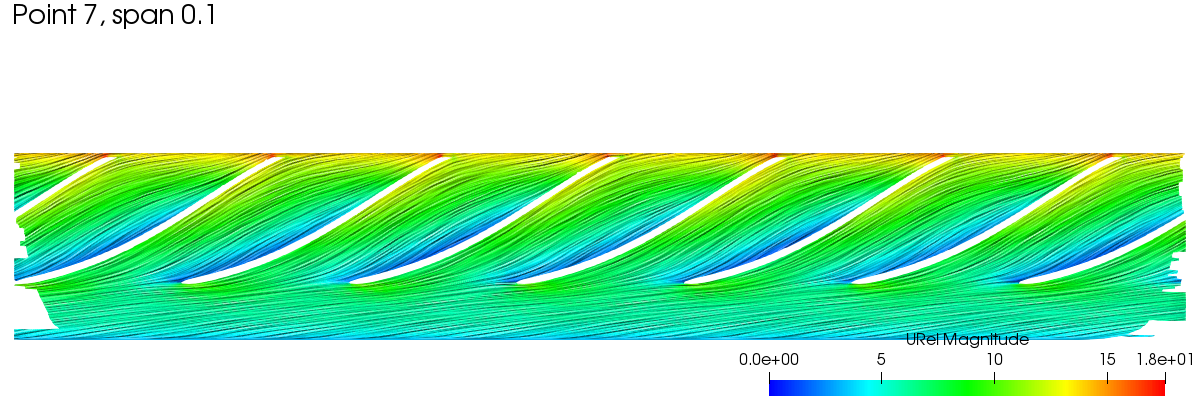

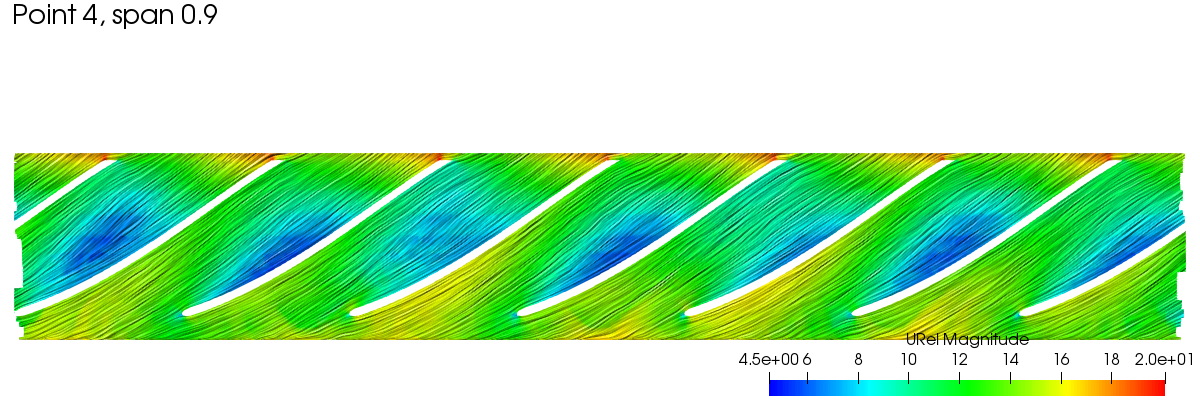

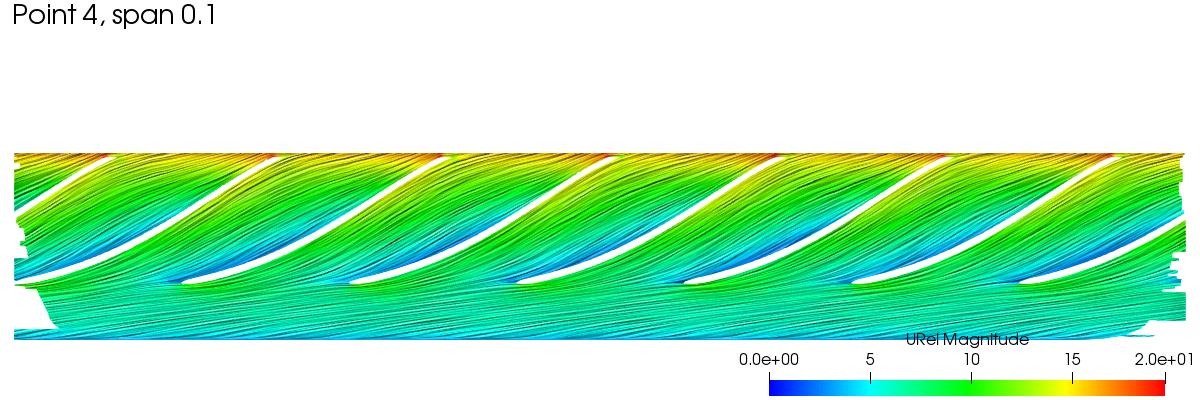

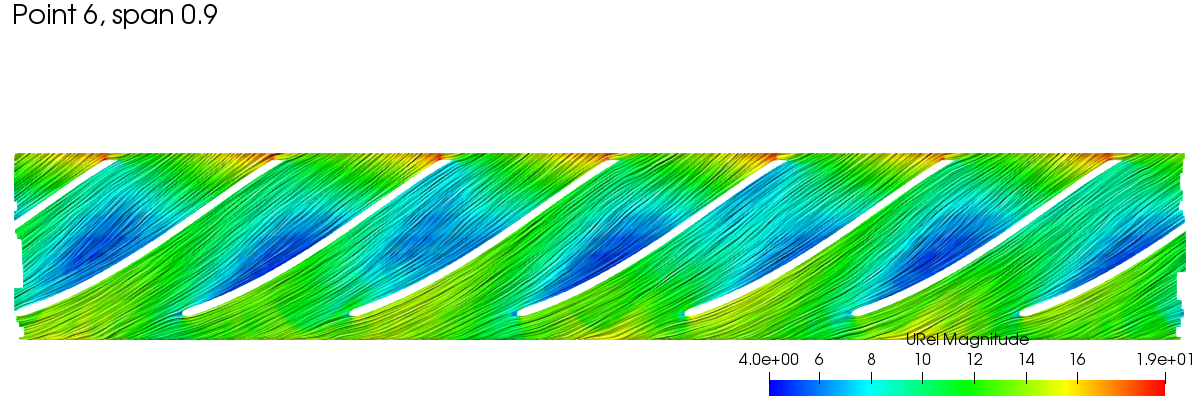

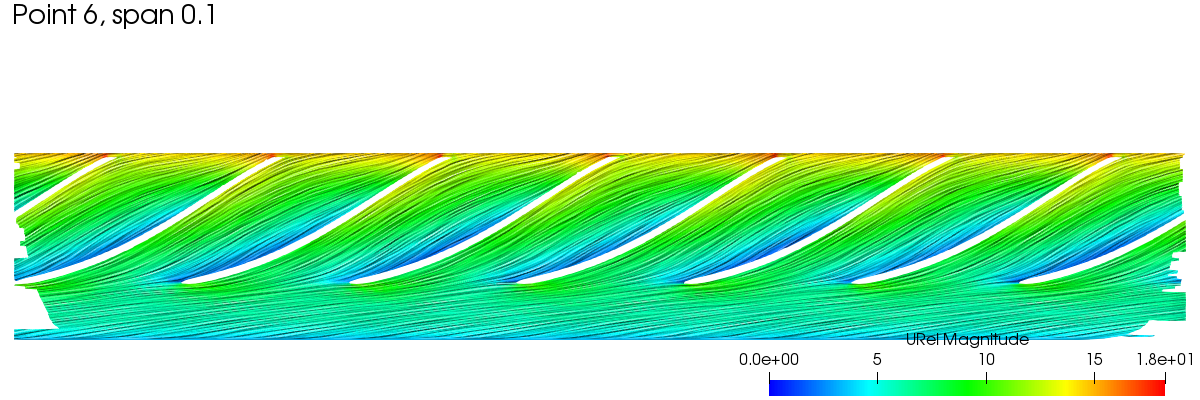

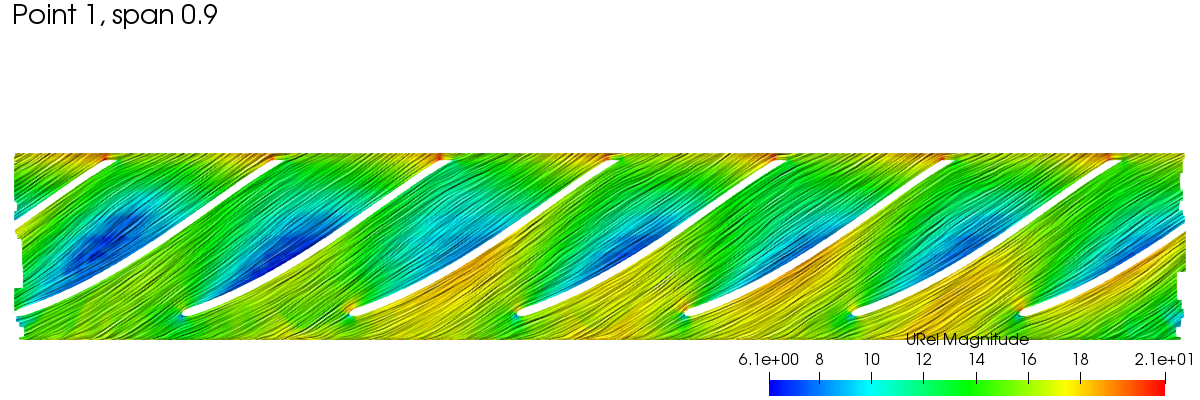

Velocity Magnitude per Interfaces

Point Nr.	Interface Name	Flow Rate [ m³/s ]	Velocity Magnitude [ m/s ]
1	inletTube-in	0.186000	5.79095
1	inletTube-to-volute	0.186000	7.09500
1	impeller-from-volute	0.198009	7.62590
1	impeller-to-volute	0.198009	11.9660
1	volute-from-inletTube	0.185859	7.10029
1	volute-from-impeller	0.198012	11.6749
1	volute-to-impeller	0.198016	7.62616
1	volute-to-voluteExtension	0.185855	7.90108
1	voluteExtension-from-volute	0.185790	7.90063
1	voluteExtension-out	0.185790	7.62205
2	inletTube-in	0.176000	5.47961
2	inletTube-to-volute	0.176000	6.84526
2	impeller-from-volute	0.187643	7.33101
2	impeller-to-volute	0.187643	12.3428
2	volute-from-inletTube	0.175873	6.85333
2	volute-from-impeller	0.187643	12.0561
2	volute-to-impeller	0.187648	7.33089
2	volute-to-voluteExtension	0.175867	7.30227
2	voluteExtension-from-volute	0.175810	7.30198
2	voluteExtension-out	0.175810	7.15008
3	inletTube-in	0.166000	5.16827
3	inletTube-to-volute	0.166000	6.64190
3	impeller-from-volute	0.177701	7.04423
3	impeller-to-volute	0.177701	12.7104
3	volute-from-inletTube	0.165877	6.65217
3	volute-from-impeller	0.177702	12.4345
3	volute-to-impeller	0.177706	7.04401
3	volute-to-voluteExtension	0.165873	6.76702
3	voluteExtension-from-volute	0.165820	6.76674
3	voluteExtension-out	0.165820	6.67836
4	inletTube-in	0.156000	4.85693
4	inletTube-to-volute	0.156000	6.47552
4	impeller-from-volute	0.167606	6.76967
4	impeller-to-volute	0.167606	13.1216
4	volute-from-inletTube	0.155880	6.48762
4	volute-from-impeller	0.167607	12.8523
4	volute-to-impeller	0.167610	6.76944
4	volute-to-voluteExtension	0.155876	6.32196
4	voluteExtension-from-volute	0.155829	6.32167
4	voluteExtension-out	0.155829	6.25055
5	inletTube-in	0.146000	4.54558
5	inletTube-to-volute	0.146000	6.34098
5	impeller-from-volute	0.157384	6.50352
5	impeller-to-volute	0.157384	13.5837
5	volute-from-inletTube	0.145883	6.35420
5	volute-from-impeller	0.157385	13.3171
5	volute-to-impeller	0.157388	6.50339
5	volute-to-voluteExtension	0.145880	5.93589
5	voluteExtension-from-volute	0.145837	5.93563
5	voluteExtension-out	0.145837	5.84700
6	inletTube-in	0.136000	4.23424
6	inletTube-to-volute	0.136000	6.25503
6	impeller-from-volute	0.147046	6.25084
6	impeller-to-volute	0.147046	14.1058
6	volute-from-inletTube	0.135888	6.26780
6	volute-from-impeller	0.147046	13.8383
6	volute-to-impeller	0.147050	6.25092
6	volute-to-voluteExtension	0.135885	5.58334
6	voluteExtension-from-volute	0.135845	5.58304
6	voluteExtension-out	0.135845	5.46535
7	inletTube-in	0.126000	3.92290
7	inletTube-to-volute	0.126000	6.24927
7	impeller-from-volute	0.136677	6.02889
7	impeller-to-volute	0.136677	14.6880
7	volute-from-inletTube	0.125896	6.26046
7	volute-from-impeller	0.136677	14.4182
7	volute-to-impeller	0.136682	6.02889
7	volute-to-voluteExtension	0.125891	5.27382
7	voluteExtension-from-volute	0.125855	5.27321
7	voluteExtension-out	0.125855	5.09684

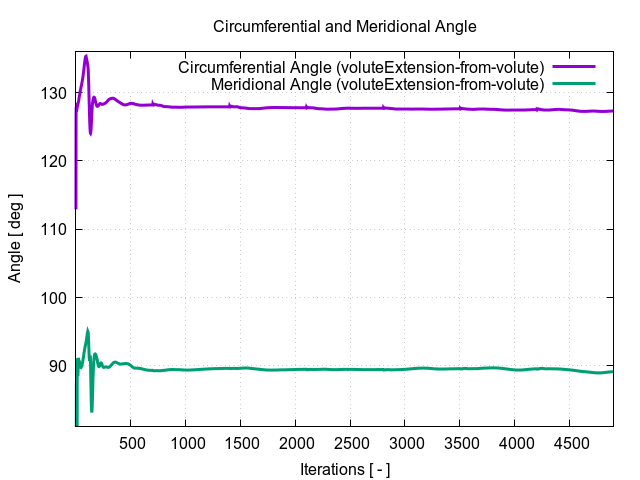

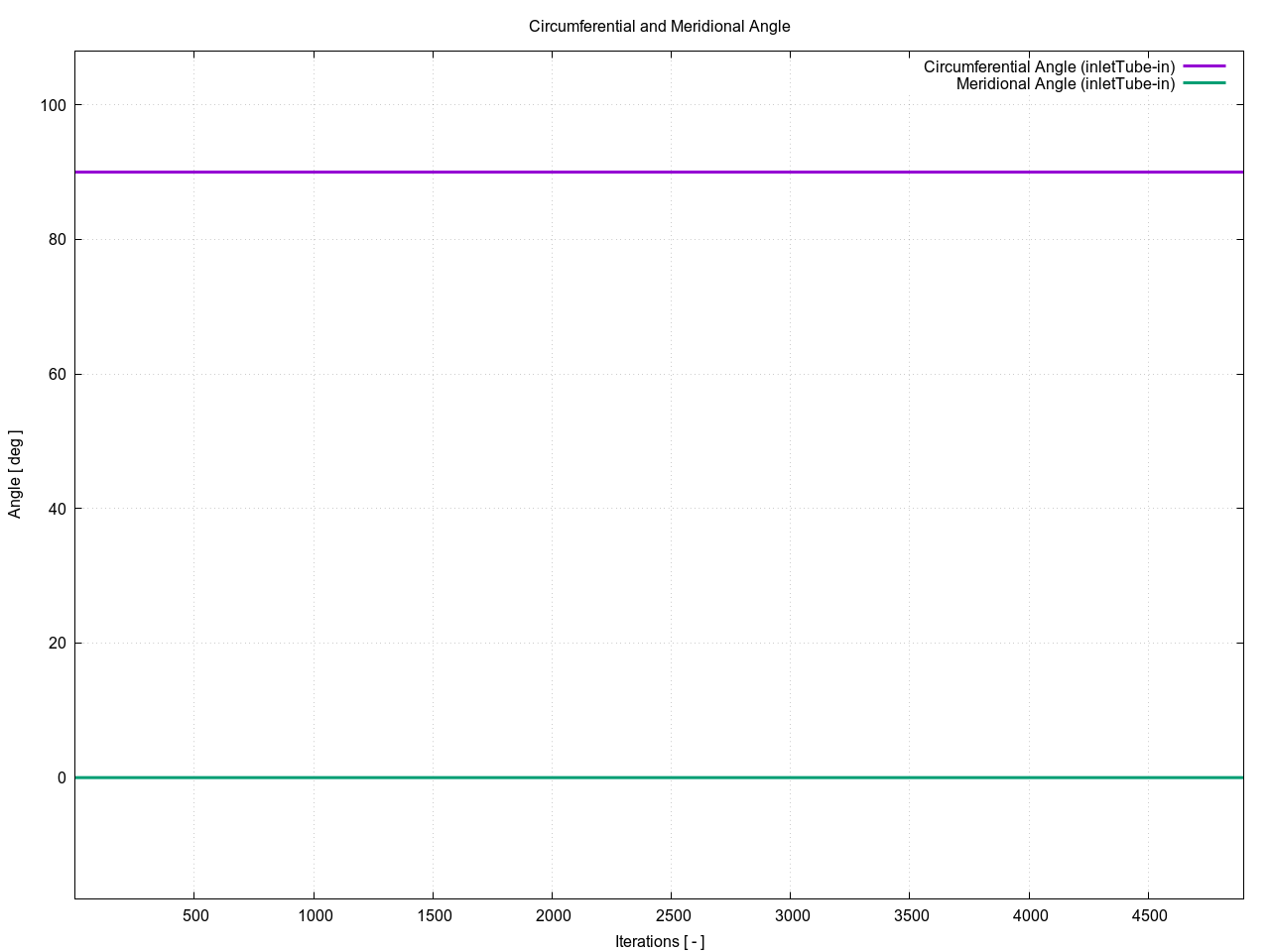

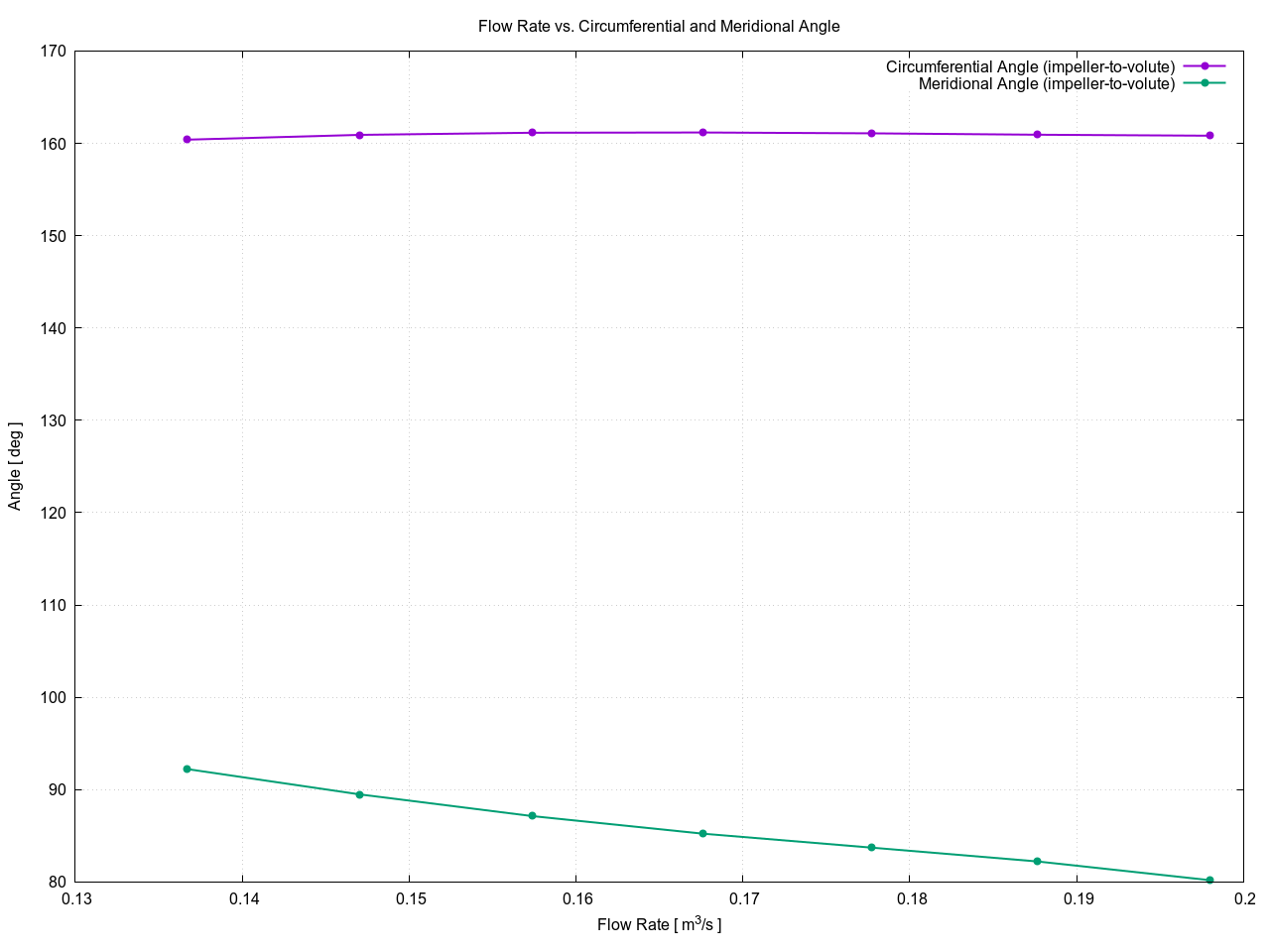

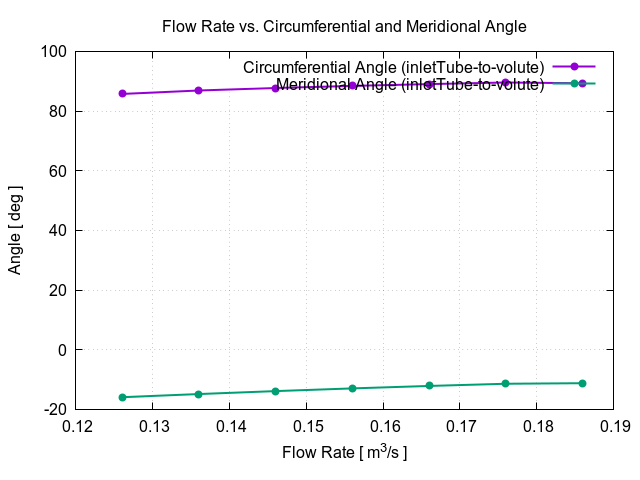

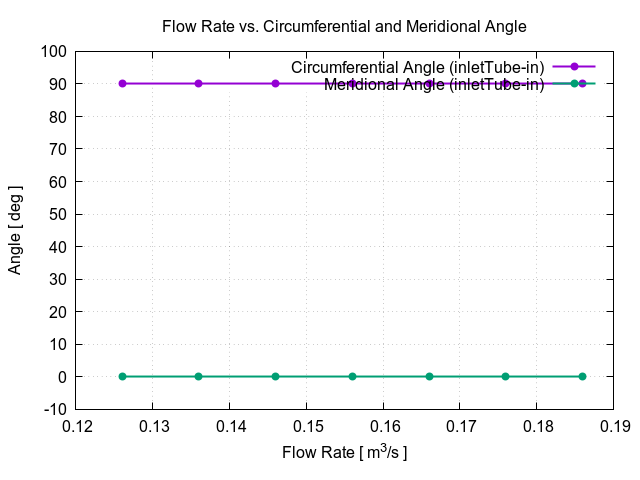

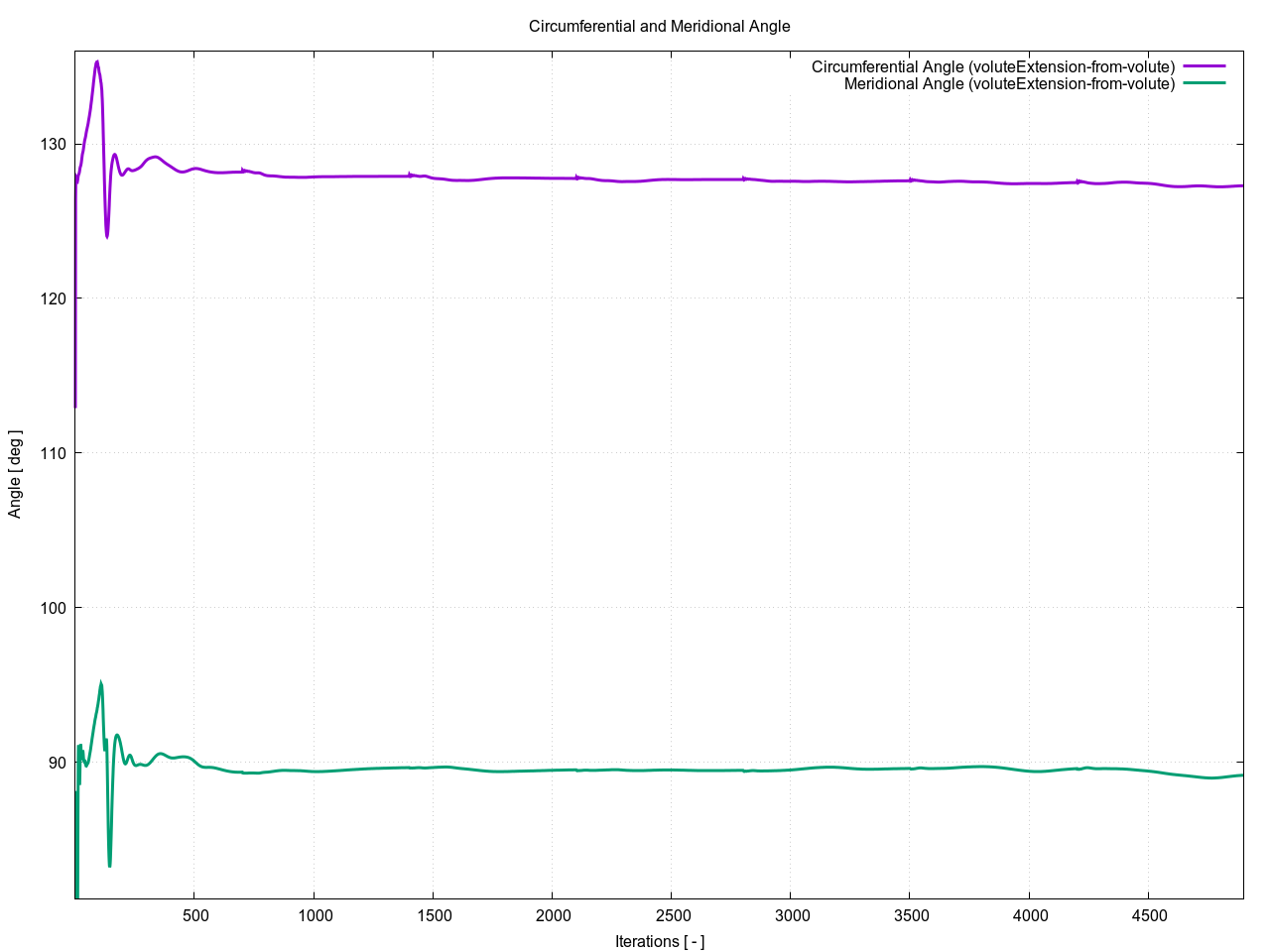

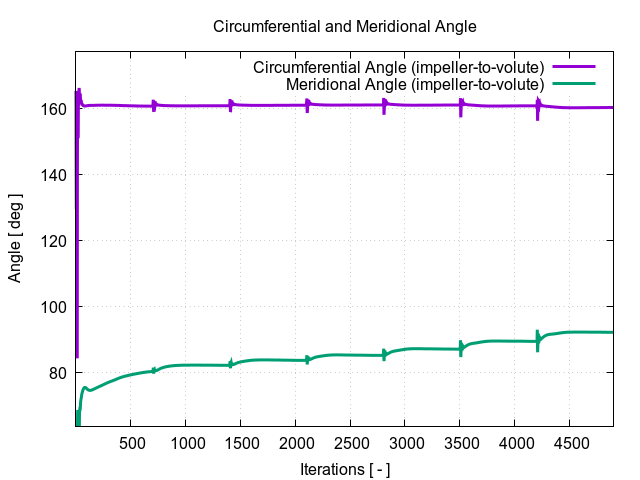

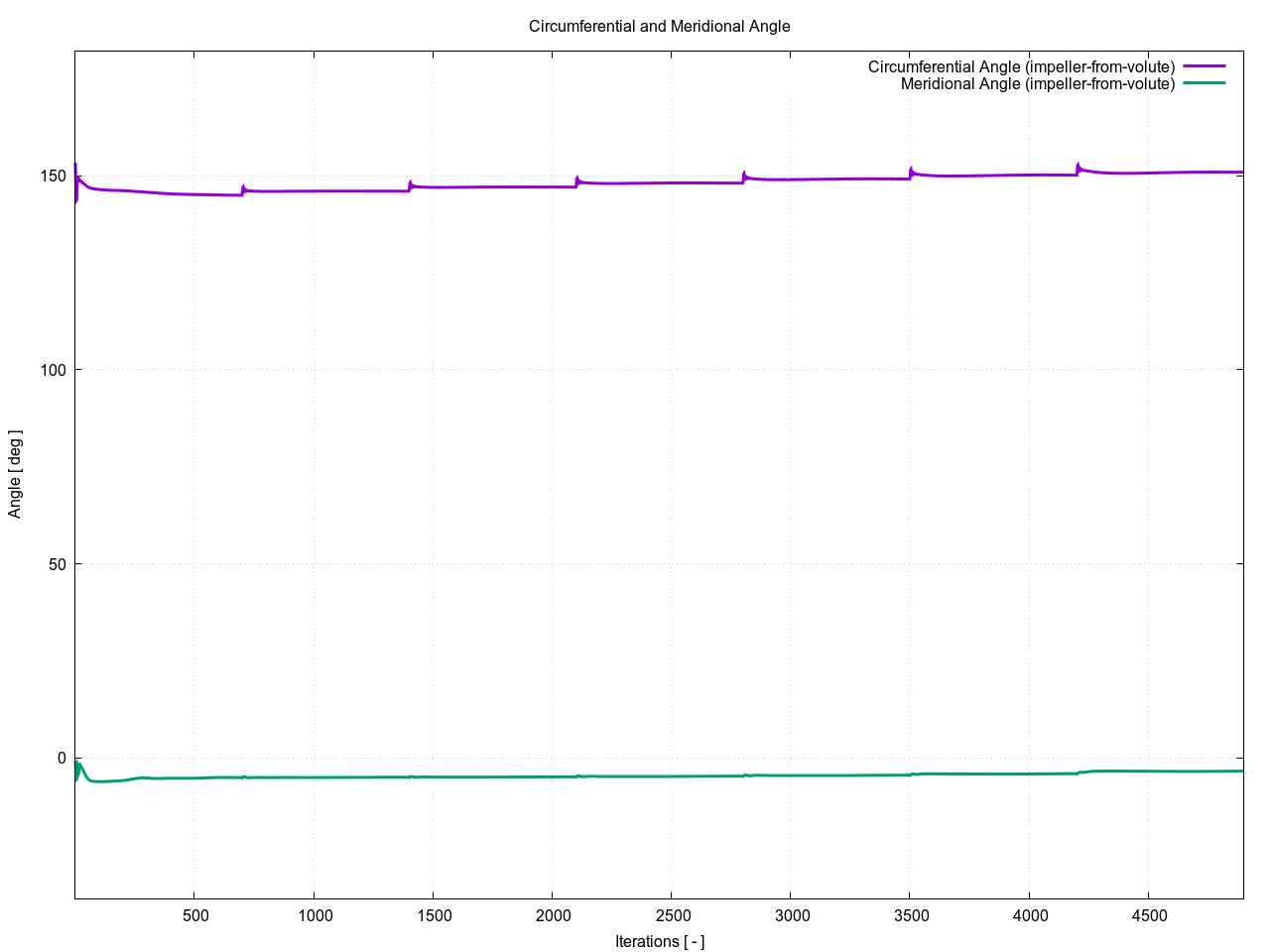

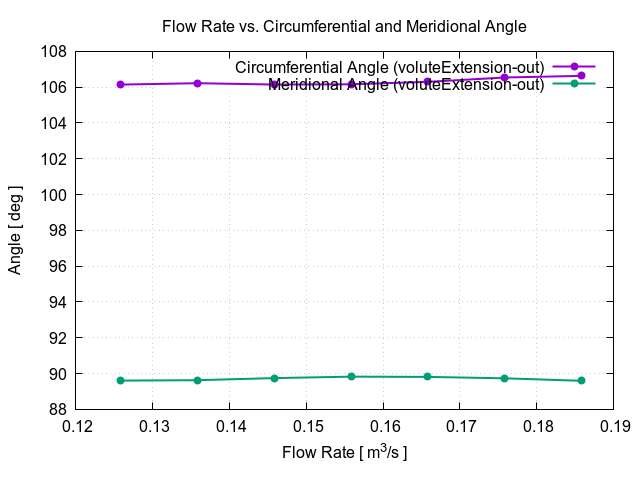

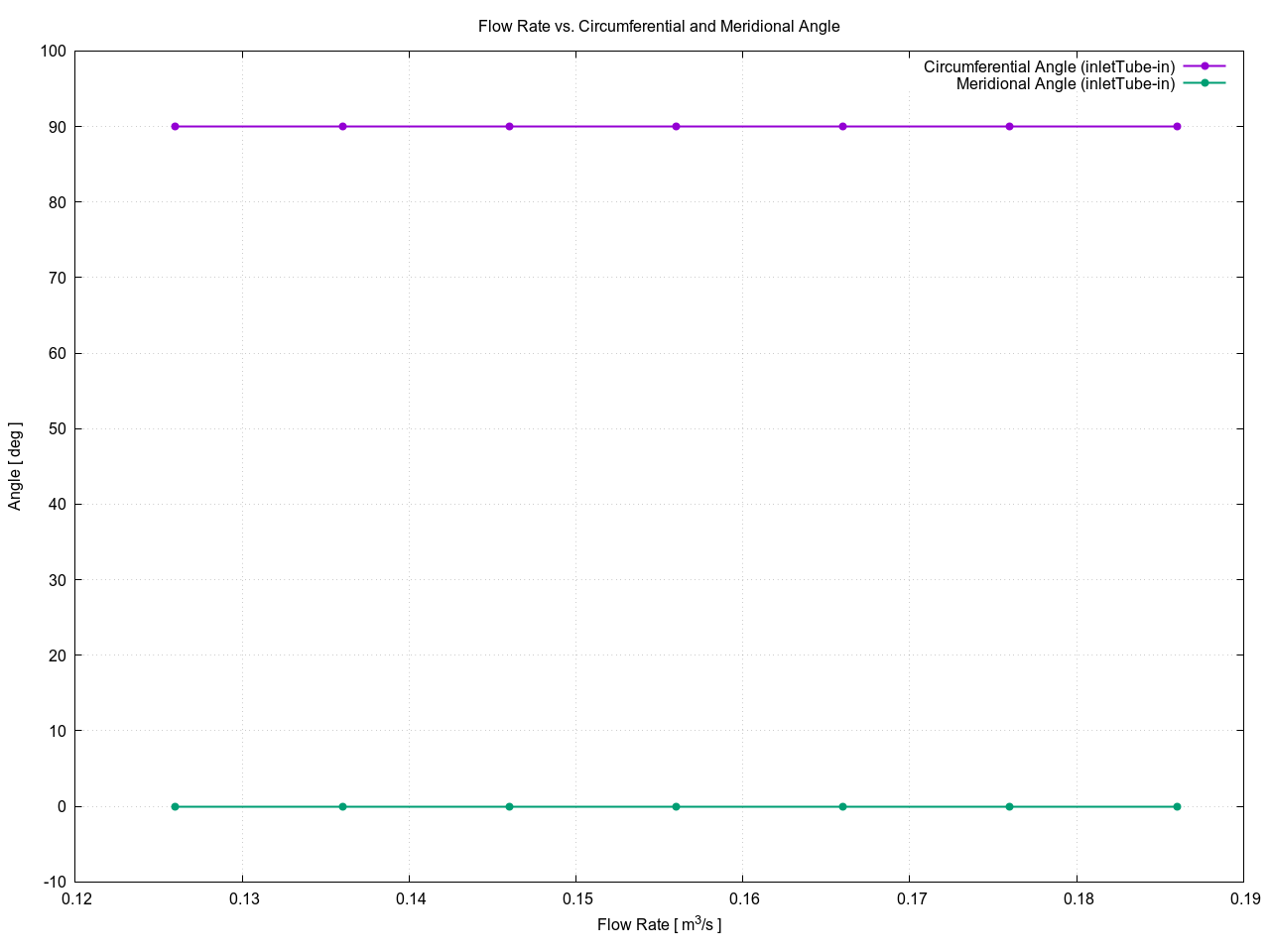

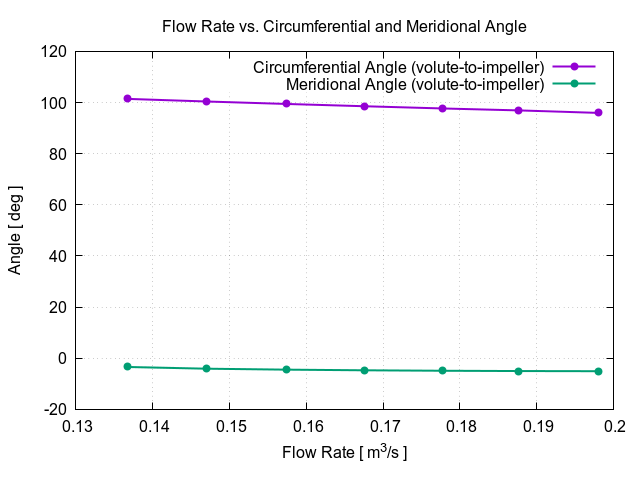

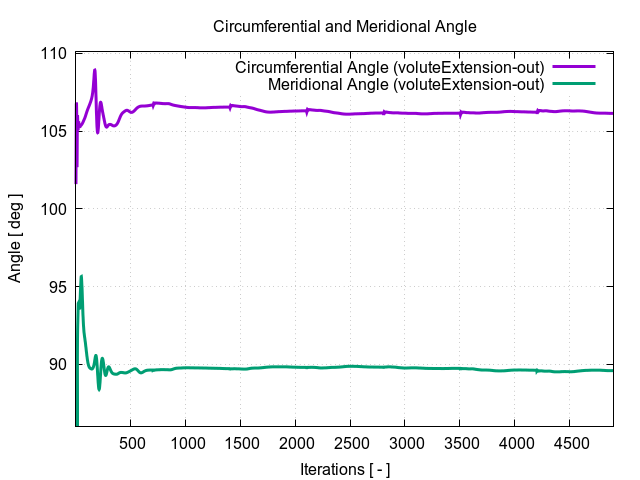

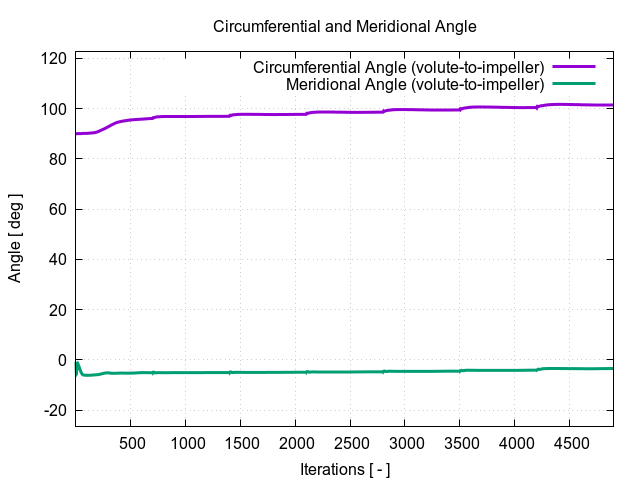

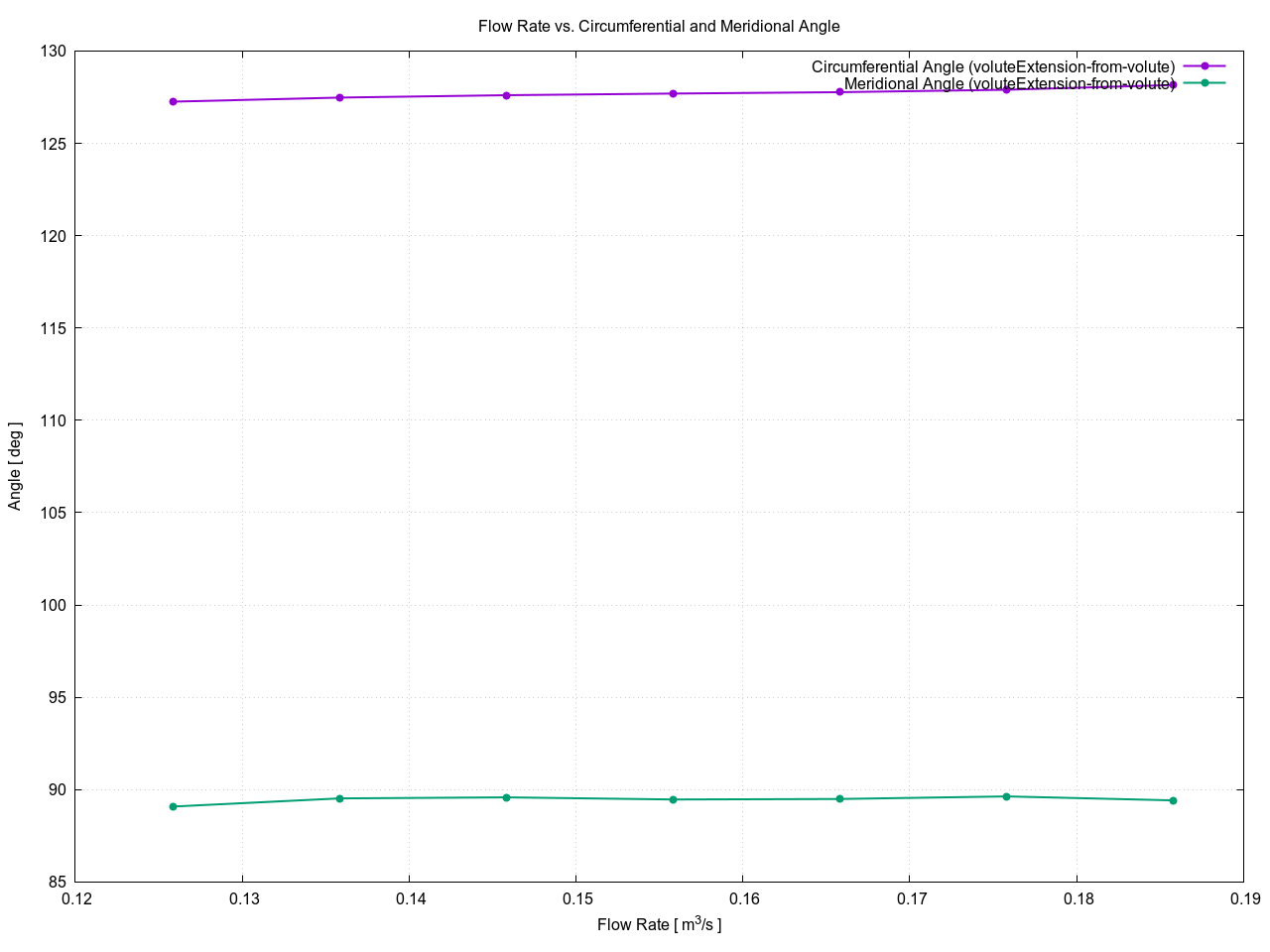

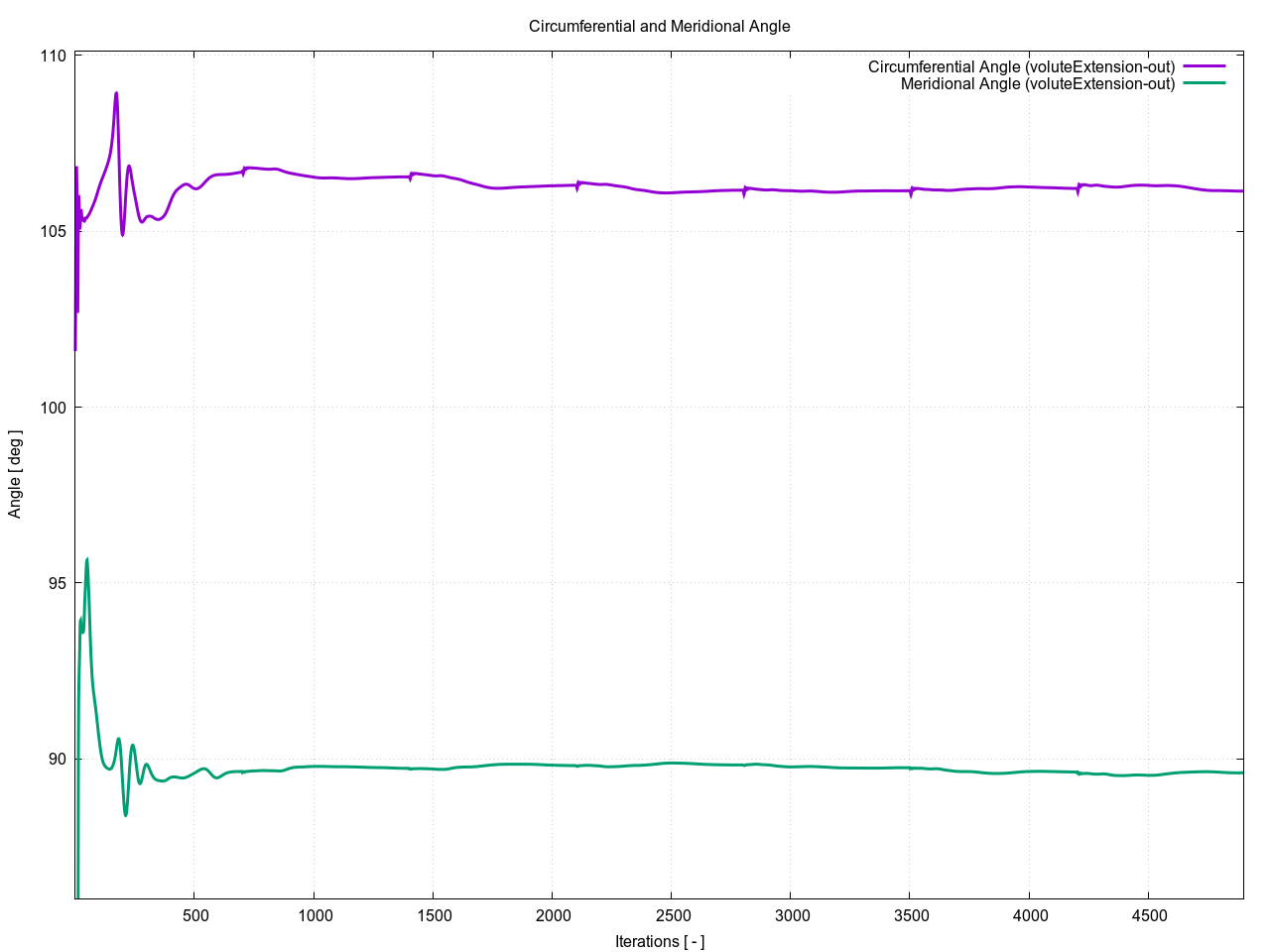

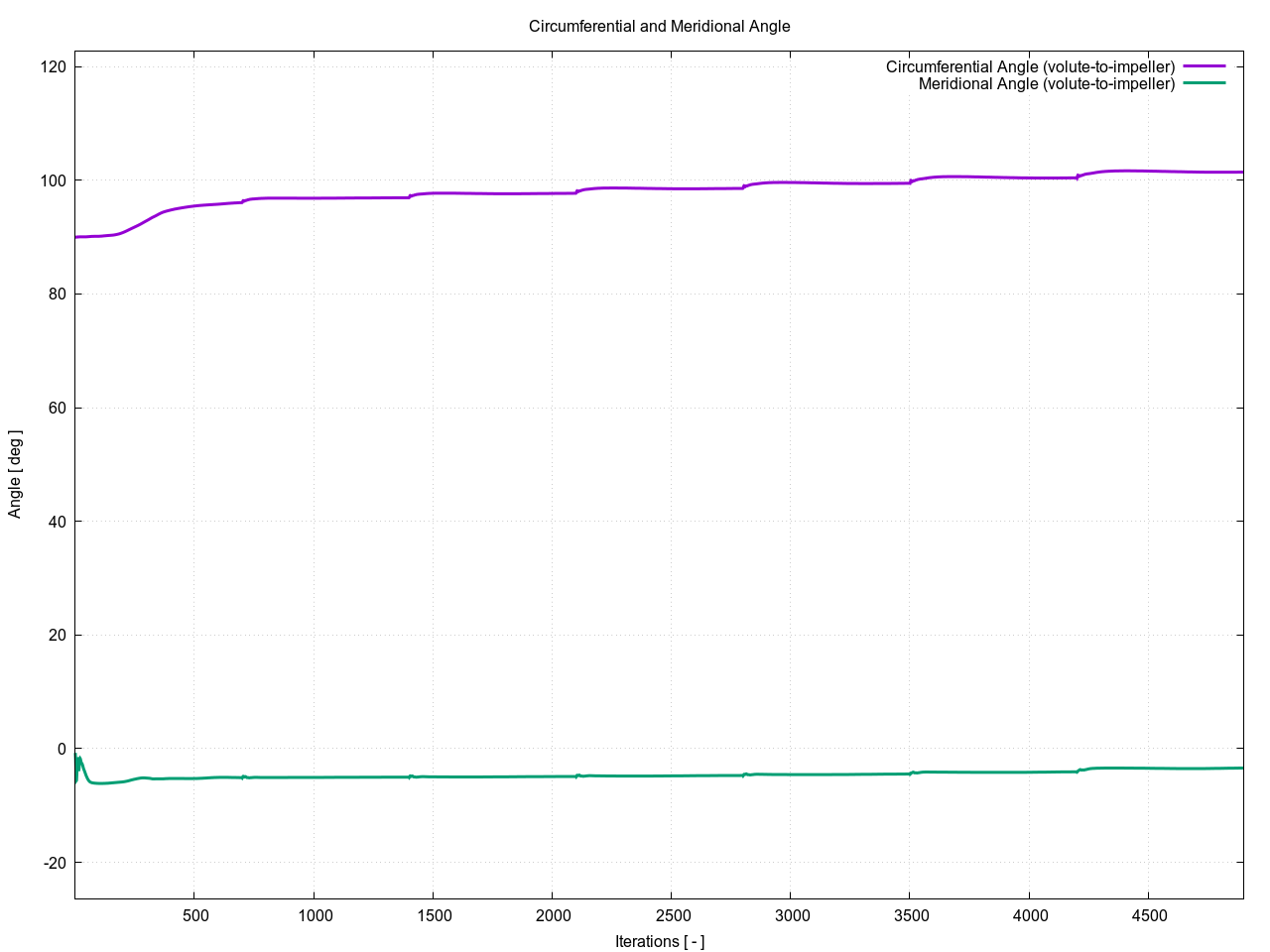

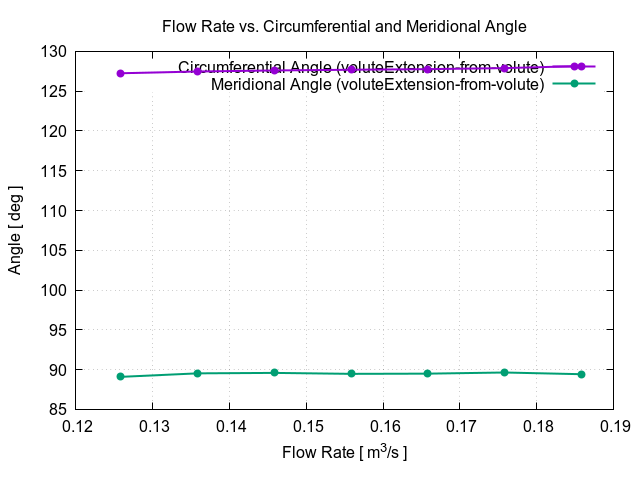

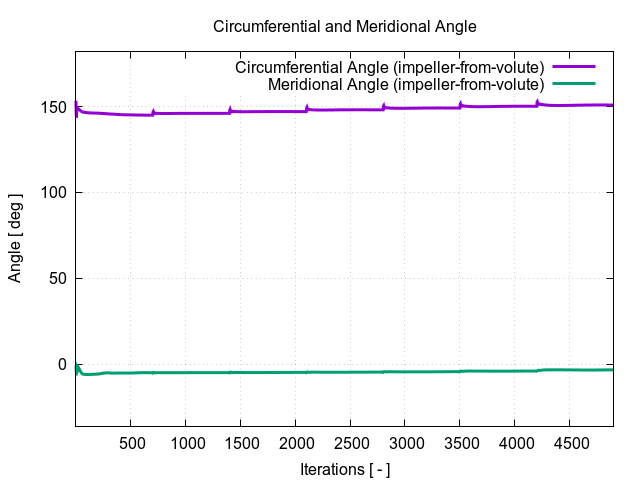

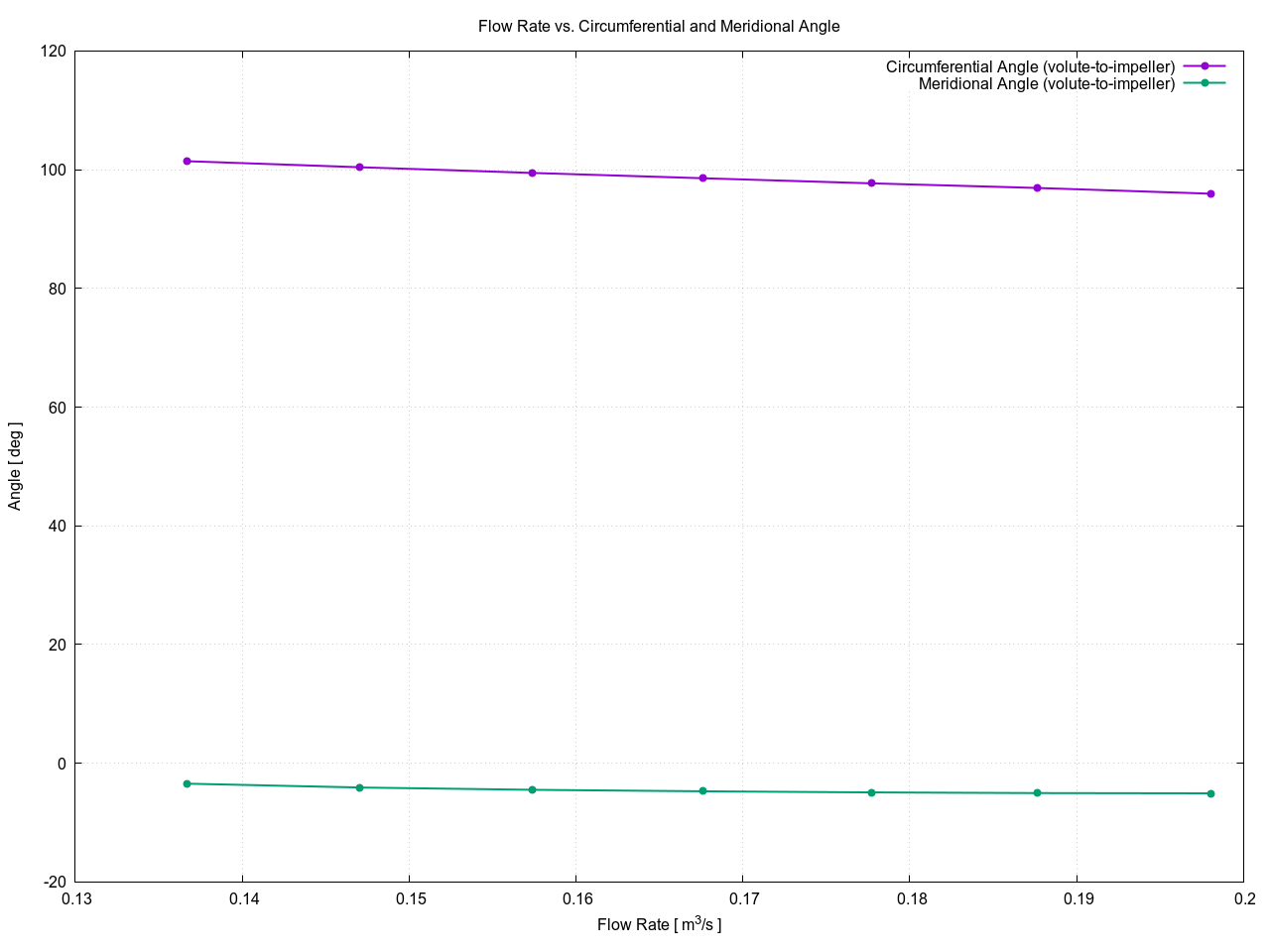

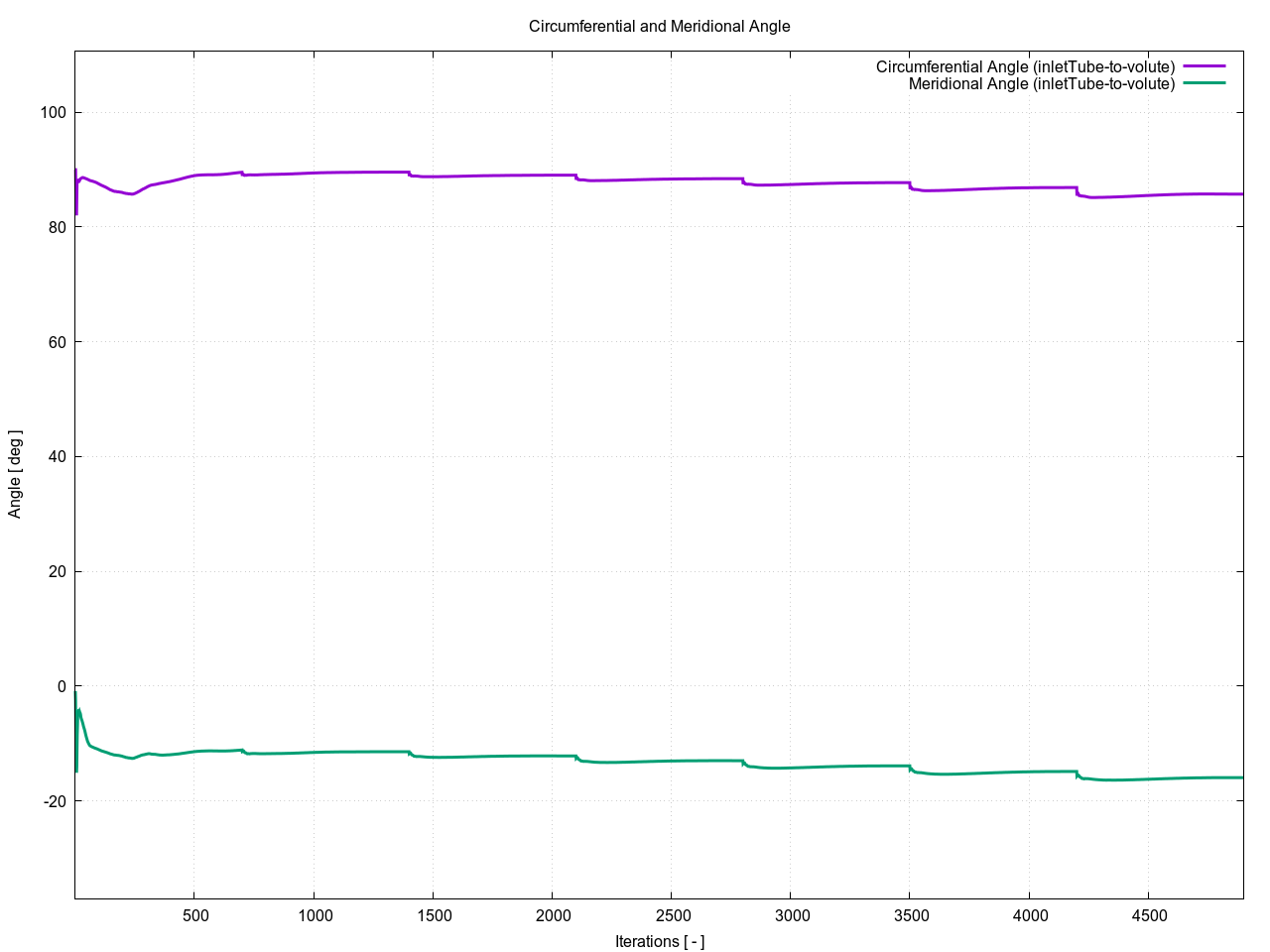

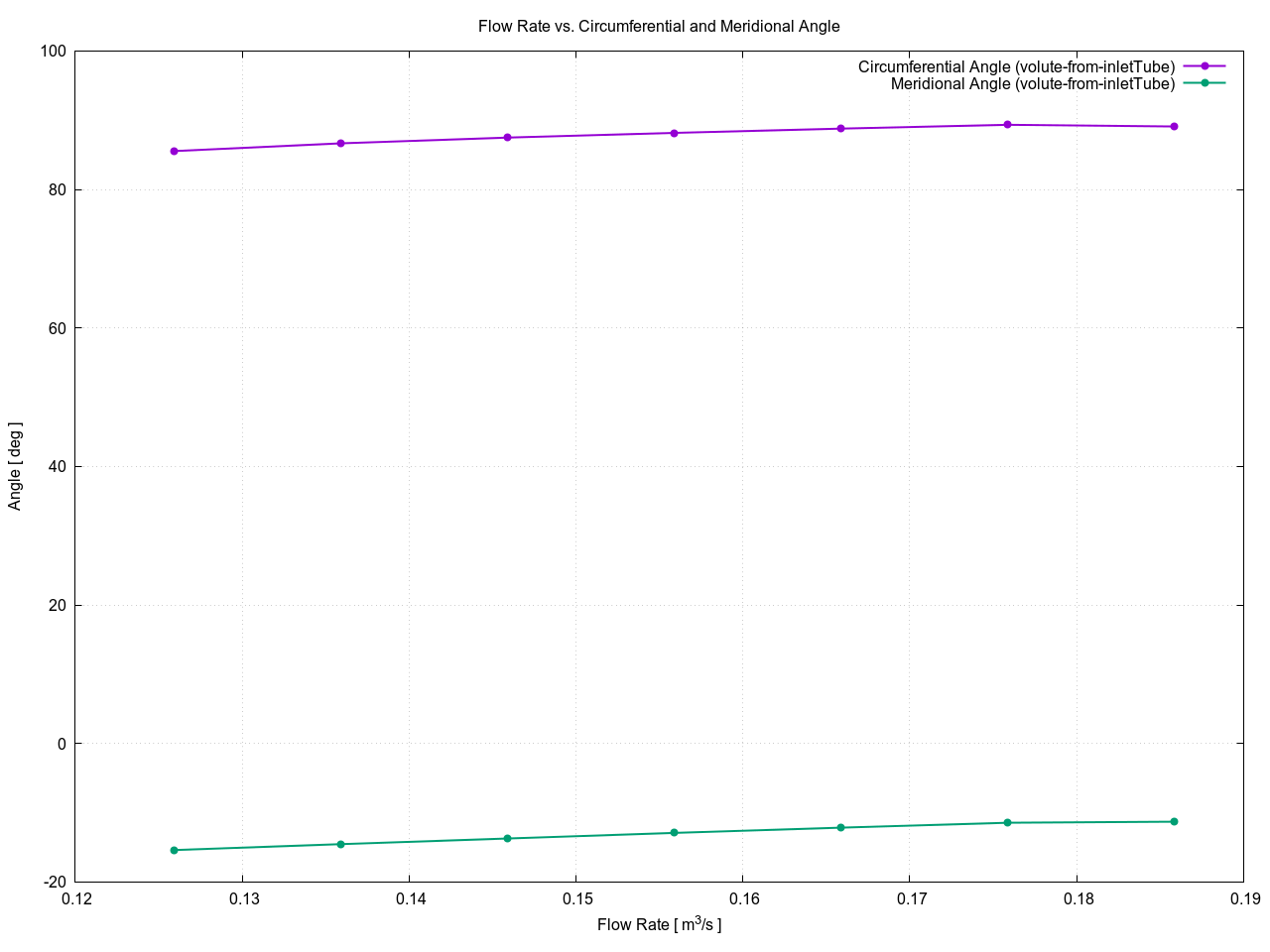

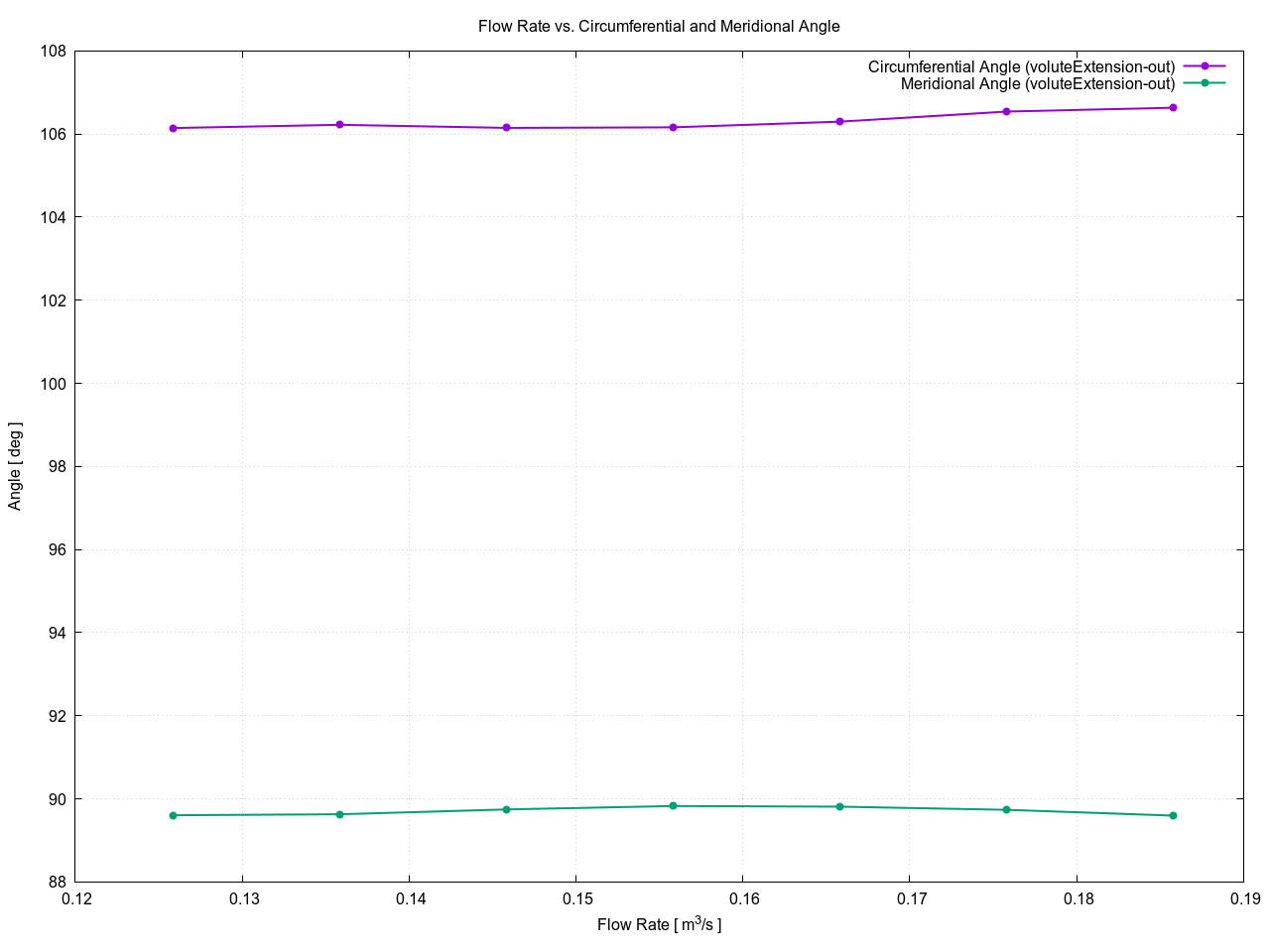

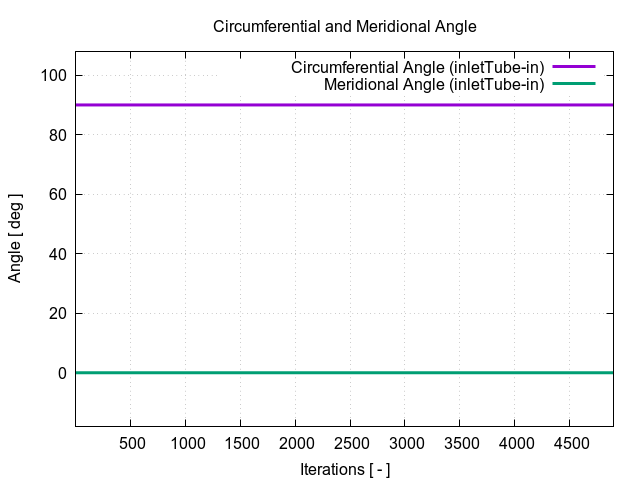

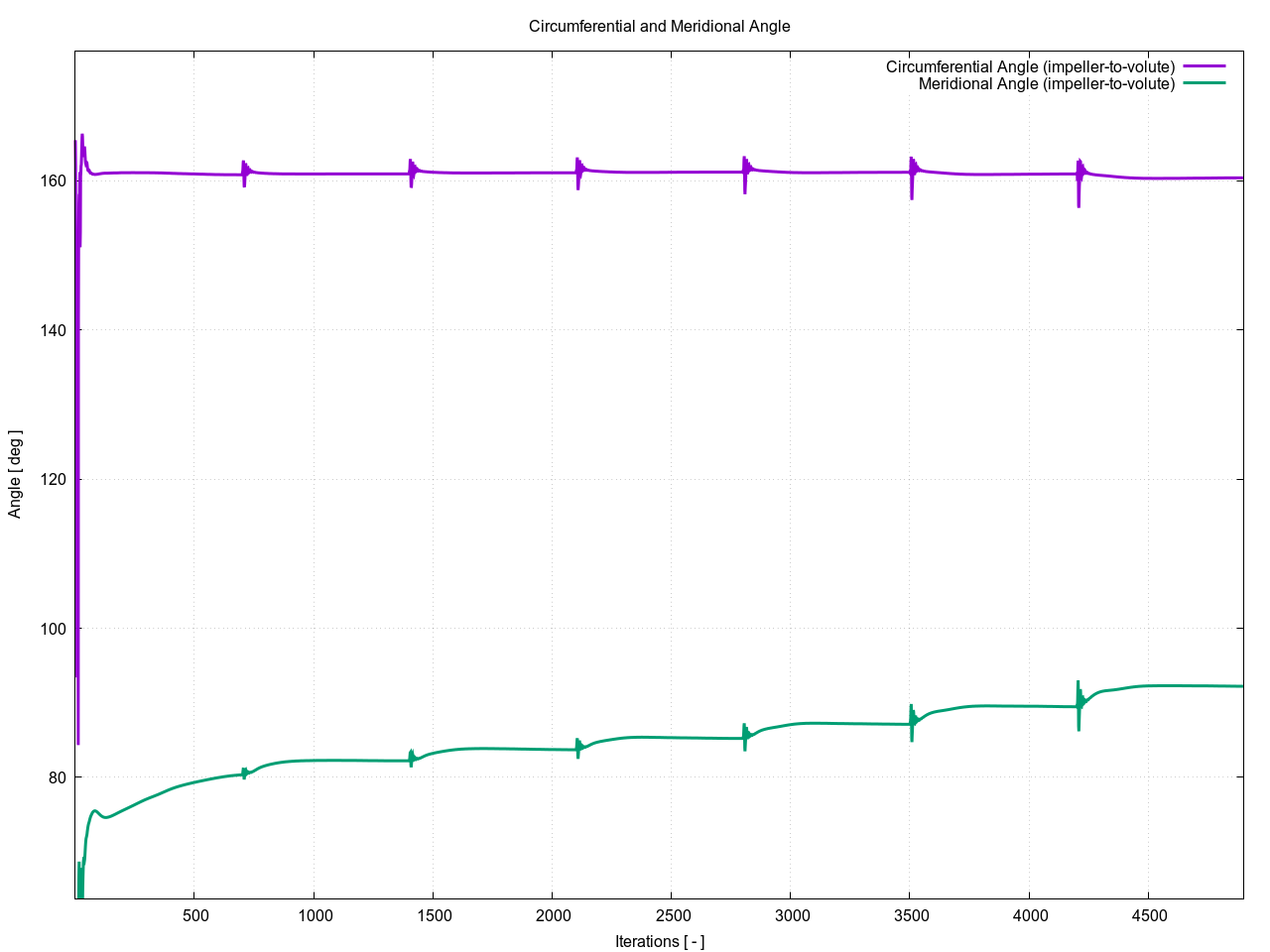

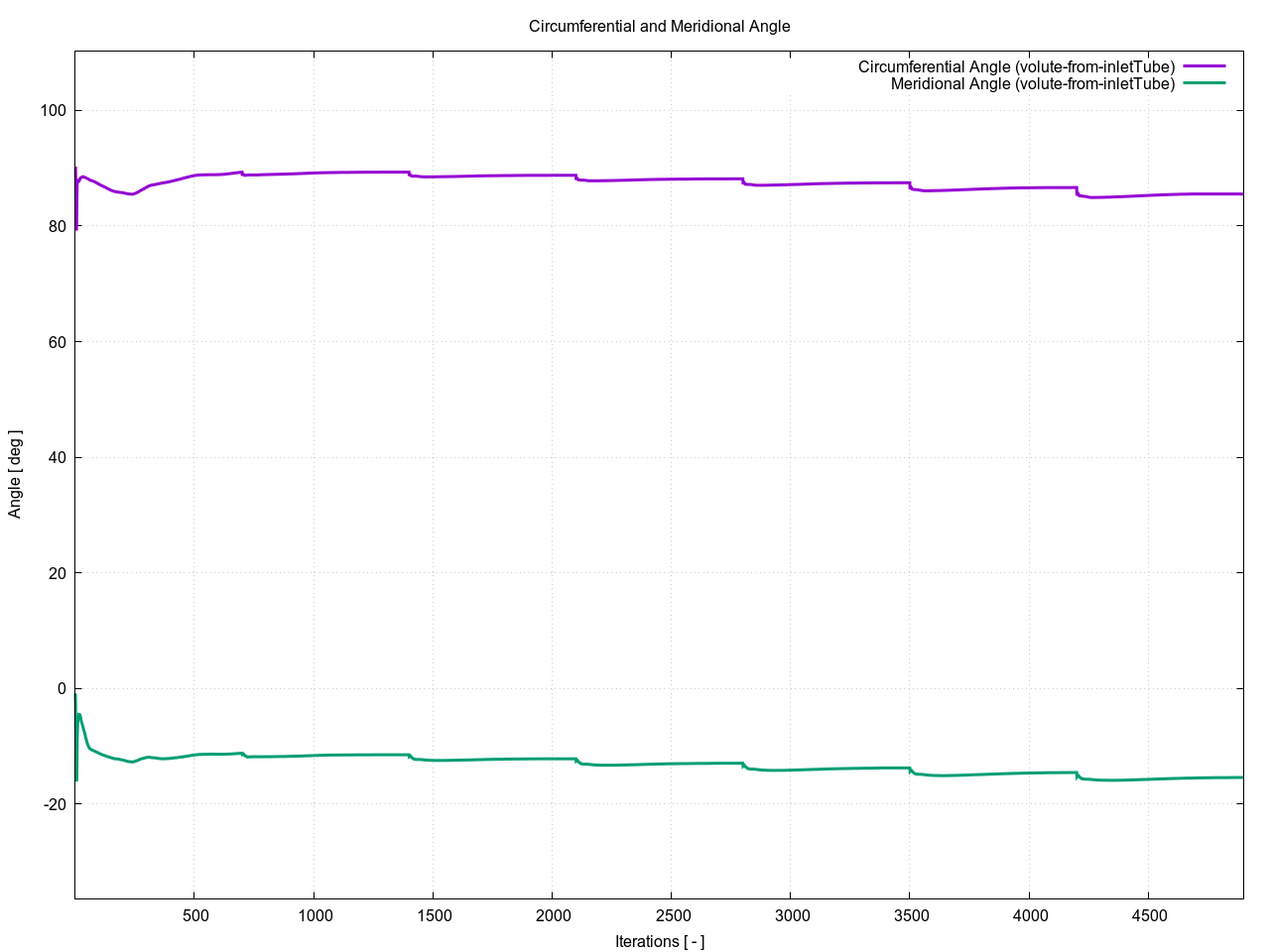

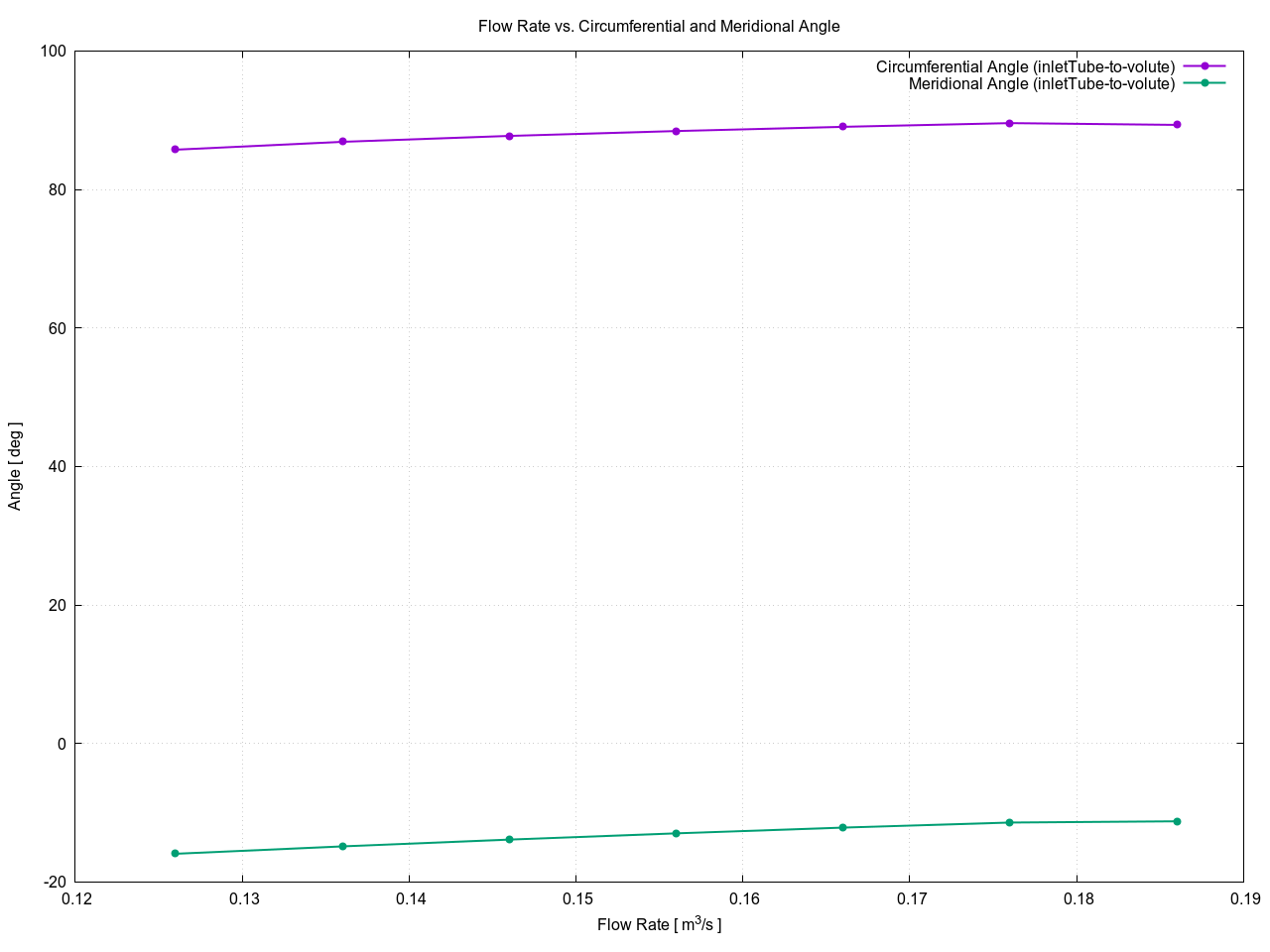

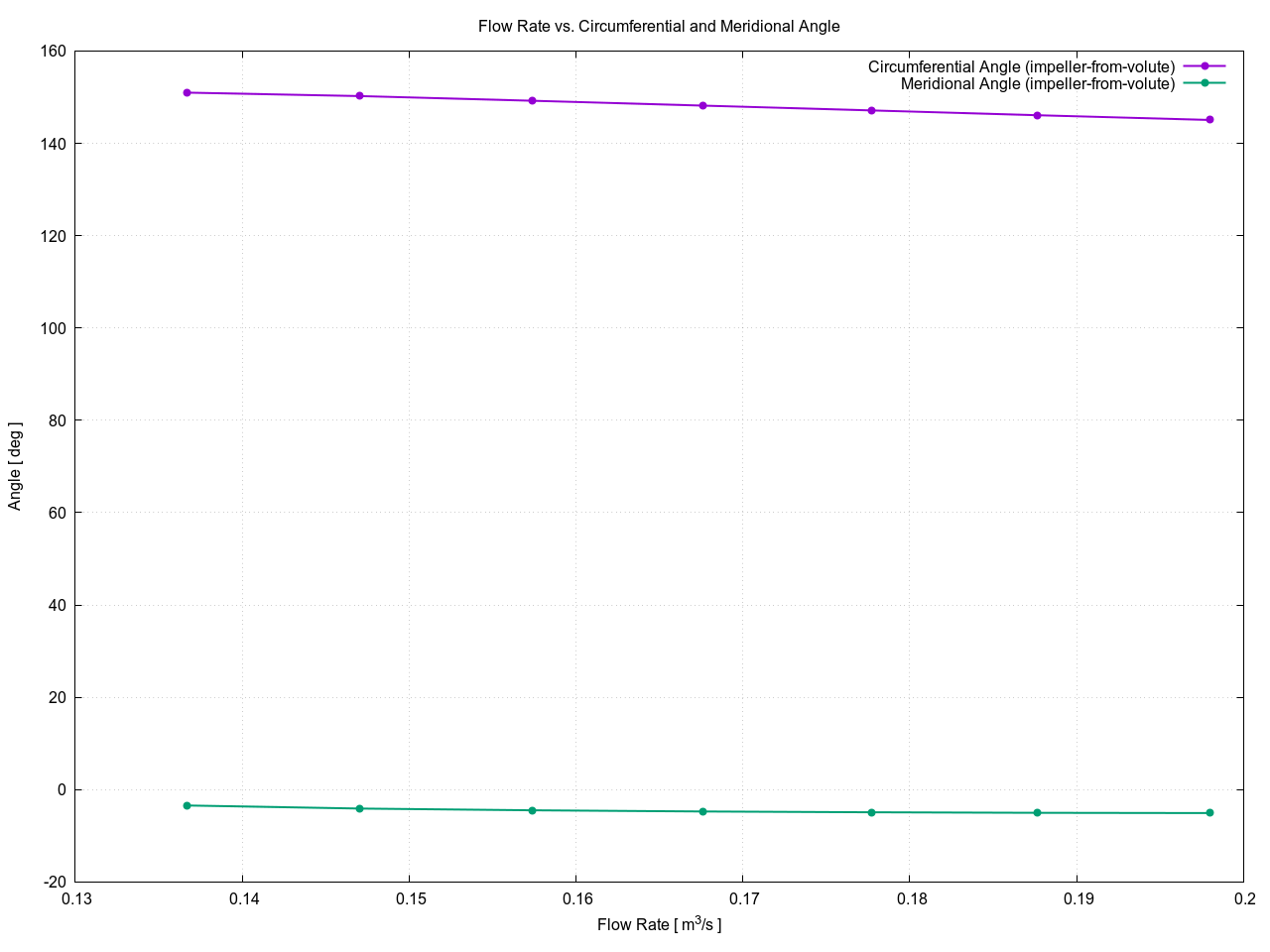

Circumferential and Meridional Angle

Point Nr.	Interface Name	Flow Rate [ m³/s ]	Circumferential Angle [ deg ]	Meridional Angle [ deg ]
1	inletTube-in	0.186000	90.0003	-0.0149509
1	inletTube-to-volute	0.186000	89.3251	-11.2416
1	impeller-from-volute	0.198009	145.052*	-5.07824*
1	impeller-to-volute	0.198009	160.820*	80.1842*
1	volute-from-inletTube	0.185859	89.0928	-11.3009
1	volute-from-impeller	0.198012	174.766	80.0206
1	volute-to-impeller	0.198016	95.9483	-5.07583
1	volute-to-voluteExtension	0.185855	11.9313	89.4179
1	voluteExtension-from-volute	0.185790	128.157	89.4178
1	voluteExtension-out	0.185790	106.635	89.5956
2	inletTube-in	0.176000	90.0003	-0.0149509
2	inletTube-to-volute	0.176000	89.5785	-11.4246
2	impeller-from-volute	0.187643	146.078*	-5.03025*
2	impeller-to-volute	0.187643	160.932*	82.2183*
2	volute-from-inletTube	0.175873	89.3386	-11.4530
2	volute-from-impeller	0.187643	176.264	82.1652
2	volute-to-impeller	0.187648	96.9172	-5.02820
2	volute-to-voluteExtension	0.175867	6.05969	89.6313
2	voluteExtension-from-volute	0.175810	127.901	89.6315
2	voluteExtension-out	0.175810	106.541	89.7357
3	inletTube-in	0.166000	90.0003	-0.0149509
3	inletTube-to-volute	0.166000	89.0433	-12.1547
3	impeller-from-volute	0.177701	147.126*	-4.91433*
3	impeller-to-volute	0.177701	161.078*	83.7145*
3	volute-from-inletTube	0.165877	88.7870	-12.1568
3	volute-from-impeller	0.177702	177.266	83.7844
3	volute-to-impeller	0.177706	97.6963	-4.91262
3	volute-to-voluteExtension	0.165873	28.1877	89.4908
3	voluteExtension-from-volute	0.165820	127.769	89.4911
3	voluteExtension-out	0.165820	106.300	89.8118
4	inletTube-in	0.156000	90.0003	-0.0149509
4	inletTube-to-volute	0.156000	88.4326	-12.9814
4	impeller-from-volute	0.167606	148.166*	-4.73262*
4	impeller-to-volute	0.167606	161.172*	85.2248*
4	volute-from-inletTube	0.155880	88.1745	-12.9215
4	volute-from-impeller	0.167607	178.127	85.4633
4	volute-to-impeller	0.167610	98.5529	-4.73130
4	volute-to-voluteExtension	0.155876	23.6769	89.4639
4	voluteExtension-from-volute	0.155829	127.693	89.4644
4	voluteExtension-out	0.155829	106.162	89.8267
5	inletTube-in	0.146000	90.0003	-0.0149509
5	inletTube-to-volute	0.146000	87.7371	-13.8828
5	impeller-from-volute	0.157384	149.216*	-4.48083*
5	impeller-to-volute	0.157384	161.145*	87.1259*
5	volute-from-inletTube	0.145883	87.4915	-13.7287
5	volute-from-impeller	0.157385	-0.121073	87.6083
5	volute-to-impeller	0.157388	99.4539	-4.47992
5	volute-to-voluteExtension	0.145880	-20.9285	89.5791
5	voluteExtension-from-volute	0.145837	127.606	89.5799
5	voluteExtension-out	0.145837	106.149	89.7449
6	inletTube-in	0.136000	90.0003	-0.0149509
6	inletTube-to-volute	0.136000	86.8849	-14.8637
6	impeller-from-volute	0.147046	150.230*	-4.09983*
6	impeller-to-volute	0.147046	160.915*	89.4801*
6	volute-from-inletTube	0.135888	86.6607	-14.5418
6	volute-from-impeller	0.147046	-12.4742	90.3056
6	volute-to-impeller	0.147050	100.410	-4.09854
6	volute-to-voluteExtension	0.135885	-48.5331	89.5243
6	voluteExtension-from-volute	0.135845	127.476	89.5255
6	voluteExtension-out	0.135845	106.224	89.6294
7	inletTube-in	0.126000	90.0003	-0.0149509
7	inletTube-to-volute	0.126000	85.7432	-15.9306
7	impeller-from-volute	0.136677	150.981*	-3.43879*
7	impeller-to-volute	0.136677	160.393*	92.2278*
7	volute-from-inletTube	0.125896	85.5435	-15.3971
7	volute-from-impeller	0.136677	-73.0049	93.4985
7	volute-to-impeller	0.136682	101.429	-3.44089
7	volute-to-voluteExtension	0.125891	-47.7206	89.0839
7	voluteExtension-from-volute	0.125855	127.256	89.0850
7	voluteExtension-out	0.125855	106.146	89.6055

(*) Calculated from the relative velocity.

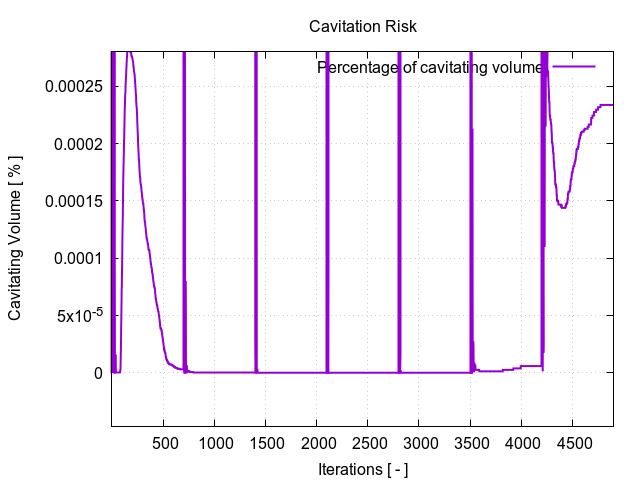

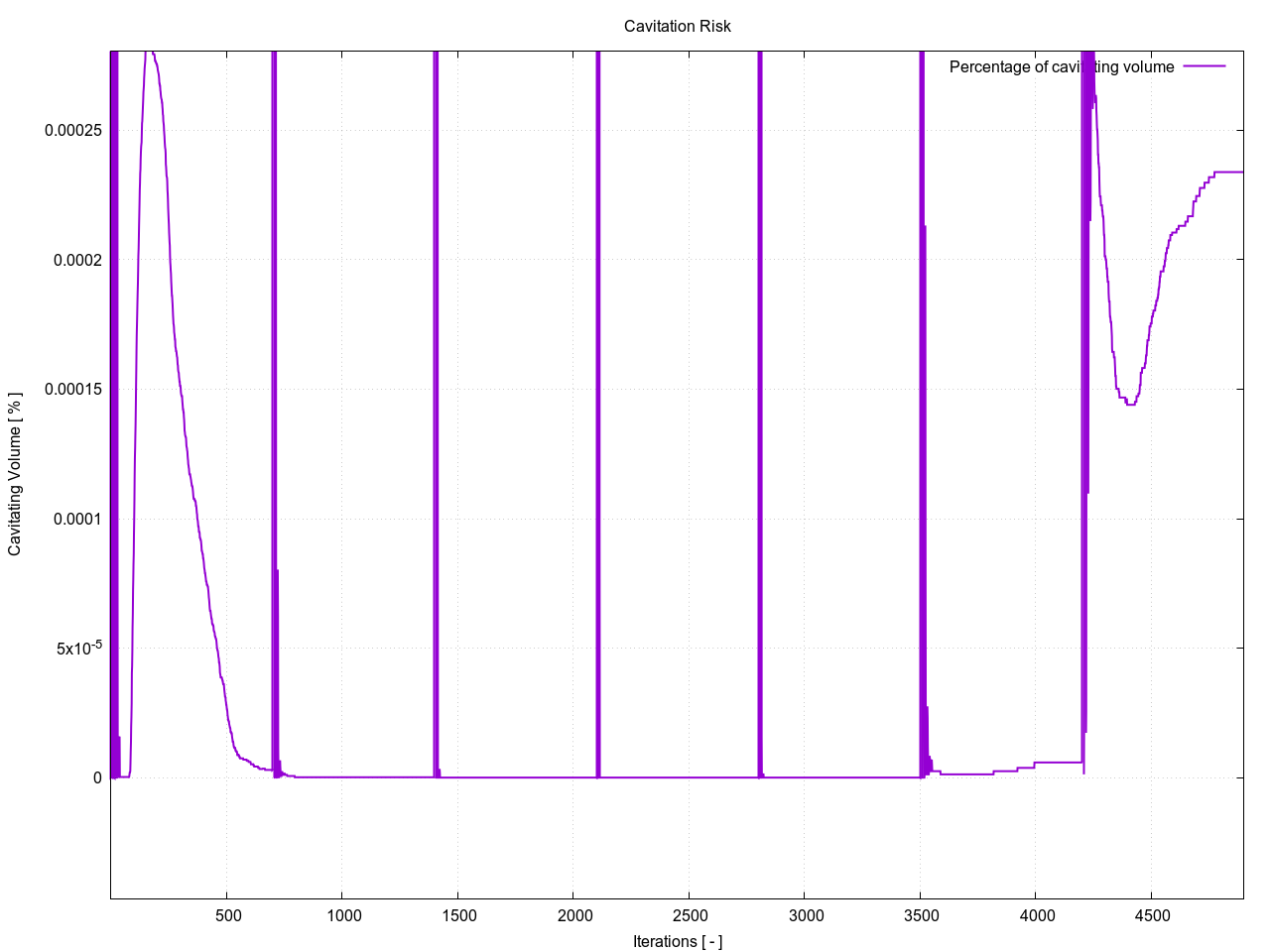

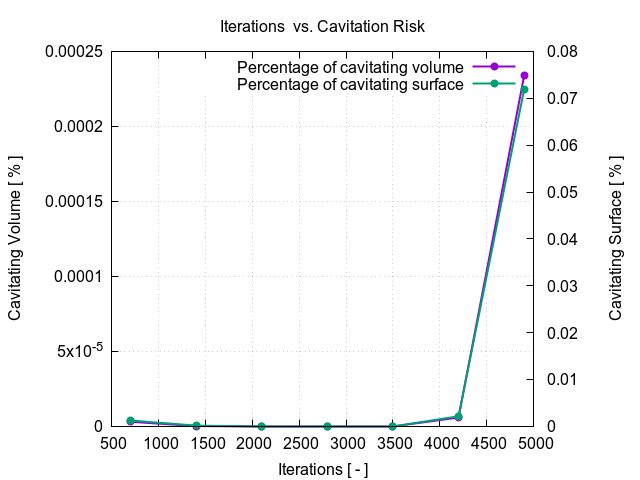

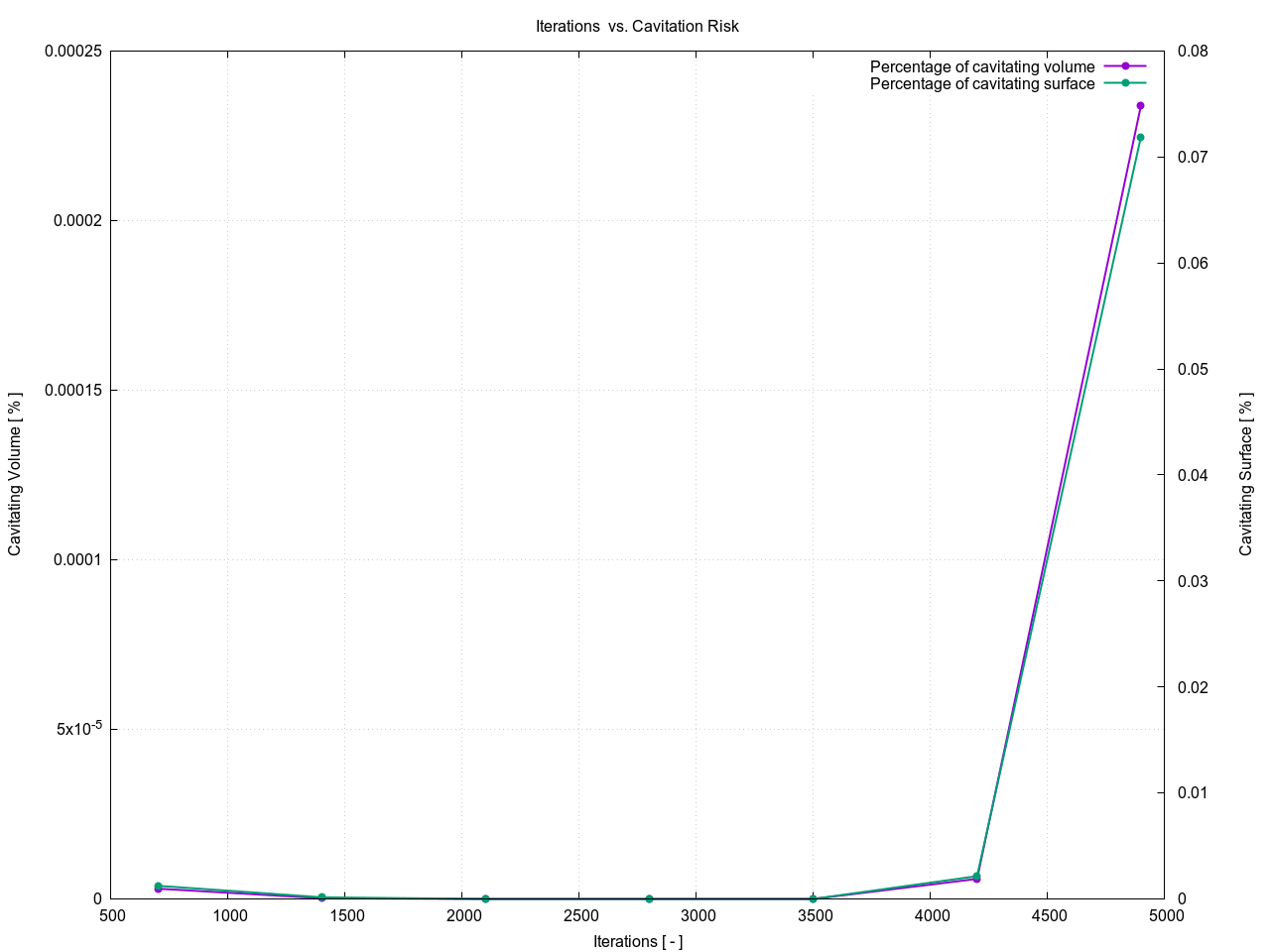

Cavitation Risk

Point Nr.	Flow Rate [ m³/s ]	Cavitating Volume [ m³ ]	Cavitating Volume [ % ]
1	0.186000	1.30327 × 10^-9	2.97548 × 10^-6
2	0.176000	6.58230 × 10^-11	1.50280 × 10^-7
3	0.166000	0	0
4	0.156000	0	0
5	0.146000	0	0
6	0.136000	2.56720 × 10^-9	5.86114 × 10^-6
7	0.126000	1.02422 × 10^-7	2.33837 × 10^-4

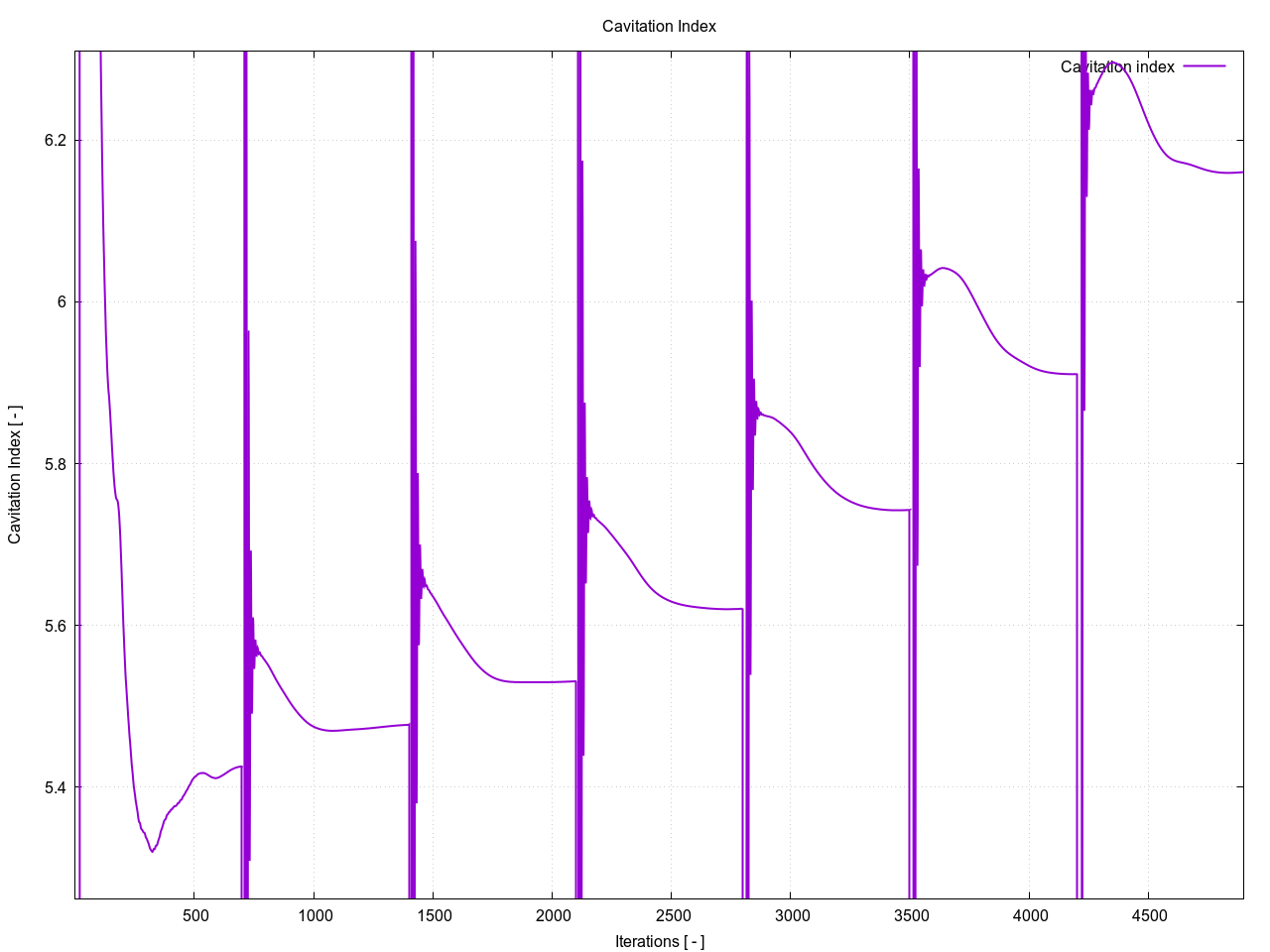

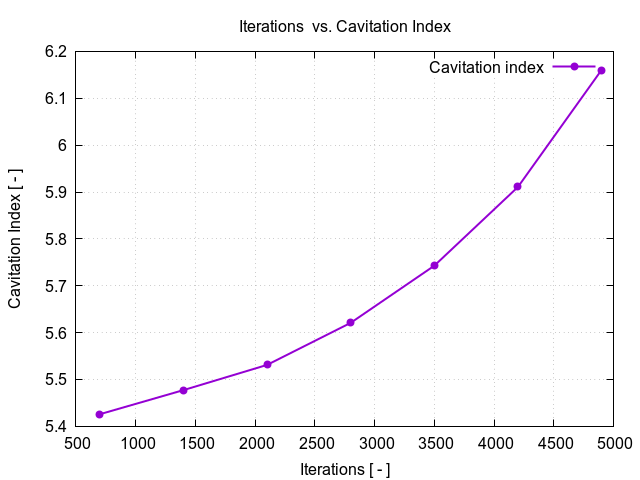

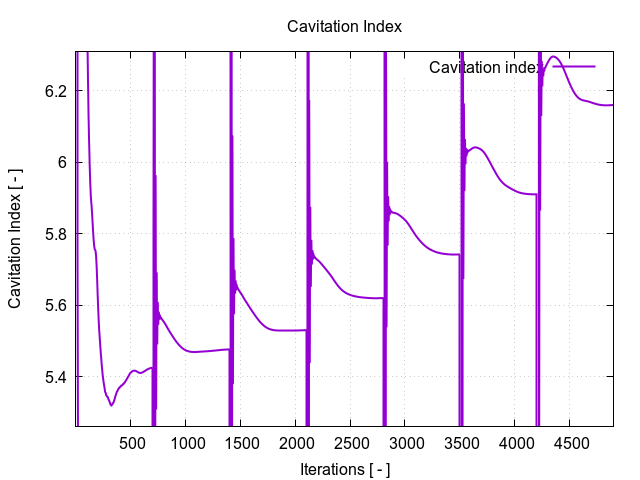

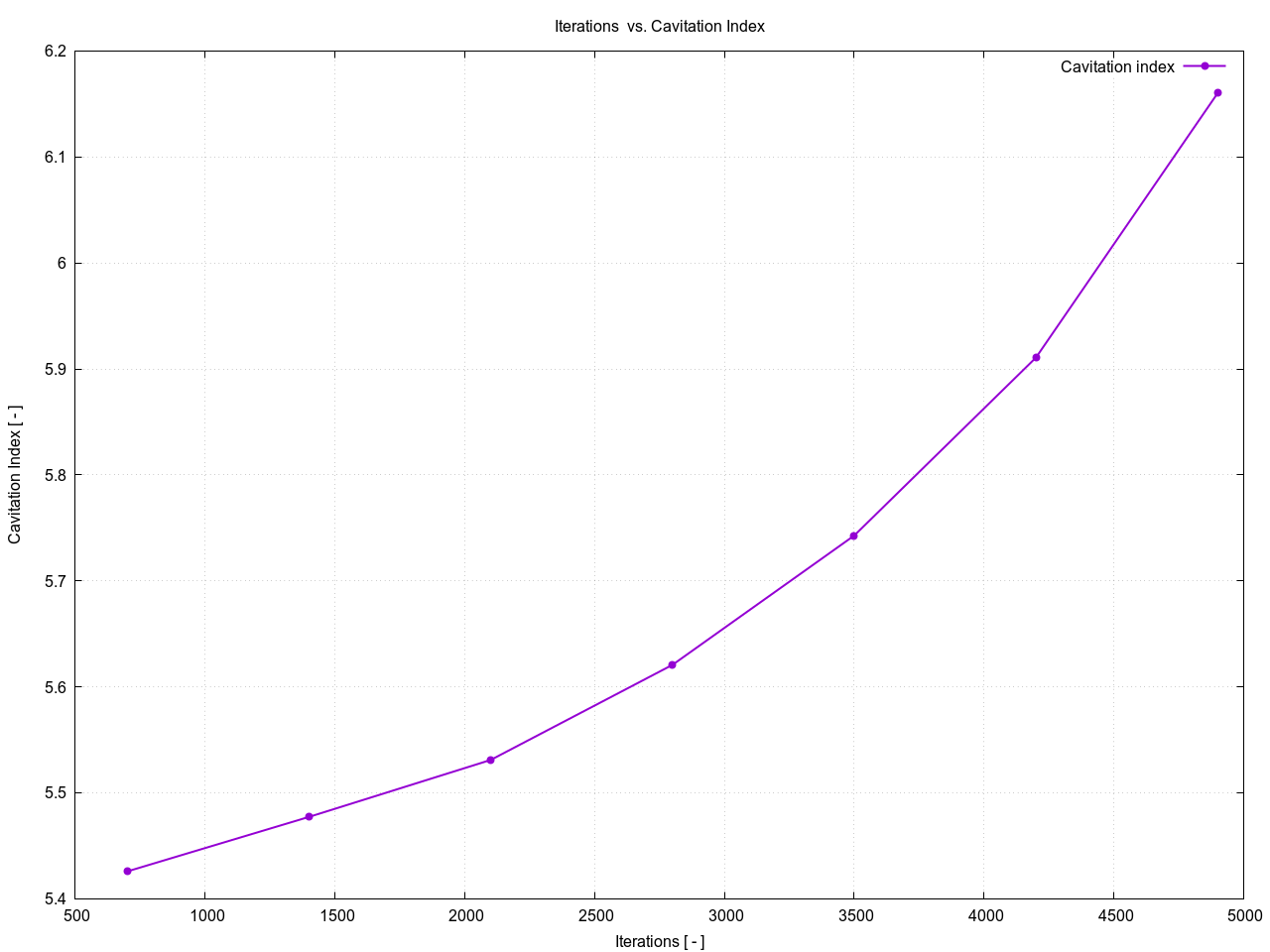

Cavitation Index

Point Nr.	Flow Rate [ m³/s ]	Cavitating Volume [ – ]
1	0.186000	5.42585
2	0.176000	5.47724
3	0.166000	5.53099
4	0.156000	5.62073
5	0.146000	5.74272
6	0.136000	5.91063
7	0.126000	6.16025

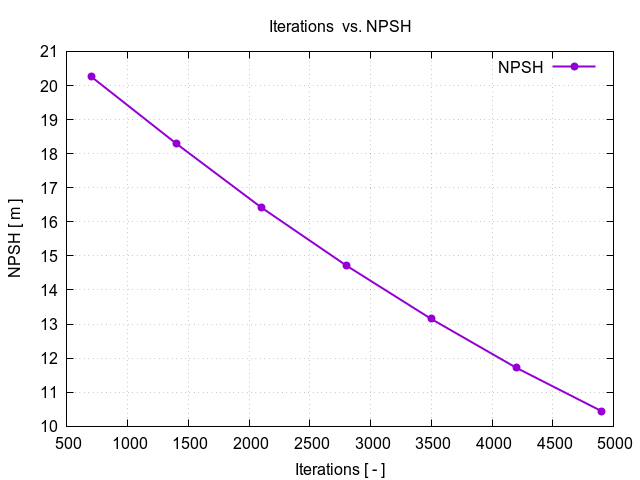

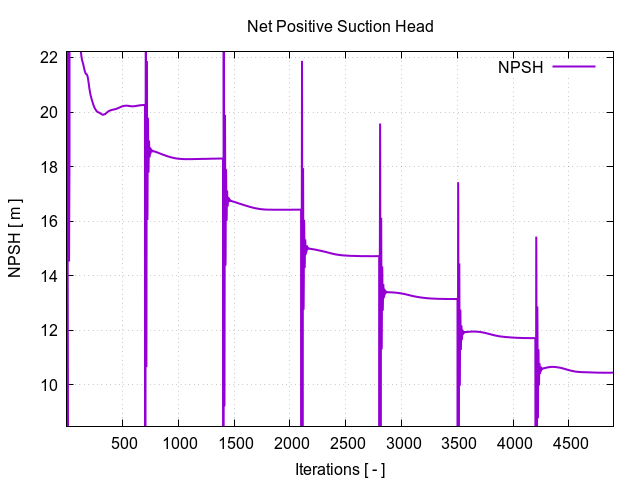

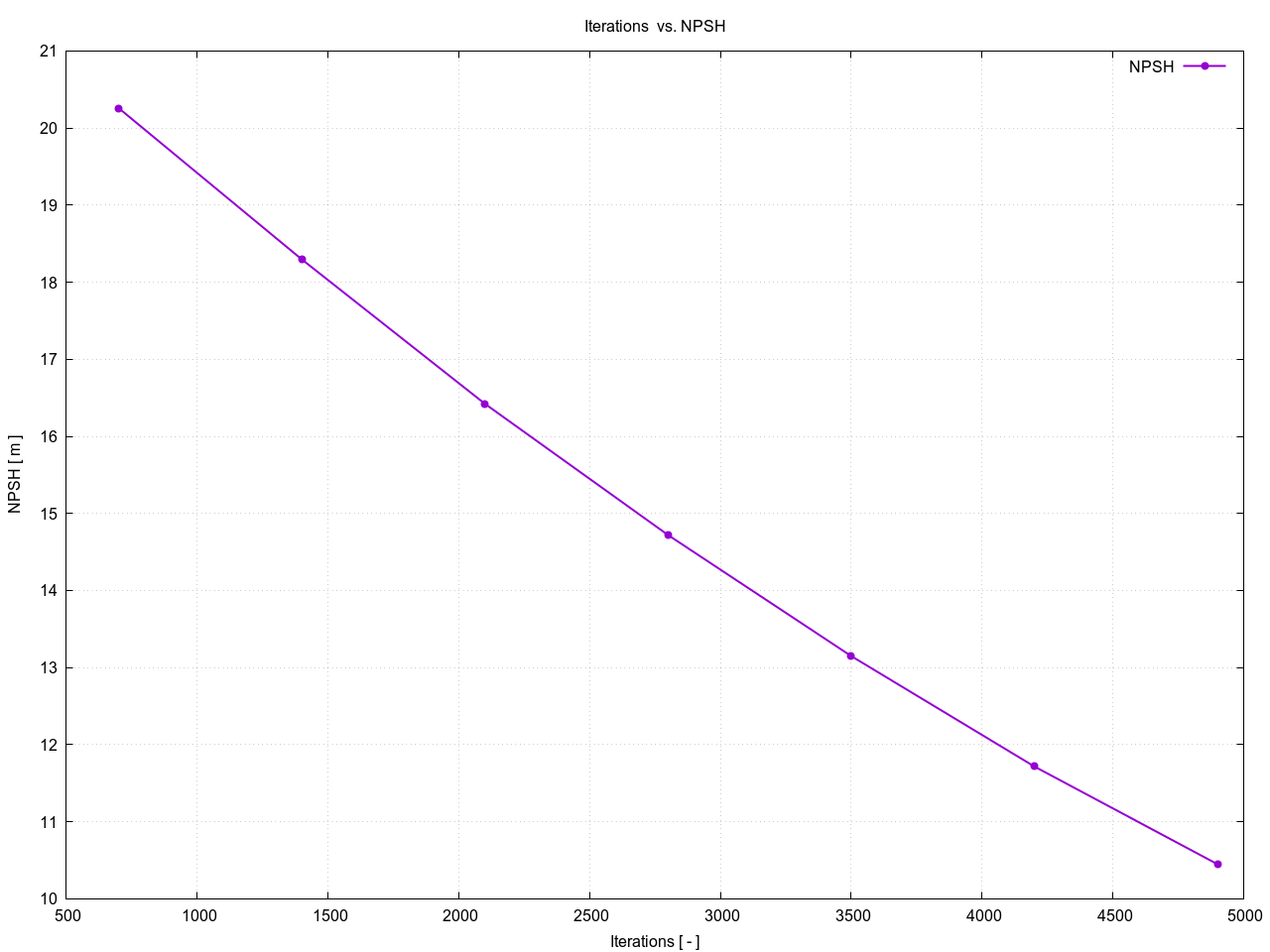

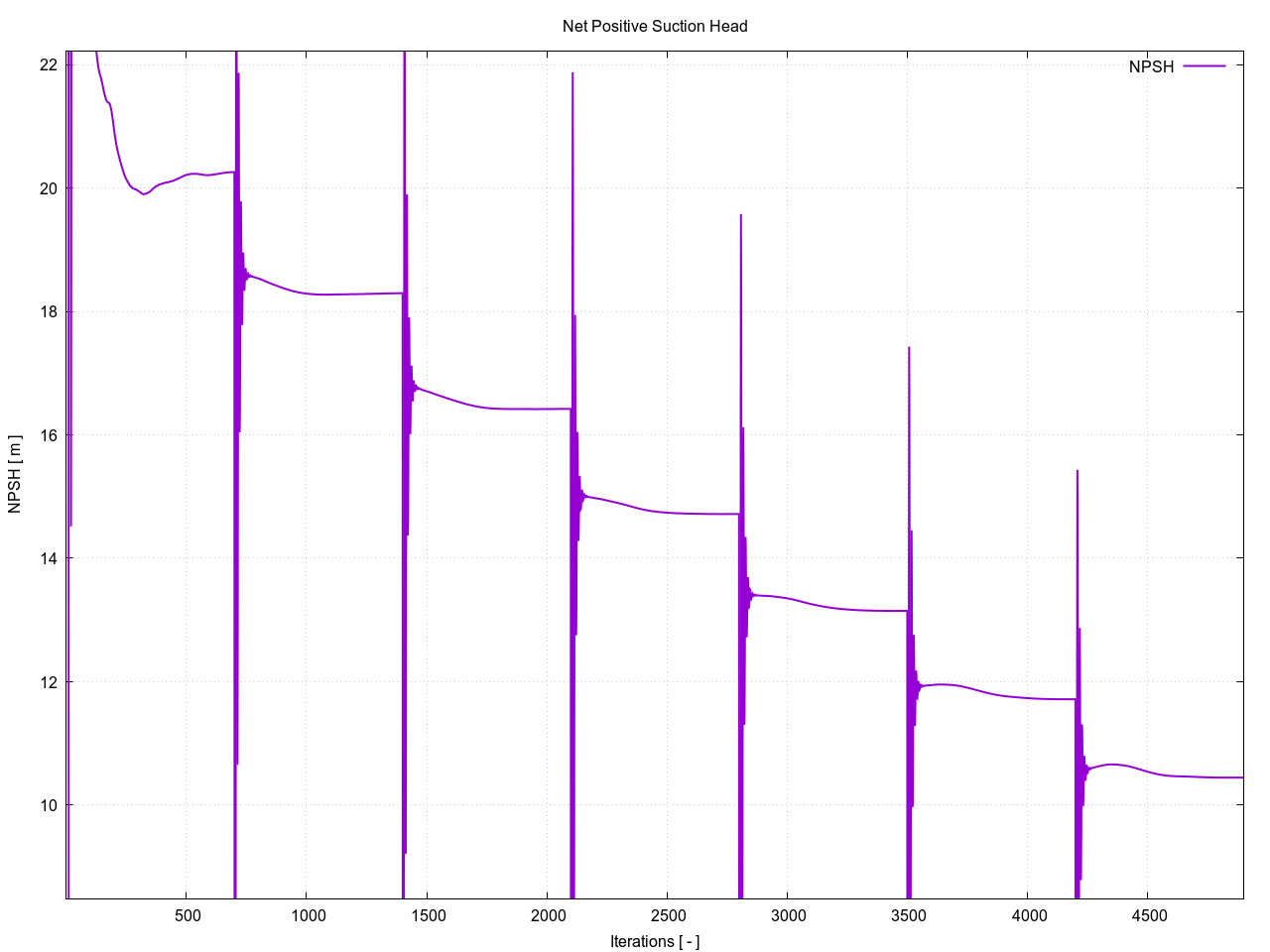

Net Positive Suction Head

Point Nr.	Flow Rate [ m³/s ]	NPSH [ m ]
1	0.186000	20.2573
2	0.176000	18.2949
3	0.166000	16.4214
4	0.156000	14.7183
5	0.146000	13.1487
6	0.136000	11.7161
7	0.126000	10.4481
