Hi, this is steady-state CFD simulation report of:

eveningTest

Created by TCFD® 18.10 on Wed Oct 24 10:12:22 2018

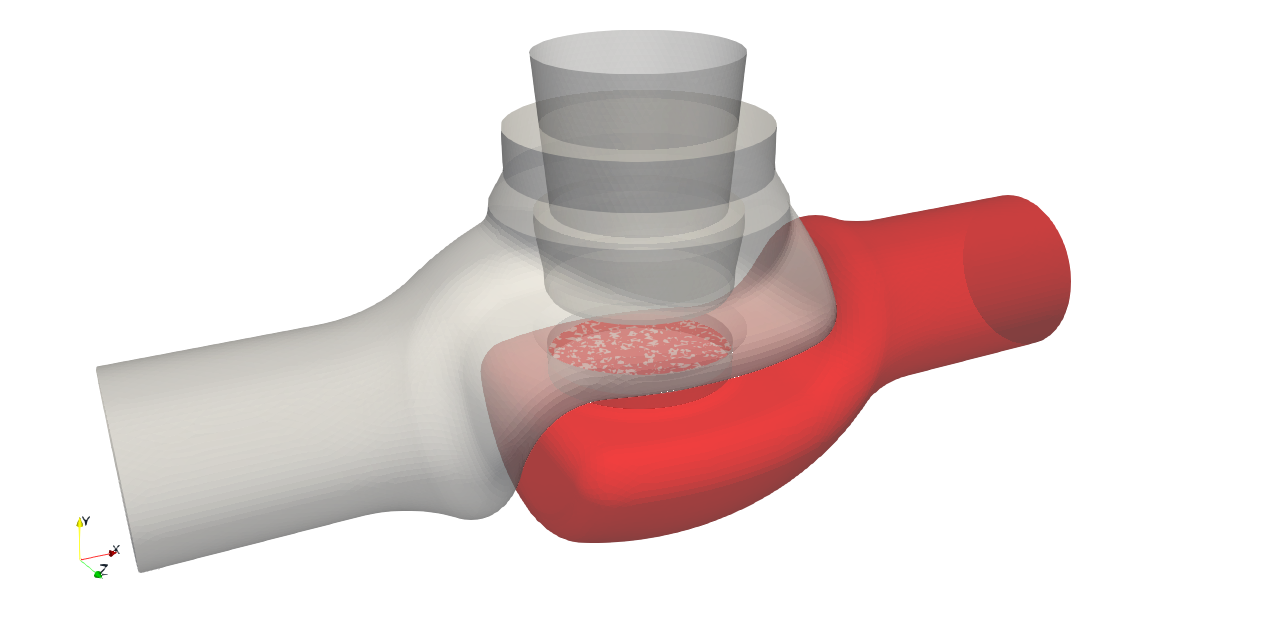

screenshot 8
DISCOVER

Simulation Stats

Test Case Name
eveningTest
Number of Points [ – ]
7
Machine Type
stator
Rotation Speed [ RPM ]
0
Number of Components [ – ]
( topology )
2
Mesh Size [ cells ]
( details )
Co1 : 144589
Co2 : 124163
Total : 268752
Average y+ at walls [ – ]
( details )
130.971
Wall-clock time [ hh:mm:ss ]
00:11:12
Parallel Processors [ – ]
24
Fluid Name
water
Compressibility
incompressible

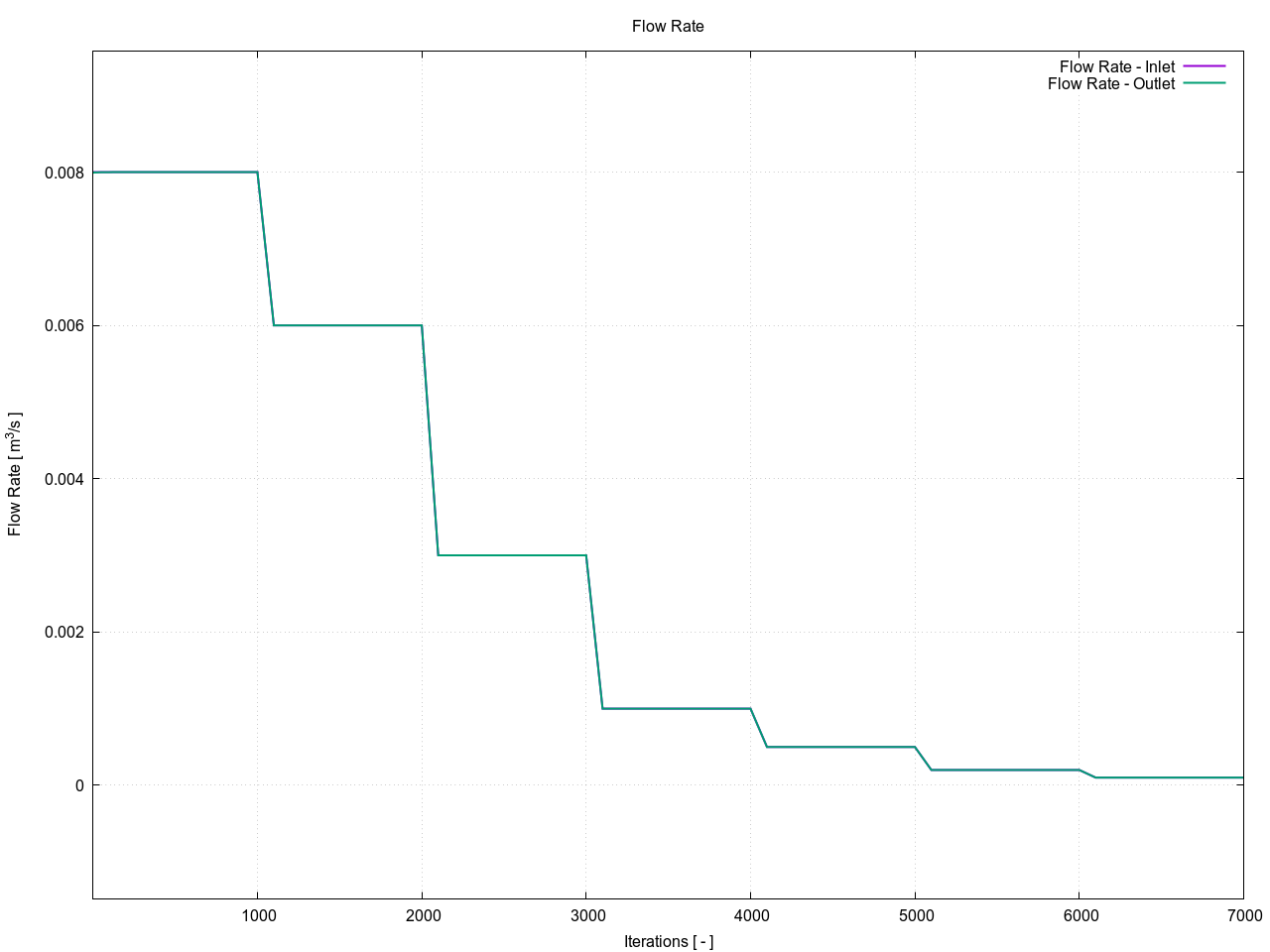

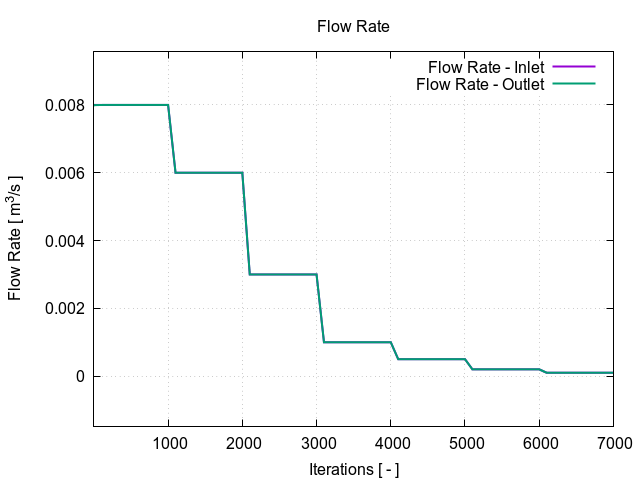

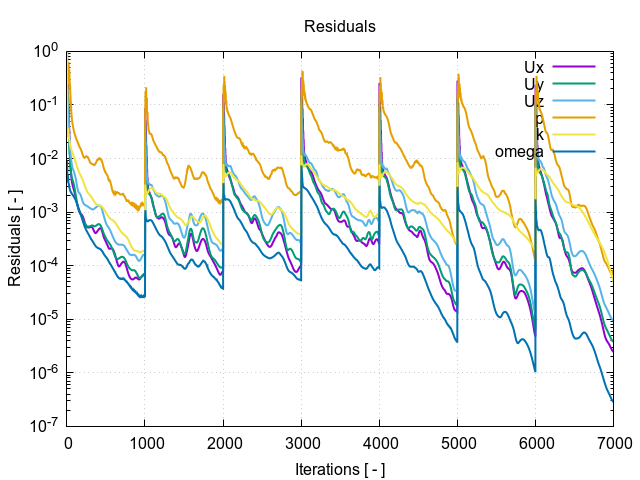

plotFlowRate 1 4

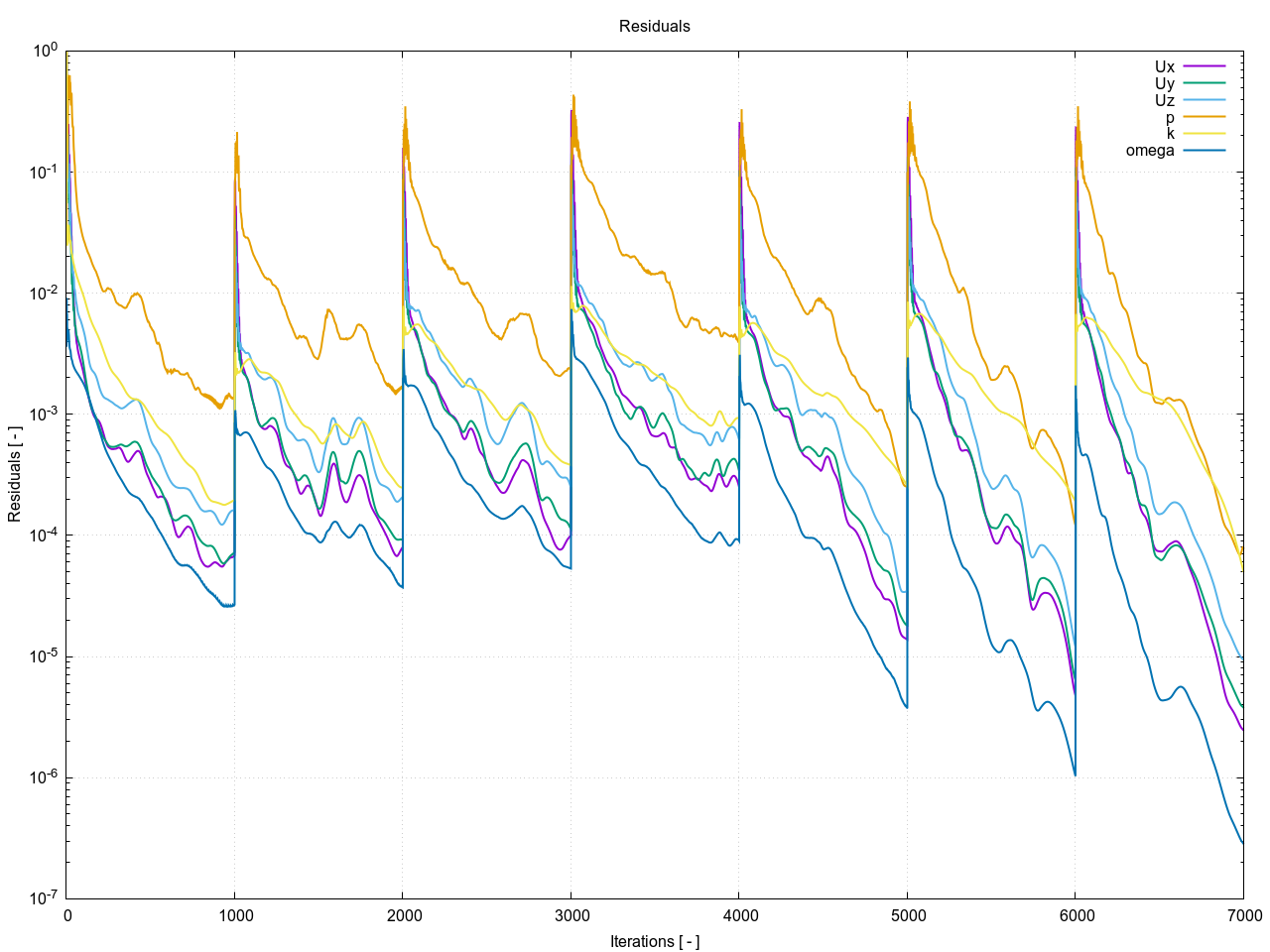

residuum 1 3

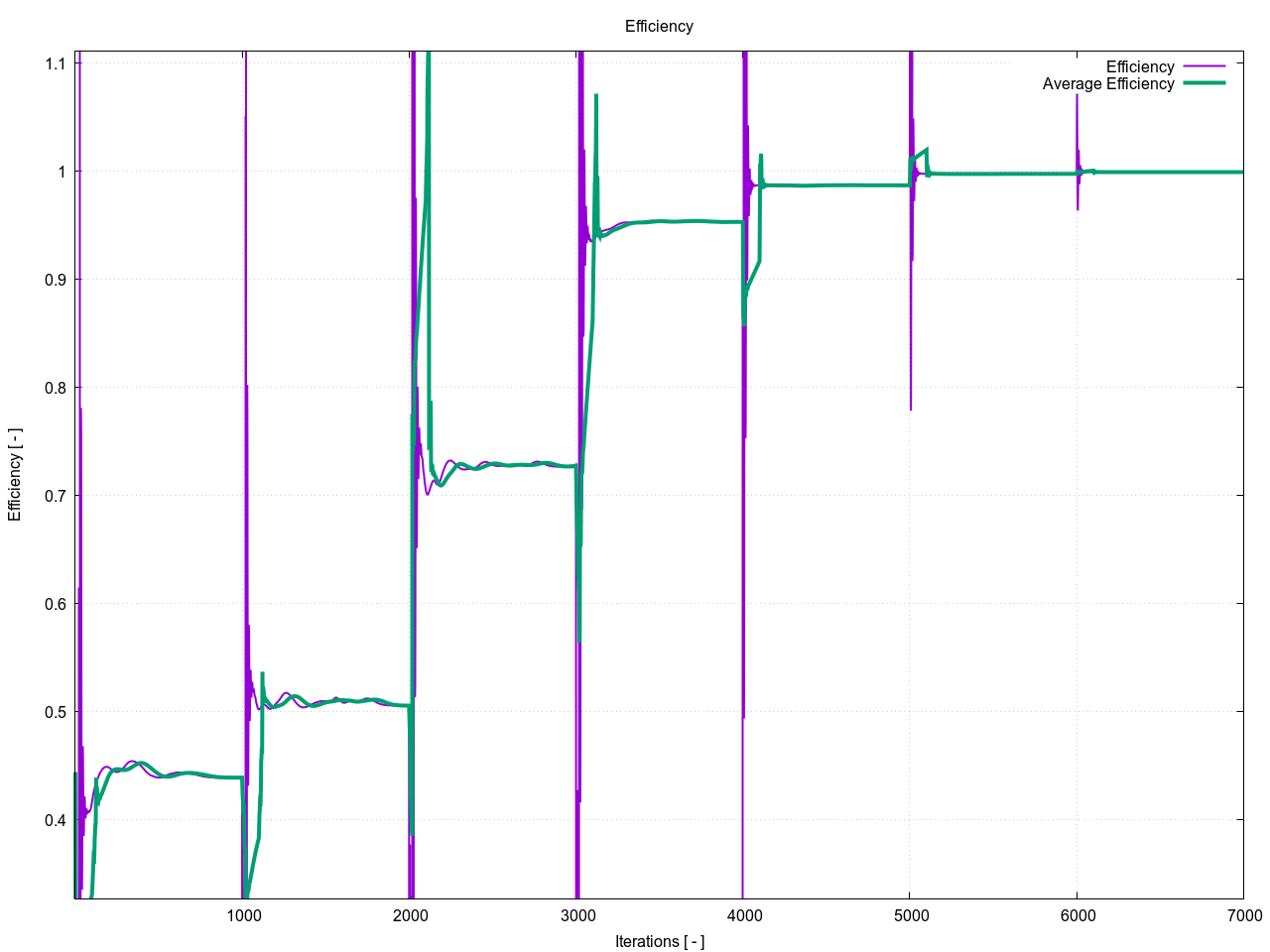

Efficiency

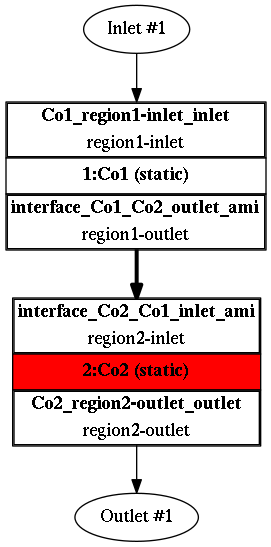

1:rotor-inlet — 2:stator-outlet

Point Nr.
Flow Rate [ m3/s ]
Efficiency [ – ]
1
0.00800000
0.439283
2
0.00600000
0.505815
3
0.00300000
0.727476
4
0.00100000
0.953146
5
5.00000 × 10-4
0.987022
6
2.00000 × 10-4
0.997633
7
1.00000 × 10-4
0.999317

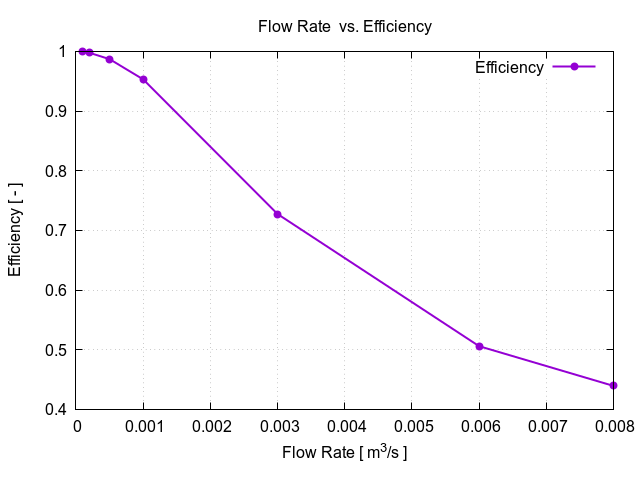

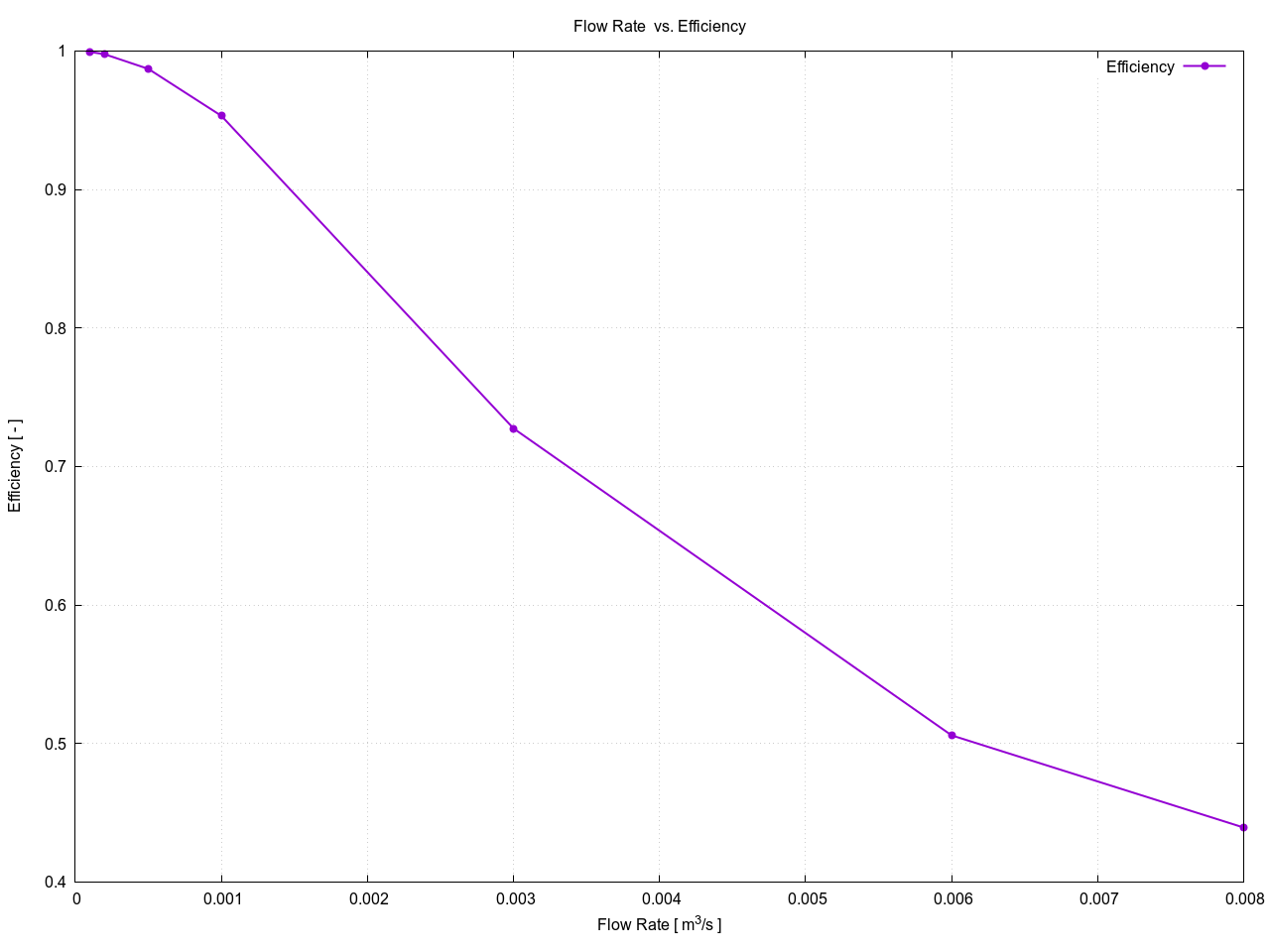

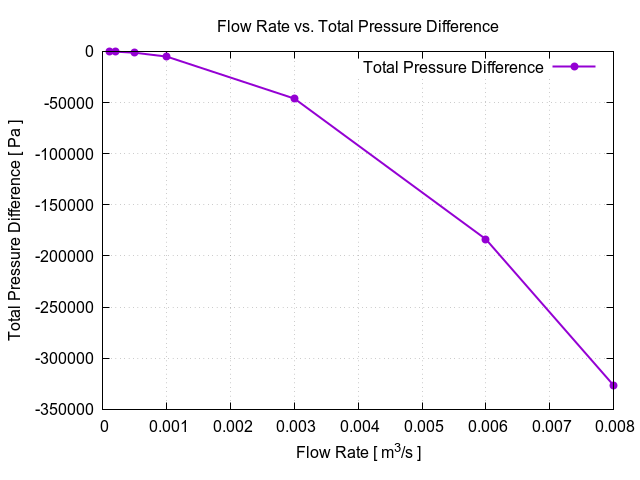

flowRateVsEfficiency 1 3

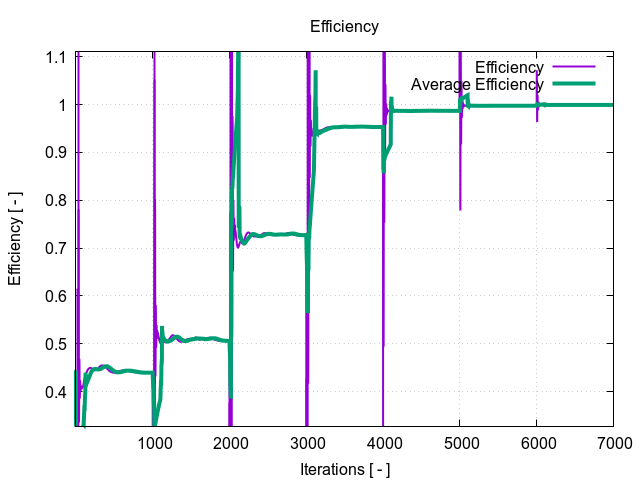

efficiency 1 3

Total Pressure Difference

1:region1-inlet — 2:region2-outlet

Point Nr.
Flow Rate [ m3/s ]
Total Pressure Difference [ Pa ]
1
0.00800000
-326382.
2
0.00600000
-183658.
3
0.00300000
-46137.9
4
0.00100000
-5098.87
5
5.00000 × 10-4
-1340.05
6
2.00000 × 10-4
-240.643
7
1.00000 × 10-4
-69.2295

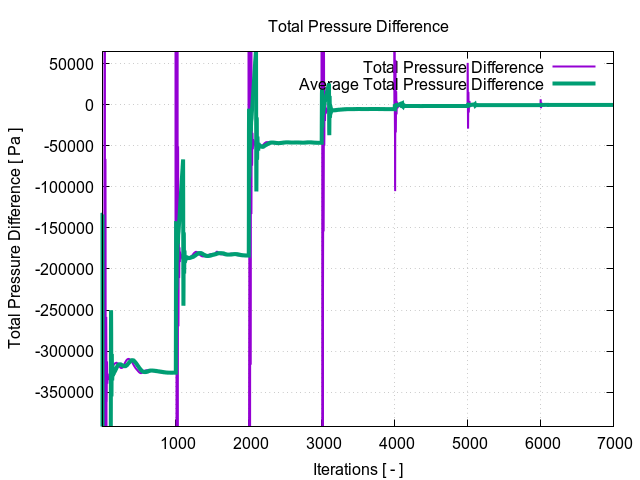

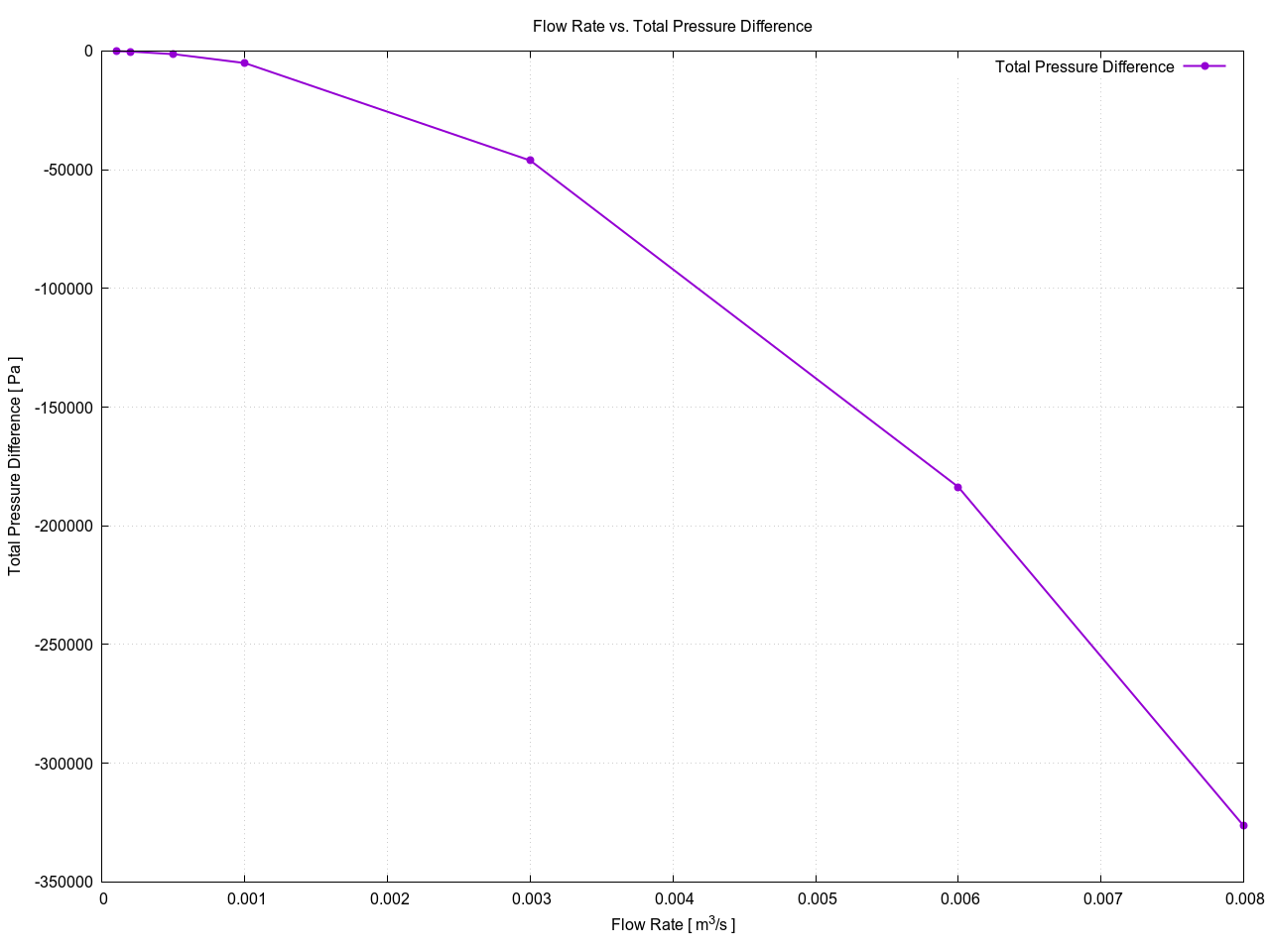

flowRateVsTotalPressureDifference 1 3

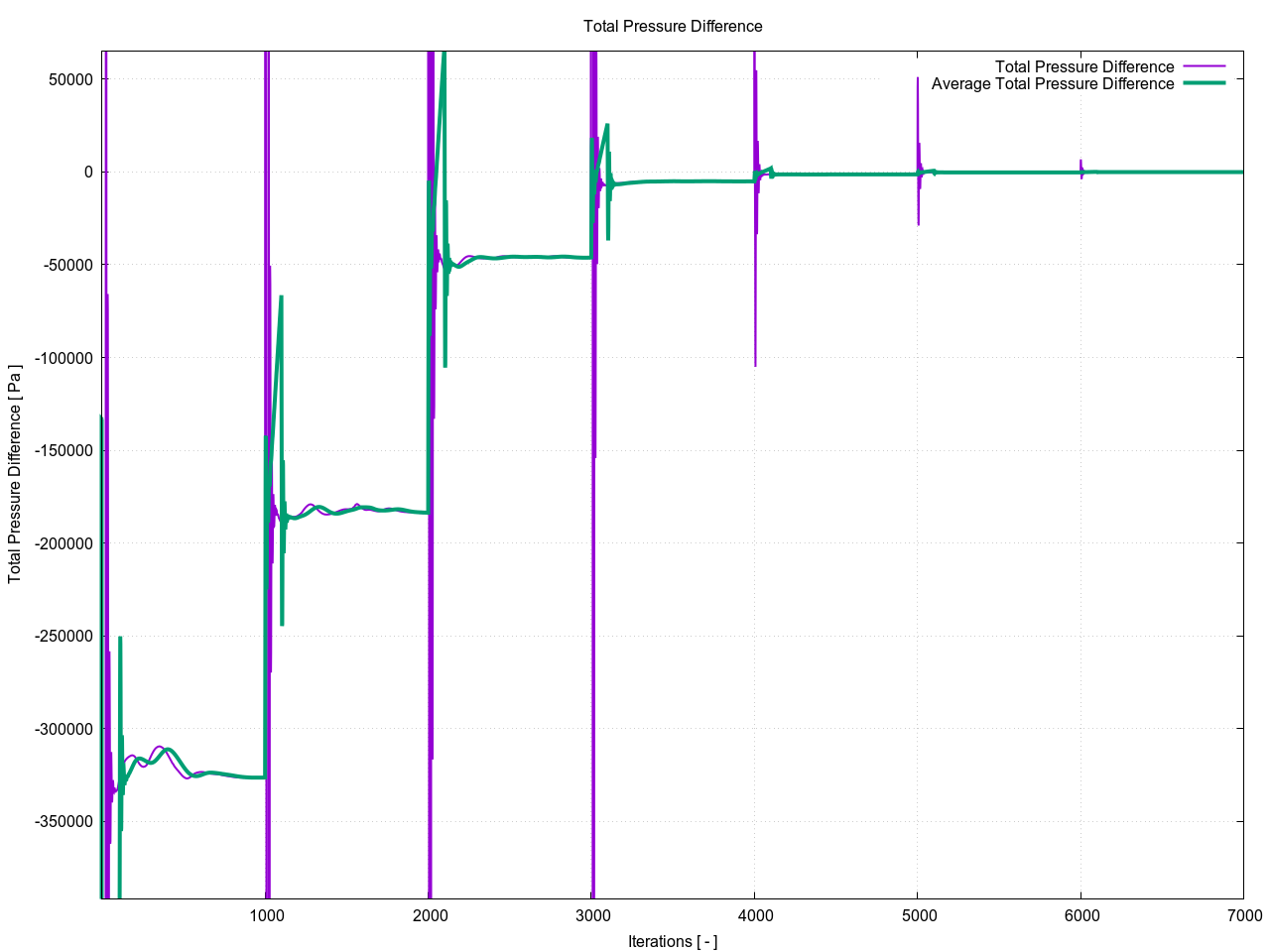

totalPressureDifference 1 3

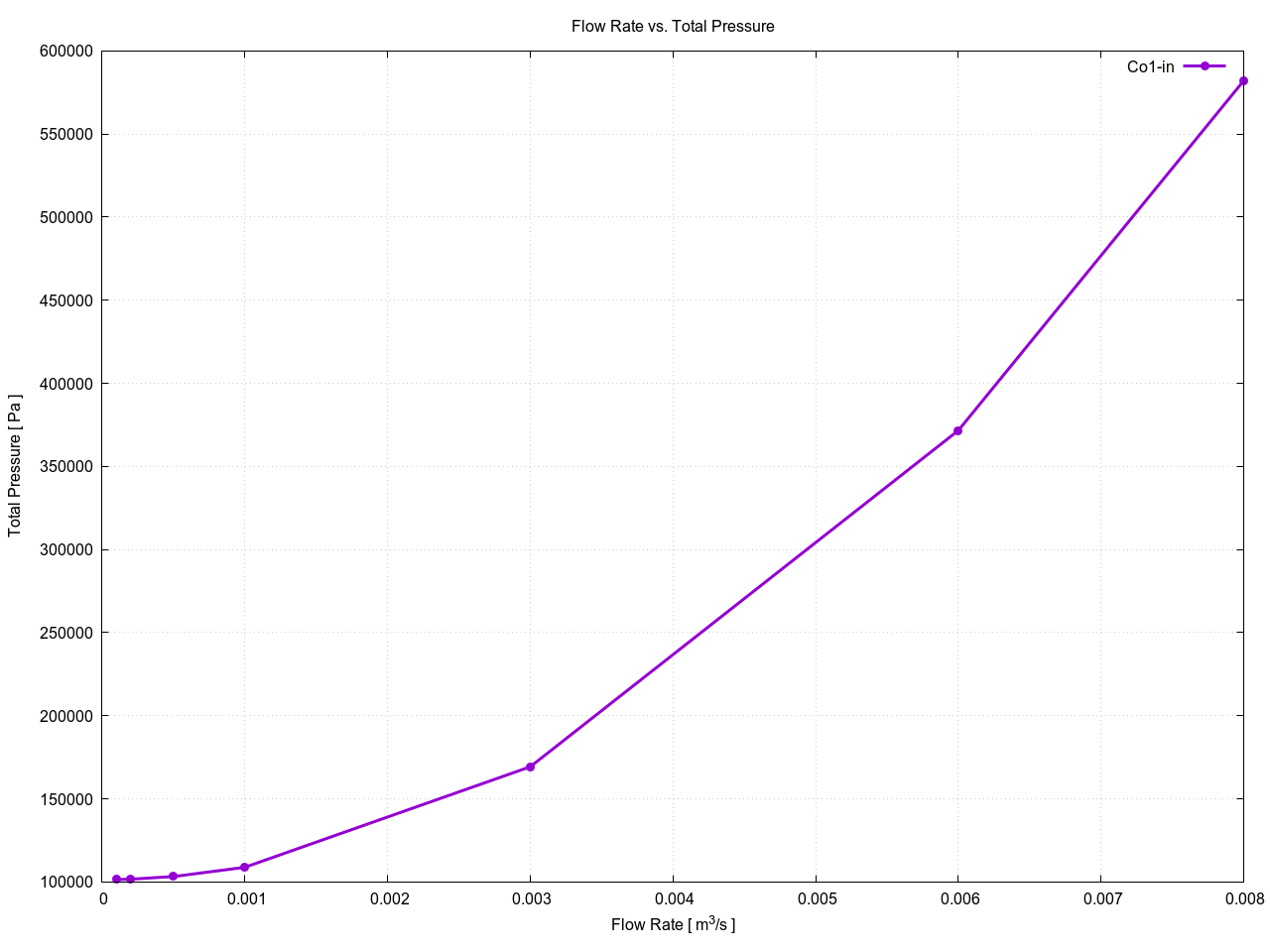

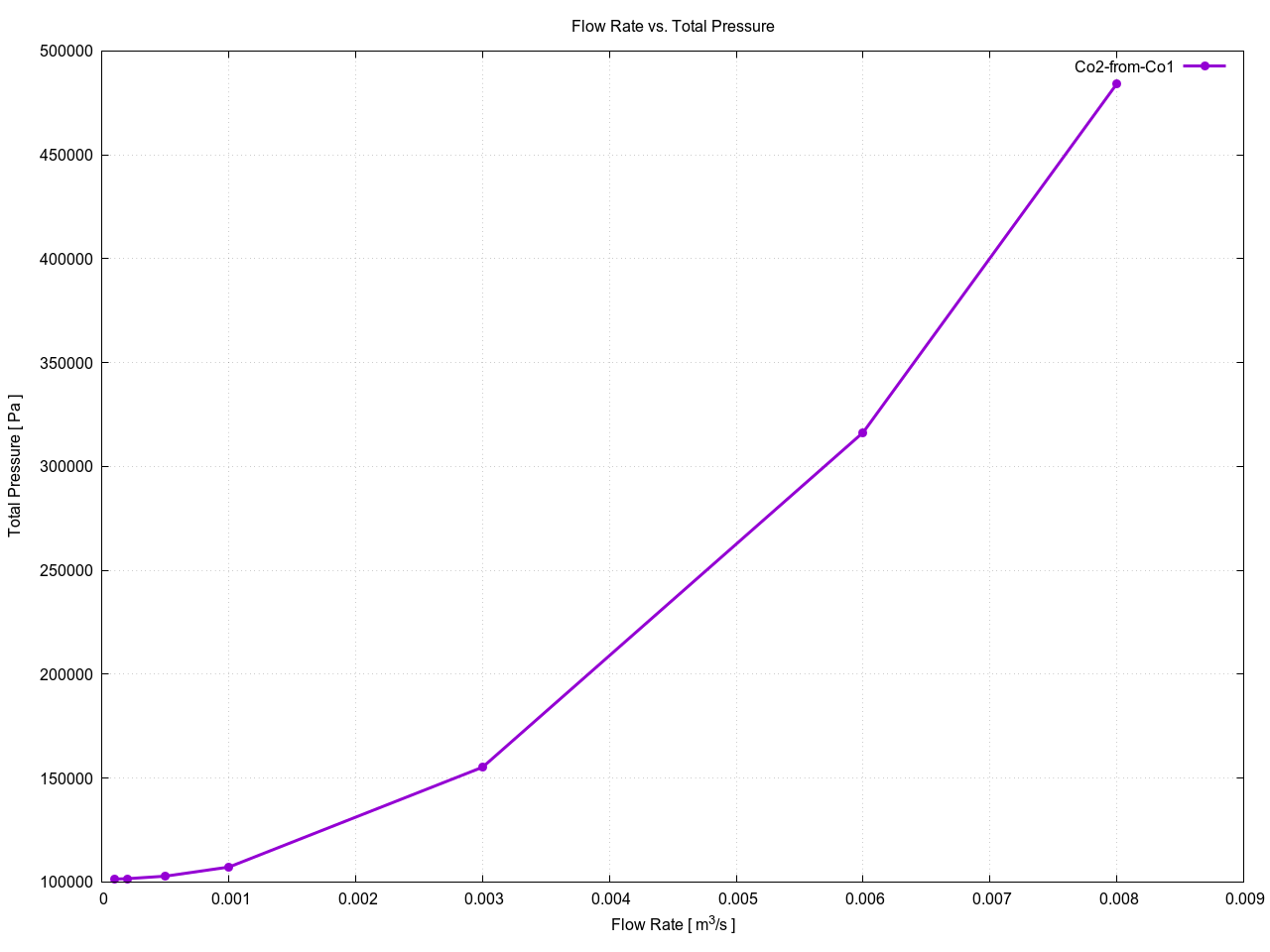

Total Pressure per Interfaces

Point Nr.
Interface Name
Flow Rate [ m3/s ]
Total Pressure [ Pa ]
1
Co1-in
0.00800000
582081.
1
Co1-to-Co2
0.00800000
484320.
1
Co2-from-Co1
0.00800010
484234.
1
Co2-out
0.00800010
255698.
2
Co1-in
0.00600000
371638.
2
Co1-to-Co2
0.00600000
316434.
2
Co2-from-Co1
0.00600007
316384.
2
Co2-out
0.00600007
187980.
3
Co1-in
0.00300000
169298.
3
Co1-to-Co2
0.00300000
155263.
3
Co2-from-Co1
0.00300003
155250.
3
Co2-out
0.00300003
123160.
4
Co1-in
0.00100000
108825.
4
Co1-to-Co2
0.00100000
107197.
4
Co2-from-Co1
0.00100000
107196.
4
Co2-out
0.00100000
103726.
5
Co1-in
5.00000 × 10-4
103258.
5
Co1-to-Co2
5.00000 × 10-4
102801.
5
Co2-from-Co1
4.99994 × 10-4
102801.
5
Co2-out
4.99994 × 10-4
101918.
6
Co1-in
2.00000 × 10-4
101658.
6
Co1-to-Co2
2.00000 × 10-4
101569.
6
Co2-from-Co1
1.99985 × 10-4
101569.
6
Co2-out
1.99985 × 10-4
101418.
7
Co1-in
1.00000 × 10-4
101418.
7
Co1-to-Co2
1.00000 × 10-4
101391.
7
Co2-from-Co1
9.99858 × 10-5
101391.
7
Co2-out
9.99858 × 10-5
101348.

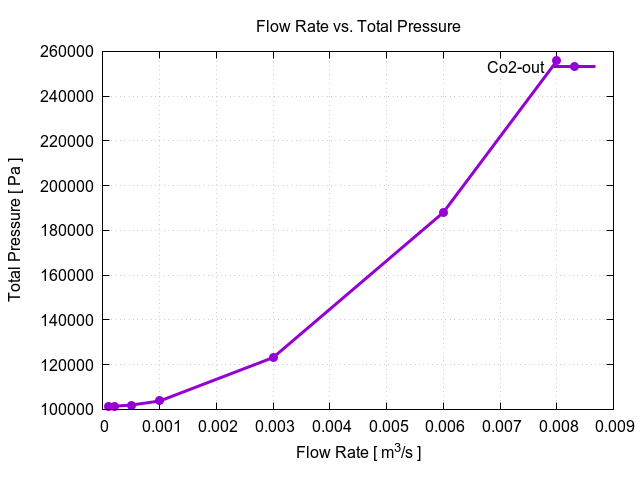

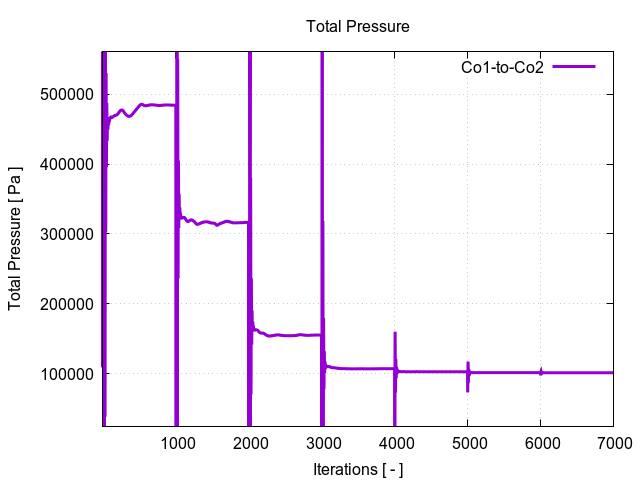

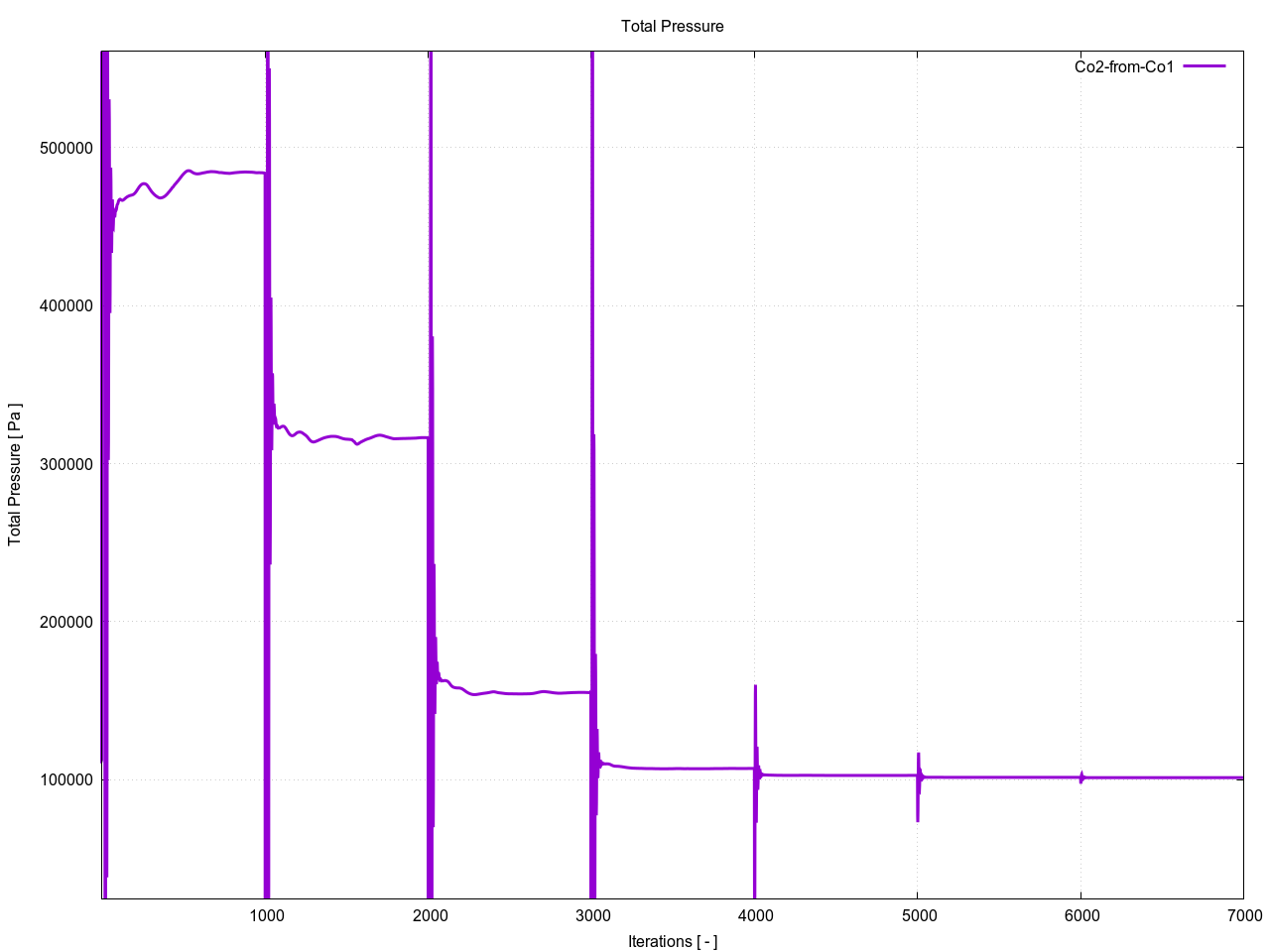

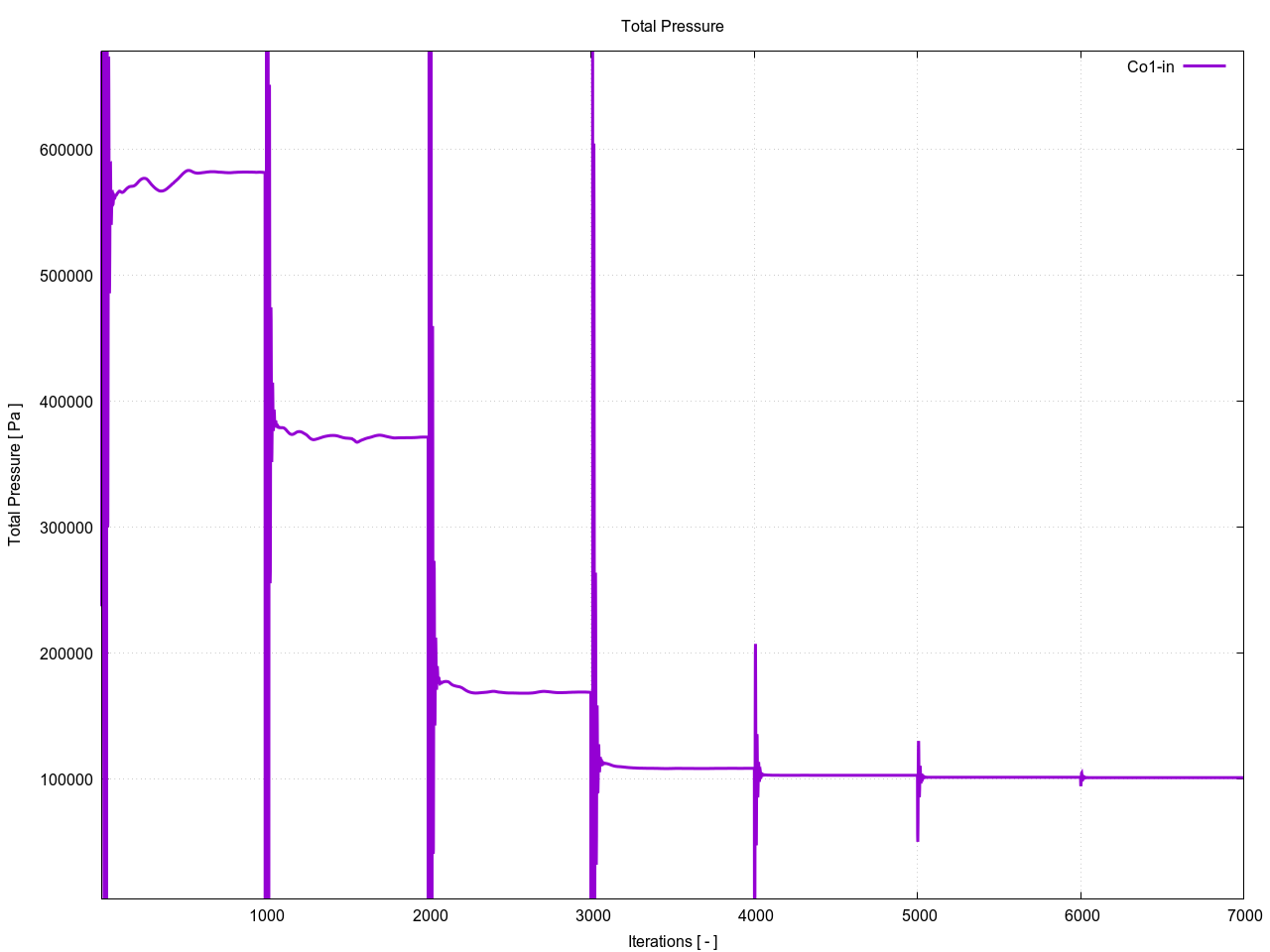

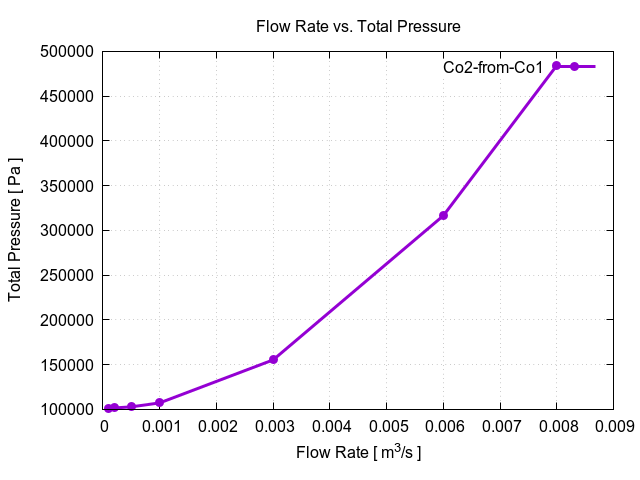

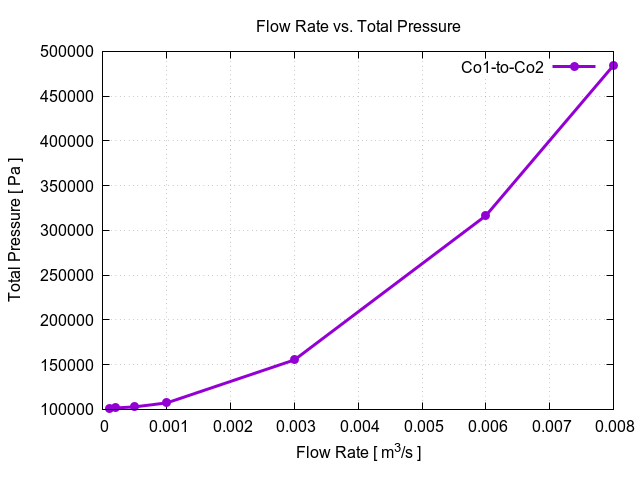

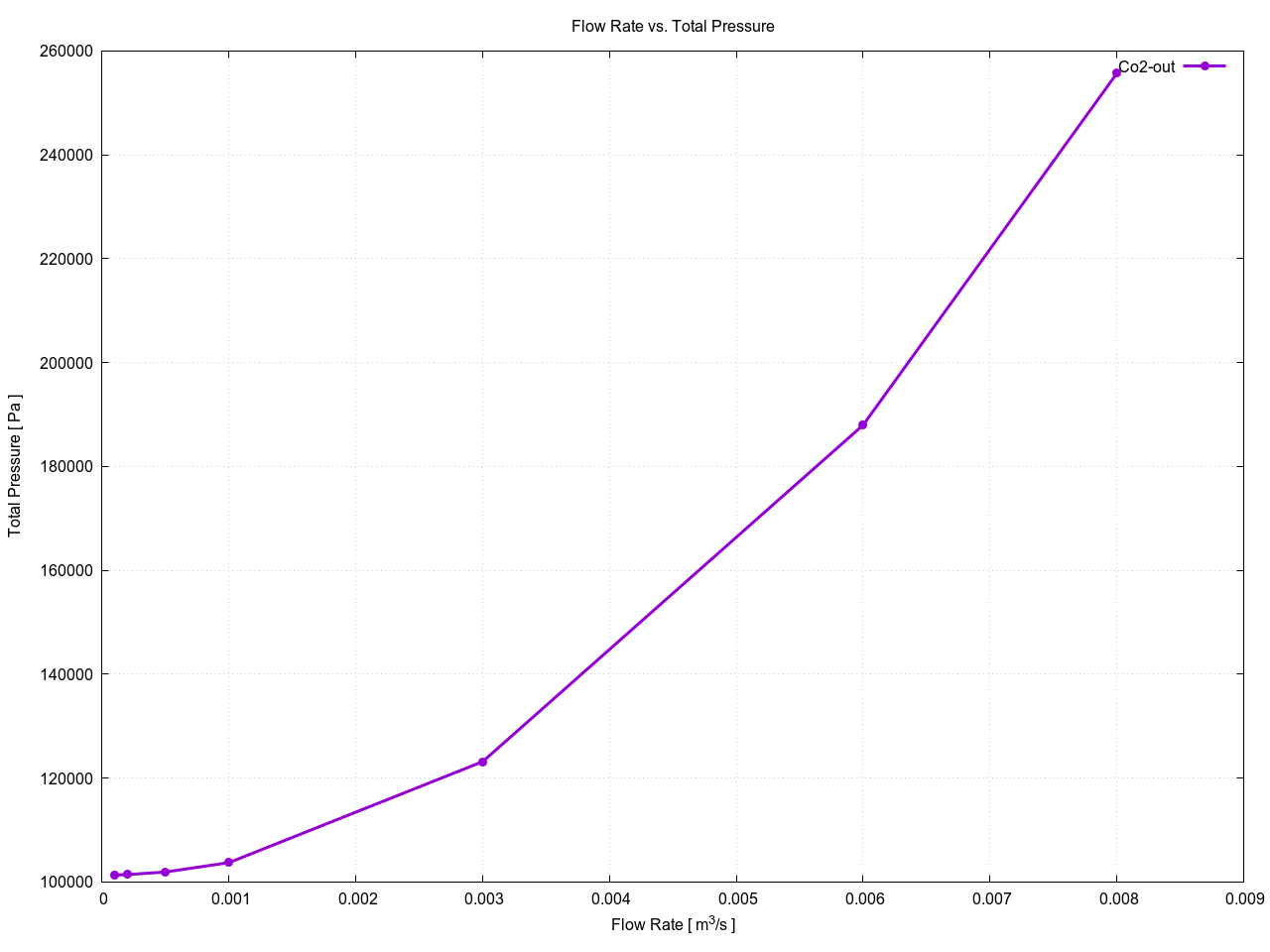

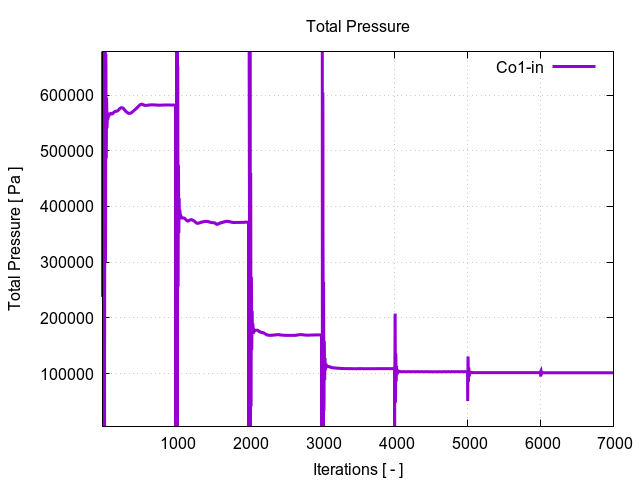

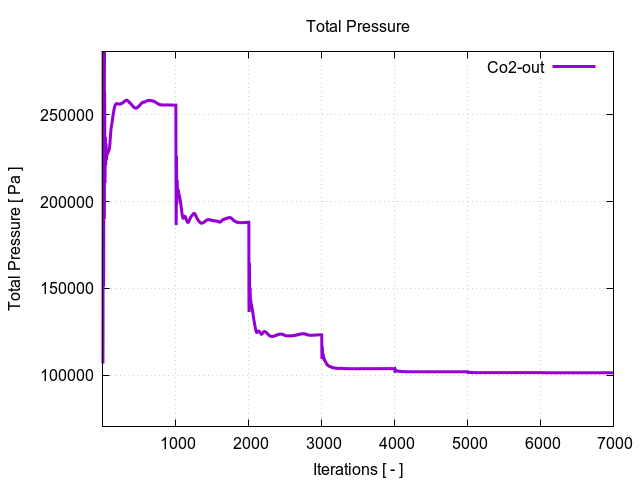

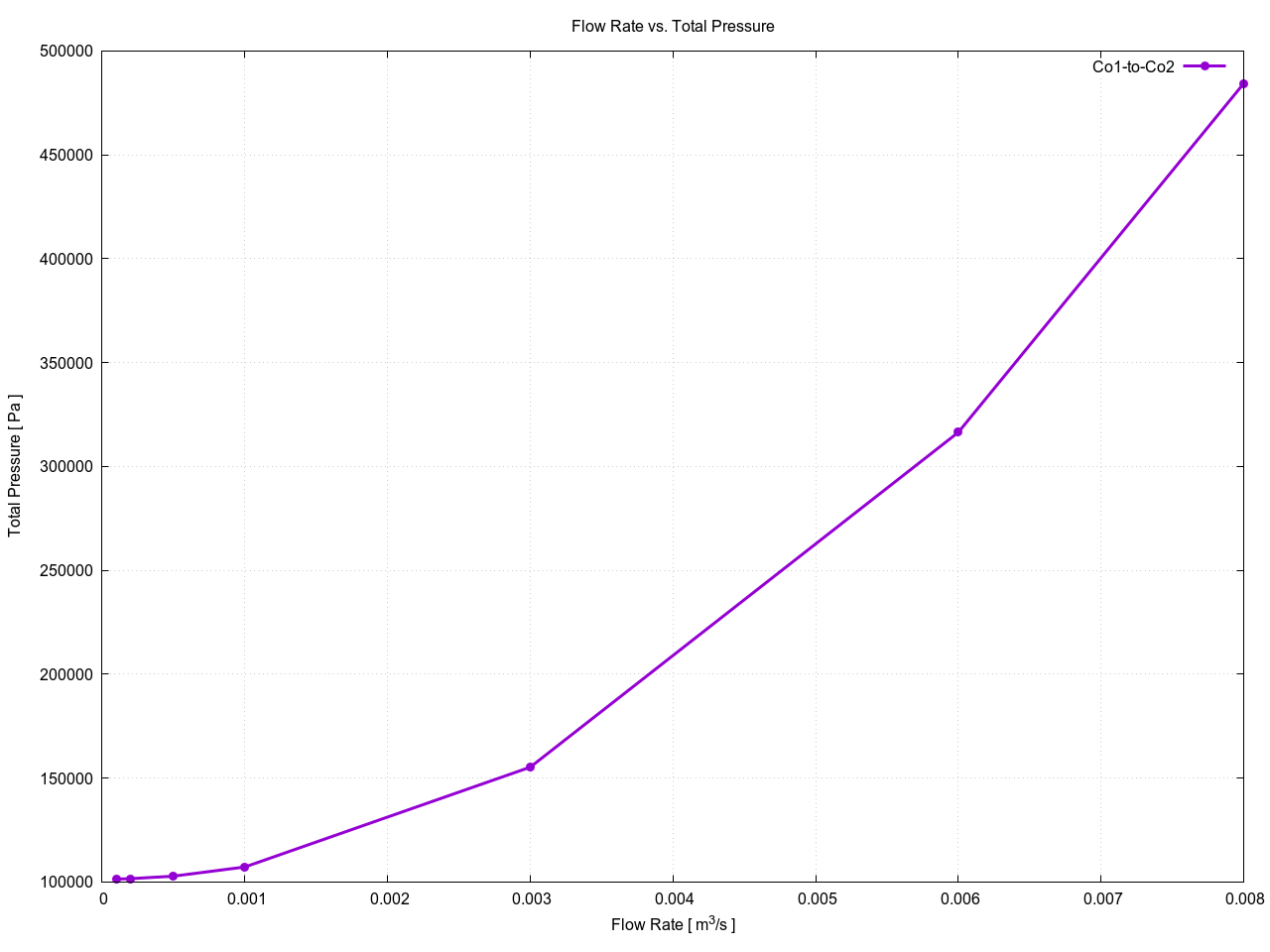

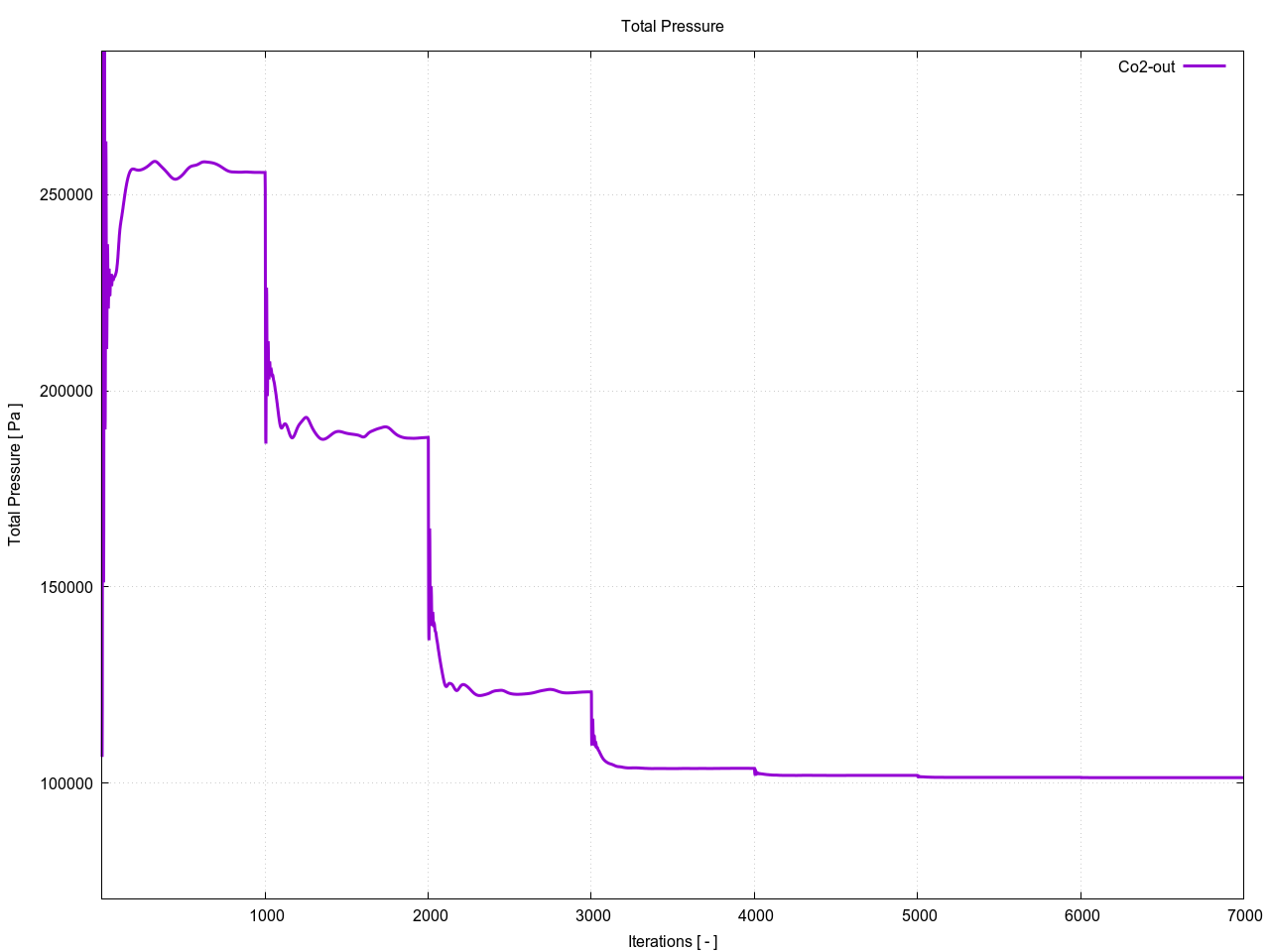

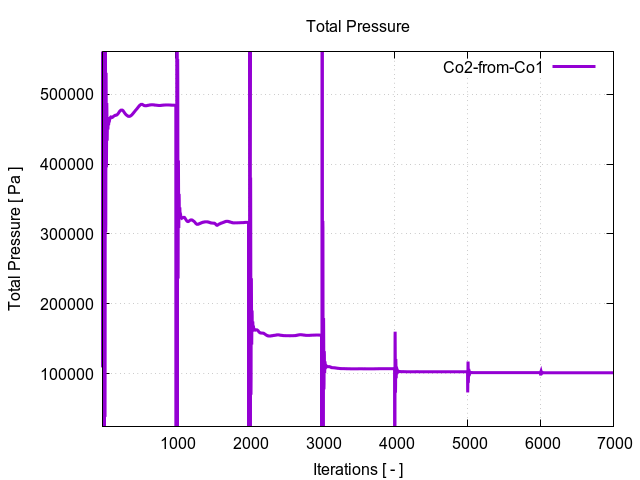

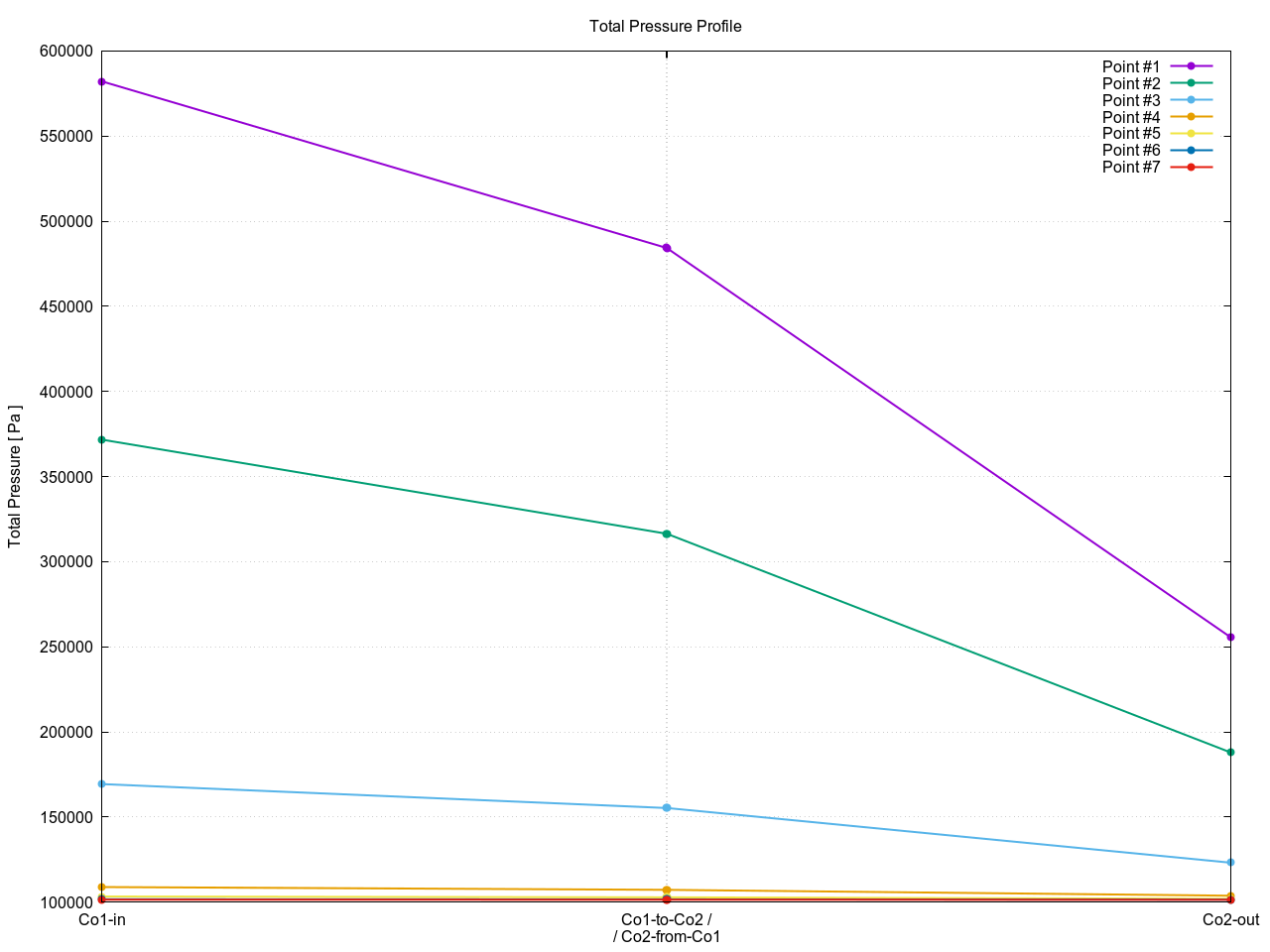

totalPressureProfile 1 4

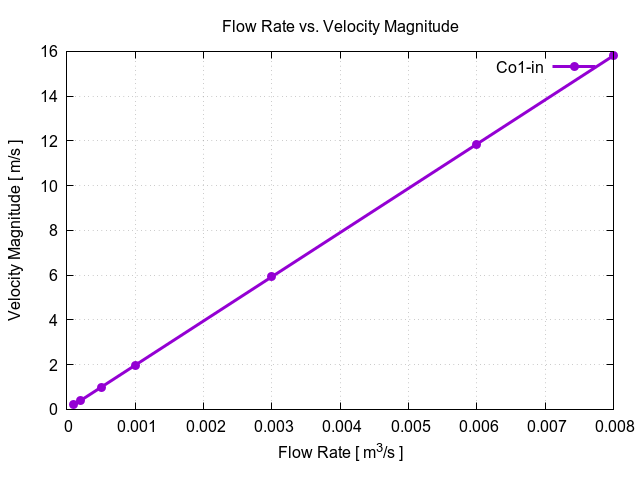

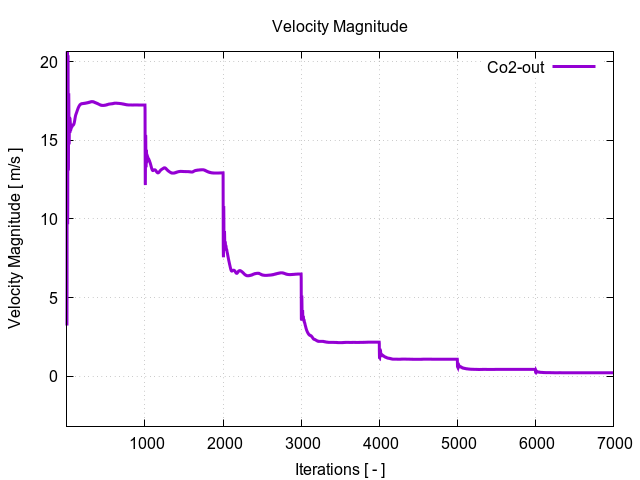

Velocity Magnitude per Interfaces

Point Nr.
Interface Name
Flow Rate [ m3/s ]
Velocity Magnitude [ m/s ]
1
Co1-in
0.00800000
15.8097
1
Co1-to-Co2
0.00800000
20.3746
1
Co2-from-Co1
0.00800010
20.3728
1
Co2-out
0.00800010
17.2467
2
Co1-in
0.00600000
11.8573
2
Co1-to-Co2
0.00600000
15.2797
2
Co2-from-Co1
0.00600007
15.2783
2
Co2-out
0.00600007
12.9226
3
Co1-in
0.00300000
5.92864
3
Co1-to-Co2
0.00300000
7.64025
3
Co2-from-Co1
0.00300003
7.63946
3
Co2-out
0.00300003
6.48708
4
Co1-in
0.00100000
1.97621
4
Co1-to-Co2
0.00100000
2.55316
4
Co2-from-Co1
0.00100000
2.55278
4
Co2-out
0.00100000
2.15984
5
Co1-in
5.00000 × 10-4
0.988106
5
Co1-to-Co2
5.00000 × 10-4
1.28242
5
Co2-from-Co1
4.99994 × 10-4
1.28215
5
Co2-out
4.99994 × 10-4
1.07261
6
Co1-in
2.00000 × 10-4
0.395242
6
Co1-to-Co2
2.00000 × 10-4
0.516692
6
Co2-from-Co1
1.99985 × 10-4
0.516573
6
Co2-out
1.99985 × 10-4
0.427185
7
Co1-in
1.00000 × 10-4
0.197621
7
Co1-to-Co2
1.00000 × 10-4
0.261252
7
Co2-from-Co1
9.99858 × 10-5
0.261213
7
Co2-out
9.99858 × 10-5
0.213965

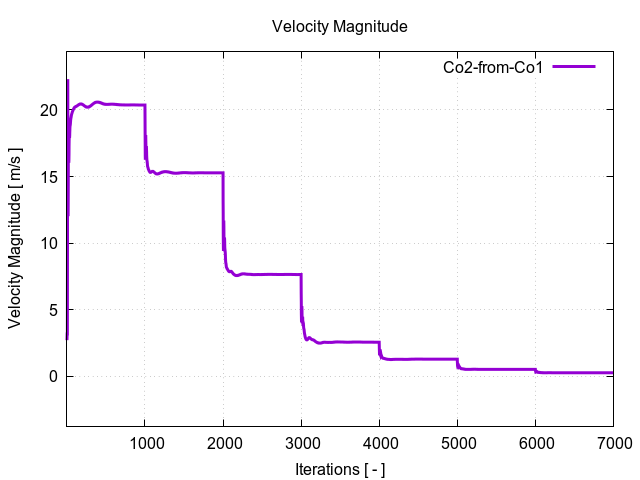

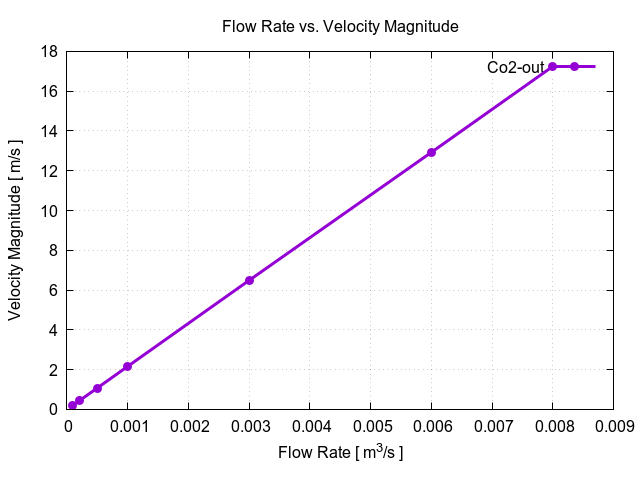

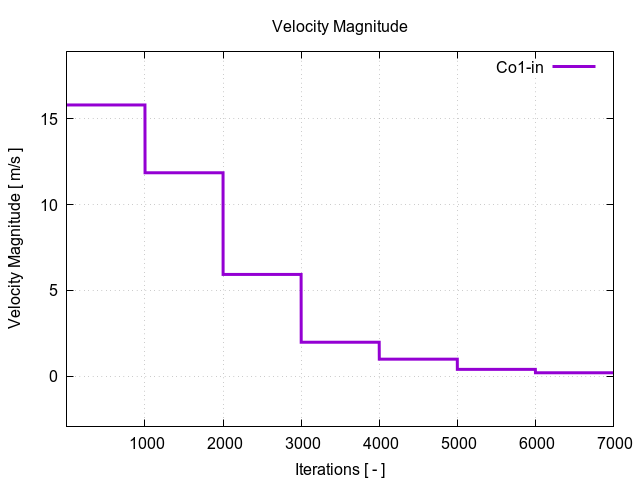

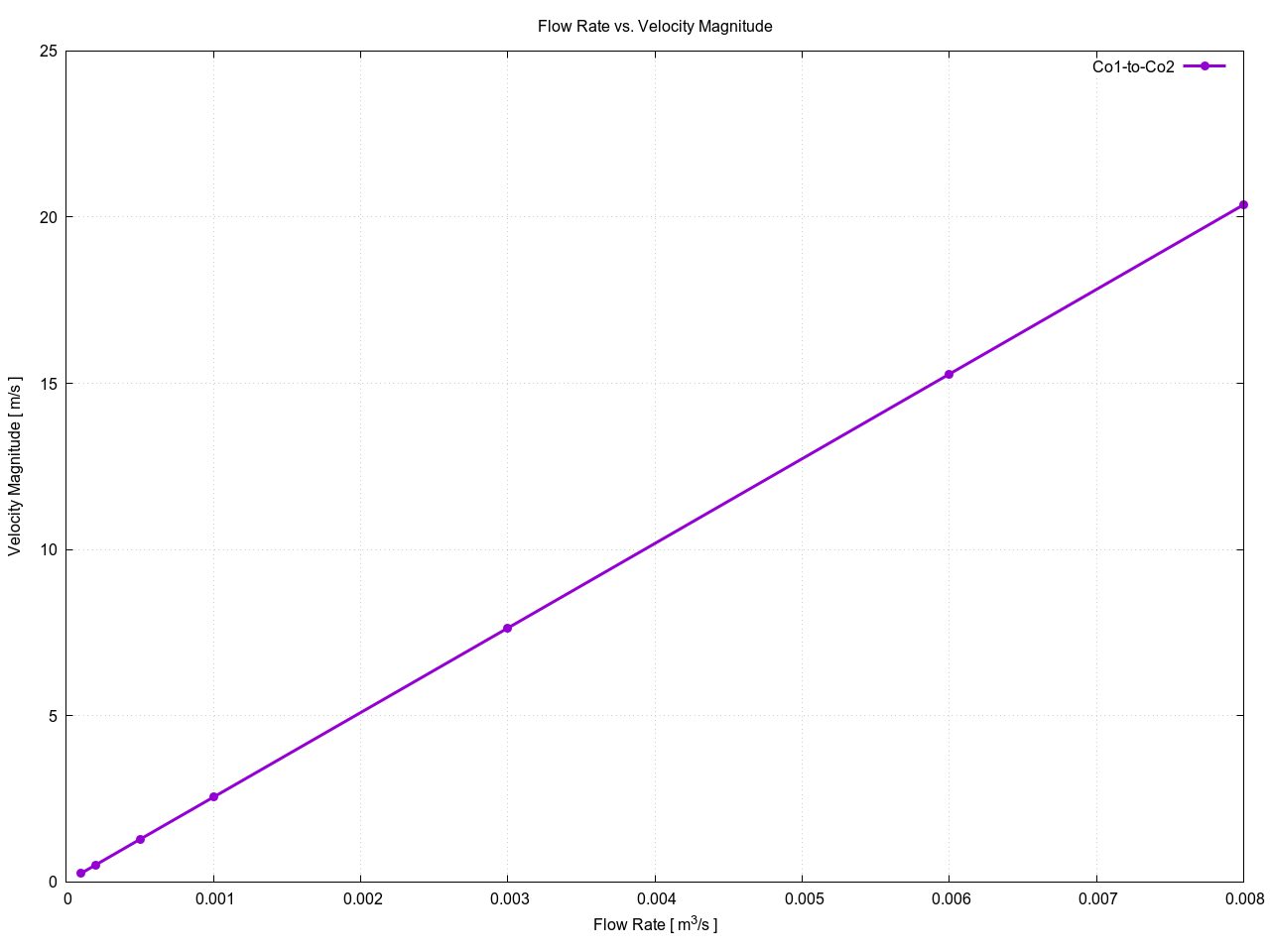

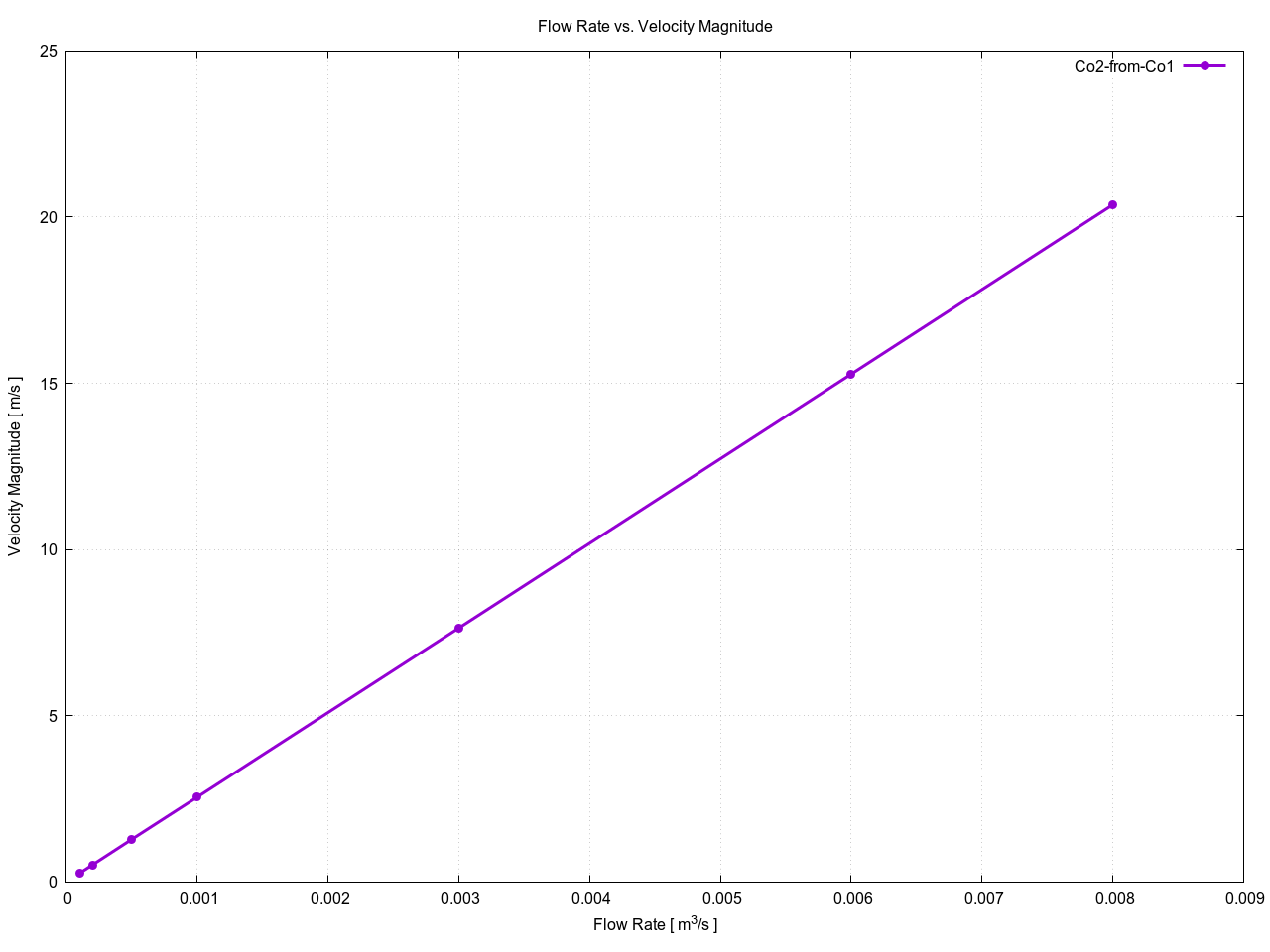

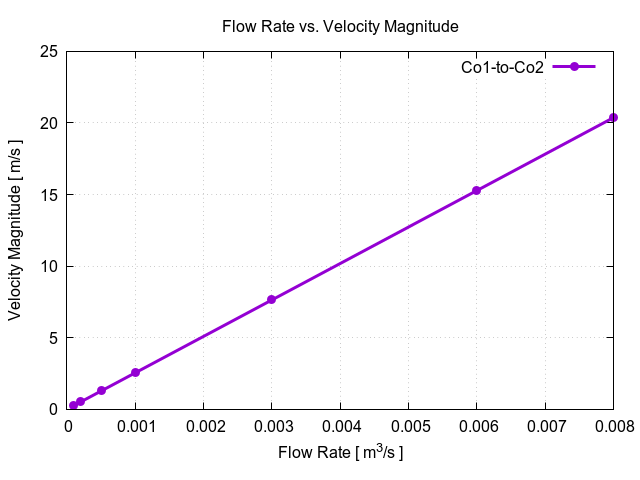

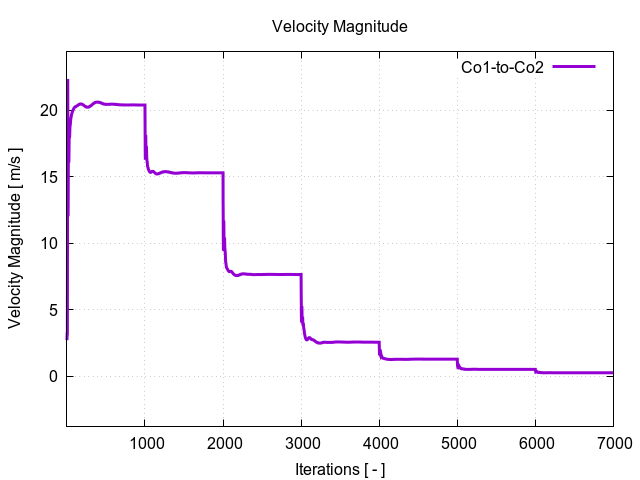

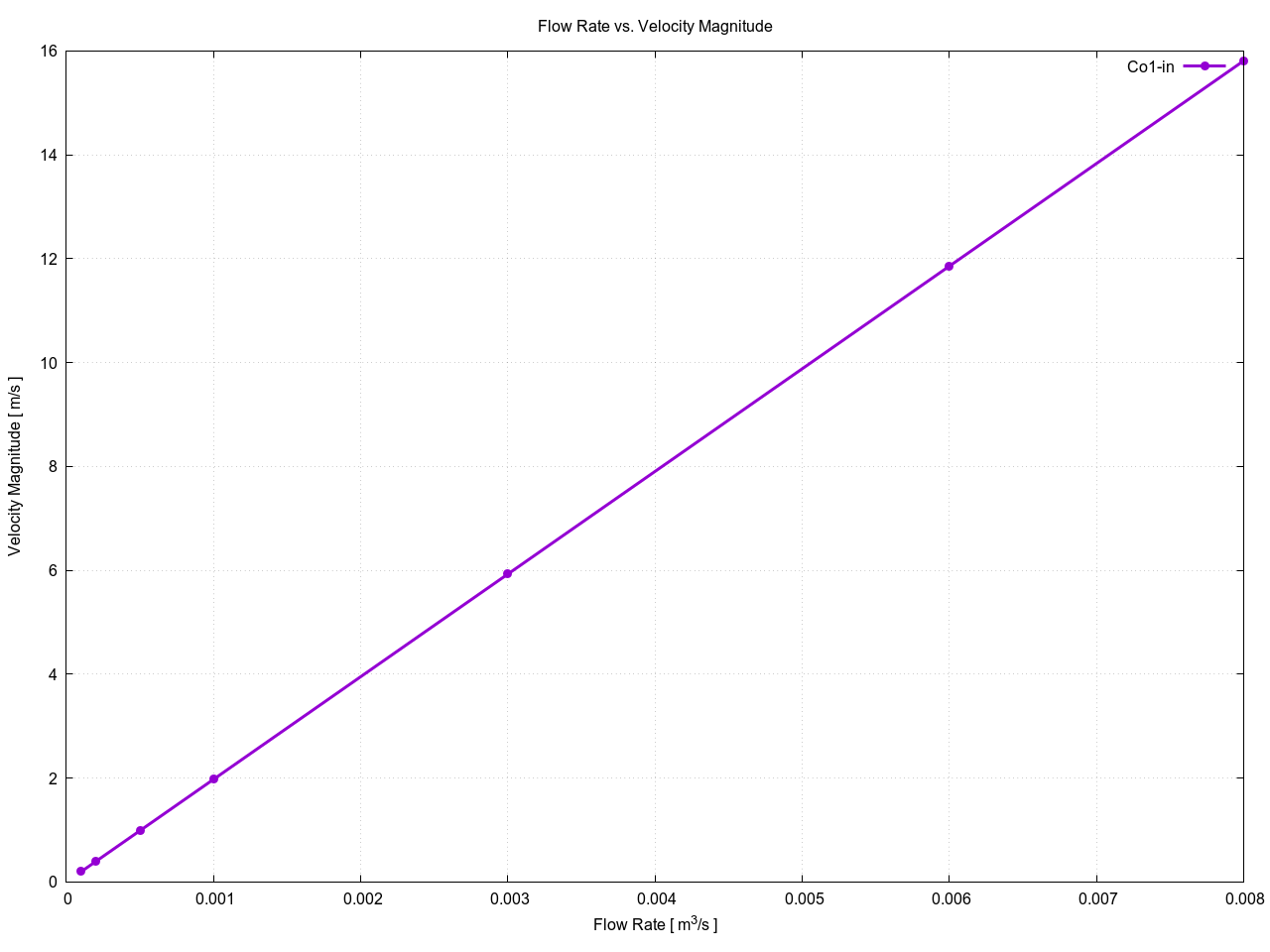

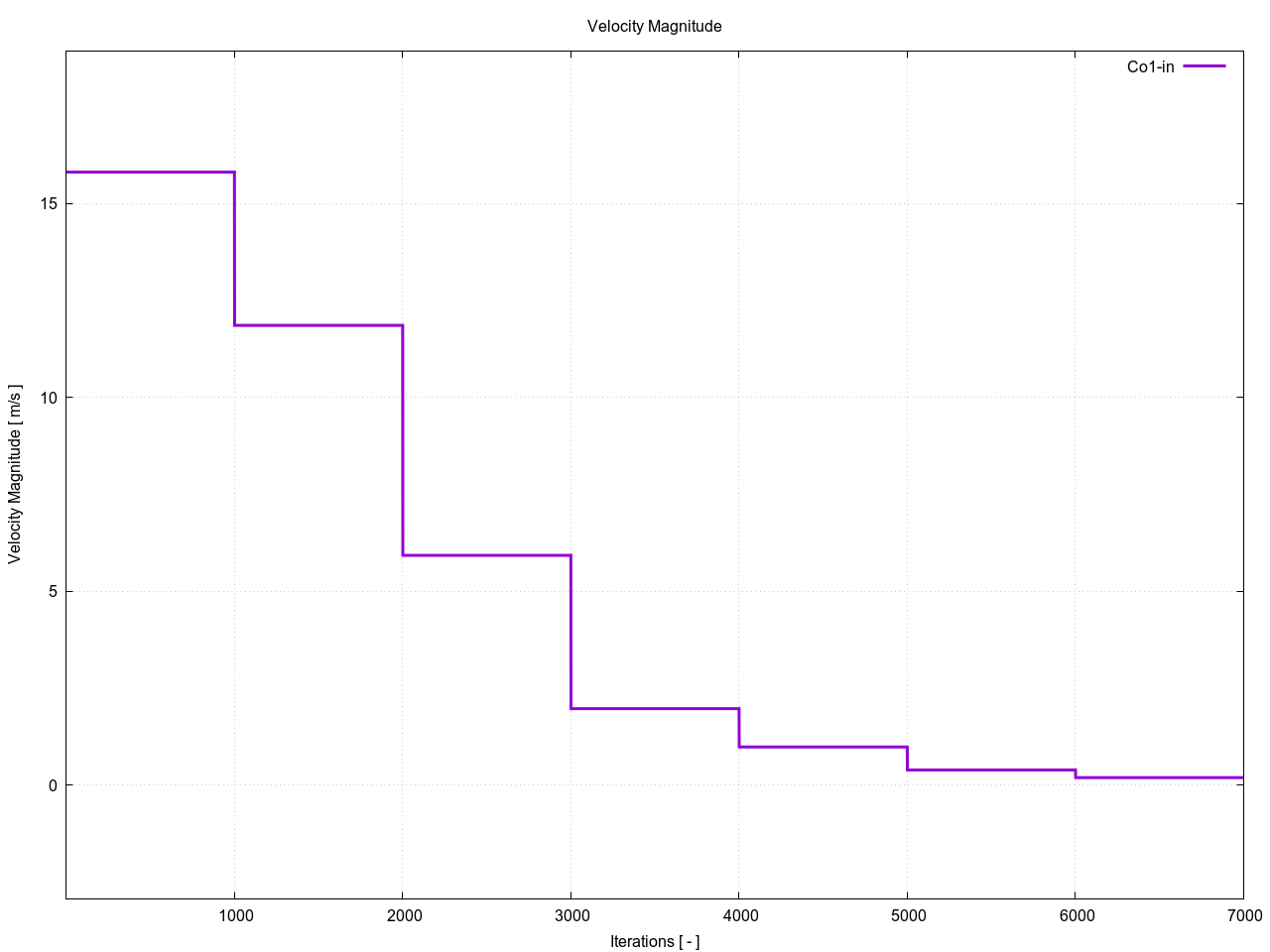

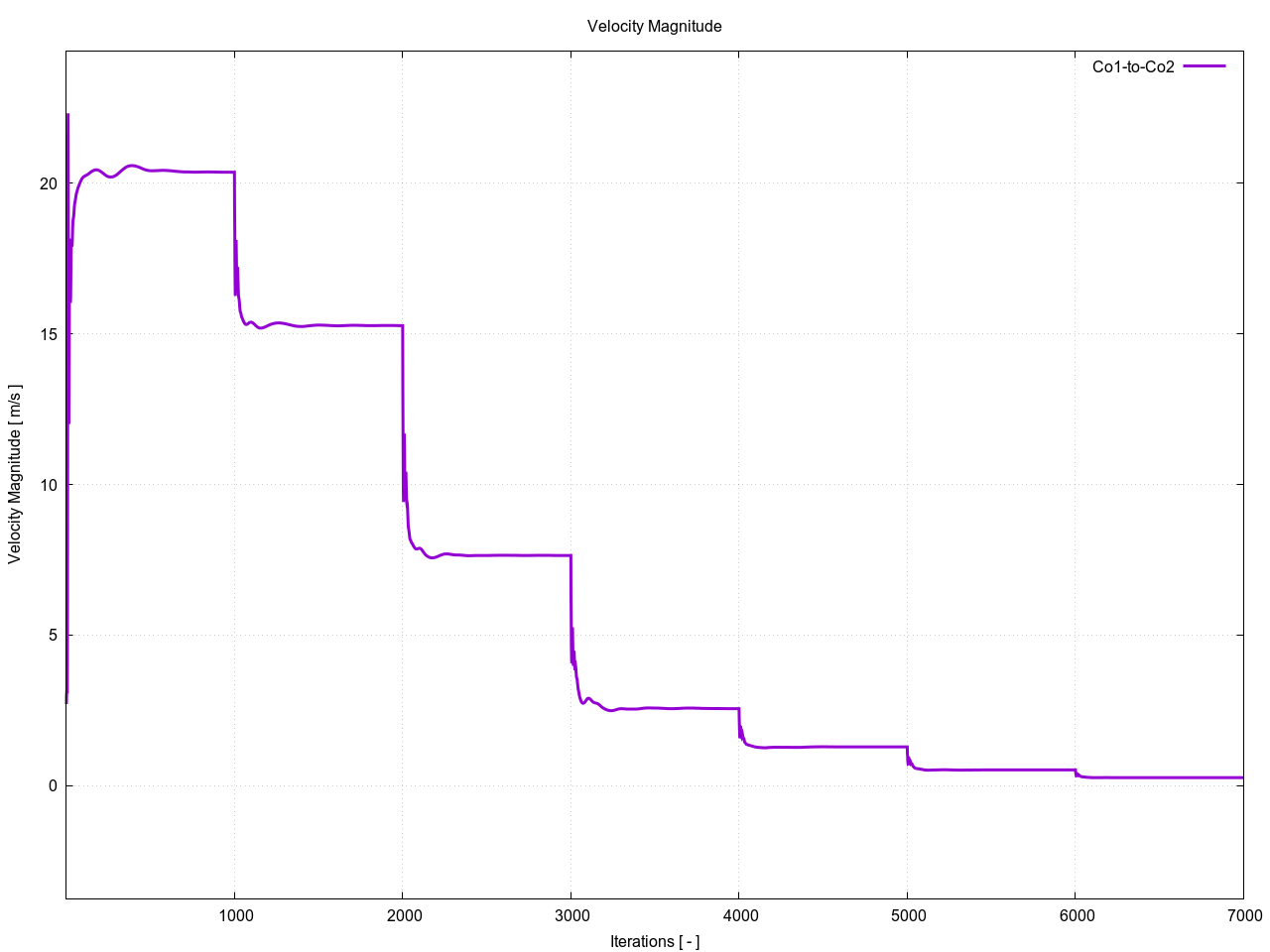

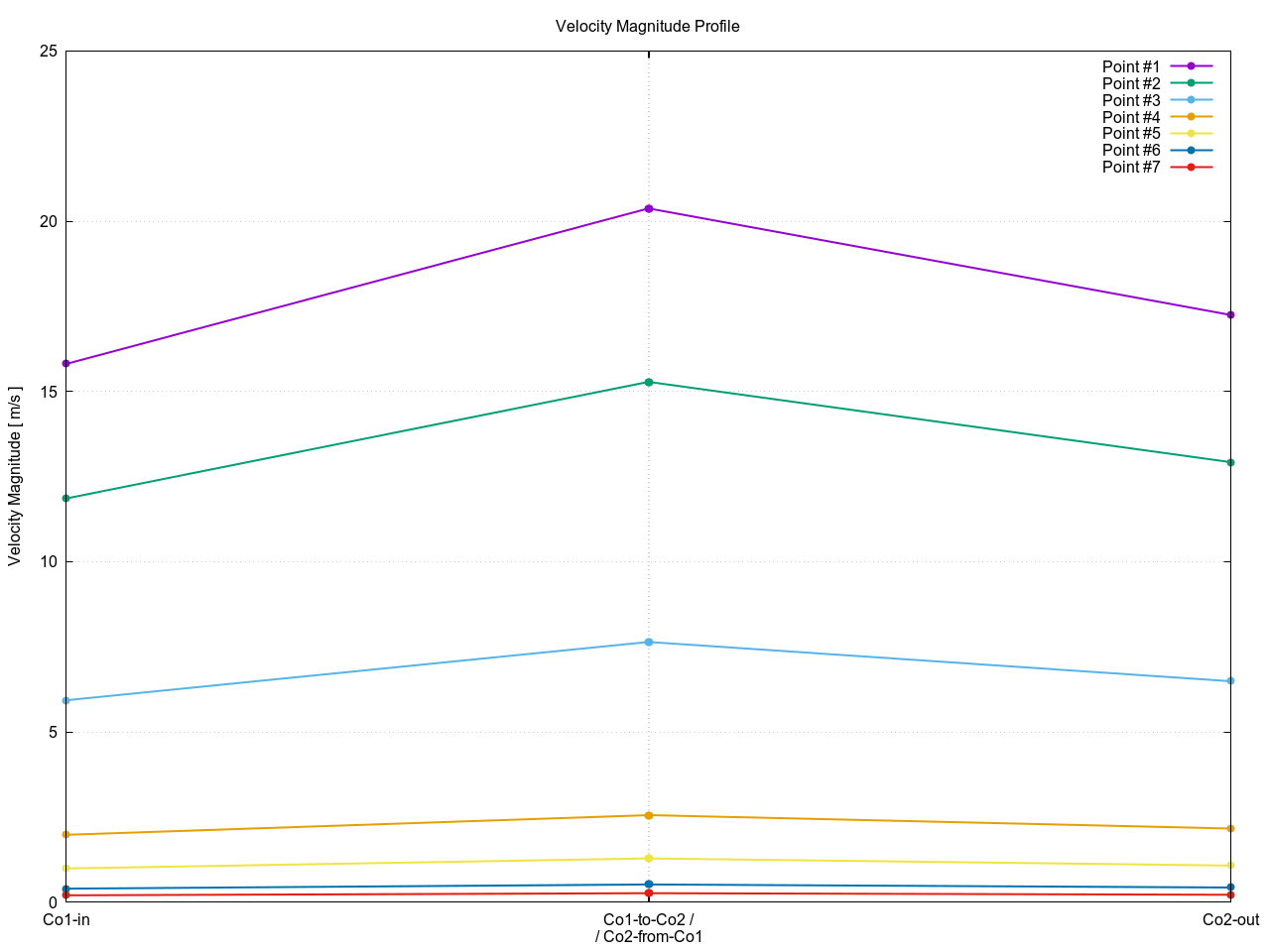

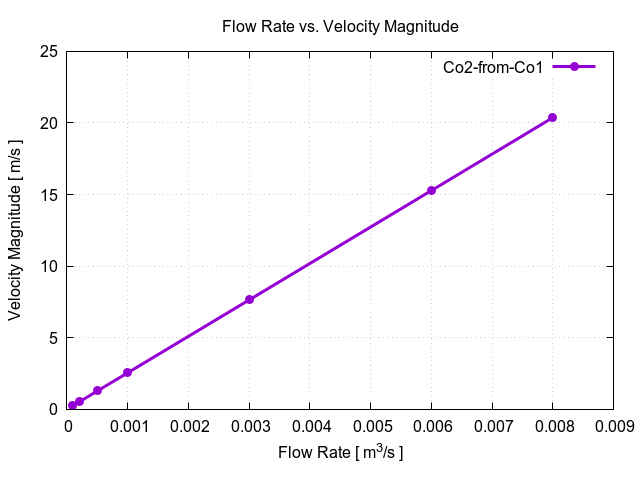

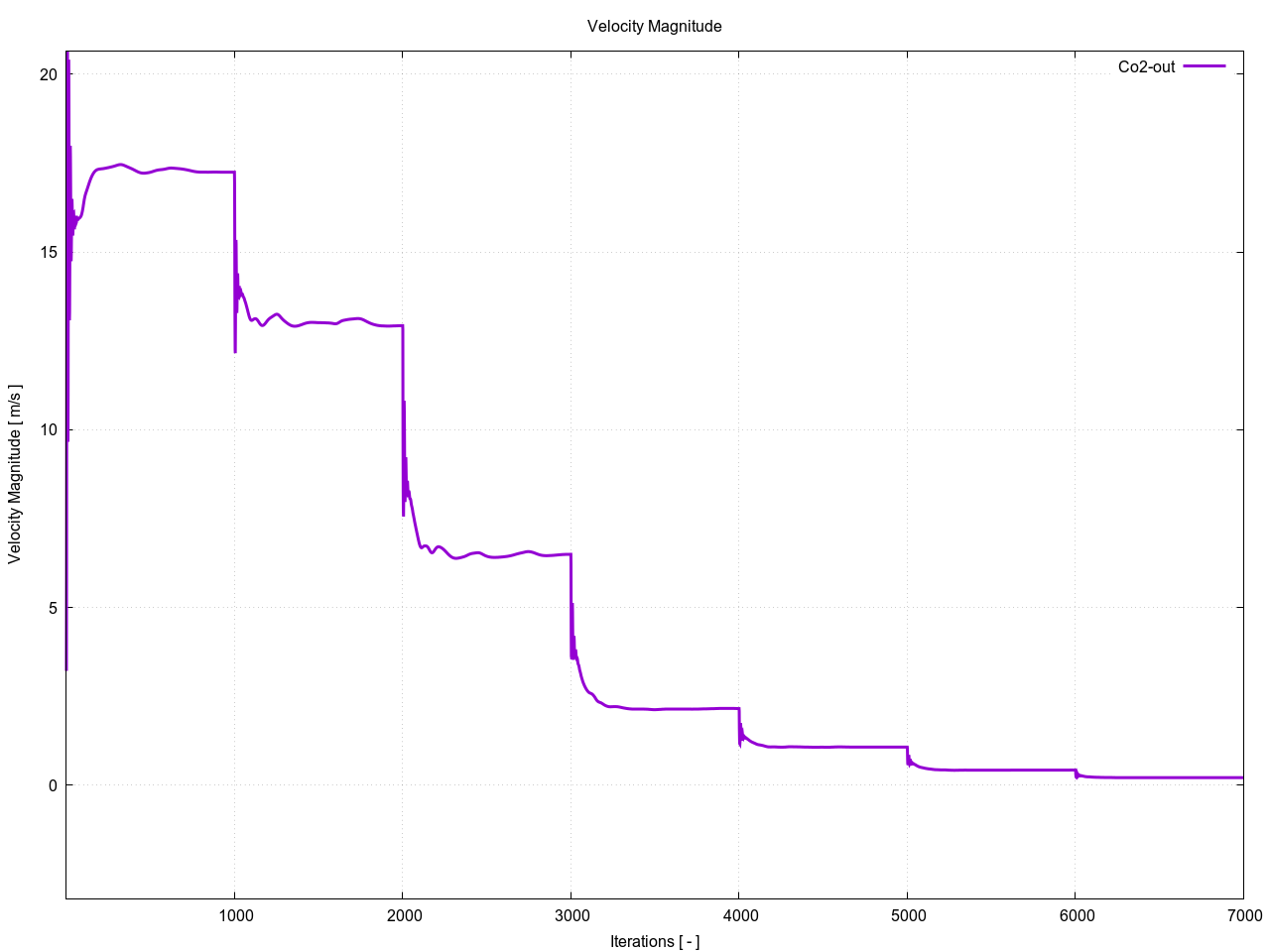

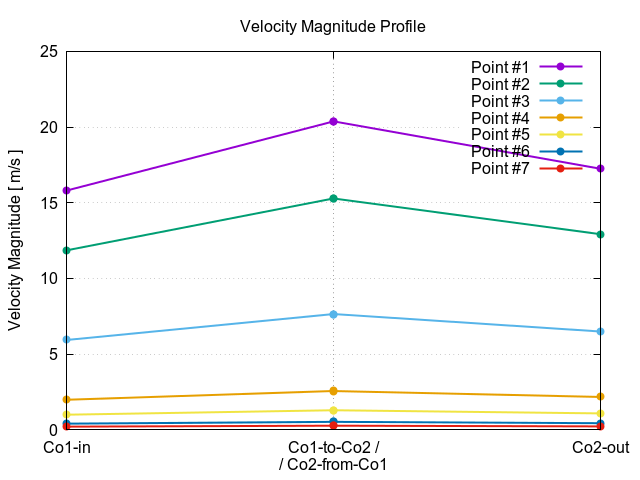

velocityMagnitudeProfile 1 3

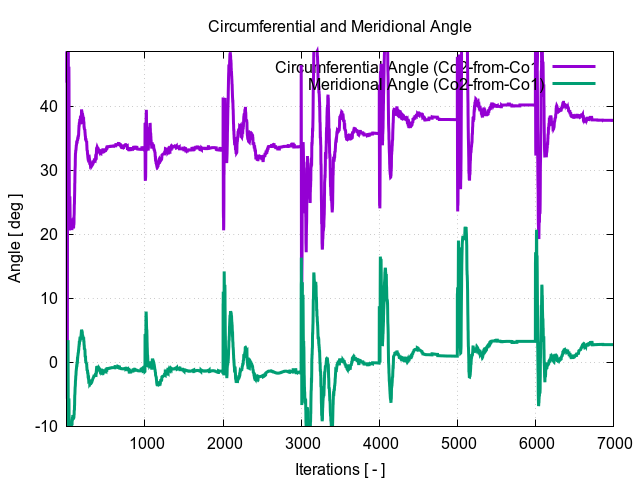

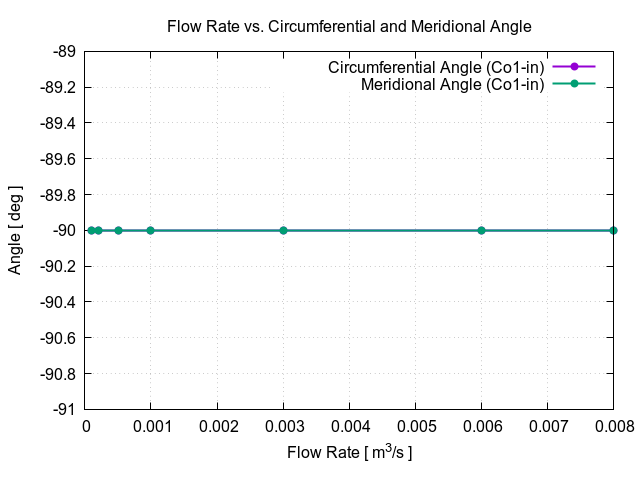

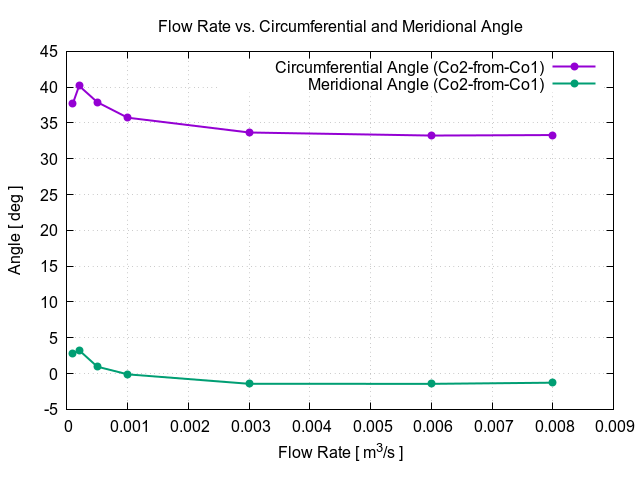

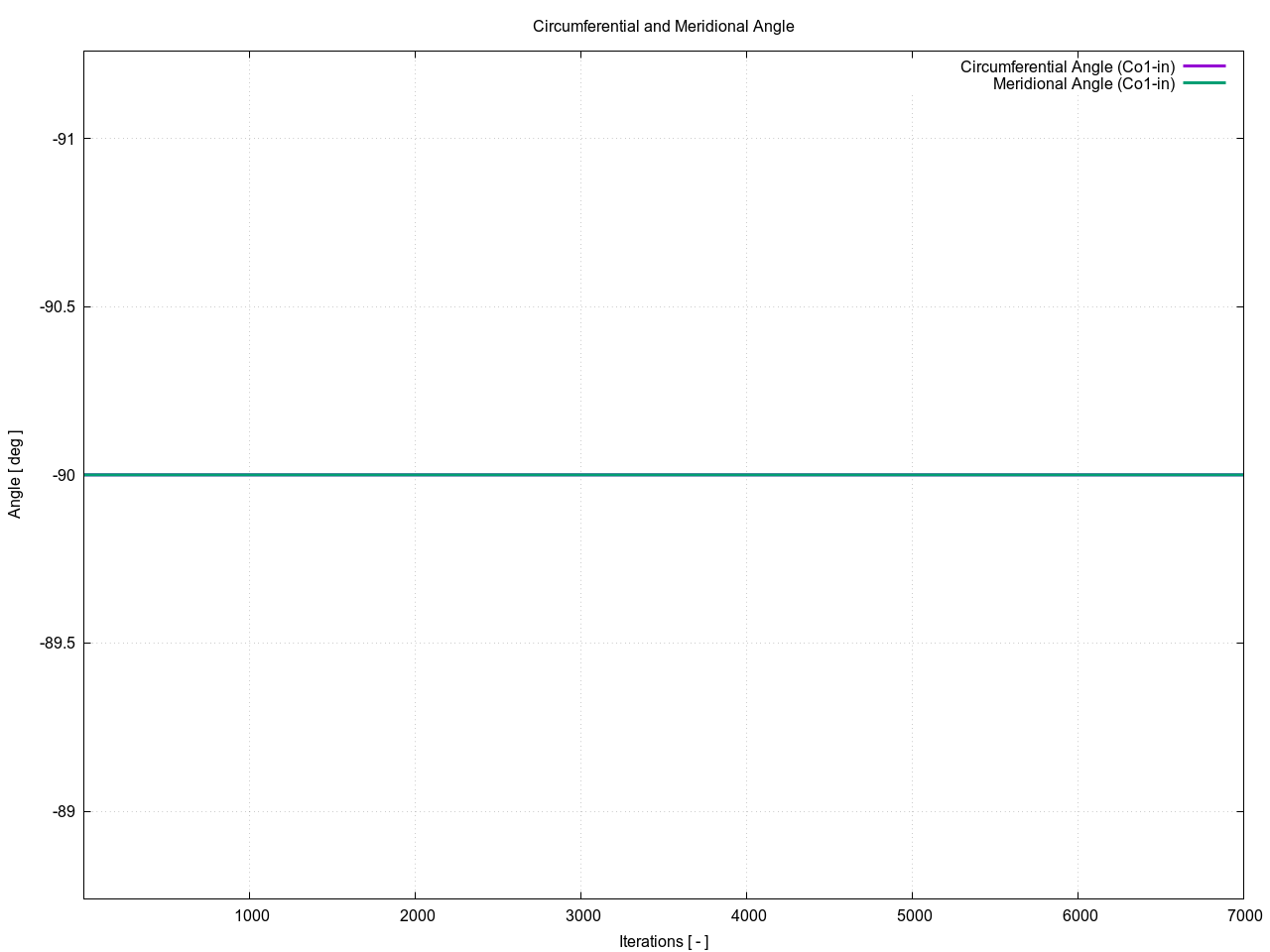

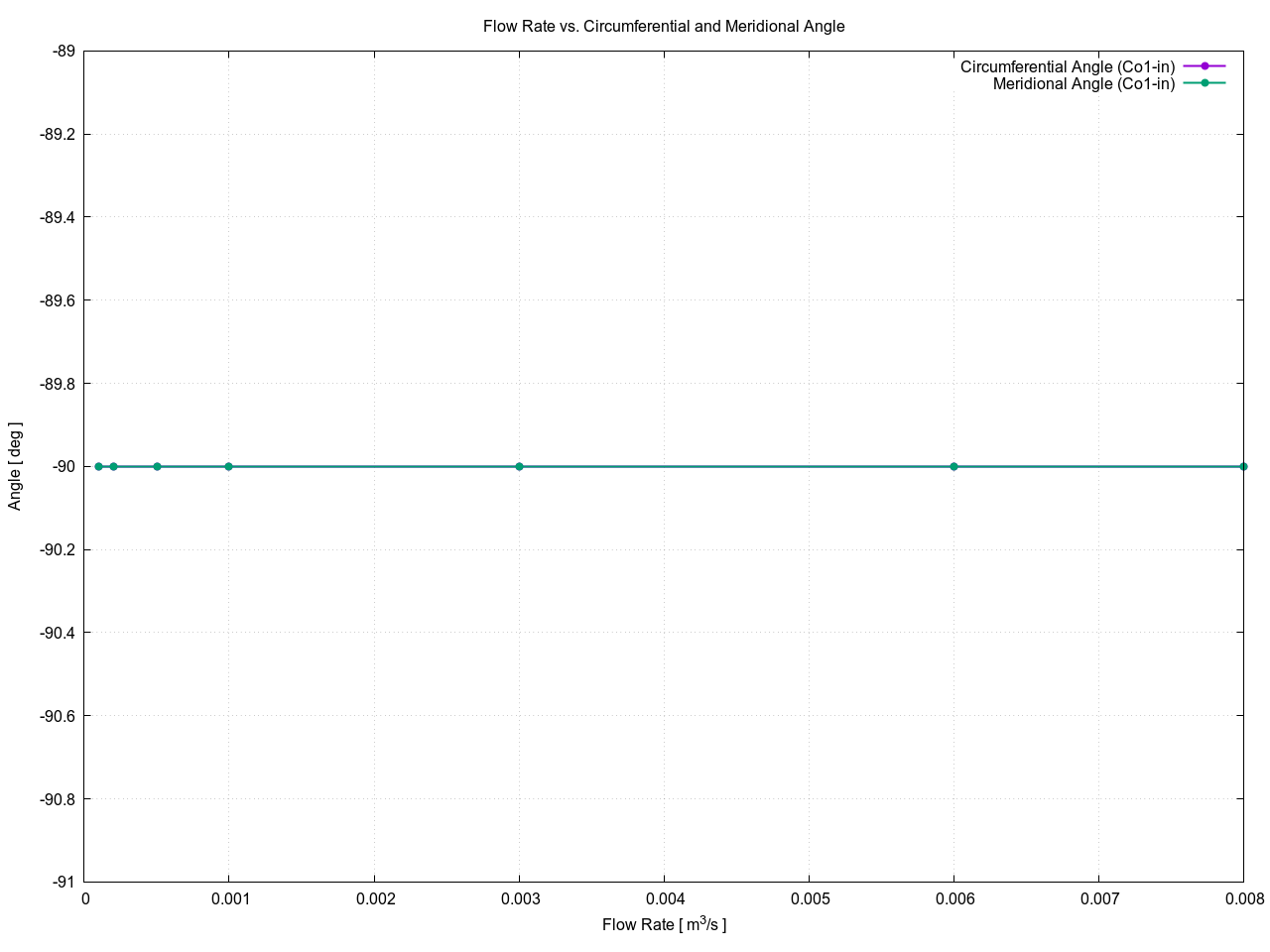

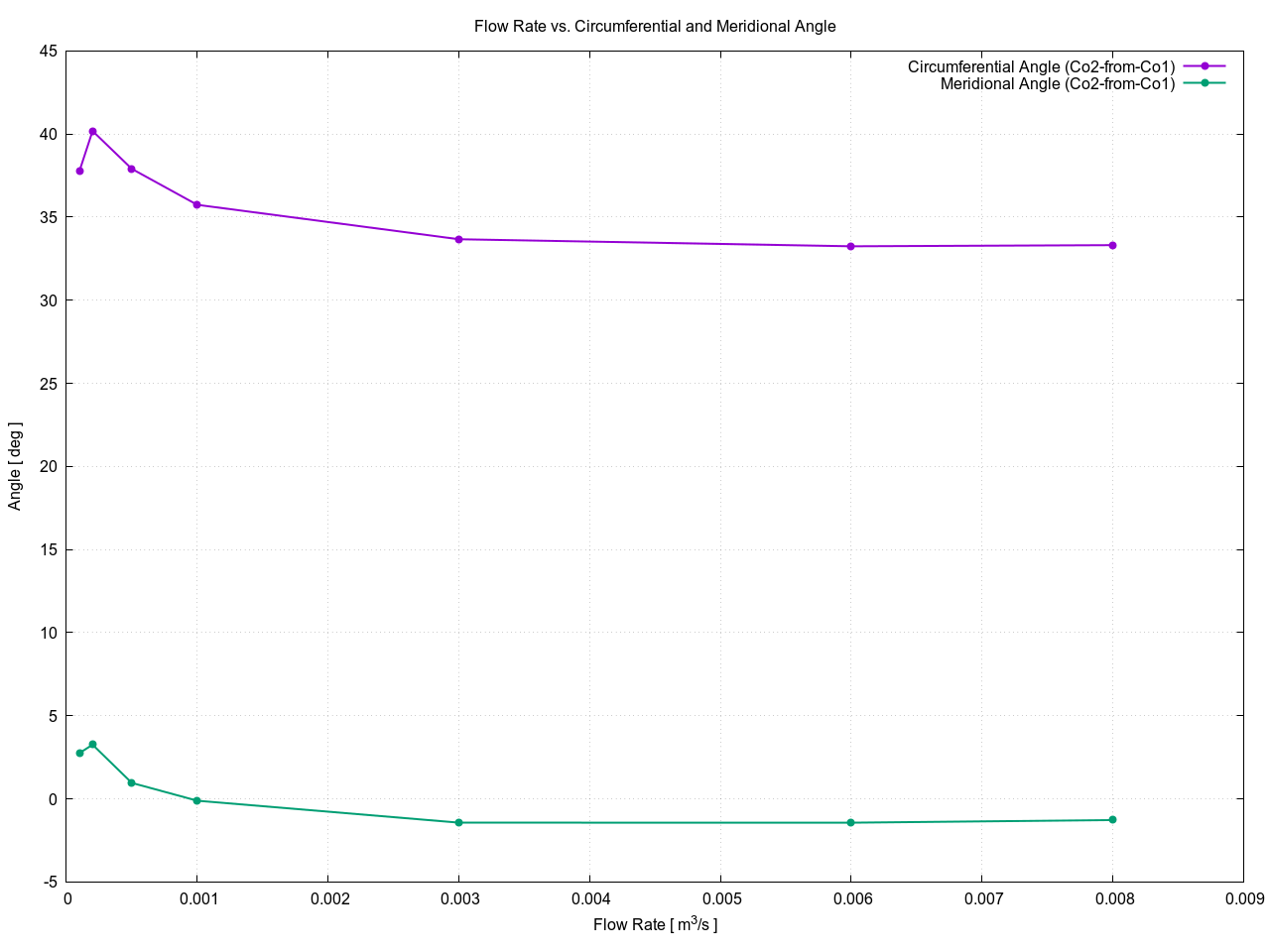

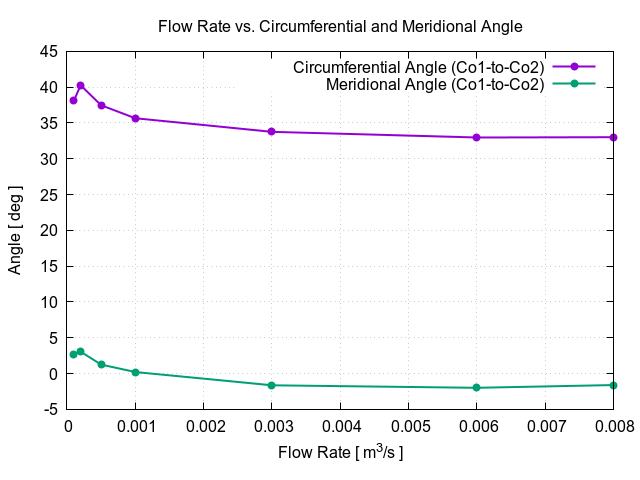

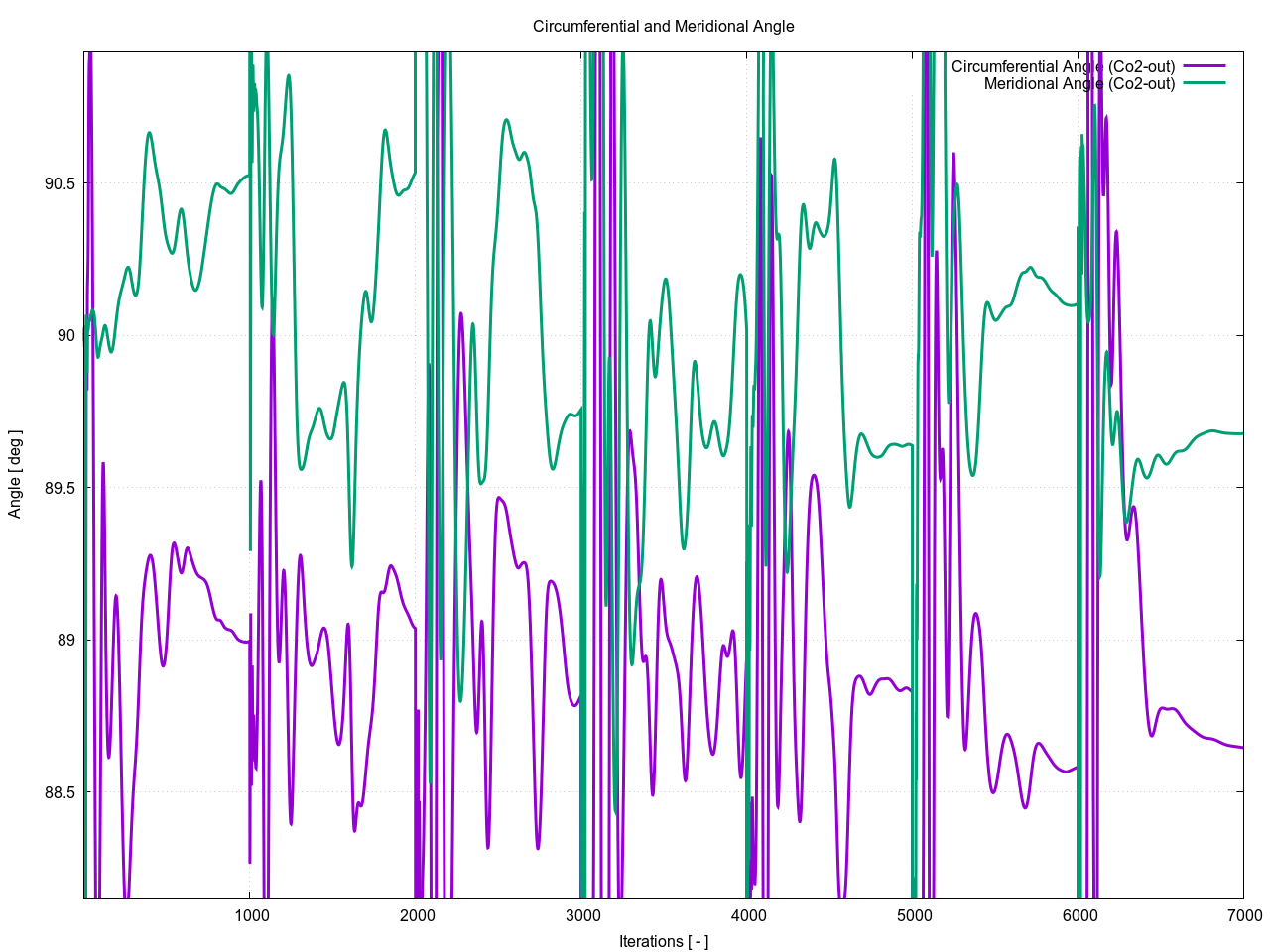

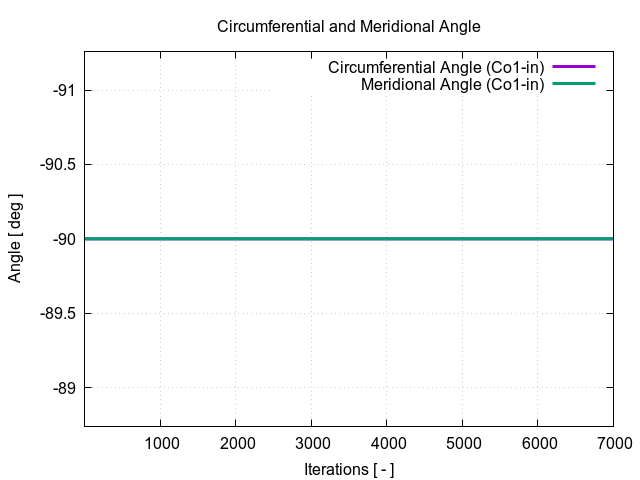

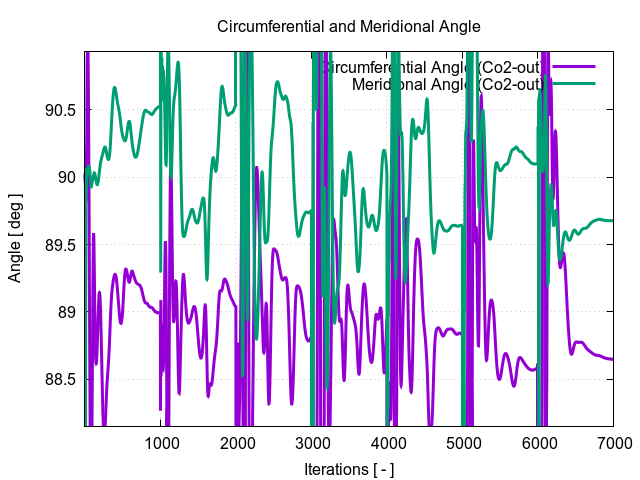

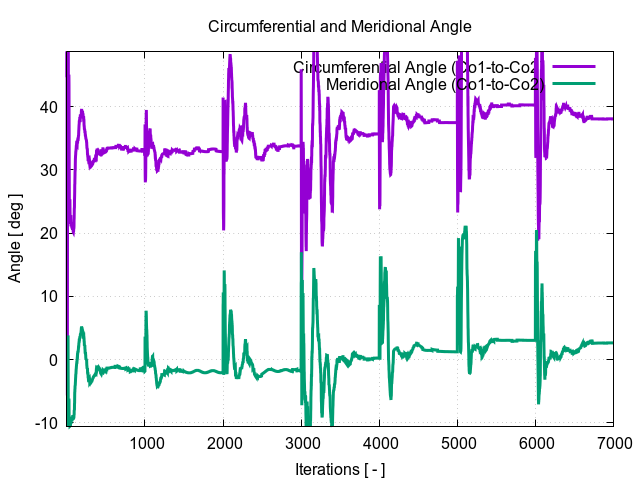

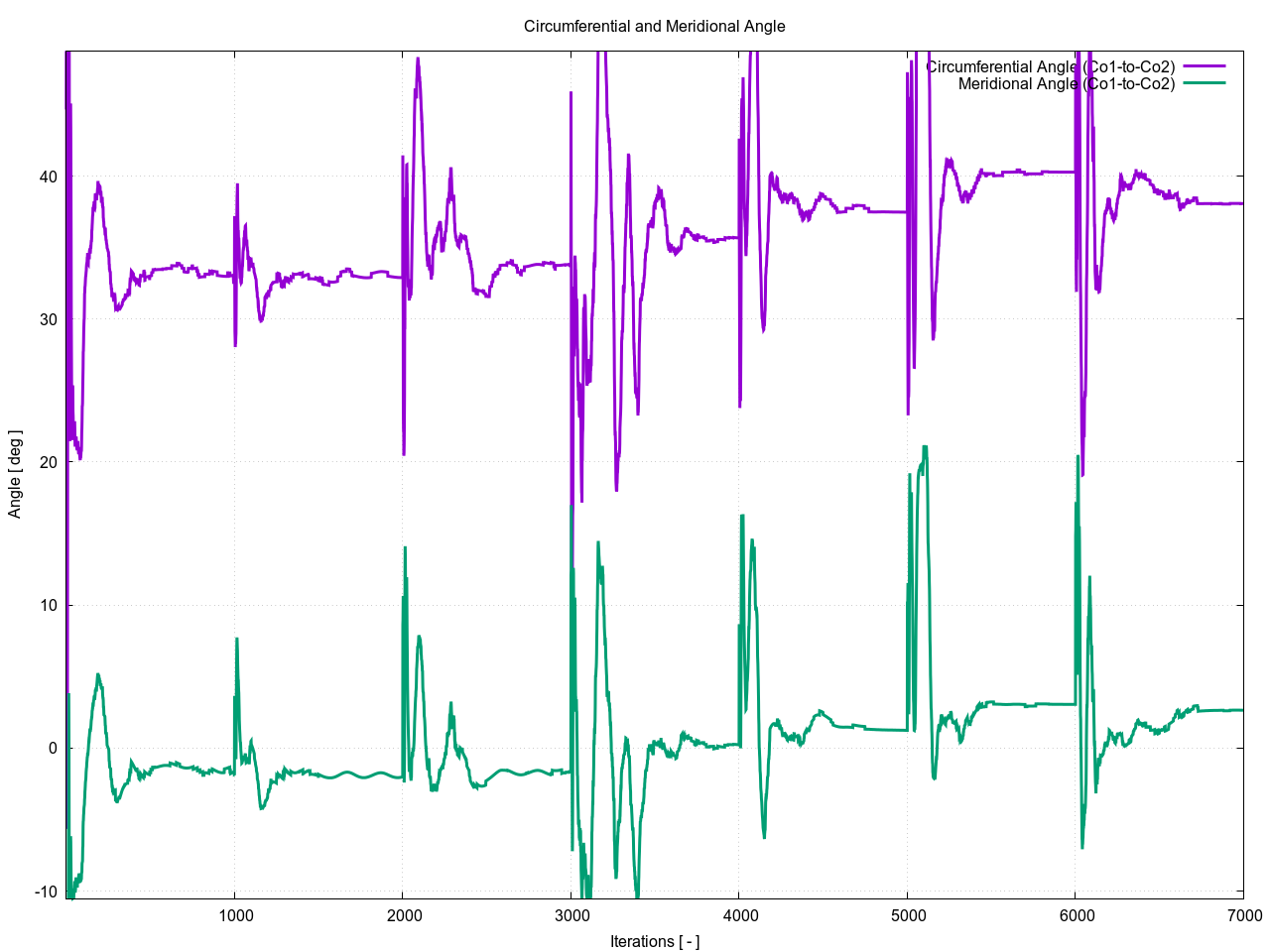

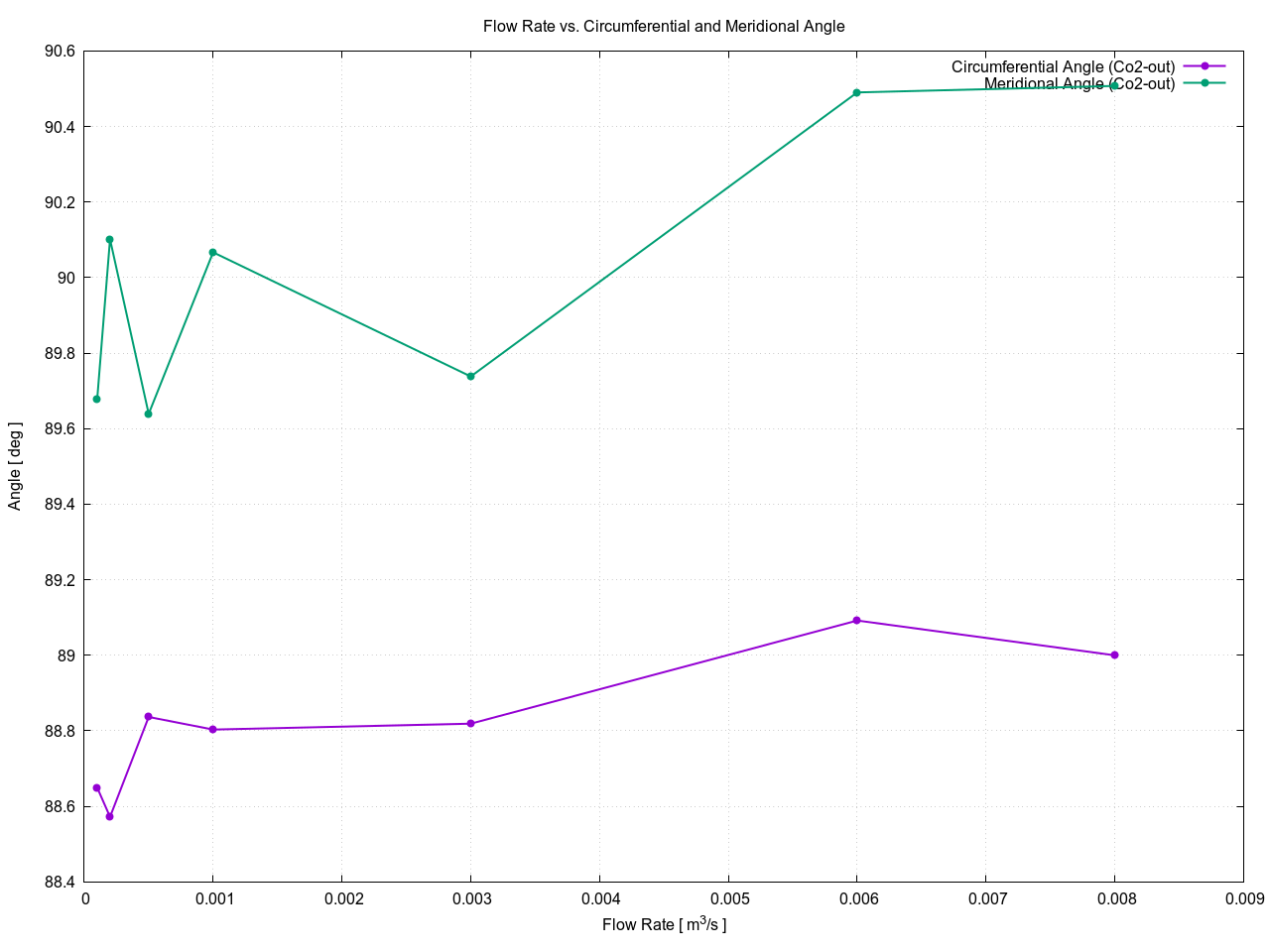

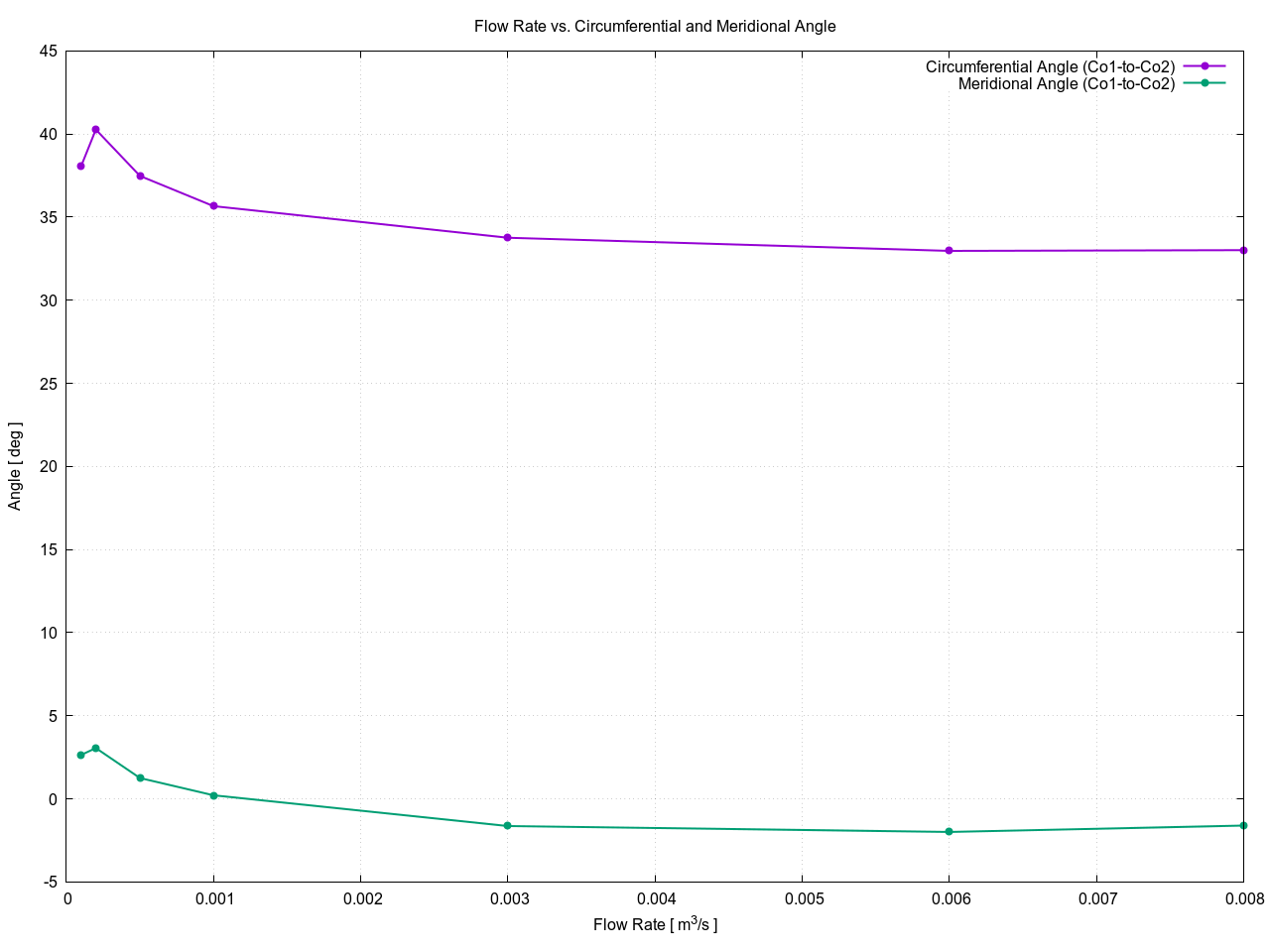

Circumferential and Meridional Angle

Point Nr.
Interface Name
Flow Rate [ m3/s ]
Circumferential Angle [ deg ]
Meridional Angle [ deg ]
1
Co1-in
0.00800000
-90.0000
-90.0000
1
Co1-to-Co2
0.00800000
33.0157
-1.60716
1
Co2-from-Co1
0.00800010
33.3155
-1.27616
1
Co2-out
0.00800010
88.9999
90.5075
2
Co1-in
0.00600000
-90.0000
-90.0000
2
Co1-to-Co2
0.00600000
32.9718
-1.99170
2
Co2-from-Co1
0.00600007
33.2483
-1.43607
2
Co2-out
0.00600007
89.0921
90.4903
3
Co1-in
0.00300000
-90.0000
-90.0000
3
Co1-to-Co2
0.00300000
33.7617
-1.63853
3
Co2-from-Co1
0.00300003
33.6711
-1.43194
3
Co2-out
0.00300003
88.8191
89.7382
4
Co1-in
0.00100000
-90.0000
-90.0000
4
Co1-to-Co2
0.00100000
35.6620
0.213574
4
Co2-from-Co1
0.00100000
35.7421
-0.112584
4
Co2-out
0.00100000
88.8034
90.0669
5
Co1-in
5.00000 × 10-4
-90.0000
-90.0000
5
Co1-to-Co2
5.00000 × 10-4
37.4779
1.25080
5
Co2-from-Co1
4.99994 × 10-4
37.9057
0.959179
5
Co2-out
4.99994 × 10-4
88.8368
89.6393
6
Co1-in
2.00000 × 10-4
-90.0000
-90.0000
6
Co1-to-Co2
2.00000 × 10-4
40.2726
3.05681
6
Co2-from-Co1
1.99985 × 10-4
40.1857
3.25717
6
Co2-out
1.99985 × 10-4
88.5723
90.1016
7
Co1-in
1.00000 × 10-4
-90.0000
-90.0000
7
Co1-to-Co2
1.00000 × 10-4
38.0729
2.64454
7
Co2-from-Co1
9.99858 × 10-5
37.7869
2.75831
7
Co2-out
9.99858 × 10-5
88.6498
89.6774
