Meshing

  • First, set the domain boundaries and background mesh
  • The background mesh should be placed with respect to the motor bike geometry, see Figure [*]
  • Background mesh dimensions should be large enough to neglect possible boundary effects

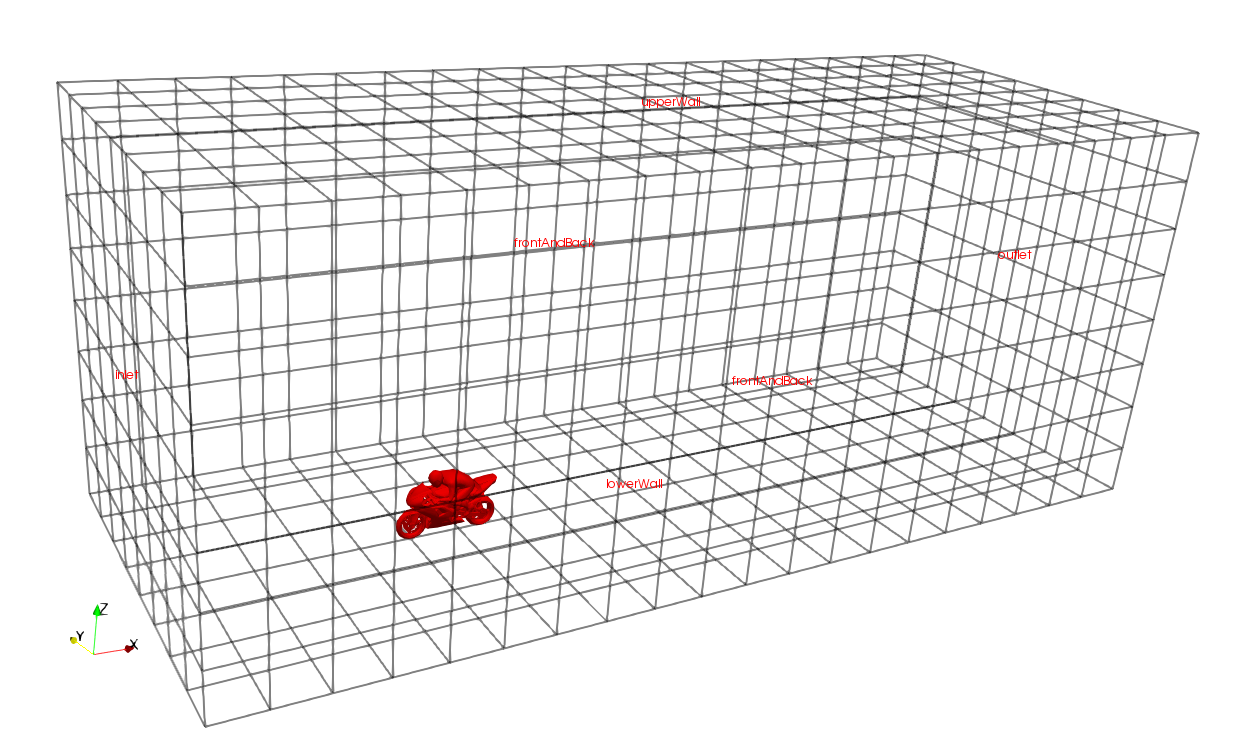

motorBike bcgMesh

Figure: OpenFOAM tutorial motorbike, background mesh position

  • The vertices are preset in file blockMeshDict:



    convertToMeters 1;

vertices
(
    (-5 -4 0)
    (15 -4 0)
    (15  4 0)
    (-5  4 0)
    (-5 -4 8)
    (15 -4 8)
    (15  4 8)
    (-5  4 8)
);

blocks
(
    hex (0 1 2 3 4 5 6 7) (20 8 8) simpleGrading (1 1 1)
);



  • Run blockMesh to generate background mesh:
    # cd ../..
    # blockMesh



  • In file system/snappyHexMeshDict is application snappyHexMesh configuration
  • File is commented
