Run snappyHexMesh

  • snappyHexMesh command runs the mesh generation.
  • Running application with (-overwrite) option saves generated mesh into constant/polyMesh:
    # snappyHexMesh -overwrite

  • Check created computational mesh:
    # checkMesh

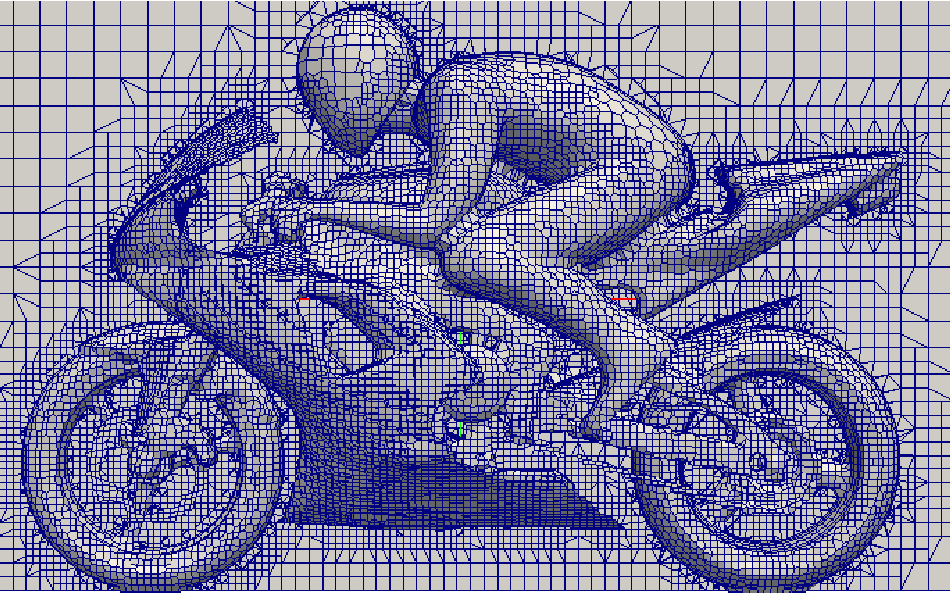

openfoam tutorial motor bike snappy mesh

Figure: OpenFOAM tutorial motor bike. View of the mesh.
