43 Instant convergence monitoring during computation

  • Convergence can be watched instantly using small script for Gnuplot



  • Suitable for immediate convergence watching



  • Create new file e.g. residuals:



    # Gnuplot script file for plotting data from file "log"
set title "Convergence process"
set xlabel "Iterations"
set ylabel "Reziduals"
set logscale y
plot "< cat log.simpleFoam | grep Ux | cut -d' ' -f9 | tr -d ','" title 'u', \
     "< cat log.simpleFoam | grep Uy | cut -d' ' -f9 | tr -d ','" title 'v', \
     "< cat log.simpleFoam | grep Uz | cut -d' ' -f9 | tr -d ','" title 'w'
pause 10 # pause mouse



  • Anytime during computation it can be run by typing command:
    # gnuplot residuals
openfoam tutorial motor bike residuals

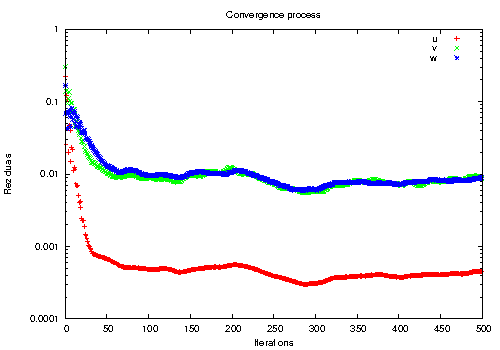

Figure: OpenFOAM tutorial motor bike. Velocity residuals during computation.
