Preprocessing

  • In order to define finer or coarser mesh with different number of nodes on neighbouring patches, we will divide the computational domain into two zones, see picture crossref 2.
  • On the mesh interface (marked with red dots, see picture crossref 2) we will use the cyclicAMI boundary condition which
    • interpolates the quantities to interfaces where the nodes are not fitting
    • allows movement of neighbouring parts of the mesh.

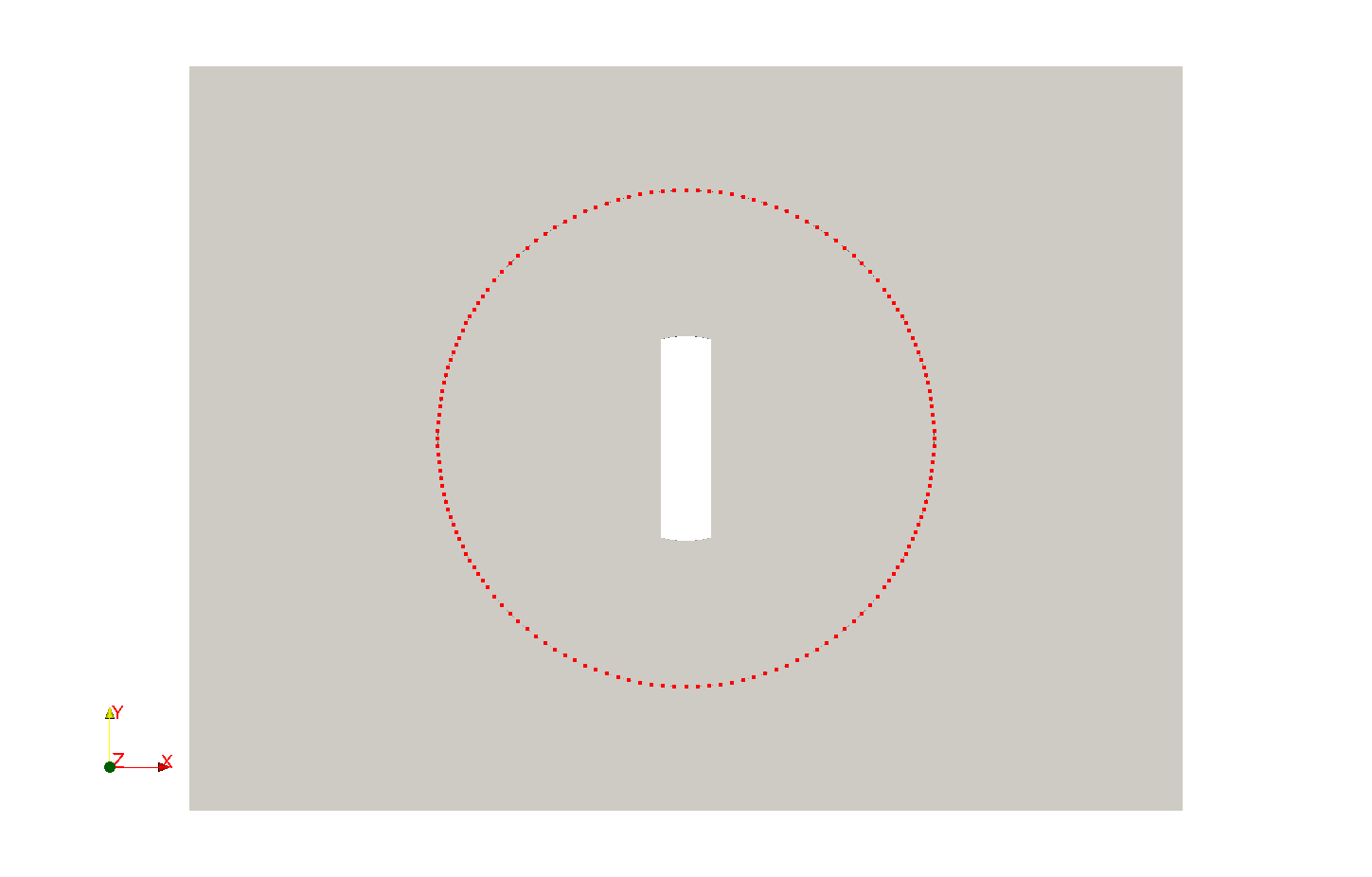

Figure: Zone with the cyclicAMI boundary condition
