Adjoint pitzDaily Tutorial

  • We start with the simple test case pitzDaily
  • It is a simple two-dimensional internal flow over backward facing step
  • Run the pitzDaily tutorial, watch the basics and play around:
    # cp -r $FOAM_TUTORIALS/incompressible/adjointShapeOptimizationFoam/pitzDaily $FOAM_RUN
    # cd $FOAM_RUN /pitzDaily
    # blockMesh
    # adjointShapeOptimizationFoam

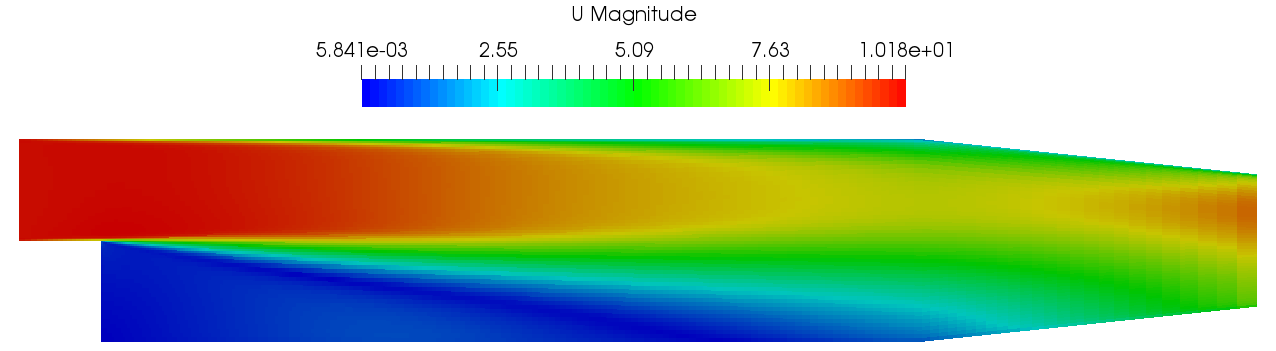

adjoint optimization method pitzDaily velocity

Figure: Adjoint Optimization Method pitzDaily Tutorial Velocity Magnitude

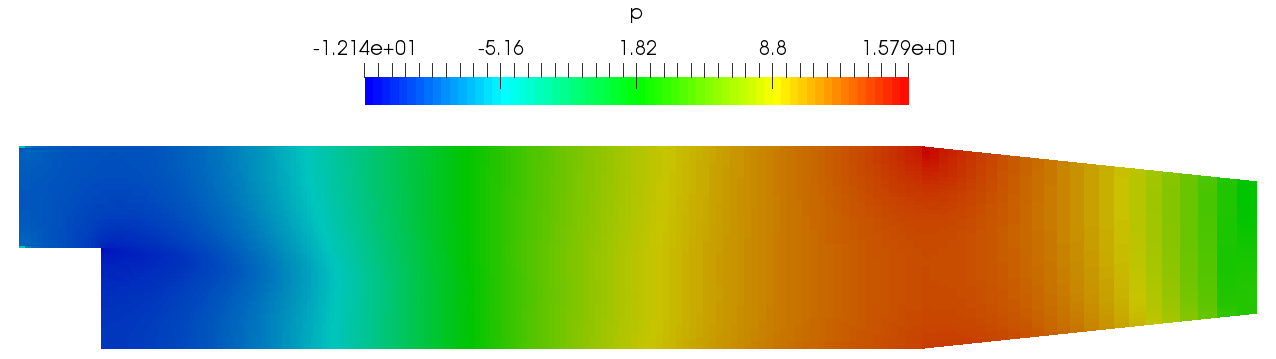

adjoint optimization method pitzDaily pressure

Figure: Adjoint Optimization Method pitzDaily Tutorial Pressure Distribution

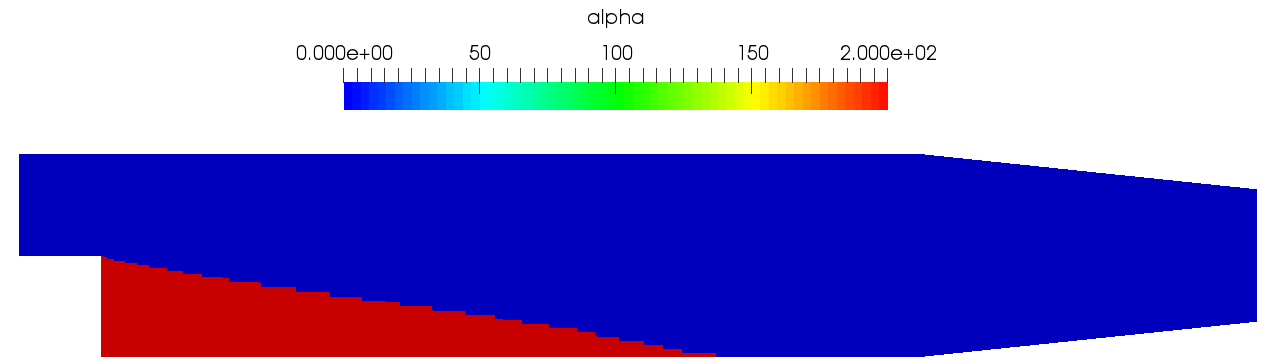

adjoint optimization method pitzDaily alpha

Figure: Adjoint Optimization Method pitzDaily Tutorial Alpha
