Manifold Tutorial Run

  • The tutorial is already pre-set.
  • The important mesh settings is in system/blockMeshDict.
  • Play with modifying of number of cells of the background mesh. Remember: snappyHexMesh does only a “snapping” to the srufaces – withing this method it is useful to keep equal level of all cells (refinementSurfaces > level (0 0);).
  • Run this tutorial by the bash script:
    # Allrun.sh
  • Just play around!

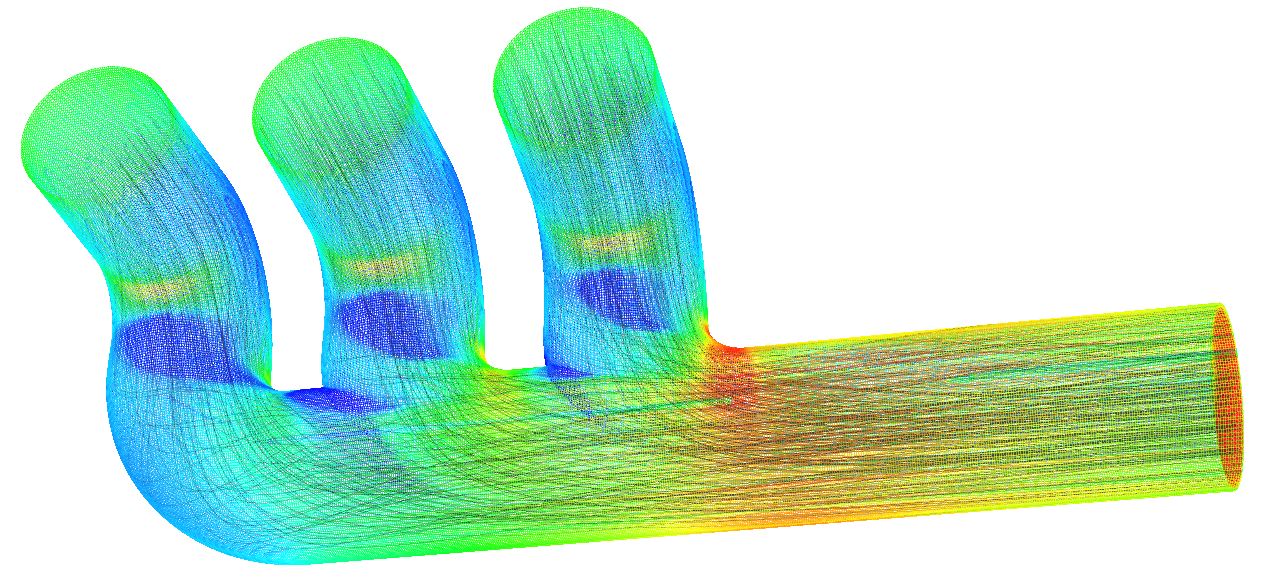

adjoint optimization method manifold velocity

Figure: Adjoint Optimization Method Manifold Tutorial Velocity

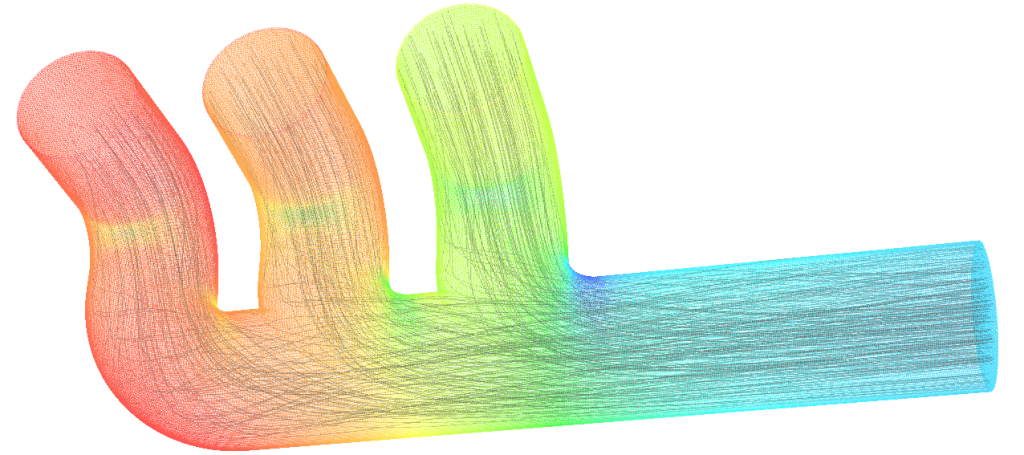

adjoint optimization method manifold pressure

Figure: Adjoint Optimization Method Manifold Tutorial Pressure

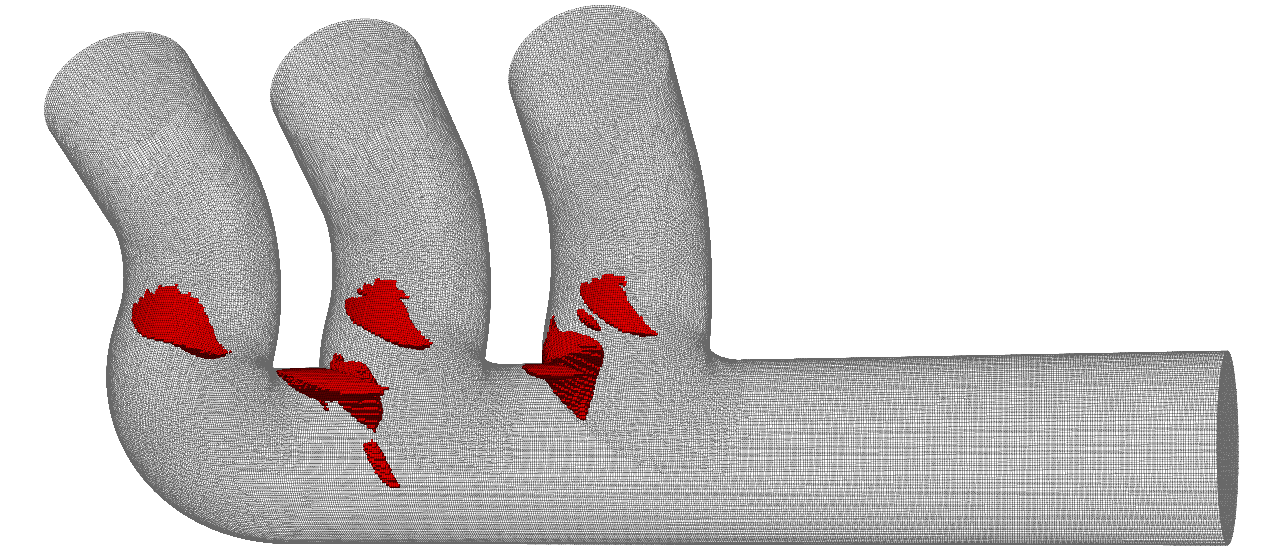

adjoint optimization method manifold alpha

Figure: Adjoint Optimization Method Manifold Tutorial Alpha

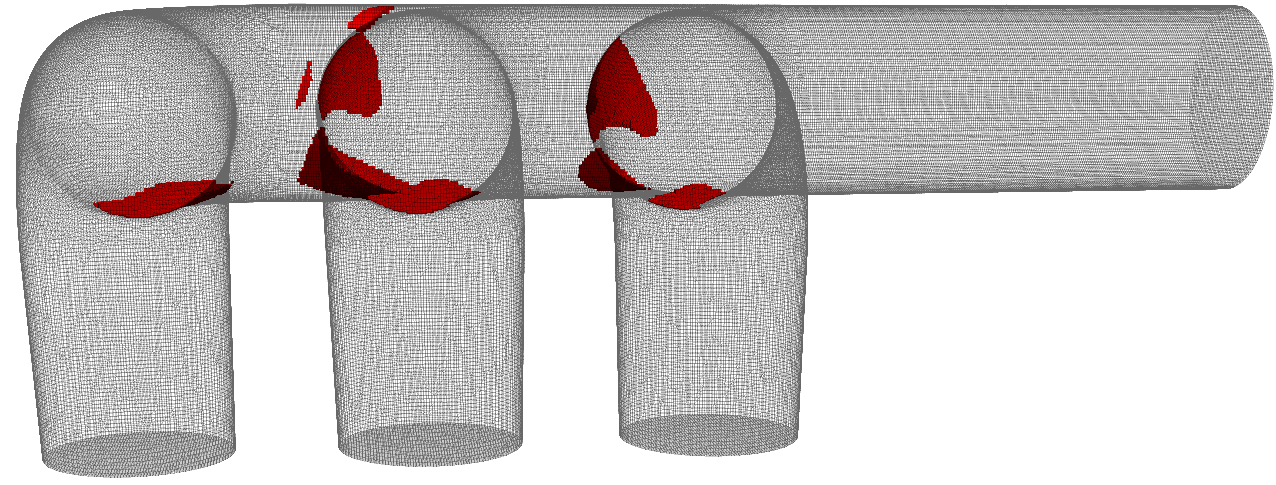

adjoint optimization method manifold alpha 2

Figure: Adjoint Optimization Method Manifold Tutorial Alpha
