Turbulent Boundary Layer

  • Developed turbulent boundary layer in u+ and y+ coordinates at point where $ Re_\Theta = 10000$
  • The comparison data are from Coles velocity law and NASA simulation (Spalart-Allmaras model)
turbulent boundary layer uy comparison data

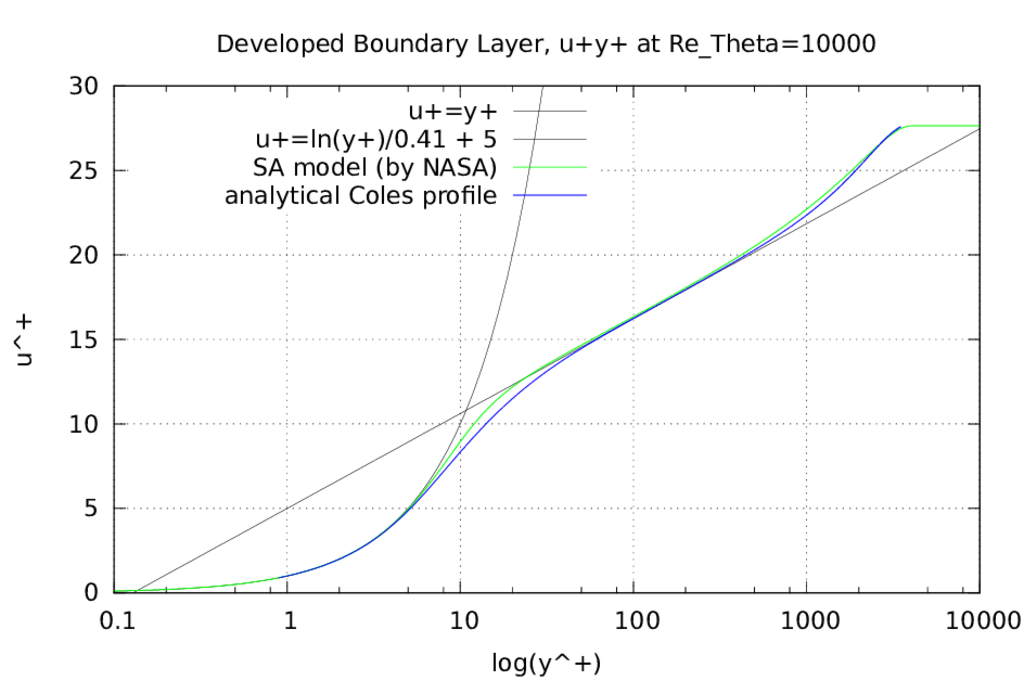

Figure: Developed turbulent boundary layer in u+ and y+ coordinates at point where $ Re_\Theta = 10000$ The comparison data are from Coles velocity law and NASA simulation (Spalart-Allmaras model)
