  • The current model is now ready for meshing with the triangular surface mesh.
  • After the mesh is generated you can export it in .STL.
  • Switch from the Geometry Module to the Mesh Module. There are two ways to do that. Either click on the Mesh Module icon as shown in the figure crossref 3. Or click on the combo box and select the Mesh as shown in the figure crossref 3.
4

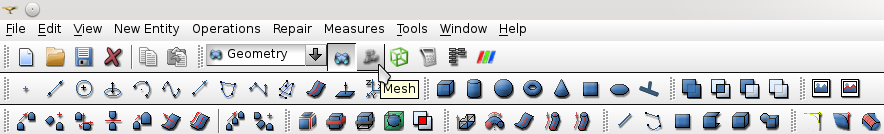

Figure: Select Mesh Module – the first choice

5

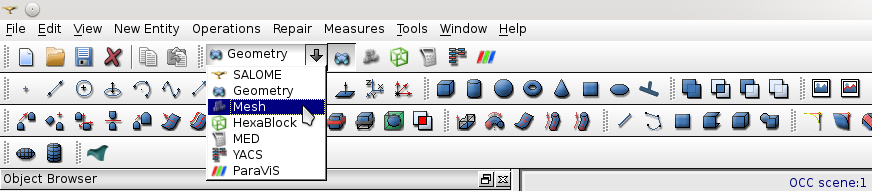

Figure: Select Mesh Module – the second choice
