Meshing the surface model

  • To create a mesh navigate to Mesh > Create Mesh in the upper menu. The window Create mesh appears (see figure crossref).
  • In the Create mesh window input a mesh name into Name box. Then select the inlet region – named region1 as a model. In the 2D tab choose the Netgen 1D-2D as an Algorithm. And select the Netgen 2D Parameters as a Hypothesis. (see figure crossref).
  • After choosing the hypothesis, window for parameters appears – Hypothesis Construction – here change the Max. Size to 0.001 and the Fineness to the Very Fine (see figure crossref).
124

Figure: Create Mesh window

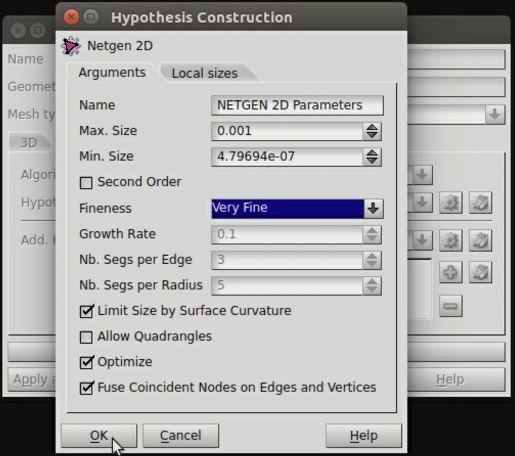

125

Figure: 2D Hypothesis

  • Now create a sub-mesh for inlet and outlet regions on groups that were created in the previous section (see section crossref 3). Only by creating the sub-meshes you will be able to export these groups separately as individual STL files. With no sub-meshes only the export of the whole model (one STL) would be possible.
  • Create a sub-mesh. It is very similar operation to Create mesh.
  • In the upper menu navigate to Mesh > Create Sub-mesh. The window Create sub-mesh appears (see figure crossref 3).
  • Enter a Name. As a Mesh select the region1 (inlet part). As a Geometry select one of the model group – e.g. region1_inlet. In an Algorithm set the Netgen 1D-2D. In a Hypothesis set NETGEN 2D Parameters. The same was set in the general meshing setup earlier.
  • Repeat the creation of sub-mesh for all the remaining groups of the inlet part region1.
126

Figure: Create a Submesh

Now everything is ready for the surface mesh generation. To generate a surface mesh navigate to the upper menu Mesh > Compute and the surface mesh will be generated.
