Exporting STL Files

Select each Sub-mesh one by one in your inlet part (region1 and export them. Navigate to the upper menu File > Export > STL File (see figure crossref).

  • Repeat the surface mesh generation and STL export also for outlet region region2.
  • Repeat the surface mesh generation and STL export also for all three valve plugs. A valve plug is not split into groups so it is not necessary to create a sub-mesh. Just export the whole surface mesh of the plug.
  • Save your progress.
  • BTW: The current state can be loaded anytime as an original file: “part5.hdf“.
  • The valve preprocessing is finished now.
30

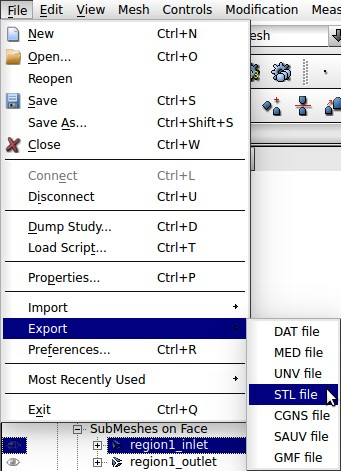

Figure: Export an STL File
