Flow path geometry

Any design of a real geometry contains complex details such as solids, screws, mounting joints, sealings, nuts, etc. To simulate a flow we need to have a clear geometry describing a flow path only. See figure below.

volute solid

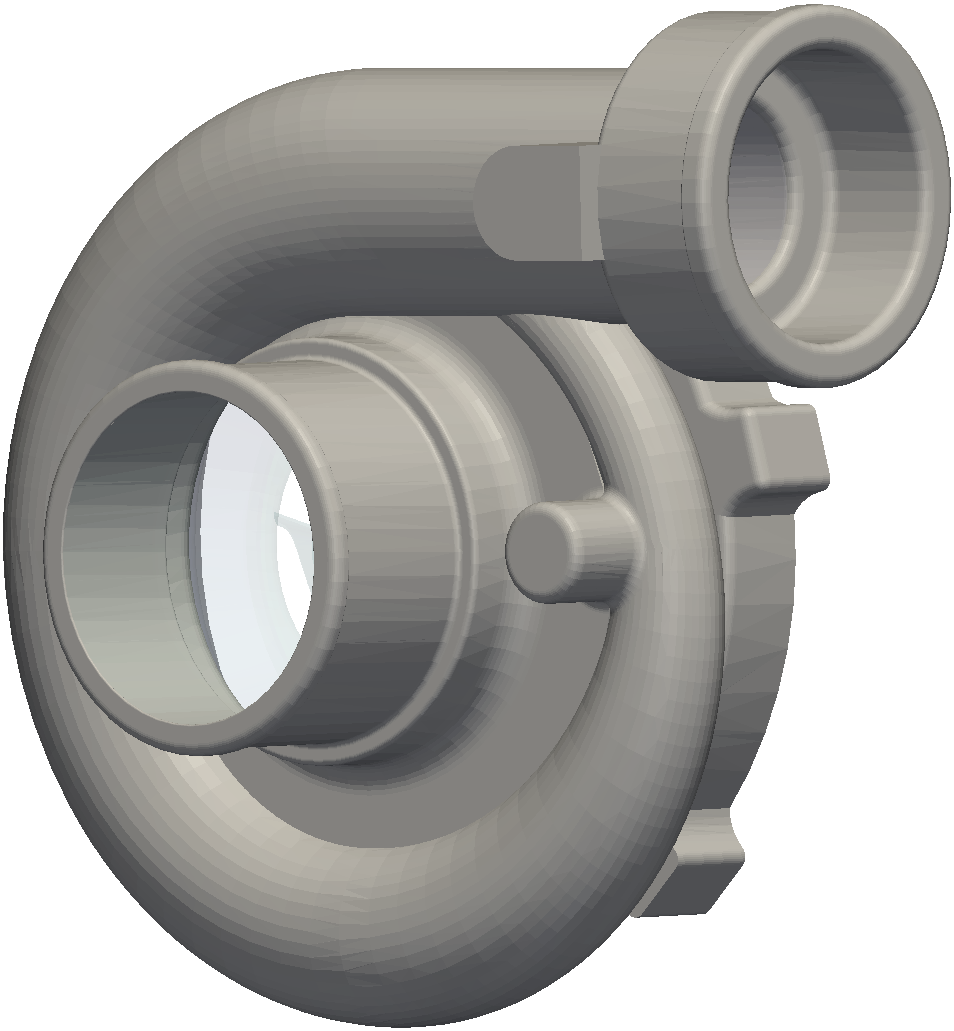

Solid geometry

volute flowPath

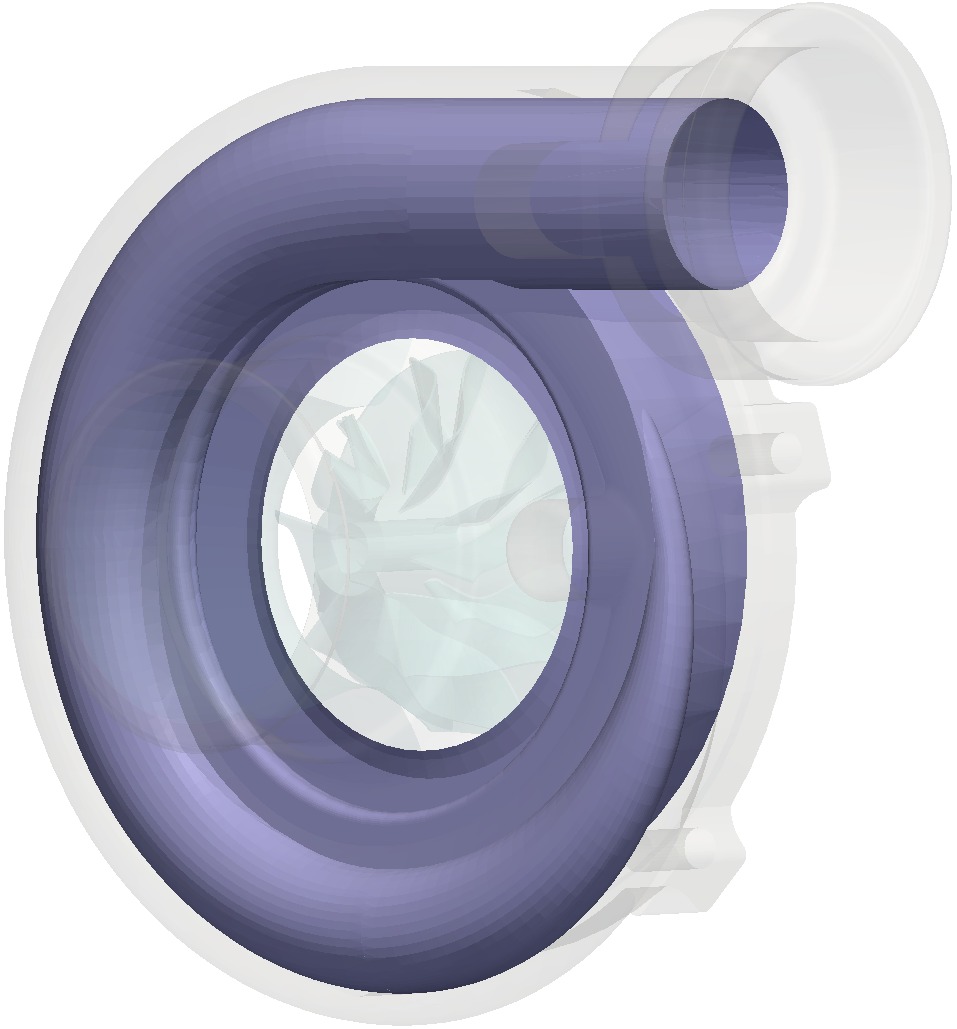

Flow path geometry

INPUT RULE 1: Having a clear geometry describing the flow path only.
