Result Examples - Radial Compressor

viewc1SolidT

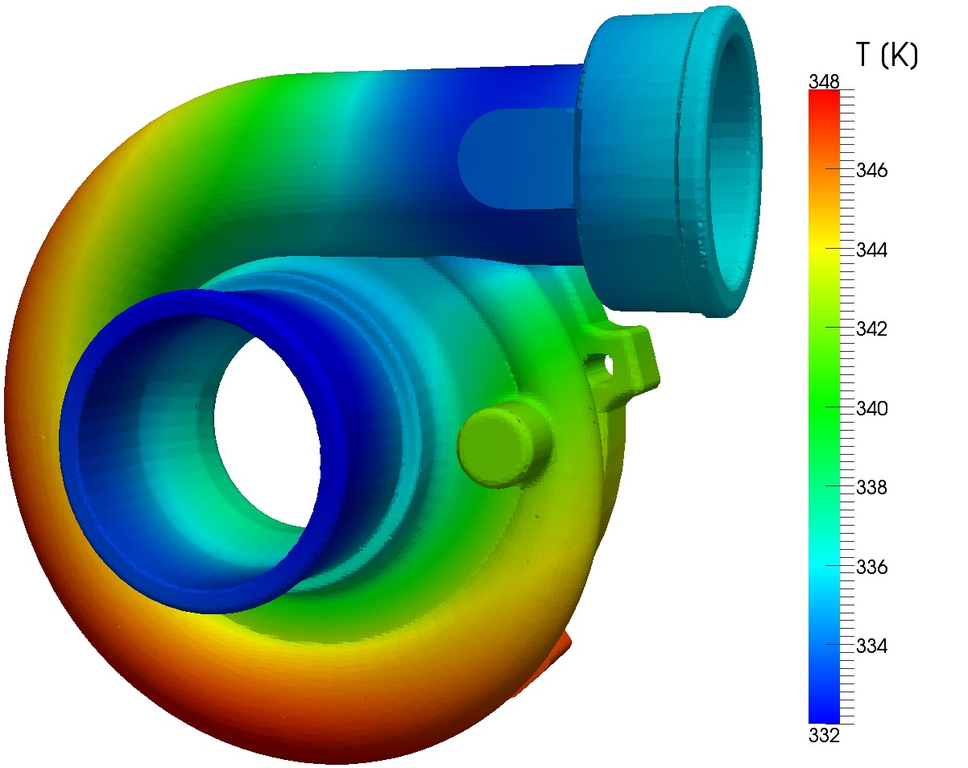

Figure: Temperature distribution at solid part of compressor.

viewc1RotorWheelU

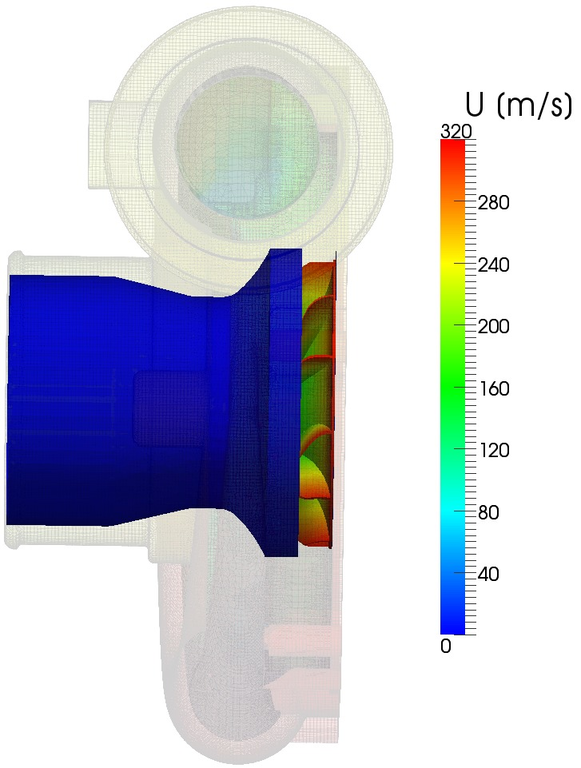

Figure: Distribution of velocity magnitude at rotor part.

viewc1RotorWheelT

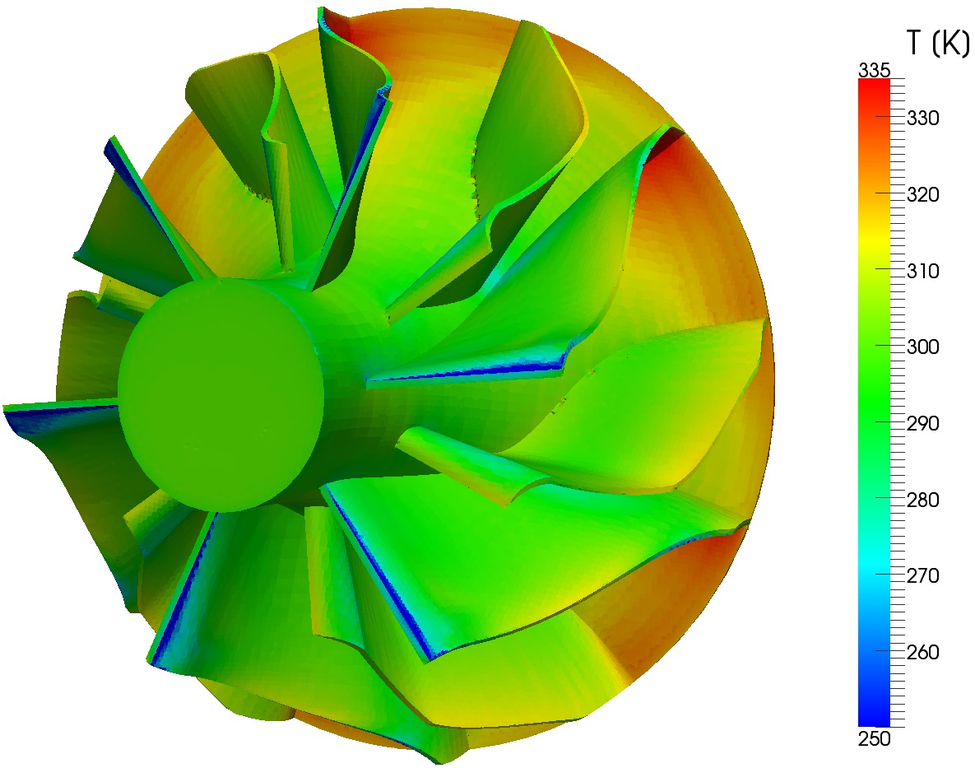

Figure: Rotor wheel temperature distribution.
Image viewc1RotorWheelT

viewc1RotorStatorStrp

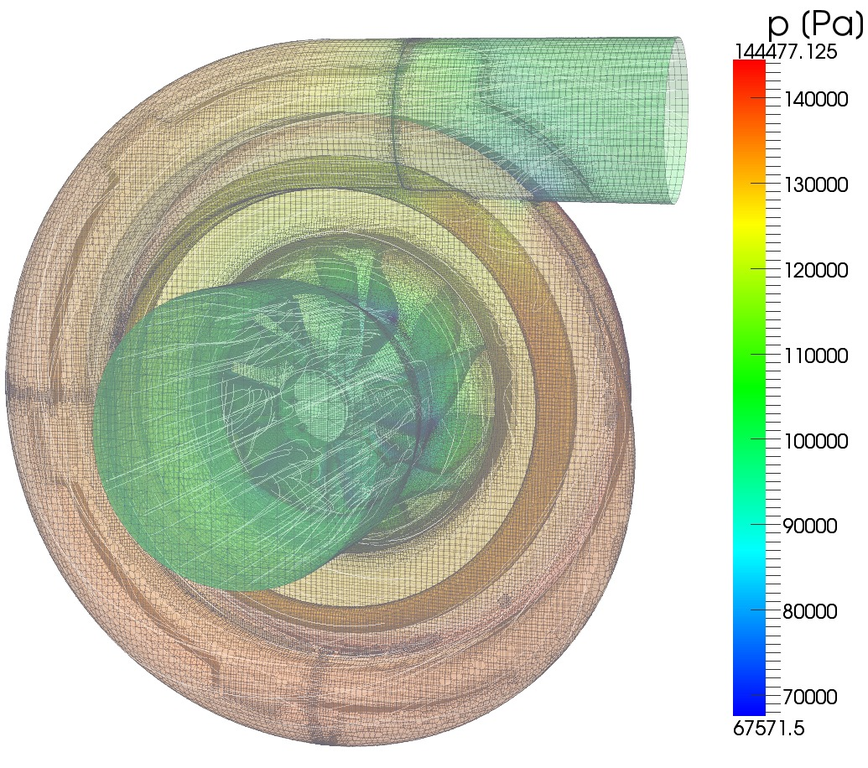

Figure: Radial compressor pressure distribution.

viewc1RotorStatorStrp3

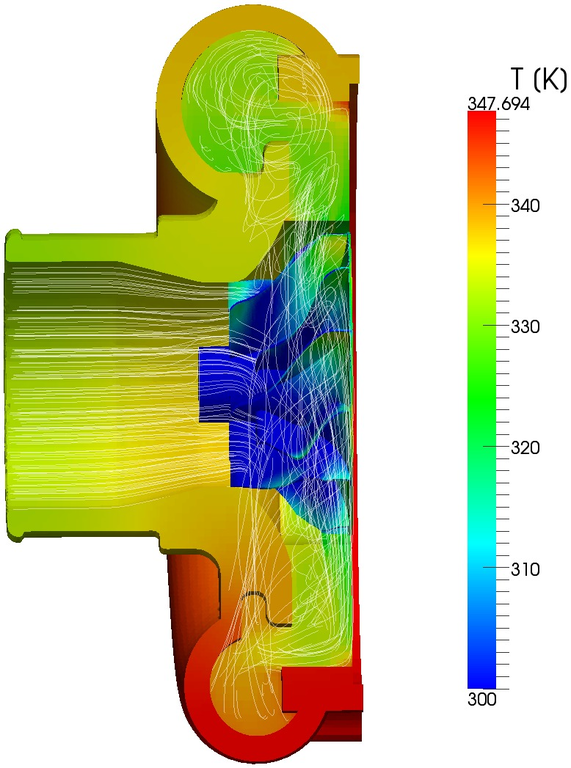

Figure: Temperature distribution and velocity streamlines visualization.

viewc1RotorStatorStrp2

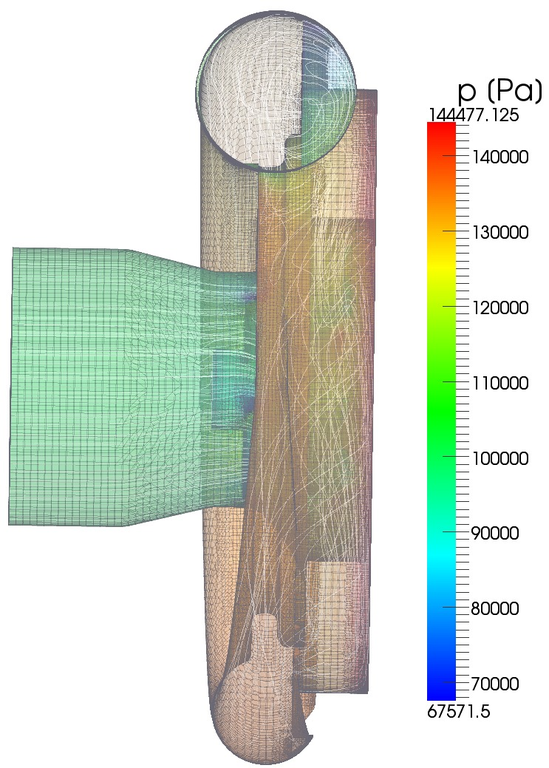

Figure: Radial compressor pressure distribution.

viewc1RotorStatorp

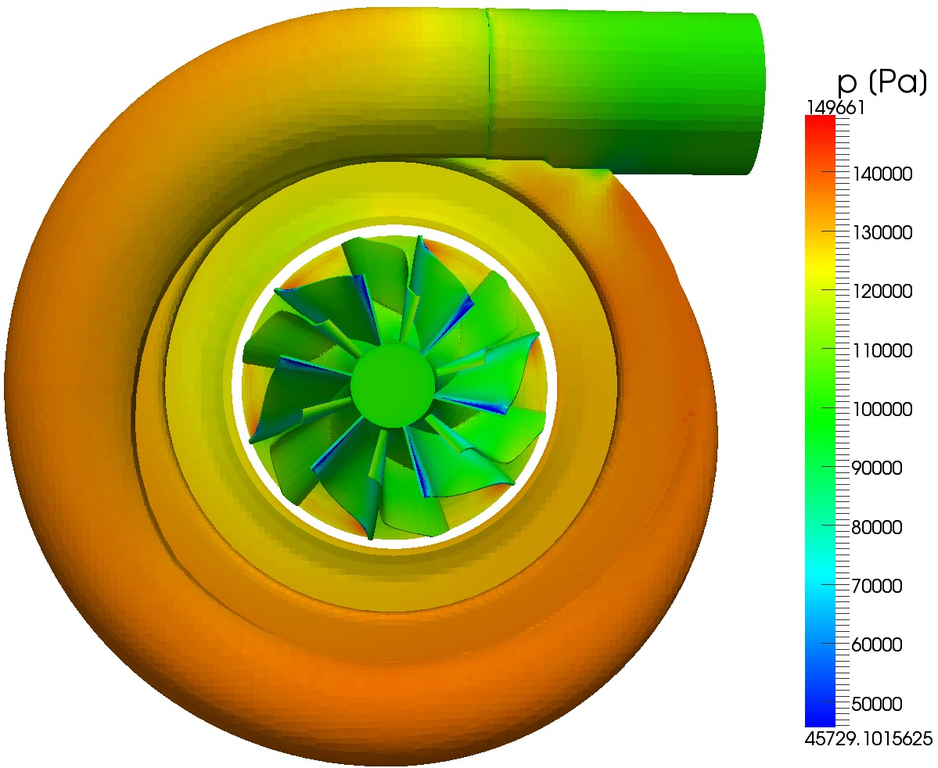

Figure: Radial compressor pressure distribution.
