Renumber Mesh

In order to reduce bandwidth and speed up computation on the generated mesh, it is convenient to use renumberMesh utility using following command:

# renumberMesh -latestTime

TurbomachineryCFD fan nq28 compressible noHousing full mesh

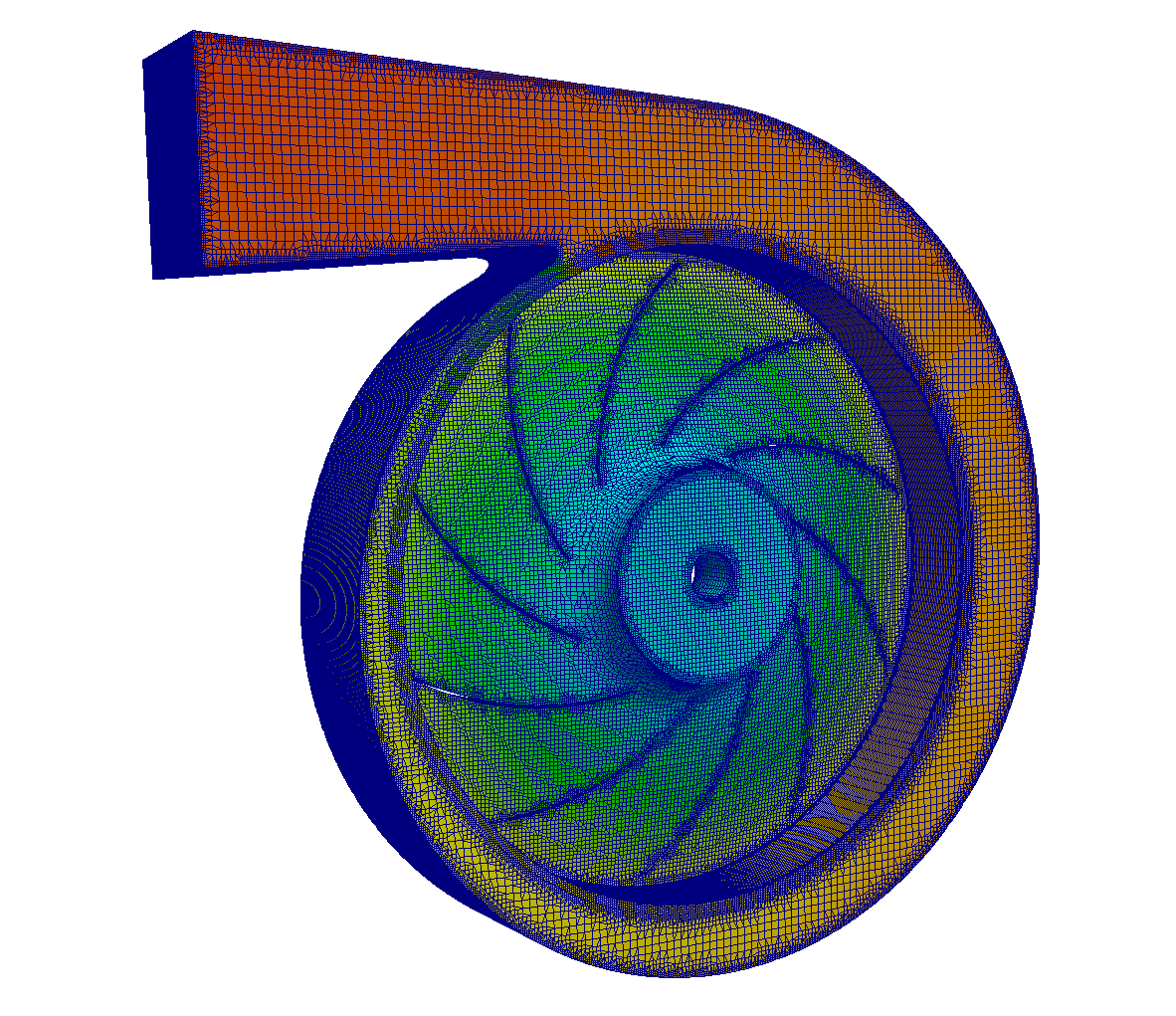

Figure: Centrifugal fan complete snappyHexMesh model view. Two regions of computational model: rotor; stator;
