Running snappyHexMesh - Stator Region

TurbomachineryCFD fan nq28 compressible noHousing pressure

Figure: Centrifugal fan, compressible, no housing, complete model view and pressure distribution.

TurbomachineryCFD fan nq28 compressible noHousing pressure cull

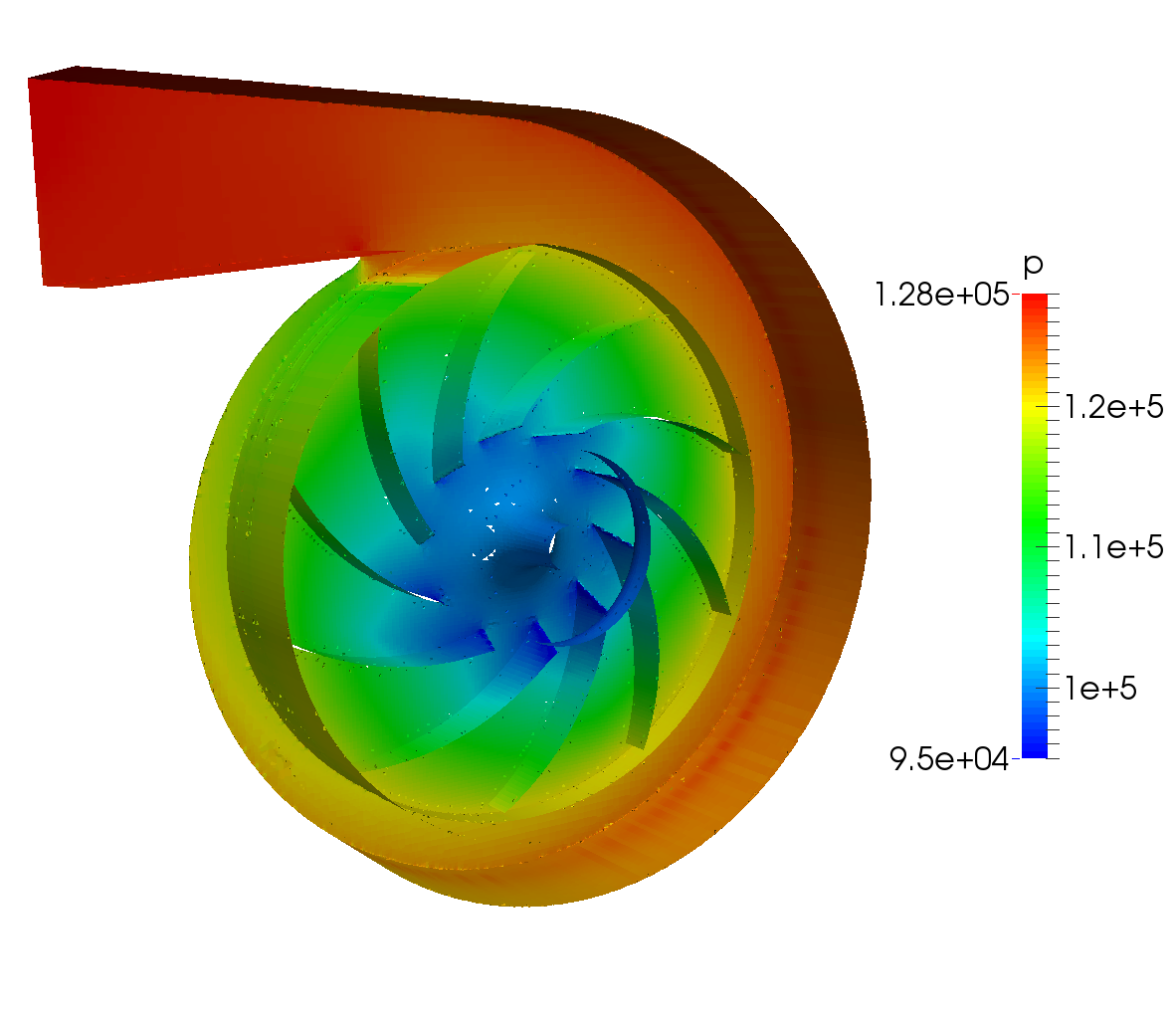

Figure: Centrifugal fan, compressible, no housing, complete model view and pressure distribution. Cull front face view.

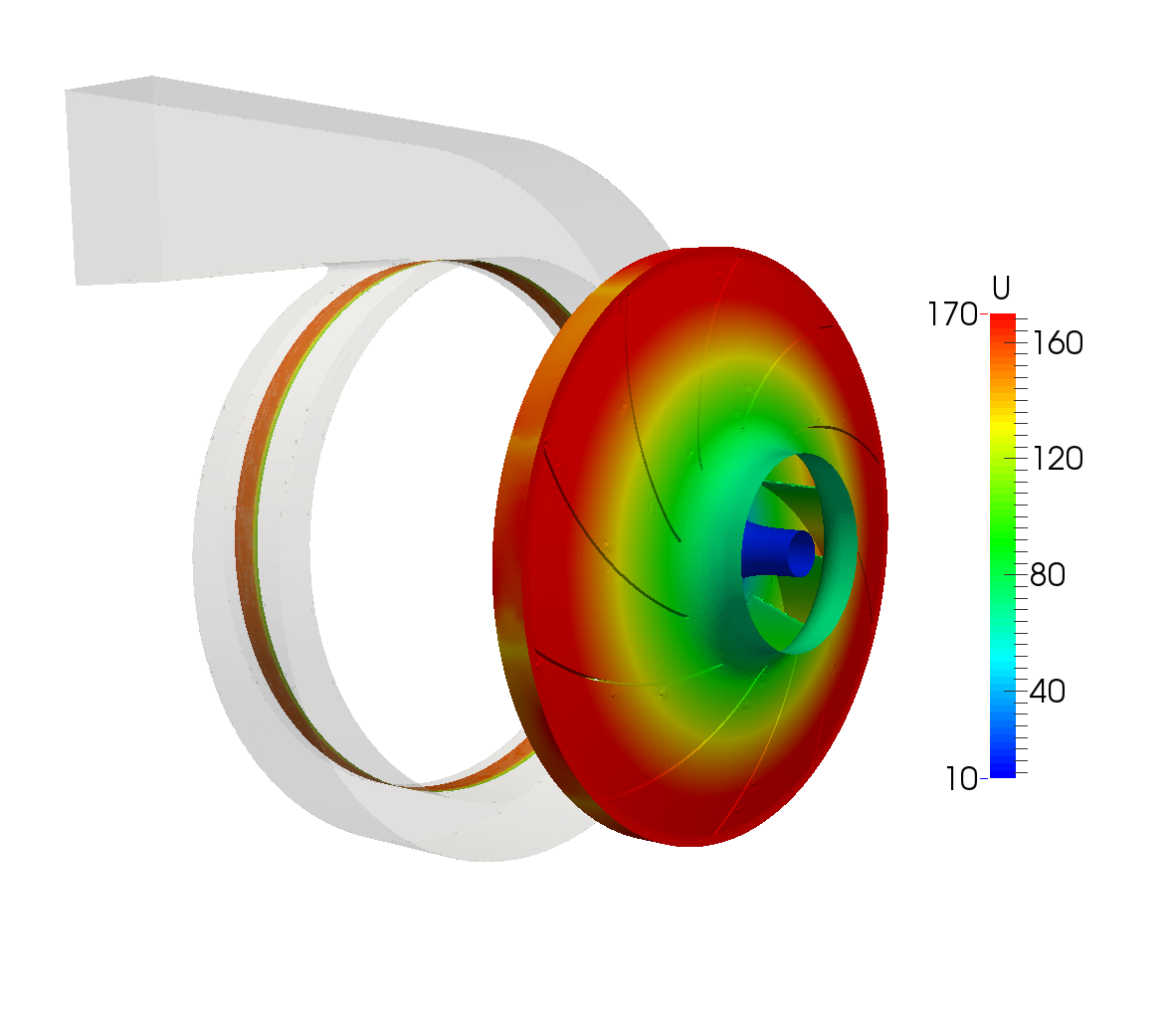

TurbomachineryCFD fan nq28 compressible noHousing velocity

Figure: Centrifugal fan, compressible, no housing, complete model view and velocity magnitude. Mixing Interface. Inlet side view

TurbomachineryCFD fan nq28 compressible noHousing velocity 2

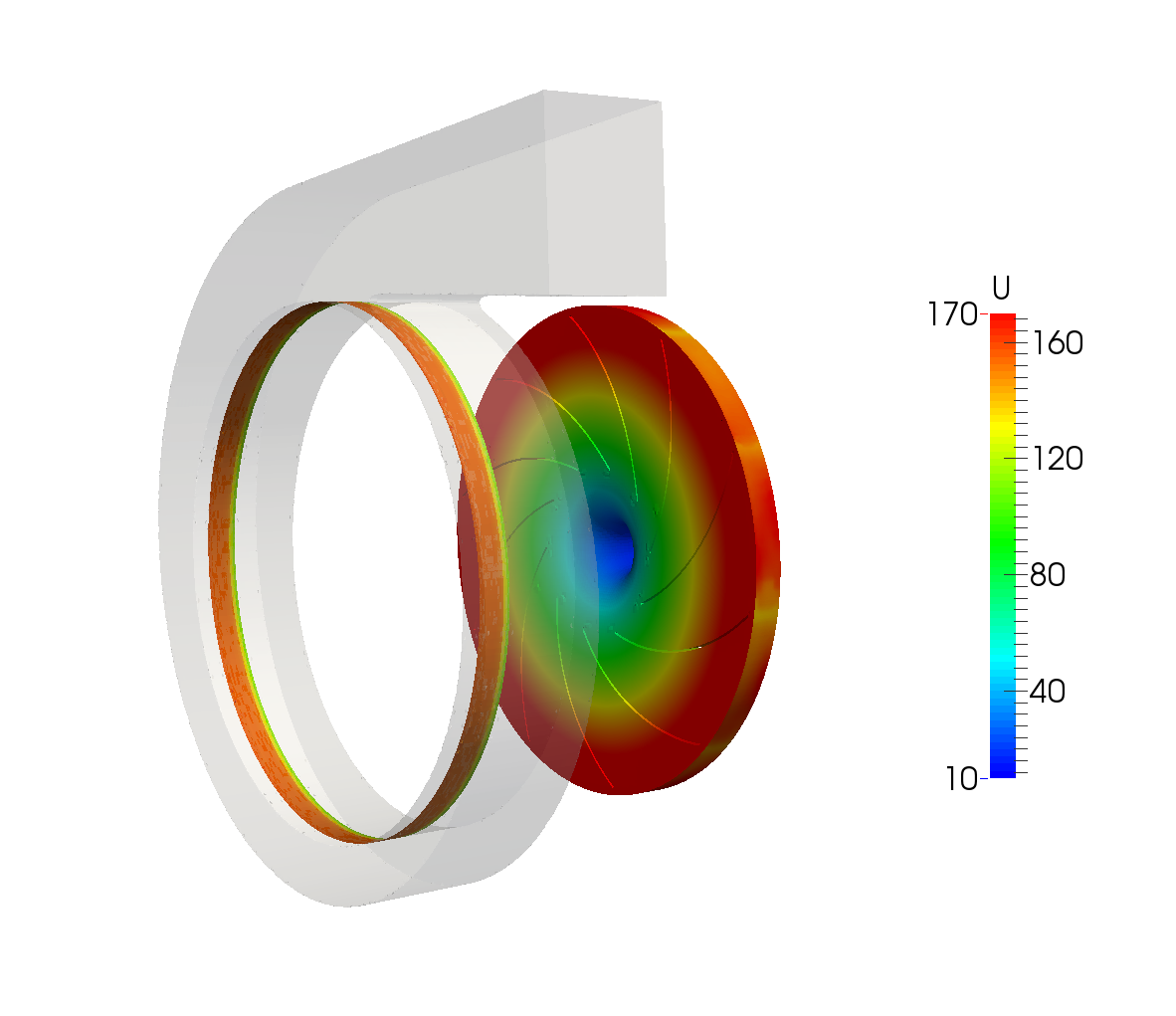

Figure: Centrifugal fan, compressible, no housing, complete model view and velocity magnitude. Mixing Interface. Back side view.

TurbomachineryCFD fan nq28 compressible noHousing wheel velocity

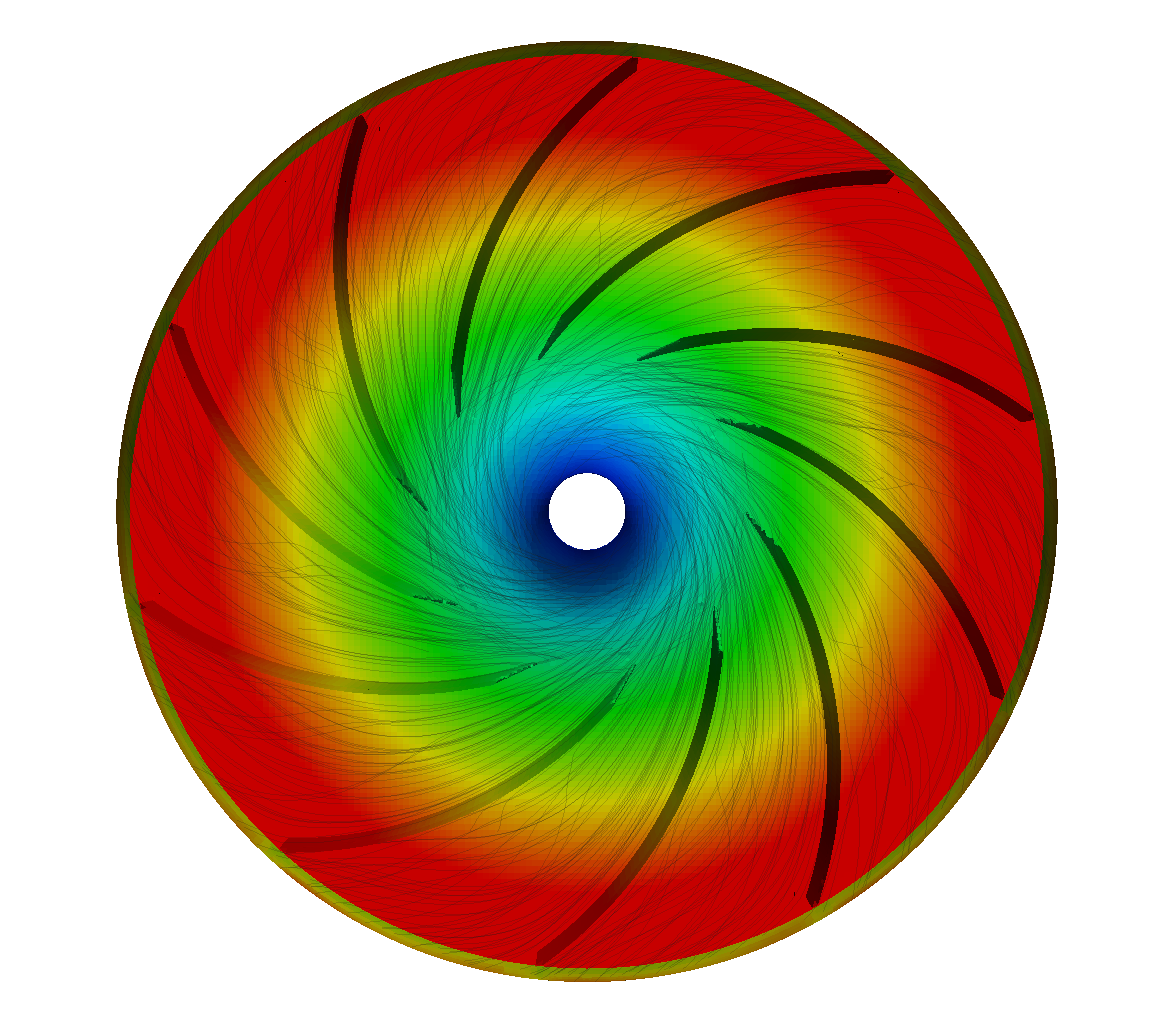

Figure: Centrifugal fan, compressible, no housing. Velocity magnitude. Wheel and streamtraces view.

TurbomachineryCFD fan nq28 compressible noHousing wheel velocity 2

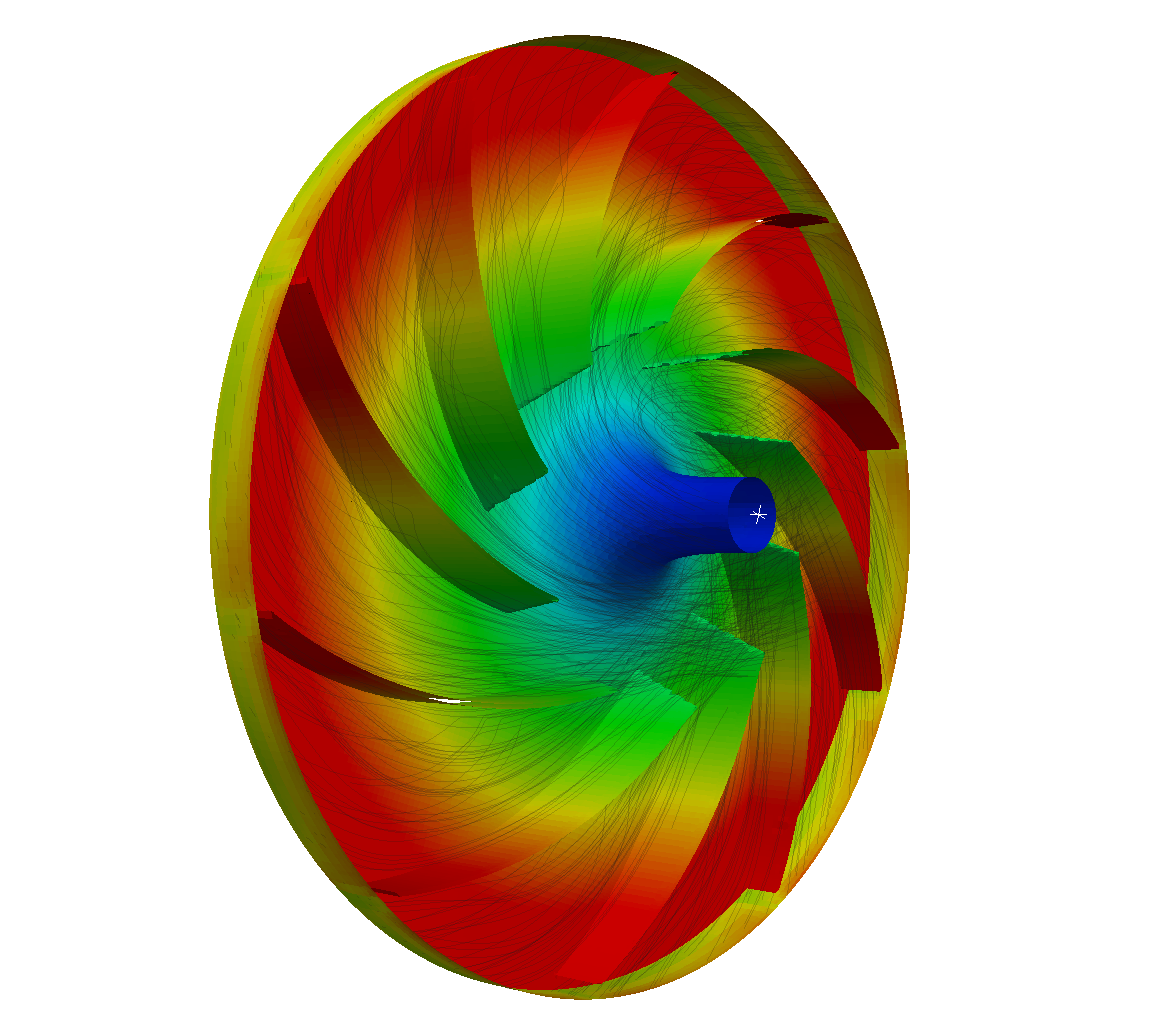

Figure: Centrifugal fan, compressible, no housing. Velocity magnitude. Wheel and streamtraces view.

TurbomachineryCFD fan nq28 compressible meridional average pressure

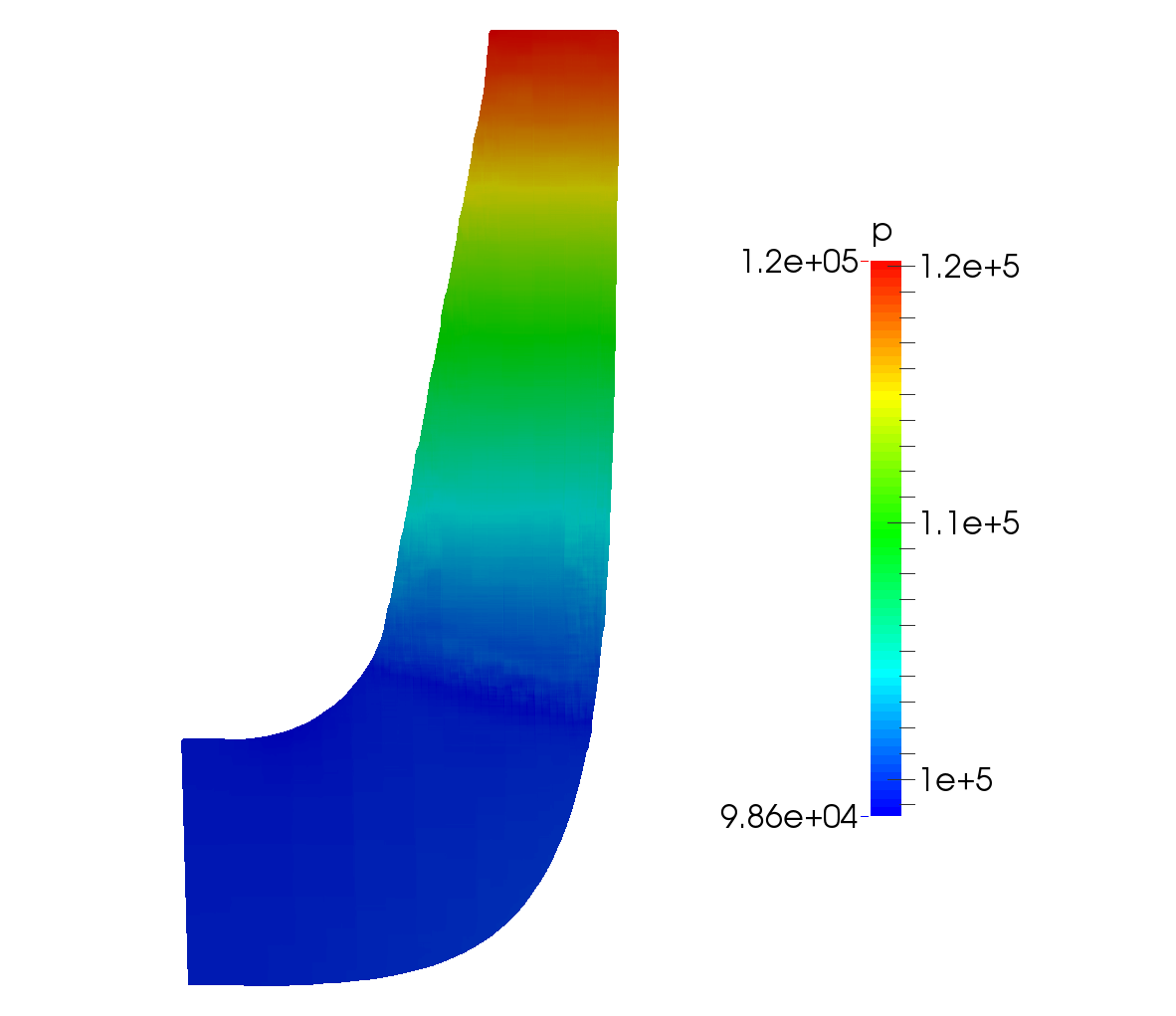

Figure: Centrifugal fan, compressible, no housing. Meridional average. Static pressure.

TurbomachineryCFD fan nq28 compressible meridional average relative Mach

Figure: Centrifugal fan, compressible, no housing. Meridional average. Relative Mach number.

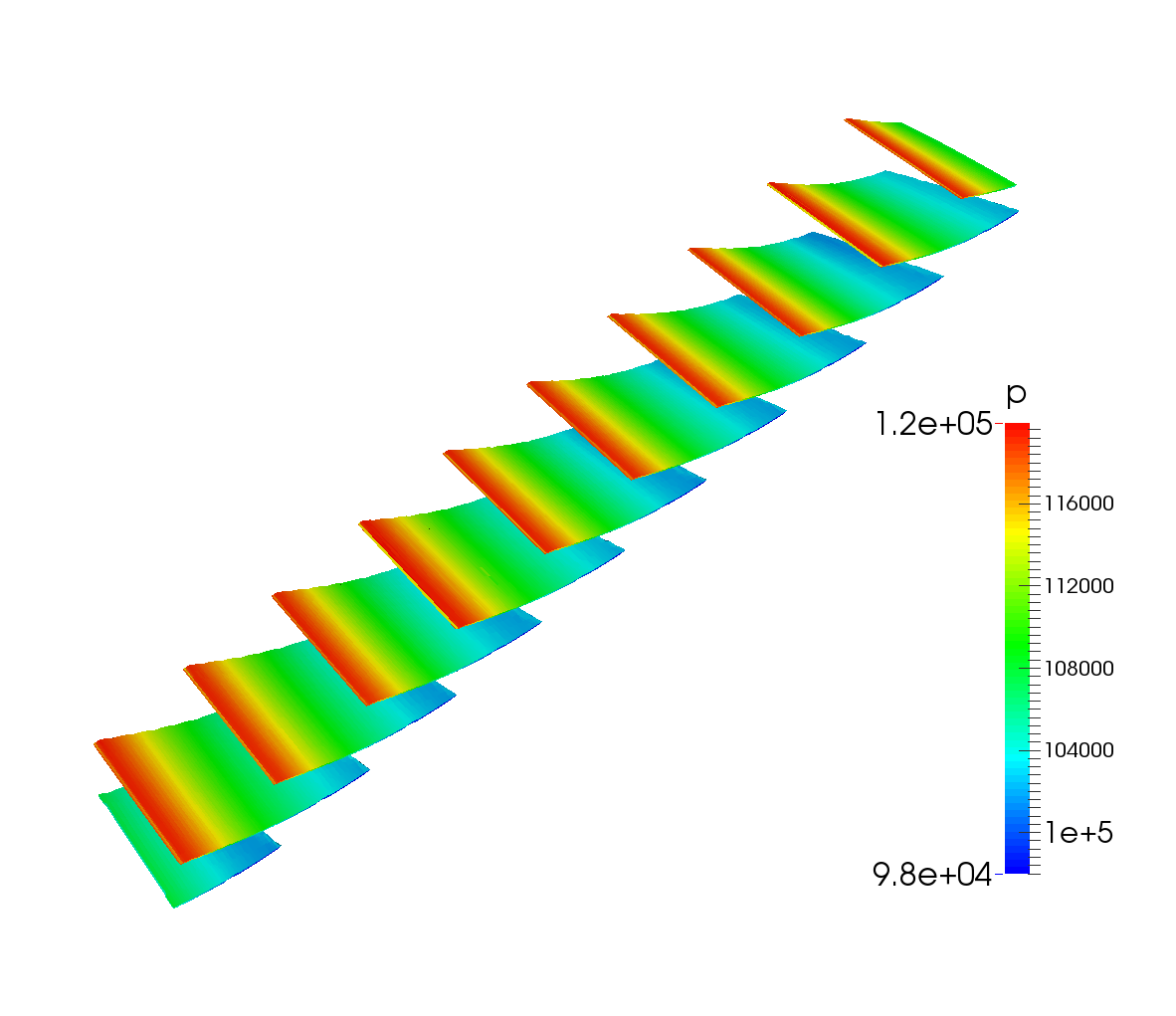

TurbomachineryCFD fan nq28 compressible unwrapped blades

Figure: Centrifugal fan, compressible, no housing. Turbo Blade Post unwrapped blades. Static pressure.

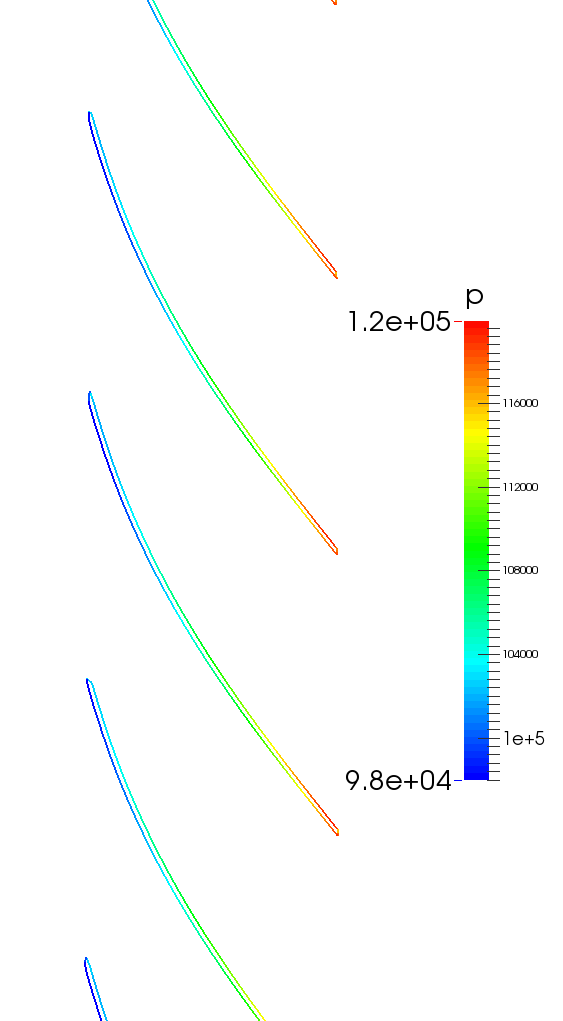

TurbomachineryCFD fan nq28 compressible pressure slice blade

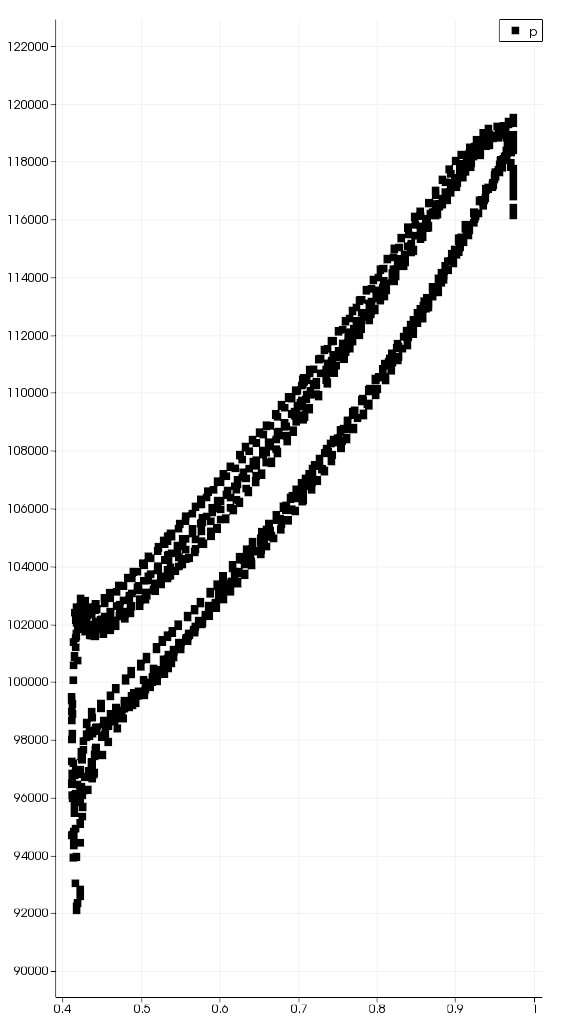

TurbomachineryCFD fan nq28 compressible pressure around blade

Figure: Centrifugal fan, compressible, no housing. Turbo Blade Post unwrapped blades. Static pressure along the blade. Slice 50% of blade height.

TurbomachineryCFD fan nq28 compressible pressure slice 50

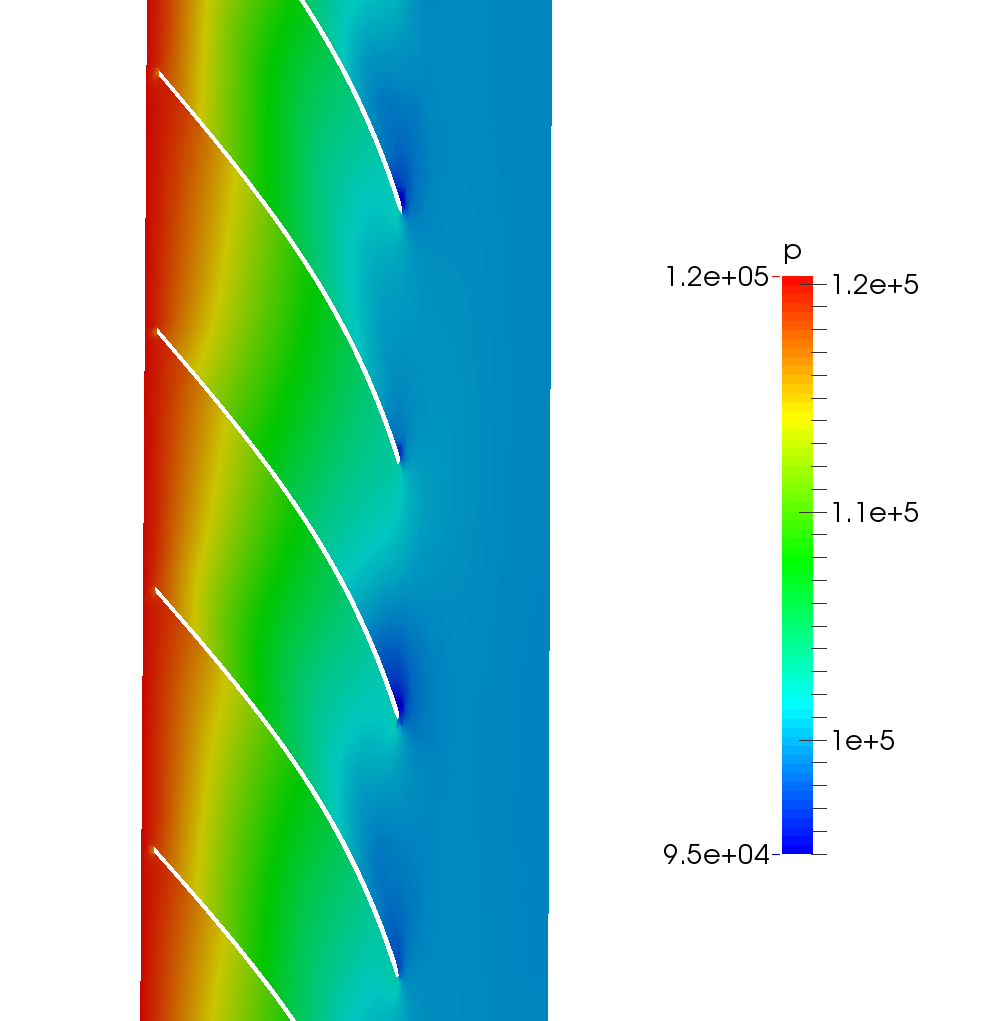

TurbomachineryCFD fan nq28 compressible pressure slice 50 2

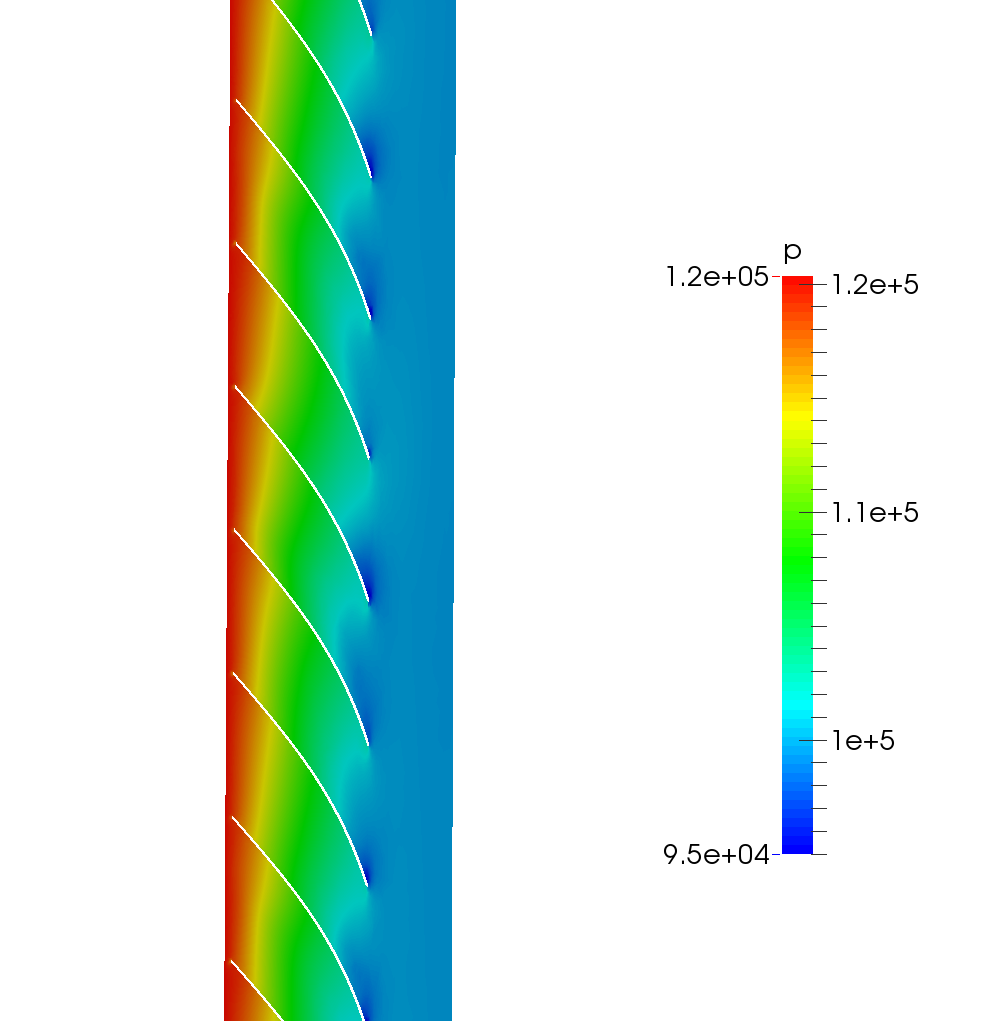

Figure: Centrifugal fan, compressible, no housing. Turbo Blade Post unwrapped volume. Static pressure. Slice 50% of blade height.

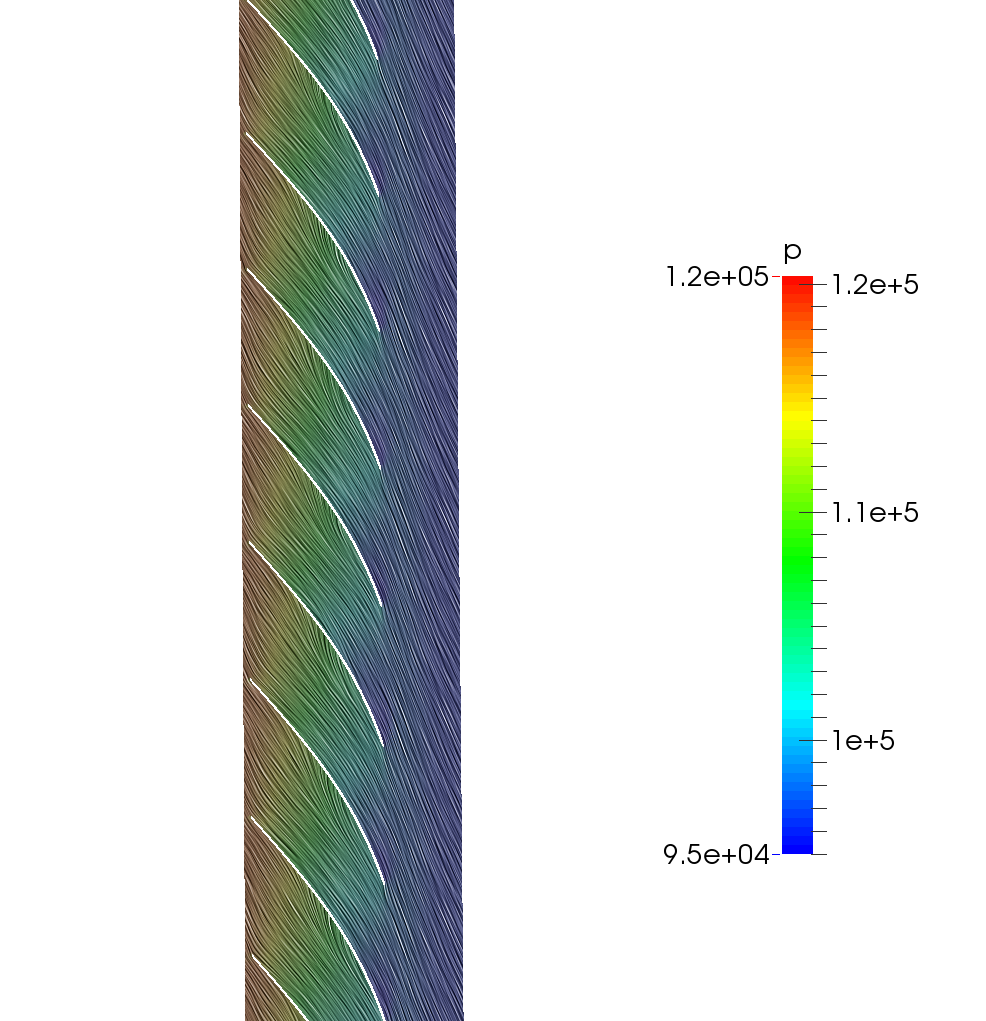

TurbomachineryCFD fan nq28 compressible unwrapped blade to blade

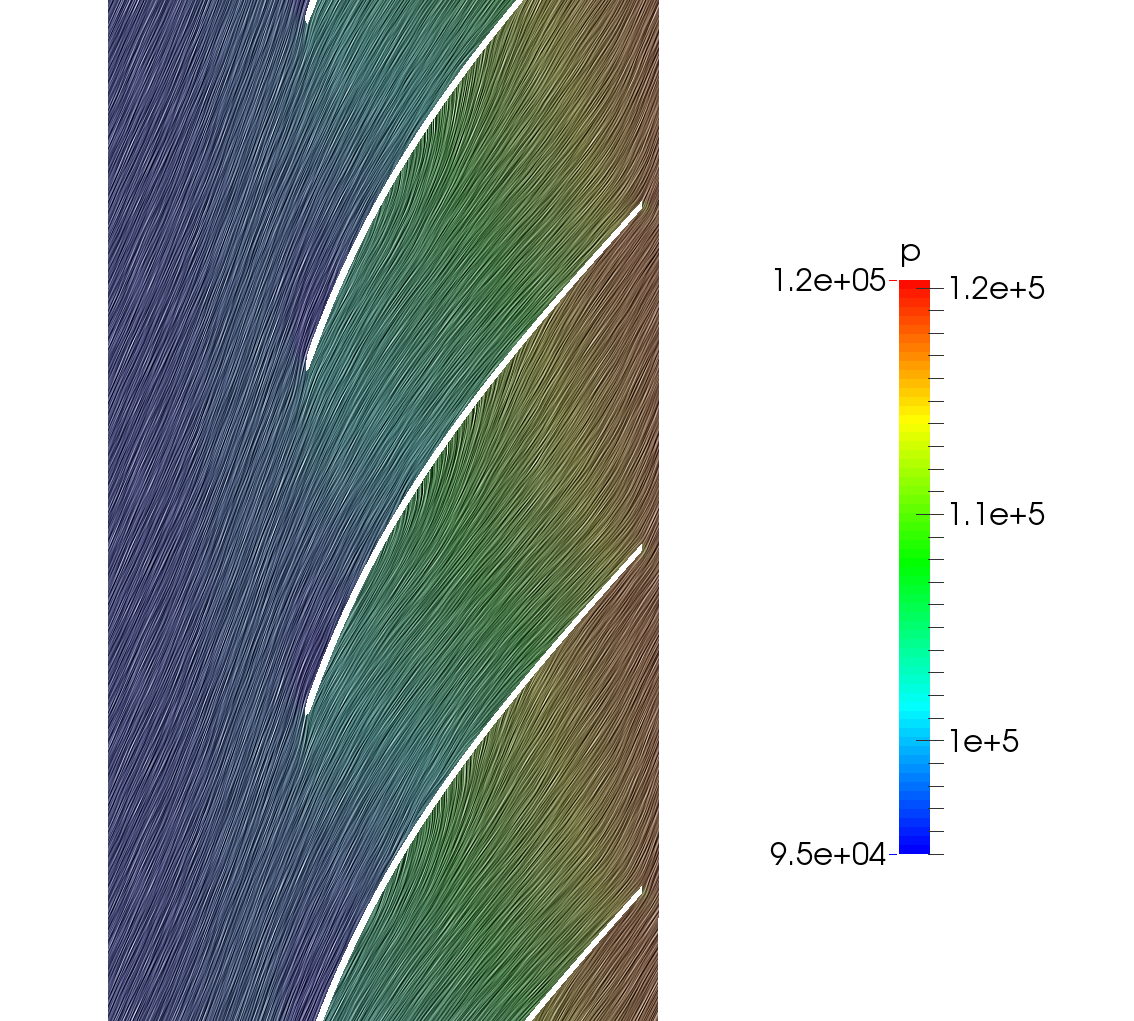

TurbomachineryCFD fan nq28 compressible unwrapped blade to blade detail

Figure: Centrifugal fan, compressible, no housing. Turbo Blade Post unwrapped volume. Static pressure. Slice 50% of blade height. Surface LIC view (streamtraces)

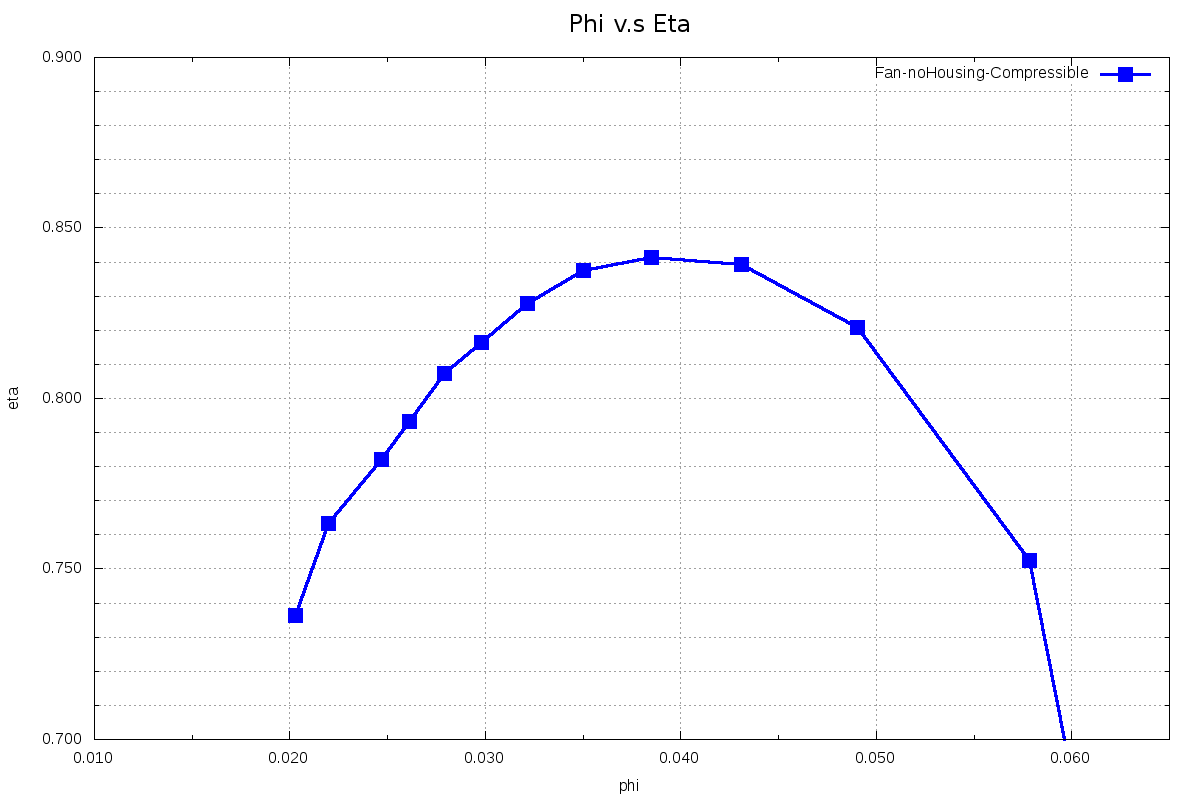

TurbomachineryCFD fan nq28 compressible noHousing phi eta

Figure: Centrifugal fan, compressible, no housing. Flow number (phi) vs. Efficiency (eta)

TurbomachineryCFD fan nq28 compressible noHousing phi psi

Figure: Centrifugal fan, compressible, no housing. Flow number (phi) vs. Pressure number (psi)
